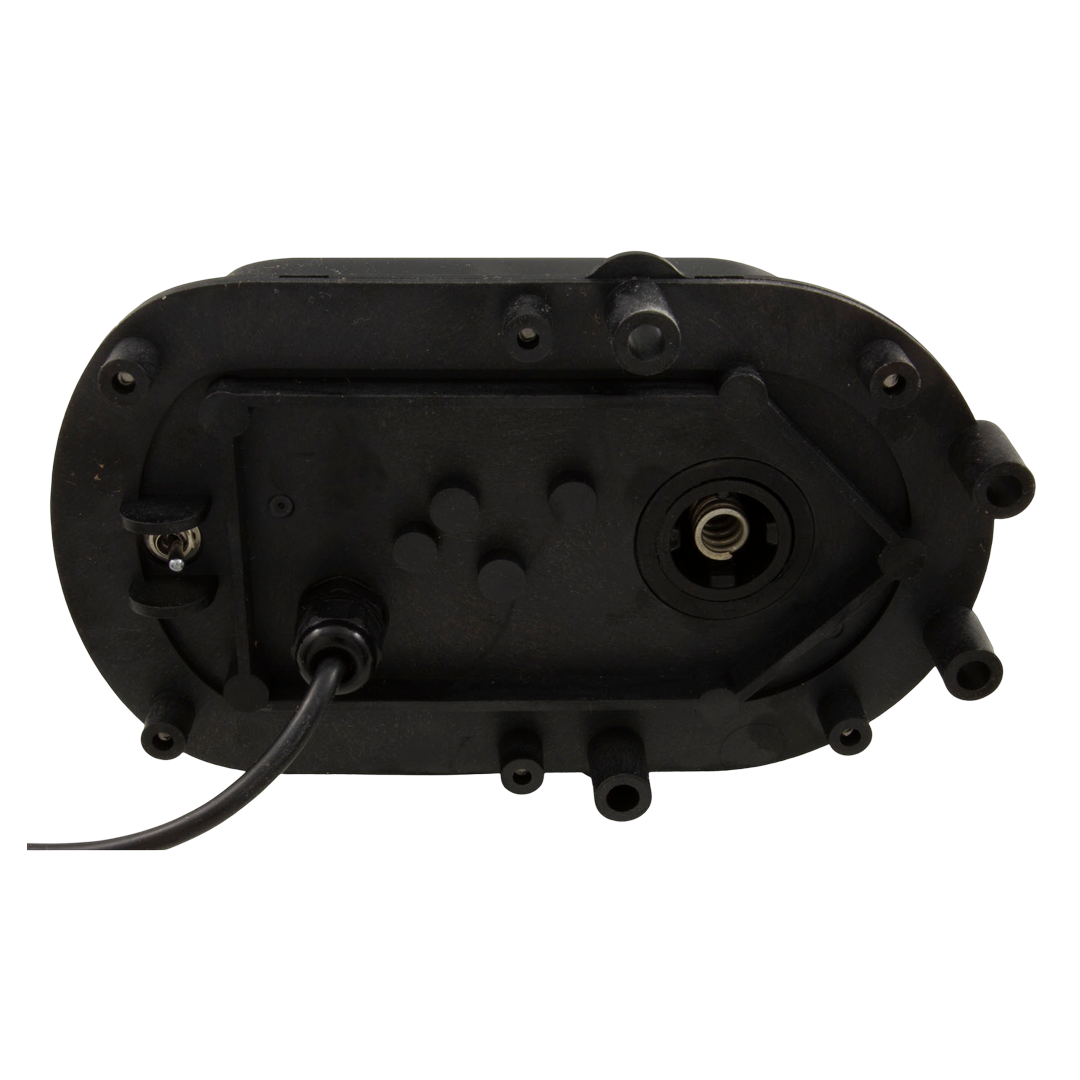

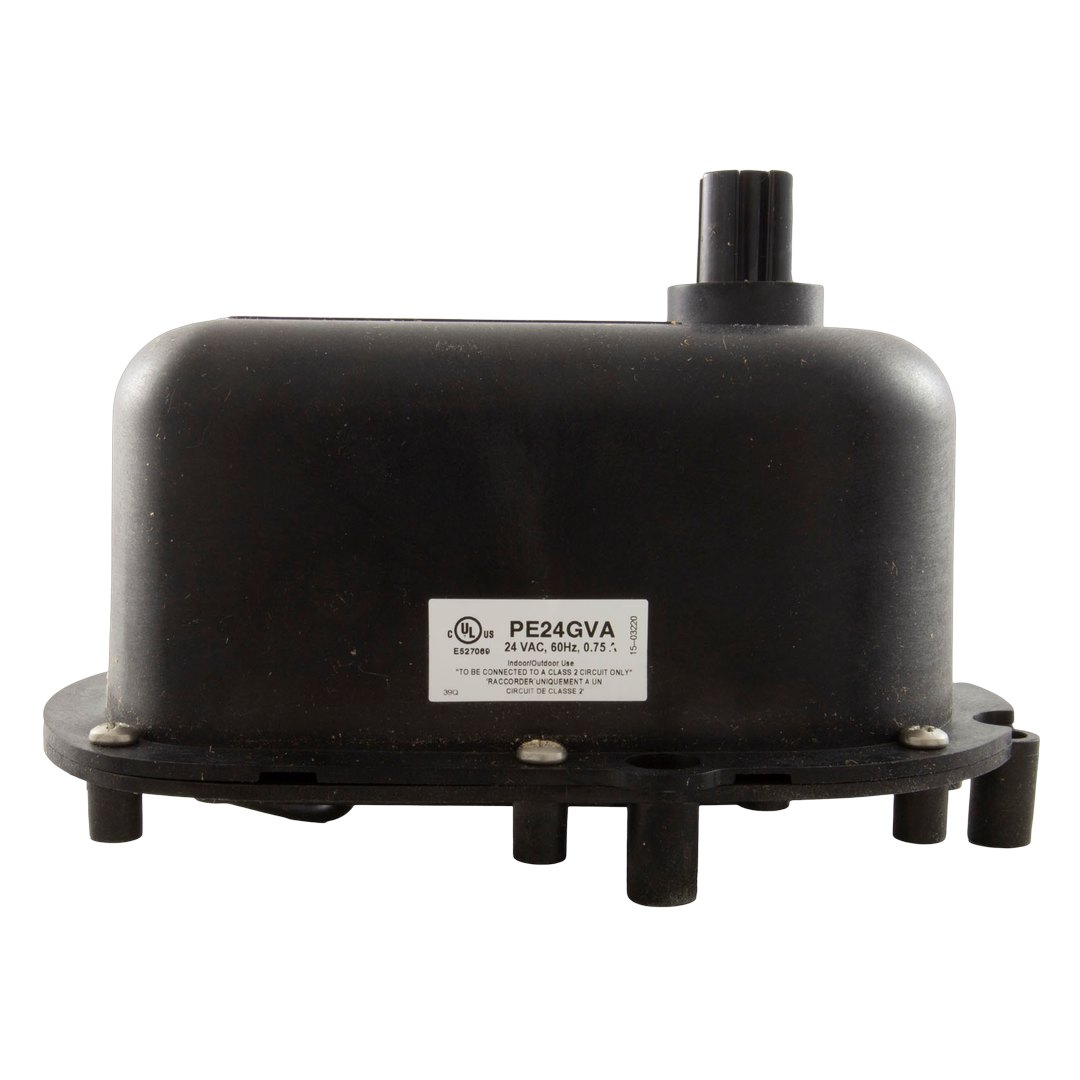

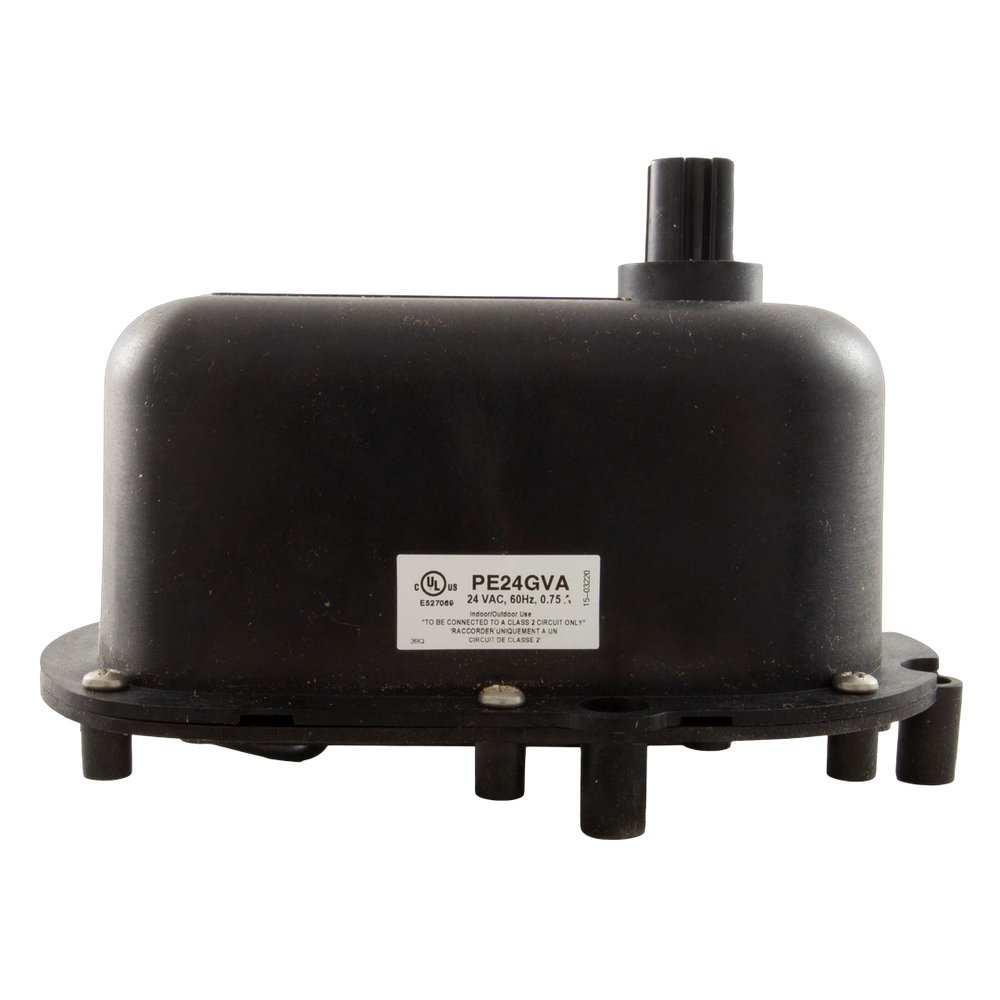

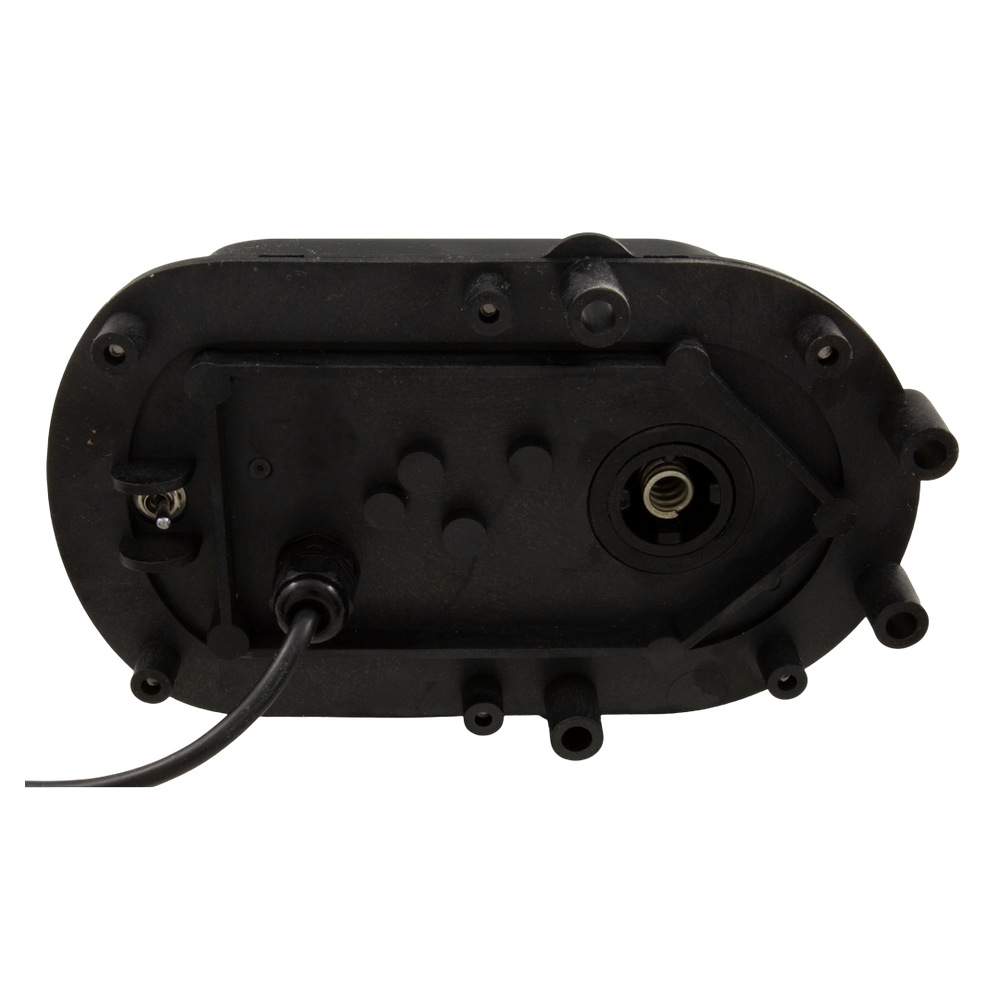

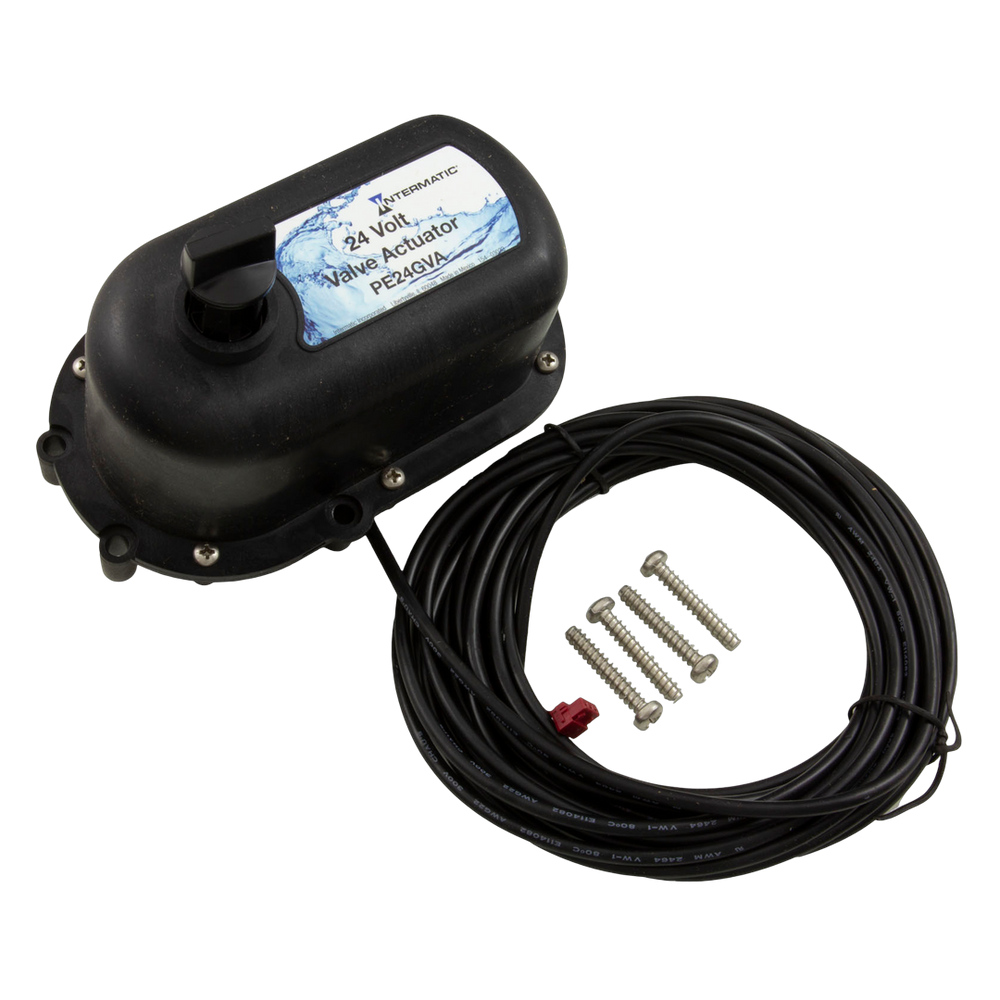

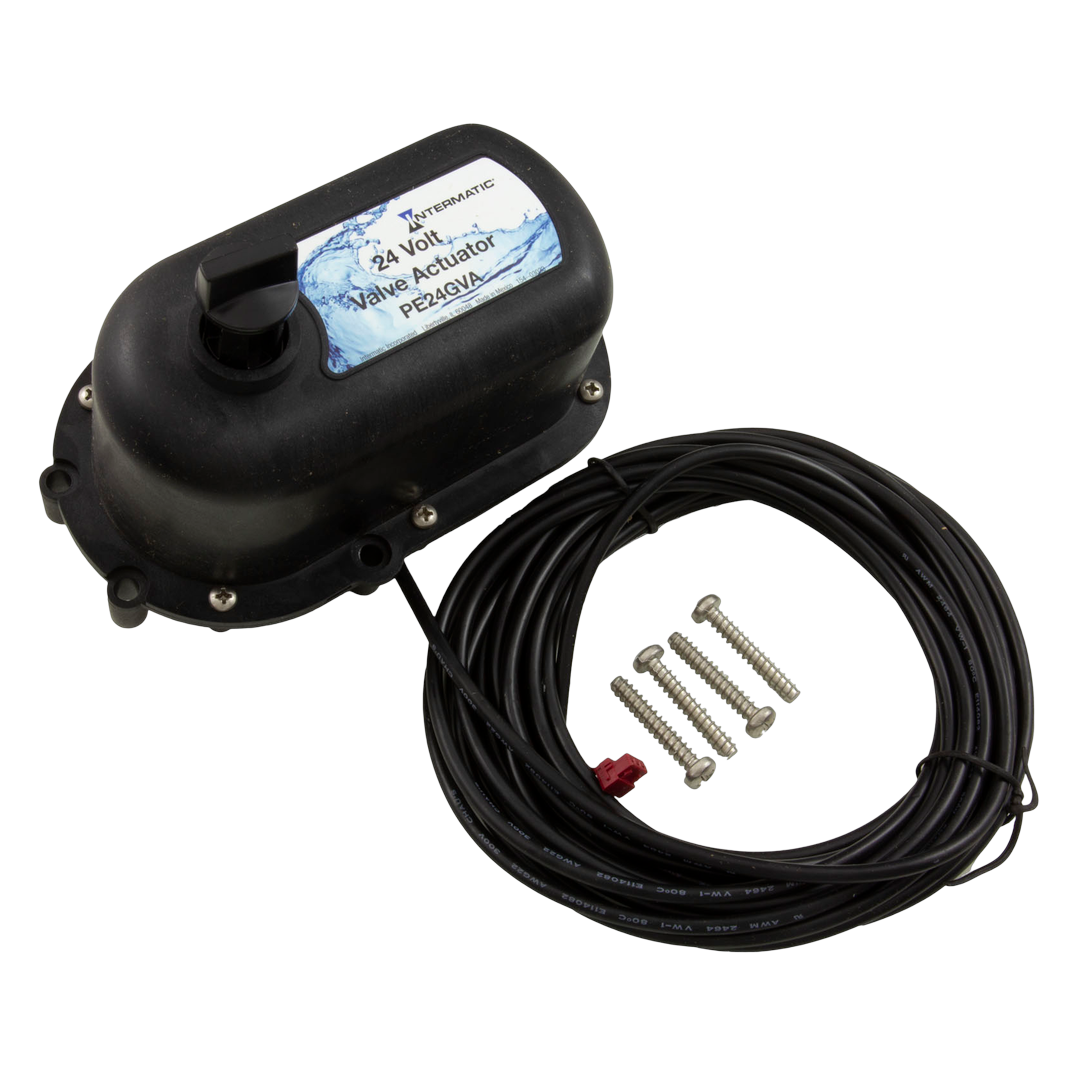

Intermatic PE24GVA 24V Valve Actuator
Intermatic | SKU:
PE24GVA
$14900
/ea
Unit price
/
Unavailable
Intermatic PE24GVA 24V Valve Actuator is backordered and will ship as soon as it is back in stock.
Inventory:
10 In Stock
10 In Stock
Shipping:
Free 1-3 Day Shipping
Description
Description
The Intermatic PE24GVA is a 24-volt compact valve actuator designed for pool automation systems. It features a fully adjustable design with a simplified toolless setup, allowing for easy control of 2-way and 3-way diverter valves used in pool, spa, and water feature applications.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Intermatic 24-Volt Compact Valve Actuator, Next Generation |
| Part Number | PE24GVA |
| Part Type | Valve Actuator |
| Brand | Intermatic |
| Primary Voltage | 24V |
| Frequency | 50/60 Hz |
| Enclosure Type | NEMA 3R |
| Enclosure Material | Plastic |
| Mounting Type | Surface Mount |
| Conduit Entries | None |
| Wire Capacity | 18 AWG |
| Temperature Rating | -4°F to 131°F |
| Duty Cycle | Continuous |
| Protection Type | None |
| Number of Circuits | 1 |
| Load Type | Inductive |
| Override Function | Manual Override |
| Display Type | None |
| Programming Options | None |
| Wire Nuts Included | No |
| Grounding | Equipment Ground |
| Pool/Spa Application | Pool & Spa |
| Substitute Part Numbers | PE24VA |
| Includes | Valve actuator, Installation manual |
| Certifications | UL Listed |
| Warranty | 1 Year Limited |
| Shipping Dimensions | 6 x 4 x 4 inches |
| Product Weight | 2.5 pounds |
Features:
- Toolless cam adjustment
- Compatible with most pool/spa valves
- Compact design
- Weather-resistant enclosure
- Easy installation
