Intermatic PE153 Electronic Time Control
Intermatic | SKU:
PE153
$42800
/ea
Unit price
/
Unavailable
Intermatic PE153 Electronic Time Control is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

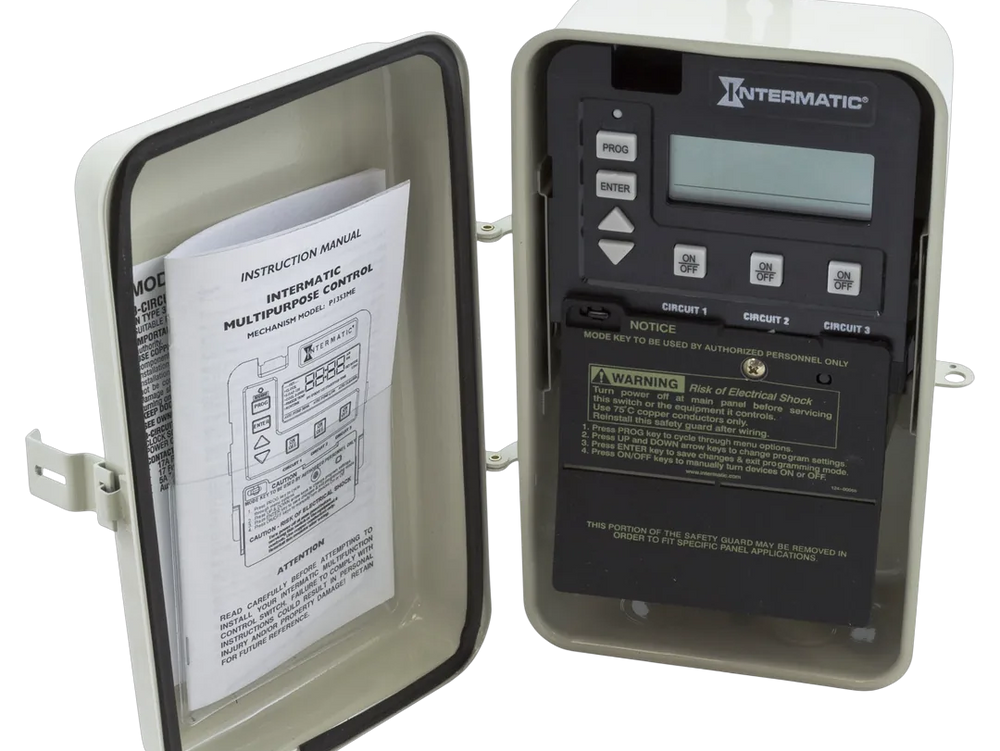

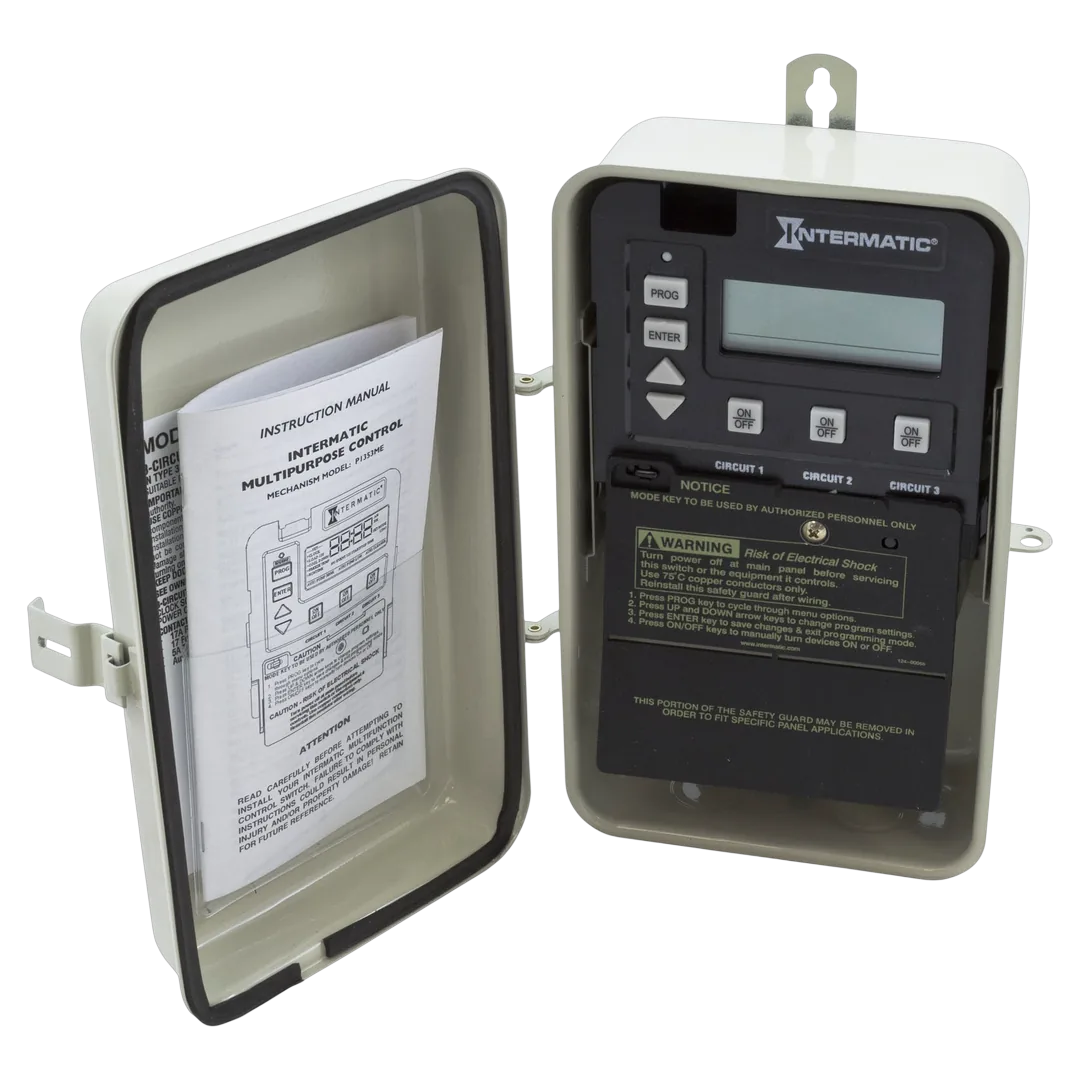

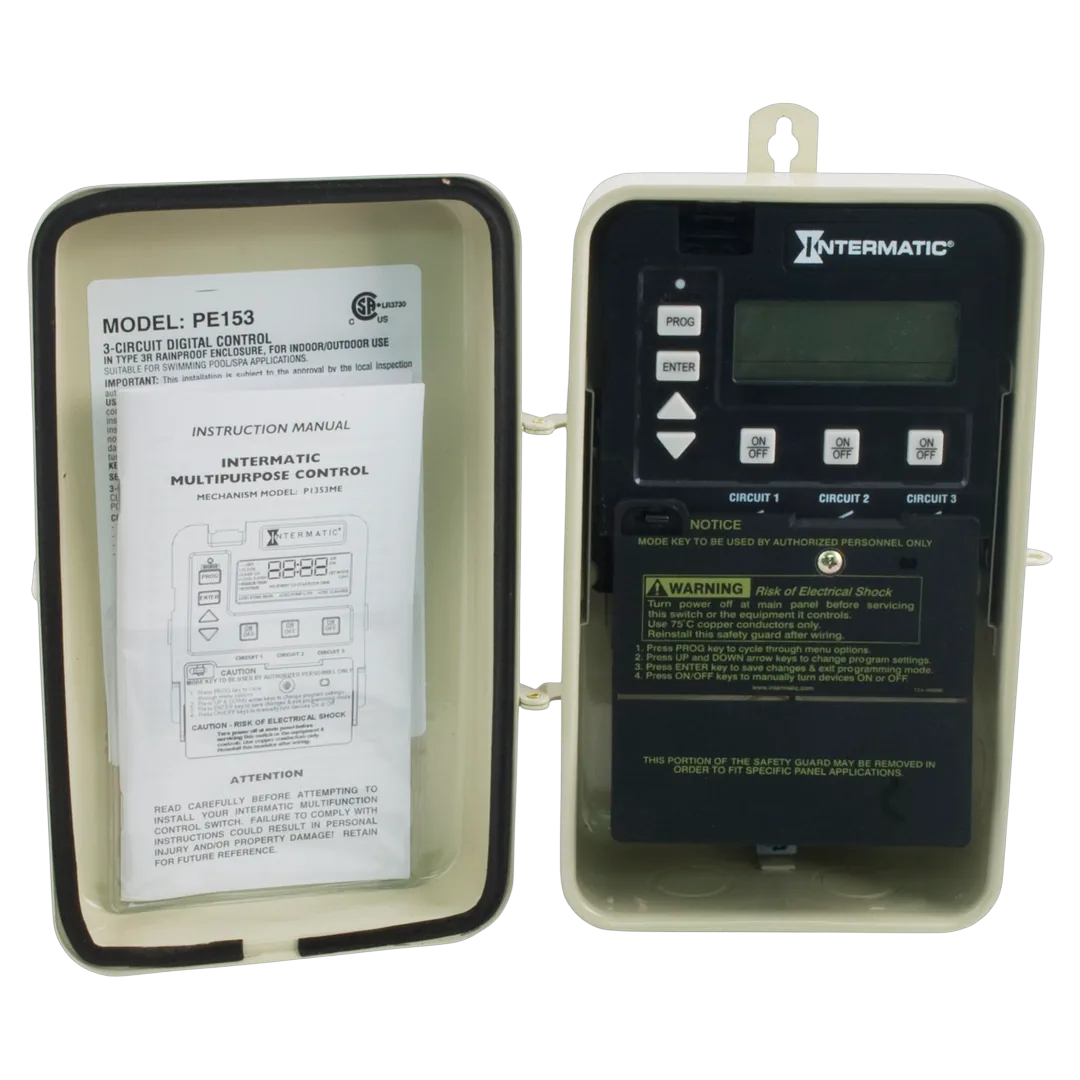

The Intermatic PE153 is a 24-hour electronic time control designed to manage single- and two-speed pumps with support for three circuits. It features a digital interface that allows programming of up to three ON/OFF events per day, facilitating efficient operation of pool and spa systems. The unit is compatible with a variety of pool and spa applications and is housed in a Type 3R metal enclosure for durability.

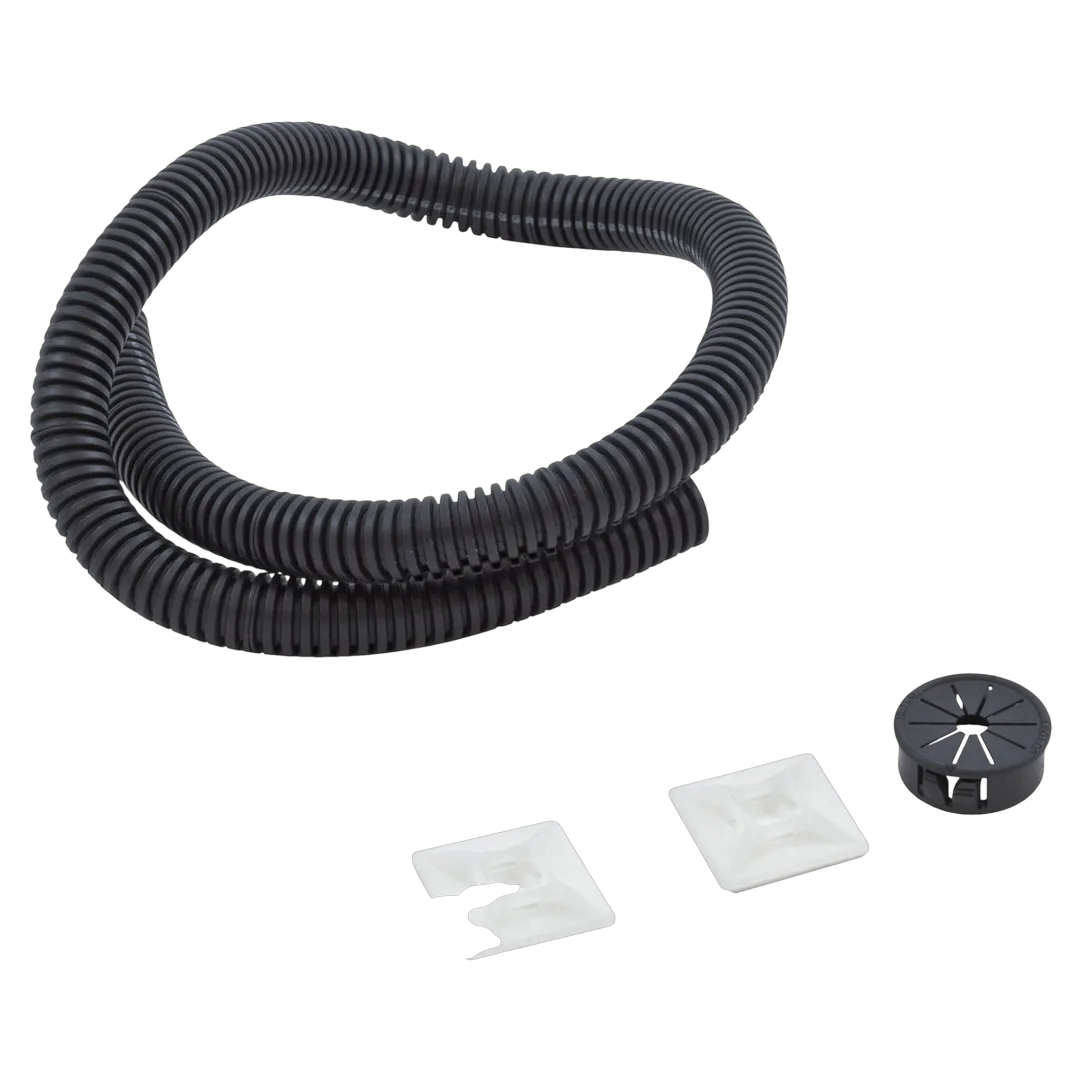

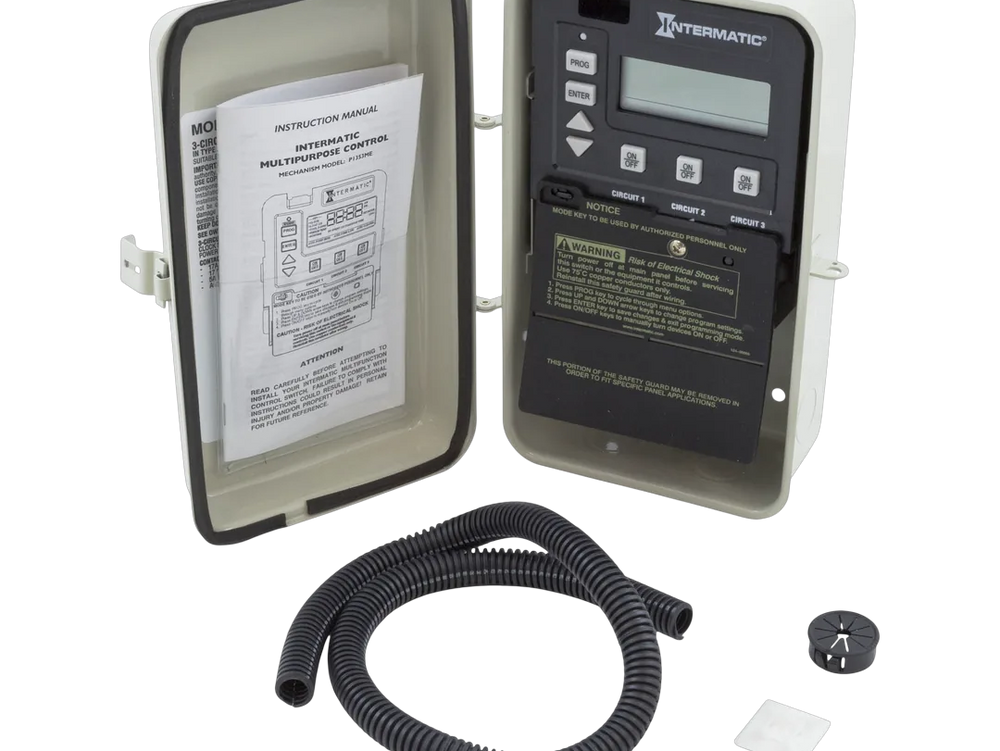

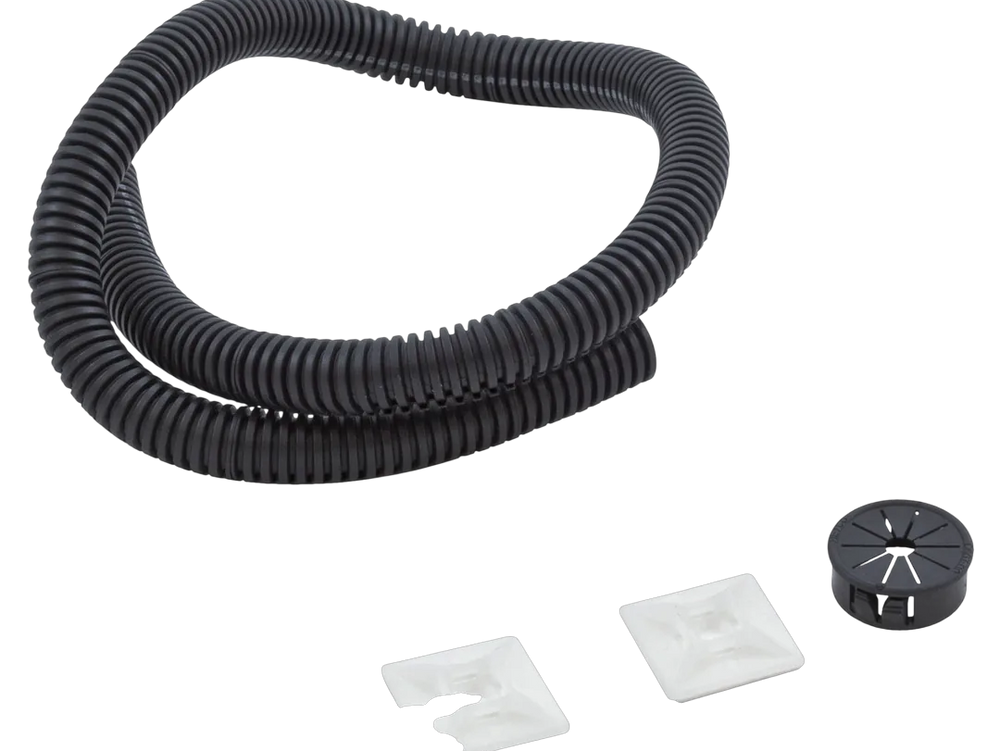

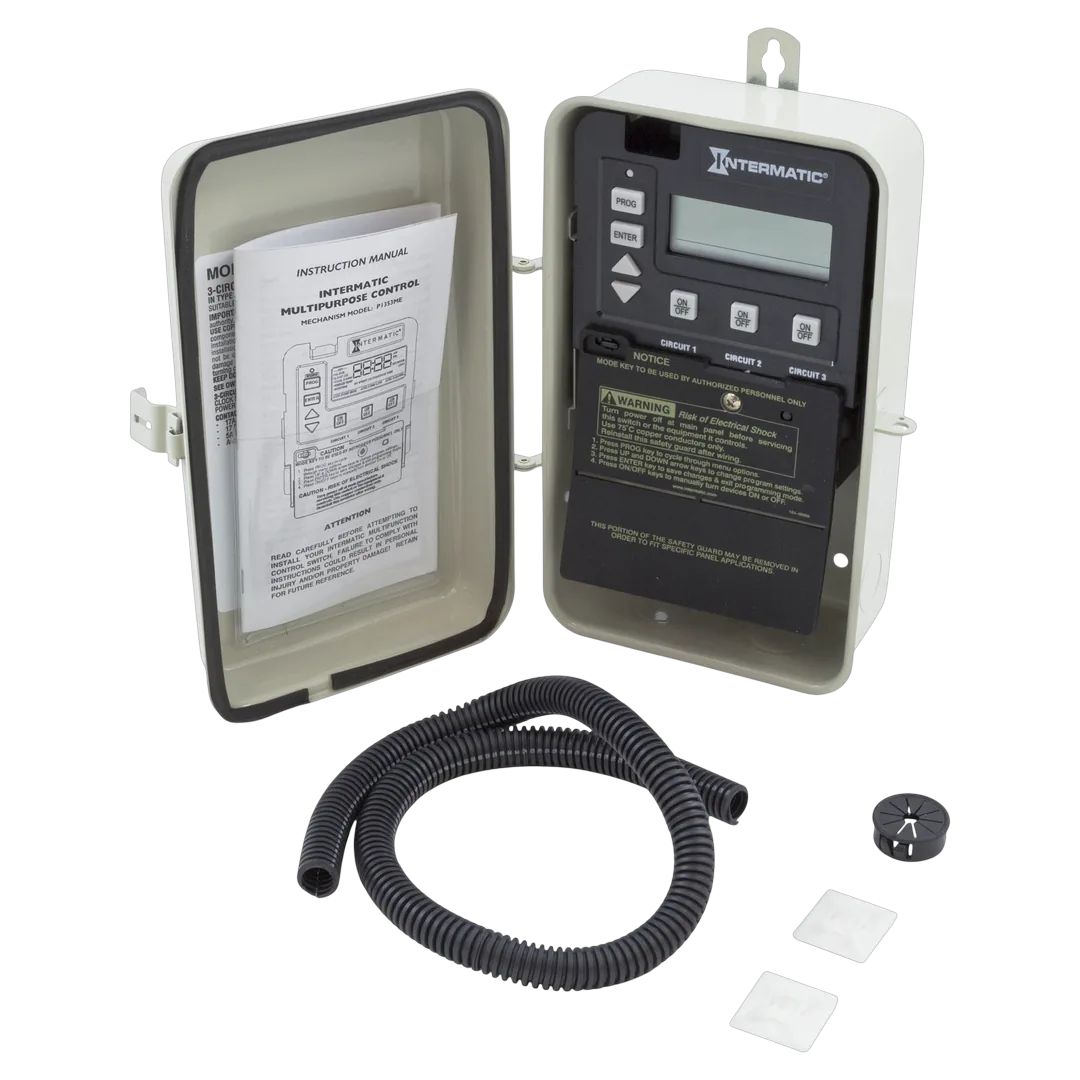

Includes: Timer unit with metal enclosure
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | PE153 |
| Part Number | PE153 |
| Part Type | Electronic Time Control |
| Includes | Timer unit with metal enclosure |
| Certifications | cCSAus Certified Title 20 Compliant |
| Material | Metal |
| Mount Type | Wall Mount |
| Connection Size | Combination 1/2" to 3/4" nominal knockouts |
| Number of Positions | 3 |
| Voltage | 120/240 VAC, 50/60 Hz |
| Current Rating | 17 A |
| Operating Temperature | -20 to 130°F |
| Backup Time | 36 hours |
| Shipping Dimensions | 11.75 x 7.25 x 4.25 inch |
| Product Weight | 3.7 pound |
