Intermatic PE103 Electronic Pump Motor Controller
Intermatic PE103 Electronic Pump Motor Controller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

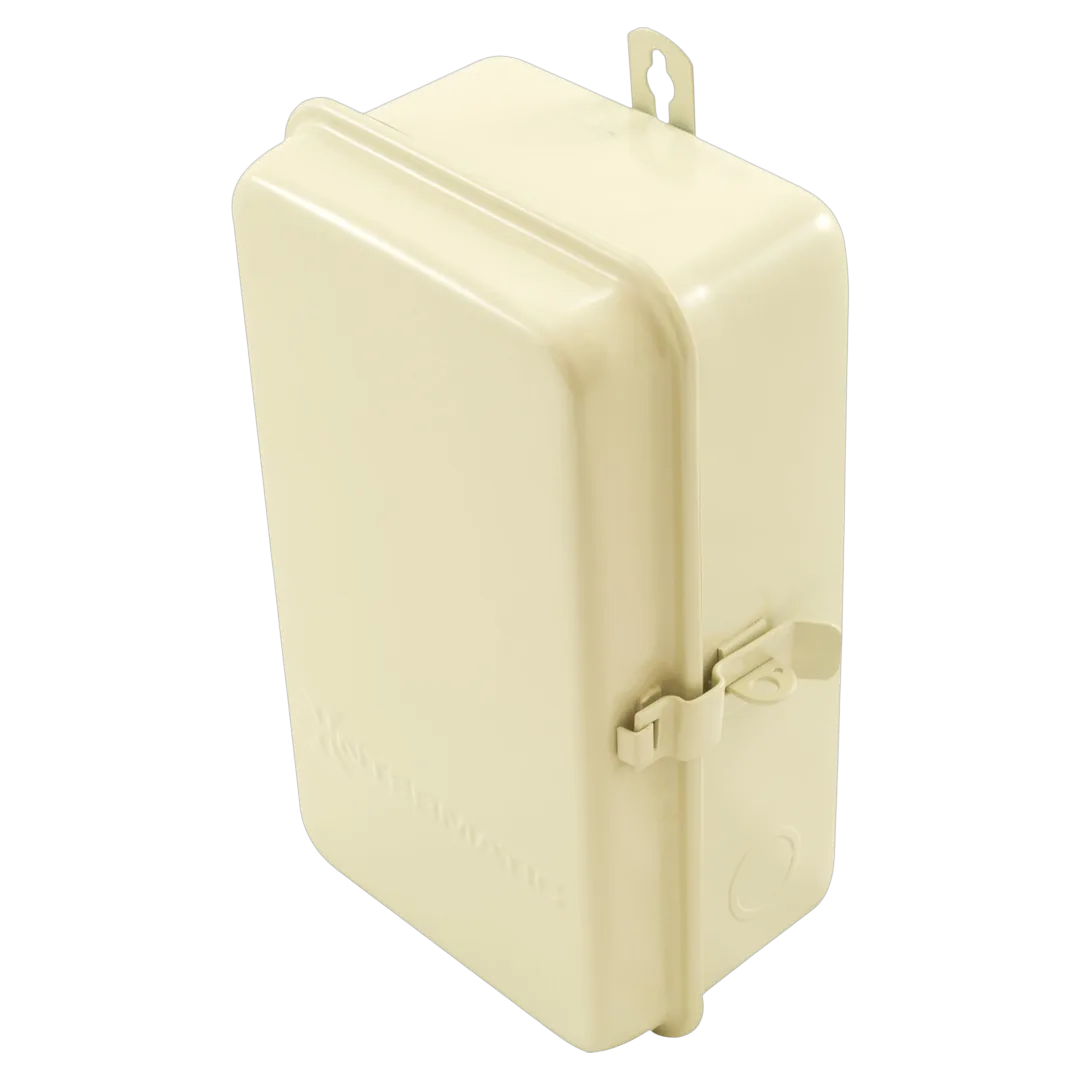

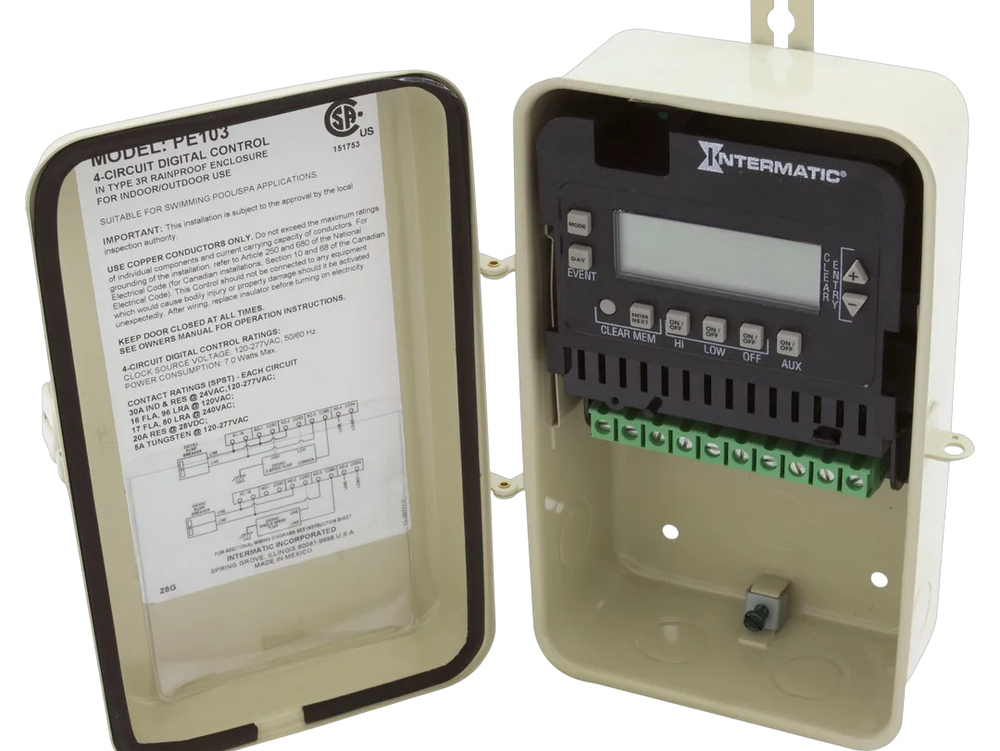

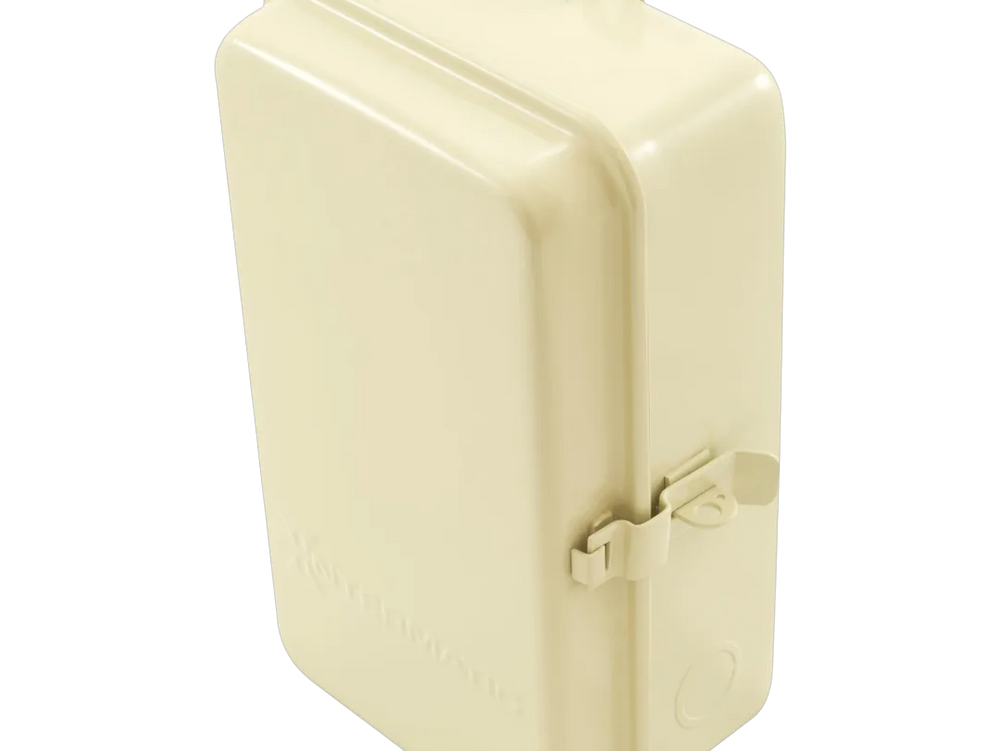

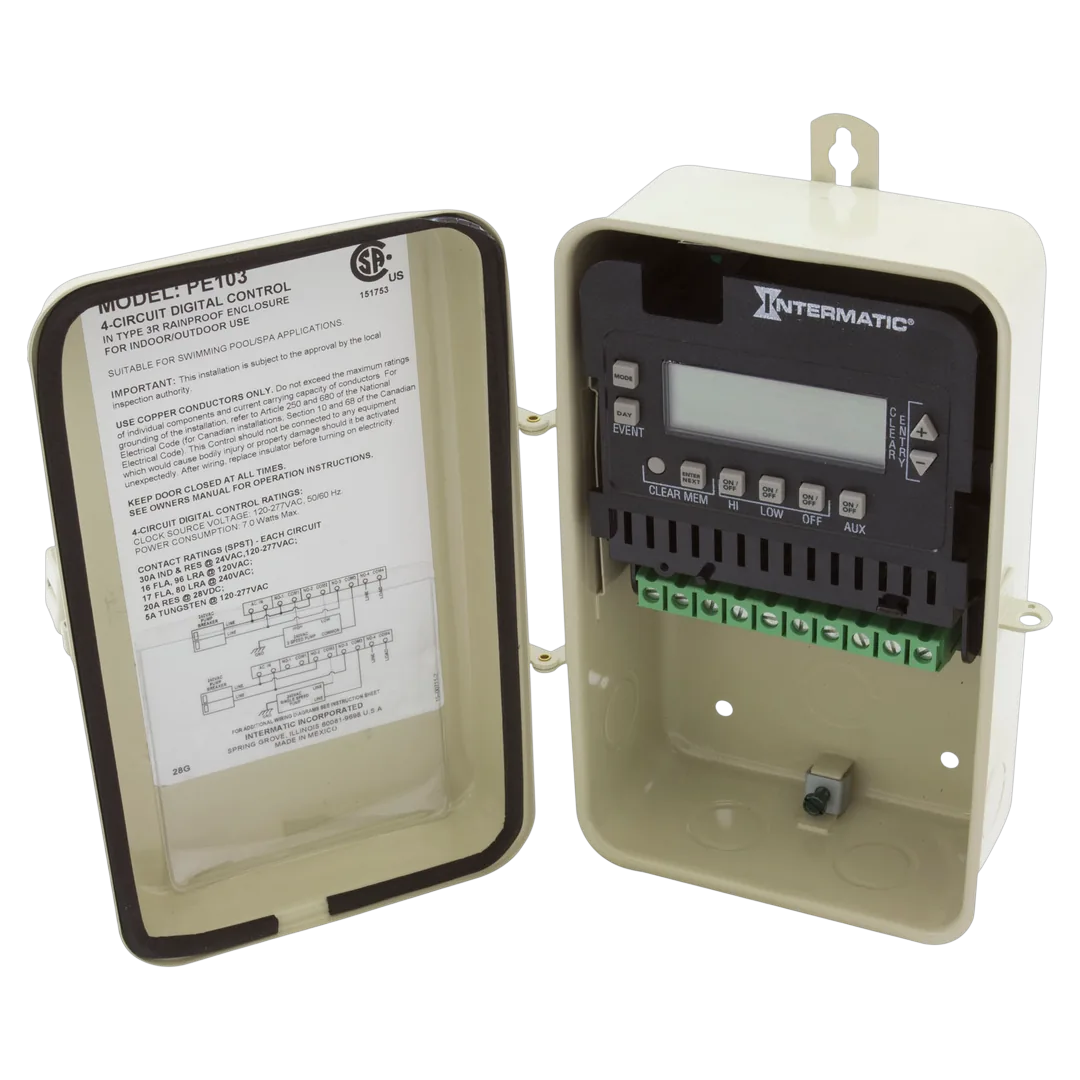

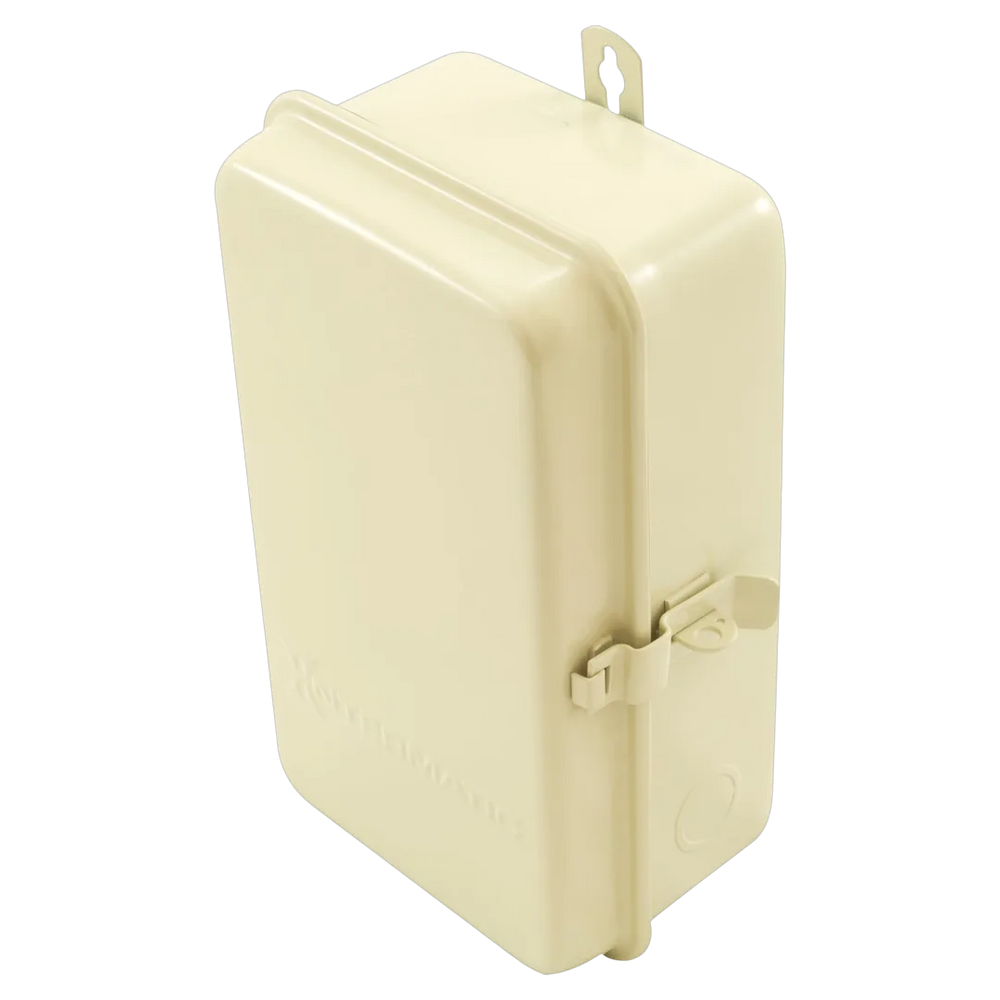

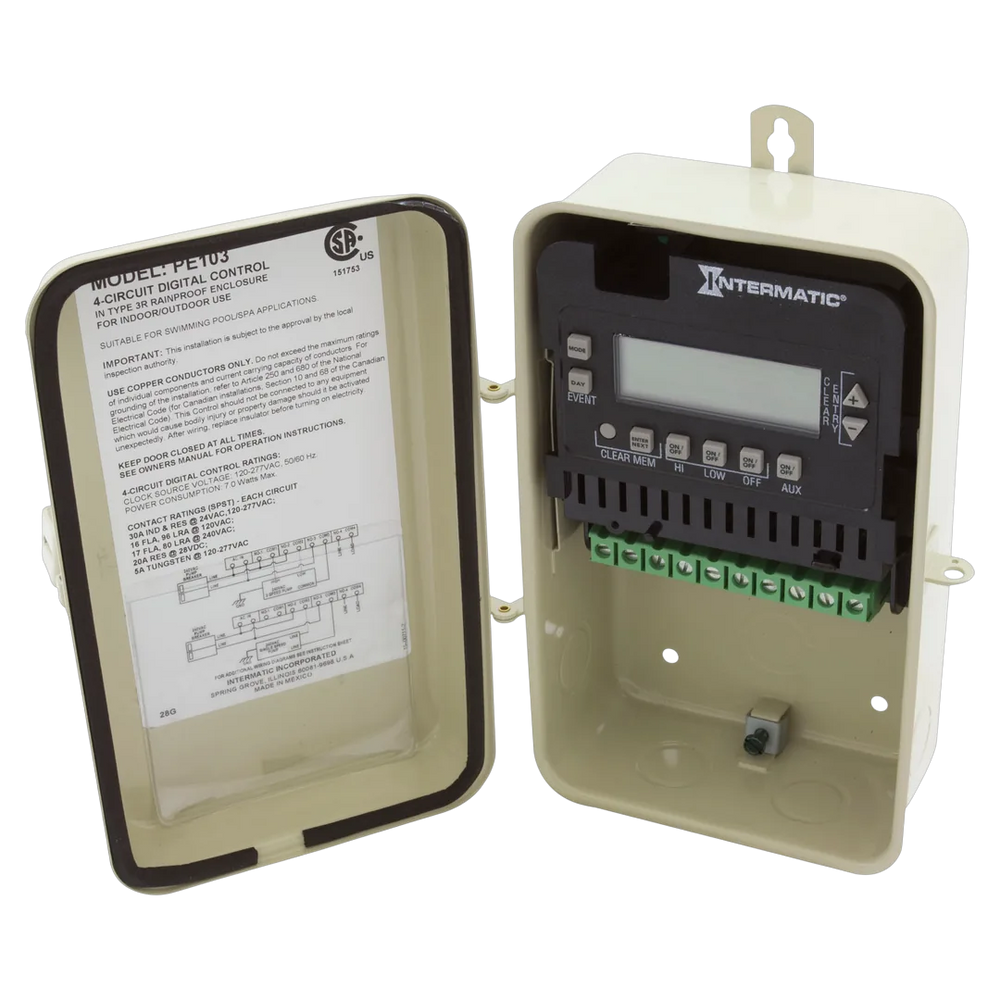

The Intermatic PE103 is an electronic pump motor controller designed for managing single and two-speed pumps, along with auxiliary pool or spa equipment. It features a programmable mechanism with four circuits housed within a Type 3R metal enclosure, which is suited for outdoor applications. The unit facilitates separate daily scheduling and includes seasonal adjustment capabilities, handling a voltage range of 120/240V and offering up to 30A and 3HP capacity.
Includes: Controller with Type 3R indoor/outdoor lockable metal enclosure
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Type 3R Metal Enclosure |
| Part Number | PE103 |
| Part Type | Electronic Pump Motor Controller |
| Includes | Controller with Type 3R indoor/outdoor lockable metal enclosure |
| Certifications | cCSAus Certified Title 20 Compliant |
| Material | Metal |
| Number of Positions | 3 |
| Connection Size | 10 to 8 AWG Wire Lead |
| Mount Type | Wall Mount |
| Flow Paths | 4-SPST |
| Pressure Rating | 30 A @ 24 VAC, 120-277 VAC, 50/60 Hz 20 A @ 28 VDC |
| Seal Material | Not specified |
| Shipping Dimensions | 11.5 x 7.25 x 4.25 inch |
| Product Weight | 3.802 pound |
