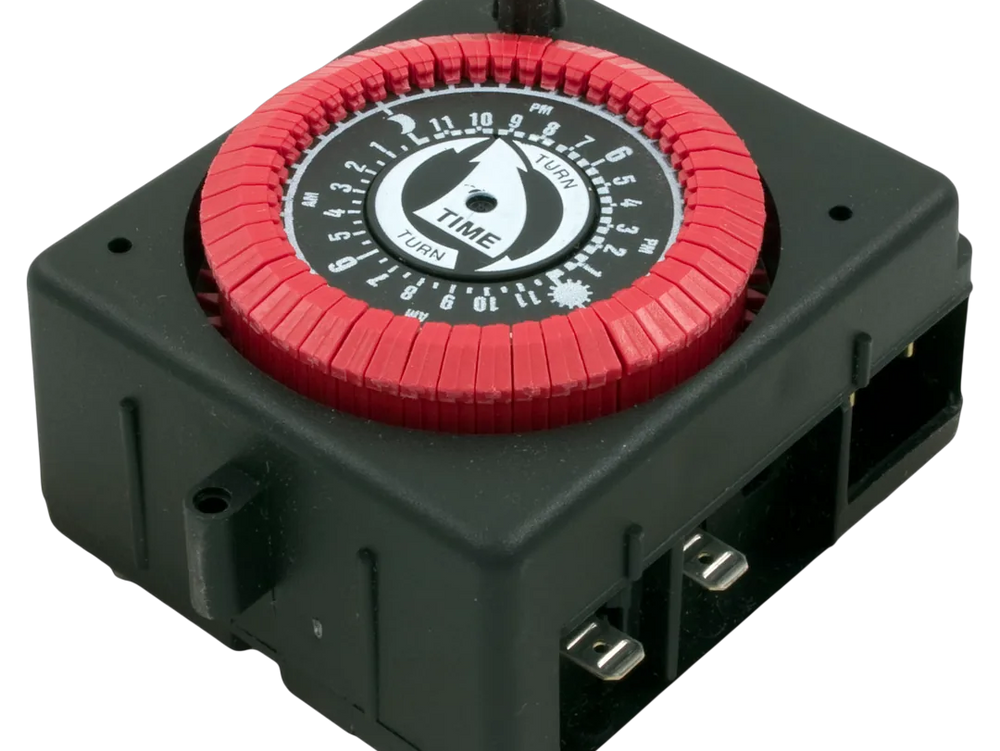

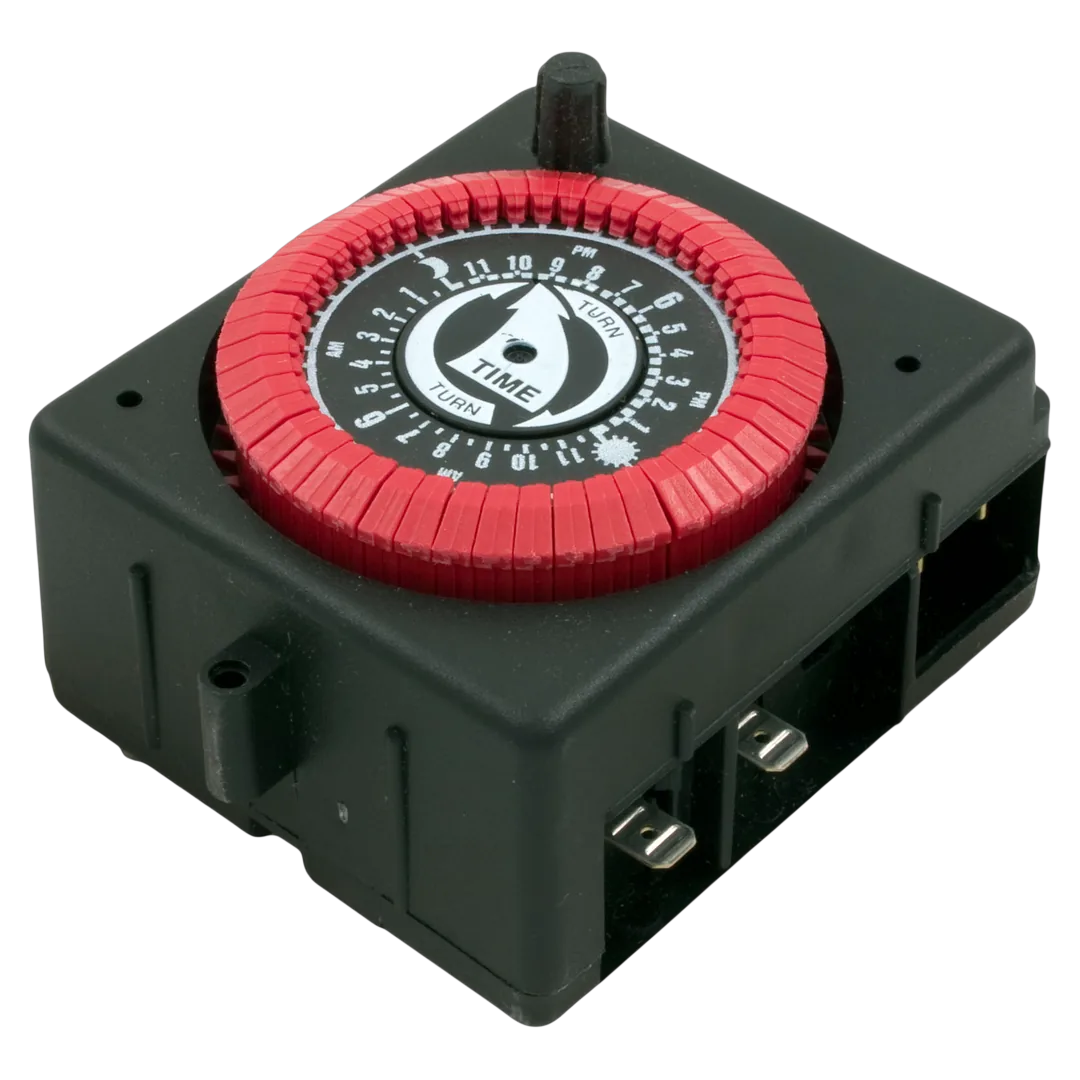

Intermatic PB914N66 Panel Mount Timer
Intermatic | SKU:
PB914N66
$8800
/ea
Unit price
/
Unavailable
Intermatic PB914N66 Panel Mount Timer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Intermatic PB914N66 is a mechanical panel mount timer designed for 208-277 VAC applications. It is constructed from metal and features automatic 24-hour or 7-day load control with quick-connect terminals for easy installation and three-way mounting options-flush, raised, or surface. This model is suitable for controlling pumps, cleaners, and other loads, making it compatible with variable electrical systems requiring switch controlling.
Includes: Timer unit with 48 trippers
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | PB914N66 |
| Part Number | PB914N66 |
| Part Type | Mechanical Panel Mount Timer |
| Includes | Timer unit with 48 trippers |
| Certifications | UL Listed, CSA Certified, cCSAus Certified, UL Recognized |
| Material | Plastic |
| Voltage Rating | 208-277 VAC, 60 Hz |
| Switch Type | SPST |
| Number of Positions | 48 trippers |
| Mount Type | Panel Mount |
| Flow Paths | Single Circuit |
| Pressure Rating | 20 A resistive at 120-277 VAC 1250 W tungsten at 125 VAC 1 HP (16 FLA) at 120 VAC 2 HP (12 FLA) at 240 VAC 360 VA pilot duty at 120-240 VAC |
| Seal Material | Not specified |
| Shipping Dimensions | 4 x 2.75 x 2 inch |
| Product Weight | 0.369 pound |
