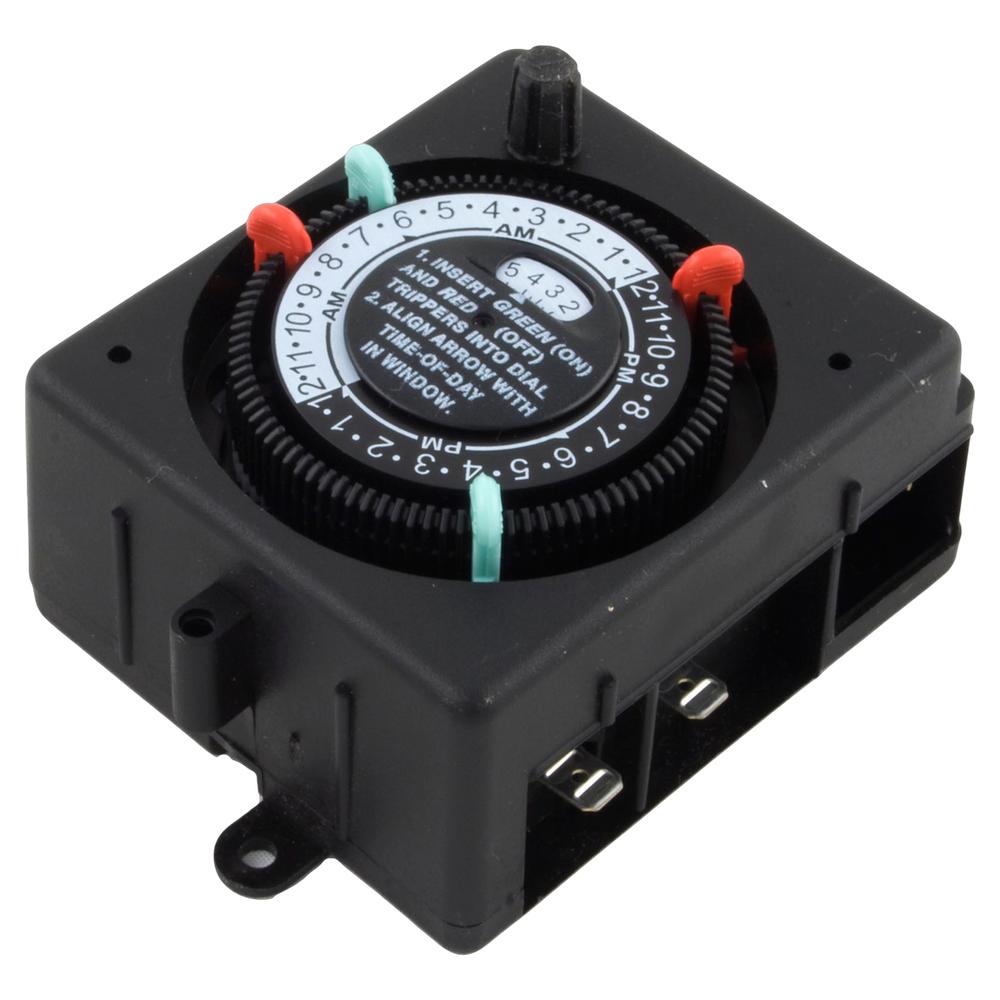

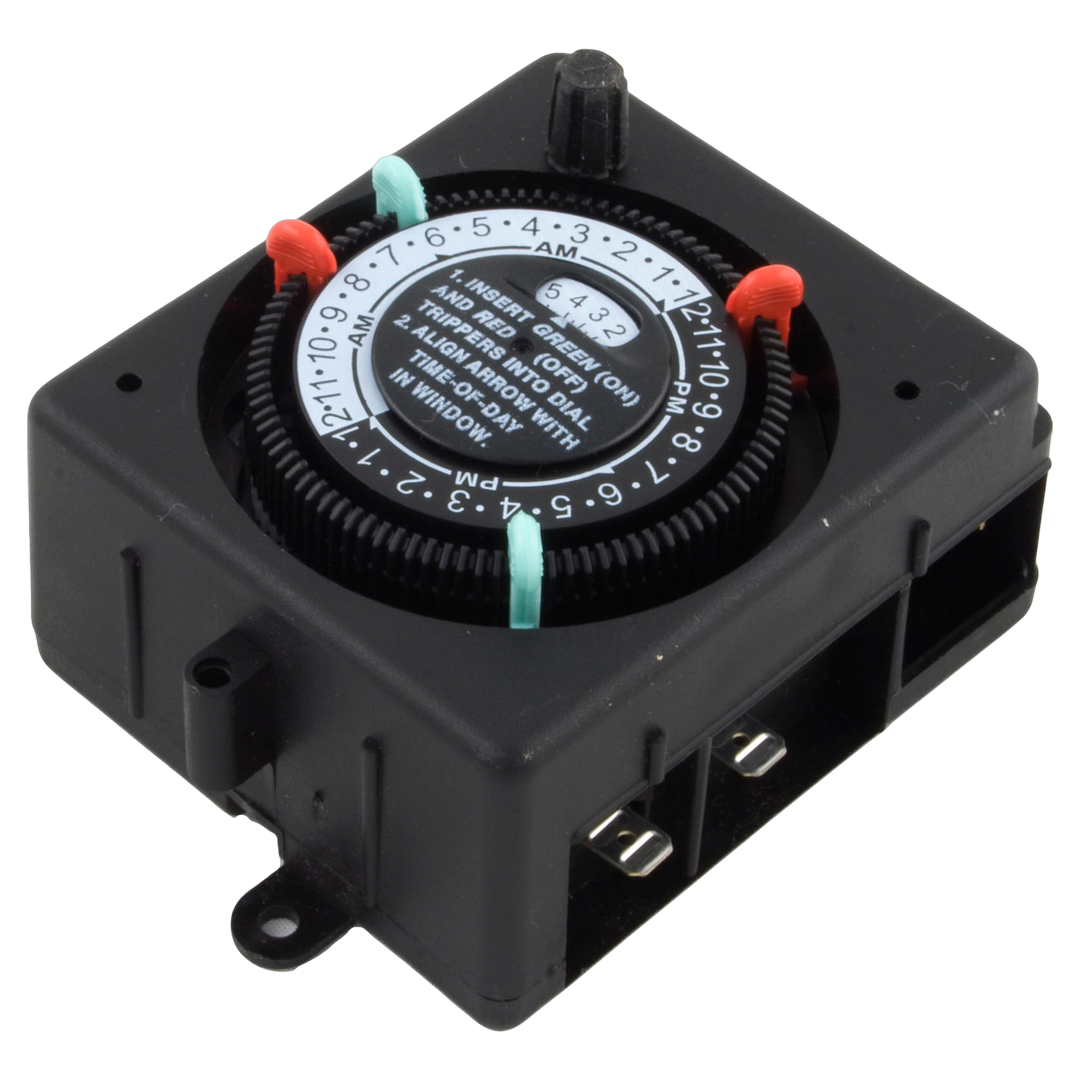

Intermatic PB913N84 24-Hour Mechanical Panel Mount Timer
Intermatic | SKU:
PB913N84
$5700
/ea
Unit price
/
Unavailable
Intermatic PB913N84 24-Hour Mechanical Panel Mount Timer is backordered and will ship as soon as it is back in stock.
Inventory:
10 In Stock
10 In Stock
Shipping:
Free 1-3 Day Shipping
Description
Description
The Intermatic PB913N84 is a 120VAC mechanical panel mount timer designed for automatic control of various loads, such as pumps and cleaners, typically used in pools, hot tubs, and spas. Featuring a 24-hour dial and quick-connect terminals, it allows for flexible installation and includes options for manual override. The timer supports multiple mounting methods for convenience during installation.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Intermatic 24-Hour 120V Mechanical Panel Mount Timer with Manual Override |
| Part Number | PB913N84 |
| Part Type | Timer |
| Brand | Intermatic |
| Primary Voltage | 120V |
| Frequency | 60 Hz |
| Timer Type | Mechanical |
| Timer Configuration | 24-Hour |
| Switch Rating | 20A/120-277V |
| Contact Rating | SPST |
| Mounting Type | Panel Mount |
| Override Function | Manual Override |
| Number of Circuits | 1 |
| Load Type | Resistive |
| Certifications | UL Listed, CSA Certified |
| Warranty | 1-Year Limited |
| Shipping Dimensions | 2.25 x 2.75 x 4 inches |
| Product Weight | 0.5 pounds |
Features:
- Automated control for pumps, cleaners, and other types of loads
- Three different mounting methods
- Quick connect terminals for easy installation
- 24-hour timing cycle with minimum ON time of 1 hour and maximum ON time of 23 hours in 30-minute intervals
- 7-day timing cycle with ON time ranging from 6 to 162 hours in 3-hour intervals
