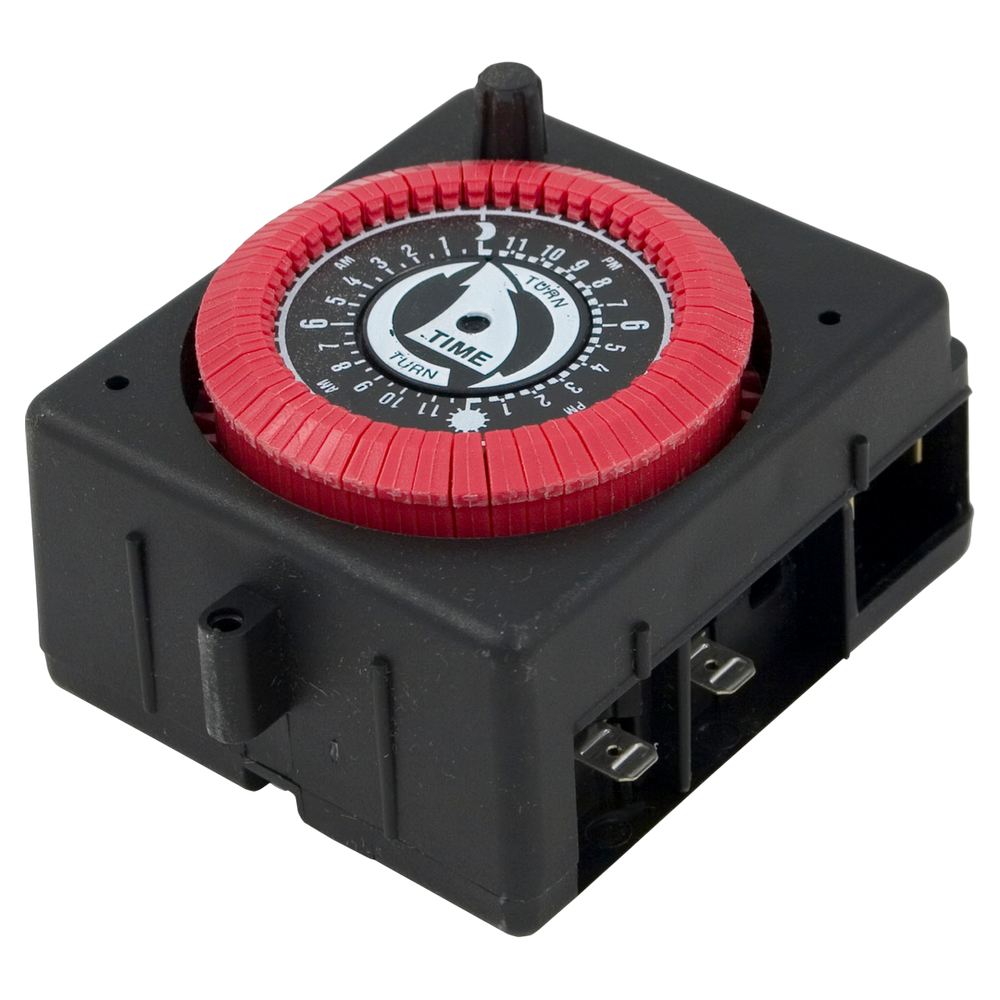

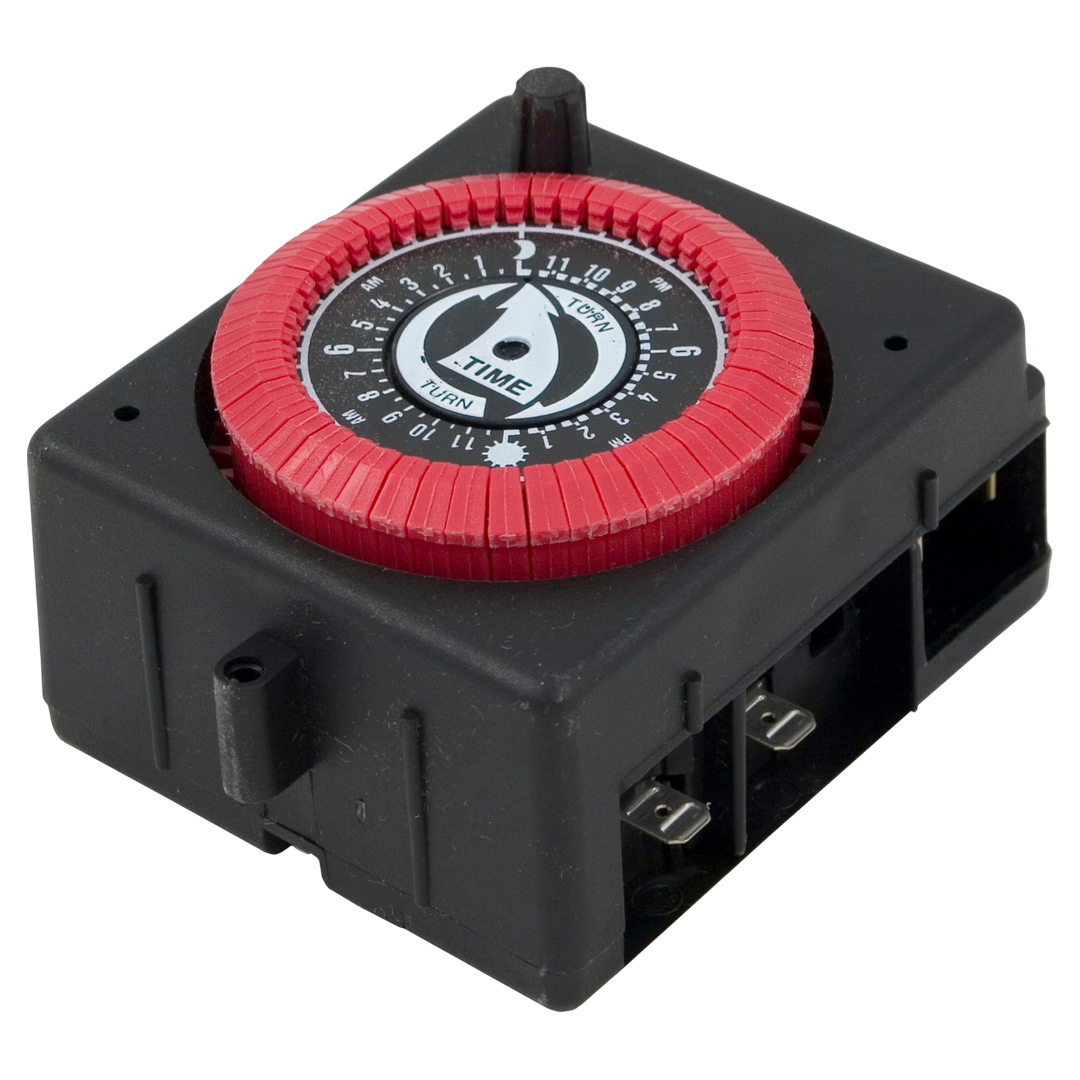

Intermatic PB913N66 24-Hour Panel Mount Timer
Intermatic | SKU:
PB913N66
$6900
/ea
Unit price
/
Unavailable
Intermatic PB913N66 24-Hour Panel Mount Timer is backordered and will ship as soon as it is back in stock.
Inventory:
10 In Stock
10 In Stock
Shipping:
Free 1-3 Day Shipping
Description
Description
The Intermatic PB913N66 is a mechanical panel mount timer designed for automatic control of electrical loads, providing both 24-hour and 7-day scheduling options. It features 48 individual trippers for customizable on/off cycle settings and includes a manual override for added flexibility. This product is ideal for managing pumps and other equipment in pool and spa applications.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Intermatic 24-Hour Mechanical Panel Mount Timer with Manual Override |
| Part Number | PB913N66 |
| Part Type | Timer |
| Brand | Intermatic |
| Primary Voltage | 120V |
| Frequency | 60 Hz |
| Timer Type | Mechanical |
| Timer Configuration | 24-Hour |
| Switch Rating | 20A/120-277V |
| Contact Rating | SPST |
| Mounting Type | Panel Mount |
| Number of Circuits | 1 |
| Load Type | Resistive |
| Override Function | Manual Override |
| Certifications | UL Listed, CSA Certified |
| Warranty | 1-Year Limited |
| Shipping Dimensions | 3.33 x 2.81 x 1.95 inches |
| Product Weight | 0.5 pounds |
Features:
- Automated control for pumps, cleaners, and other types of loads
- Three different mounting methods
- Quick connect terminals for easy installation
- 24-hour timing cycle with 30-minute intervals
- Minimum ON time: 1 hour; Maximum ON time: 23 hours
