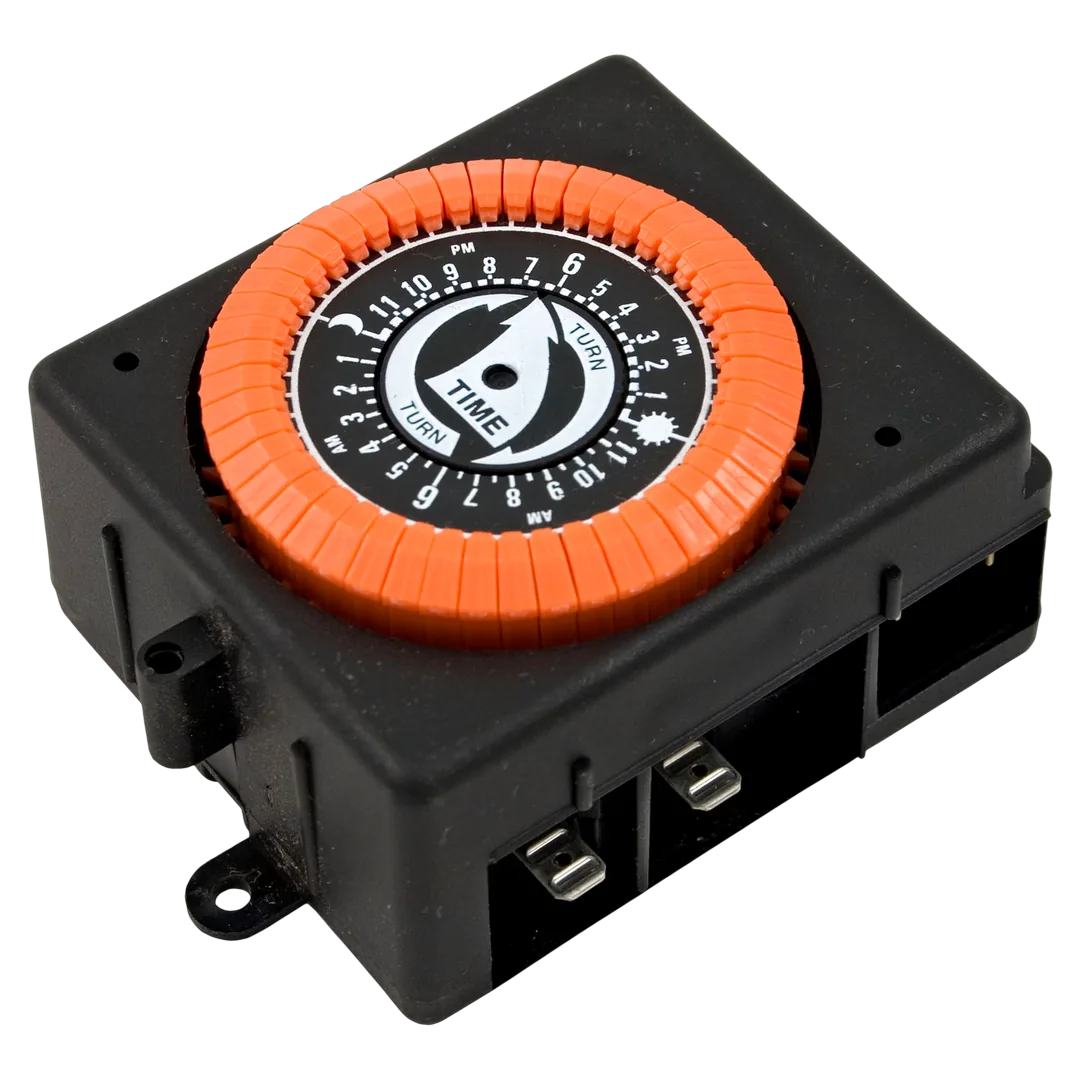

Intermatic PB913N 24-Hour 120V Mechanical Panel Mount Timer
Intermatic | SKU:
PB913N
$7600/ea
Unit price
/
Unavailable
Intermatic PB913N 24-Hour 120V Mechanical Panel Mount Timer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Intermatic PB913N automates daily run cycles for pool and spa pumps, cleaners, and other loads as a 24-hour panel-mount mechanical timer. It uses an SPST switch with 48 trippers to set 30-minute on/off intervals across the day. Quick-connect terminals and multiple mounting options simplify panel installation.
Includes: Timer unit with 48 trippers
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | PB913N |
| Part Number | PB913N |
| Part Type | Mechanical Panel Mount Timer |
| Includes | Timer unit with 48 trippers |
| Certifications | CSA, RU, Green Energy |
| Material | Plastic |
| Switch Type | SPST |
| Number of Positions | 48 |
| Connection Size | Quick connect terminals (4) 1/4" male |
| Mount Type | Panel mount |
| Flow Paths | Single circuit |
| Pressure Rating | 20 A resistive at 120-277 VAC, 60 Hz 1 HP, 16 FLA at 120 VAC, 60 Hz 2 HP, 12 FLA at 240 VAC, 60 Hz |
| Seal Material | Not specified |
| Shipping Dimensions | 4 x 2 x 2.75 inch |
| Product Weight | 0.349 pound |
