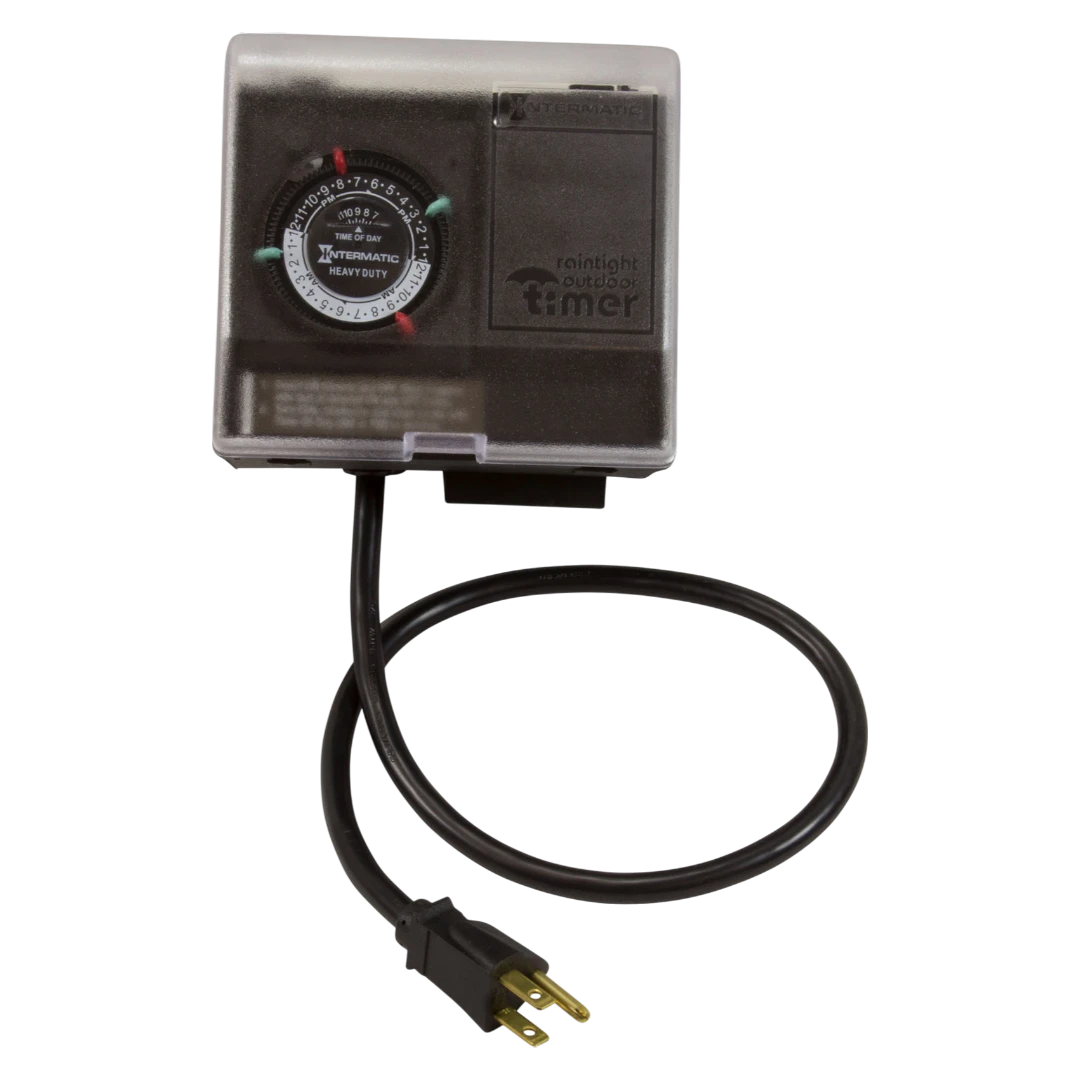

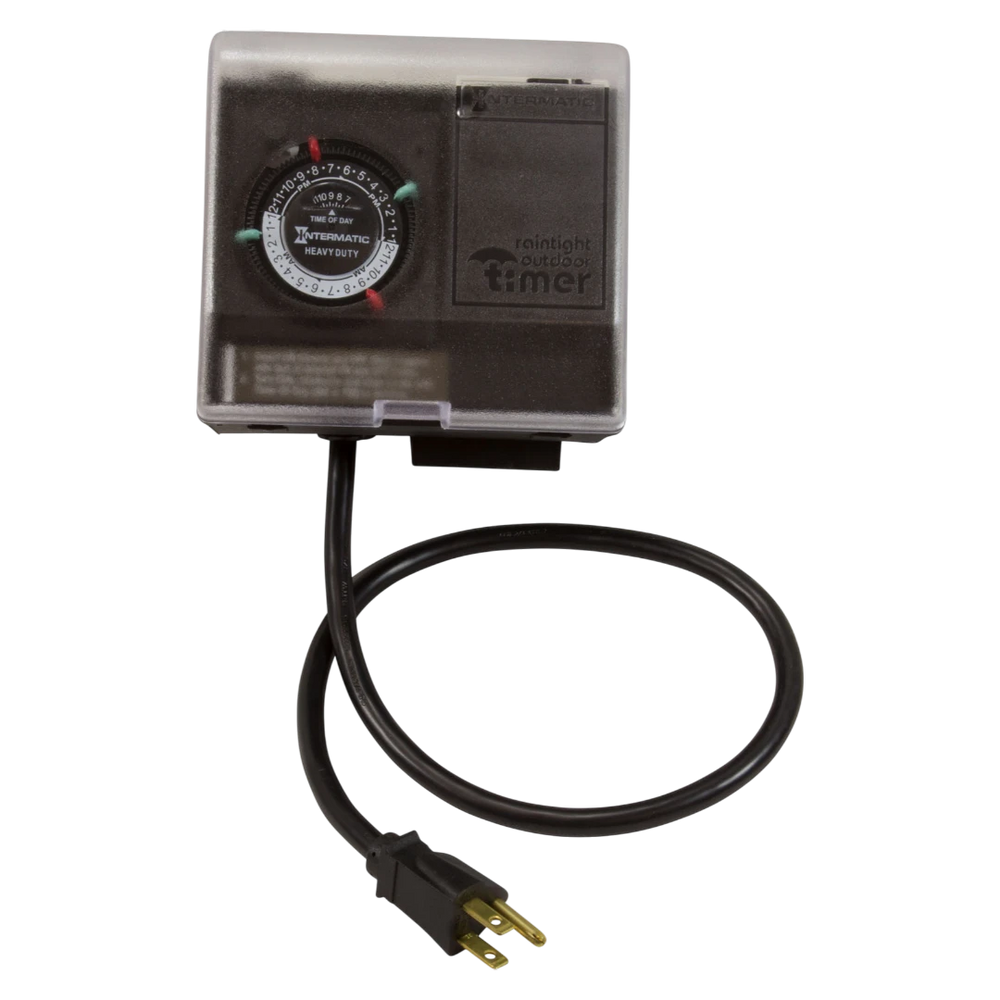

Intermatic P1101 Outdoor Mechanical Plug-In Timer
Intermatic | SKU:
P1101
$4980
/ea
Unit price
/
Unavailable
Intermatic P1101 Outdoor Mechanical Plug-In Timer is backordered and will ship as soon as it is back in stock.
Inventory:
10 In Stock
10 In Stock
Shipping:
Free 1-3 Day Shipping
Description
Description

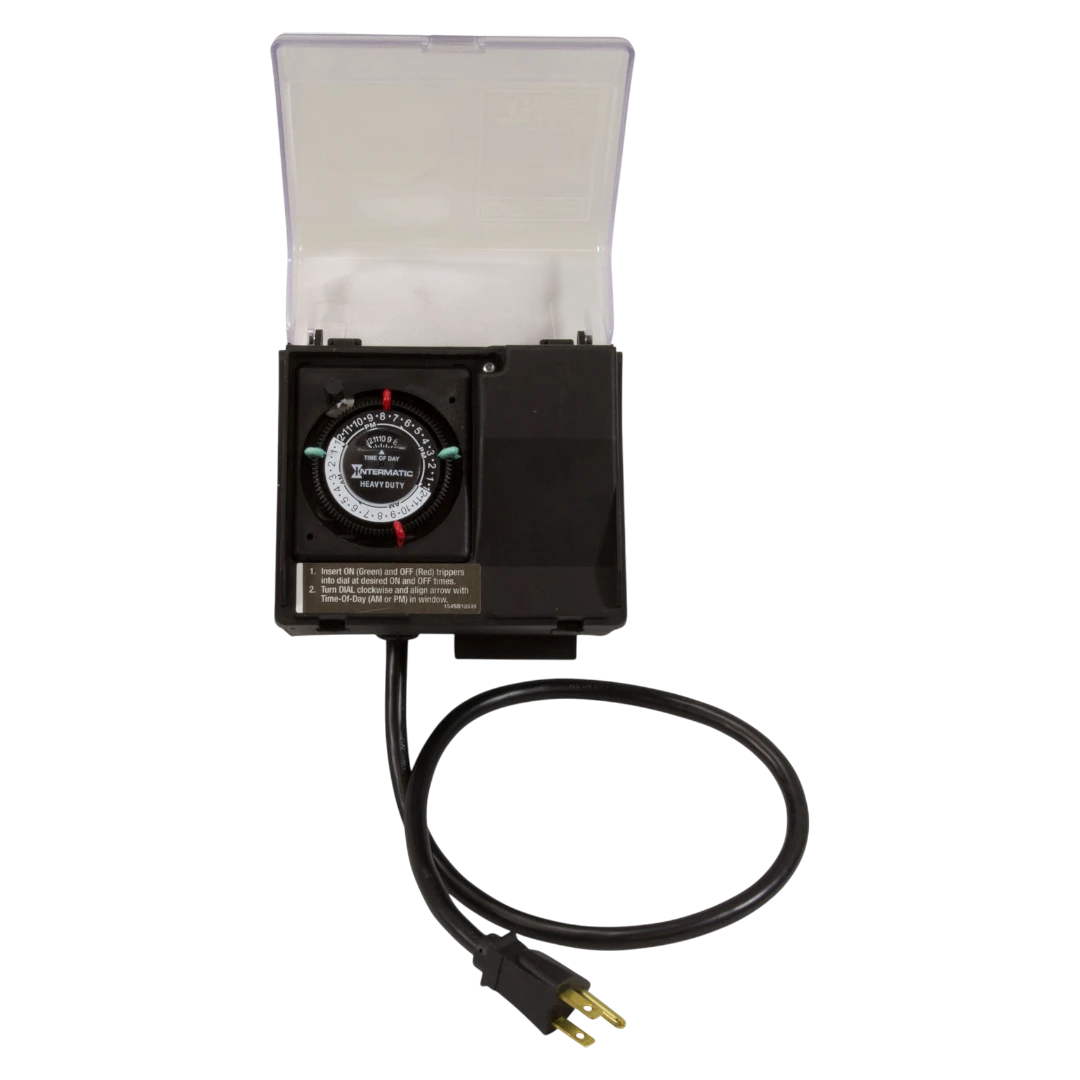

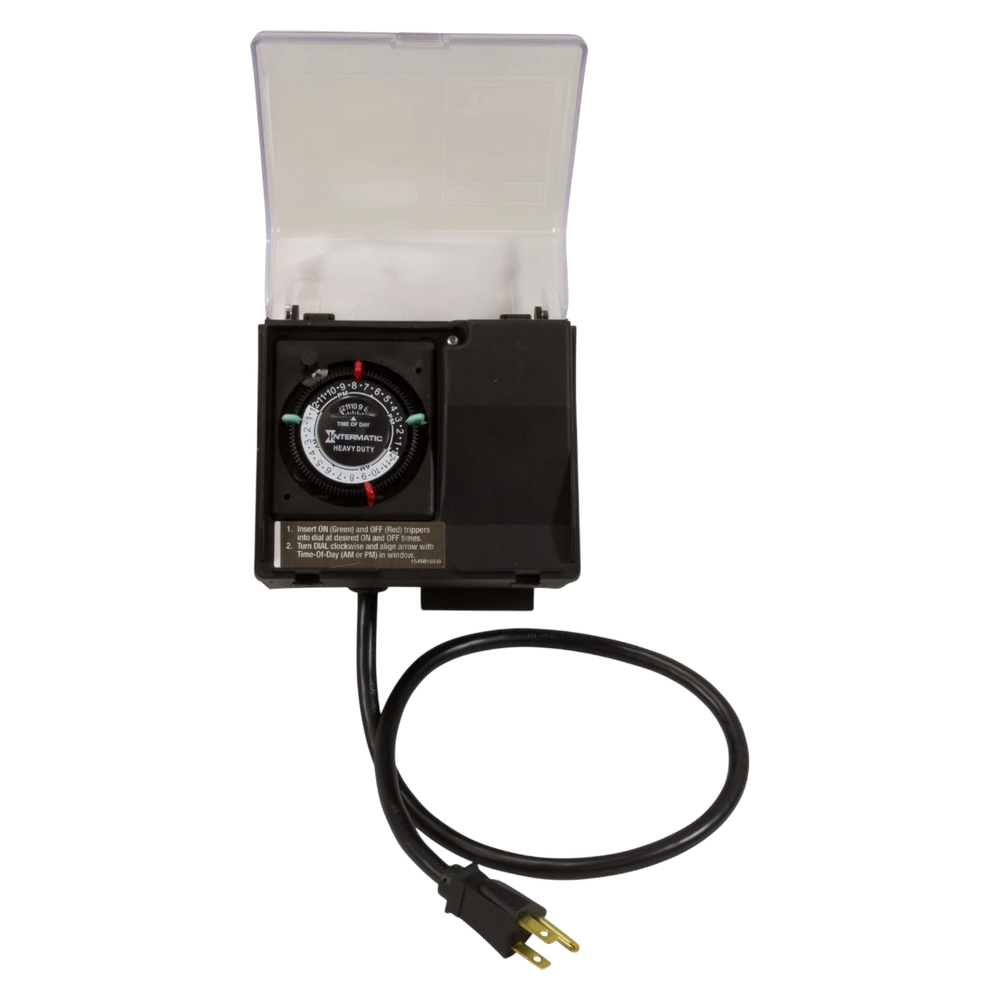

The Intermatic P1101 is an outdoor mechanical plug-in timer designed for controlling devices such as pool pumps, landscape lighting, and holiday decorations. It features a flip-open enclosure for weather resistance and offers 2 ON and 2 OFF settings per day, making it ideal for automatic scheduling of outdoor electrical equipment. This timer accommodates devices with a standard 3-prong plug and is suitable for those requiring up to 1 HP.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Intermatic Outdoor Mechanical Plug-In Timer with Built-In Enclosure |
| Part Number | P1101 |
| Part Type | Timer |
| Brand | Intermatic |
| Primary Voltage | 120V |
| Frequency | 60 Hz |
| Timer Type | Mechanical |
| Timer Configuration | 24-Hour |
| Switch Rating | 15A/120V |
| Contact Rating | SPST |
| Enclosure Type | Outdoor |
| Enclosure Material | Plastic |
| Mounting Type | Wall Mount |
| Conduit Entries | NEMA 5-15 plug and receptacle |
| Wire Capacity | 22-inch cord |
| Temperature Rating | -20°F to 120°F |
| Duty Cycle | Continuous |
| Number of Circuits | 1 |
| Load Type | Resistive, Inductive |
| Minimum Load | 30 minutes |
| Maximum Load | 23.5 hours |
| Override Function | Manual Override |
| Display Type | Analog |
| Programming Options | 2 ON/2 OFF settings per day with removable trippers; more ON/OFF events with additional trippers |
| Grounding | Equipment Ground |
| Pool/Spa Application | Pool & Spa |
| Includes | Timer, Removable trippers, Instruction manual |
| Certifications | CSA Certified |
| Warranty | 1-Year Limited |
| Shipping Dimensions | 7.75 x 5.75 x 3.81 inches |
| Product Weight | 1.297 pounds |
Features:
- Weather-resistant enclosure
- Easy wiring access
- CSA certified for safety
- Durable construction
- Simple installation
