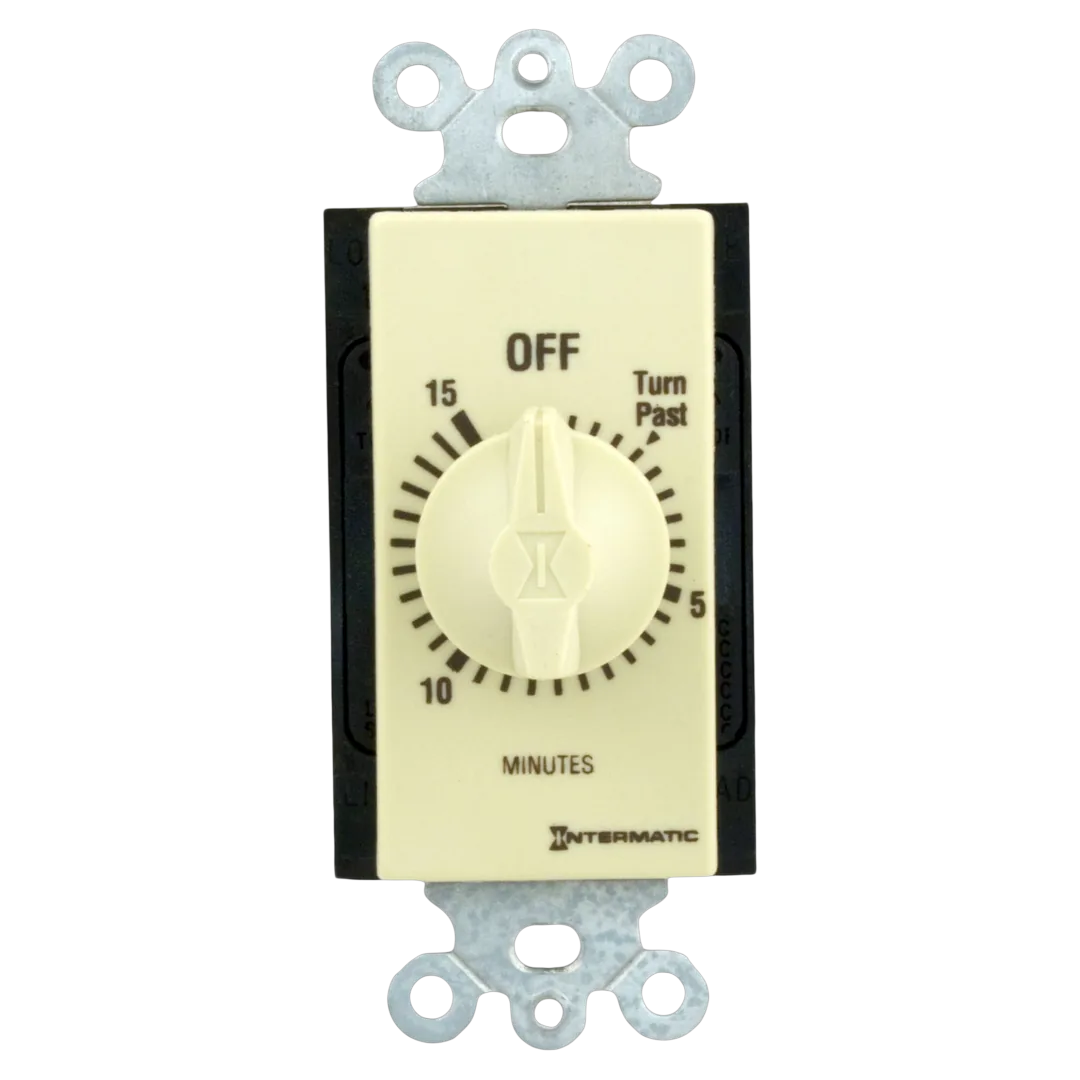

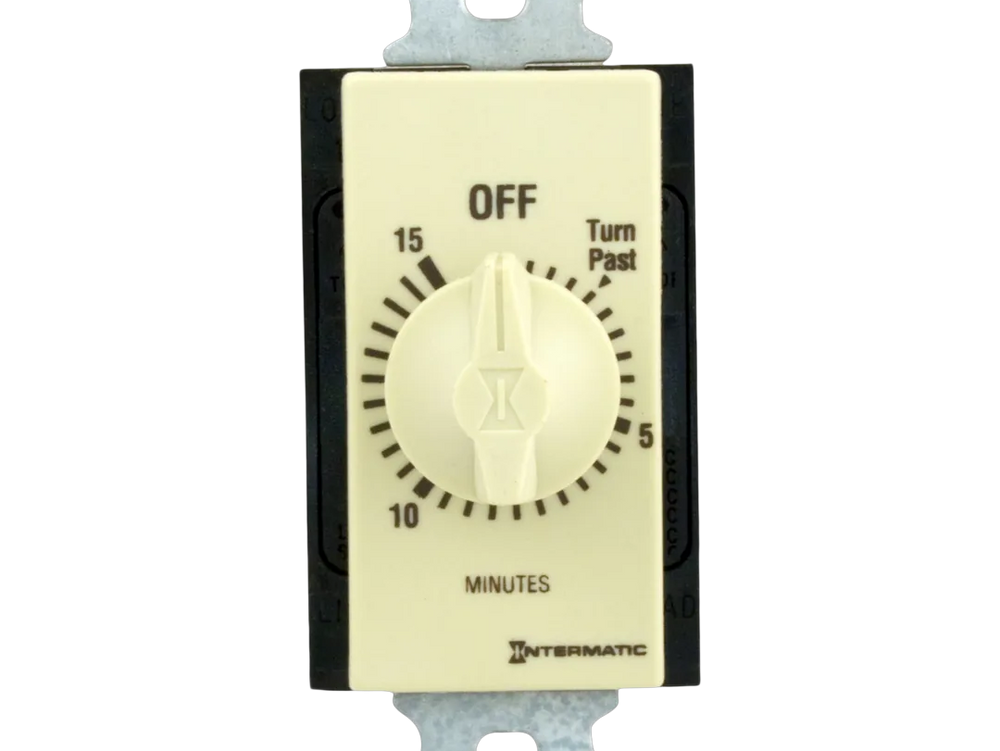

Intermatic FD415M Spring Wound Countdown Timer
Intermatic | SKU:
FD415M
$10900
/ea
Unit price
/
Unavailable
Intermatic FD415M Spring Wound Countdown Timer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Intermatic FD415M is a 15-minute spring-wound countdown timer designed to replace standard wall switches in both single and multi-gang configurations. Constructed with an ivory decorator style, it operates without the need for electrical power and is equipped with a DPST mechanism. This timer is compatible with 125-277 VAC, 50/60 Hz systems, making it suitable for controlling lighting, motors, fans, and other energy-consuming loads.
Includes: Timer unit with ivory faceplate
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Intermatic FD415M |
| Part Number | FD415M |
| Part Type | Spring Wound Countdown Timer |
| Compatibility | Replaces any standard or decorator single- or multi-gang wall switch |
| Includes | Timer unit with ivory faceplate |
| Certifications | cCSAus Certified, UL Listed, UL Recognized |
| Material | Plastic |
| Voltage Rating | 125-277 VAC, 50/60 Hz |
| Amperage Rating | 15 A |
| Horsepower Rating | 1 HP at 125 VAC, 2 HP at 250 VAC |
| Contact Form | 2NO/DPST |
| Operating Temperature Range | -40 to 104°F |
| Mount Type | Wall Mount |
| Dimensions | 2.79 x 1.6 x 1.19 inch |
| Product Weight | 0.4 pound |
