Intermatic 143T145A 3 HP 24 VDC Relay
Intermatic 143T145A 3 HP 24 VDC Relay is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

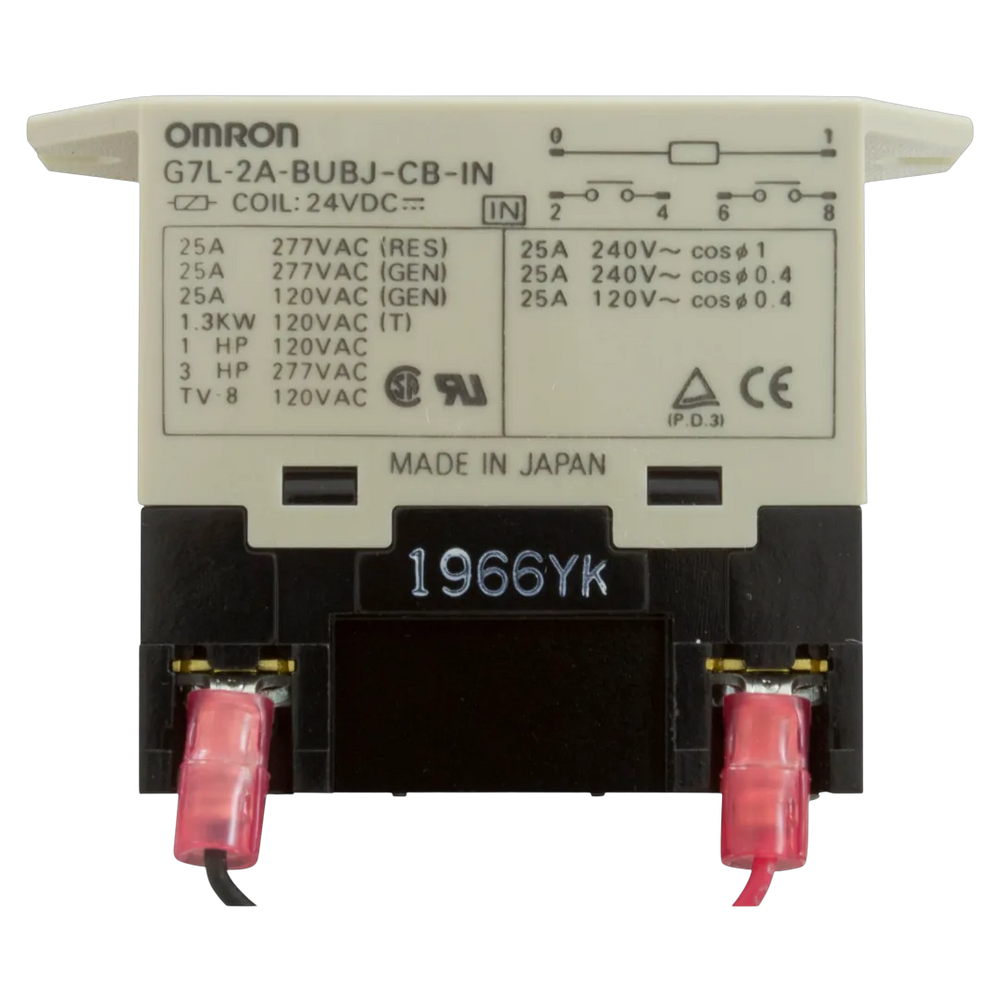

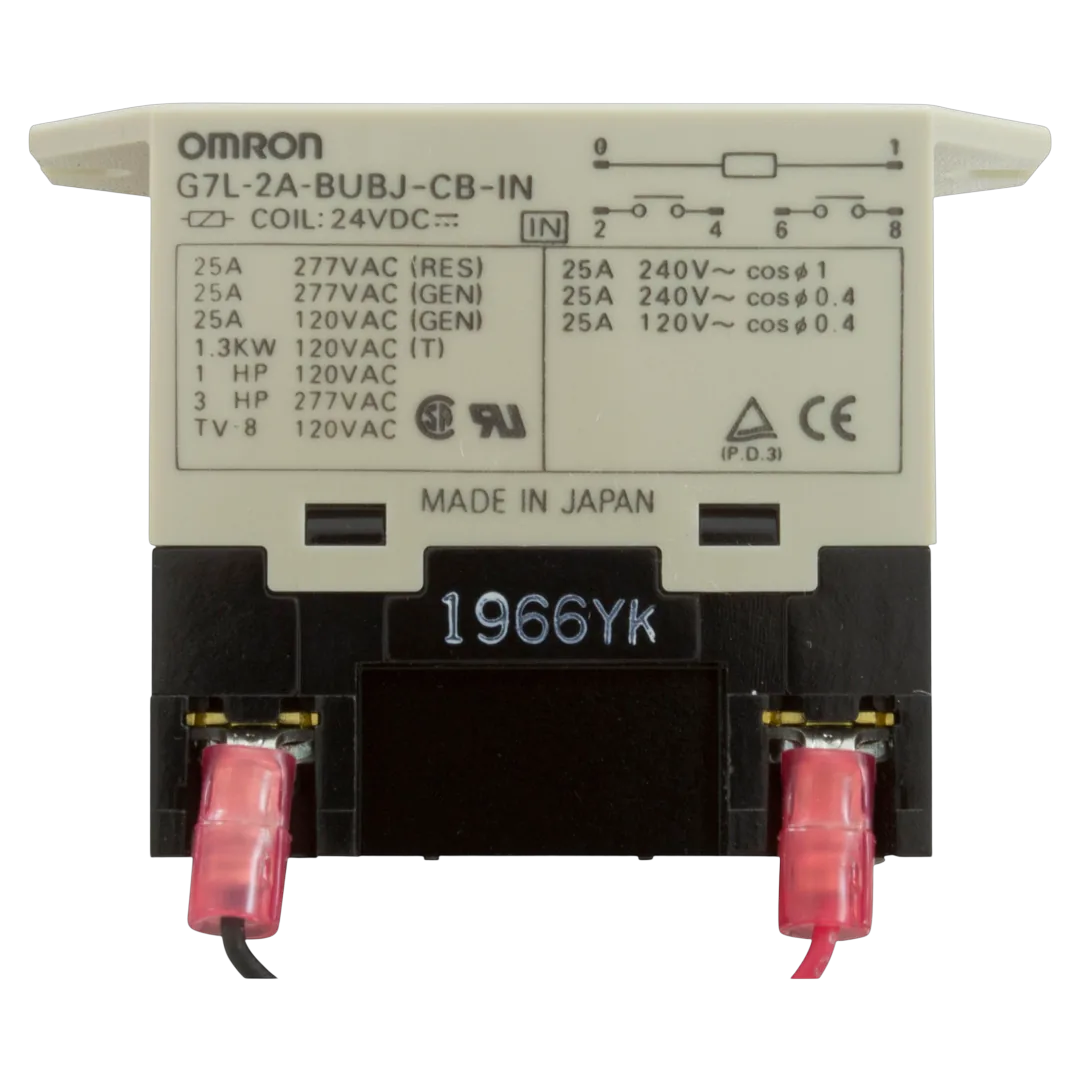

The Intermatic 143T145A is a relay featuring a double pole, single throw (DPST) configuration, designed to manage motors and pumps with an operational capacity of up to 3 horsepower and a 24 VDC coil voltage. This relay comes equipped with a two-pin connector and a 10-inch lead wire, contributing to its practical utility in control systems. It is compatible with various pool automation control systems, including those from Jandy, Pentair, Hayward, and the I-Wave and Mini-Wave systems.

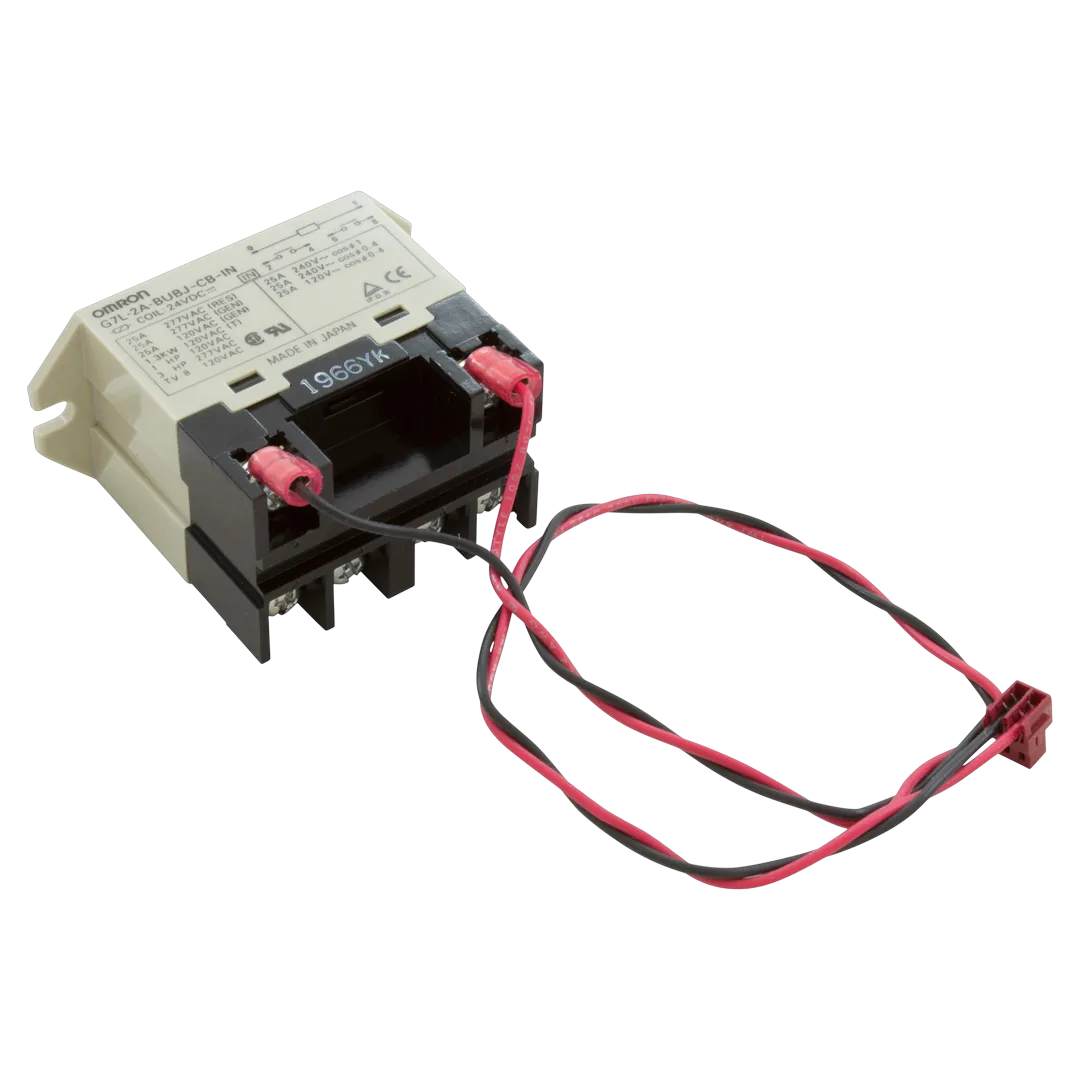

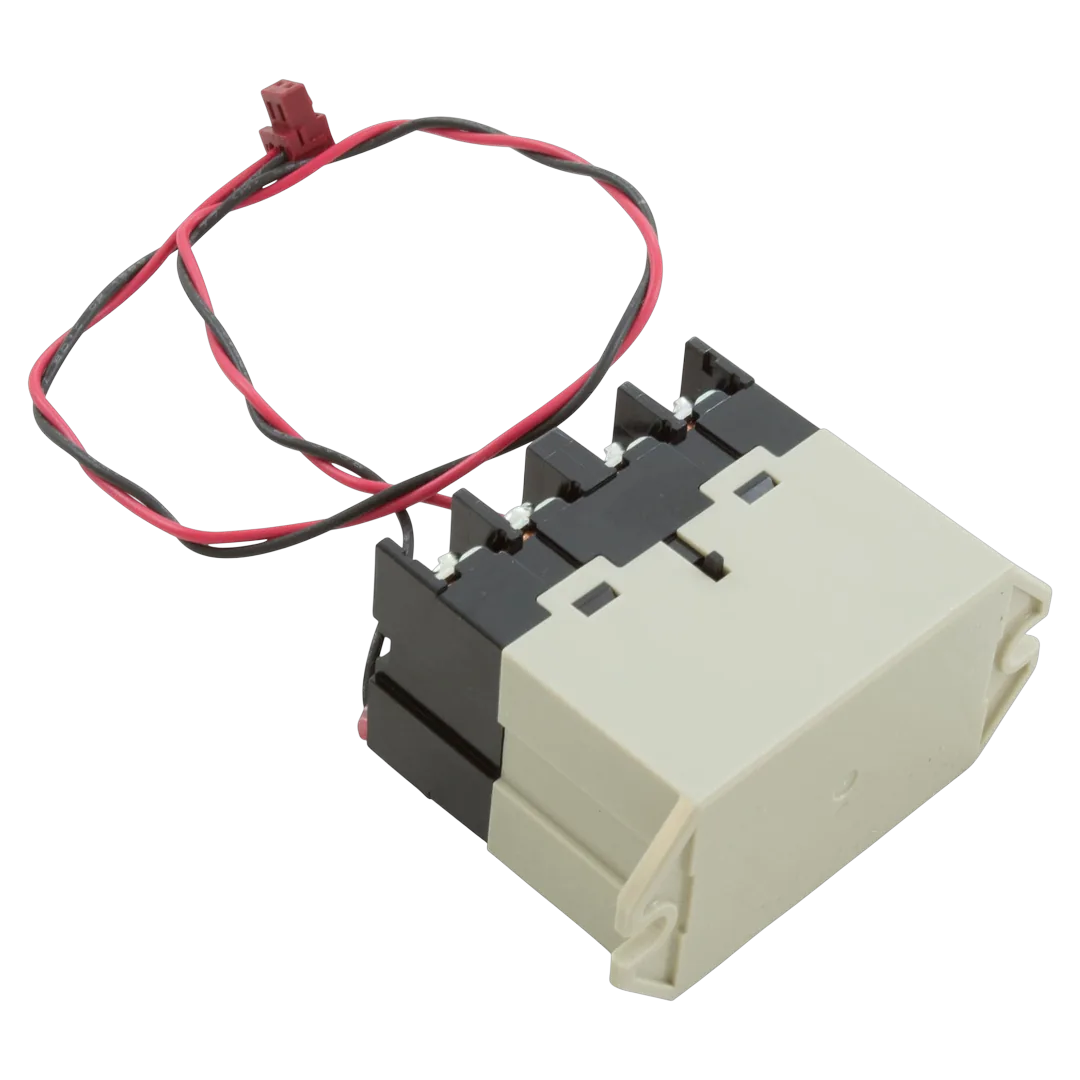

Includes: Relay with 10-inch red/black lead wire and two-pin connector
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Intermatic 143T145A |
| Part Number | 143T145A |
| Part Type | Relay |
| Compatibility | Jandy AquaLink 6614-LDG Systems, Jandy Power Center 6614AP-LG Systems |
| Includes | Relay with 10-inch red/black lead wire and two-pin connector |
| Certifications | RoHS Compliant |
| Material | ABS |
| Connection Size | 10-inch lead wire with two-pin connector |
| Mount Type | Panel-mounted |
| Pressure Rating | 17A Resistive, 120/240 VAC, 50/60 Hz 1.5 HP @ 120 VAC, 50/60 Hz 3.0 HP @ 240 VAC, 50/60 Hz 10 Amp Tungsten, 120/240 VAC, 50/60 Hz |
| Shipping Dimensions | 2.25 x 1.44 x 3.06 inch |
| Product Weight | 0.068 pound |
