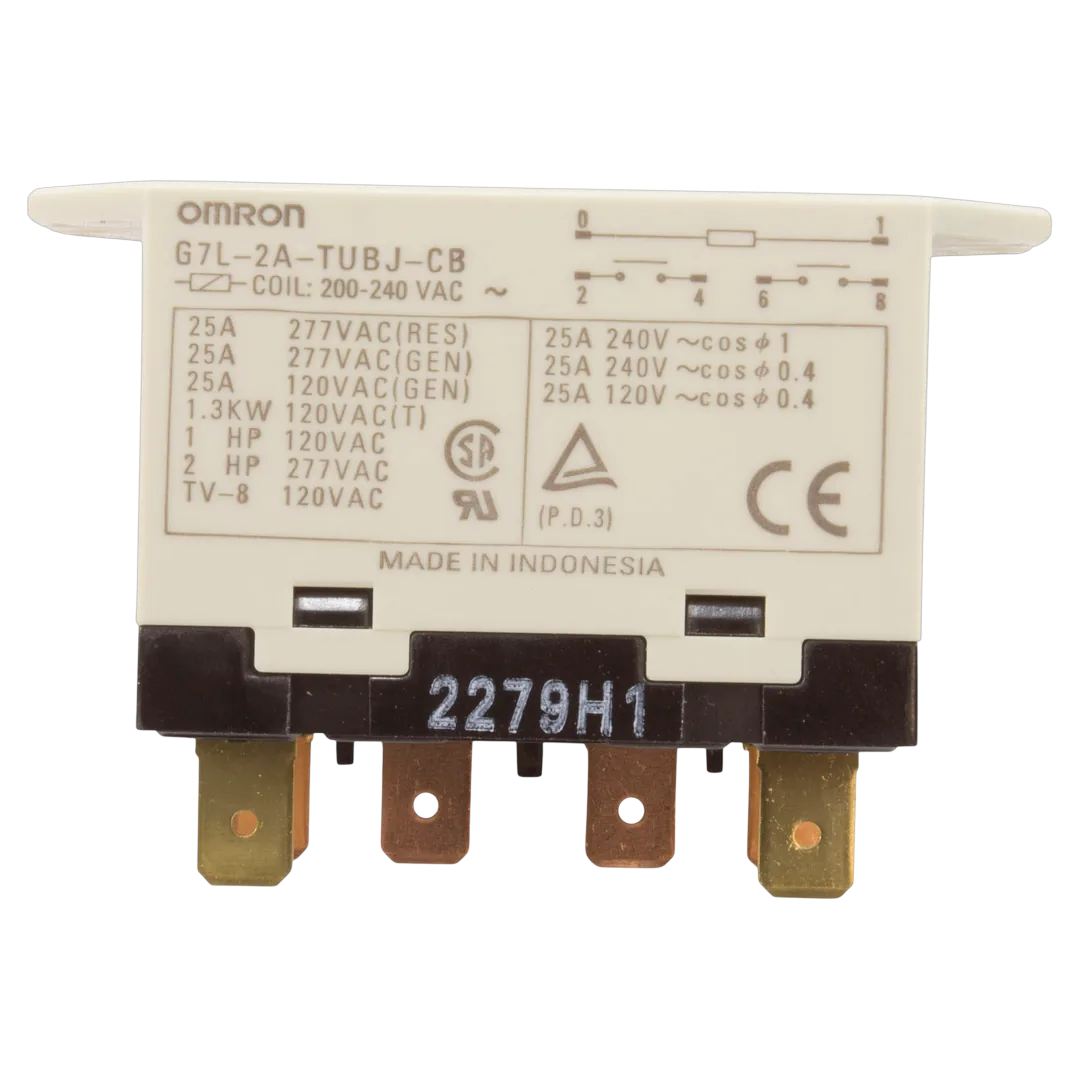

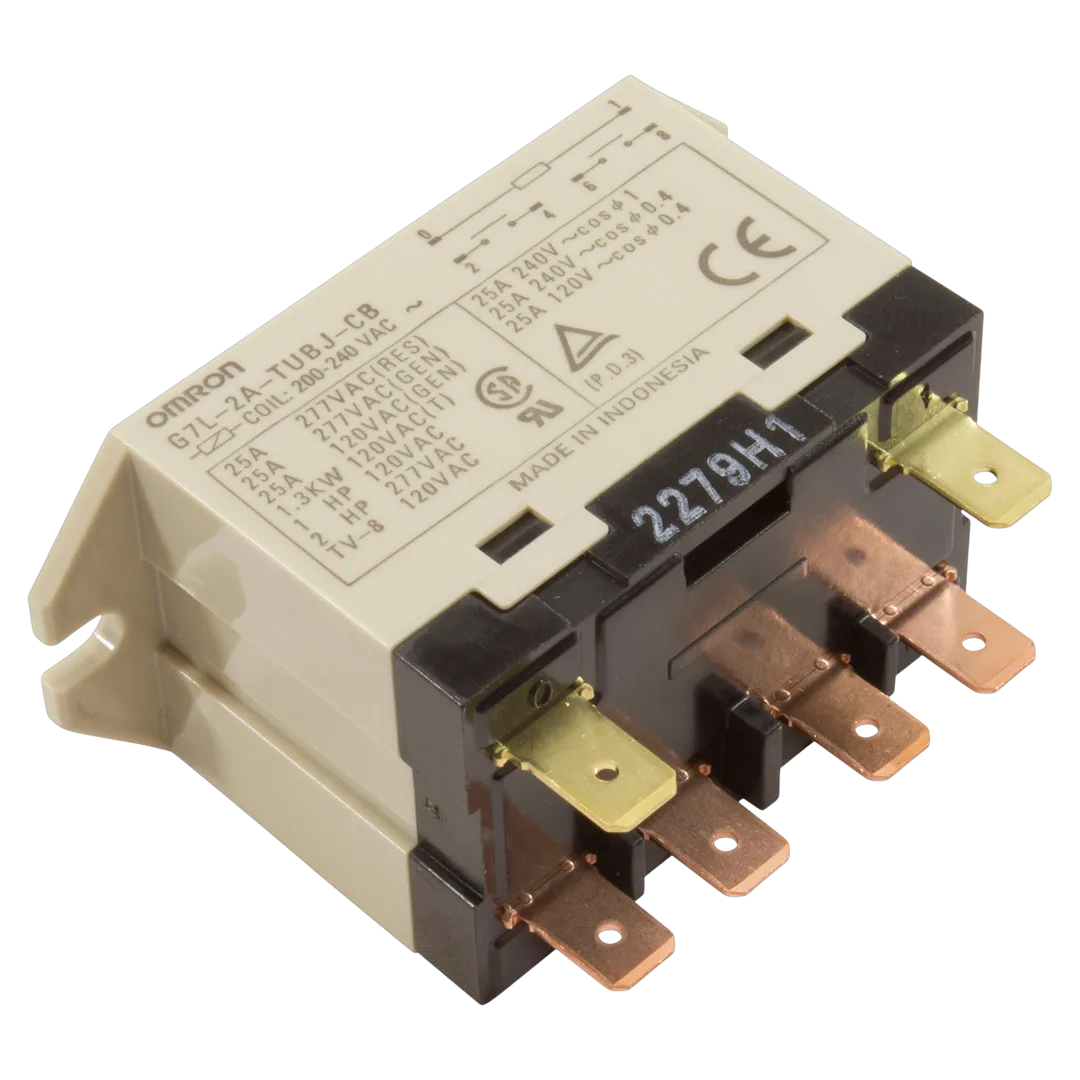

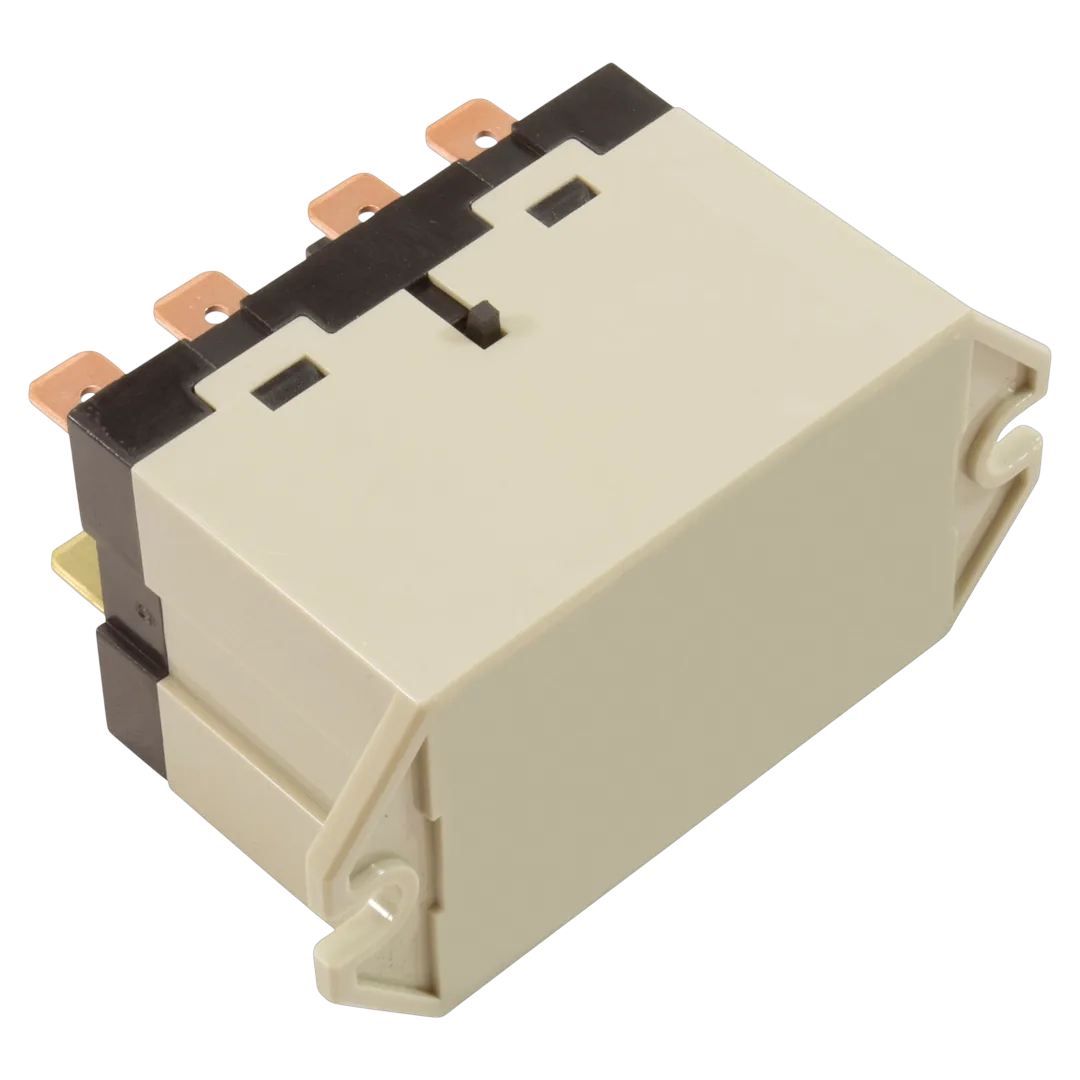

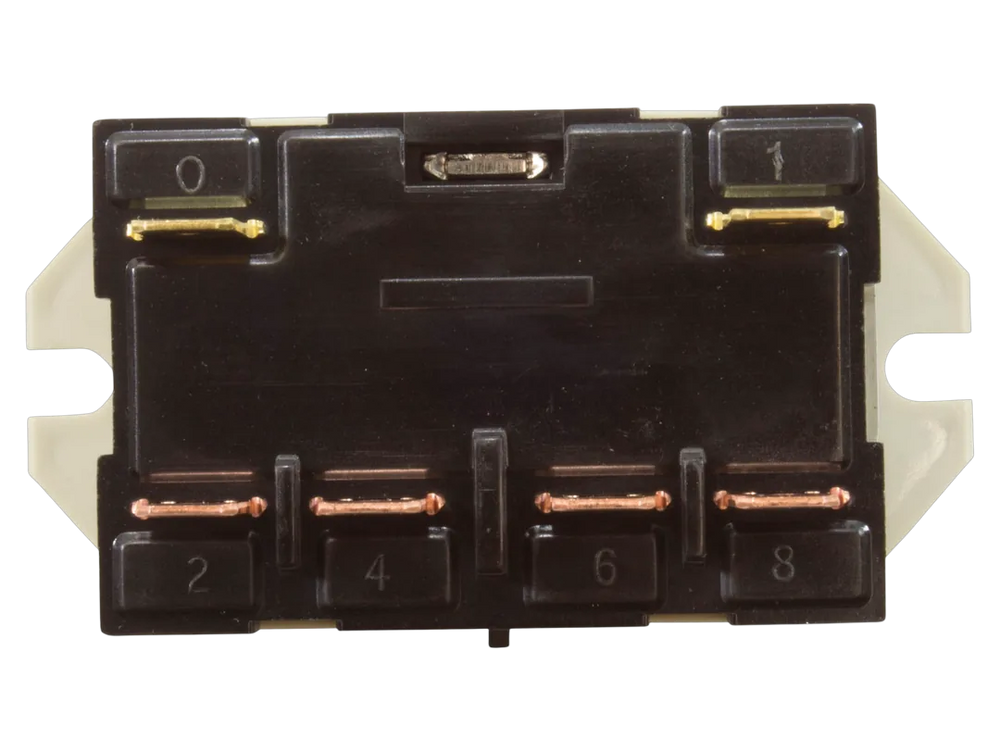

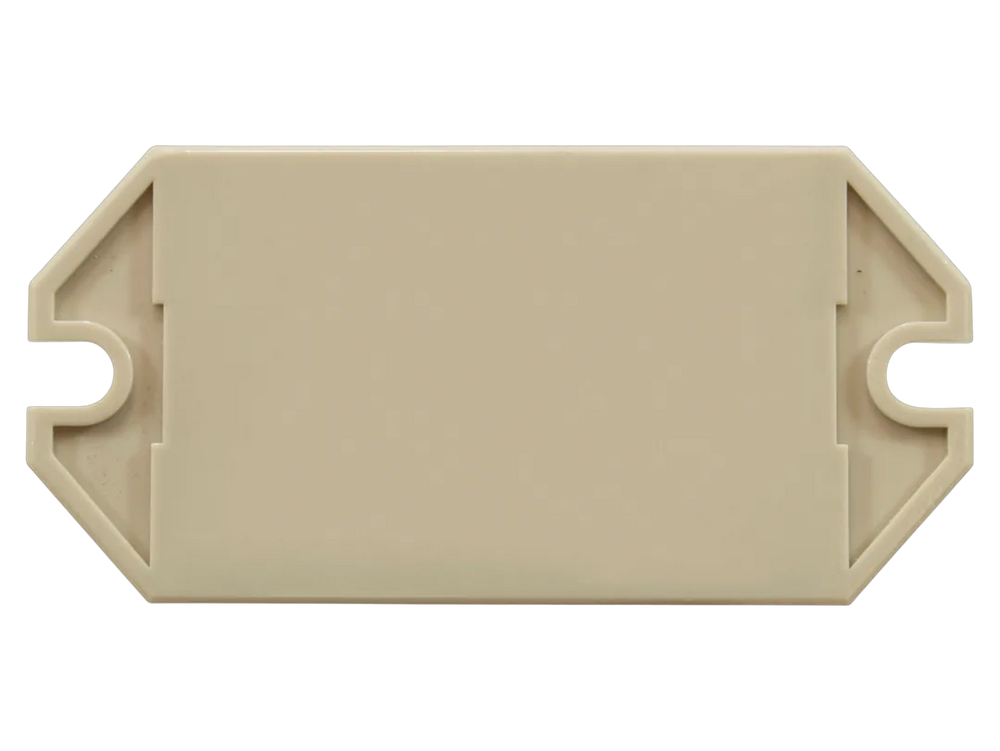

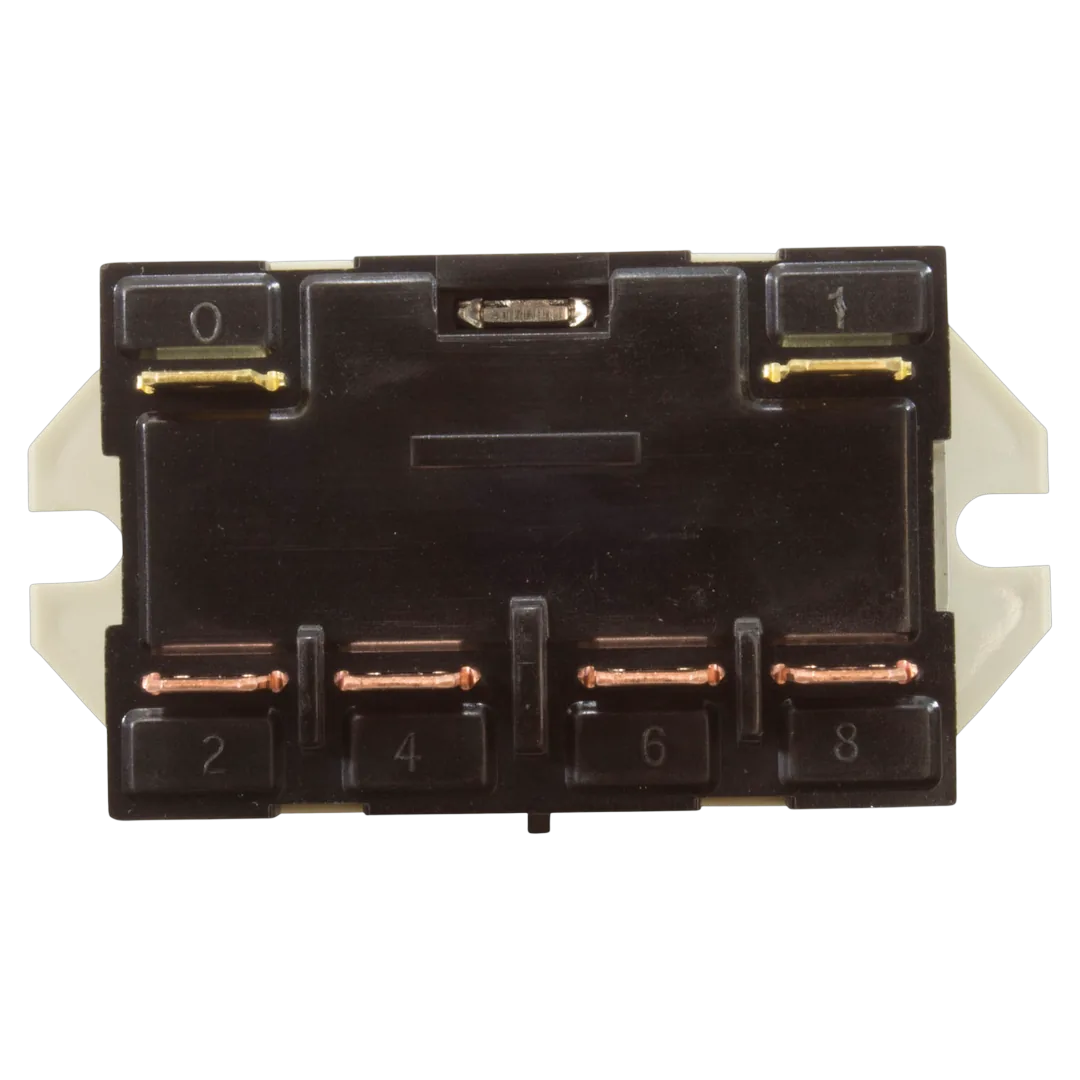

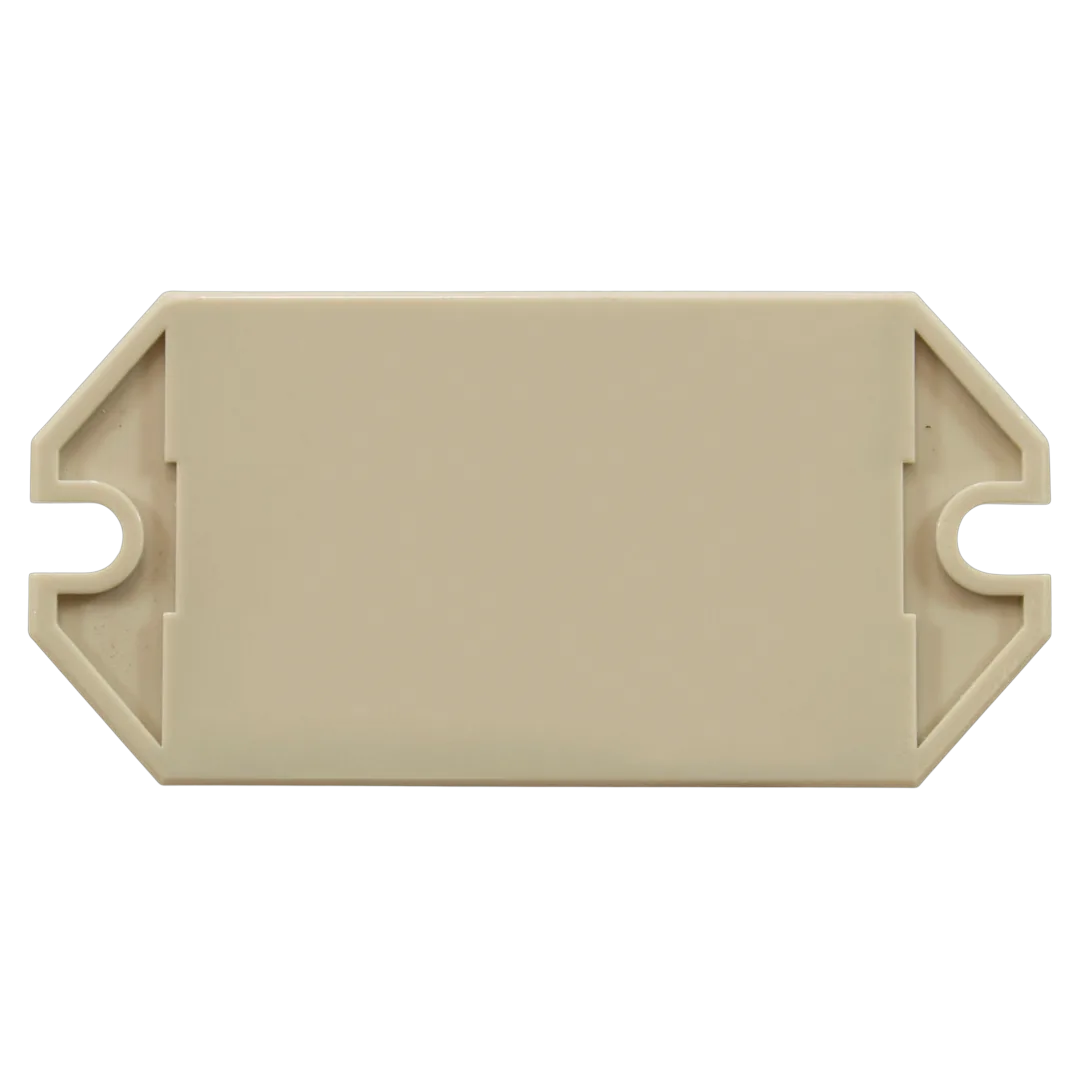

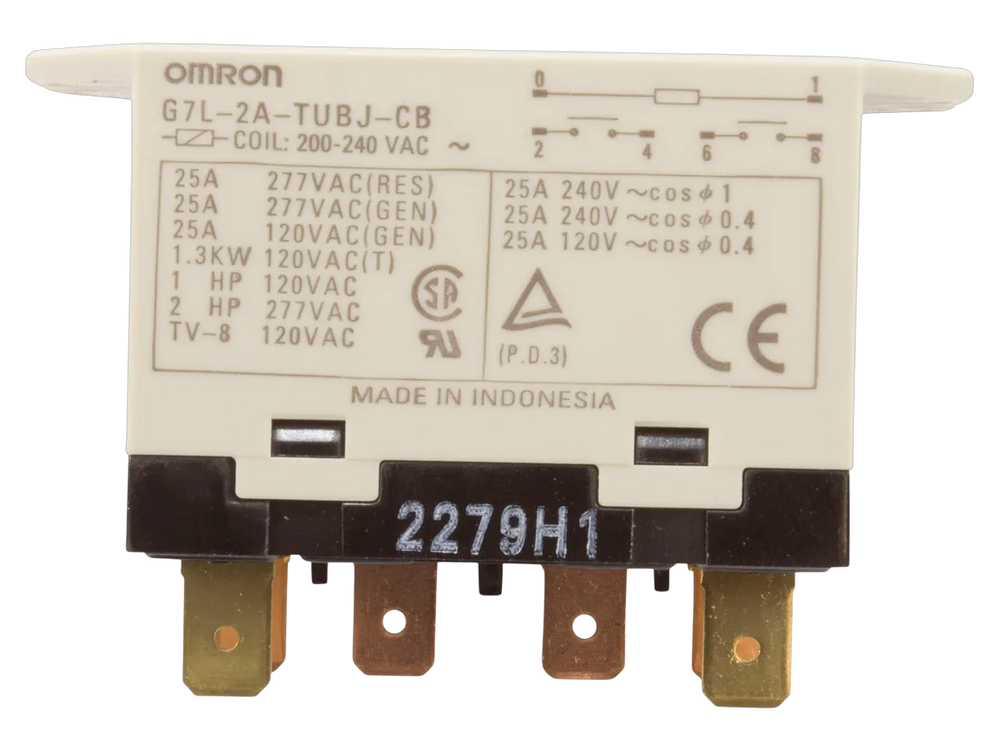

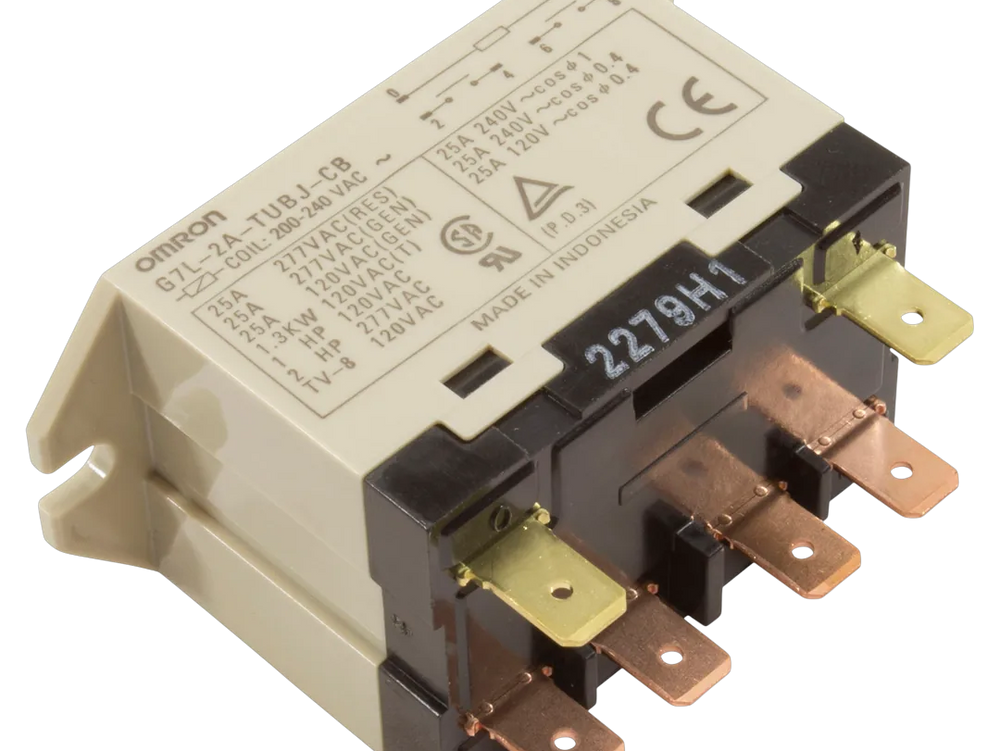

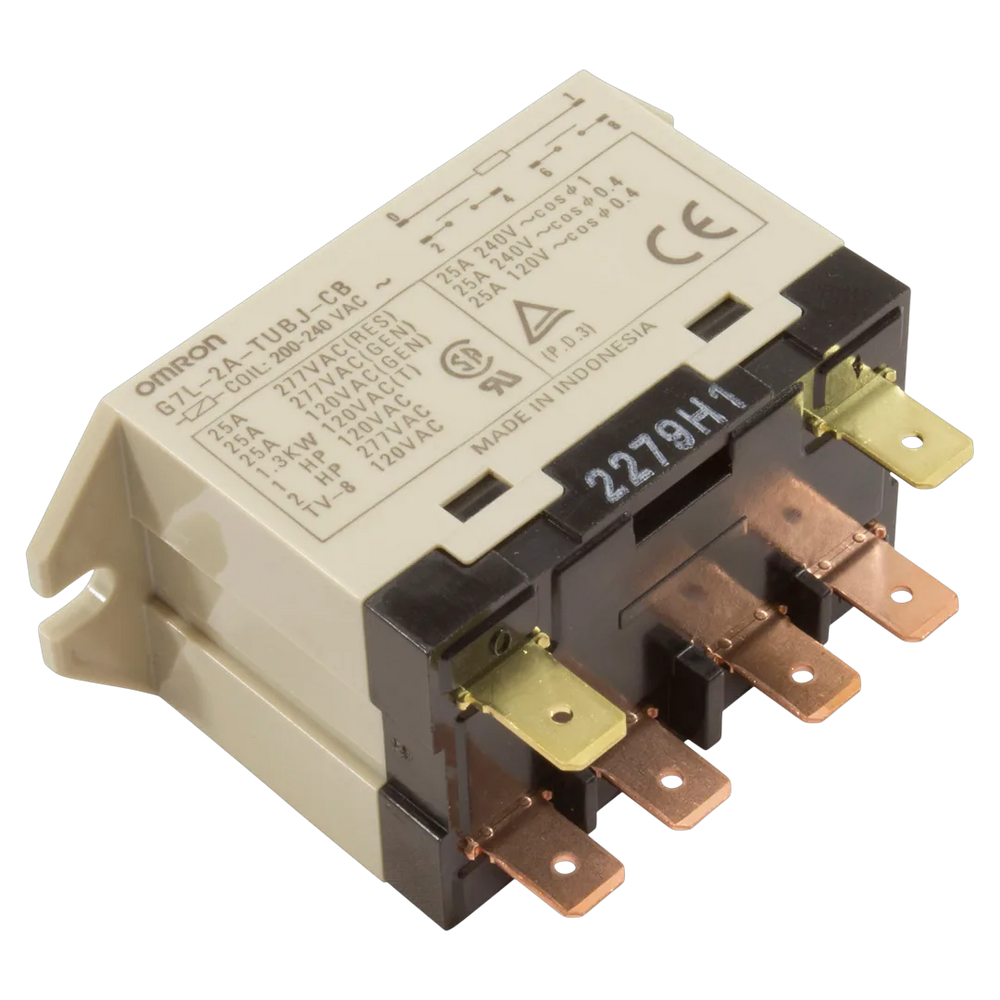

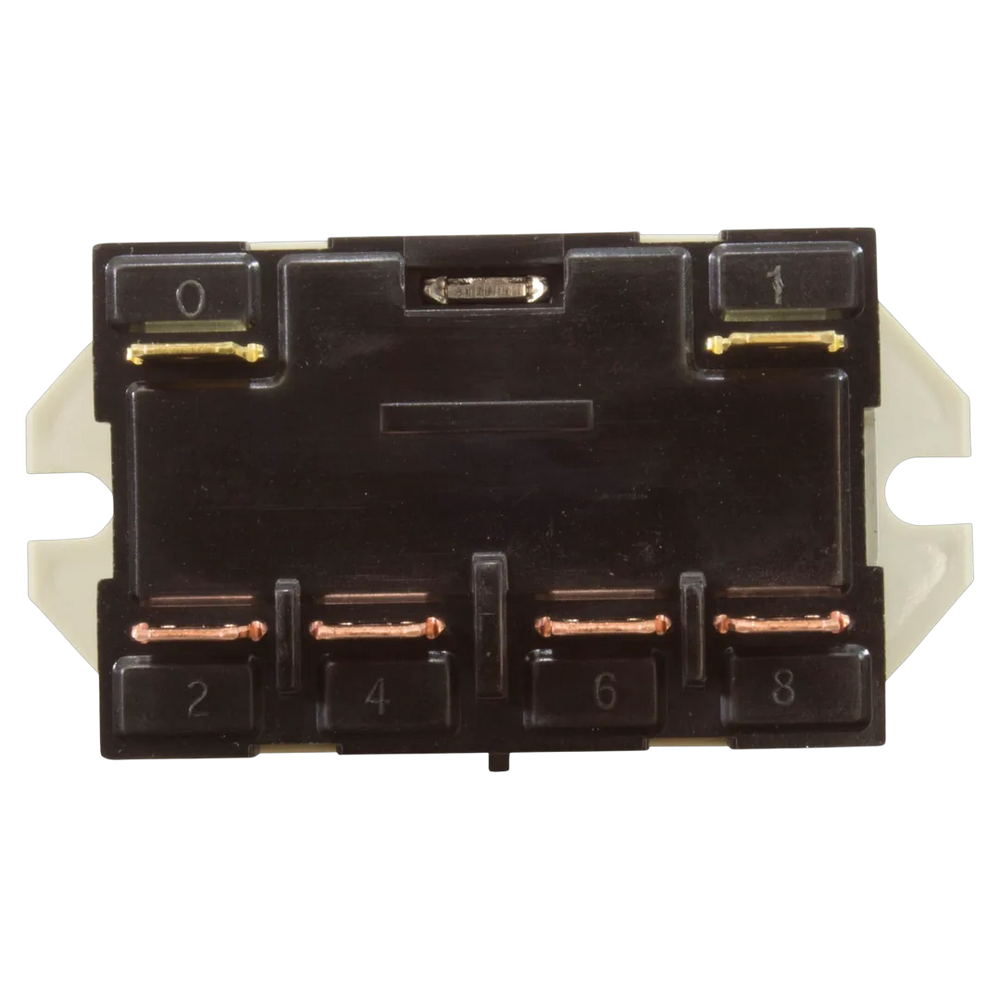

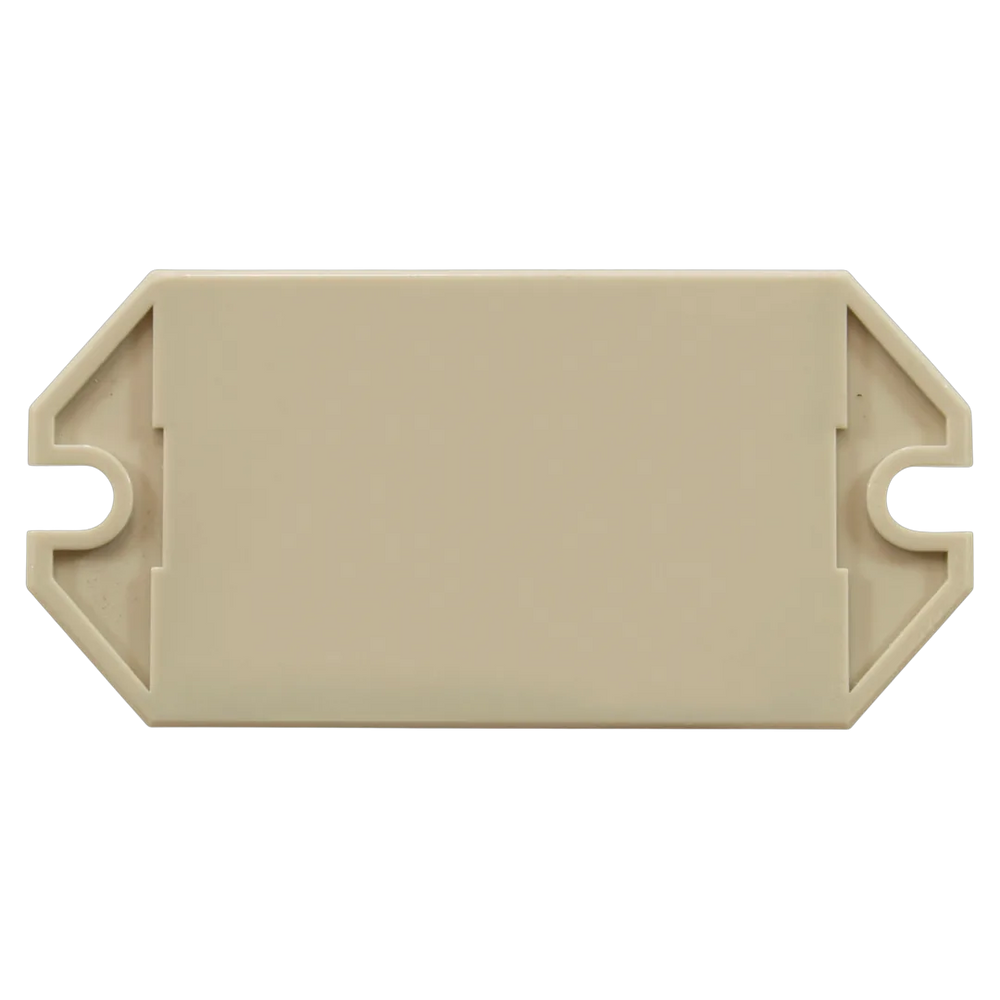

Intermatic 143T135 DPST Relay
Intermatic | SKU:
143T135
$10700
/ea
Unit price
/
Unavailable
Intermatic 143T135 DPST Relay is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Intermatic 143T135 is a Double Pole Single Throw (DPST) relay designed for motor and pump control. It operates at 240 VAC with a 3 HP power rating and a 25-amp contact current rating. This relay is compatible with the PF1102 and PF1200 series control and mechanism systems.
Includes: Relay only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Relay - DPST, 3 HP, 240 VAC |
| Part Number | 143T135 |
| Part Type | Relay |
| Compatibility | PF1102 Series Controls and Mechanisms, PF1200 Series Controls, P7102ME Electronic Mechanisms |
| Includes | Relay only |
| Material | Plastic |
| Number of Positions | 2 |
| Connection Size | Standard electrical terminals |
| Mount Type | Panel mount |
| Flow Paths | Double Pole Single Throw (DPST) |
| Pressure Rating | Not applicable |
| Seal Material | Not specified |
| Shipping Dimensions | 2.5 x 2.1 x 1.5 inch |
| Product Weight | 0.2 pound |
