Pentair Power Center 520556 for IntelliChlor Salt Generator Cells | 520556
Pentair | SKU:
EC-520556
$74900
/ea
Unit price
/
Unavailable
Pentair Power Center 520556 for IntelliChlor Salt Generator Cells | 520556 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

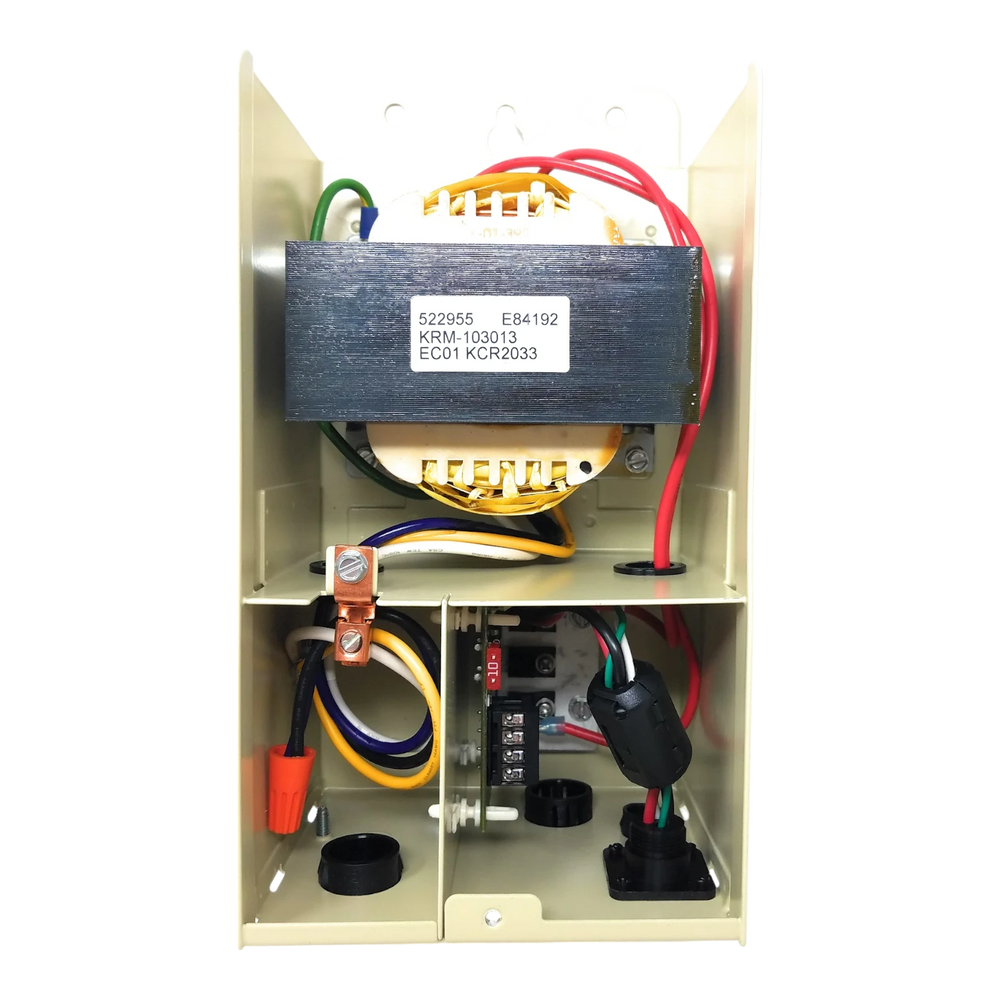

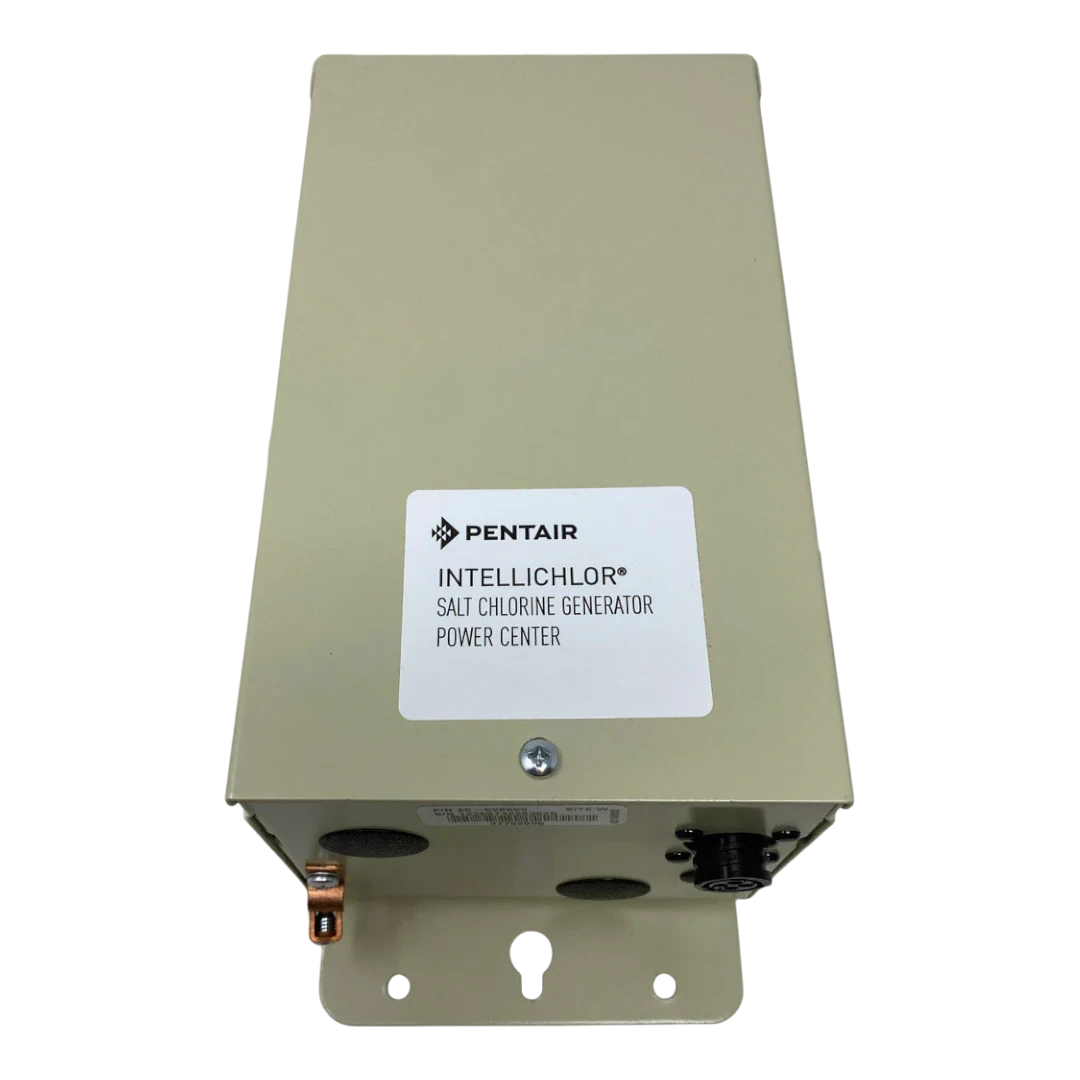

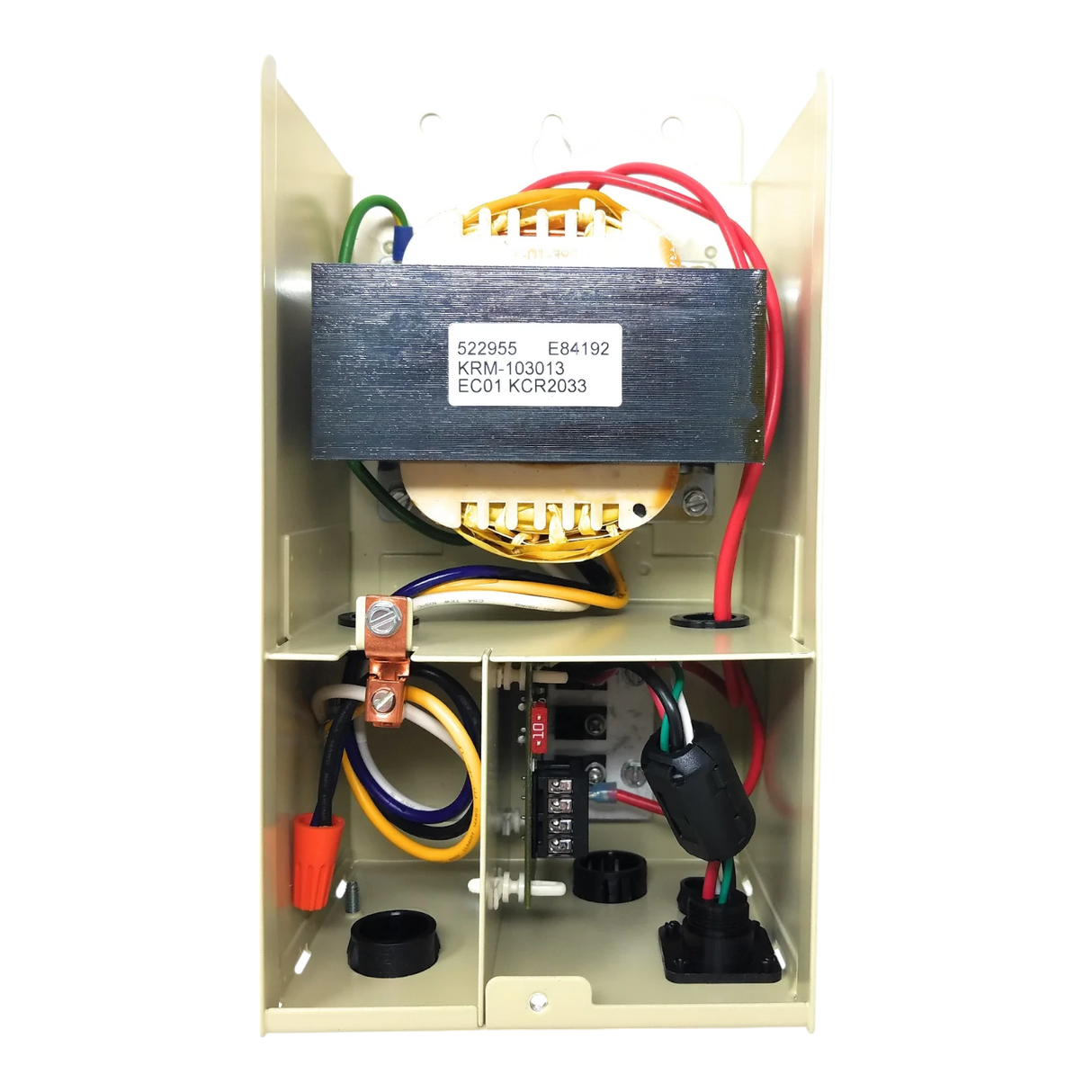

This is the Pentair IntelliChlor 520566 Power Center that powers the salt cells and is part of the complete IntelliChlor Salt Generator system. The Power Center contains the transformer, fuse, and connection to the IntelliChlor salt cell. The Pentair IntelliChlor Power Center can be wired to either 110 or 230 VAC.
The power center has the ability to communicate with IntelliTouch, EasyTouch and SunTouch automated systems. It can be used with Pentair salt cells IC20, IC40 and IC60.
Includes: Power Center unit
The power center has the ability to communicate with IntelliTouch, EasyTouch and SunTouch automated systems. It can be used with Pentair salt cells IC20, IC40 and IC60.
Includes: Power Center unit
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Pentair IntelliChlor Power Center |
| Part Number | EC-520556 |
| Compatibility | Pentair IntelliChlor Salt Chlorine Generator Cells (IC20, IC40, IC60) |
| Substitute Part Numbers | 520556 |
| Part Type | Power Center |
| Includes | Power Center unit |
| Certifications | UL 1081 Standard for Safety |
| Power Voltage | 110/220 VAC |
| Power Consumption | 220 Watts |
| Shipping Dimensions | 12 x 8 x 6.25 inch |
| Product Weight | 13 pound |
Schematics:
|
Pentair Intellichlor Replacement Parts
Pentair Intellichlor Replacement Parts
|
