Hydro-Quip 34-0049-K 24 Hour Time Clock with Override Switch
HYDROQUIP | SKU:
34-0049-K
$9100/ea
Unit price
/
Unavailable
Hydro-Quip 34-0049-K 24 Hour Time Clock with Override Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

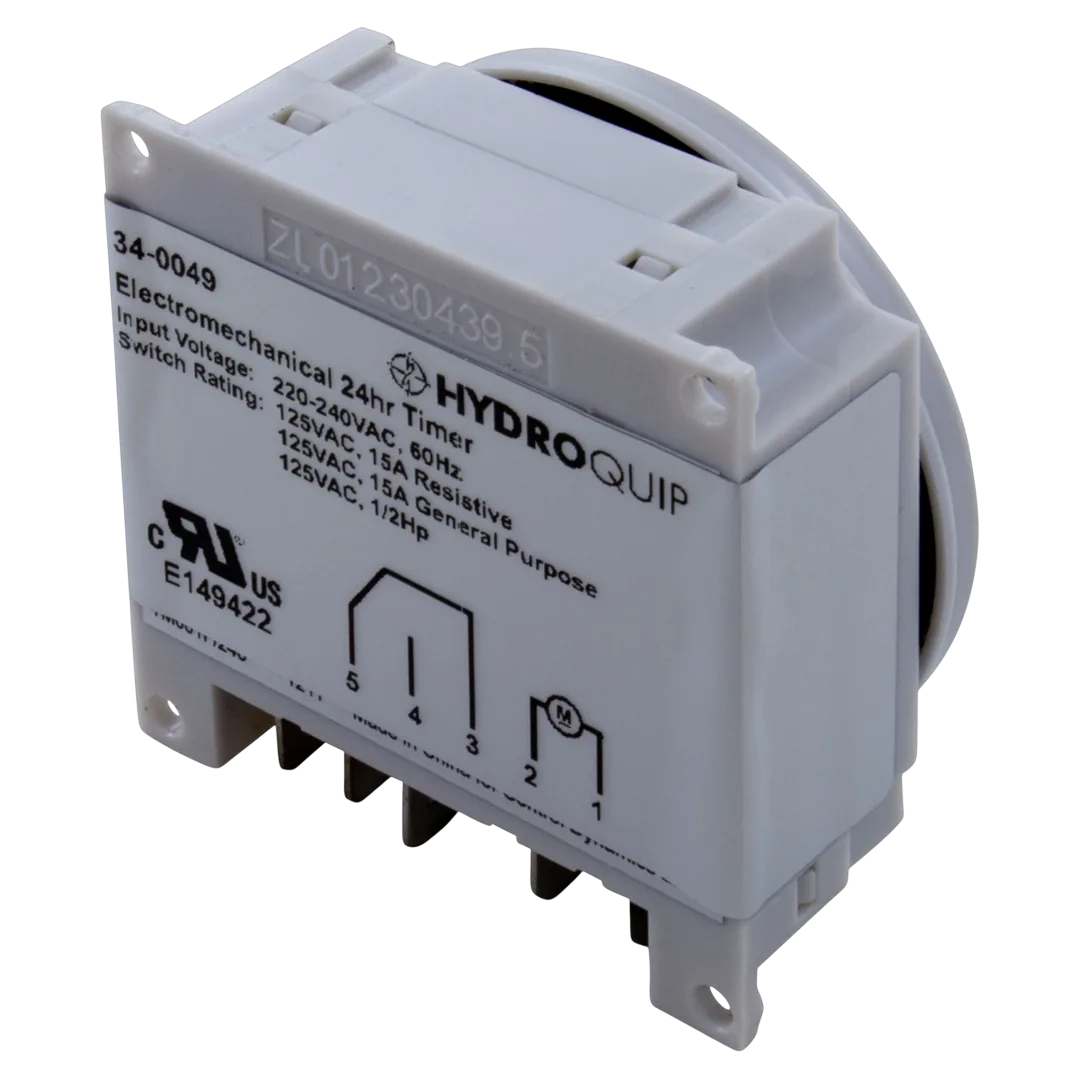

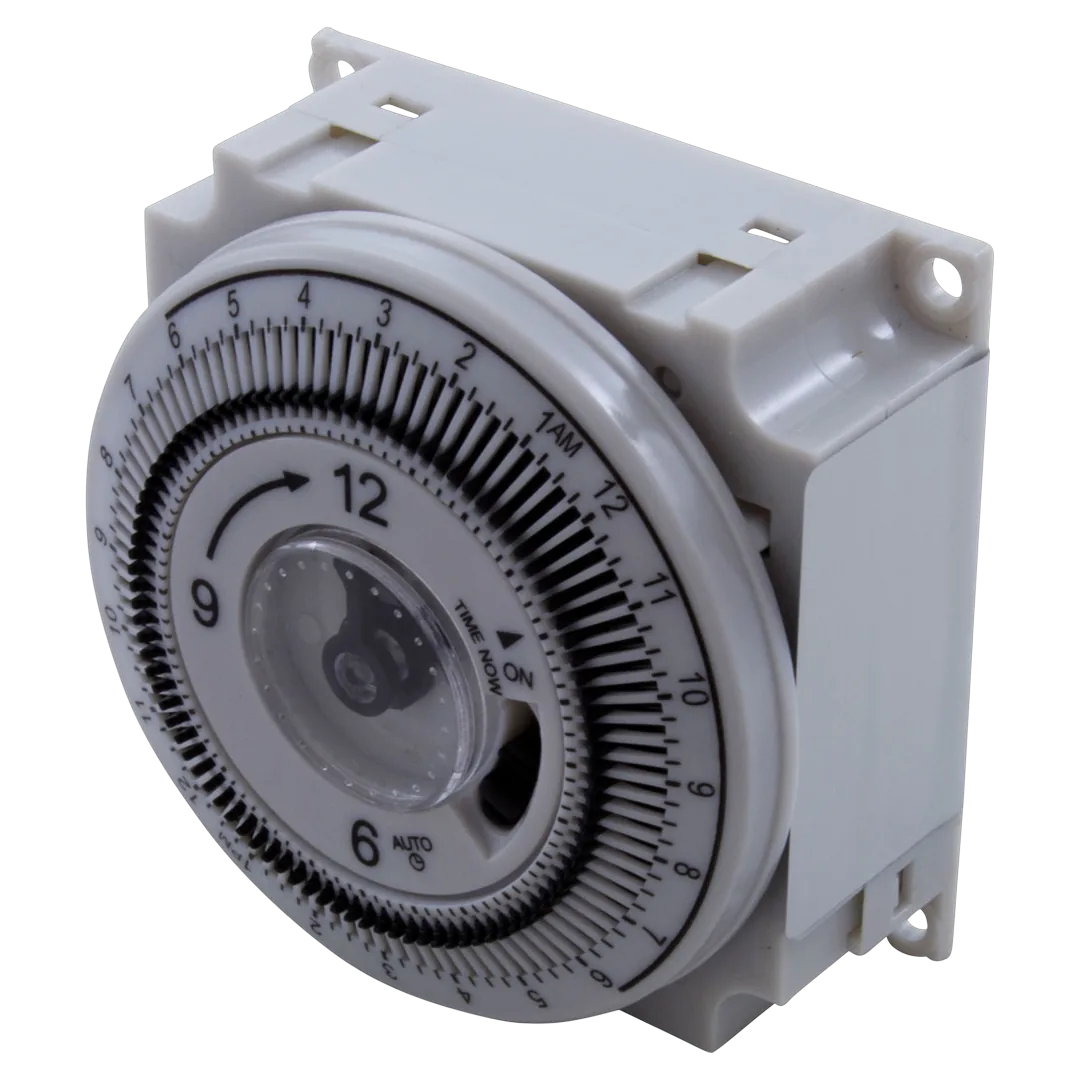

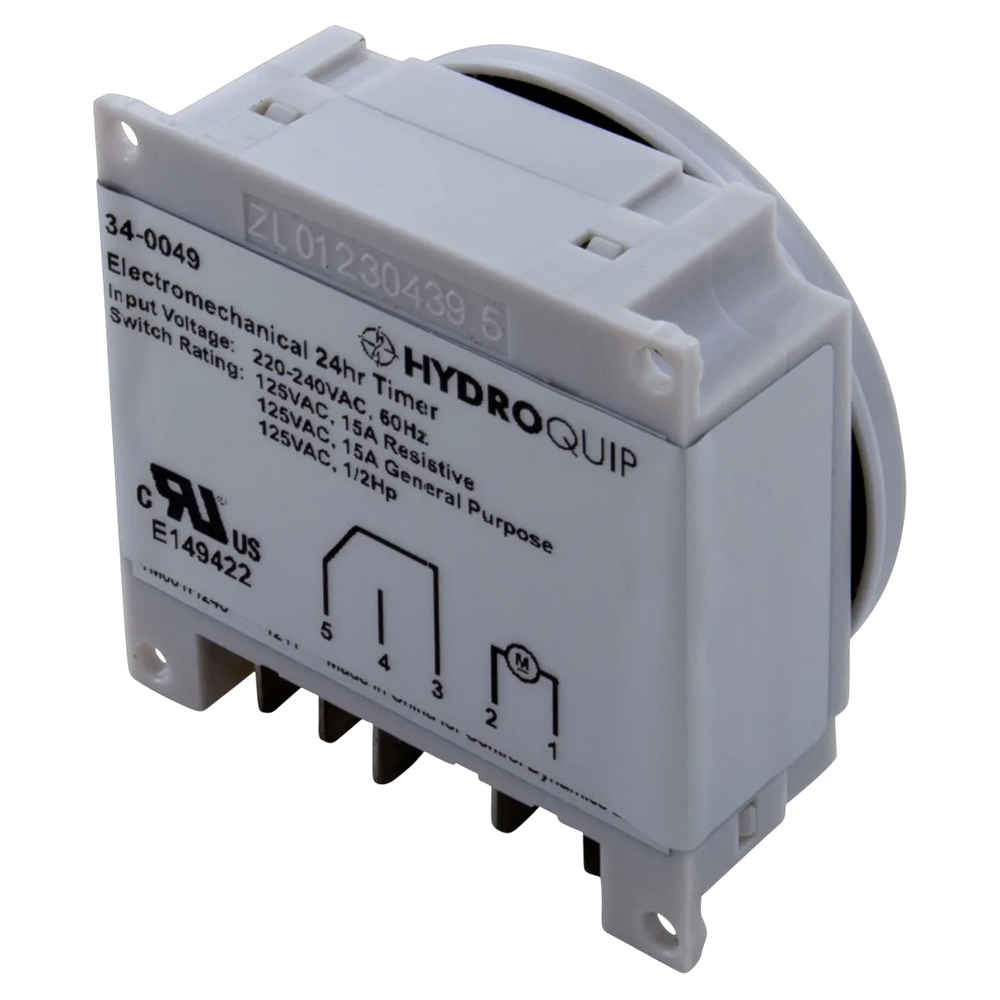

Replacement 24-hour time clock with manual override for Hydro-Quip control packs (34-0049-K), used to replace Grasslin panel-mount timers in many spa systems. It automates daily run times for pumps, blowers, or lights and lets you bypass the schedule from the front switch when needed. The assembly is a 240V SPDT, panel-mount unit and an OEM drop-in fit for packs that accept a Grasslin-style timer.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Hydro-Quip 24 Hour Time Clock with Override Switch 34-0049-K |
| Part Number | 34-0049-K |
| Part Type | Time Clock |
| Voltage | 240V |
| Frequency | 60Hz |
| Switch Type | SPDT (Single-Pole Double-Throw) |
| Mount Type | Panel Mount |
| Override Function | Yes |
| Timer Cycle | 24-Hour |
| Shipping Dimensions | 3.5 x 3.4 x 1.4 inch |
| Product Weight | 0.16 pound |
