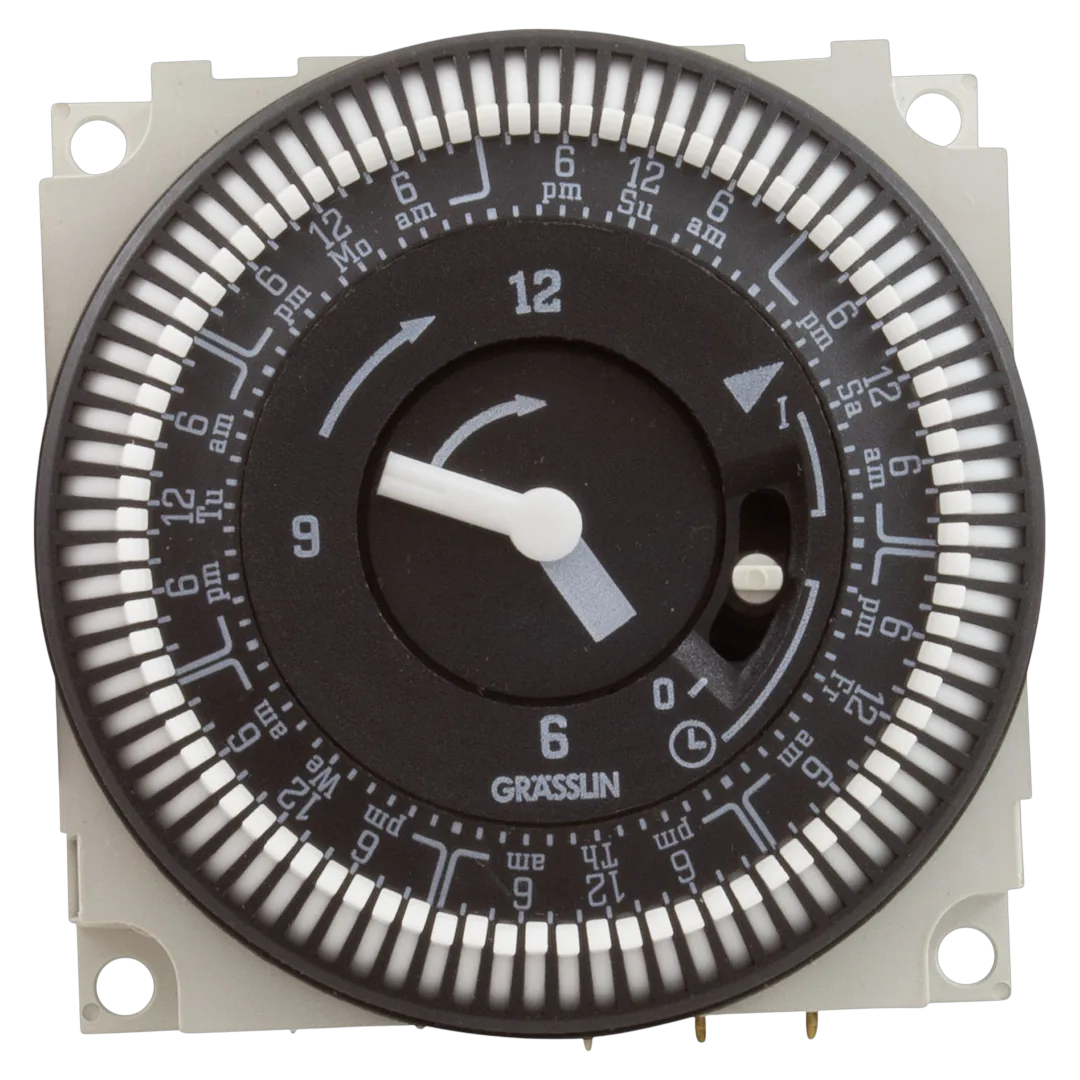

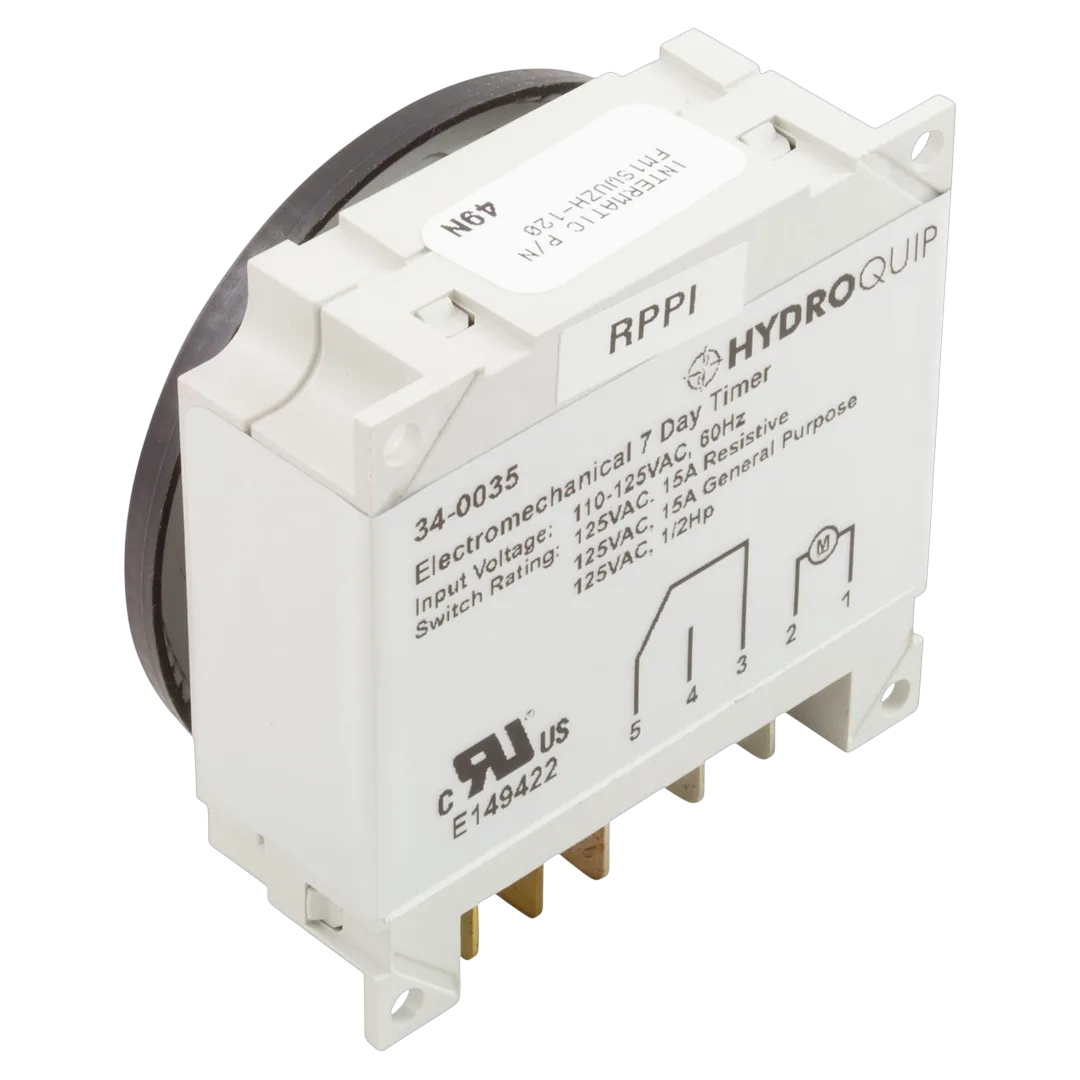

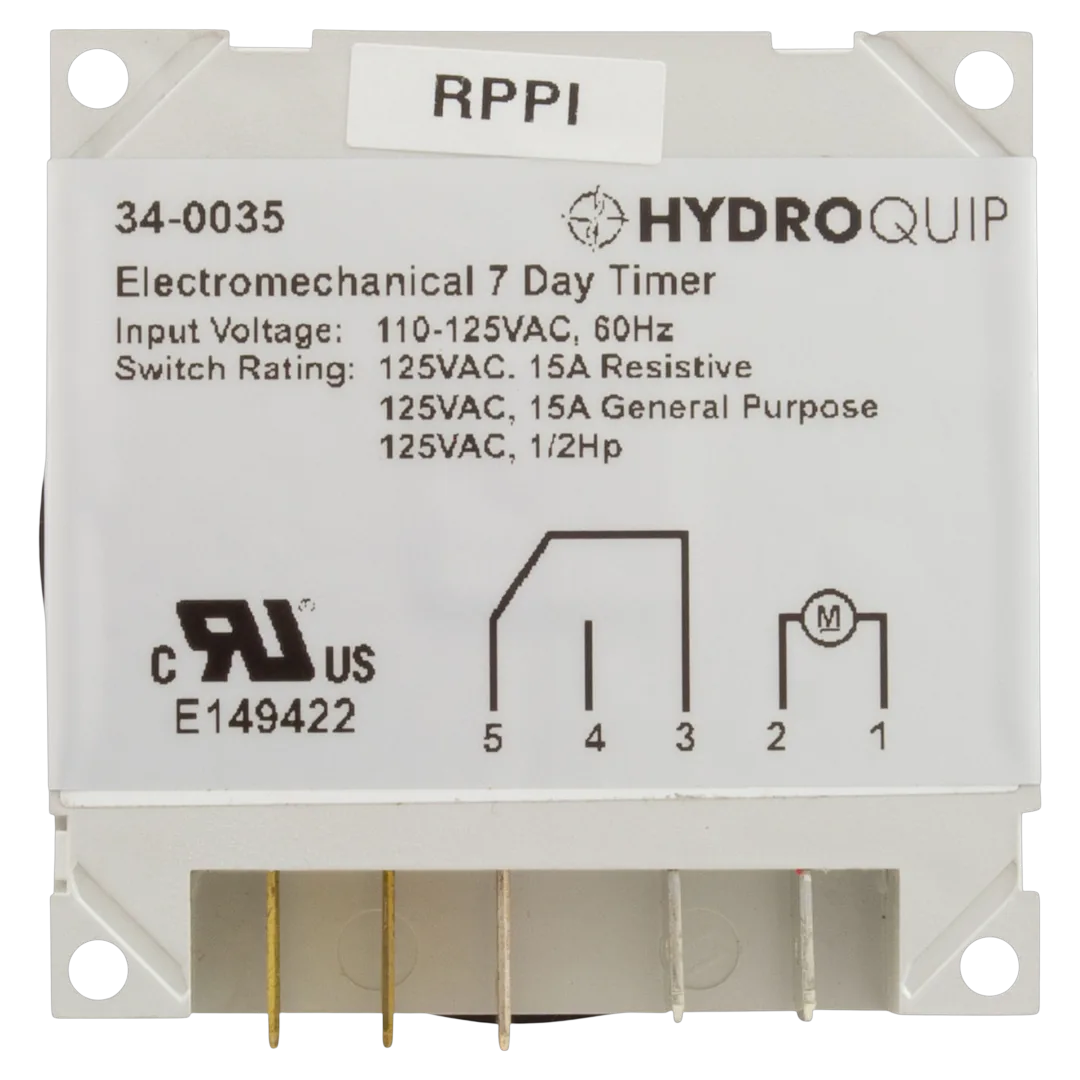

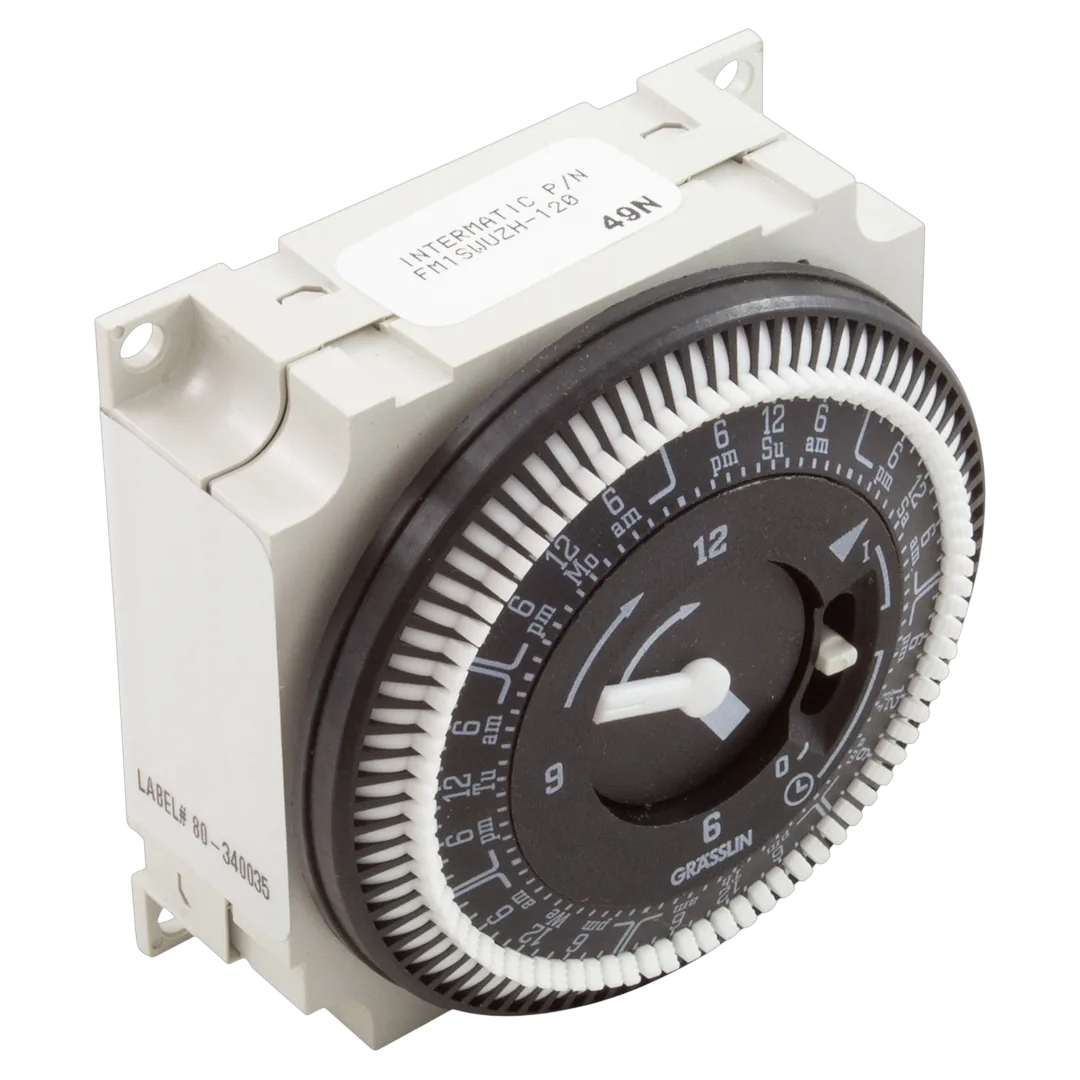

Hydro-Quip 34-0035-K 7-Day Time Clock
HYDROQUIP | SKU:
34-0035-K
$8800/ea
Unit price
/
Unavailable
Hydro-Quip 34-0035-K 7-Day Time Clock is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Replacement 7-day panel-mount time clock for Hydro-Quip spa control packs; direct drop-in for Grasslin FM/SWUZ and TM1BS style timers (34-0035-K). It automates pumps, blowers, or lights on daily or weekly schedules with a mechanical dial and captive trippers. SPDT switch output and panel-mount form factor match the original for straightforward wiring and installation.
Includes: Timer unit only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Hydro-Quip 7 Day Time Clock 34-0035-K |
| Part Number | 34-0035-K |
| Part Type | Timer |
| Compatibility | Suitable for various systems including pools, spas, and HVAC units |
| Substitute Part Numbers | 34-0035, 340035, 609927, 614573122016, FM-7, FM/SWUZ, FM1SWUZH, TM1BS |
| Includes | Timer unit only |
| Material | Not specified |
| Valve Type | Not applicable |
| Number of Positions | Not applicable |
| Connection Size | Not applicable |
| Mount Type | Panel mount |
| Flow Paths | Not applicable |
| Pressure Rating | Not applicable |
| Seal Material | Not applicable |
| Shipping Dimensions | 2.45 x 1.55 x 2.50 inch |
| Product Weight | 0.16 pound |
