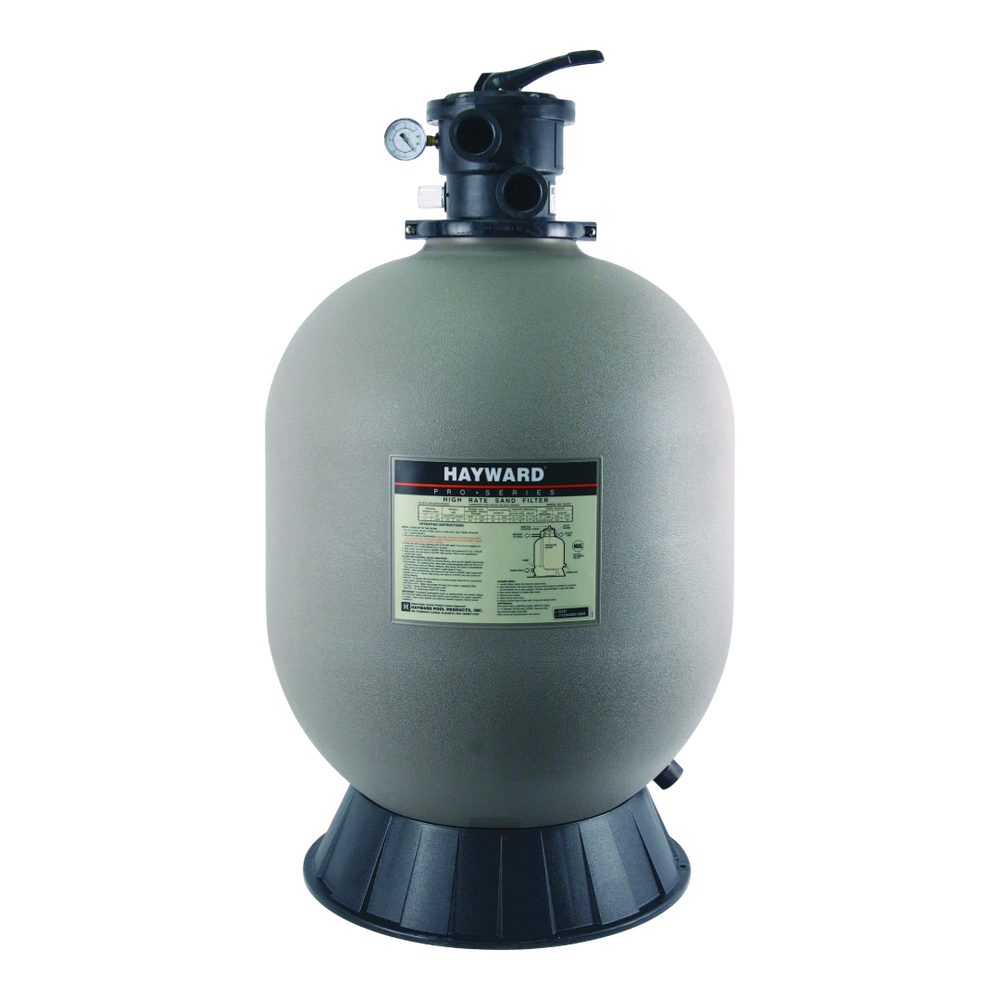

Hayward 22-Inch Pro Series Sand Filter

Hayward  |  SKU: W3S220T
$62900 /ea

Description

The Hayward W3S220T ProSeries Sand Filter is a 22-inch top-mount filtration system designed for in-ground and above-ground pools. It features durable, corrosion-proof construction and a precision-engineered self-cleaning lateral system for efficient water flow and balanced backwashing, ensuring optimal pool performance.

Features:

  • Includes 1-1/2" VariFlo
  • Compatible with Hayward Multiport Valve SP0714T
  • In-ground pools of all types and sizes
  • Requires 200 lbs of sand
  • 7 position Hayward Vari-Flo control valve with easy-to-use lever-action handle lets you dial any of the valve/filter functions. Integral sight glass lets you see when backwash cycle is completed

Additional Information

Technical Specs

Part Name
Hayward W3S220T Pro Series Sand Filter
Model Number
W3S220T
Filter Type
Sand
Tank Diameter
22 inches
Filter Area
2.64 sq ft
Media Required (Sand)
250 lbs
Max Flow Rate
52 GPM
Max Pool Volume
24,960 gallons (8-hour turnover)
Operating Pressure
50 PSI
Valve Mount
Top
Valve Type
Multiport
Multiport Valve Included
Yes
Material
Molded Polymeric
Includes
Filter tank
7-position Vari-Flo control valve
base
Shipping Dimensions
22.4 x 22.4 x 42.6 inches
Product Weight
41 pounds

This product ships free via FedEx Home Delivery.

Resources

User Manual User Manual
Data Sheet / Brochure Data Sheet / Brochure

Highlights

  • 360° valve rotation
  • Top diffuser included
  • Large drain port
  • Self-cleaning laterals
