H-Series 135K BTU Propane Heater

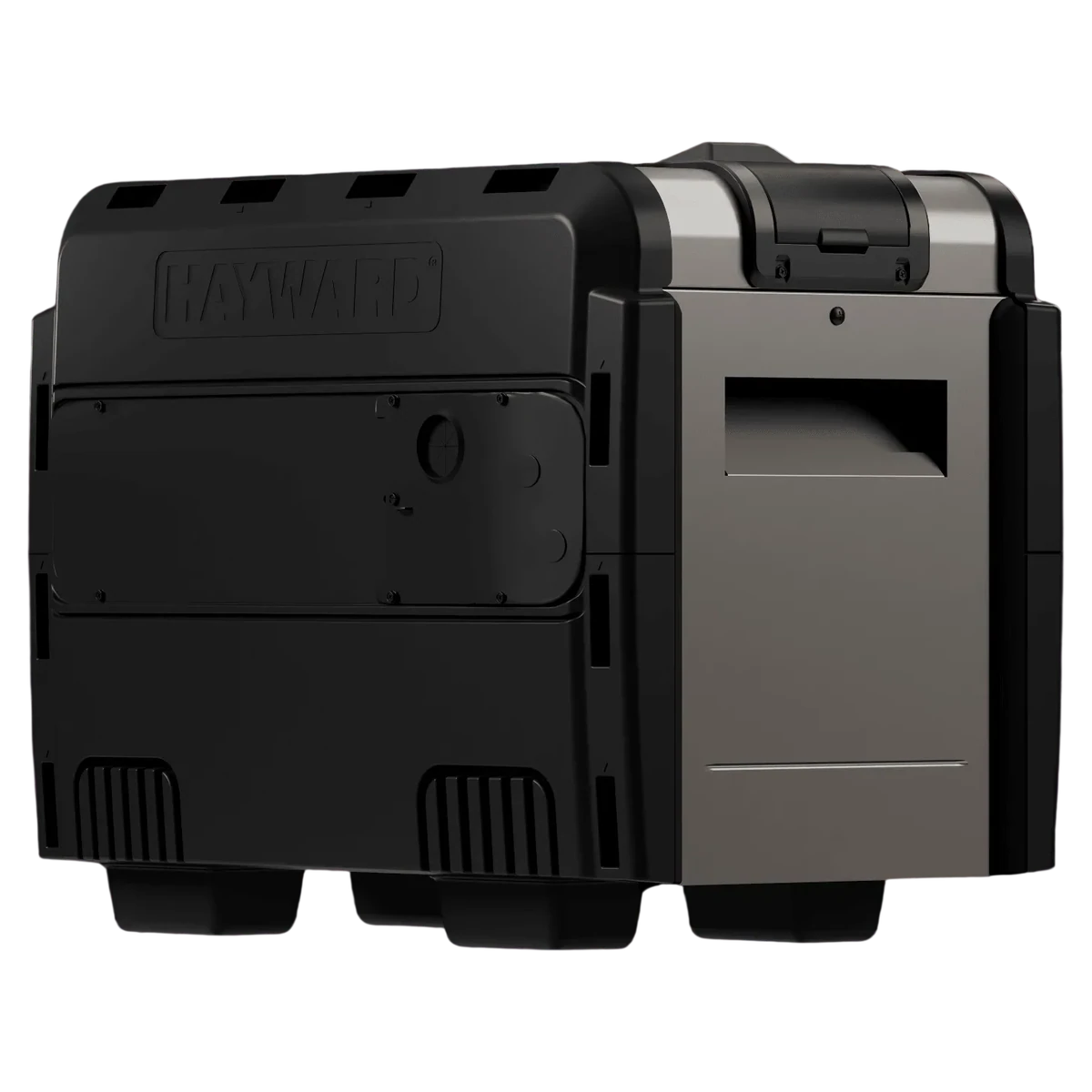

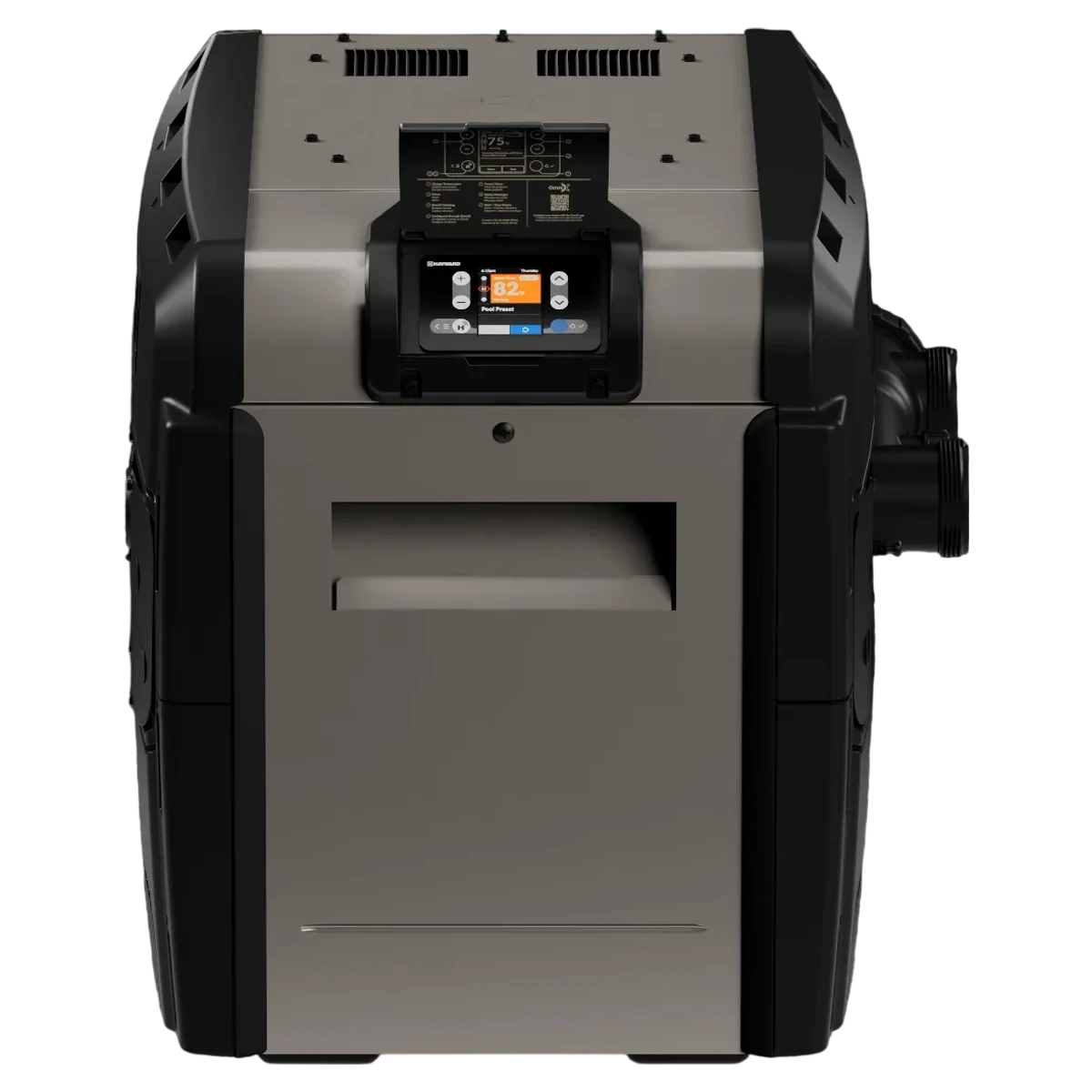

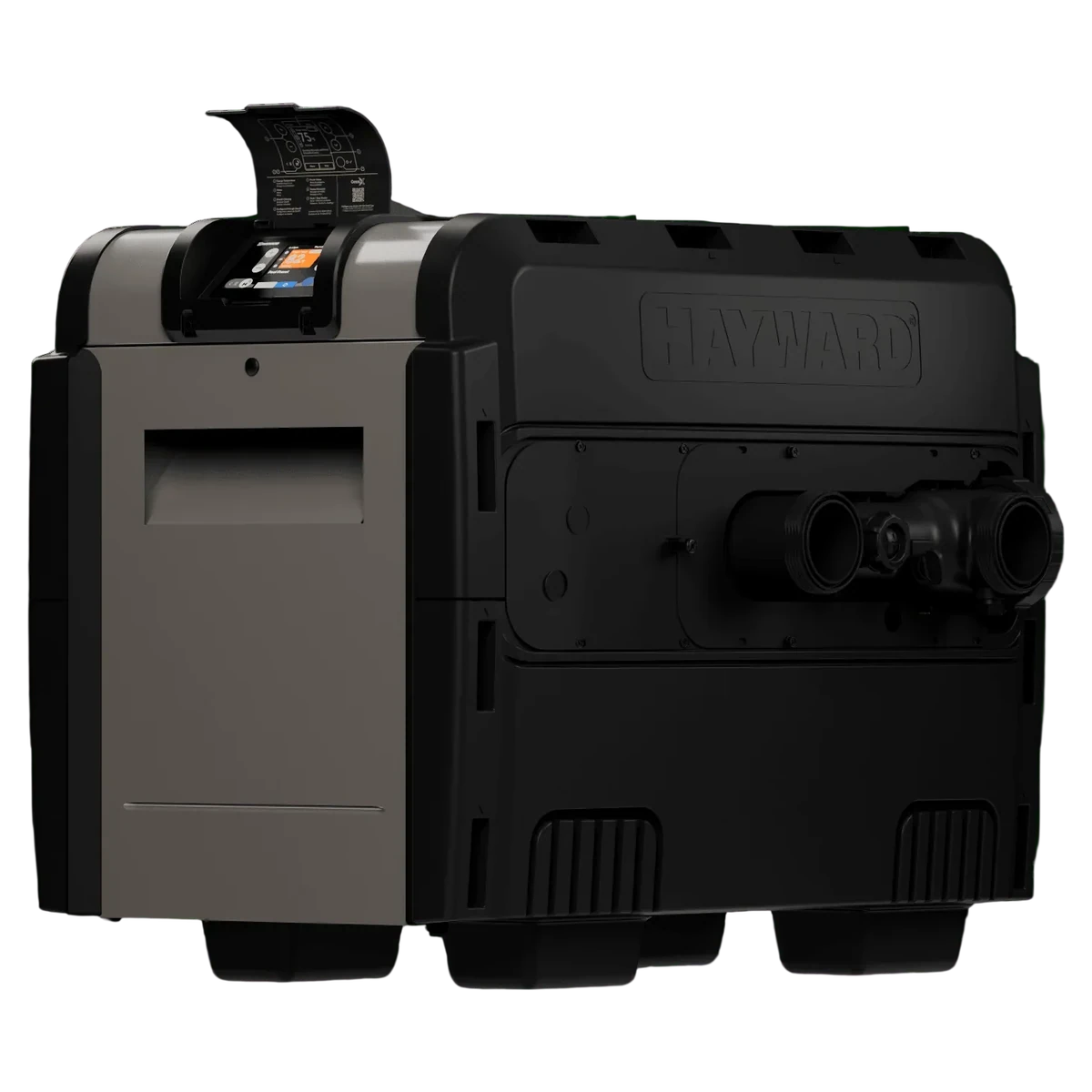

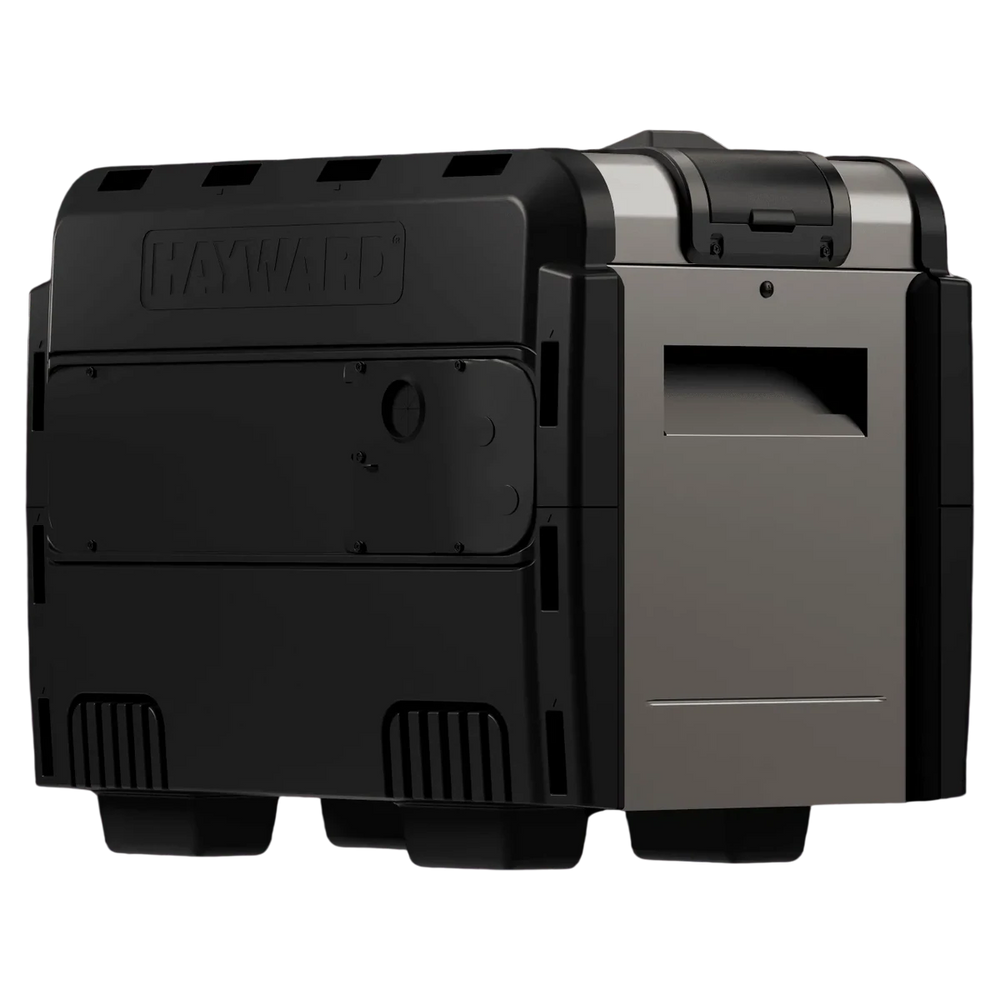

The Hayward Universal H-Series W3HS135FDP is a 135,000 BTU propane gas heater built for above-ground pools and spas, using a cupro-nickel heat exchanger and OmniX embedded intelligence for diagnostics and automation control.
Key Features
- Cupro-nickel heat exchanger
- Totally managed water flow for faster heating
- Low NOx emissions design

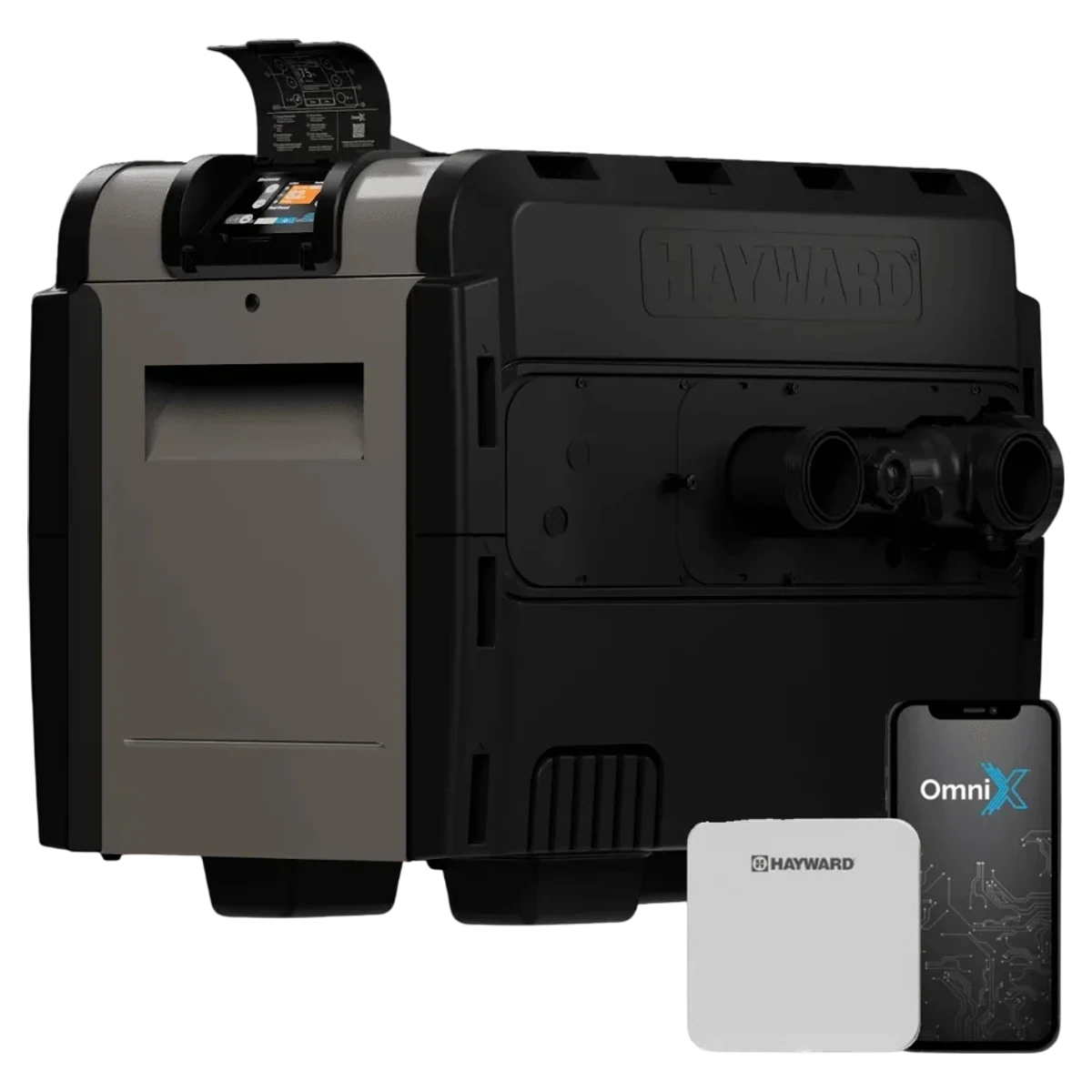

- OmniX embedded intelligence with Universal Display
- Front-panel-only service access
What's Included
- 120-volt plug-in electric cord (3 ft.)
Use at least a 250-gallon propane tank; a 100 lb tank only gives about 9.5 hours of runtime, and gas supply pressure at the heater should stay between 7 and 14 inches of water column.
This model is rated and warrantied as an above-ground pool/spa heater (1-year parts, no labor); for in-ground use Hayward recommends the H150FDP, which carries a longer parts and labor warranty.
This product ships free via FedEx Home Delivery.
Schematics:
|
Hayward H-Series Above Ground 135K BTU Heater Replacement Parts
View in Hayward H-Series Above Ground 135K BTU Heater Replacement Parts
|
