Hayward SX200H Bottom Drain Screen
Hayward SX200H Bottom Drain Screen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

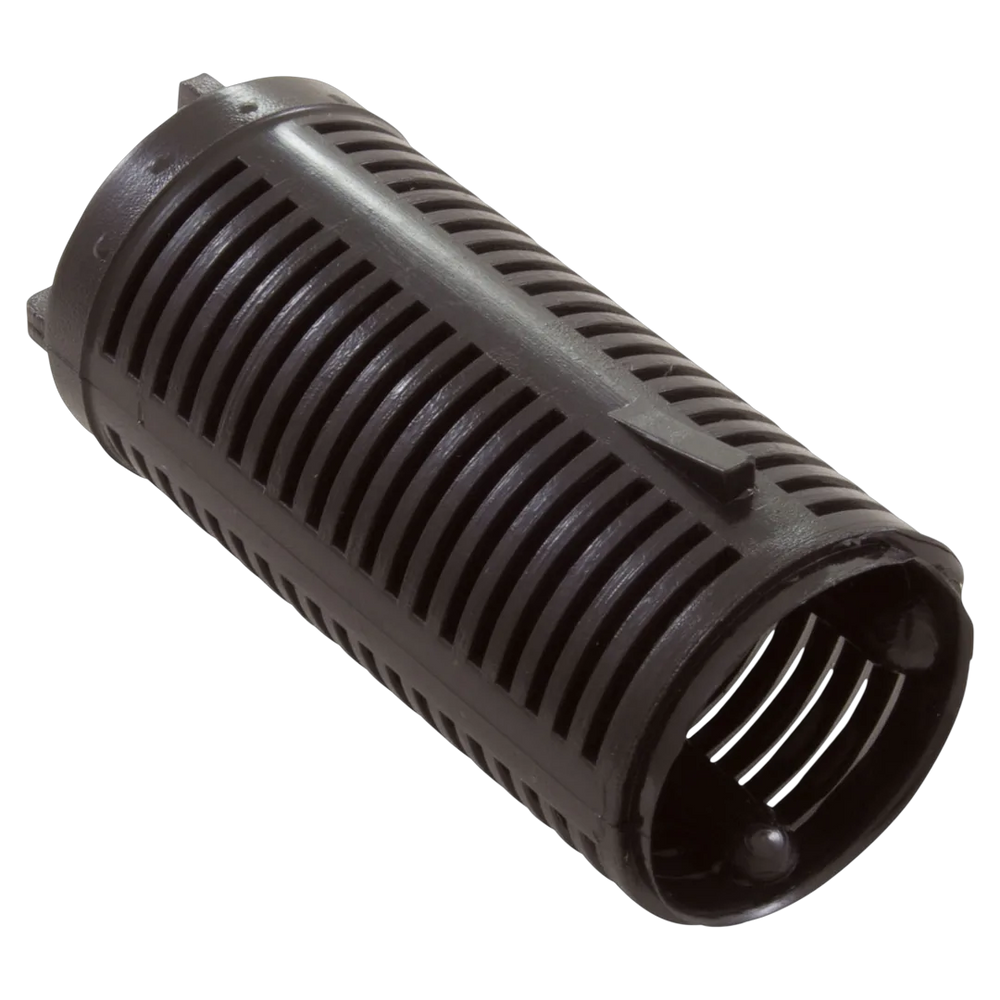

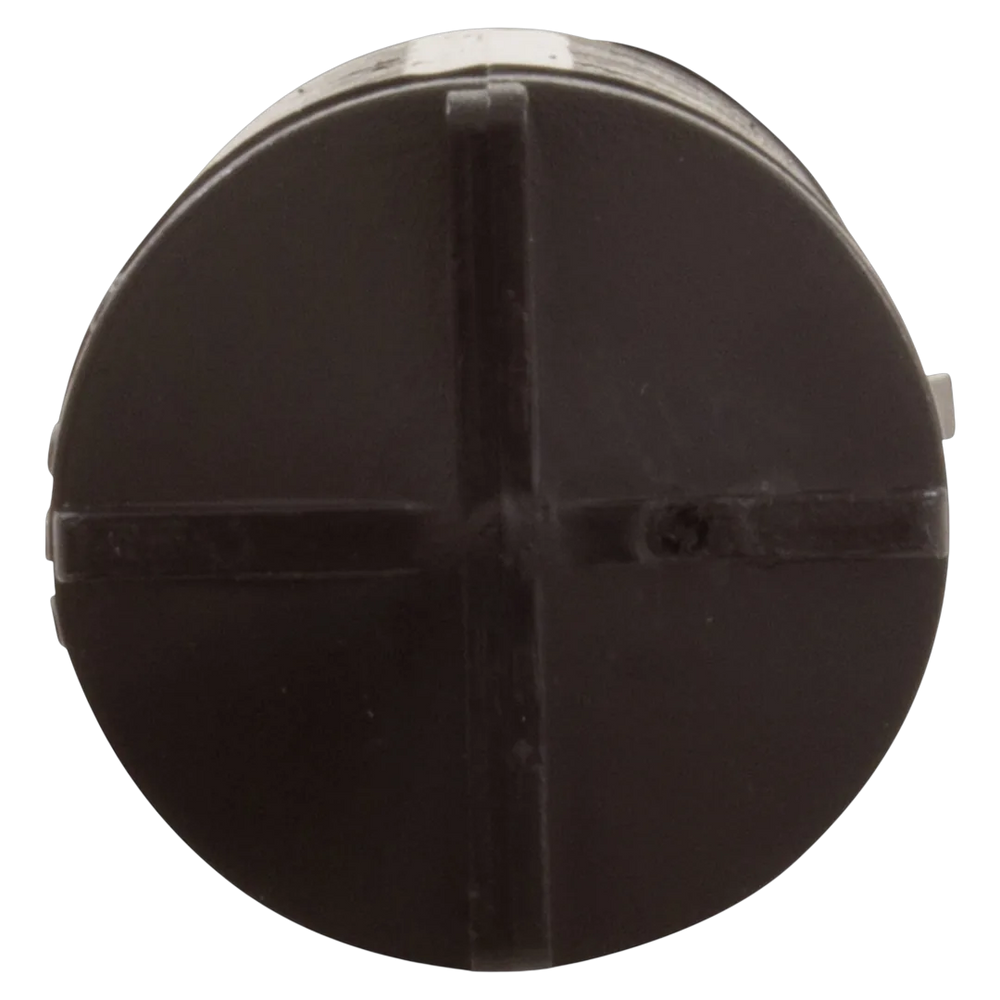

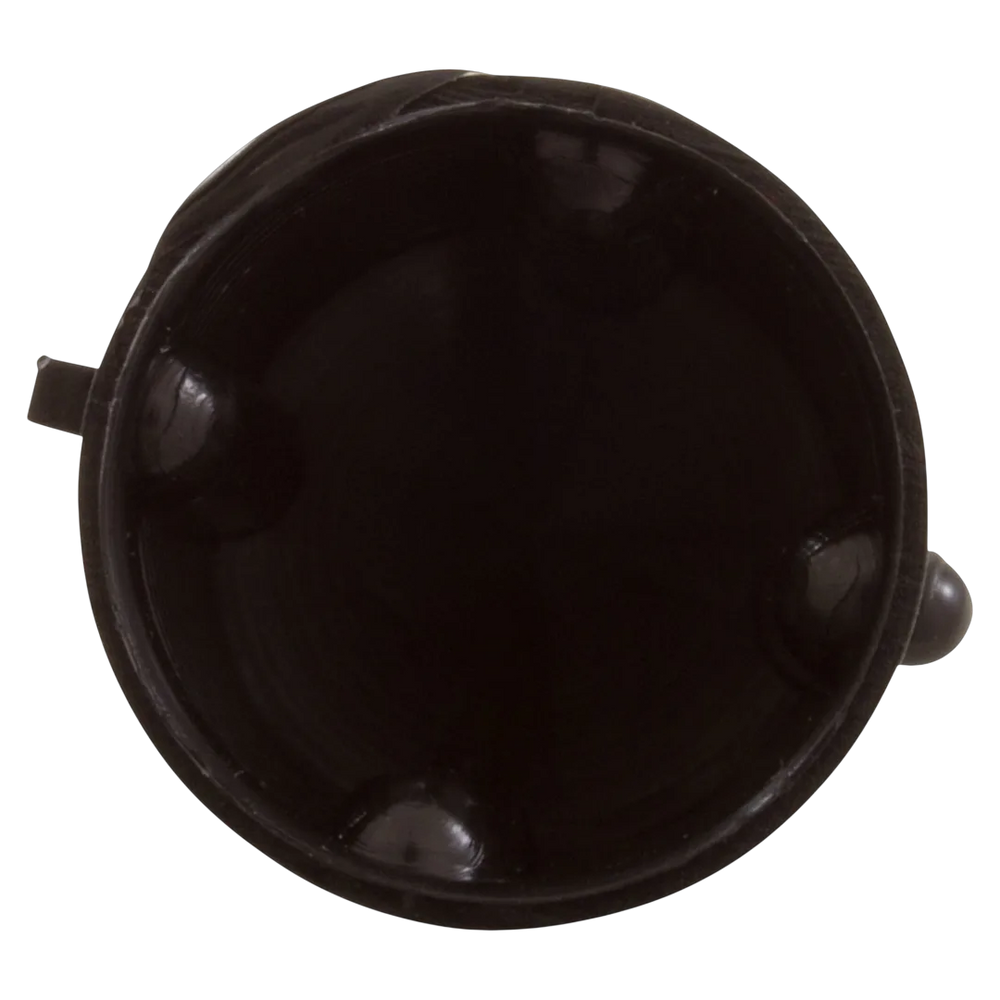

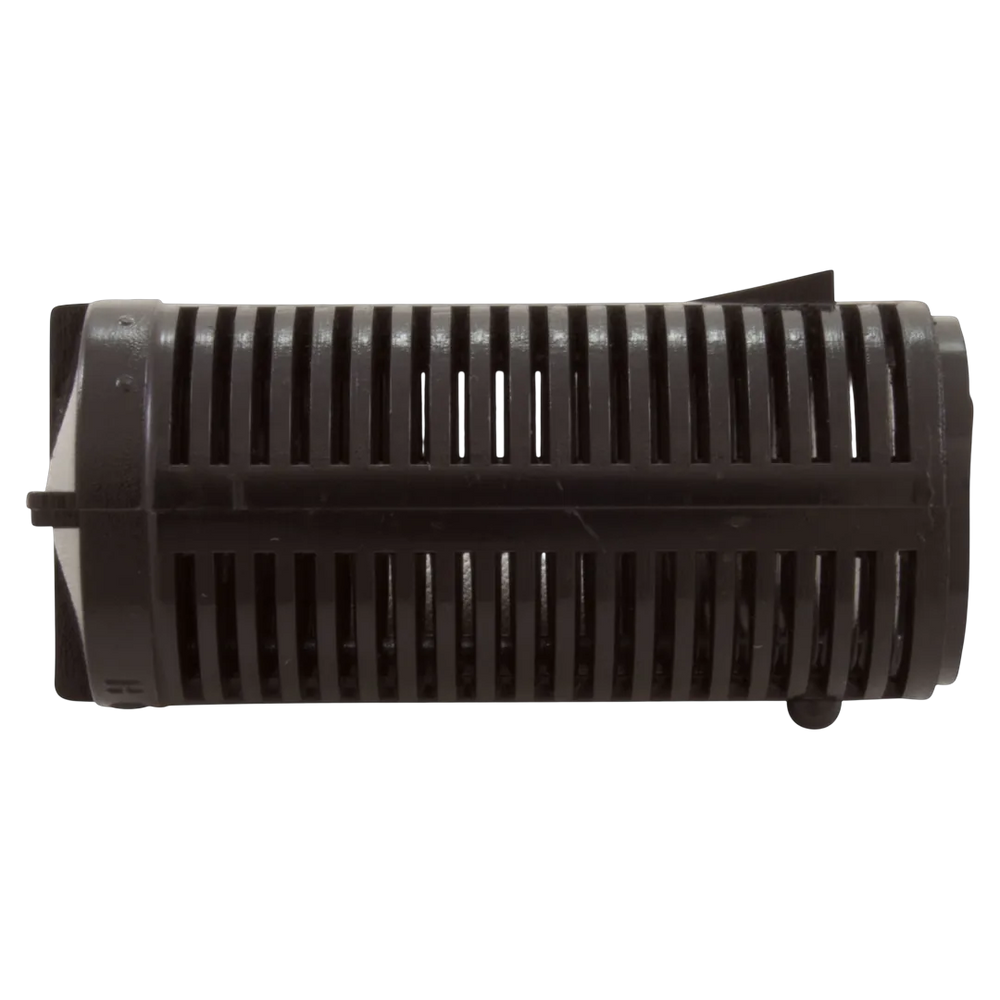

The Hayward SX200H is a bottom drain screen replacement for Hayward ProSeries and ProSeries Plus sand filters. It is a press-fit drain screen with molded retention bumps (one round bump and one angled ramp-shaped bump) serving as the strainer. Compatible with ProSeries / ProSeries Plus models produced 2005 and earlier, including S311SX, S311SXV, S360SX, S360T2, S310S, S310T2, S270T2, S210S, S244S, S240, S200, S160T, S140T, S144T, and S180T.
Includes: Bottom Drain Screen only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Hayward SX200H Bottom Drain Screen |
| Part Number | SX200H |
| Part Type | Filter Part |
| Compatibility | Hayward Pro Series Sand Filters: S200, S160T, S240, S210S, S244S, S310S, S270T2, S310T2, S360T2, S140T, S144T, S180T, S210T, S220T, S220T2, S230T, S244T, S244T2, S270T, S164T, S166T |
| Substitute Part Numbers | HAY-051-2191, 676057, 31-150-1206, HAYSX200H, HPPSX200H |
| Includes | Bottom Drain Screen only |
| Material | Plastic |
| Shipping Dimensions | 2.97 x 2.09 x 2.23 inch |
| Product Weight | 0.045 pound |
Find it on the parts diagram
Sand Filter, Hayward, S200, S240 Replacement Parts
Show it on the diagram →
