Hayward SX200H Bottom Drain Screen
Hayward | SKU:
SX200H
$3100
/ea
Unit price
/
Unavailable
Hayward SX200H Bottom Drain Screen is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

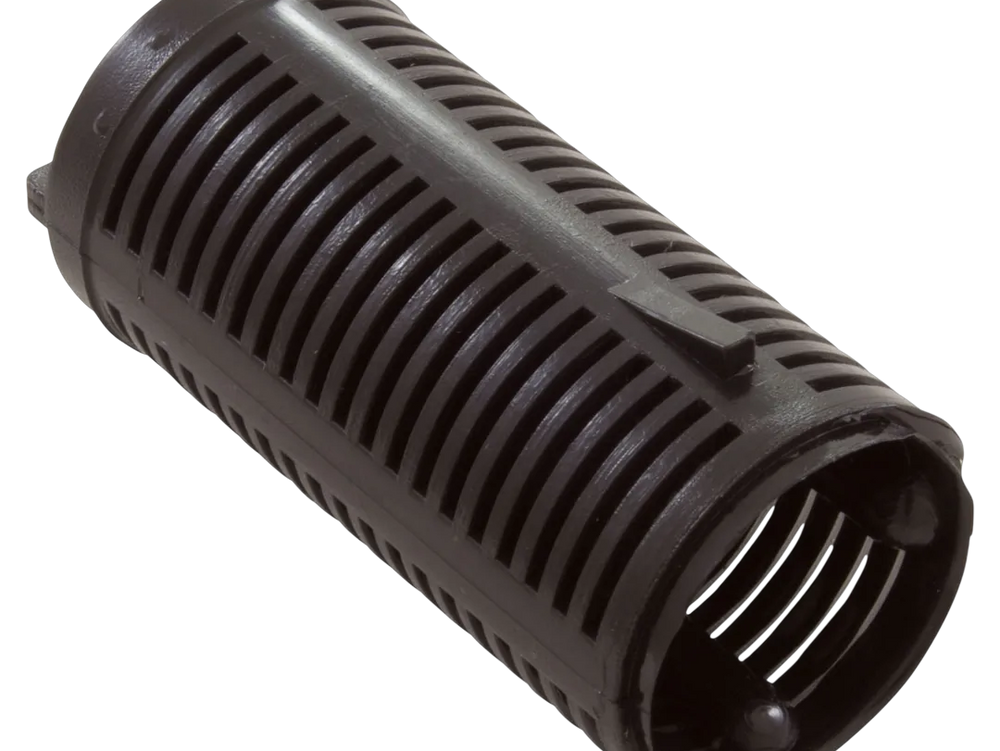

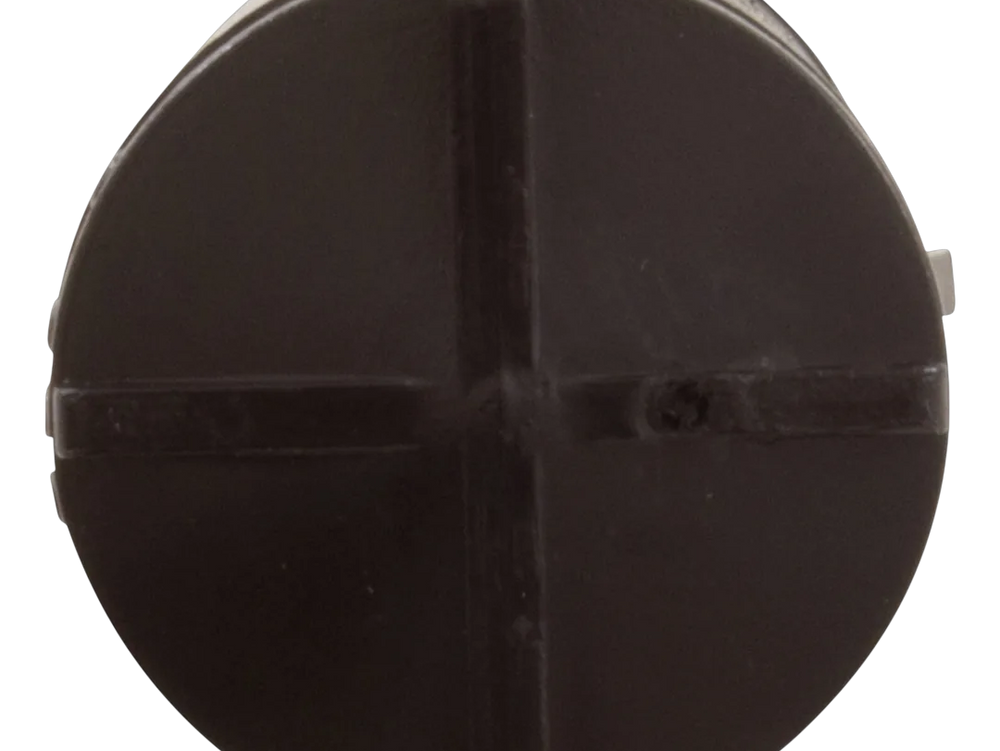

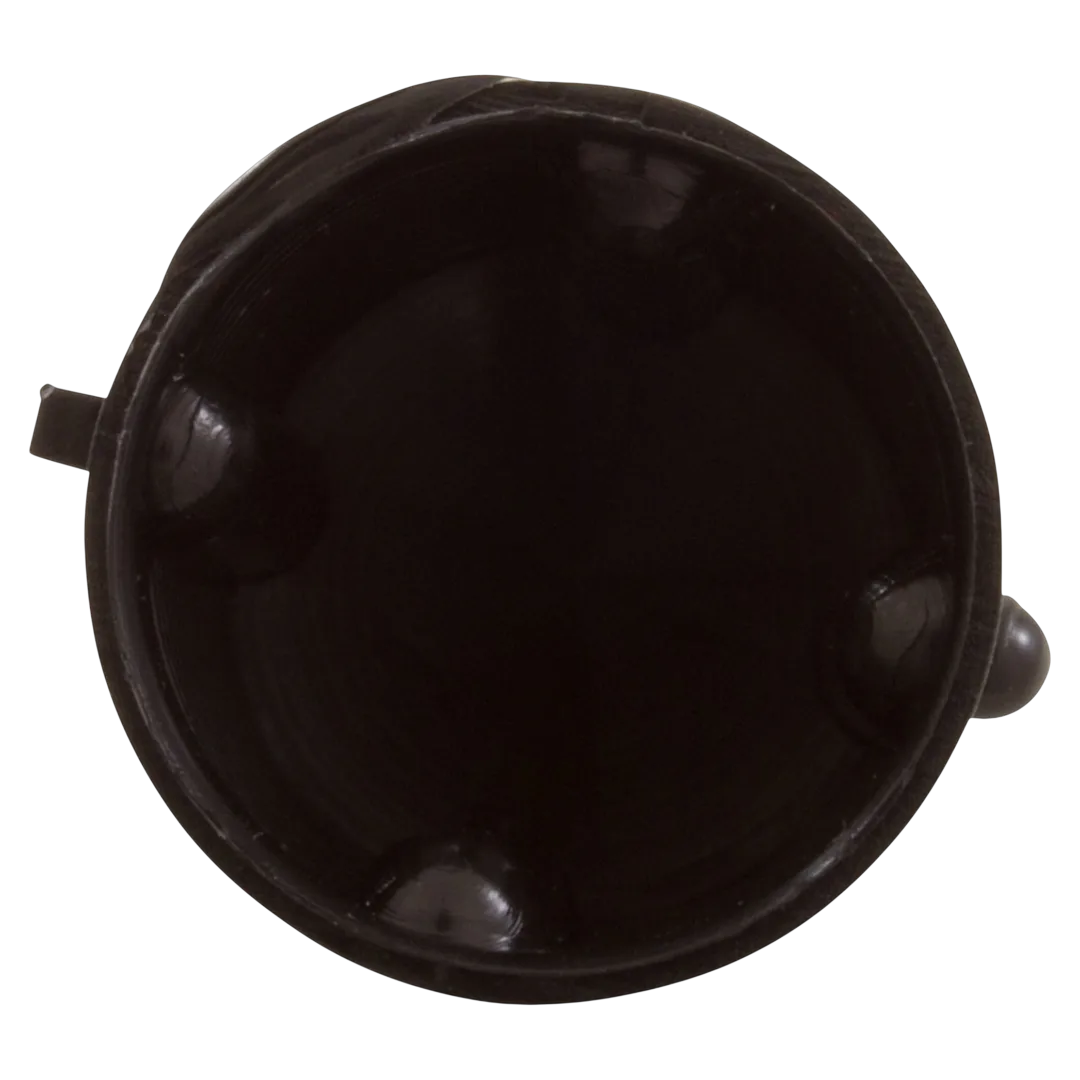

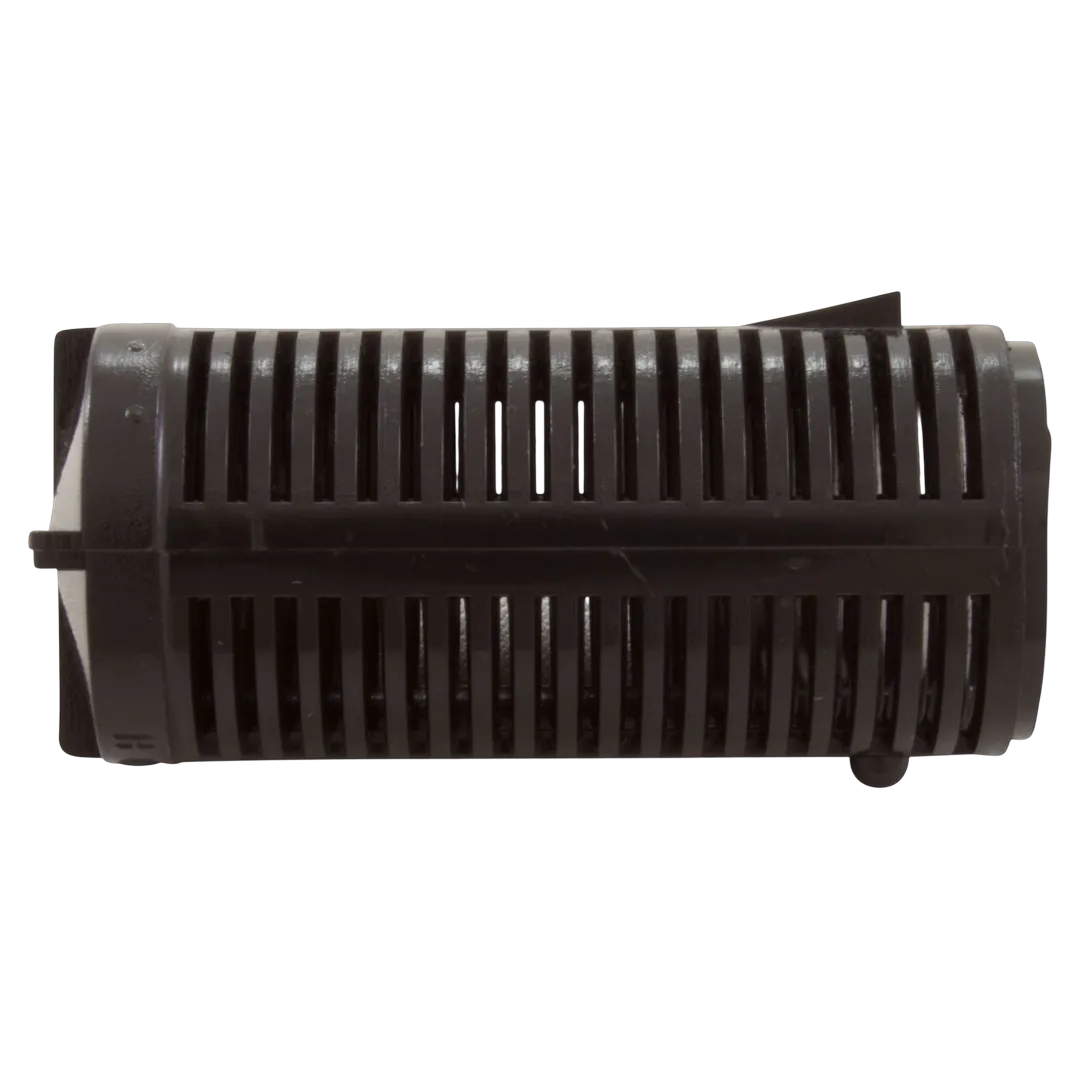

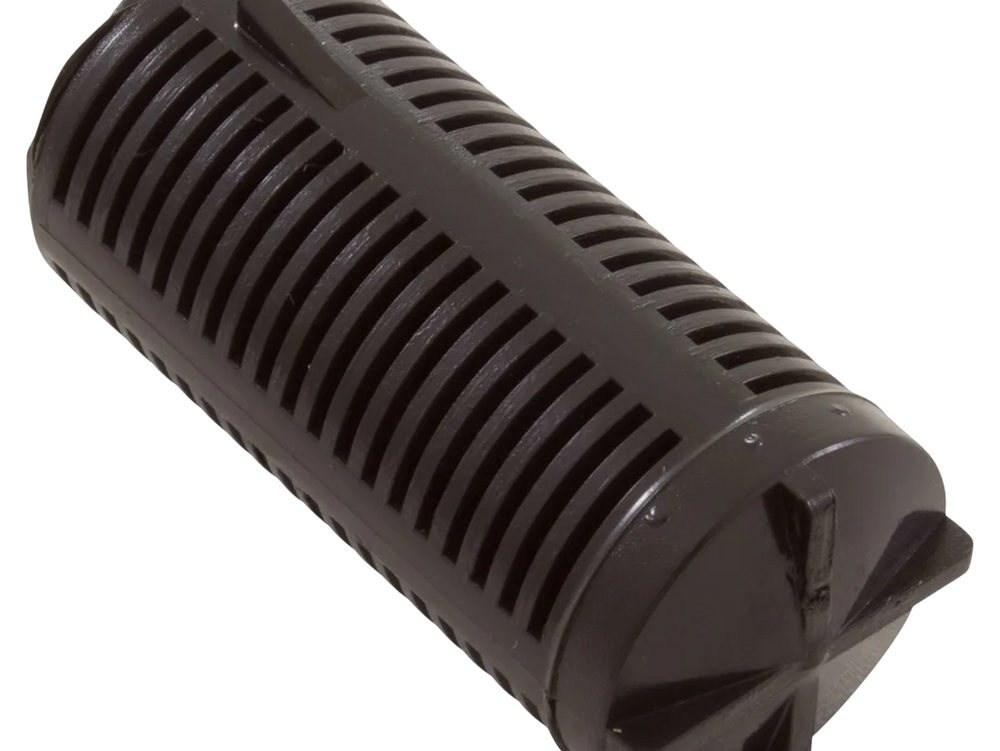

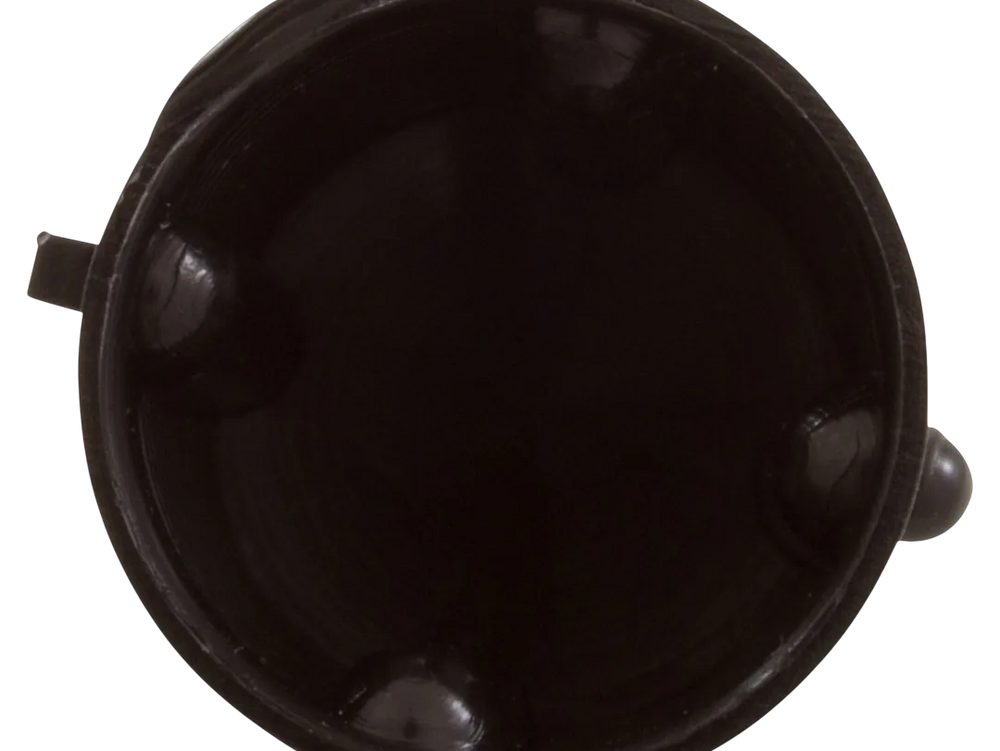

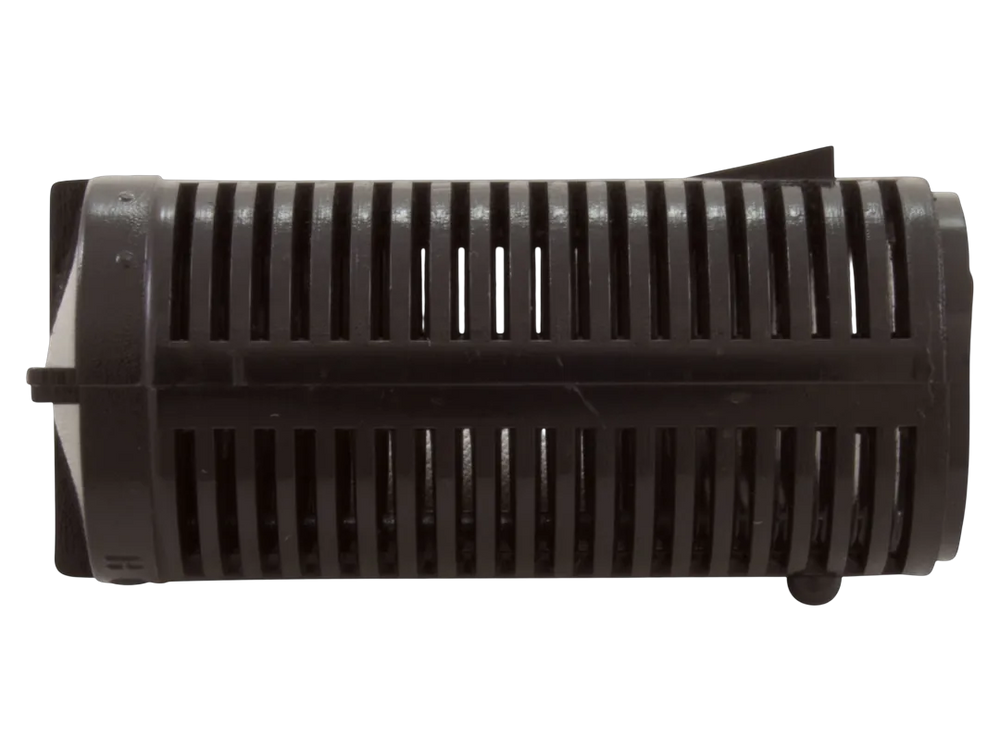

The Hayward SX200H is a bottom drain screen replacement for Hayward ProSeries and ProSeries Plus sand filters. It is a press-fit drain screen with molded retention bumps (one round bump and one angled ramp-shaped bump) serving as the strainer. Compatible with ProSeries / ProSeries Plus models produced 2005 and earlier, including S311SX, S311SXV, S360SX, S360T2, S310S, S310T2, S270T2, S210S, S244S, S240, S200, S160T, S140T, S144T, and S180T.
Includes: Bottom Drain Screen only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Hayward SX200H Bottom Drain Screen |
| Part Number | SX200H |
| Part Type | Filter Part |
| Compatibility | Hayward Pro Series Sand Filters: S200, S160T, S240, S210S, S244S, S310S, S270T2, S310T2, S360T2, S140T, S144T, S180T, S210T, S220T, S220T2, S230T, S244T, S244T2, S270T, S164T, S166T |
| Substitute Part Numbers | HAY-051-2191, 676057, 31-150-1206, HAYSX200H, HPPSX200H |
| Includes | Bottom Drain Screen only |
| Material | Plastic |
| Shipping Dimensions | 2.97 x 2.09 x 2.23 inch |
| Product Weight | 0.045 pound |
