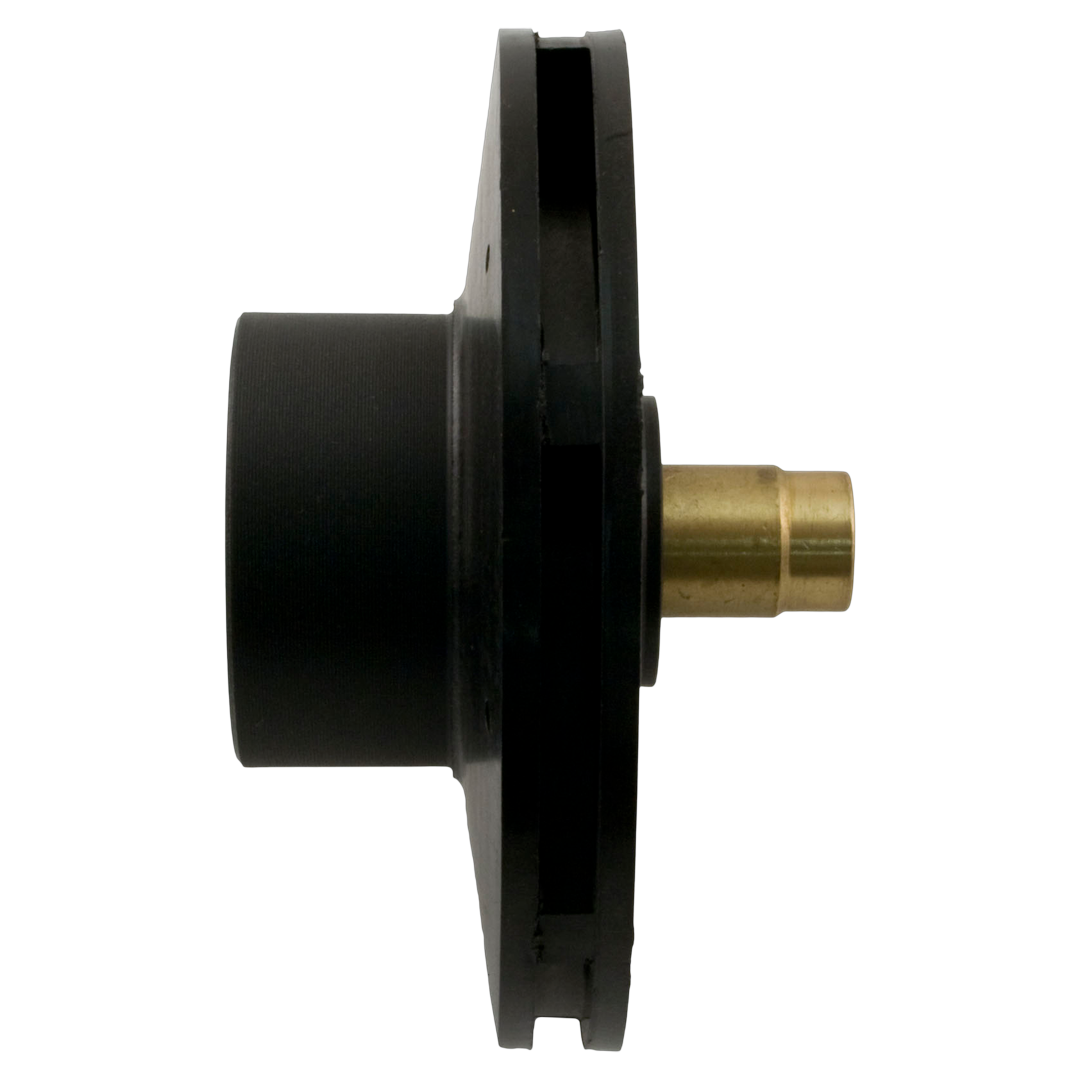

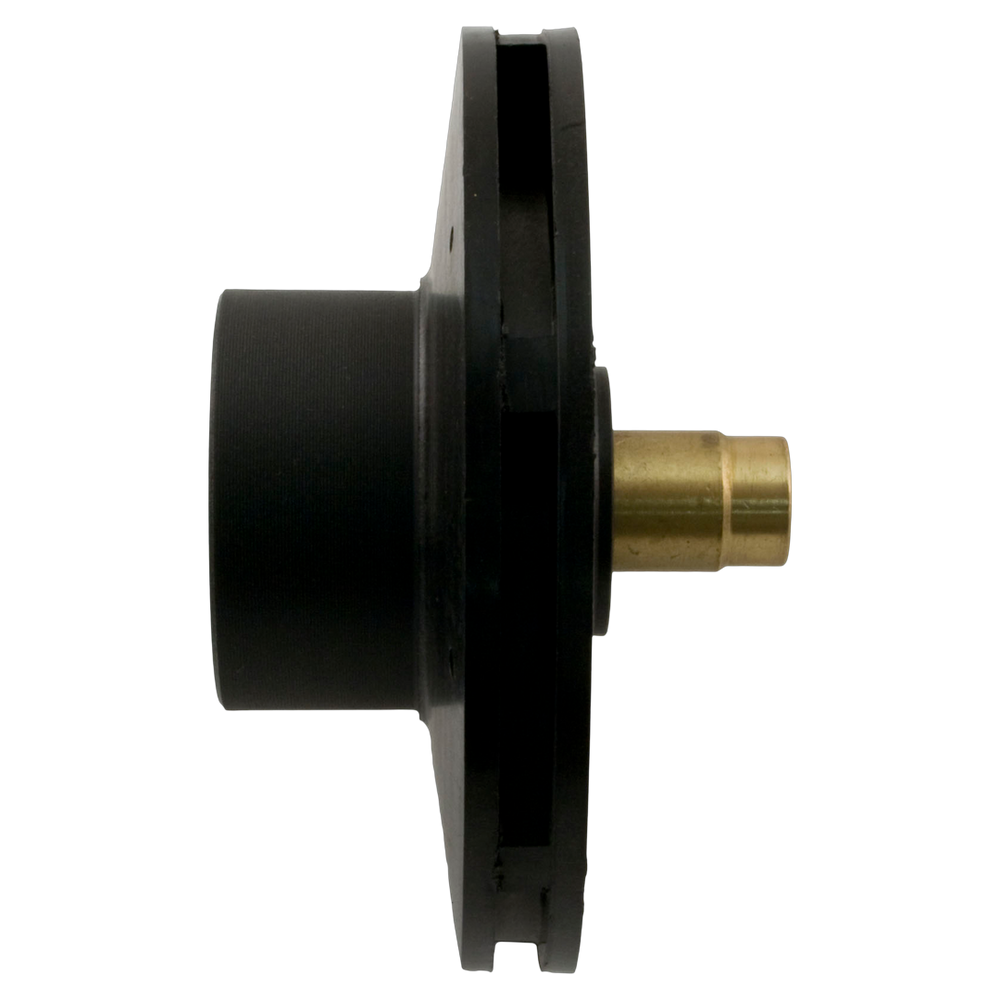

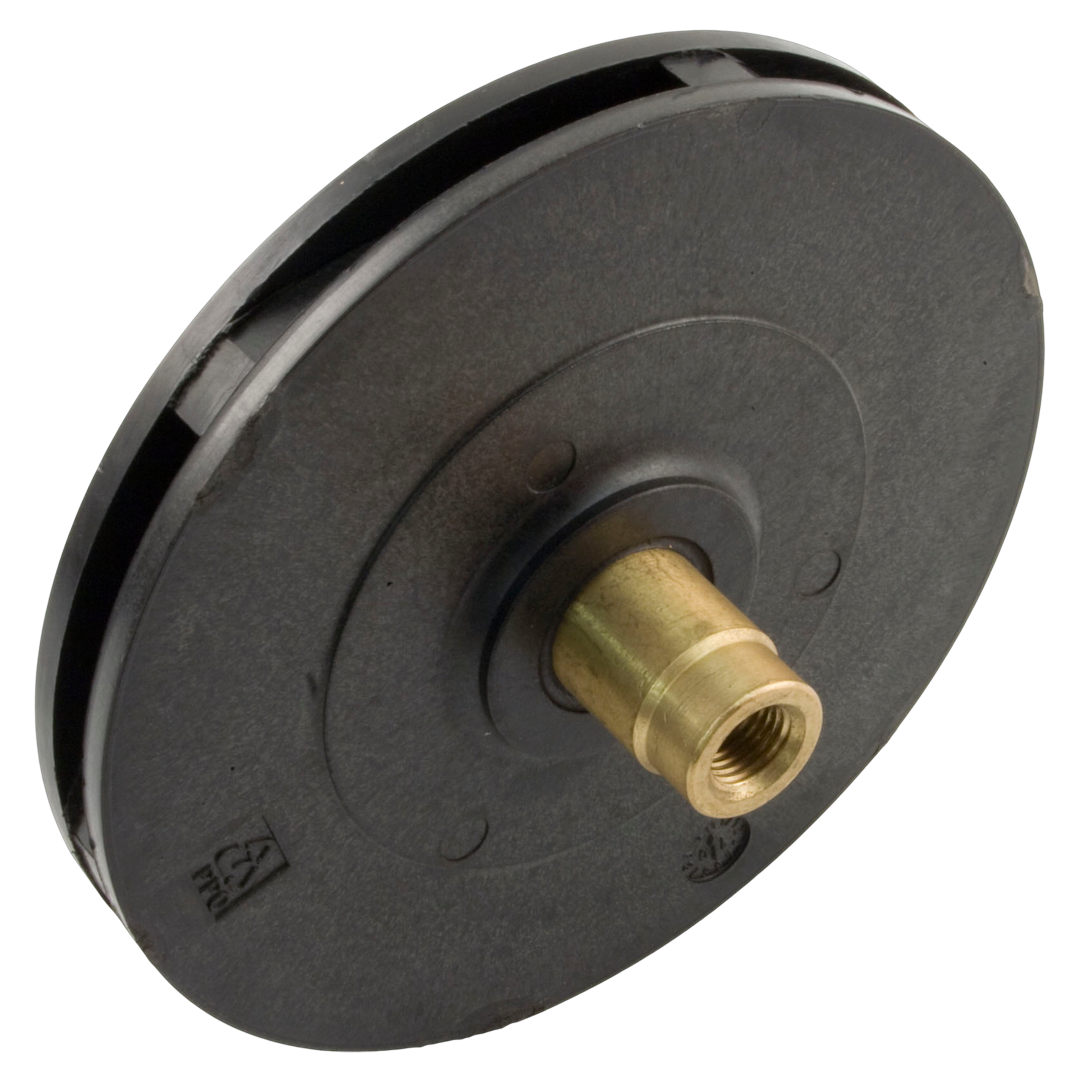

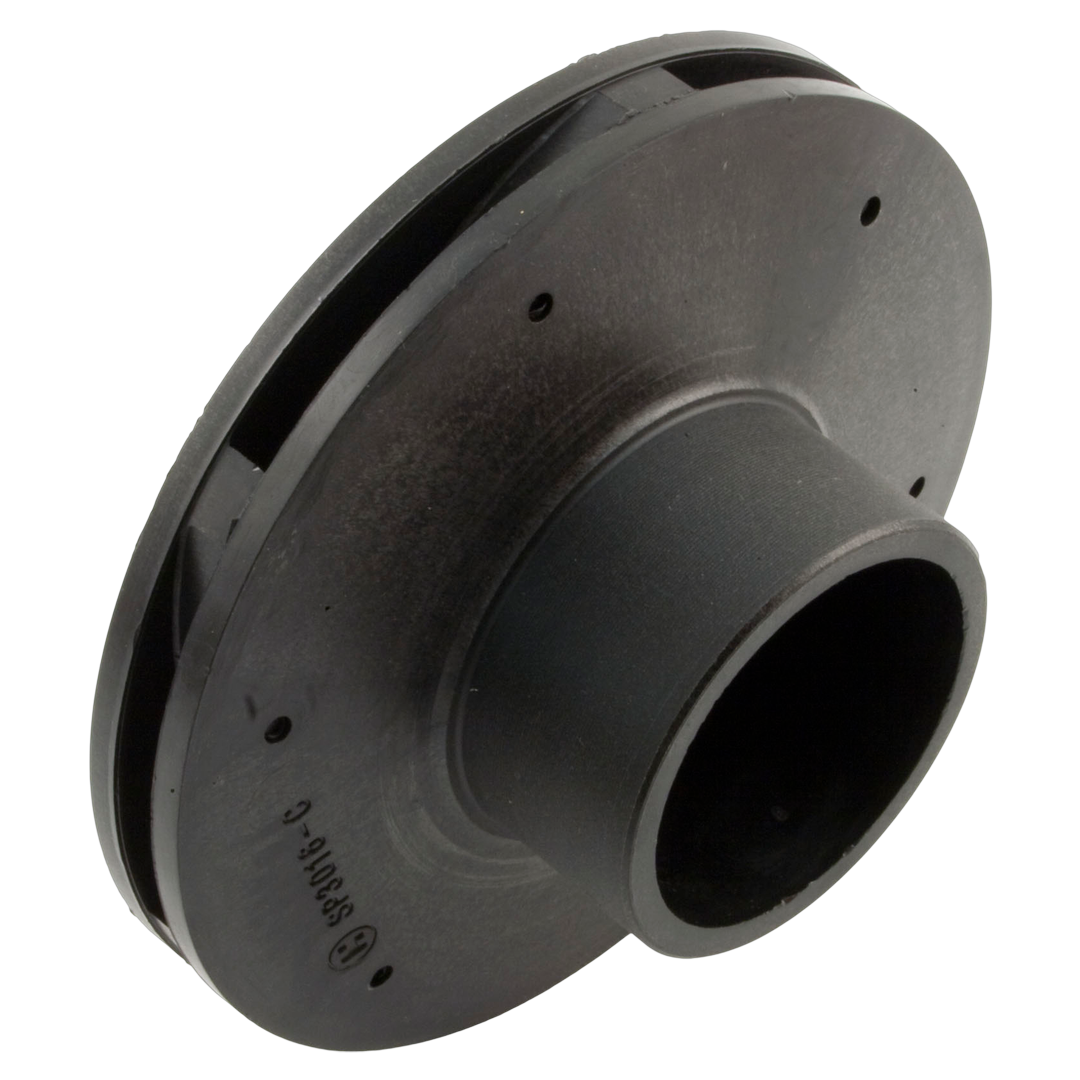

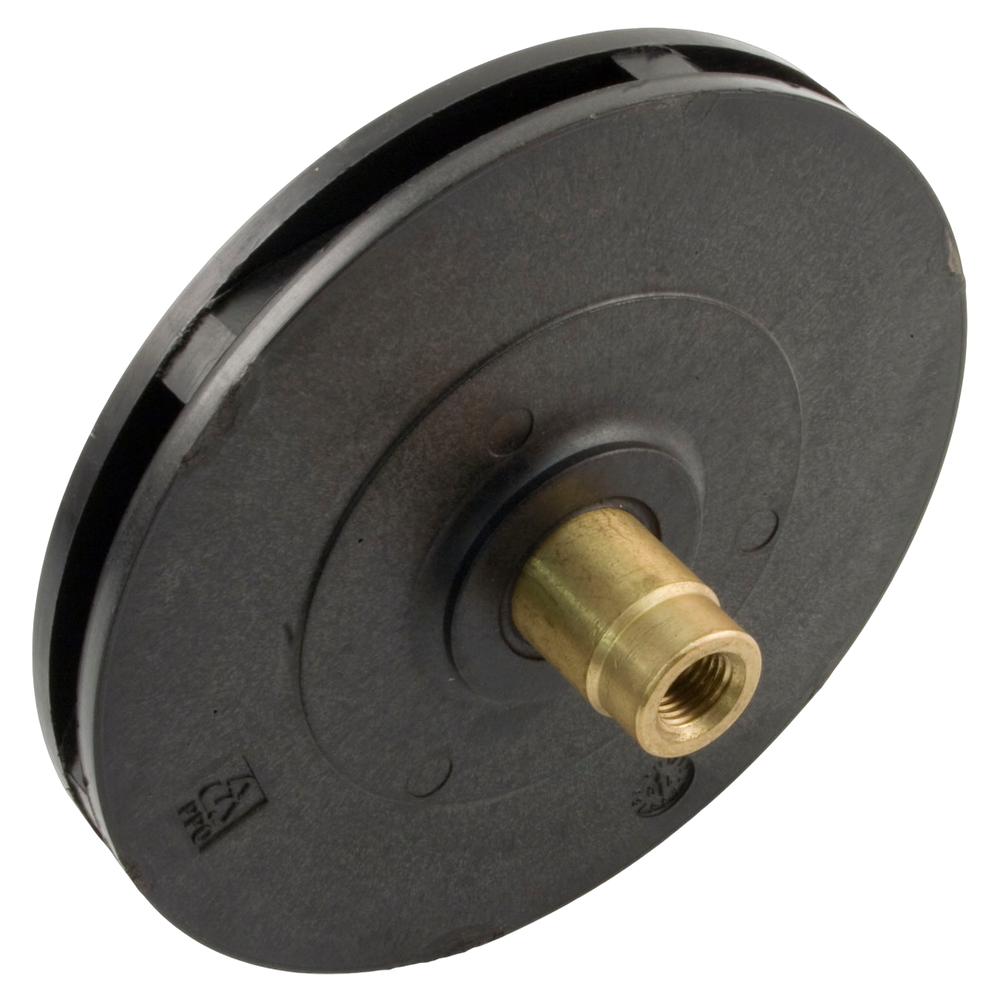

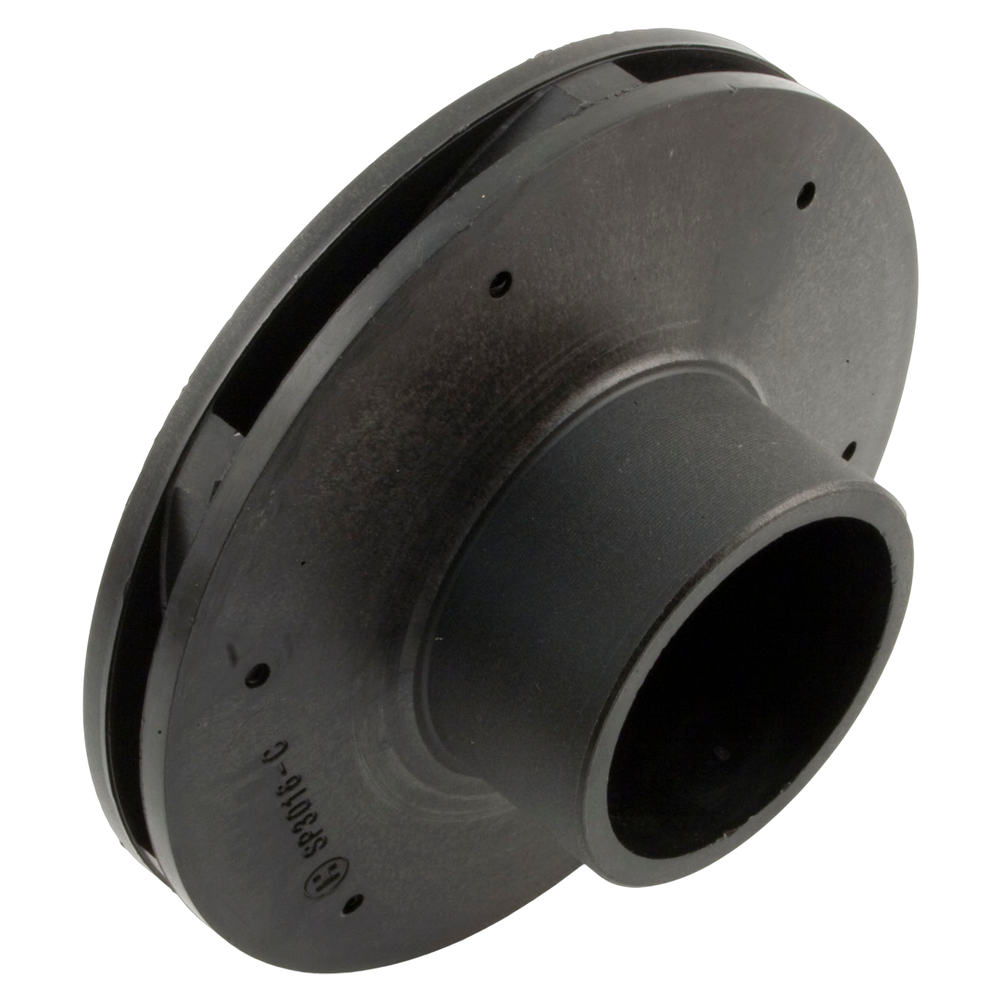

Hayward 1.5 HP Super II Impeller
Hayward | SKU:
SPX3016C
$5900
/ea
Unit price
/
Unavailable
Hayward 1.5 HP Super II Impeller is backordered and will ship as soon as it is back in stock.
Inventory:
10 In Stock
10 In Stock
Shipping:
Free 1-3 Day Shipping
Description
Description
The Hayward SPX3016C is a replacement impeller designed for use with Hayward Super II pool pump models, specifically for 1.5 HP and 2 HP configurations produced since 1990. It plays a crucial role in maintaining water flow and pressure in the pump, ensuring optimal performance and efficiency for swimming pool systems.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Hayward SPX3016C Impeller |
| Part Number | SPX3016C |
| Compatibility | Hayward Super II Pump SP3000 and SP3000X series models |
| Substitute Part Numbers | SP3016C, 35-150-3062 |
| Part Type | Impeller |
| Includes | Impeller only; shaft seal sold separately |
| Material | Plastic |
| Impeller Diameter | 4.85 inches |
| Impeller Width | 0.6 inches |
| Eye Diameter | 2.1875 inches |
| Eye Length | 1.0625 inches |
| Seal Seat Depth | 0.125 inches |
| Seal Seat Diameter | 1.4375 inches |
| Shaft Diameter | 0.6875 inches |
| Shaft Length | 0.9375 inches |
| Vane Width | 0.25 inches |
| Shipping Dimensions | 3.75 x 4.5 x 6 inches |
| Product Weight | 0.45 pounds |
Features:
- Designed for 1.5 HP full-rated or 2 HP max-rated motors
- Closed face design for efficient water flow
- Compatible with 1990 and later models
- Durable construction for longevity
Schematics:
|
Hayward Super II SP3000 Parts Diagram
Hayward Super II SP3000 Parts Diagram
|
