Hayward Trimline 2-Way Ball Valve 1.5"
10 In Stock
Hayward Trimline 2-Way Ball Valve 1.5" is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

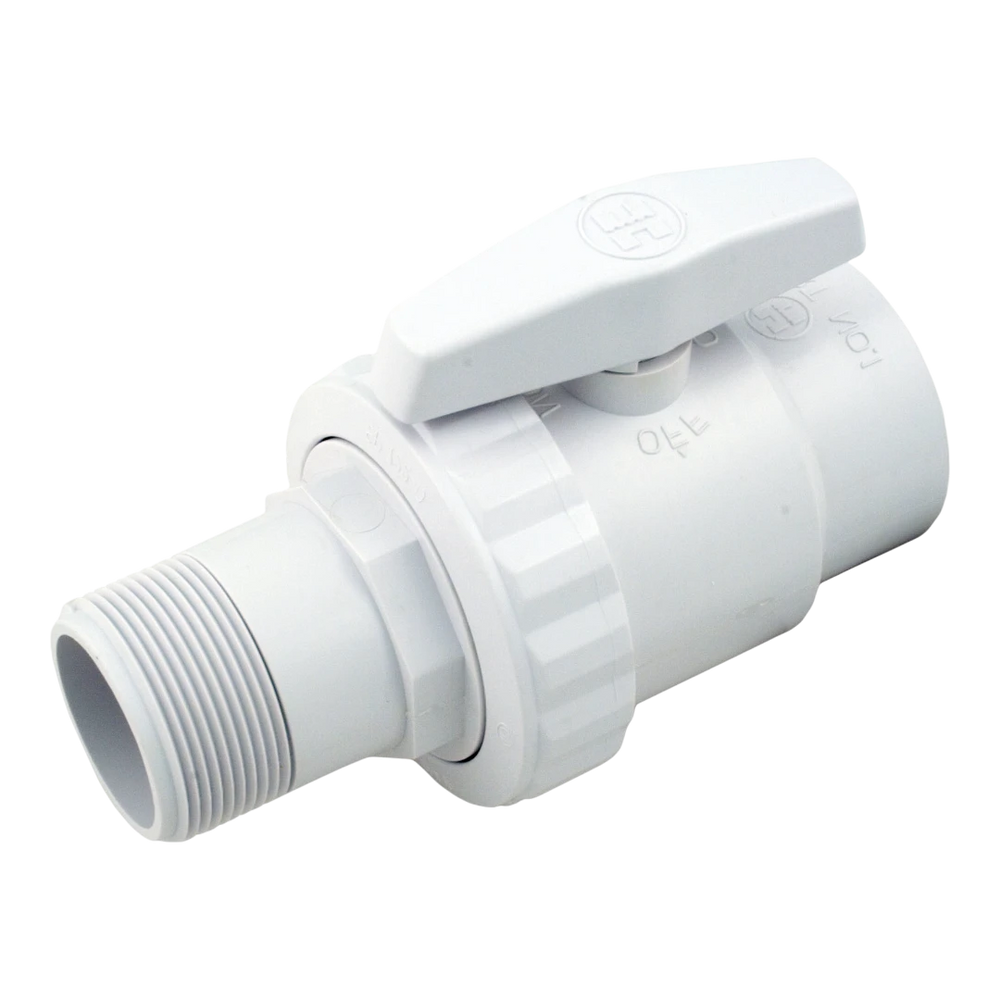

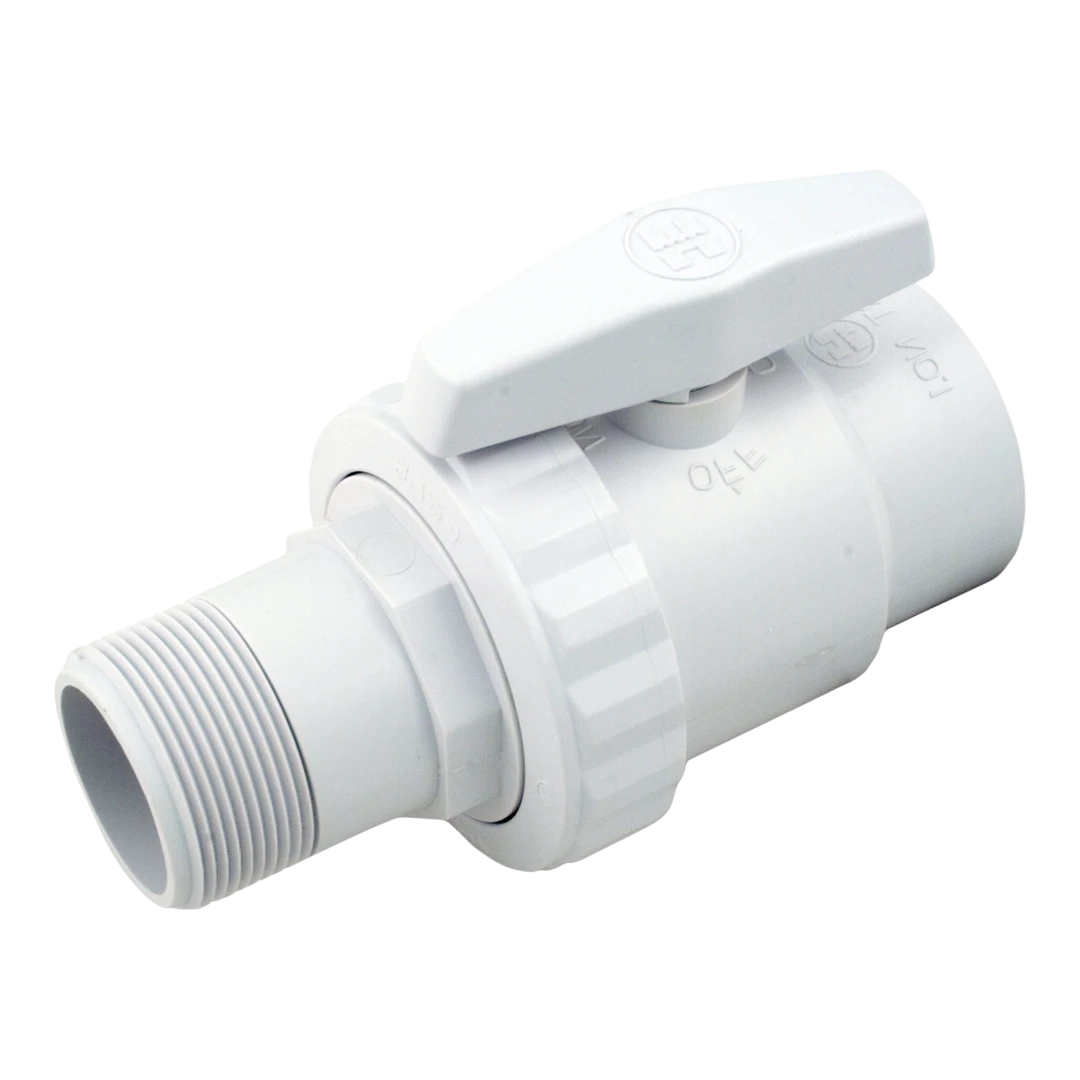

The Hayward SP0723 Trimline 2-Way Ball Valve is a durable and non-corrosive valve designed for optimal flow efficiency in pool and spa systems. It features a dial handle for easy flow regulation and is equipped with Teflon seats for reliable sealing, accommodating pressure ratings up to 50 psi. The valve is configured with a 1.5" male to 1.5" female threading, making it ideal for standard hose connections.
Tech Specs
Tech Specs
| Specification | Details |
|---|---|
| Part Name | Hayward SP0723 Trimline 2-Way Ball Valve |
| Part Number | SP0723 |
| Compatibility | Hayward Perflex EC30, EC40, EC50, EC65, EC75 Series Filters; Hayward ASL Filter Series |
| Part Type | Valve |
| Includes | Valve body, Handle |
| Connection Size | 1.5" MPT x 1.5" FPT |
| Material | ABS |
| Shipping Dimensions | 9.25 x 7 x 3.25 inch |
| Product Weight | 0.8 pound |
Ships free via UPS Ground ✔
Hayward Trimline 2-Way Ball Valve 1.5"
Features:
- Non-corrosive, durable construction
- Designed for maximum flow efficiencies
- Pressure rating up to 50 PSI
- Dial handle for easy flow regulation and visual indication of valve setting
- Teflon seats for dependable sealing
- Union end connector for simple disassembly of piping connection
Schematics:
|
Hayward Perflex EC50A/AC Filter Parts Diagram
Hayward Perflex EC50A/AC Filter Parts Diagram
|
