Hayward  |  SKU: SP0714T

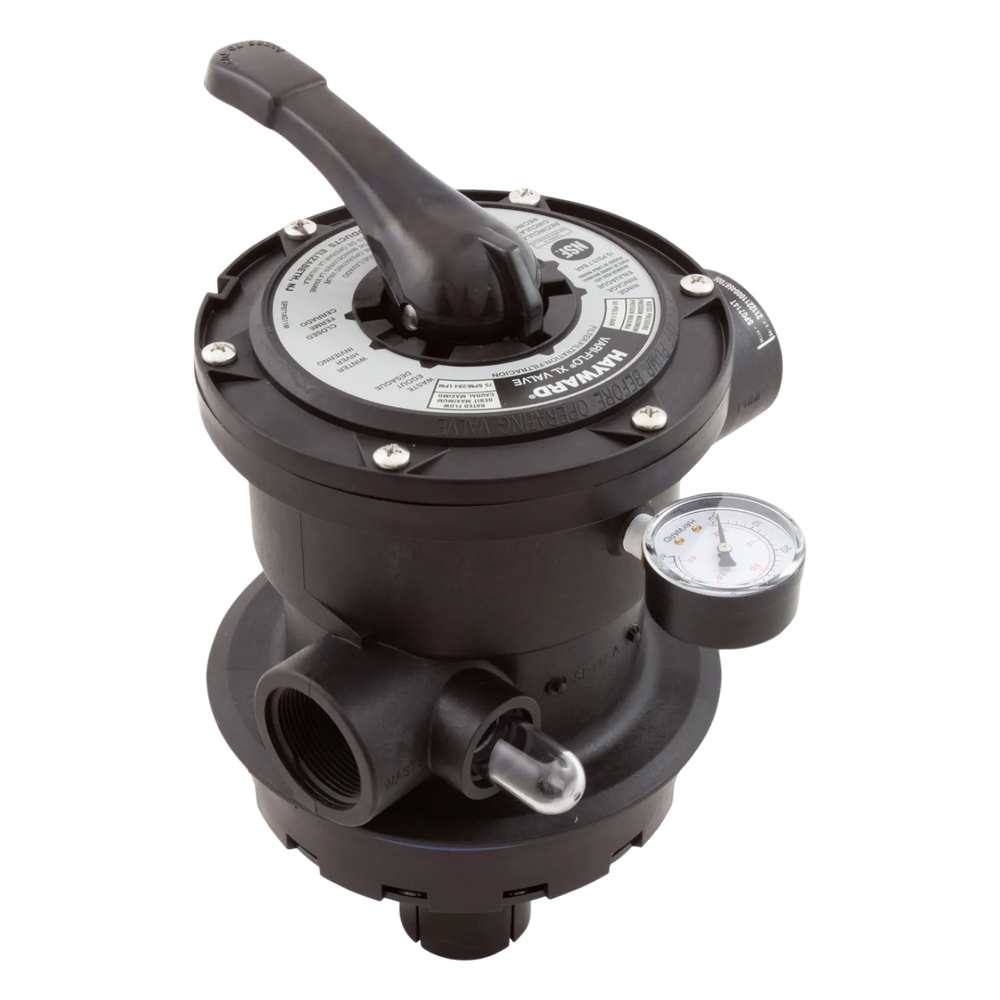

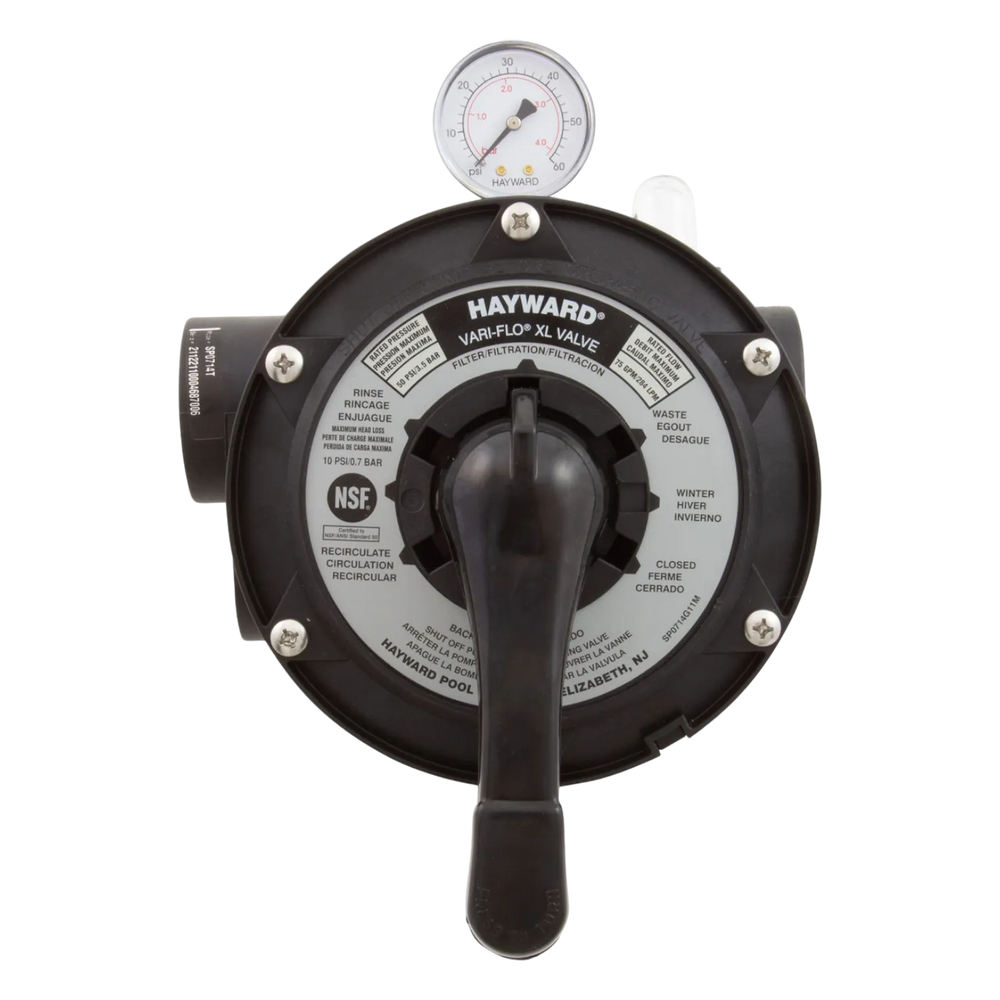

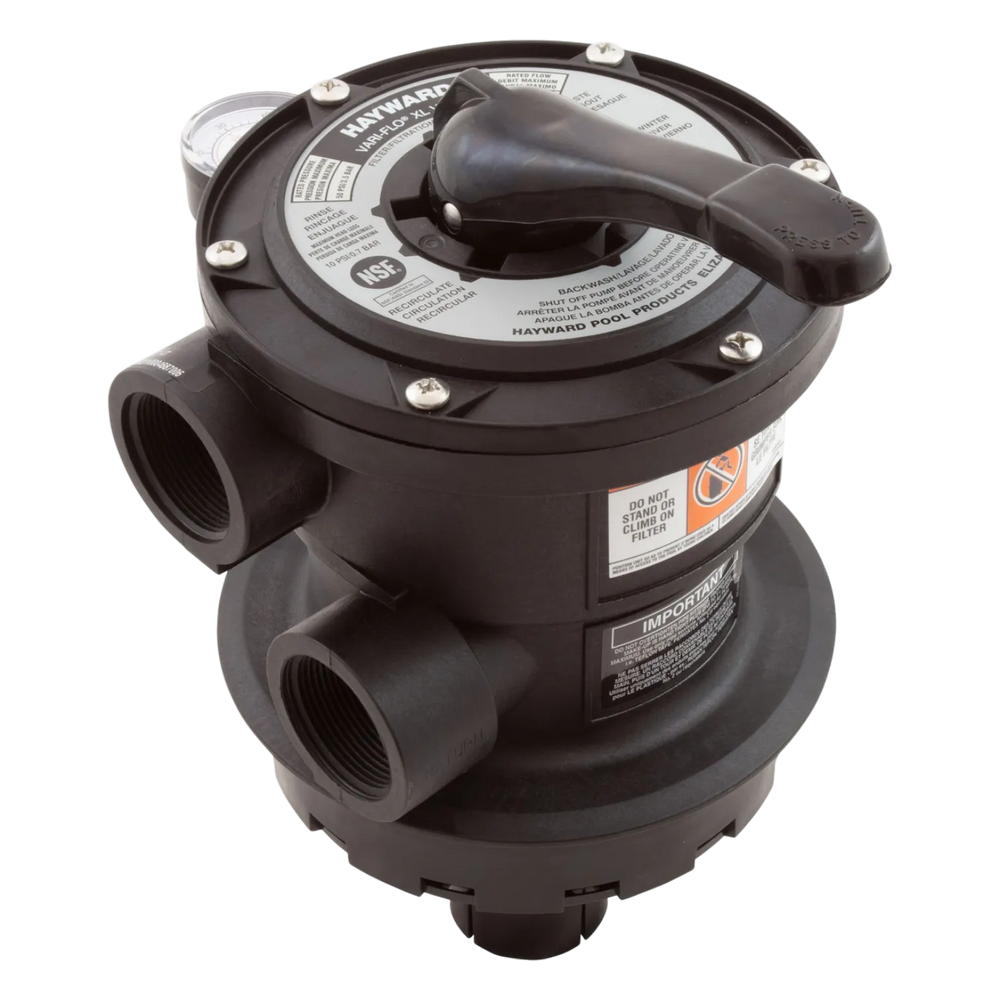

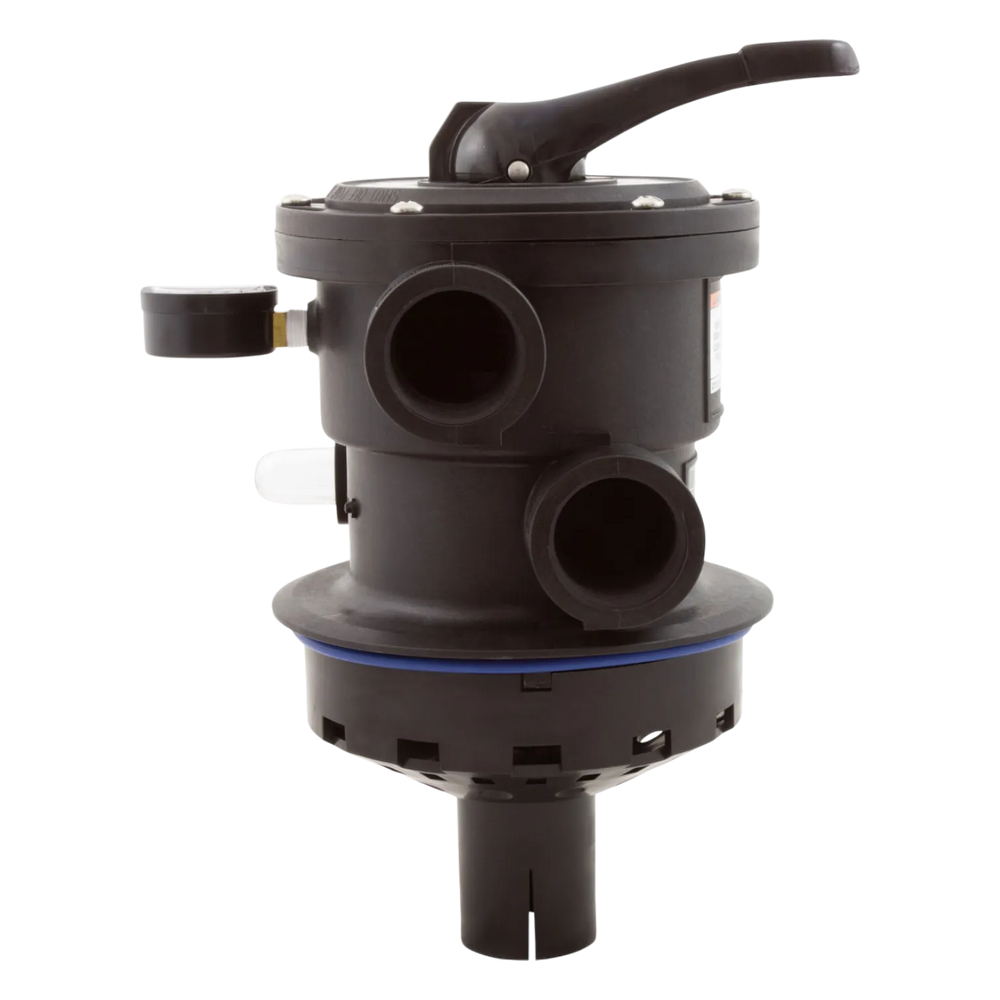

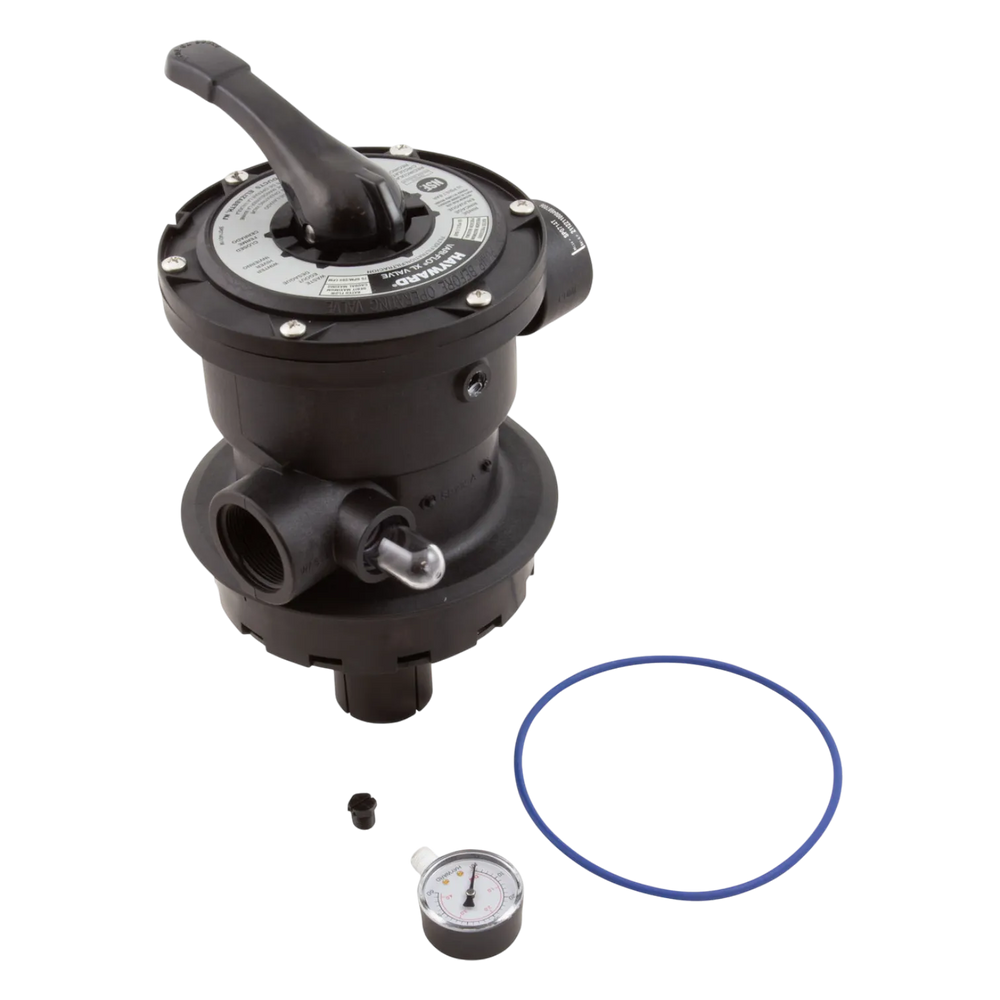

Hayward Vari-Flo 1-1/2" Top-Mount MultiPort Valve for Pro Series | SP0714T

$148.99

was $155.00

You save 3%

3 In Stock


Description

The Hayward Vari-Flo XL SP0714T Top Mount Multiport Valve is engineered for optimal flow and durability, crafted from reinforced thermoplastic material. It features a user-friendly lever action that allows you to easily select from seven functions: filter, backwash, waste, rinse, closed, winter, or recirculate.

Designed for 1-1/2 inch top mount sand filters, this valve supports a flow rate of up to 100 GPM. Complete with an integral sight glass for monitoring backwashing cycles, the Vari-Flo is an ideal choice for versatile pool maintenance needs. This valve is the perfect complement to any Hayward filtration system, ensuring superior performance and convenience.

Key Features:

  1. Enhanced Flow Efficiency: Hydro-engineered to provide superior flow even at lower pressure drops. This means more efficient filtration without sacrificing horsepower.
  2. Easy Plumbing: Built with rugged off-set ports, making the plumbing process hassle-free and convenient.
  3. User-Friendly Operation: The Vari-Flo XL features an easy-to-use lever action handle that allows you to effortlessly switch between seven valve/filter functions. With a simple dial, you can choose from filter, backwash, waste, rinse, closed, winter, or recirculate modes.
  4. Clear Visibility: Equipped with an integral sight glass, the Vari-Flo XL lets you easily monitor the backwashing cycle and see when it's completed.
  5. Reliable Seal: The injection molded Noryl Valve Key Assembly, along with a molded gasket, ensures a consistently reliable seal.

This is the 1-1/2" Model. For the 2" Model, see Hayward SP071621.

Specifications

Pipe Size 1.5 inch FPT
Filter Connection Size Clamp (Top-Mount)
Rated Flow 75 GPM
Mount Top
Filter Type Sand
Filter Series Pro Series / Super Pro Series
Shipping Dimensions 15.4 x 9.4 x 12 inch
Product Weight 8 lb

Shipping Details

Shipping Dimensions 15.4 x 9.4 x 12 inch
Product Weight 8 lb
This product ships free via UPS Ground.

Part of the following Schematics:

Hayward Pro Series (Top Mount) Replacement Parts
Hayward Pro Series (Top Mount) Replacement Parts

S180T, 210T, 220T, 230T, 244T, 270T

(14 products)
