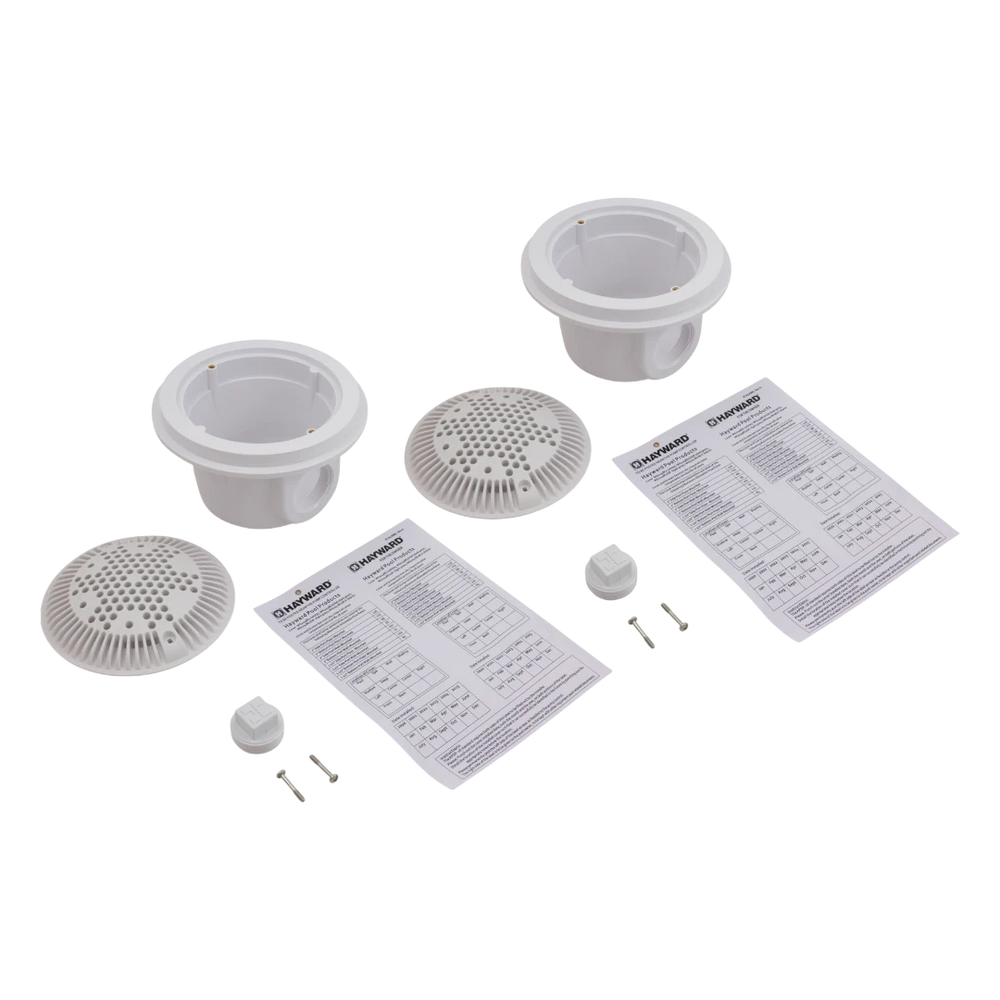

Hayward 8" Round Dual Suction Main Drain Kit
Hayward | SKU:
WG1052AVPAK2
$9995
/ea
Unit price
/
Unavailable
Hayward 8" Round Dual Suction Main Drain Kit is backordered and will ship as soon as it is back in stock.

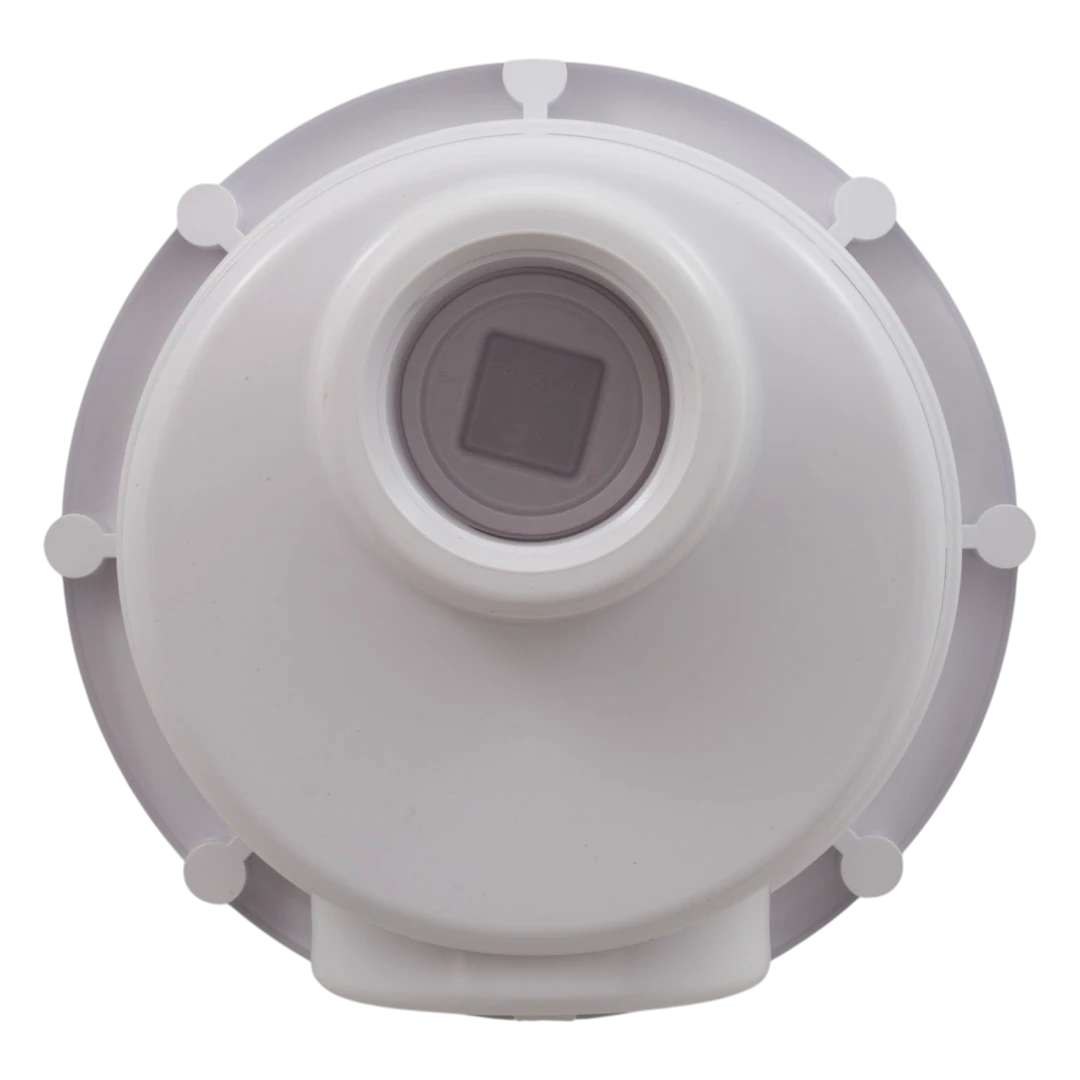

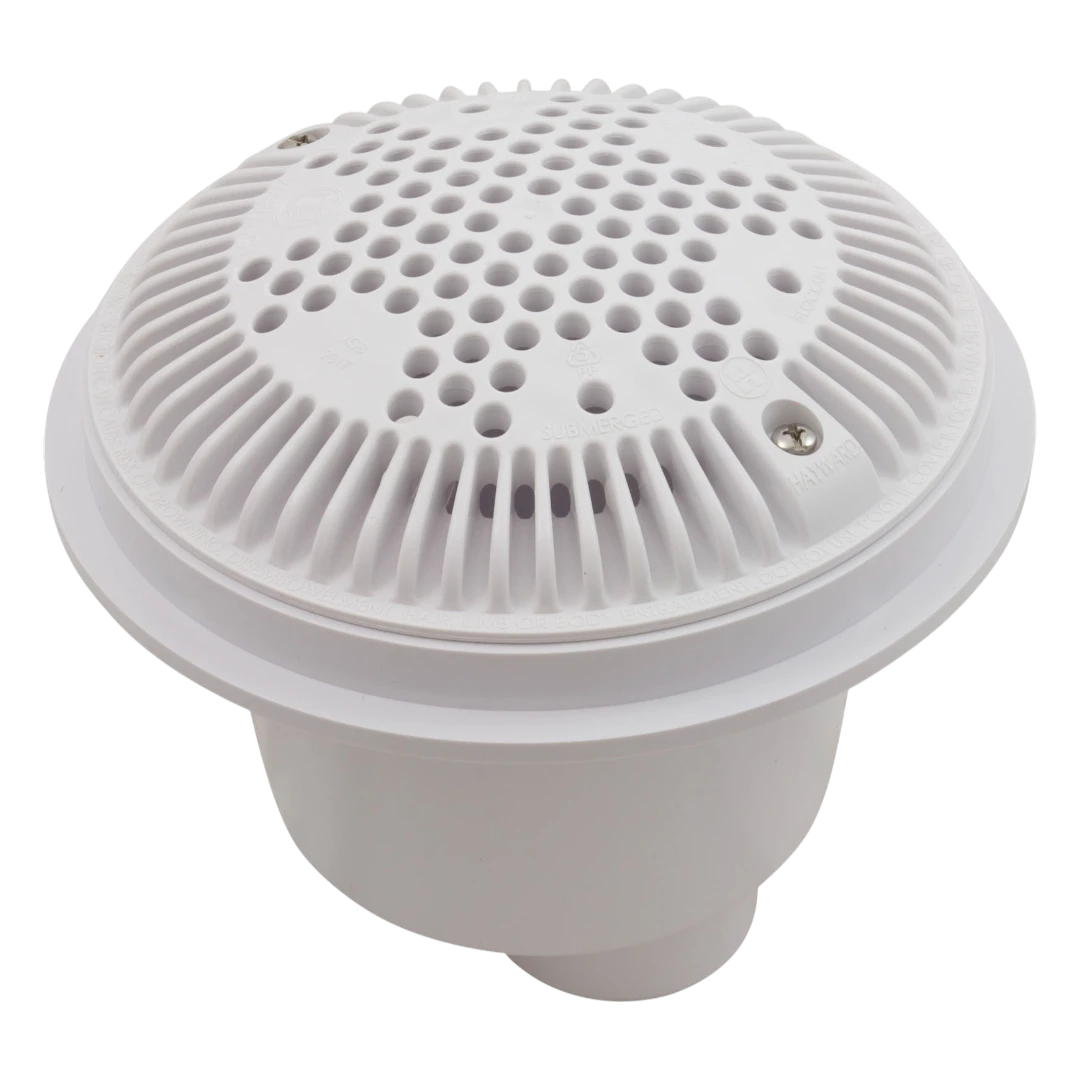

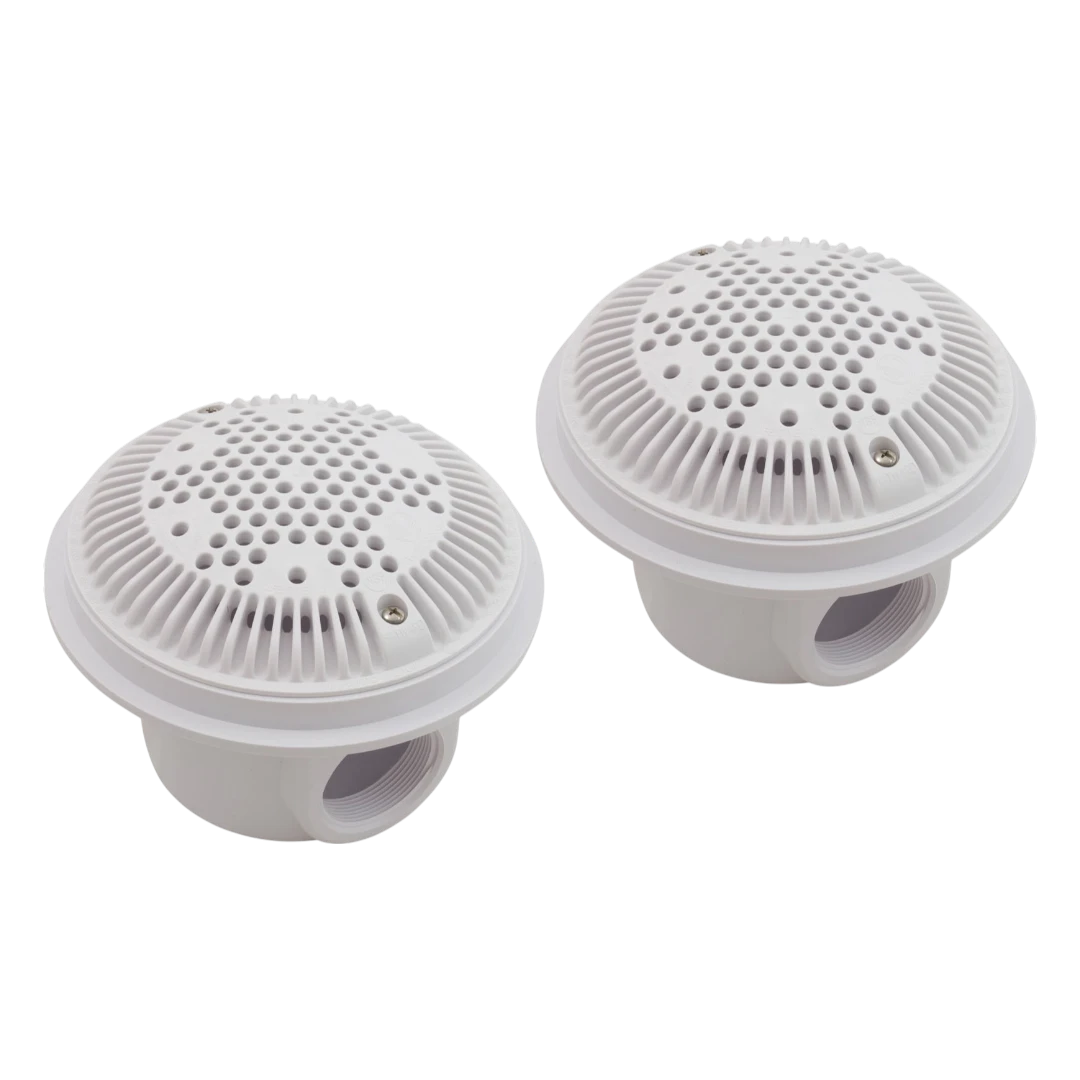

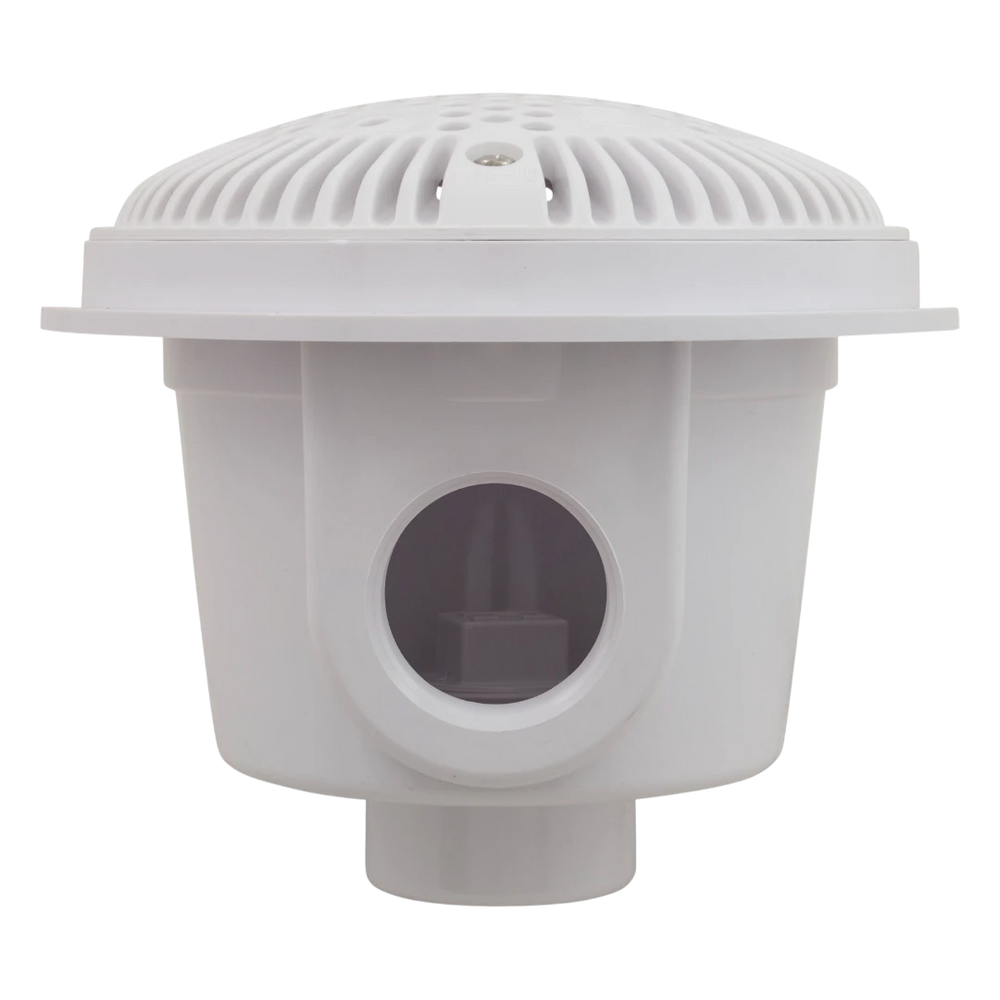

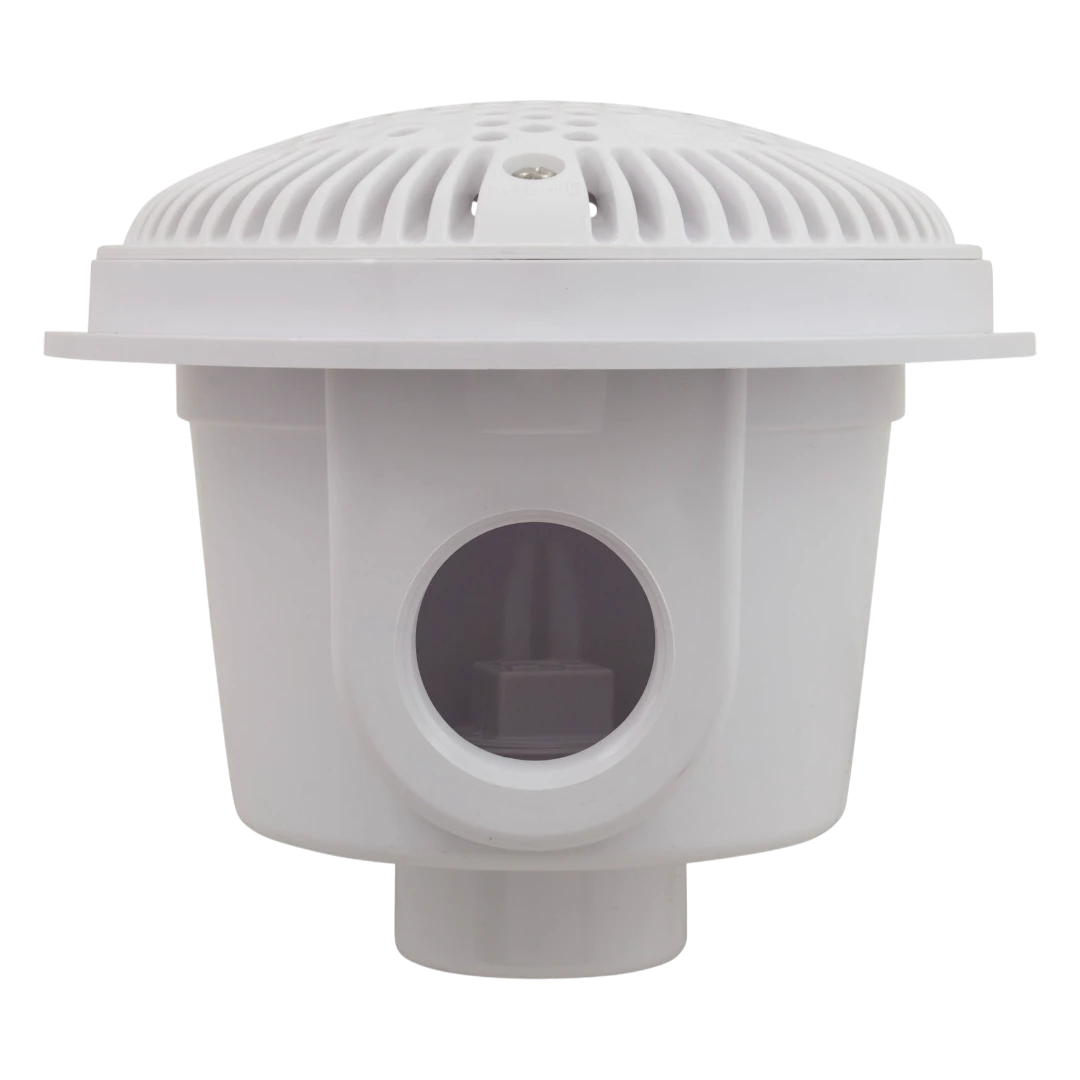

The Hayward WG1052AVPAK2 is a dual suction main drain designed for use in concrete, vinyl, and fiberglass pools. It features an 8-inch round ABS plastic construction with a 2-inch female inlet and a 1.5-inch female inlet, making it compatible with various plumbing configurations. This product helps ensure efficient water circulation and pool safety by preventing vortex formation.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Hayward 8" Dual Suction Outlet - Concrete Pools |
| Part Number | WG1052AVPAK2 |
| VGB Compliance | VGB Compliant |
| Frame Material | ABS |
| Grate Material | ABS |

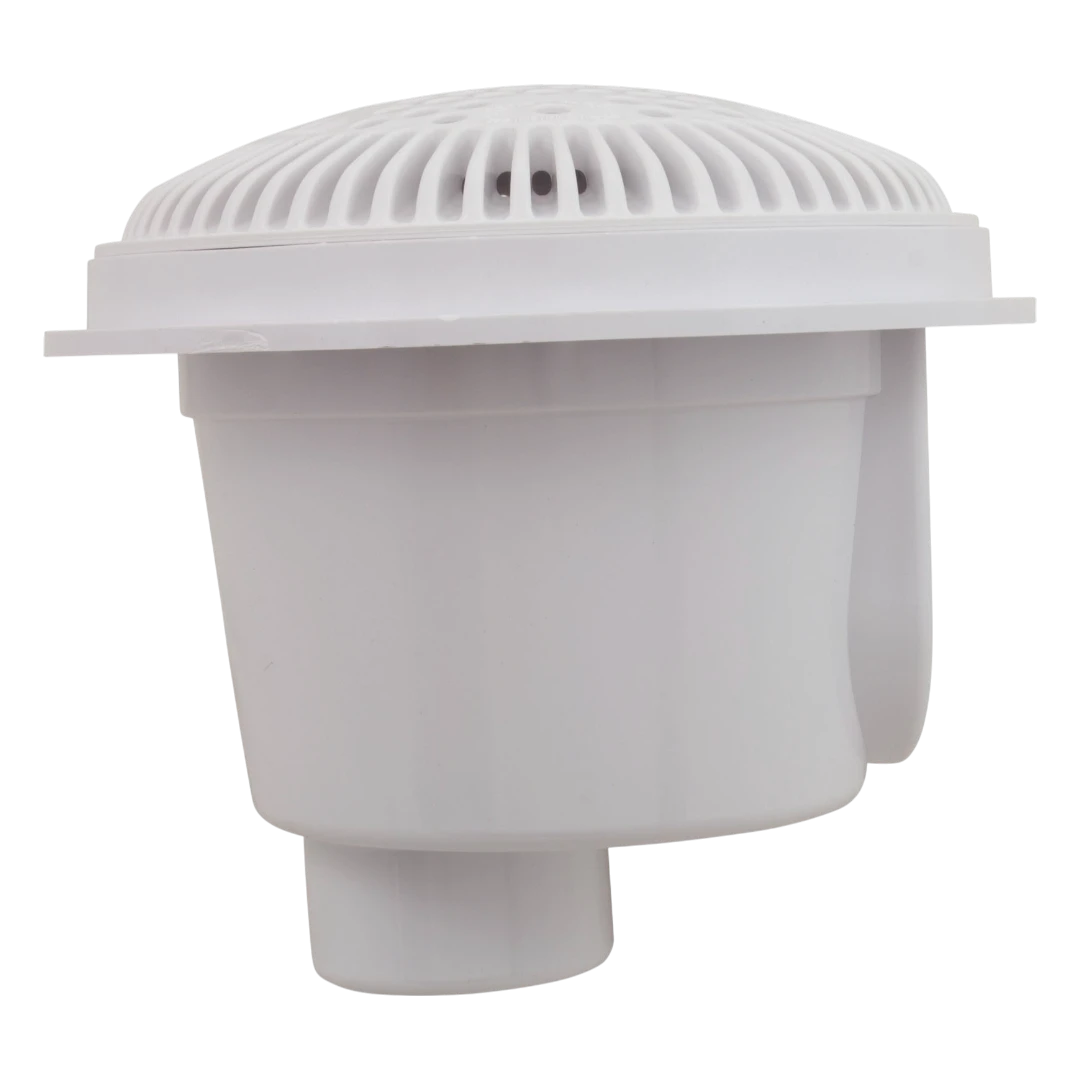

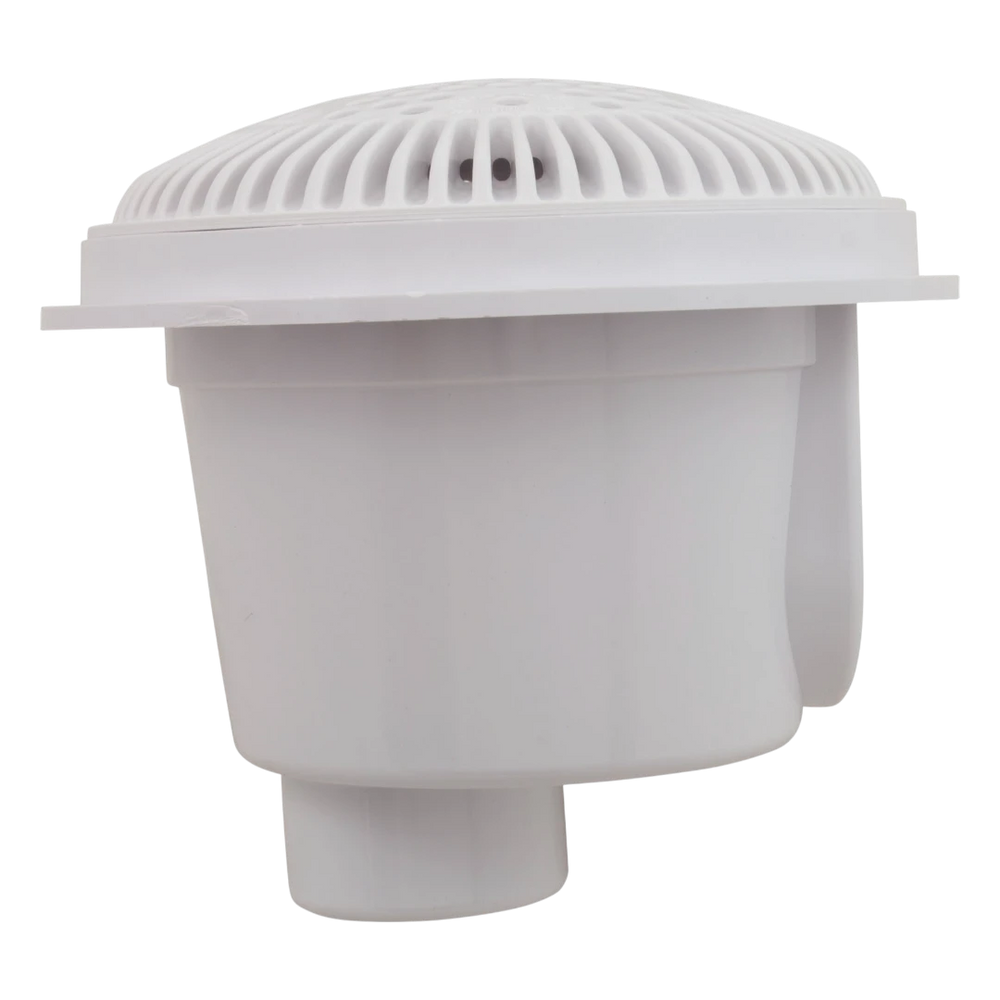

| Inlet Size | 2 inch FIP side outlet, 1.5 inch FIP bottom outlet |

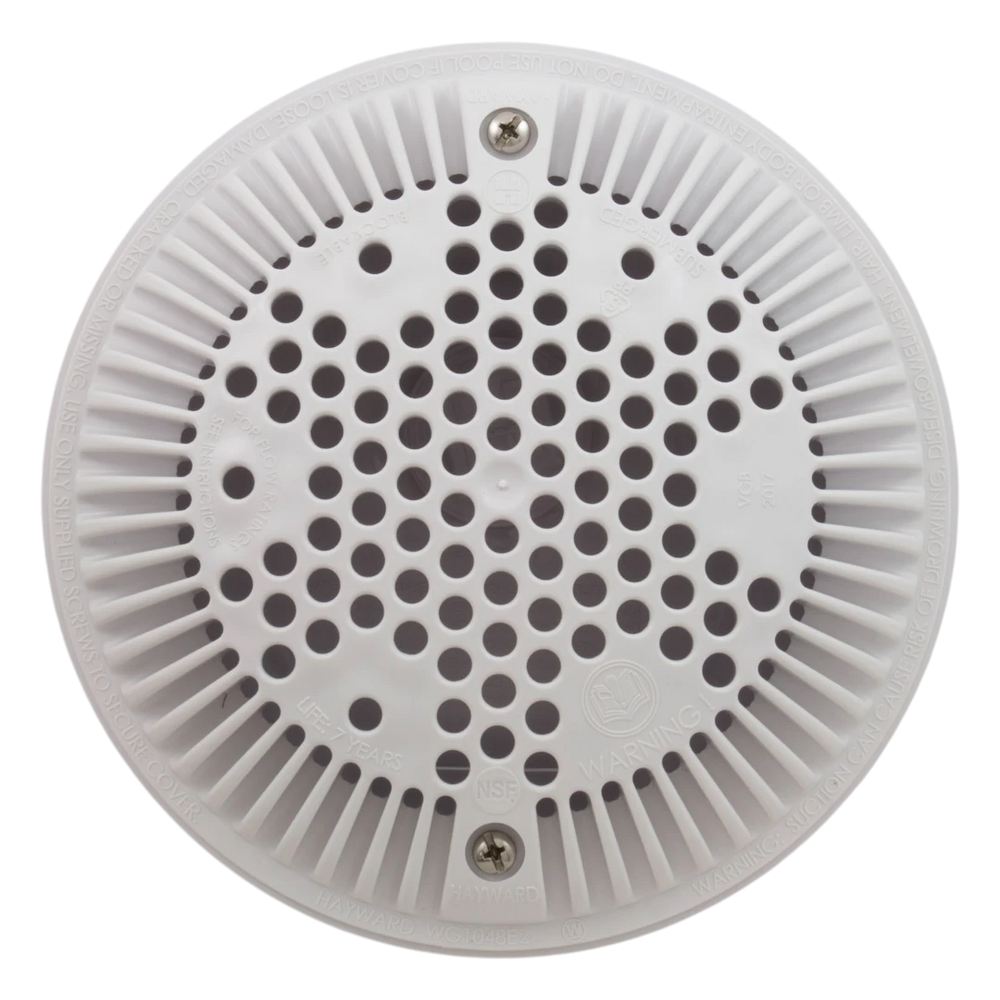

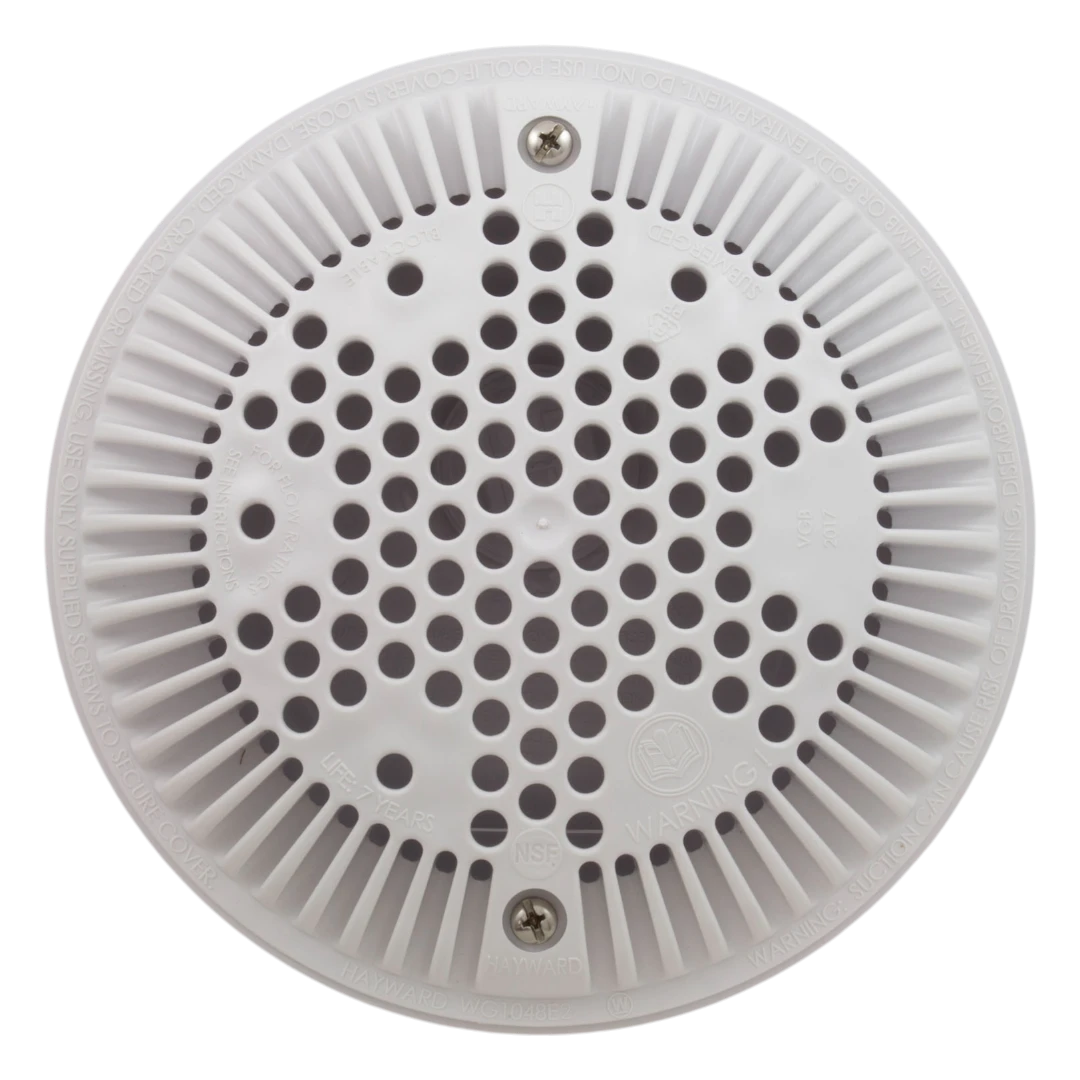

| Grate Dimensions | 8 inch diameter |
| Flow Rate | 125 GPM (horizontal), 72 GPM (vertical) |
| Installation Type | New Construction |
| Pipe Connection | Threaded |
| Color | White |
| Anti-Vortex Design | Yes |

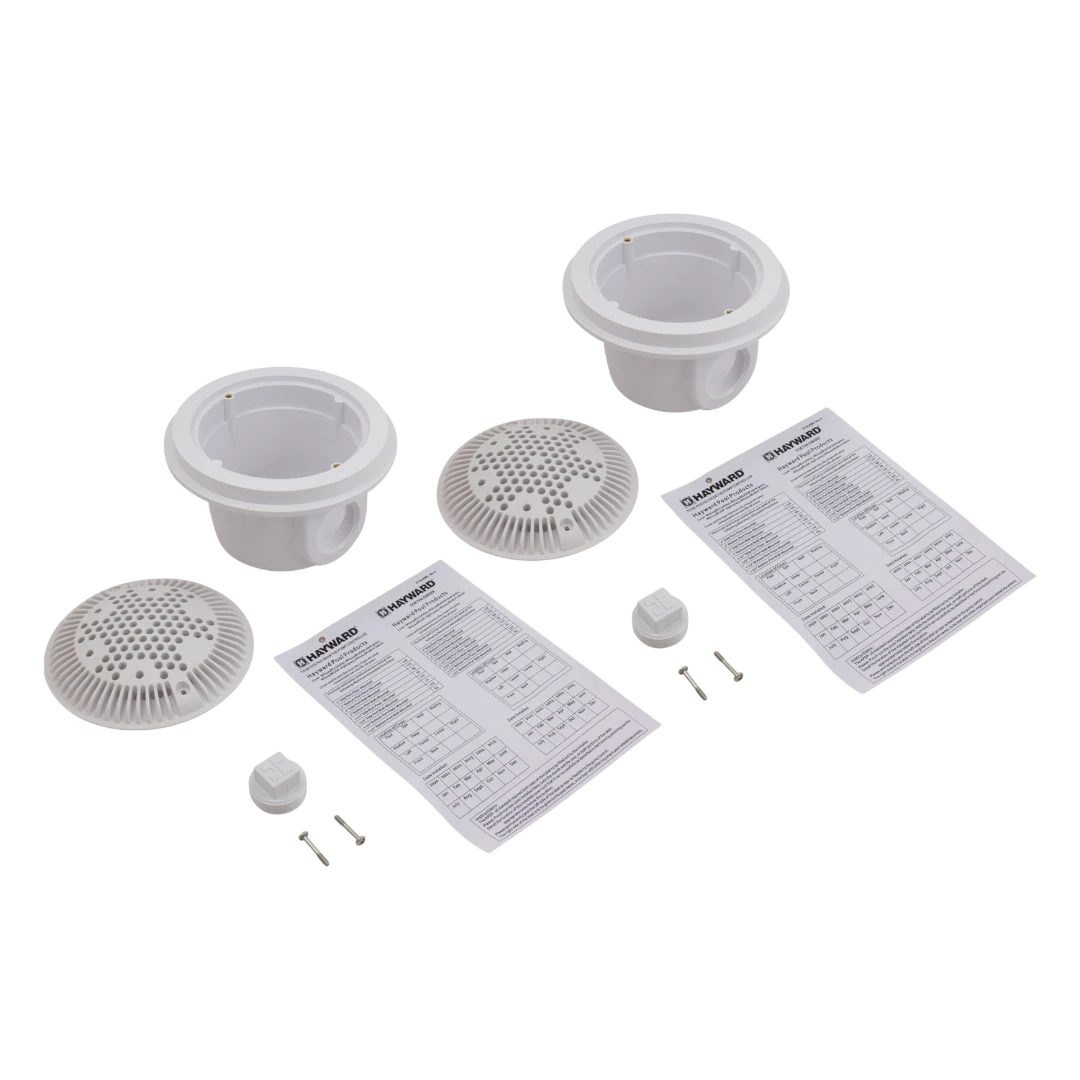

| Includes | Main drain body, Grate, Hardware |
| Shipping Dimensions | 14.86 x 9.08 x 10.46 inches |
| Product Weight | 5.17 pounds |
Resources
Data Sheet
