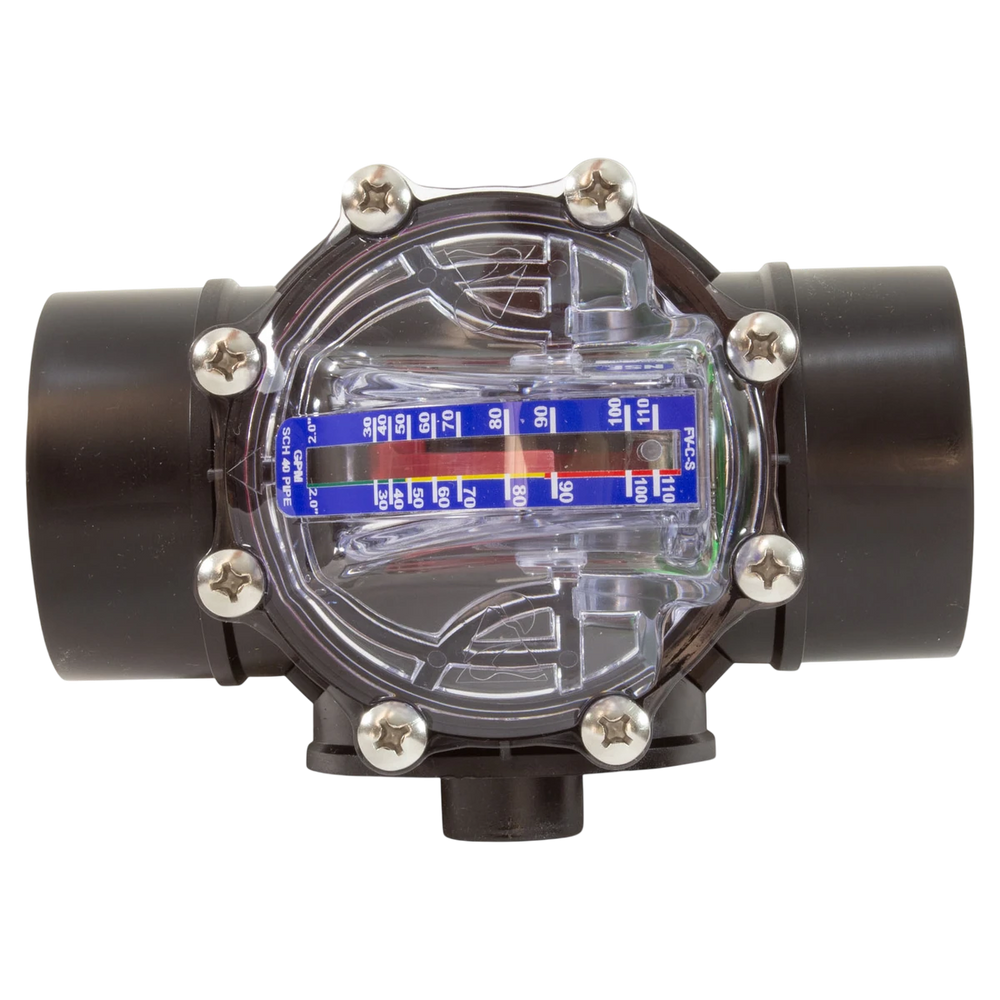

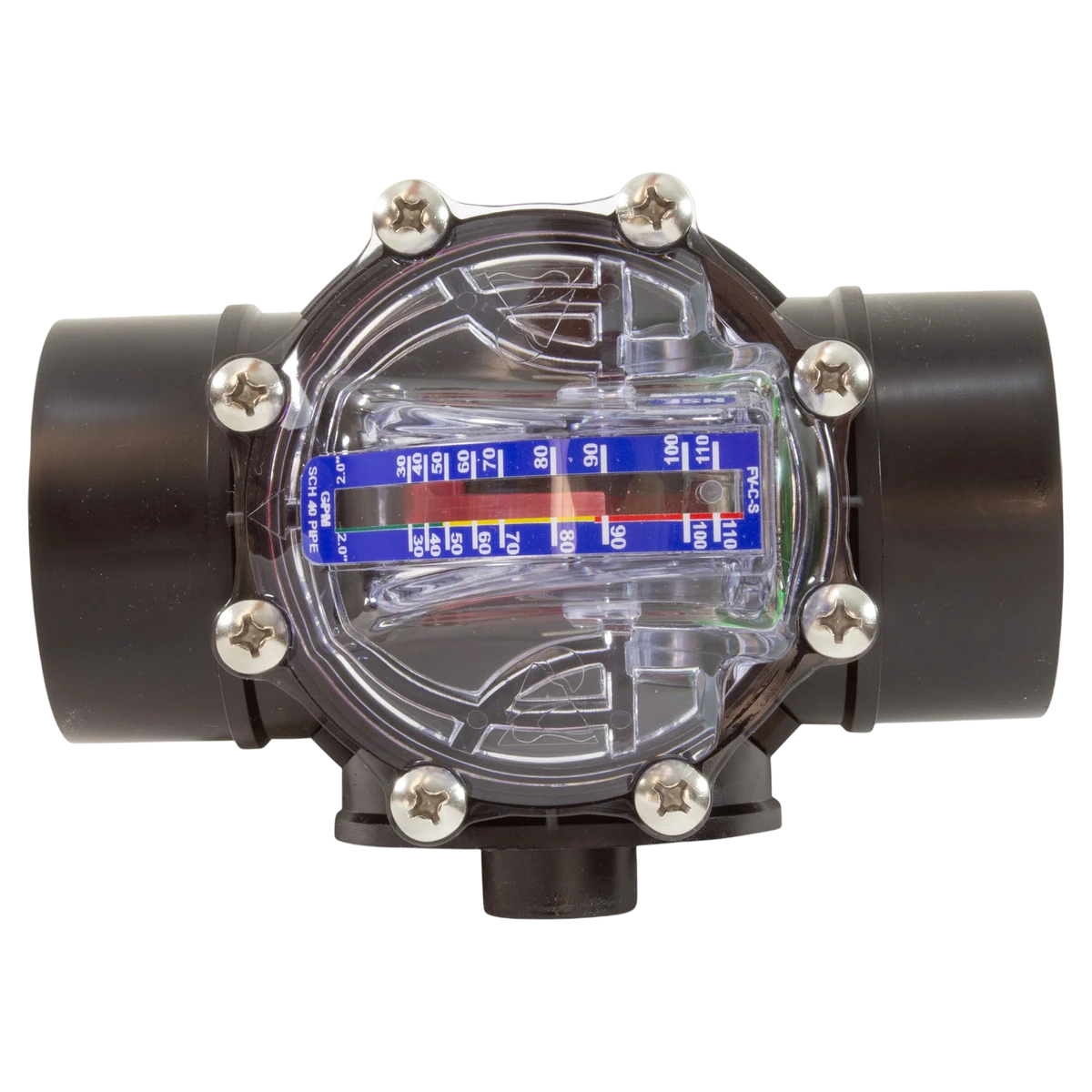

FlowVis Flow Meter with Safety Flapper

The H2Flow FlowVis FV-C-S is a flow meter for 2" and 2-1/2" spigot plumbing (2" Schedule 40) that reads flow rate from 10-110 GPM, with a safety flapper design built for pools and spas equipped with an SVRS anti-entrapment system.

Key Features

• Installs horizontally, vertically, or upside-down
• No calibration required at install
• Clear, easy-to-read GPM scale
• NSF 50 certified
• 50 psi pressure rating

Compatibility

• 2" Schedule 40 pipe / 2"-2.5" spigot plumbing

Despite being labeled a Flow Meter/Check Valve, the safety flapper version has no rubber seal, so water can travel around the flapper; it does not function as a sealing check valve like the standard FV-C/FV-2 models and is meant for systems with an SVRS where a sealing check valve is not permitted.
