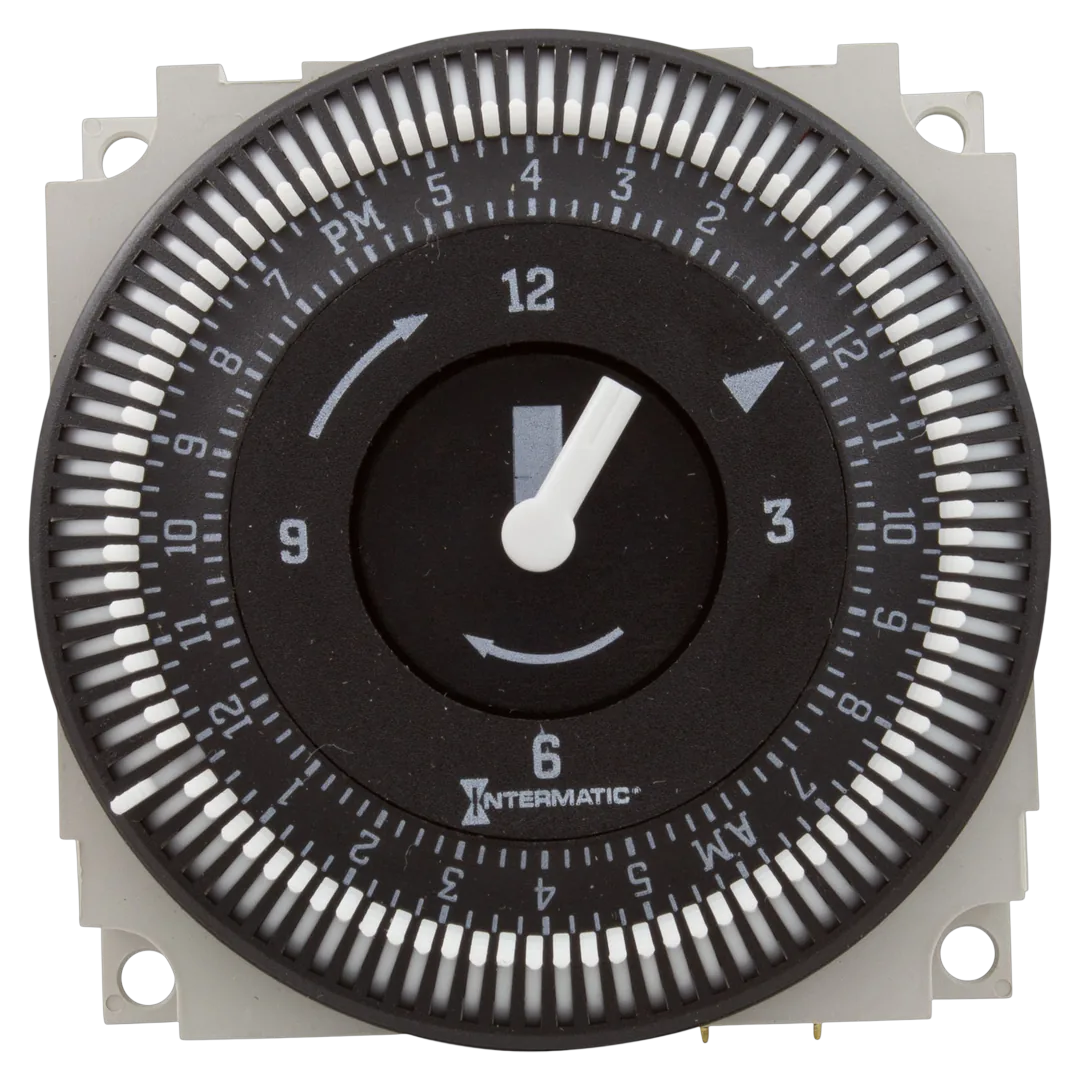

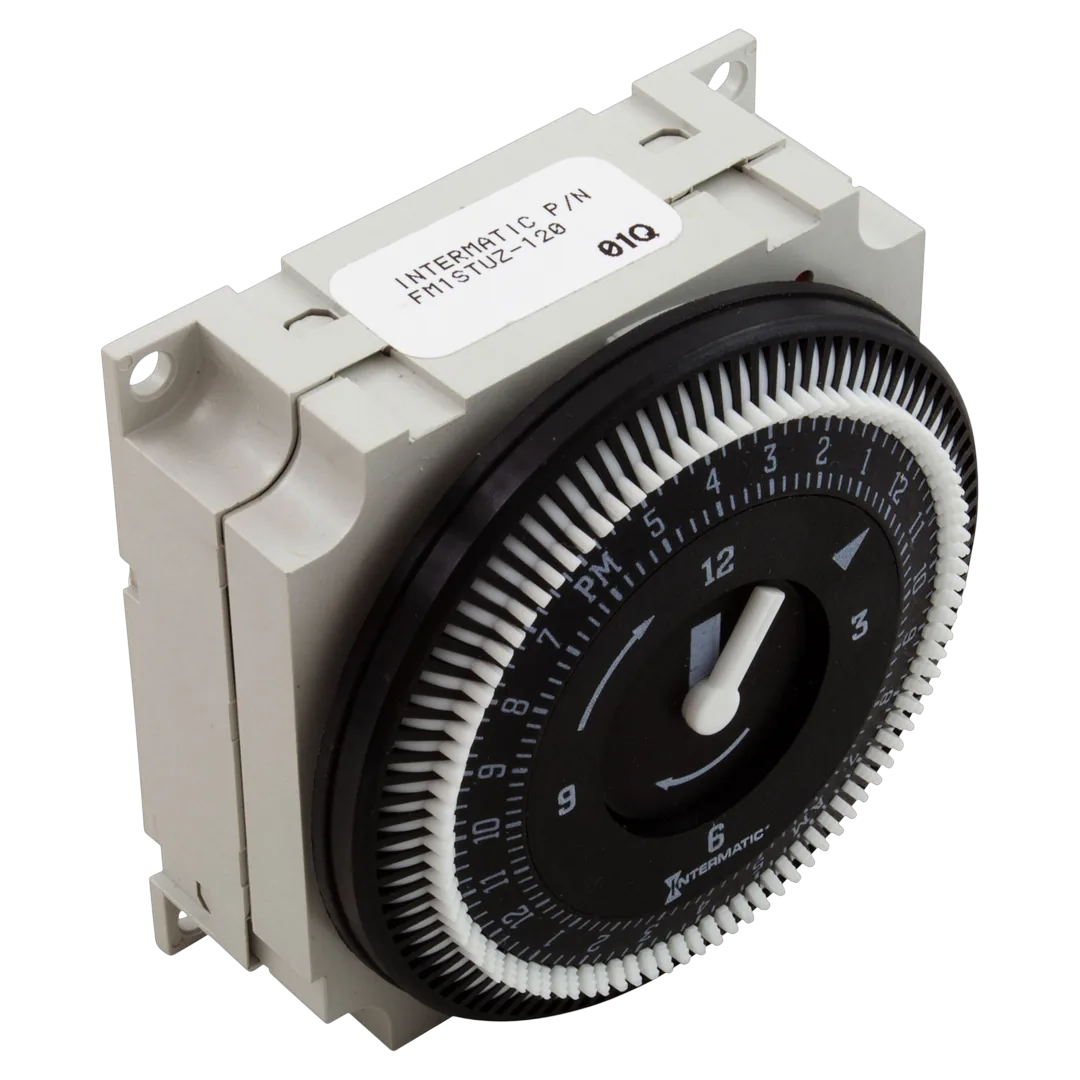

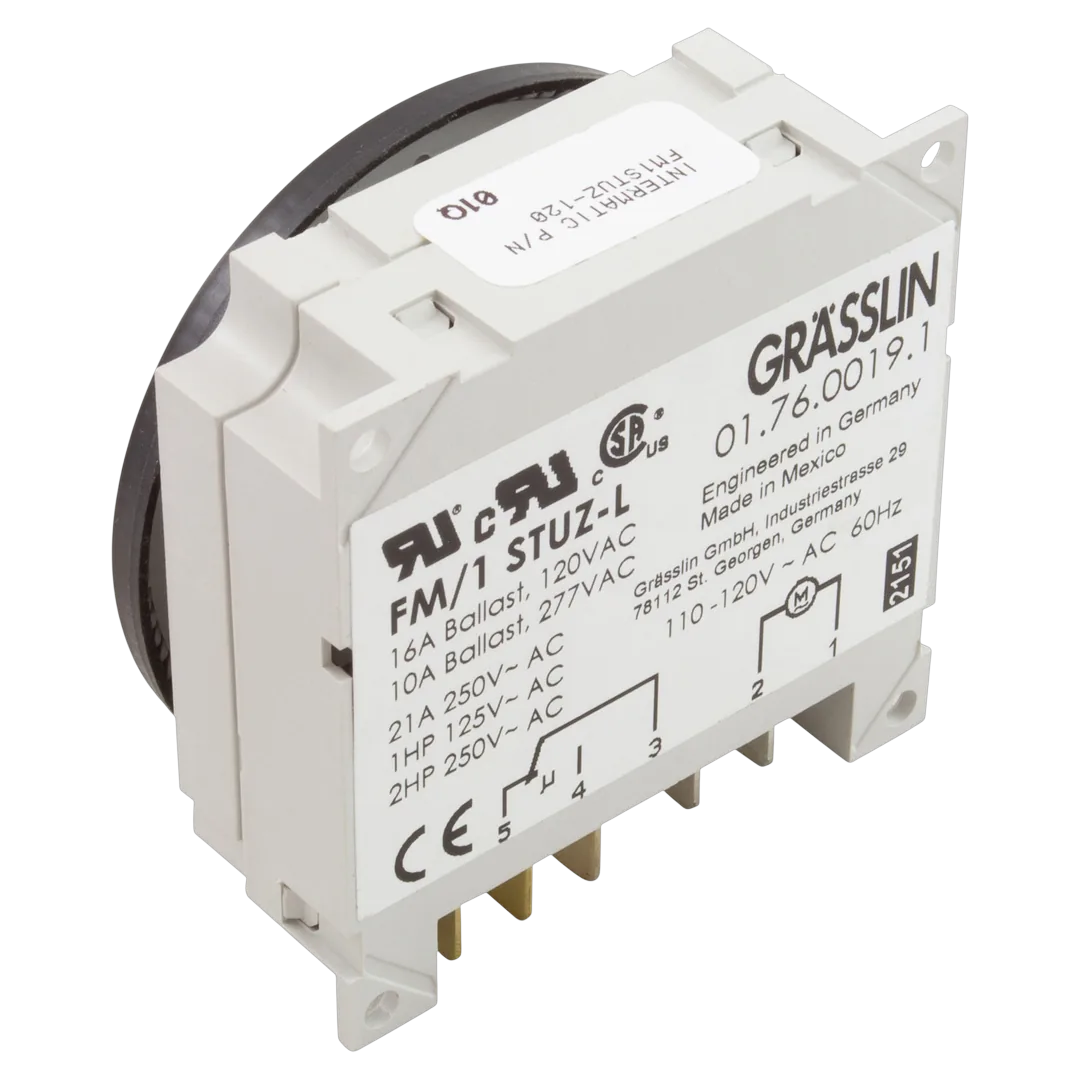

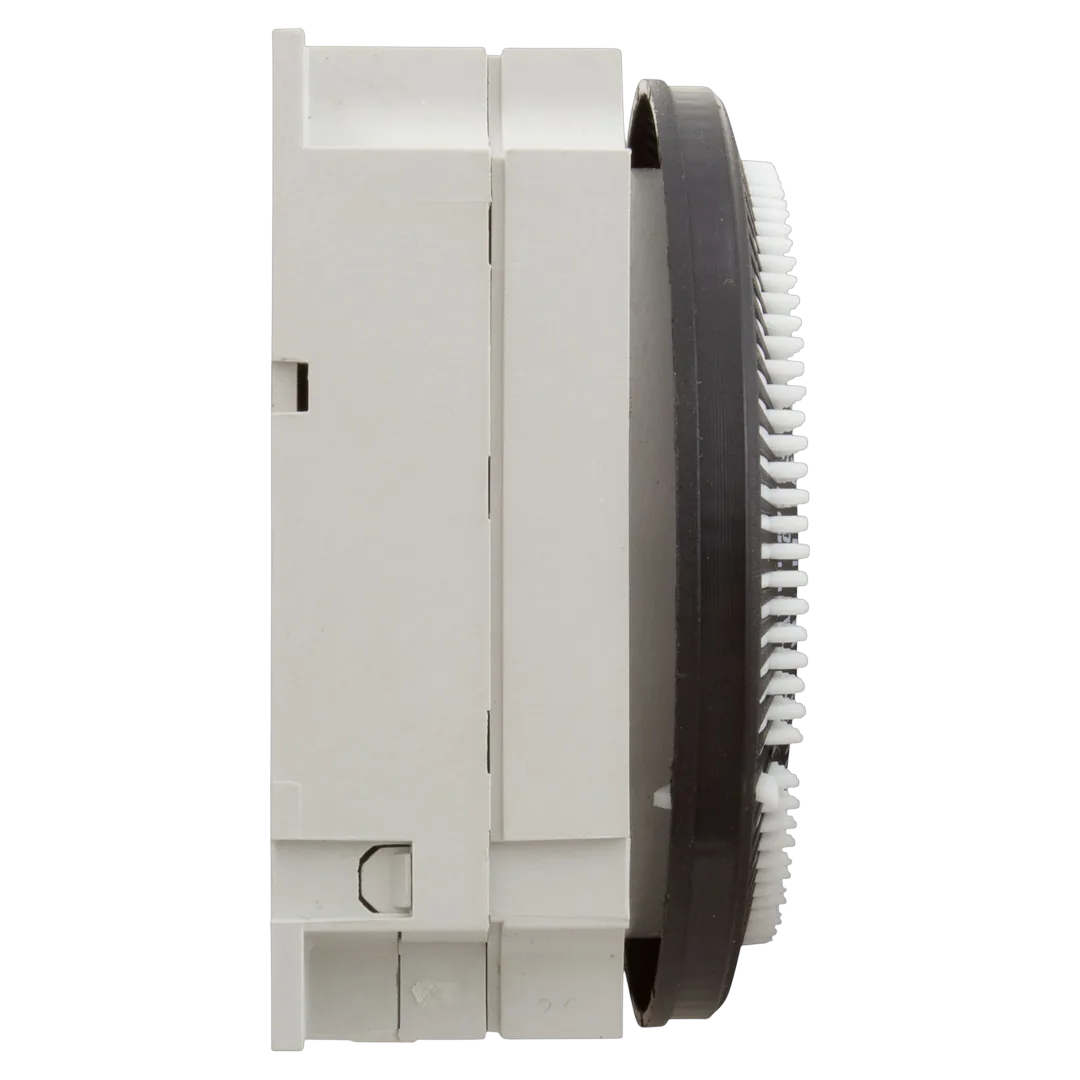

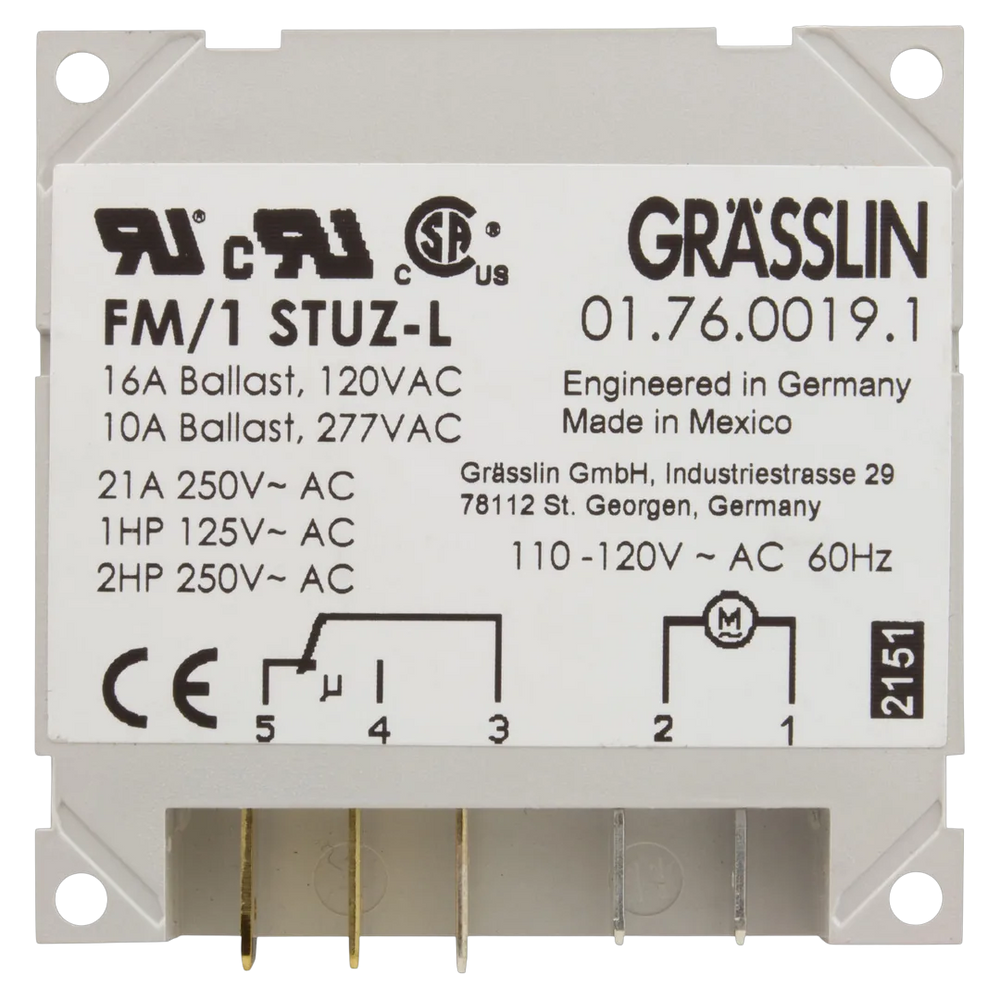

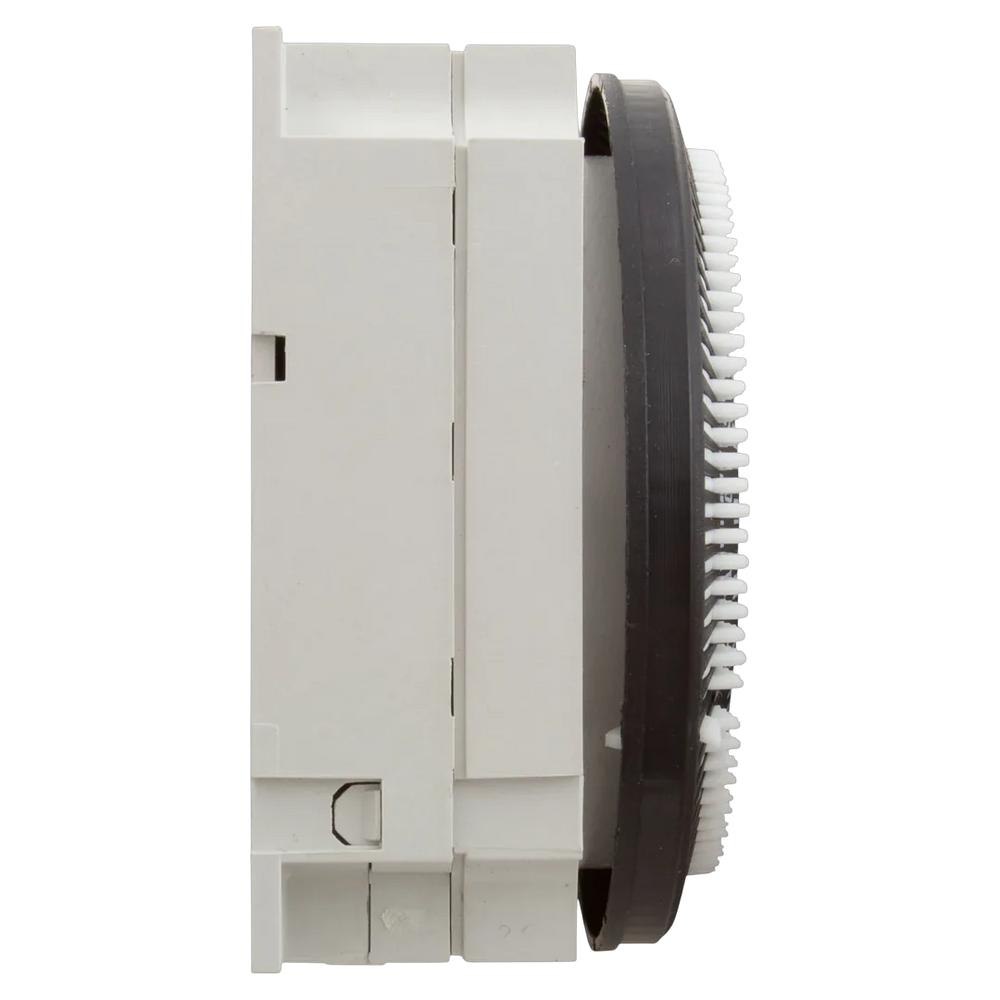

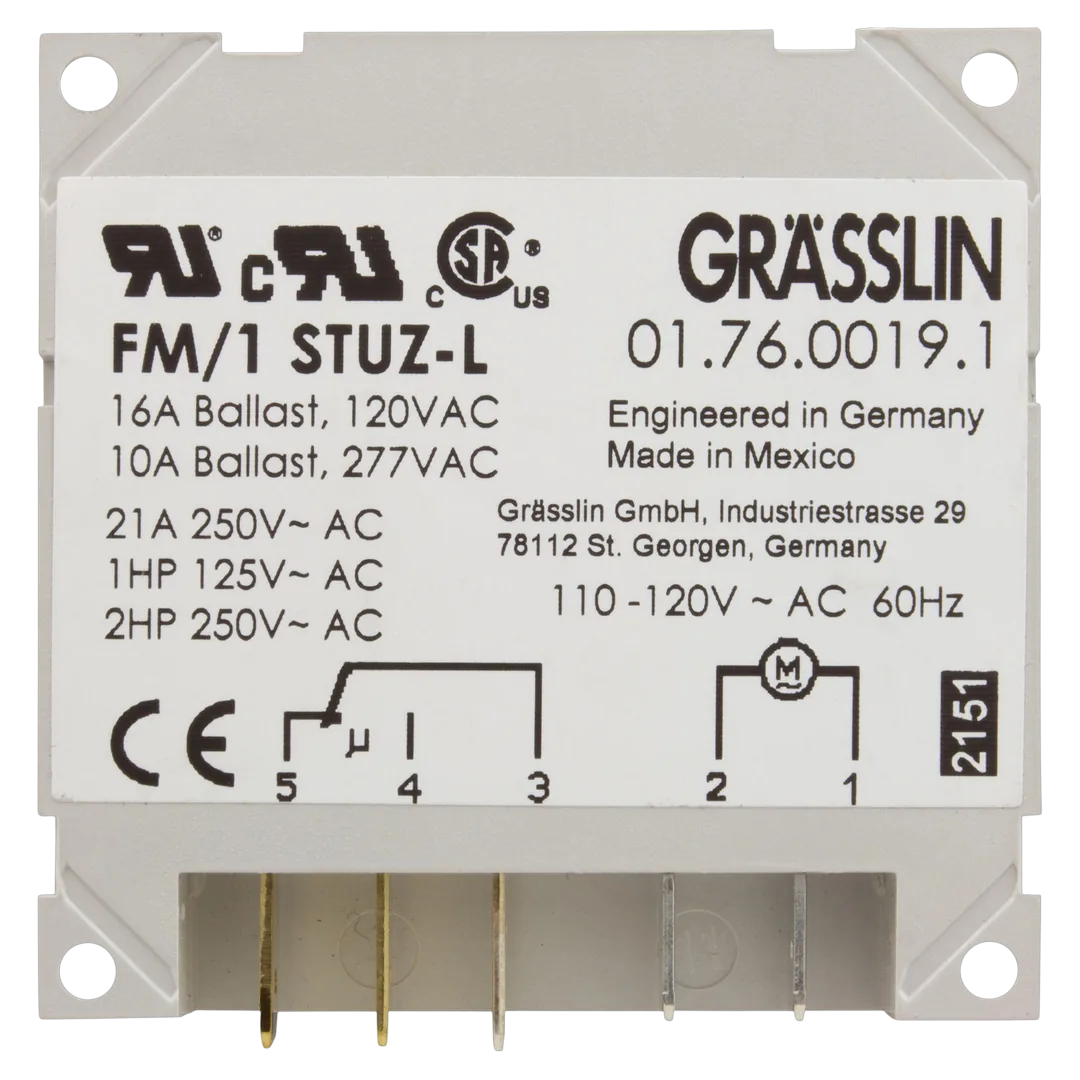

Grasslin FM1STUZH-120U 24-Hour Panel Mount Timer
Grasslin Controls Corp. | SKU:
FM/1 STUZ 120V
$7700/ea
Unit price
/
Unavailable
Grasslin FM1STUZH-120U 24-Hour Panel Mount Timer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
24-hour panel-mount time clock that automates spa or pool pumps, heaters, or lights; direct replacement for Grasslin Controls Corp. FM/1 STUZ 120V. It uses captive trippers to set 15-minute on/off intervals and includes a manual override for bypassing the schedule.
Includes: Timer module only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | FM1STUZ-120U |
| Part Number | FM1STUZ-120U |
| Part Type | 24-Hour Electromechanical Panel Mount Timer Module |
| Compatibility | Designed for control of heating, ventilating, air conditioning, refrigeration, lighting, security, circulating pumps, spas, or any electrical load requiring 24-hour scheduling |
| Includes | Timer module only |
| Certifications | UL Recognized cCSAus Certified RoHS Compliant |
| Material | Plastic |
| Mount Type | Panel |
| Connection Size | 1/4-inch quick-connect terminals |
| Flow Paths | SPDT (Single Pole Double Throw) |
| Pressure Rating | 21A resistive 1 HP at 120VAC 2 HP at 240VAC |
| Seal Material | Not specified |
| Shipping Dimensions | 2.36 x 2.36 x 1.25 inch |
| Product Weight | 0.14 pound |
