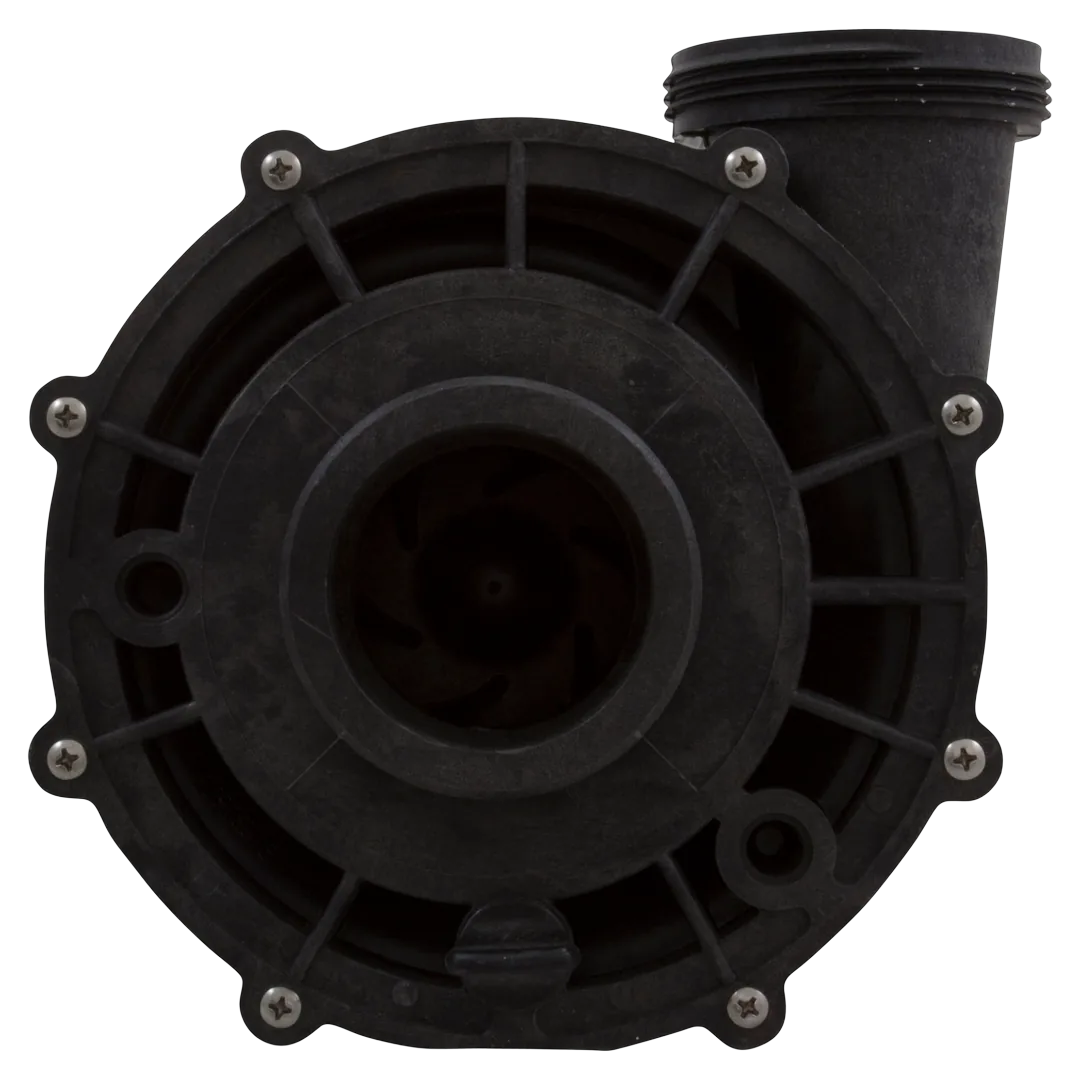

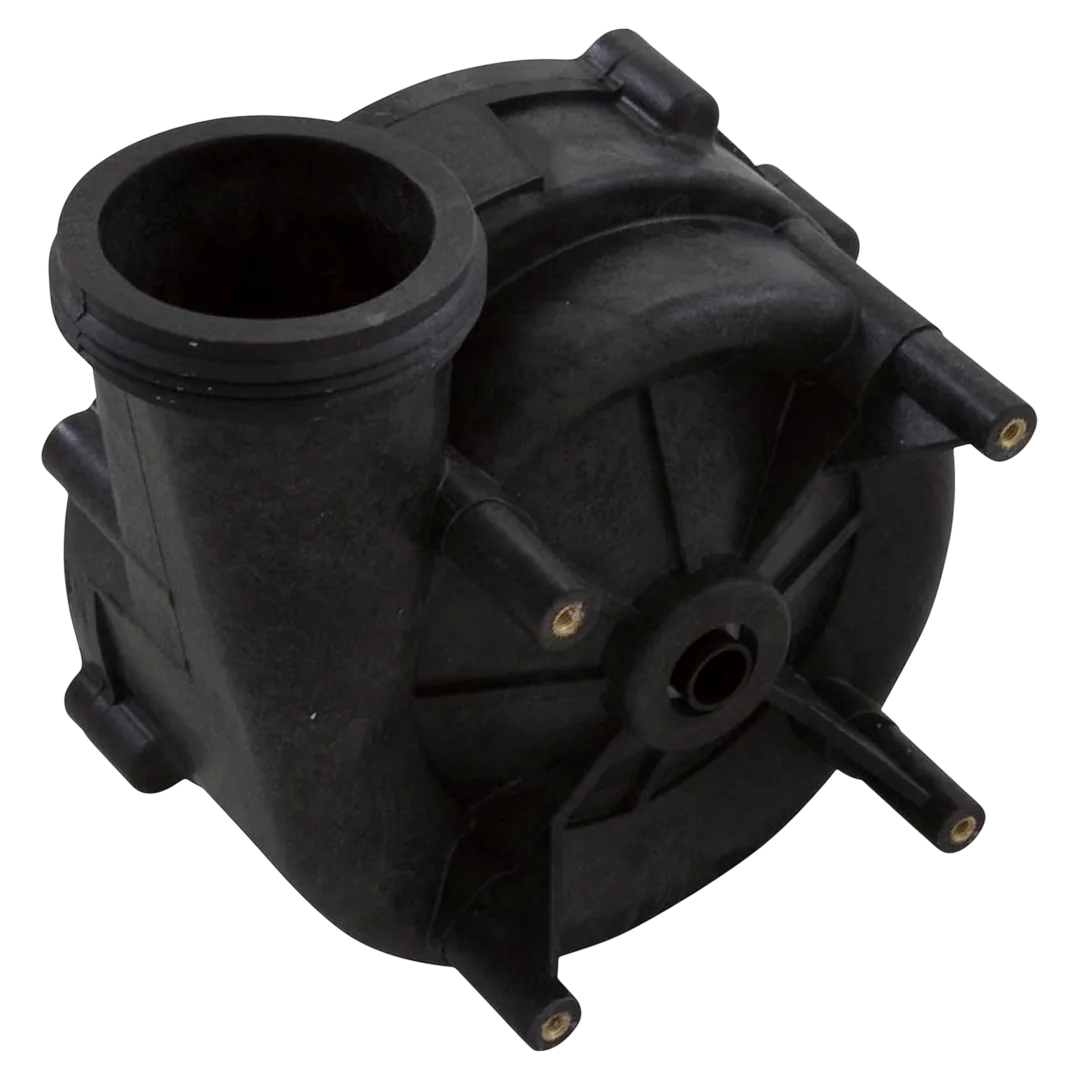

Gecko XP2e Wet End 91041940-000
Aquaflo/Gecko | SKU:
91041940-000
$13700/ea
Unit price
/
Unavailable
Gecko XP2e Wet End 91041940-000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

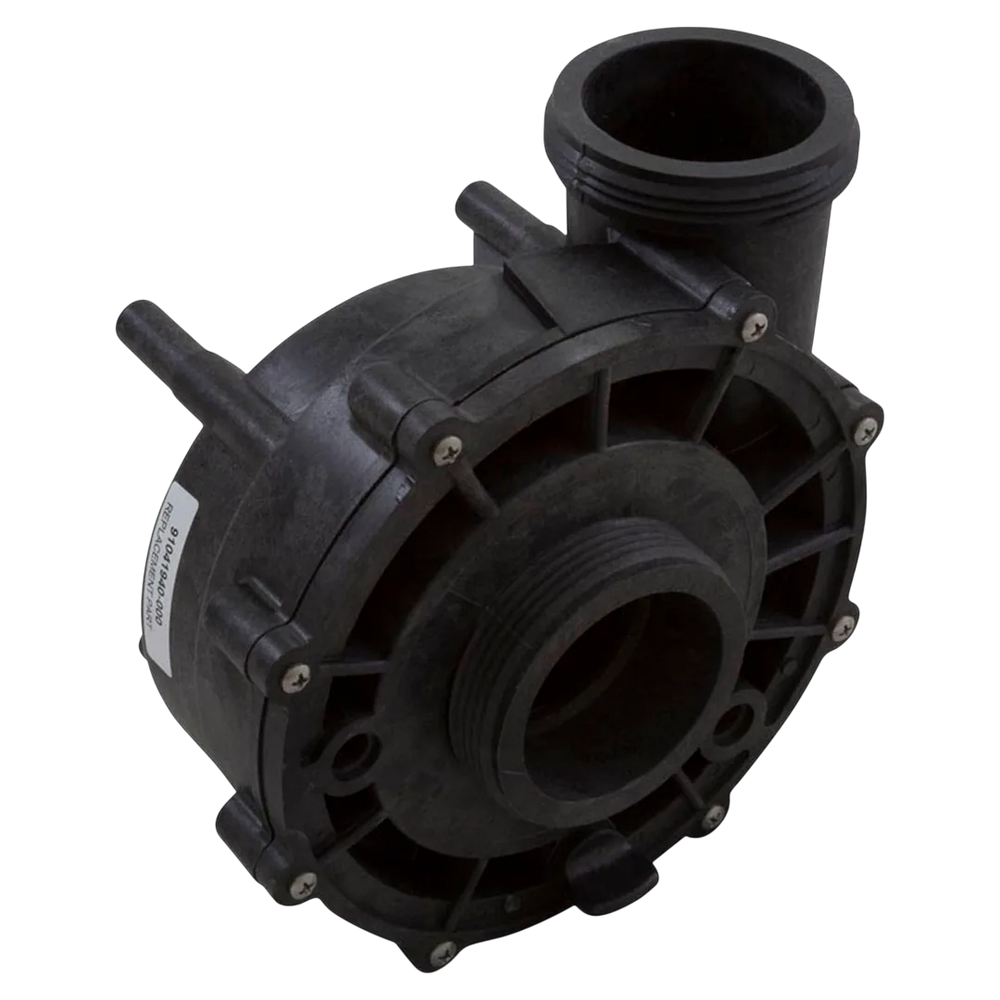

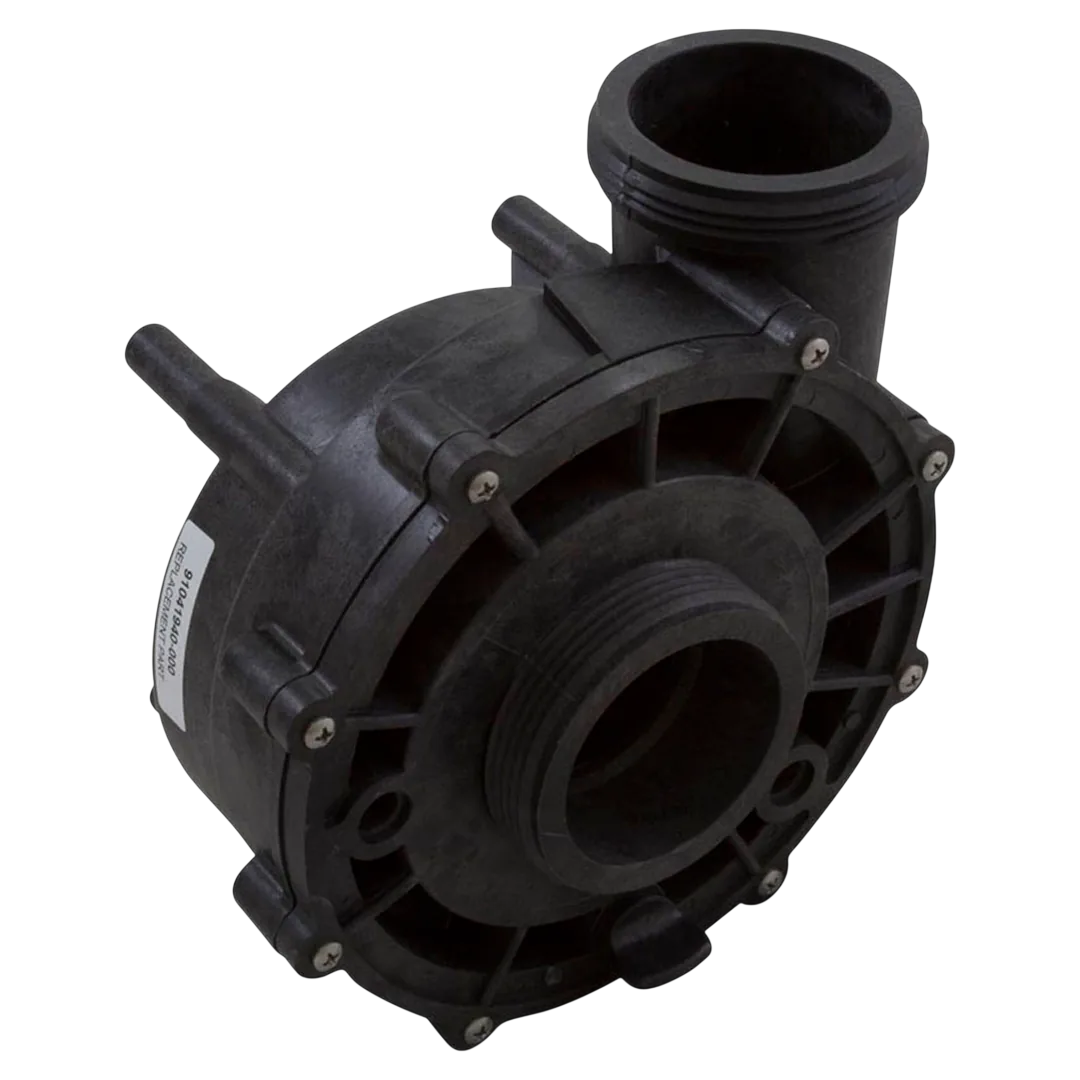

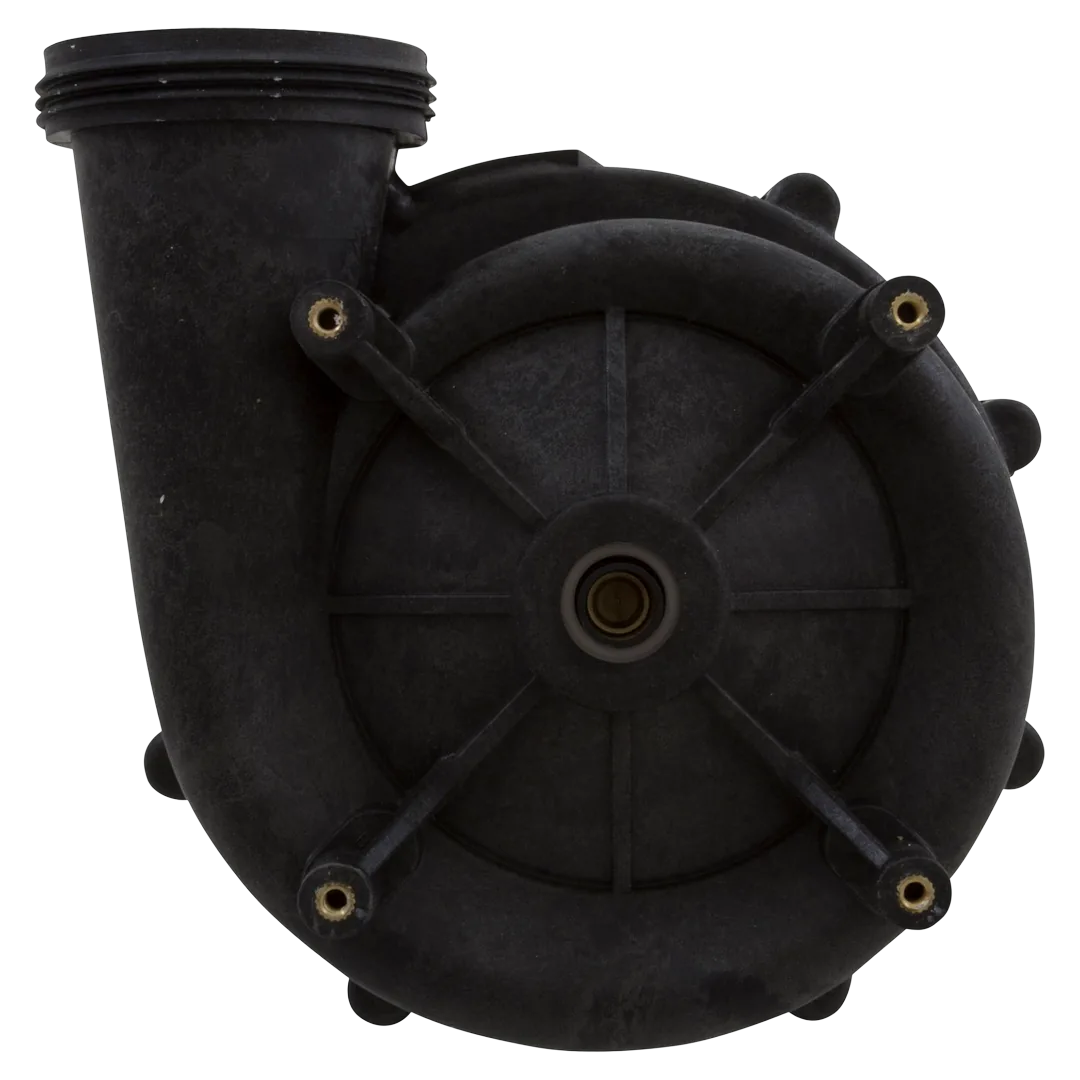

The Aquaflo/Gecko 91041940-000 is a wet end assembly designed for the Flo-Master XP2e and XP2 spa pumps. It features a 4.0 horsepower capacity suitable for a 56-frame motor with 2-inch inlet and outlet. This component is compatible with XP2/XP2E and also fits models such as the Gecko Flo-Master XP3 series.
Includes: Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko Alliance Wet End, XP2E, 4 HP, 56Y, 2" Inlet x 2" Side Discharge |
| Part Number | 91041940-000 |
| Part Type | Pump Part |
| Compatibility | Designed for use with 4.0 HP, 56 frame, thru-bolt style motors compatible with both single and dual speed motors |
| Substitute Part Numbers | 34-402-1258, 344021258, 91041940000, AF91041940000, ALI91041940000 |
| Includes | Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws |
| Material | Plastic |

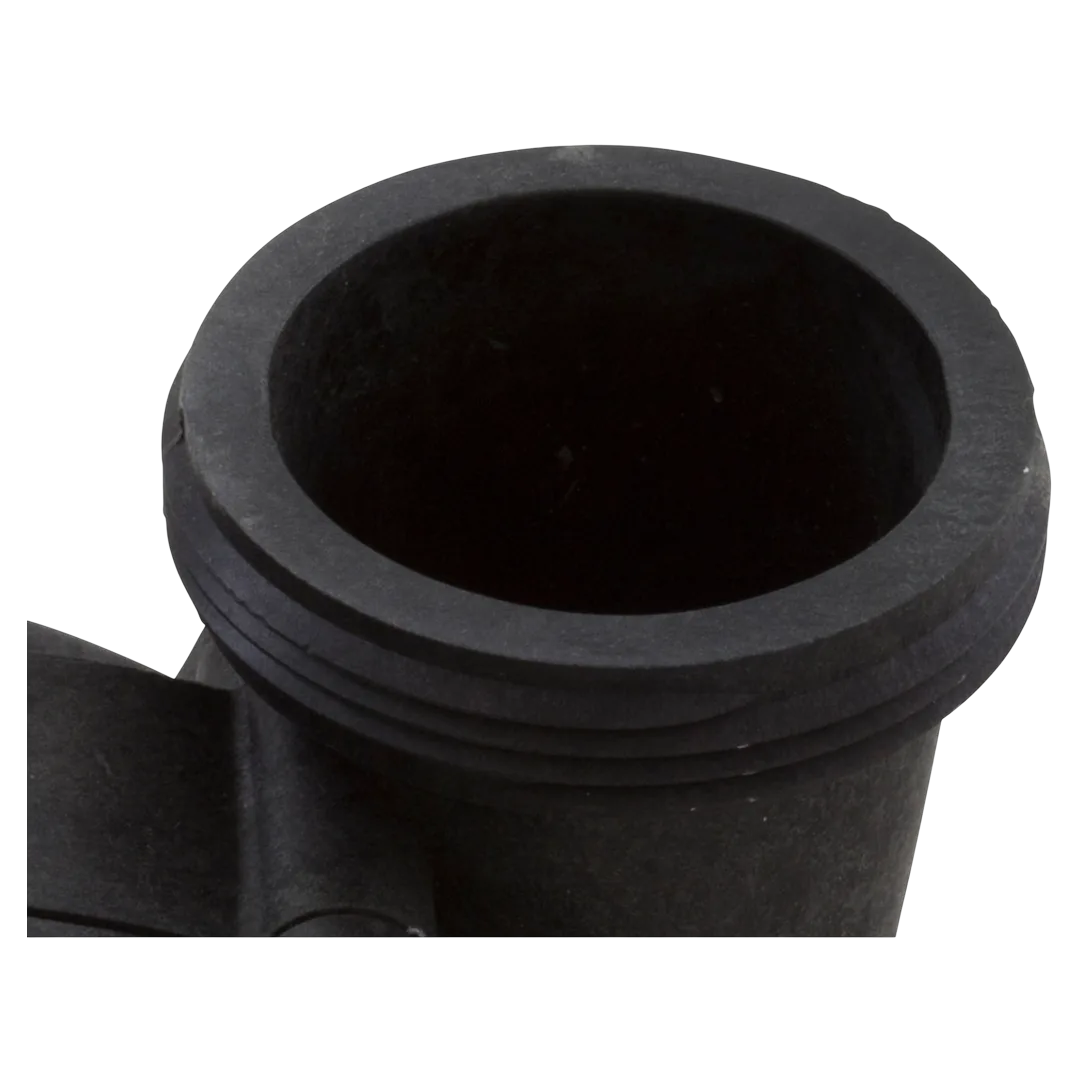

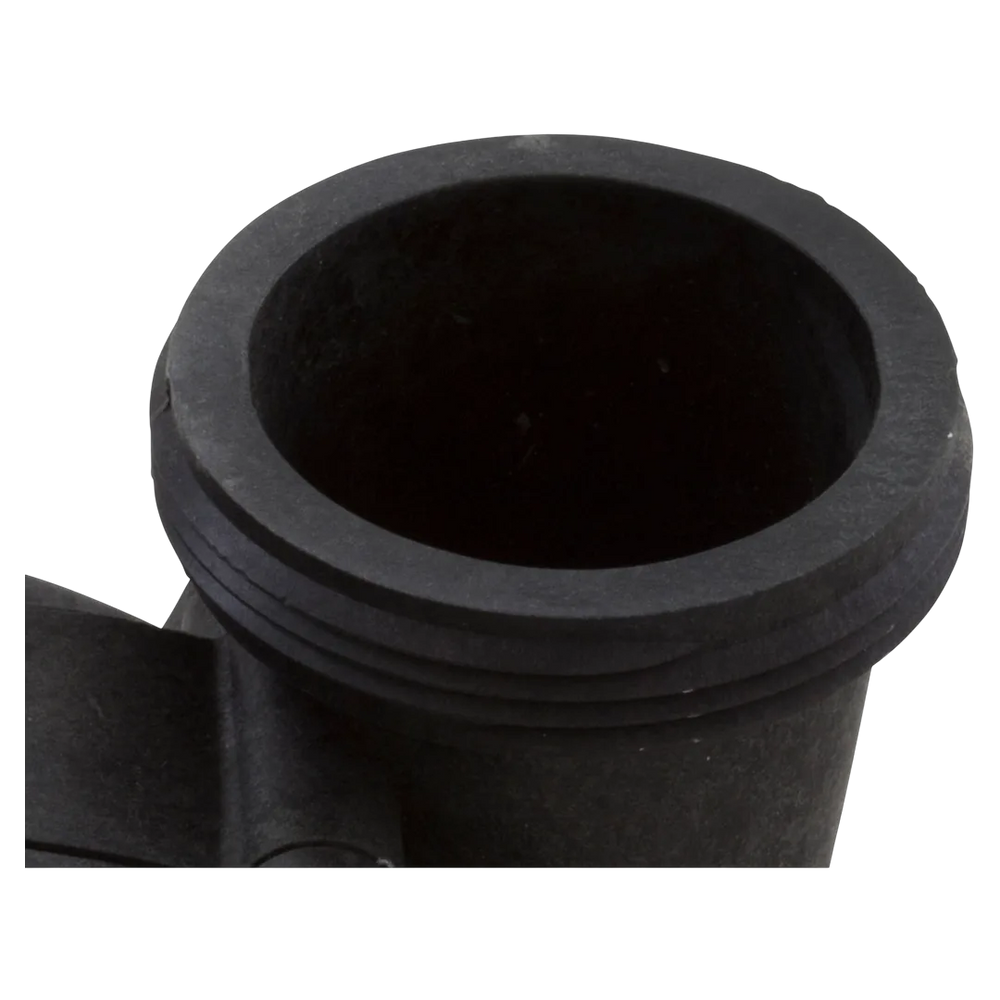

| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2 inch |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2 inch |
| Motor Frame | 56 Frame Thru-Bolt |
| Drain Plug Location | 4, 6, 9 o'clock positions |
| Volute Fastening Type | 8 Screws |
| Manufacturer Impeller Number | 91695401 |
| Shipping Dimensions | 10 x 8.5 x 7 inch |
| Product Weight | 2.95 pound |
