Gecko XP2E Impeller 3 HP
Aquaflo/Gecko | SKU:
91695317
$5600/ea
Unit price
/
Unavailable
Gecko XP2E Impeller 3 HP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

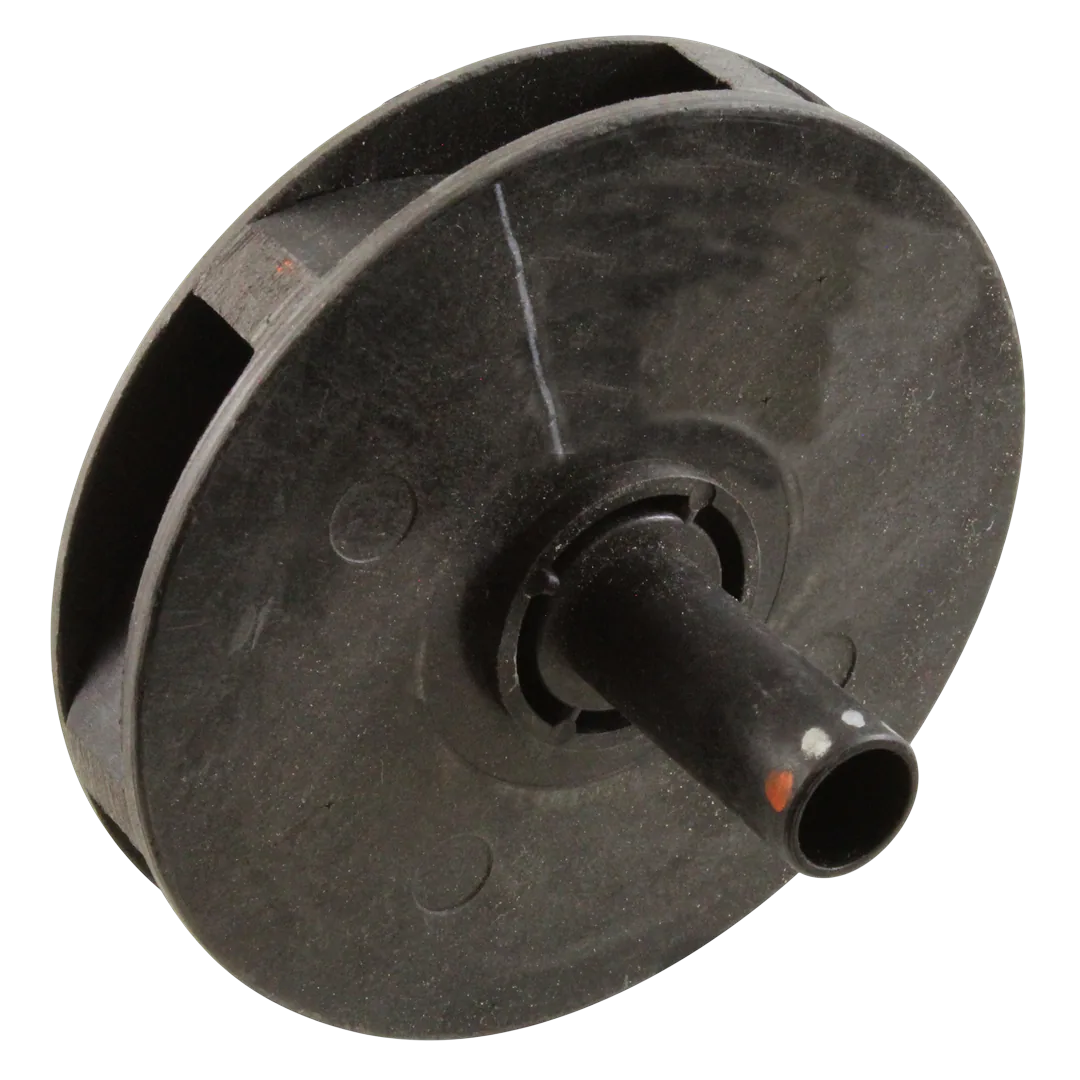

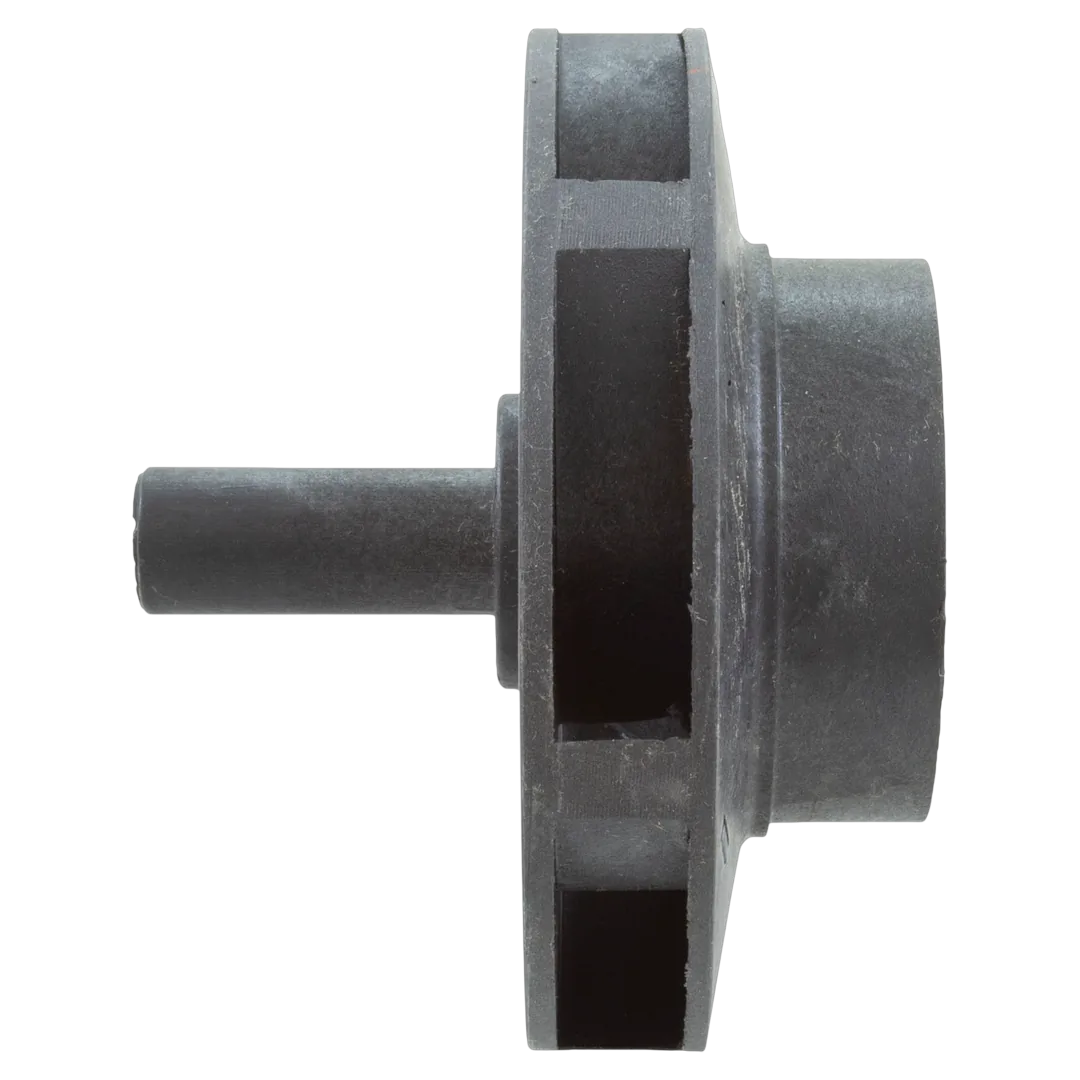

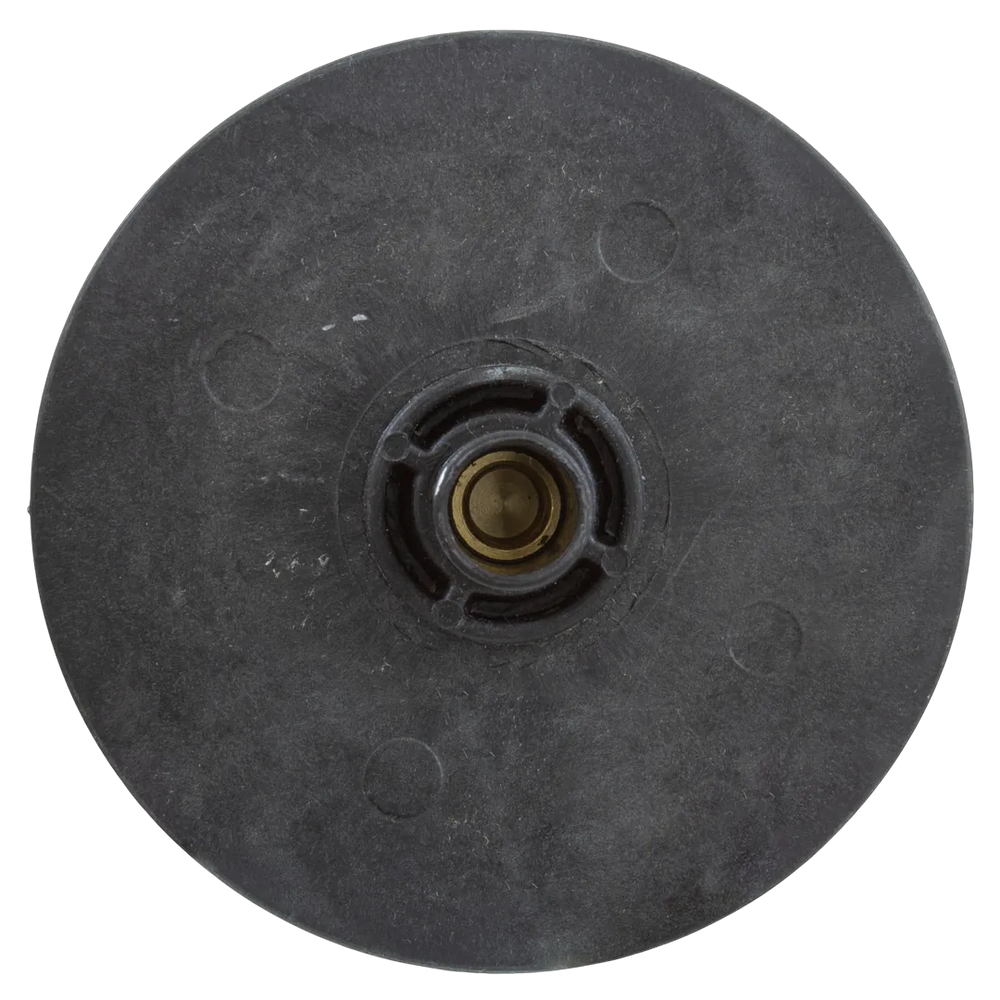

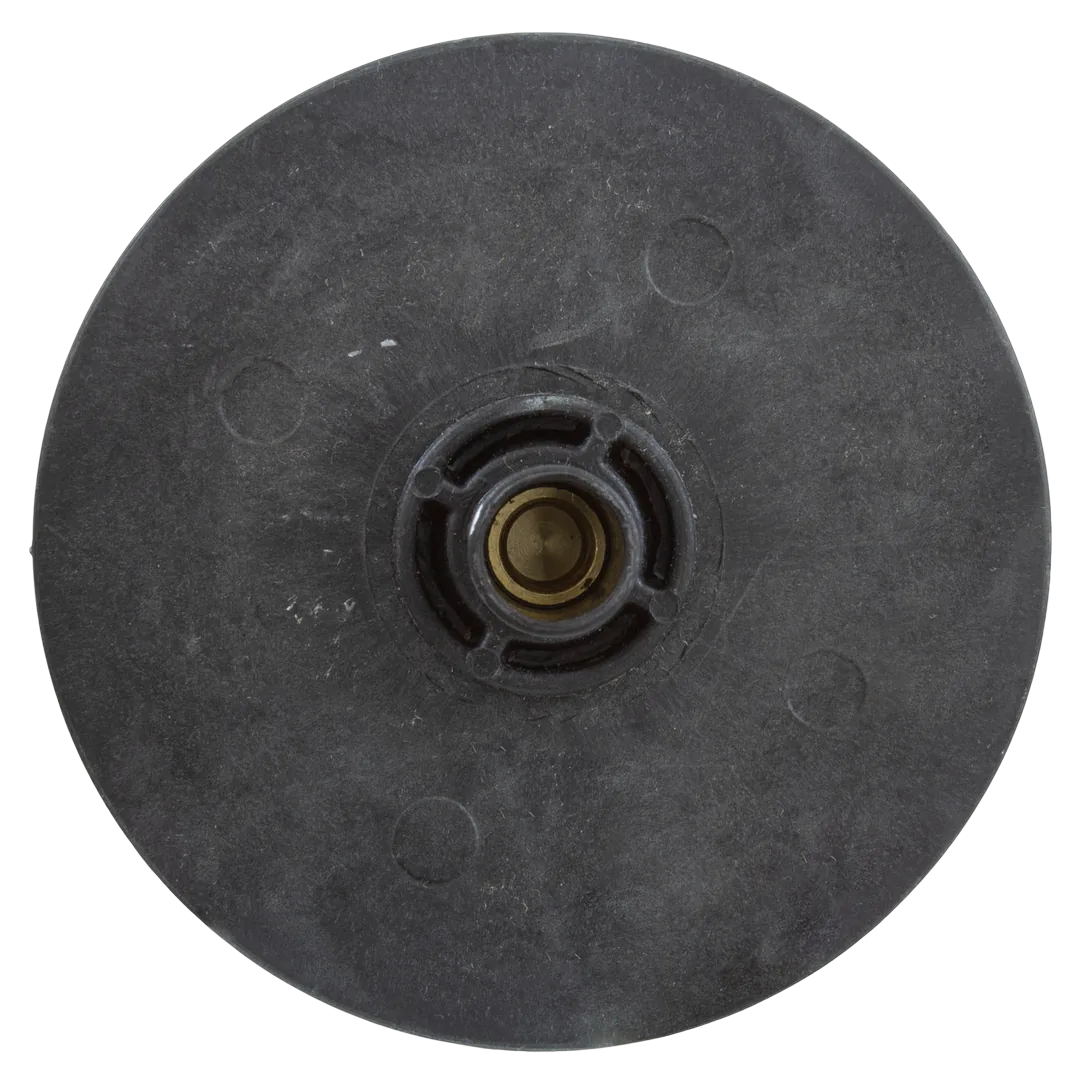

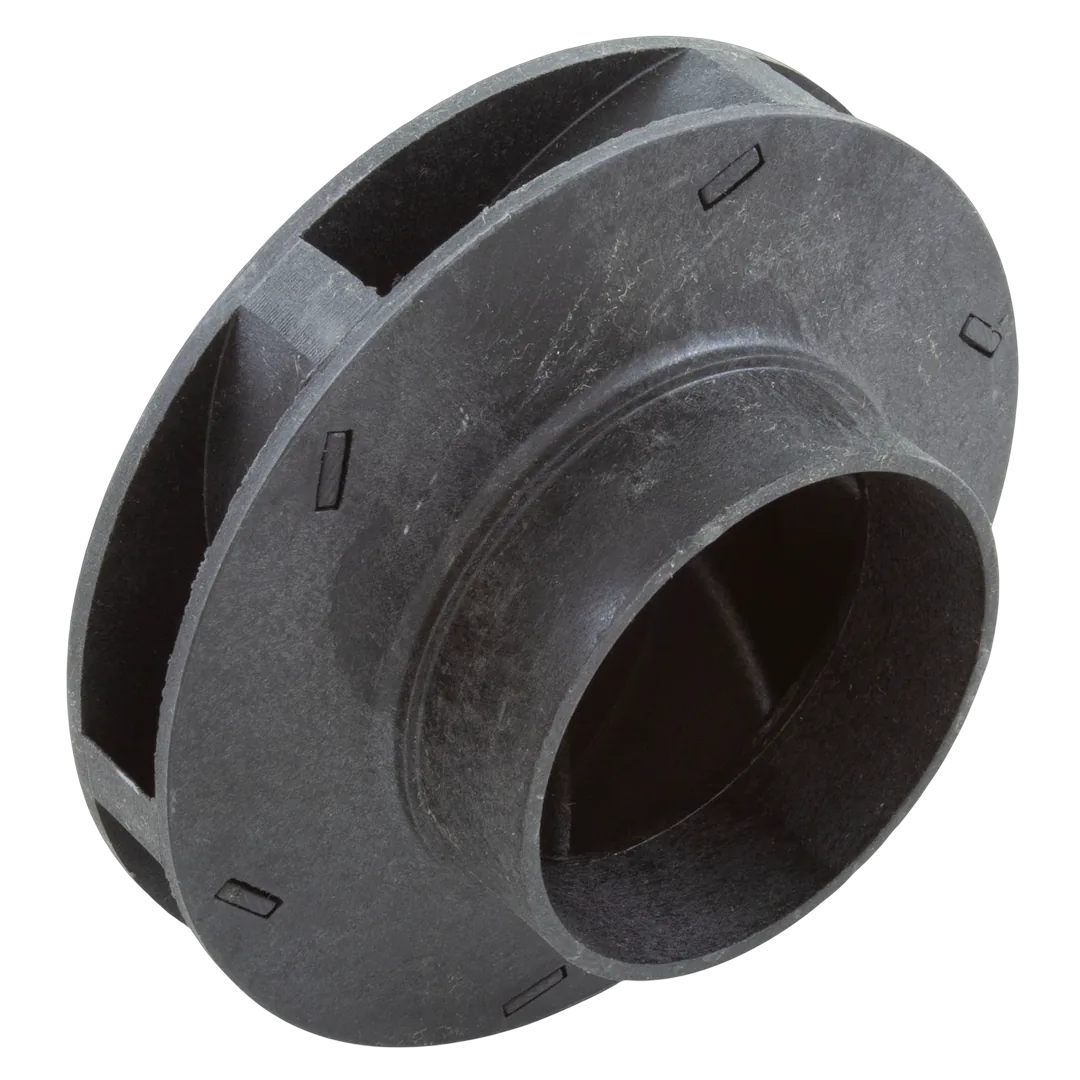

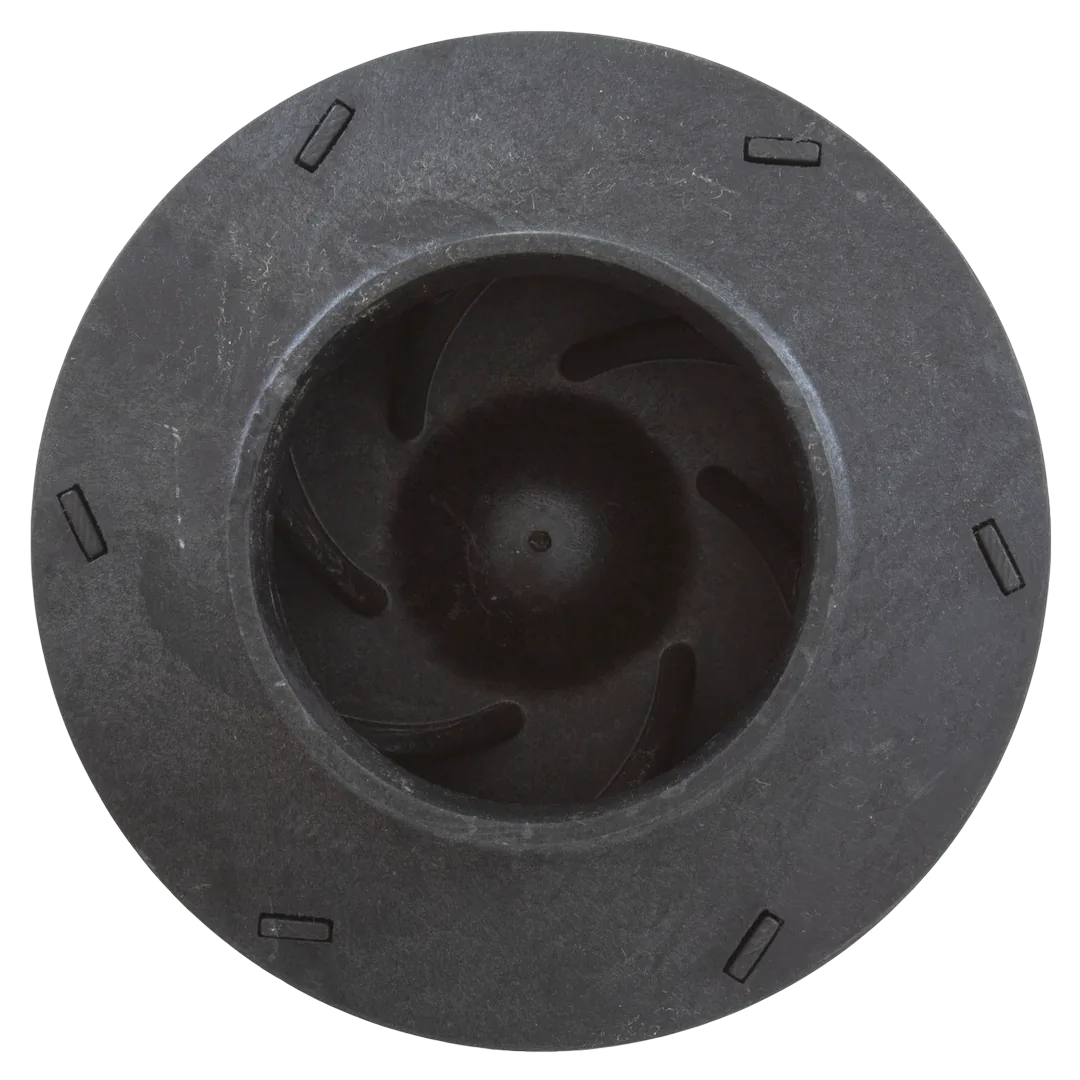

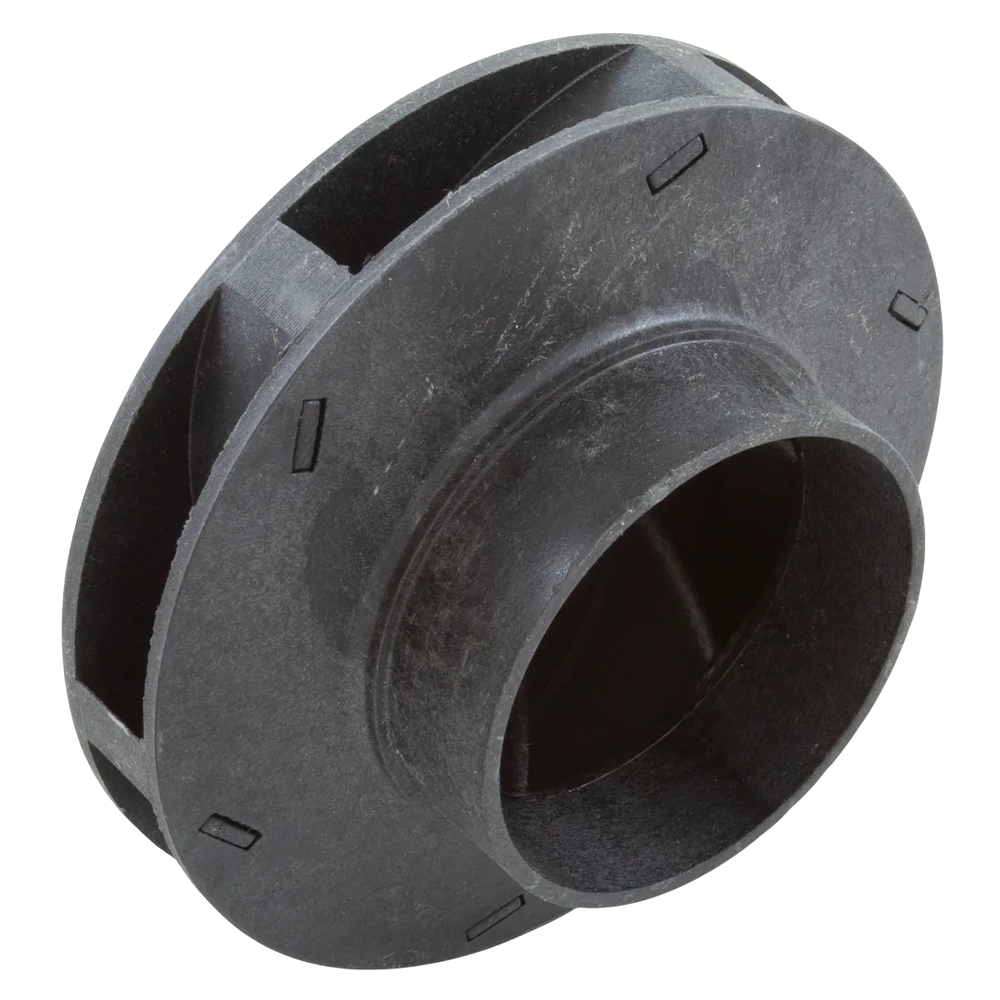

The AquaFlo/Gecko 91695317 is a closed face impeller specifically engineered for the XP2E spa pump. It is made to operate at 3.0 operational horsepower and is identifiable by colored dots on its surface. This component is compatible with XP2E wet end assemblies and requires installation on a three horsepower or higher thru-bolt motor.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko AquaFlo XP2e 3.0 HP Impeller |
| Part Number | 91695317 |
| Part Type | Impeller |
| Compatibility | Gecko AquaFlo XP2E spa pumps |
| Substitute Part Numbers | 91695310 |
| Includes | Impeller only shaft seal sold separately |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4.25 inches |
| Vane Width ID | 0.5 inch |
| Eye Diameter OD | 2.375 inches |
| Eye Length | 0.75 inch |
| Impeller Width OD | 0.75 inch |
| Seal Seat Depth | 0.125 inch |
| Shaft Length | 1.5 inches |
| Shaft Diameter OD | 0.625 inch |
| Seal Seat Diameter OD | 1.25 inches |
| Shipping Dimensions | 5 x 5 x 2 inch |
| Product Weight | 0.24 pound |
