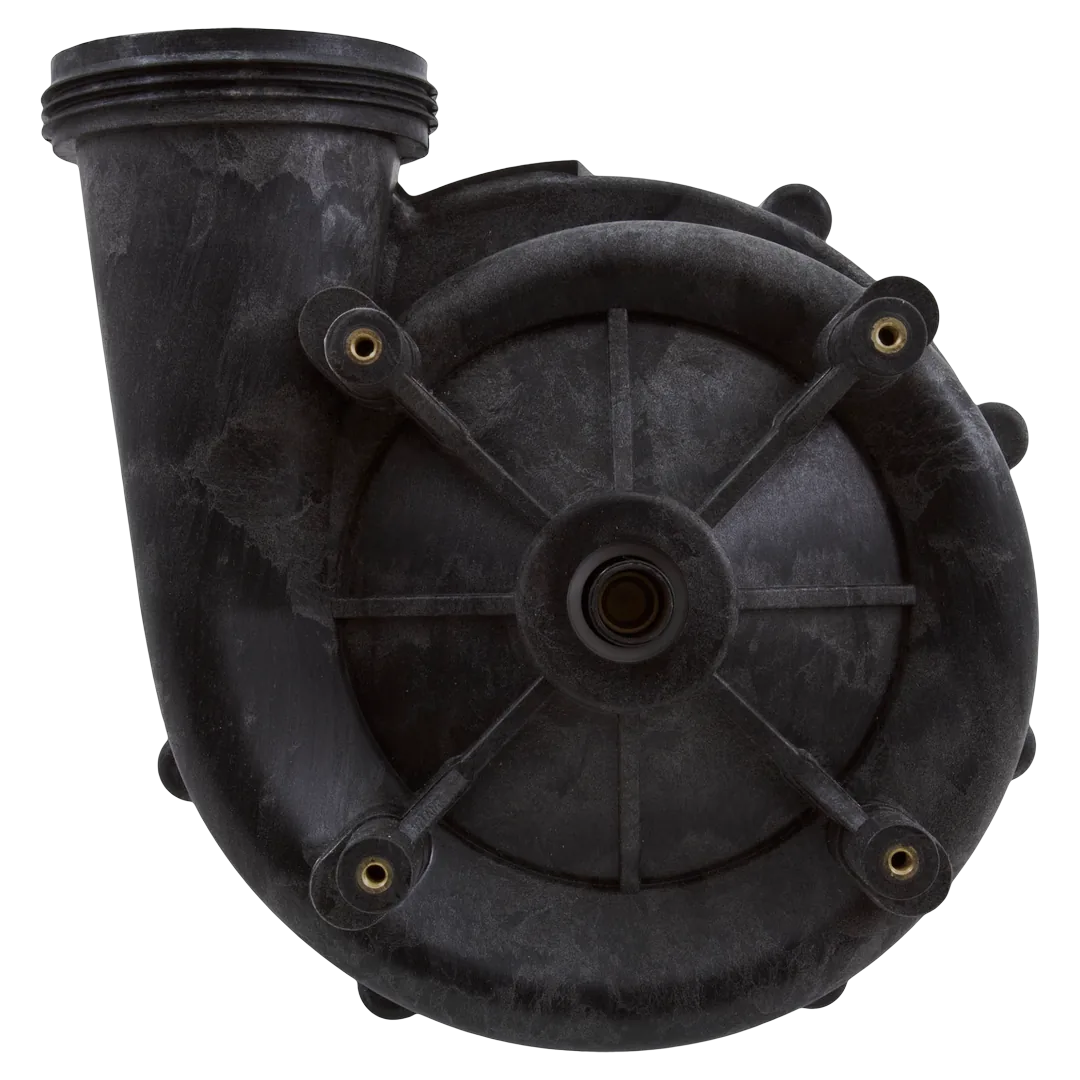

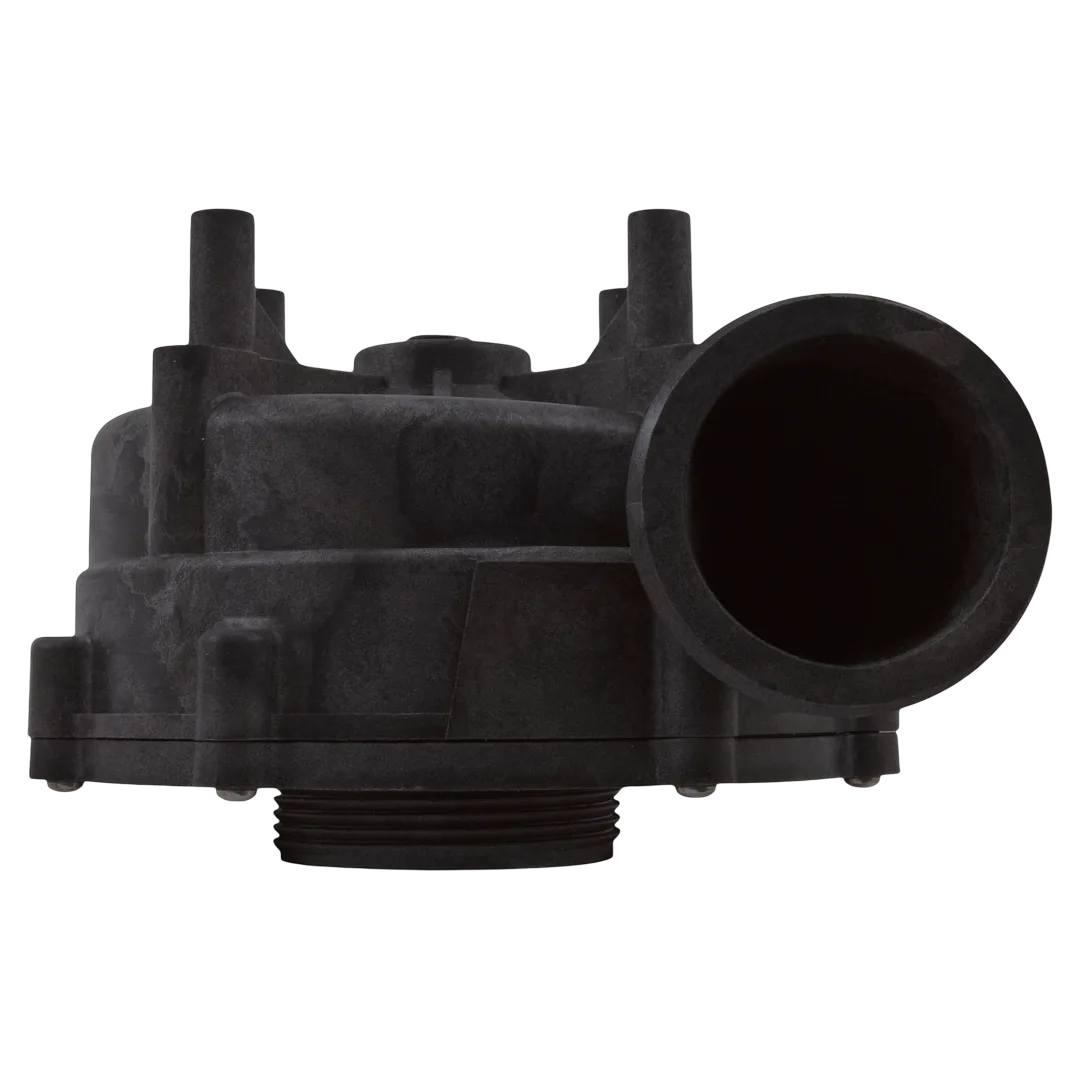

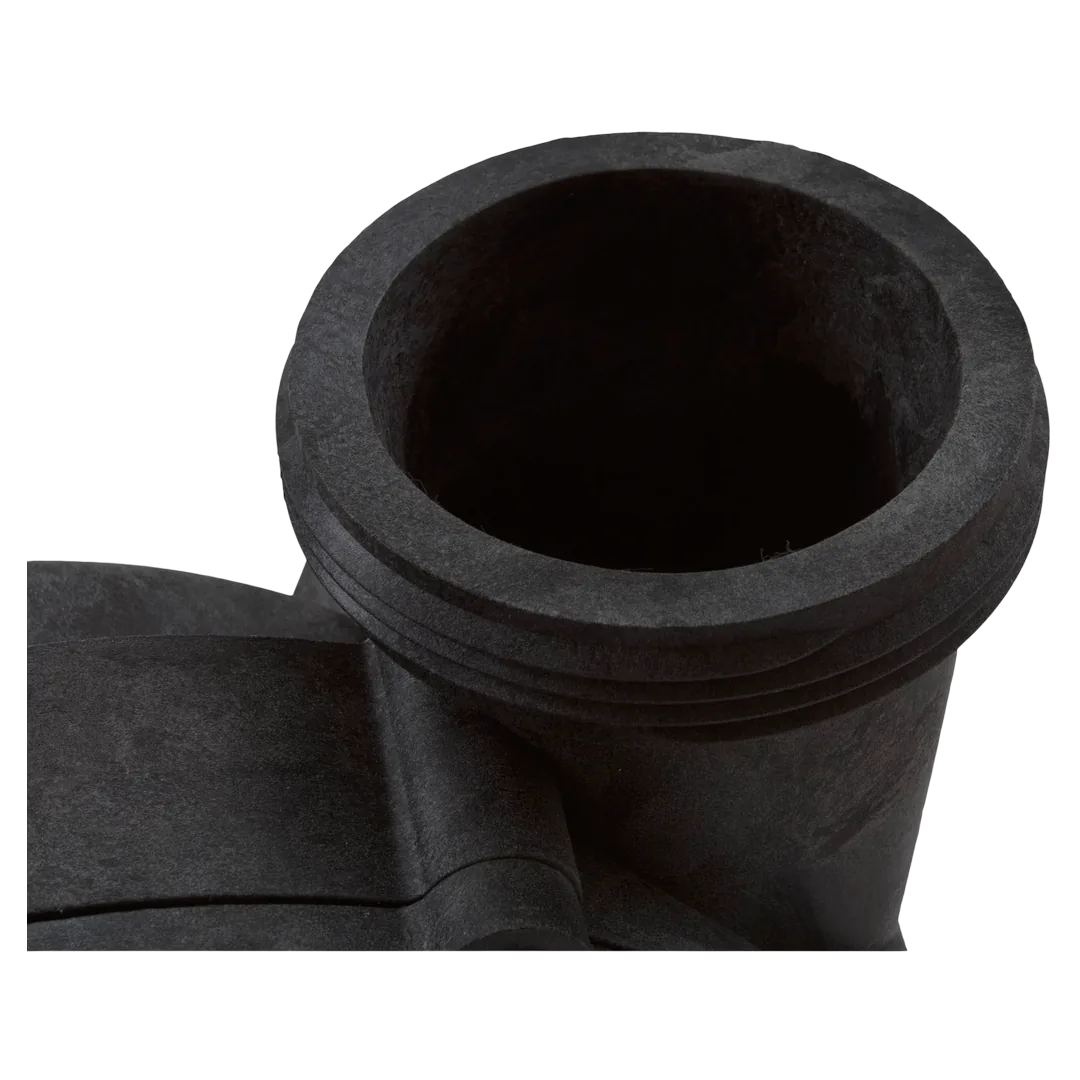

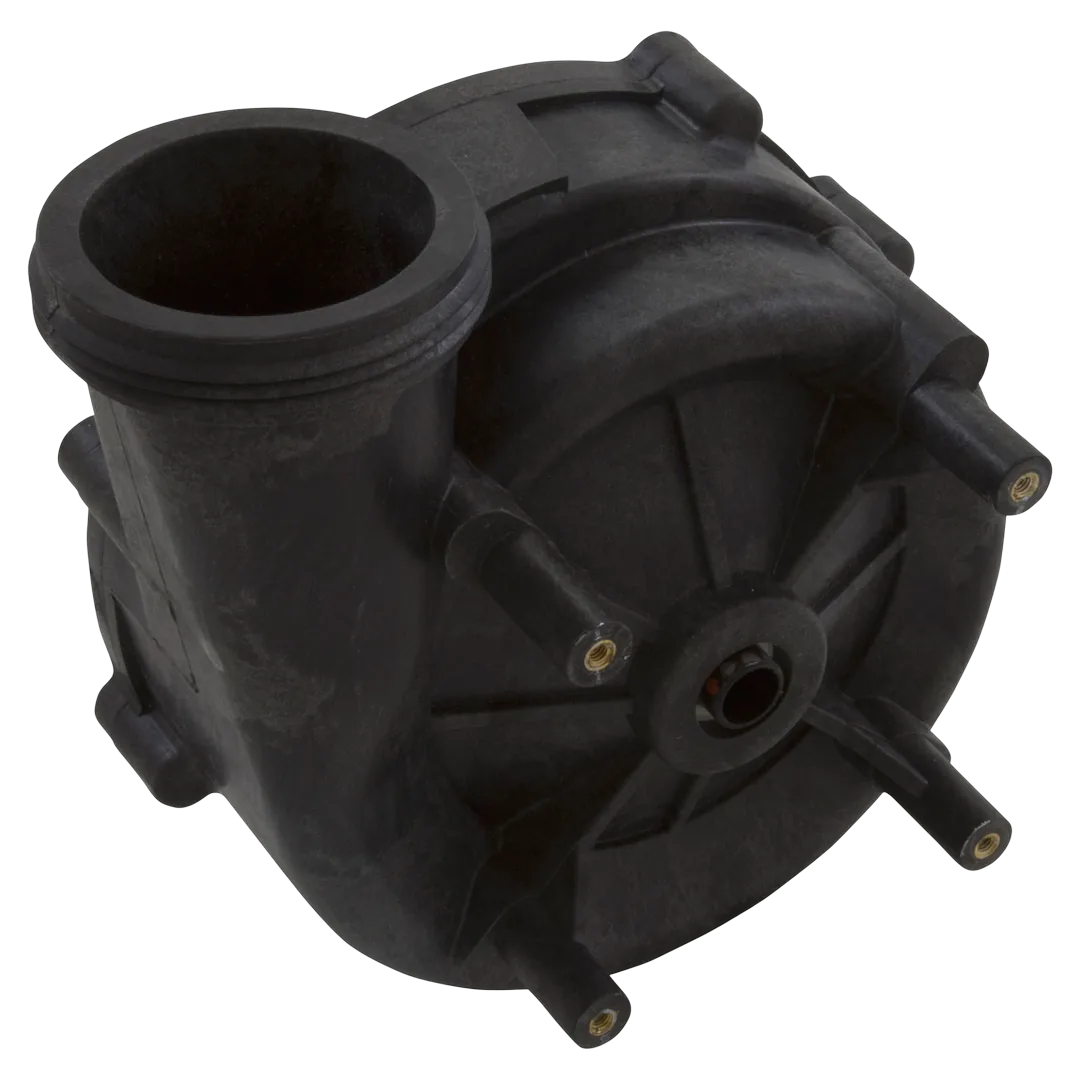

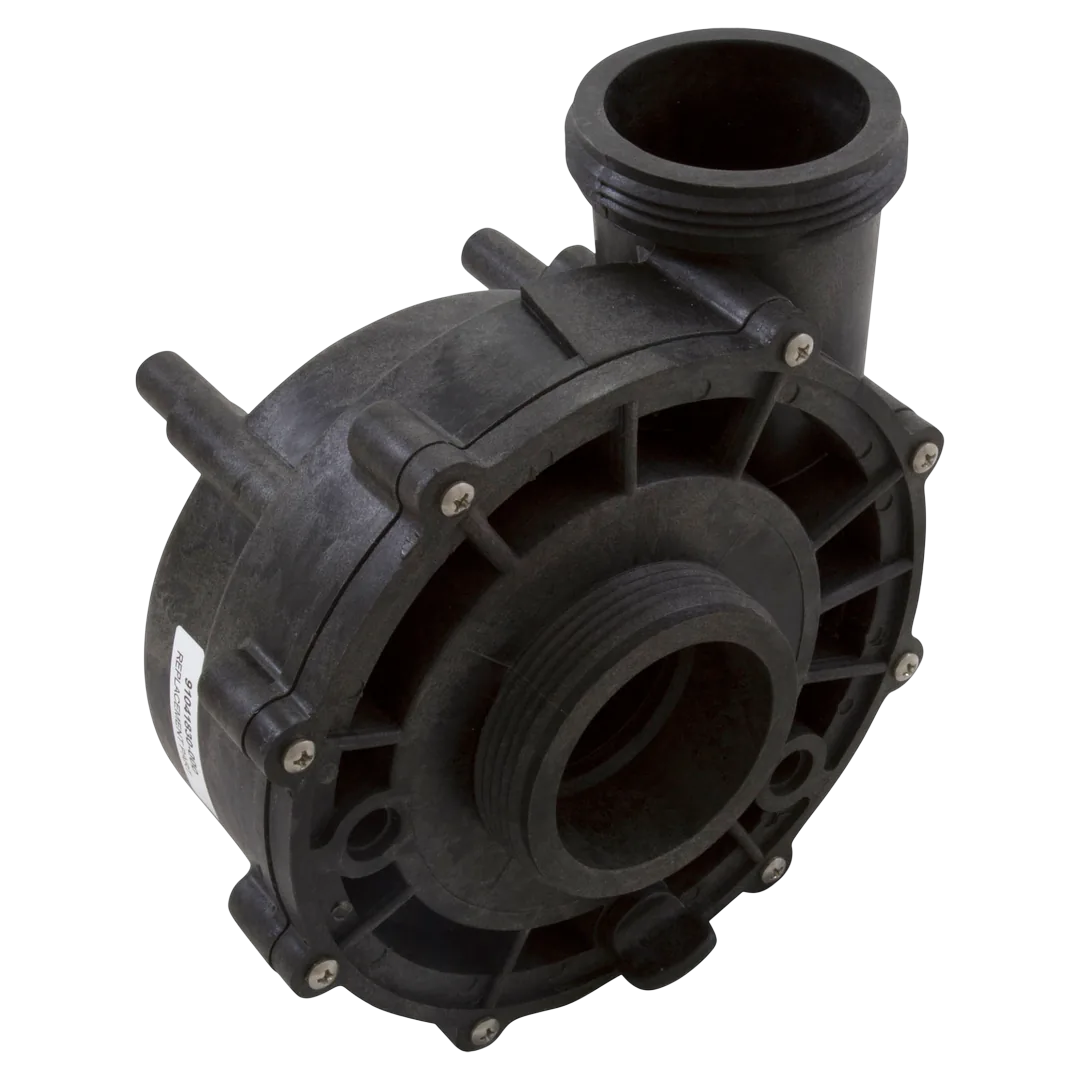

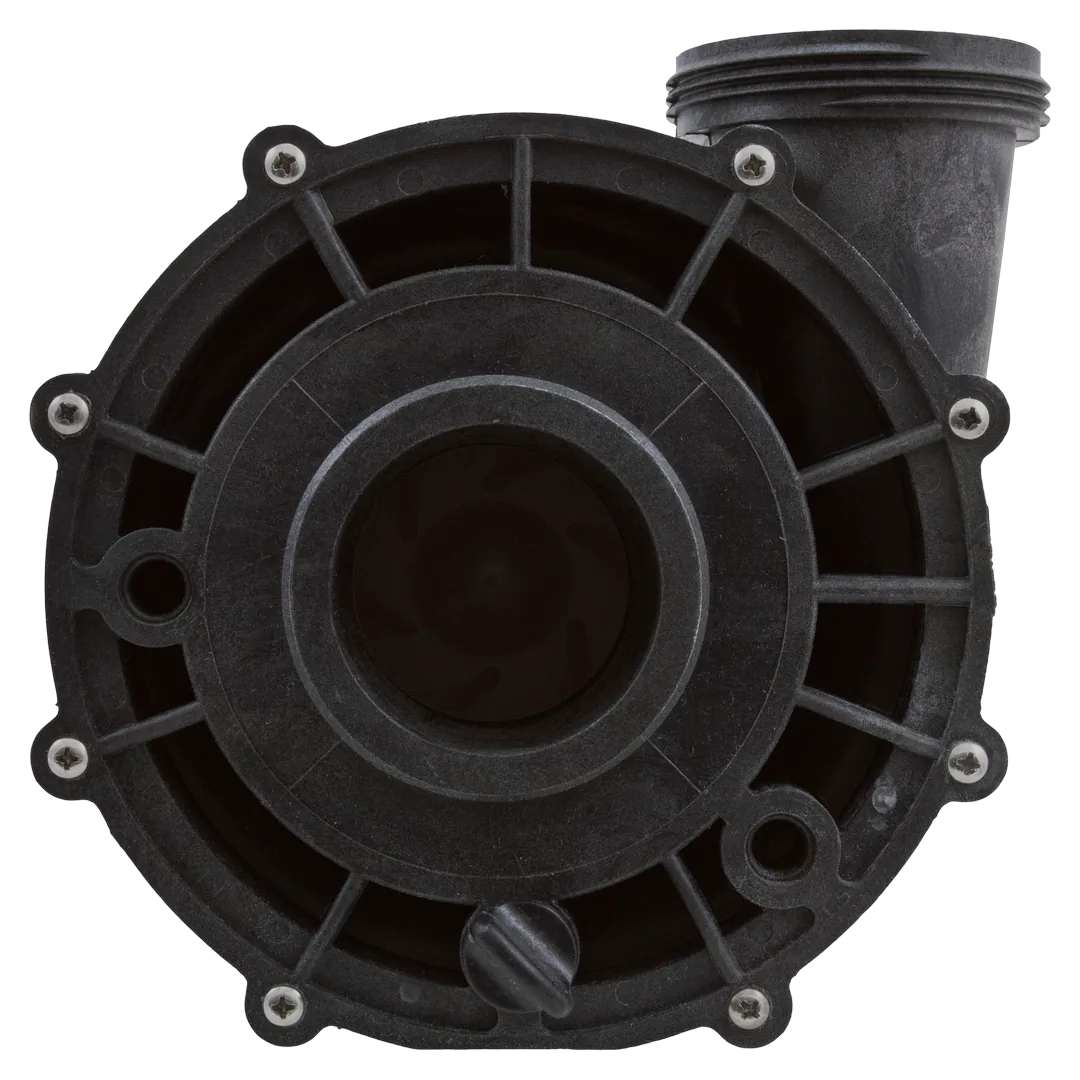

Gecko XP2E 91041830-000 Wet End Assembly
Aquaflo/Gecko | SKU:
91041830-000
$15100/ea
Unit price
/
Unavailable
Gecko XP2E 91041830-000 Wet End Assembly is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Aquaflo/Gecko 91041830-000 is a wet end assembly for the Flo-Master XP2 and XP2E series pumps. It features a 3.0 horsepower motor capacity and is designed with a 48 frame size, equipped with a 2-inch intake and discharge. This assembly is compatible with Gecko's XP2 and XP2E pump models, incorporating a side-discharge configuration.
Includes: Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko Aqua-Flo XP2/XP2E 3.0 HP Wet End Assembly |
| Part Number | 91041830-000 |
| Part Type | Pump Part |
| Compatibility | Flo-Master XP2/XP2E pumps with 48 frame motors |
| Substitute Part Numbers | 1-05-0330, 27203-300, 27203-300-000, 27203300, 310-1150SF, 310-1160SF, 5038-03, 5038-104, 5038C, 632270, 91041612, AF9104183000, AQF-101-9955, AQF91041612 |
| Includes | Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws |
| Material | Plastic |
| Connection Size | 2 inch |
| Mount Type | 48 frame thru-bolt style motor |
| Flow Paths | Side discharge |
| Shipping Dimensions | 9.3 x 7.1 x 9.7 inch |
| Product Weight | 3.05 pound |
