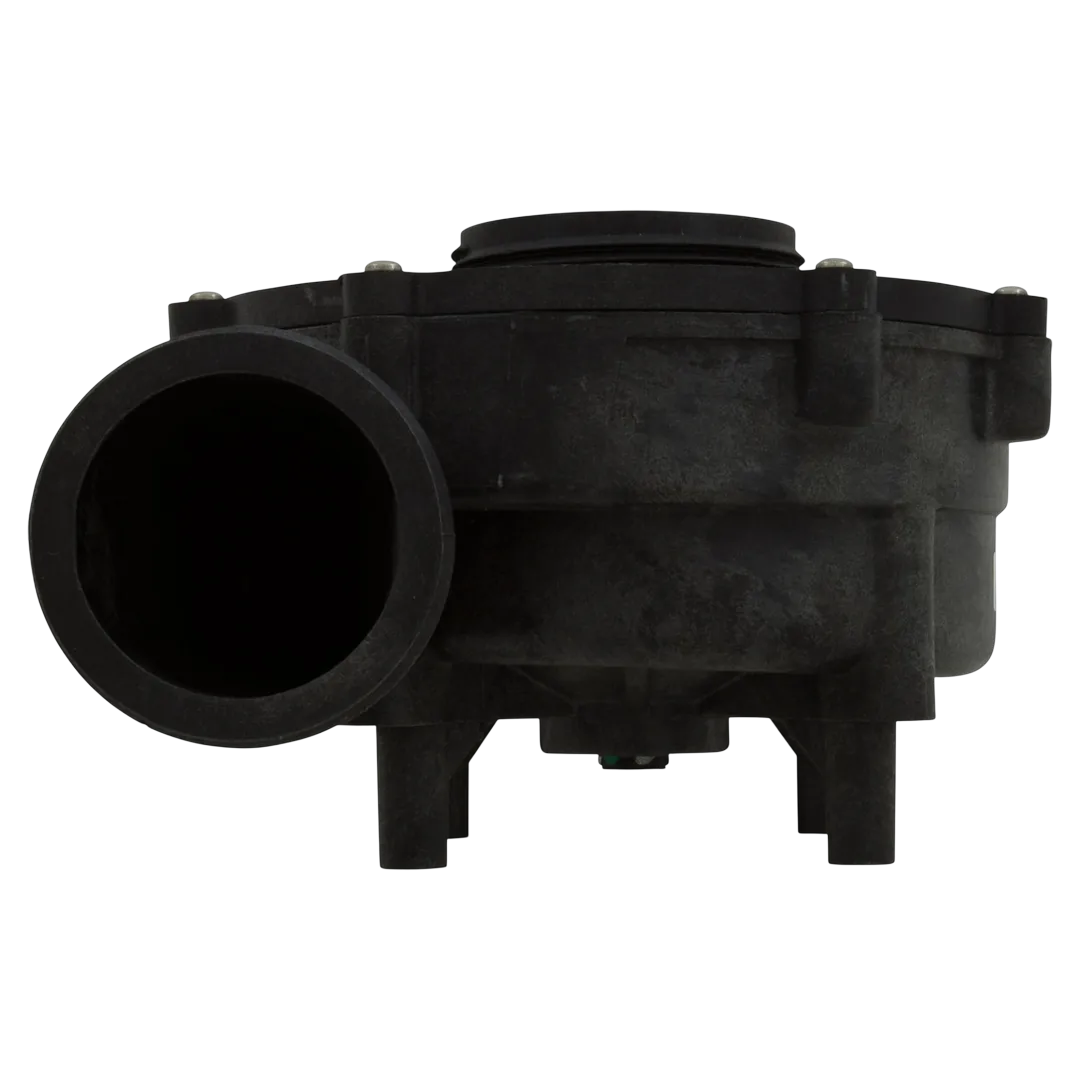

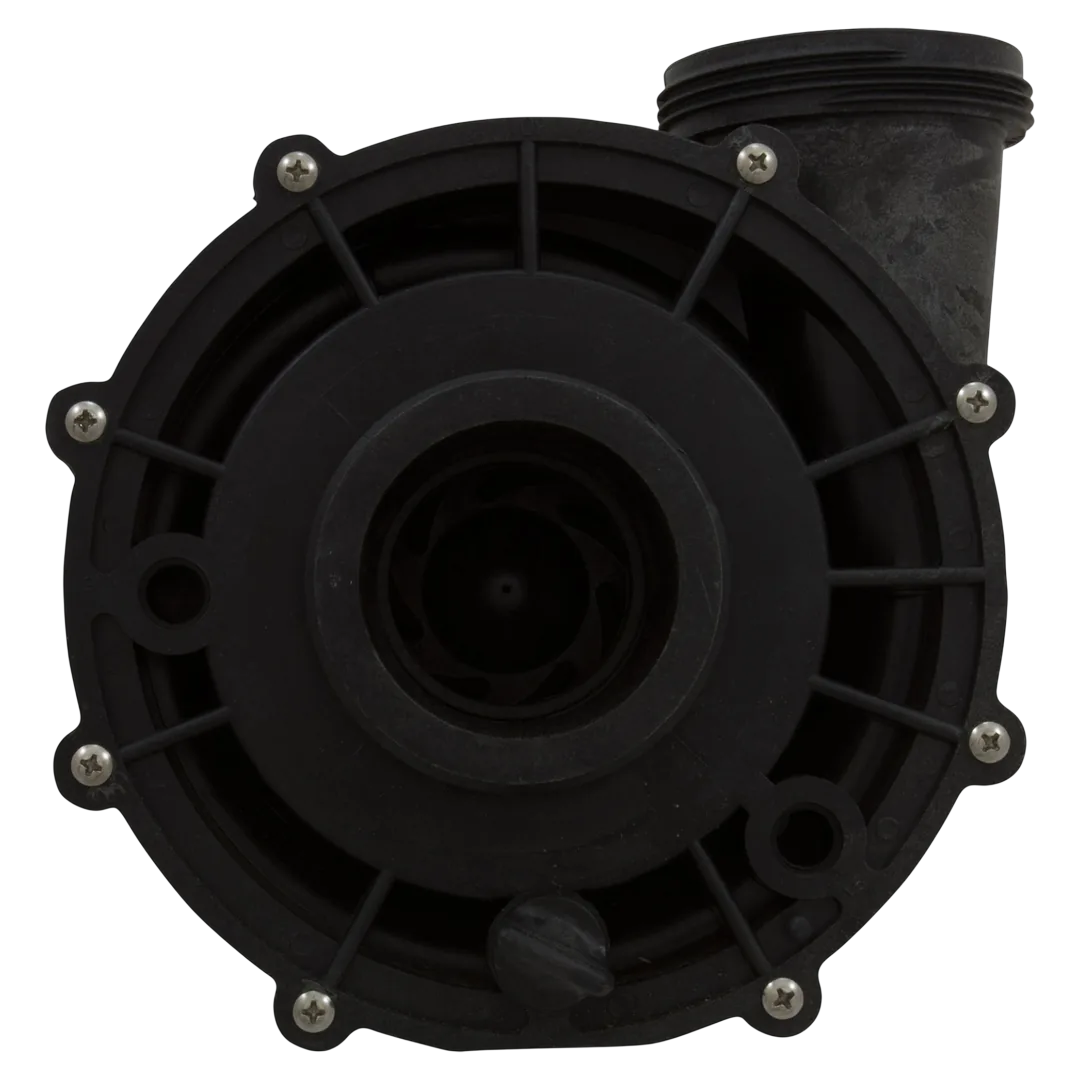

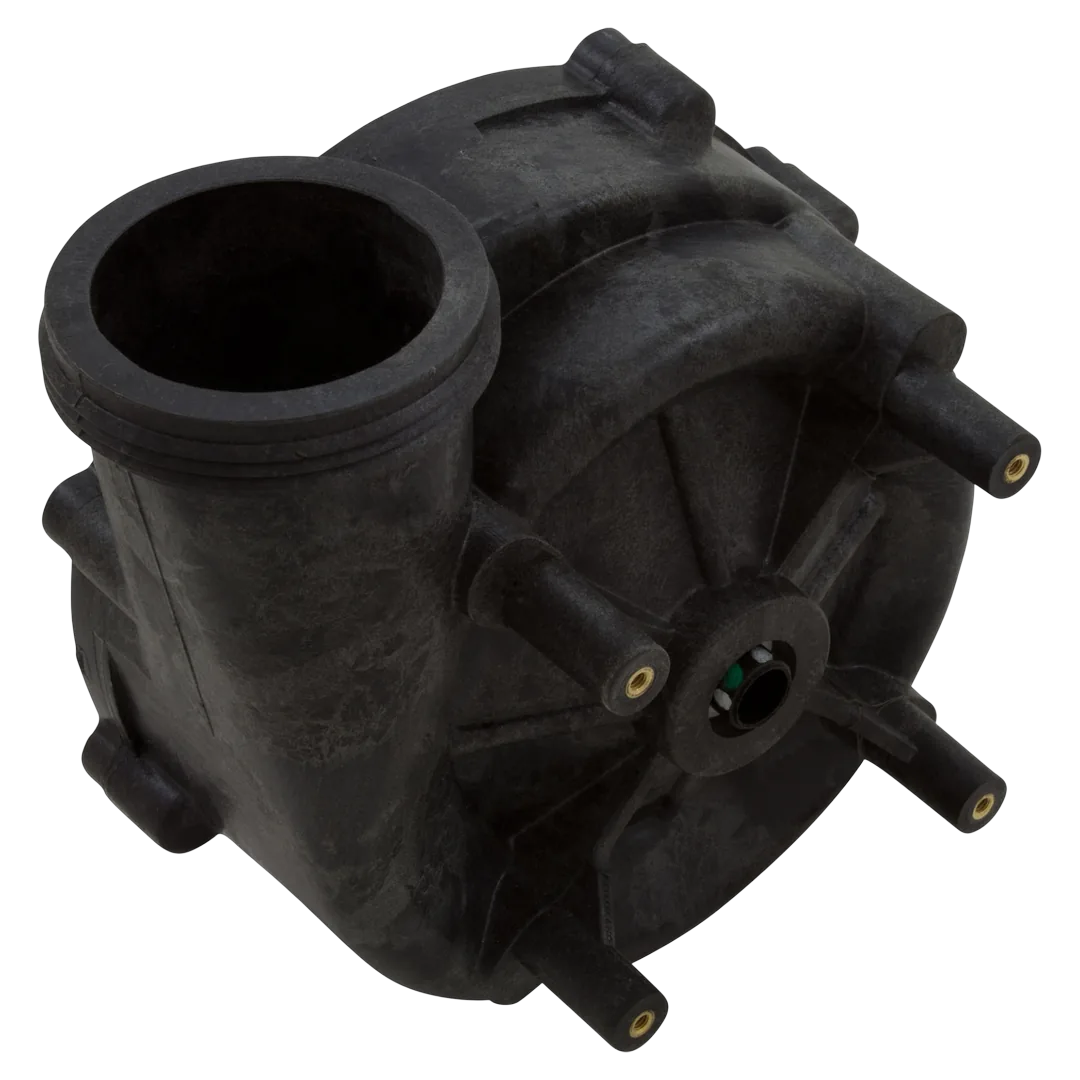

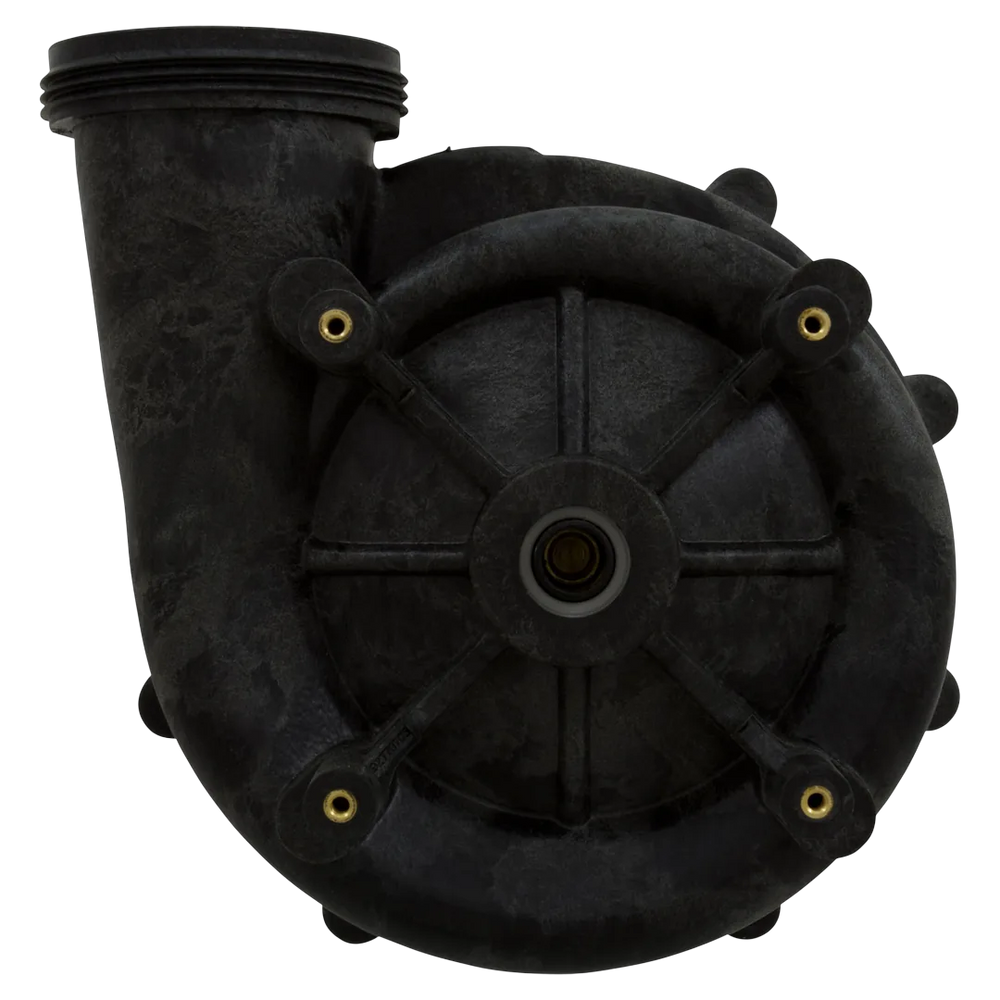

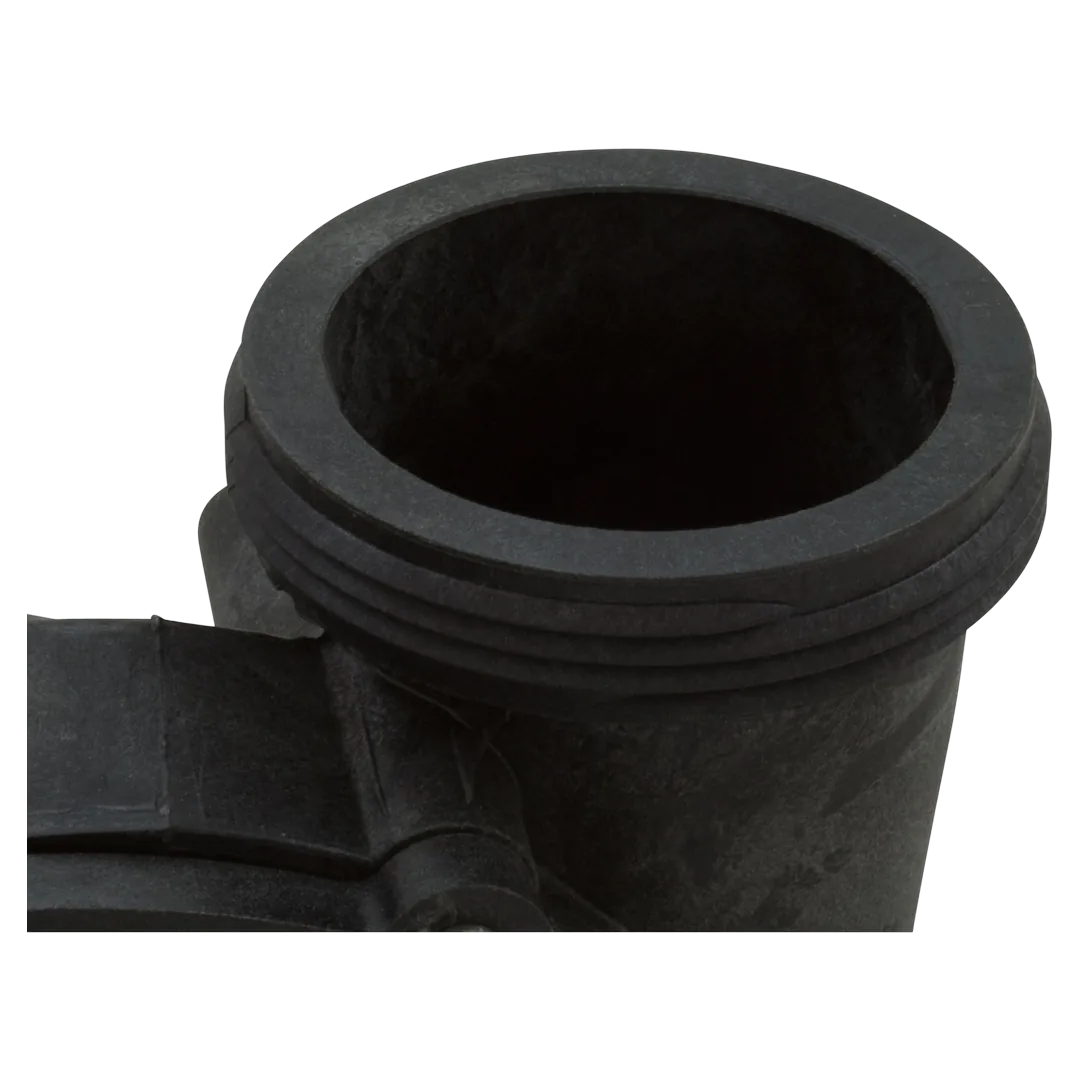

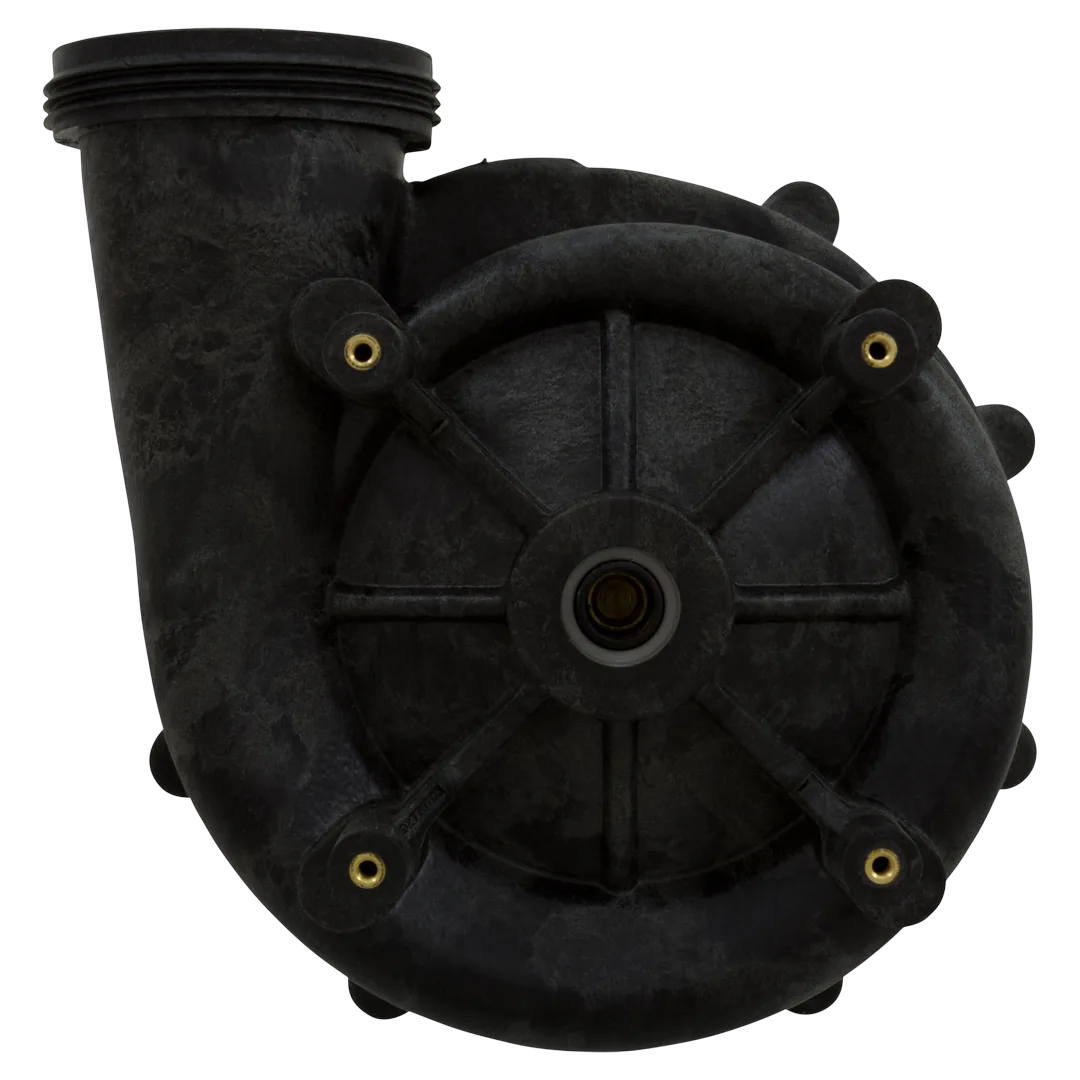

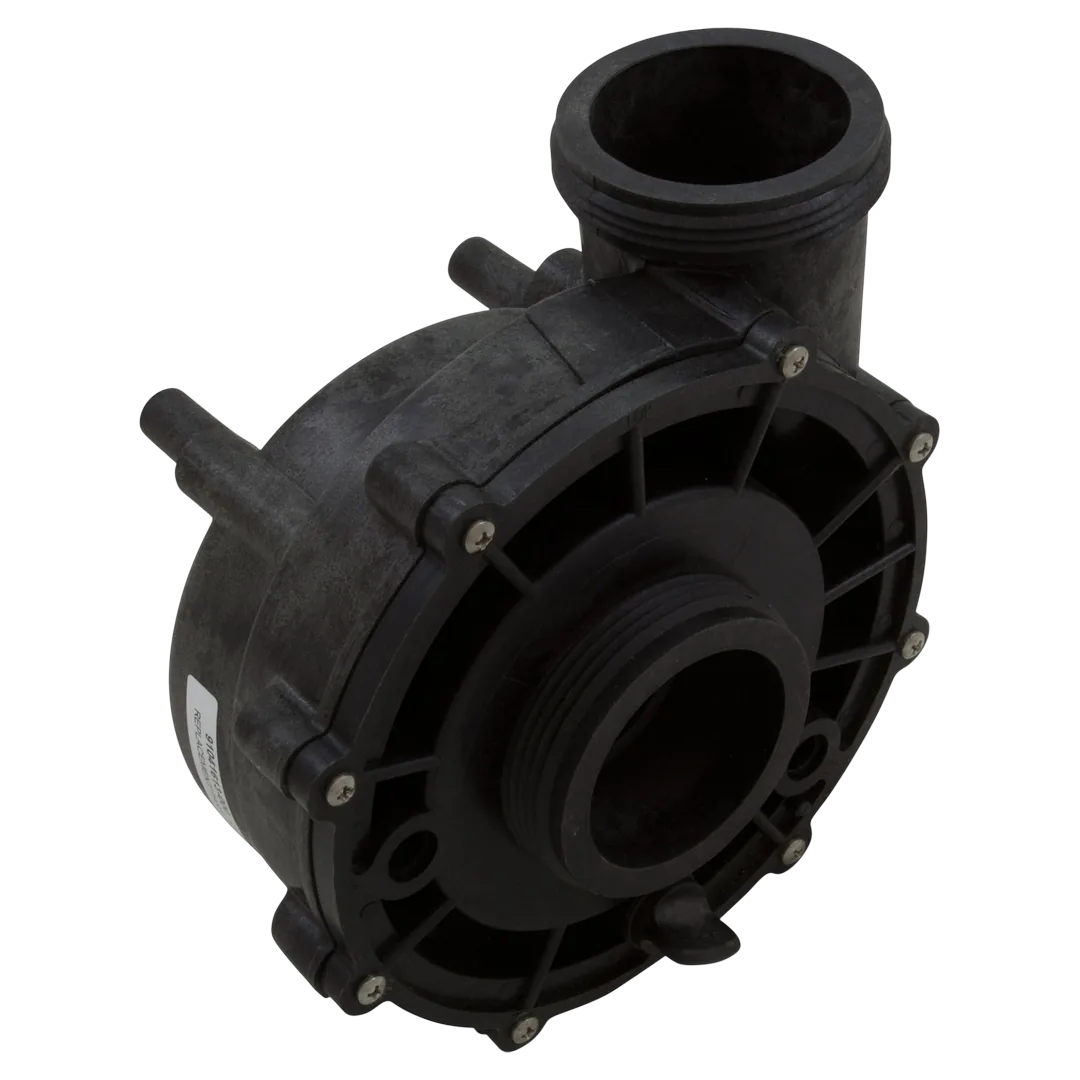

Gecko XP2 Wet End 4HP 48 Frame
Aquaflo/Gecko | SKU:
91041613-000
$14700/ea
Unit price
/
Unavailable
Gecko XP2 Wet End 4HP 48 Frame is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Aqua-Flo by Gecko Alliance 91041613-000 is a wet end component specifically designed for the XP2 pump series. It features a 4.0 horsepower motor with 48-frame construction and includes 2-inch plumbing connections for both intake and discharge. This unit is compatible with the Gecko Flo-Master XP2 and XP2e pumps, offering side discharge configuration and connectivity via two MBT suction and discharge ports.
Includes: Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko Aqua-Flo XP2 4.0HP Wet End |
| Part Number | 91041613-000 |
| Part Type | Wet End |
| Compatibility | Designed for 4.0HP, 48-frame, thru-bolt style motors compatible with both single and dual-speed motors |
| Includes | Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws |
| Material | Plastic |
| Connection Size | 2-inch male buttress thread (mbt) for both suction and discharge |
| Mount Type | 48-frame thru-bolt style |
| Flow Paths | Side discharge with center suction |
| Shipping Dimensions | 9.4 x 7.3 x 9.6 inch |
| Product Weight | 3.23 pound |
