Gecko CS6P52Y-S-3W-4 Spa Control System
HYDROQUIP | SKU:
CS6P52Y-S-3W-4
$1,00400/ea
Unit price
/
Unavailable
Gecko CS6P52Y-S-3W-4 Spa Control System is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

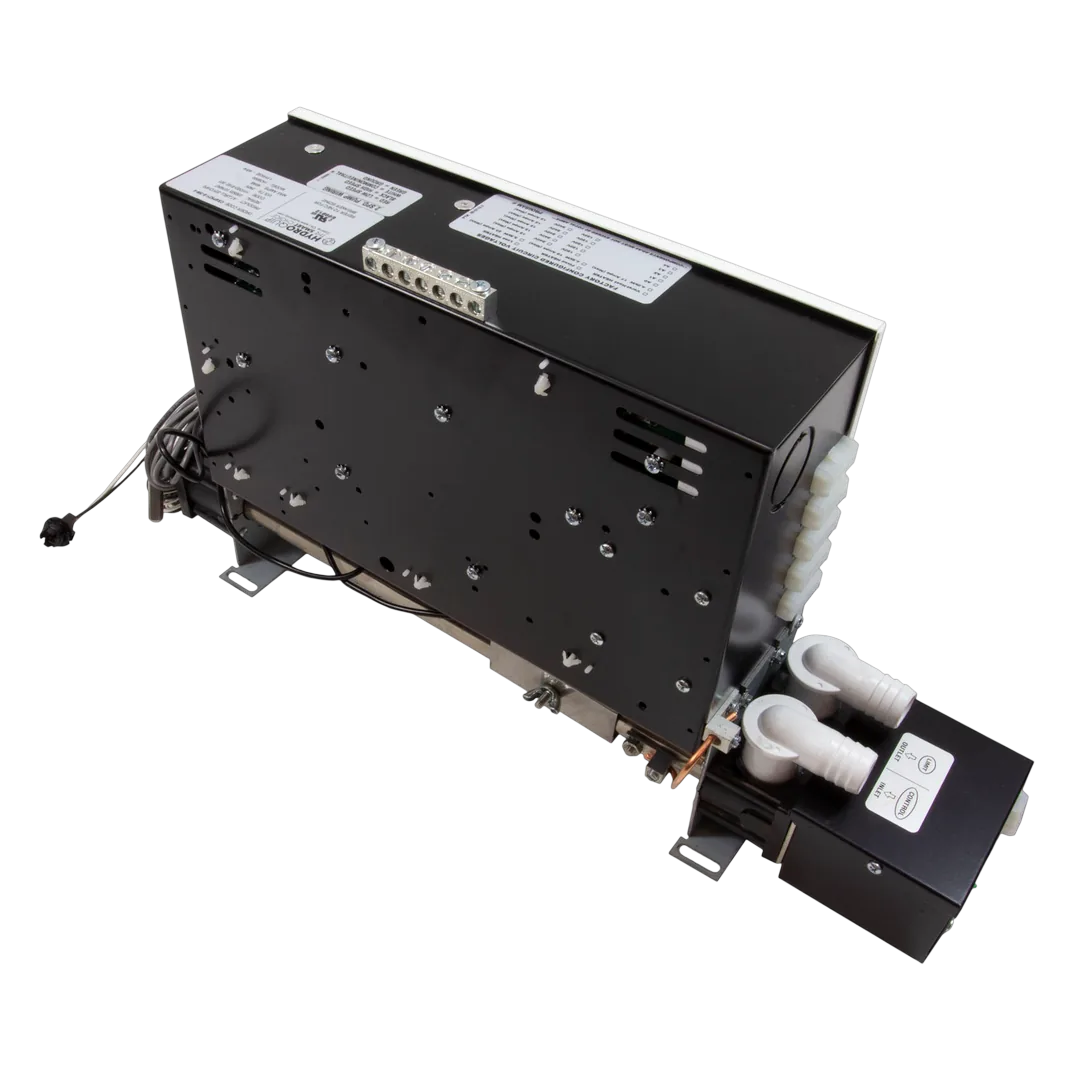

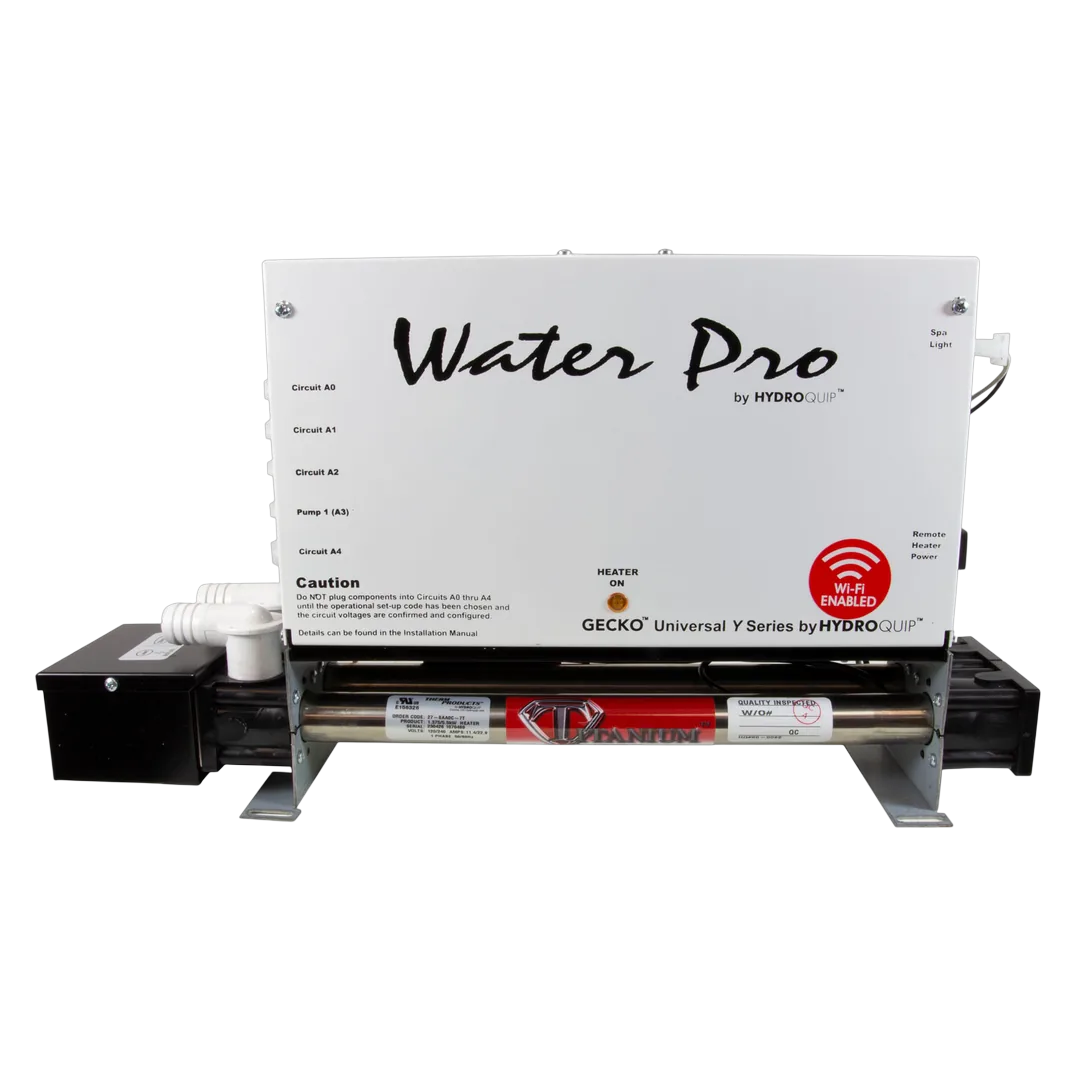

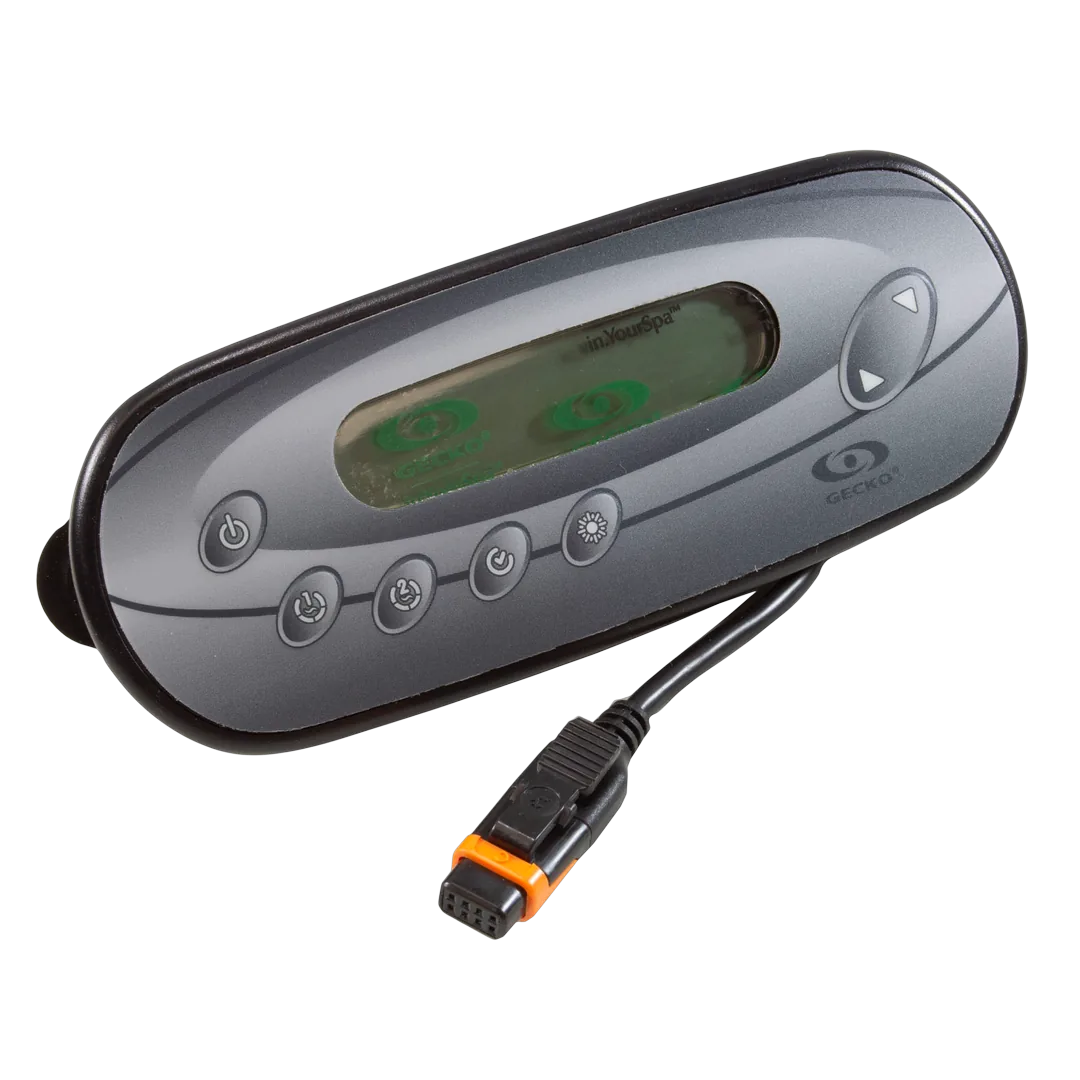

The HydroQuip CS6P52Y-S-3W-4 is a 3-wire spa control system with a 5.5kW power output, designed for use with Gecko systems. It operates at 230 volts and features a SlipStream low-flow heater. This unit includes an in.K450 control panel with overlay, adapter plate, thermowell, temperature sensor, flow switch, and four equipment cords.

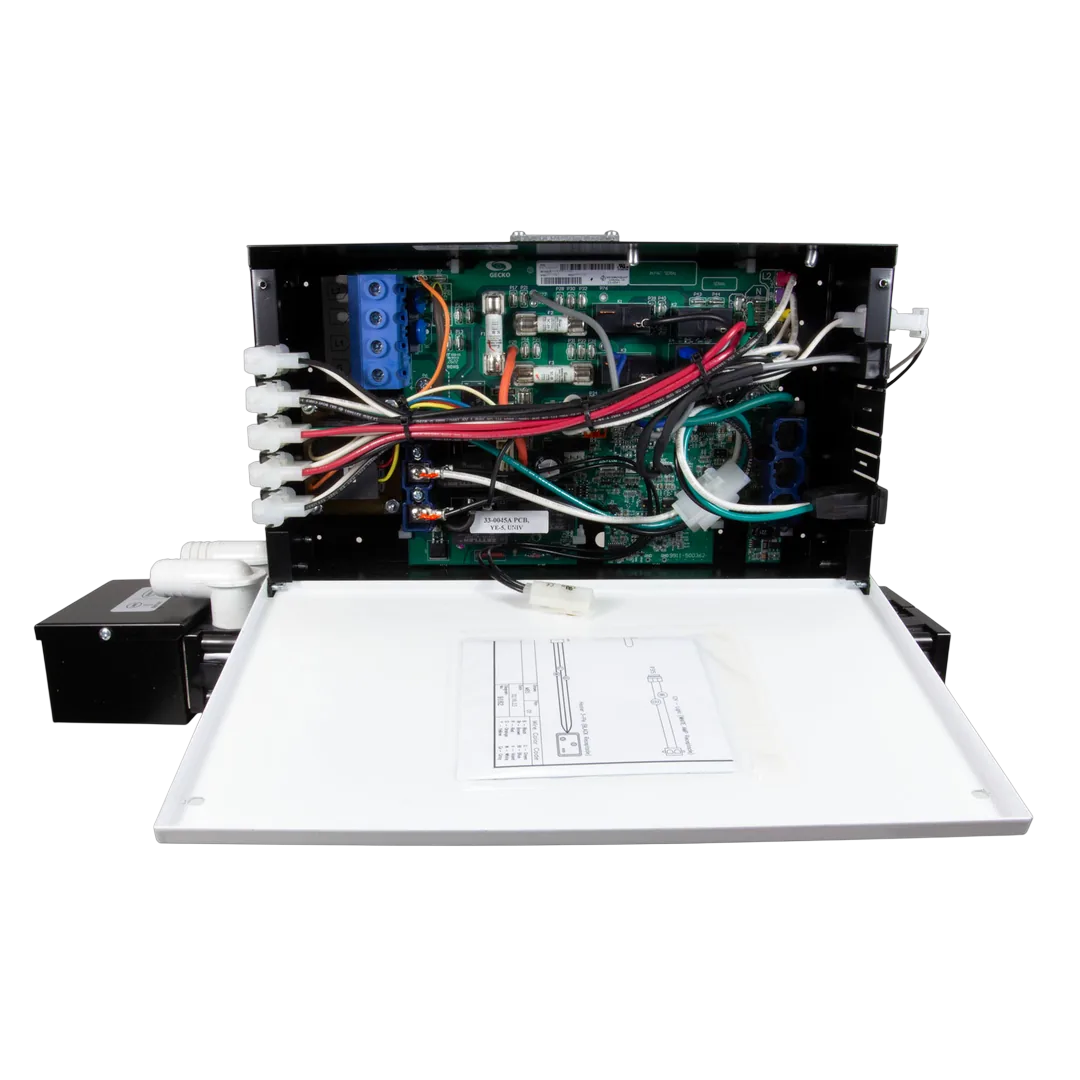

Includes: Gecko YE5 Platform Circuit board, Steel Enclosure Box, 5.5kW Lo-Flo Slipstream Heater, Gecko IN.K450 Keypad, Keypad Adapter Plate, Equipment Cords, Lighting Cord with Bulb Socket, 12V Light Bulb, Light Reflector
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko YE-5 3-Wire Lo-Flo Series Spa Control 5.5kW Slipstream Heater |
| Part Number | CS6P52Y-S-3W-4 |
| Part Type | Spa Control System |
| Compatibility | Replaces CS6114Y, 6204Y, 6224Y, 6234Y & 6334Y Systems |
| Substitute Part Numbers | CS6234Y-LF-3W |
| Includes | Gecko YE5 Platform Circuit board, Steel Enclosure Box, 5.5kW Lo-Flo Slipstream Heater, Gecko IN.K450 Keypad, Keypad Adapter Plate, Equipment Cords, Lighting Cord with Bulb Socket, 12V Light Bulb, Light Reflector |
| Certifications | US and Canada UL recognized |
| Material | Titanium (Heater Element) |
| Valve Type | Flow Switch |
| Number of Positions | Supports up to 5 relays |
| Connection Size | 3/4” x 1” Barb Adapter |
| Mount Type | Steel Enclosure Box |
| Flow Paths | Lo-Flo Slide Heater Assembly |
| Pressure Rating | Not specified |
| Seal Material | Not specified |
| Shipping Dimensions | 22 x 9 x 18 inch |
| Product Weight | 20 pound |
