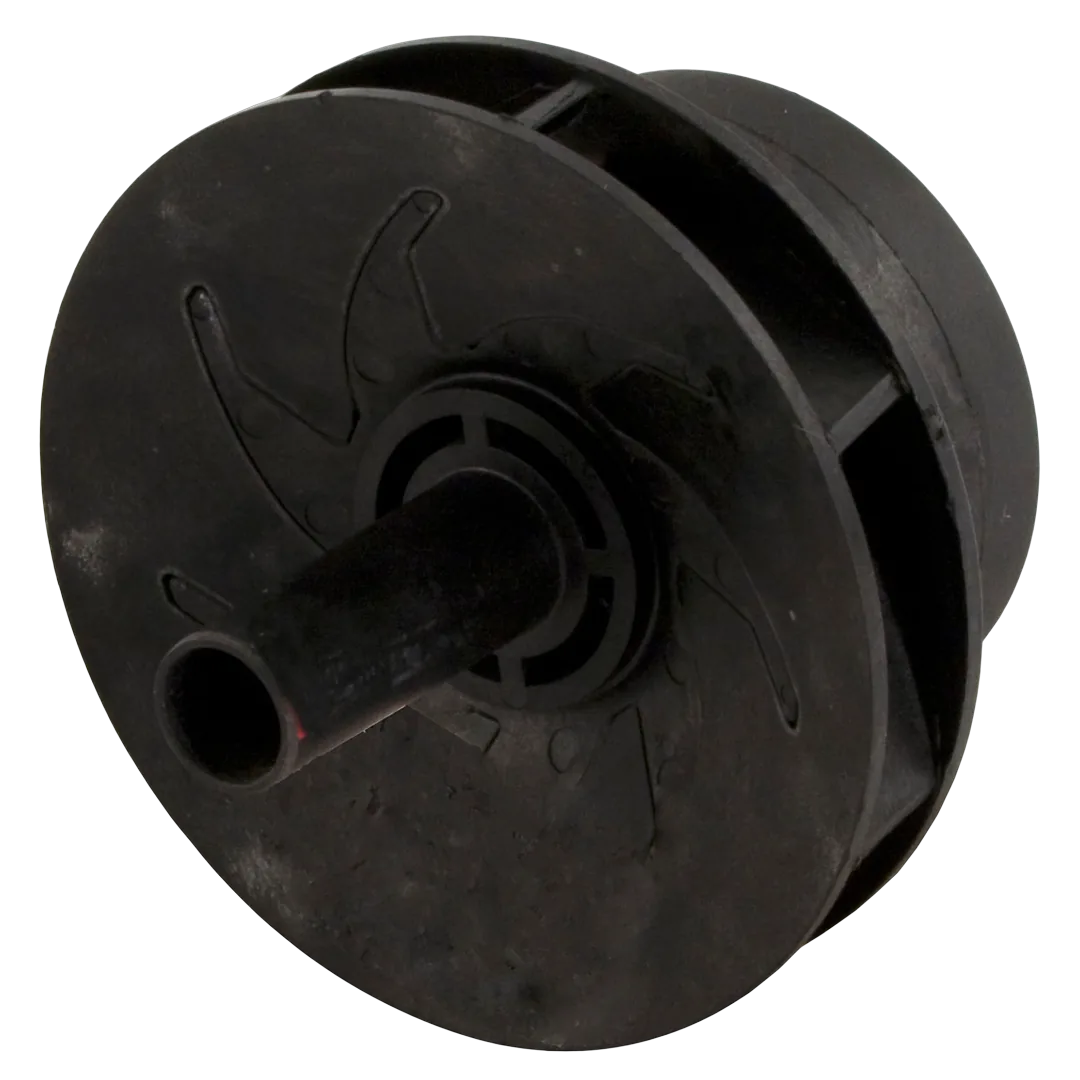

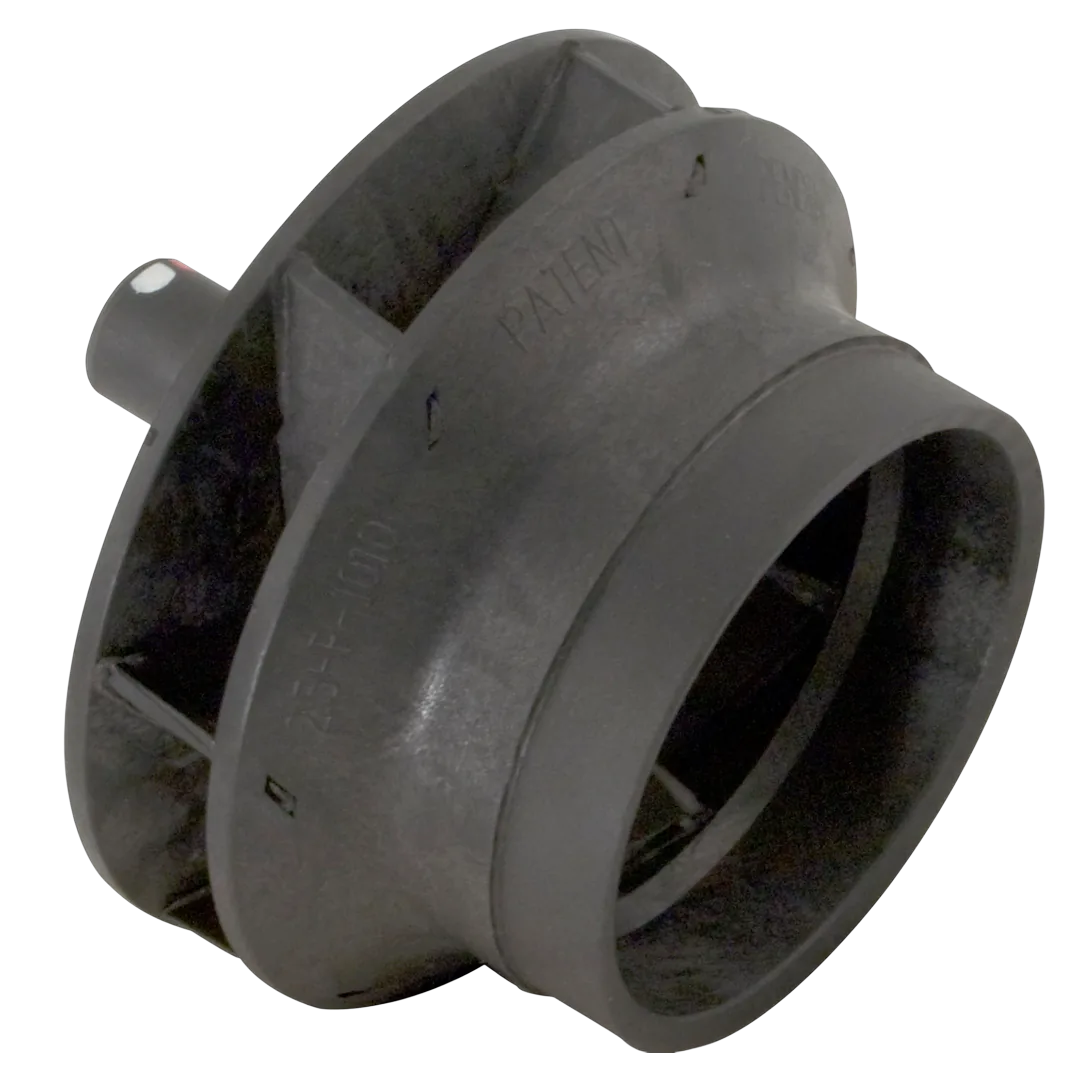

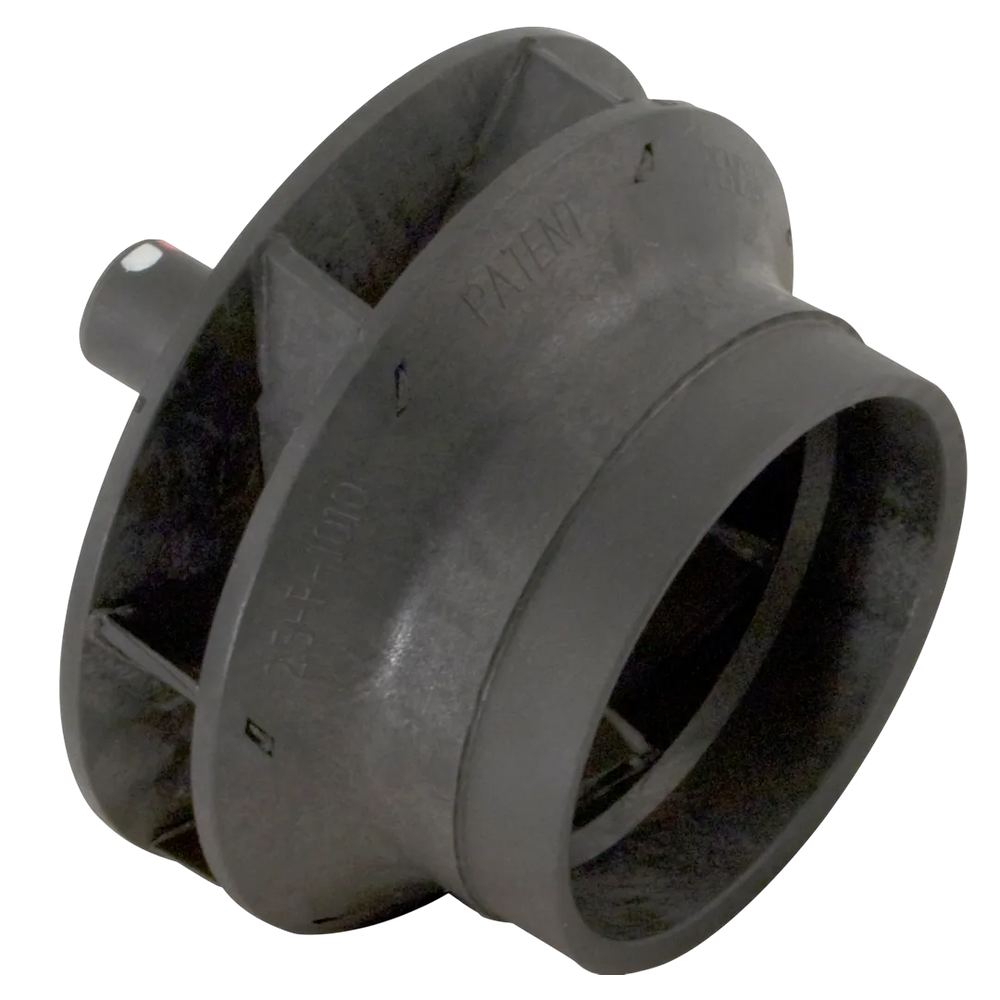

Gecko AquaFlo XP3 Impeller 91698250
Aquaflo/Gecko | SKU:
91698250
$3600/ea
Unit price
/
Unavailable
Gecko AquaFlo XP3 Impeller 91698250 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The AquaFlo/Gecko 91698250 is a closed face impeller specifically crafted for the AquaFlo XP3 spa pump series by Gecko. It features an impeller diameter of 3-11/16 inches, eye diameter of 2-5/8 inches, and is constructed to handle 2.5 operating horsepower (ohp) with a potential for 4.0 total horsepower (thp). This component is compatible with AquaFlo Flo-Master XP3 pumps, ensuring precise fitment for these models.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko Alliance Impeller, 2.5 HP XP3 |
| Part Number | 91698250 |
| Part Type | Impeller |
| Compatibility | Aqua-Flo Flo-Master XP3 Series Pumps |
| Substitute Part Numbers | 35-402-1032, AF91698250 |
| Includes | Impeller only |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 3.65 inch |
| Vane Width ID | 0.4375 inch |
| Eye Diameter OD | 2.625 inch |
| Eye Length | 0.75 inch |
| Impeller Thickness OD | 0.625 inch |
| Seal Seat Depth | 0.125 inch |
| Shaft Length | 1.5 inch |
| Shaft Diameter OD | 0.625 inch |
| Seal Seat Diameter OD | 1.25 inch |
| Shipping Dimensions | 4 x 4 x 3.75 inch |
| Product Weight | 0.2 pound |
