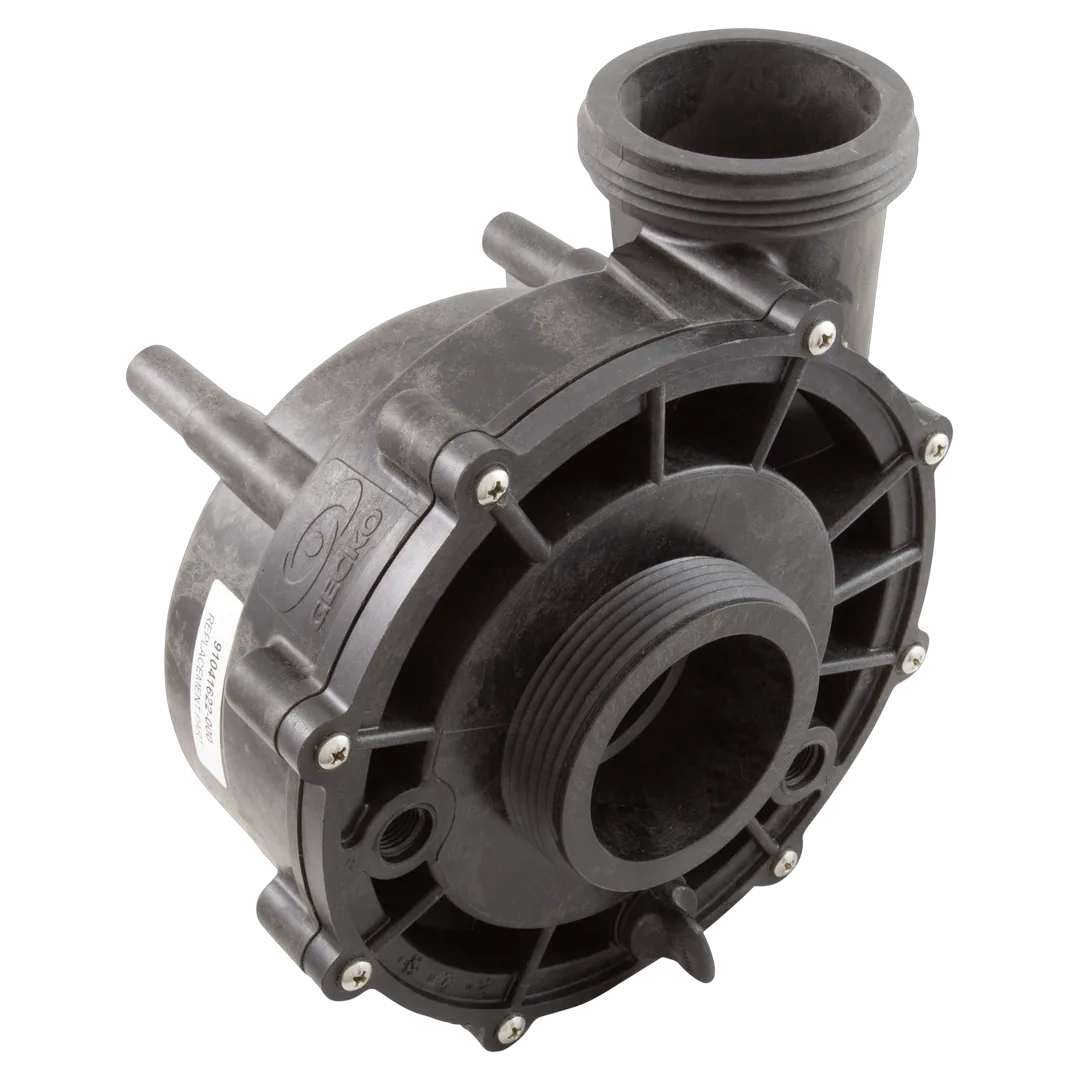

Gecko AquaFlo FMXP2 Wet End 91041622-000
Aquaflo/Gecko | SKU:
91041622-000
$11800/ea
Unit price
/
Unavailable
Gecko AquaFlo FMXP2 Wet End 91041622-000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Aquaflo/Gecko 91041622-000 is a wet end specifically engineered for Gecko AquaFlo FMXP2 series pumps. It comprises 2-inch male buttress thread (MBT) plumbing connections and a 6.1-inch diameter 56-frame construction designed to pair with 2.0 horsepower motors. This component is compatible with spa and hot tub systems requiring XP2 series pump fittings.
Includes: Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko Aqua-Flo Flo-Master XP2 2.0 HP 56 Frame Wet End Assembly |
| Part Number | 91041622-000 |
| Part Type | Pump Part |
| Compatibility | Designed for 56 Frame Thru-Bolt motors with 4" spacing between top two thru-bolts |
| Includes | Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws |
| Material | Plastic |
| Suction Connection Type | Male Buttress Thread (MBT) |
| Suction Pipe Size | 2 inch |
| Discharge Connection Type | Male Buttress Thread (MBT) |
| Discharge Pipe Size | 2 inch |
| Horsepower | 2.0 HP |
| Volute Fastening Type | 8 Screws |
| Drain Plug Location | 4, 6, 9 o'clock positions |
| Suction Style | Center |
| Discharge Style | Side |
| Shipping Dimensions | 9.8 x 8.9 x 6.95 inch |
| Product Weight | 3.25 pound |
