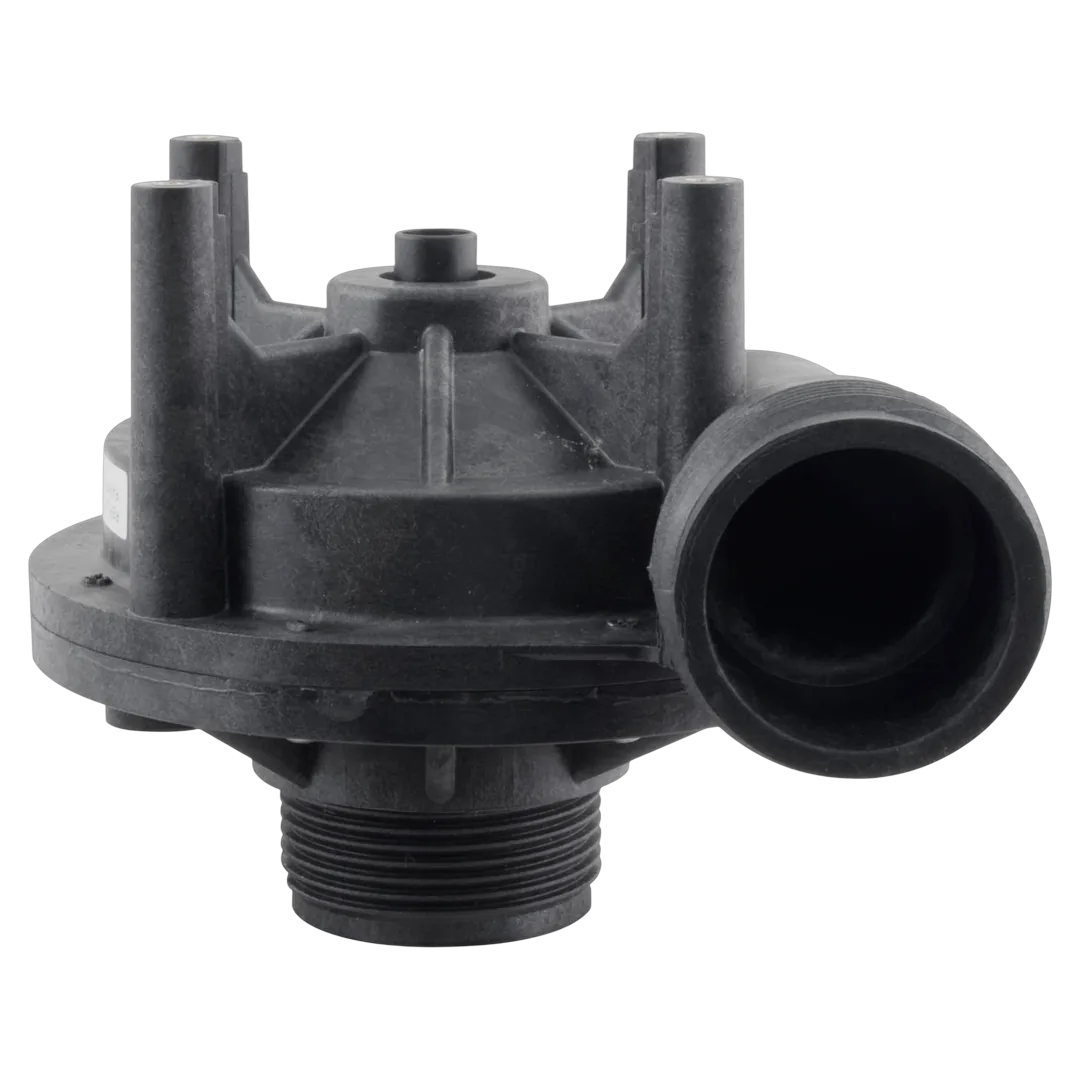

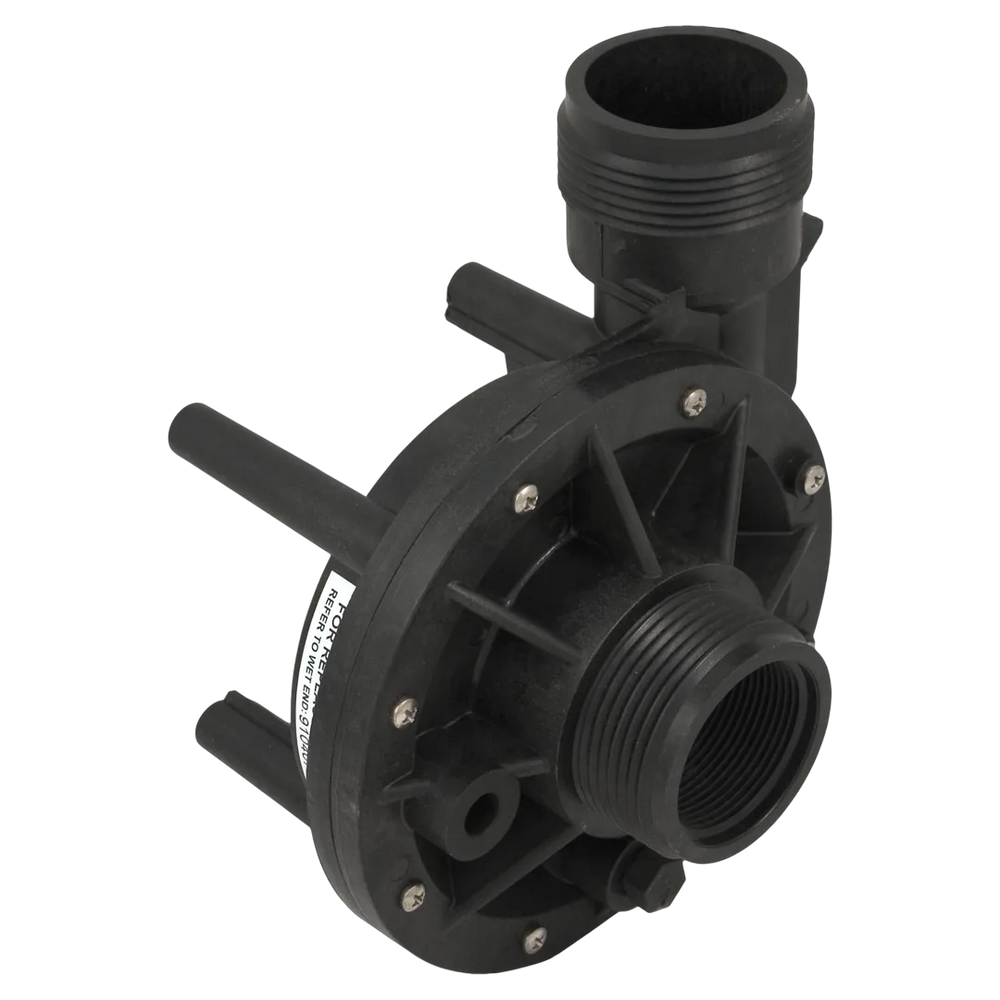

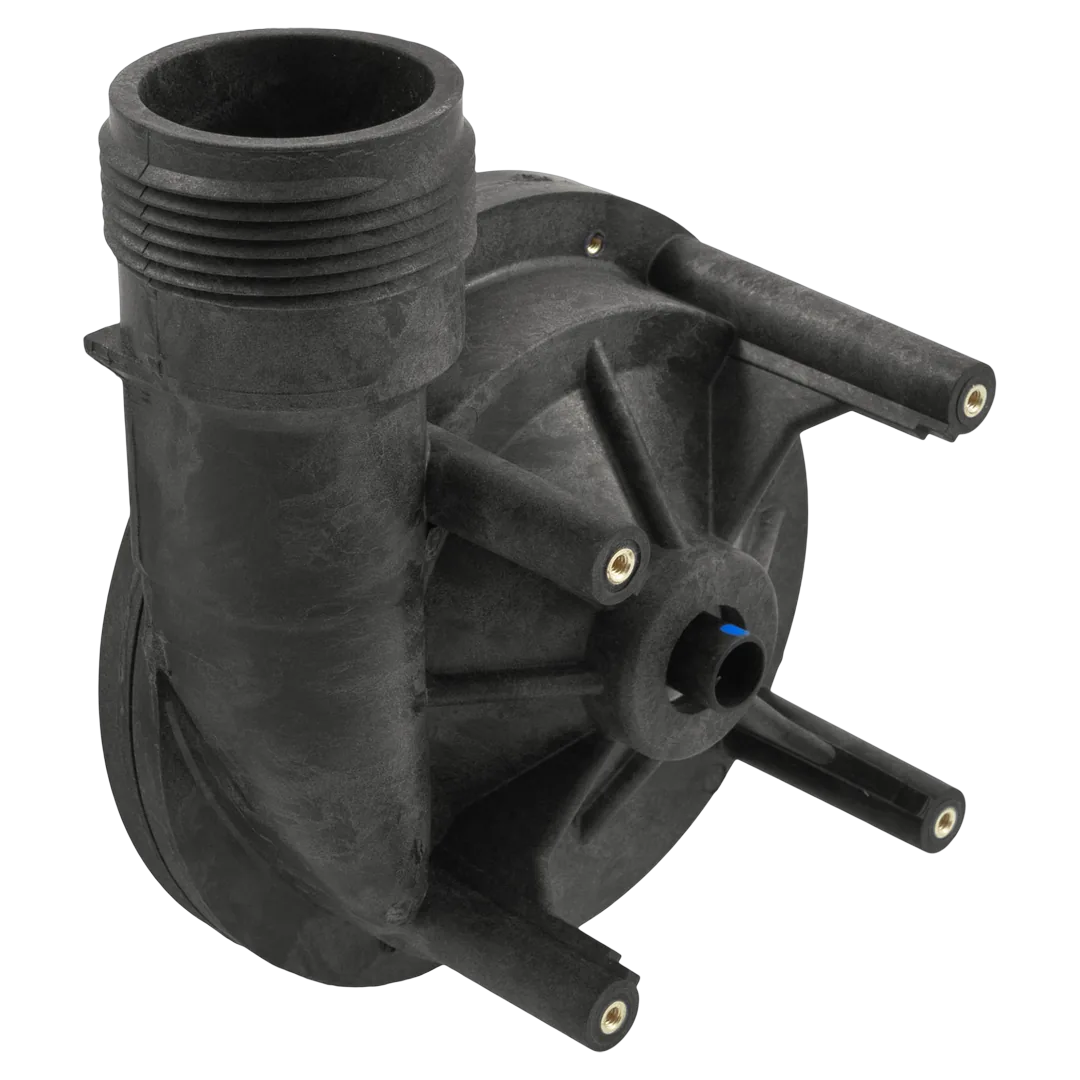

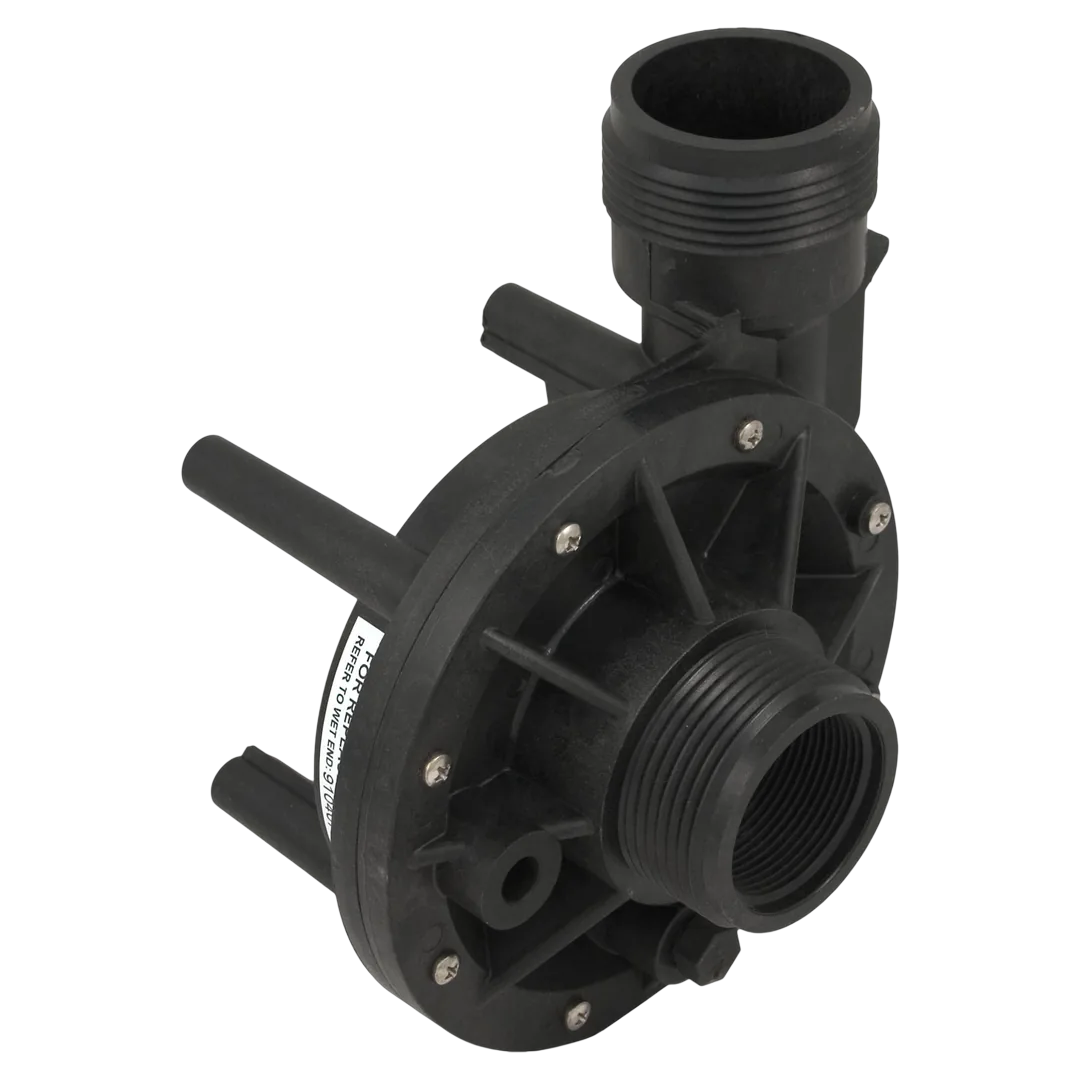

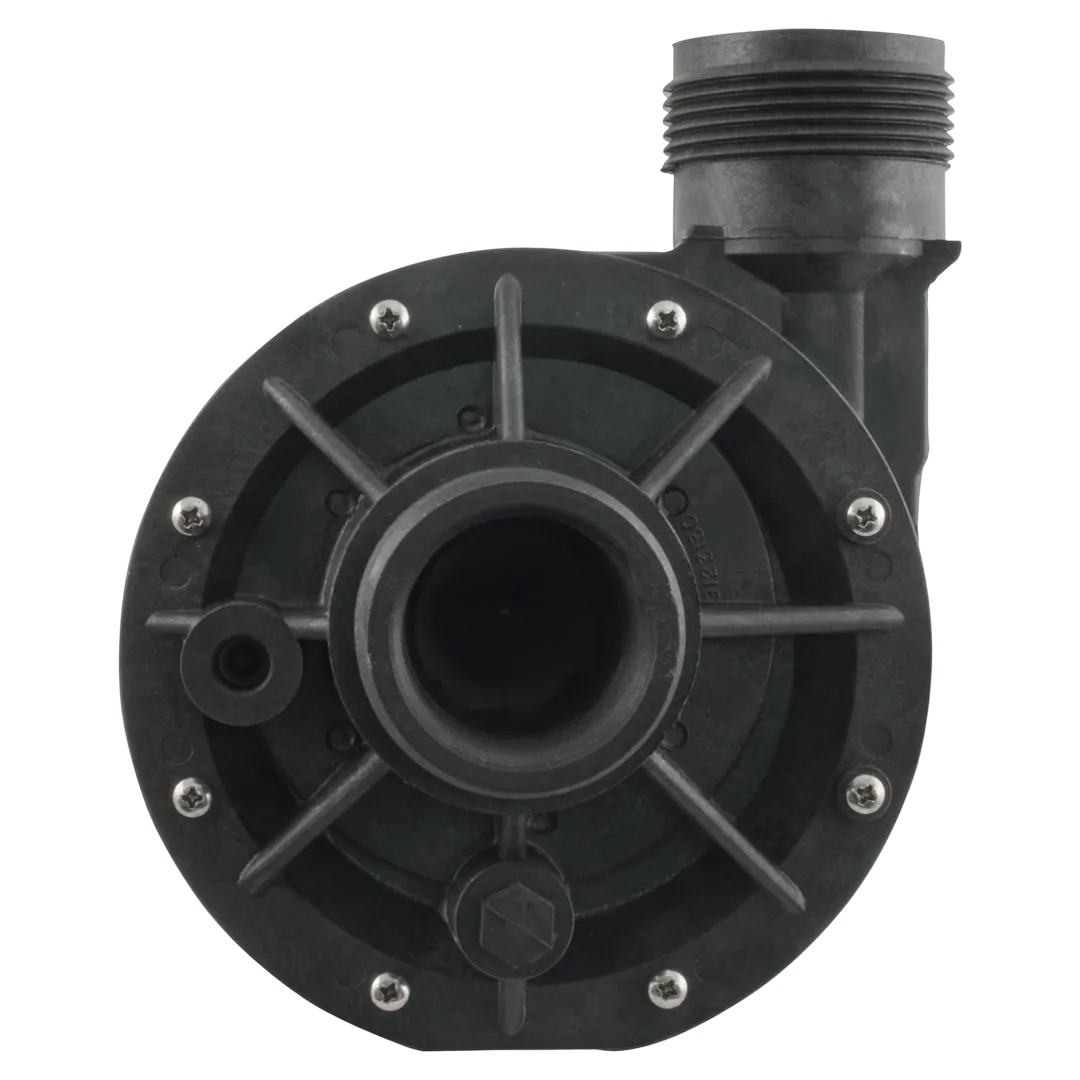

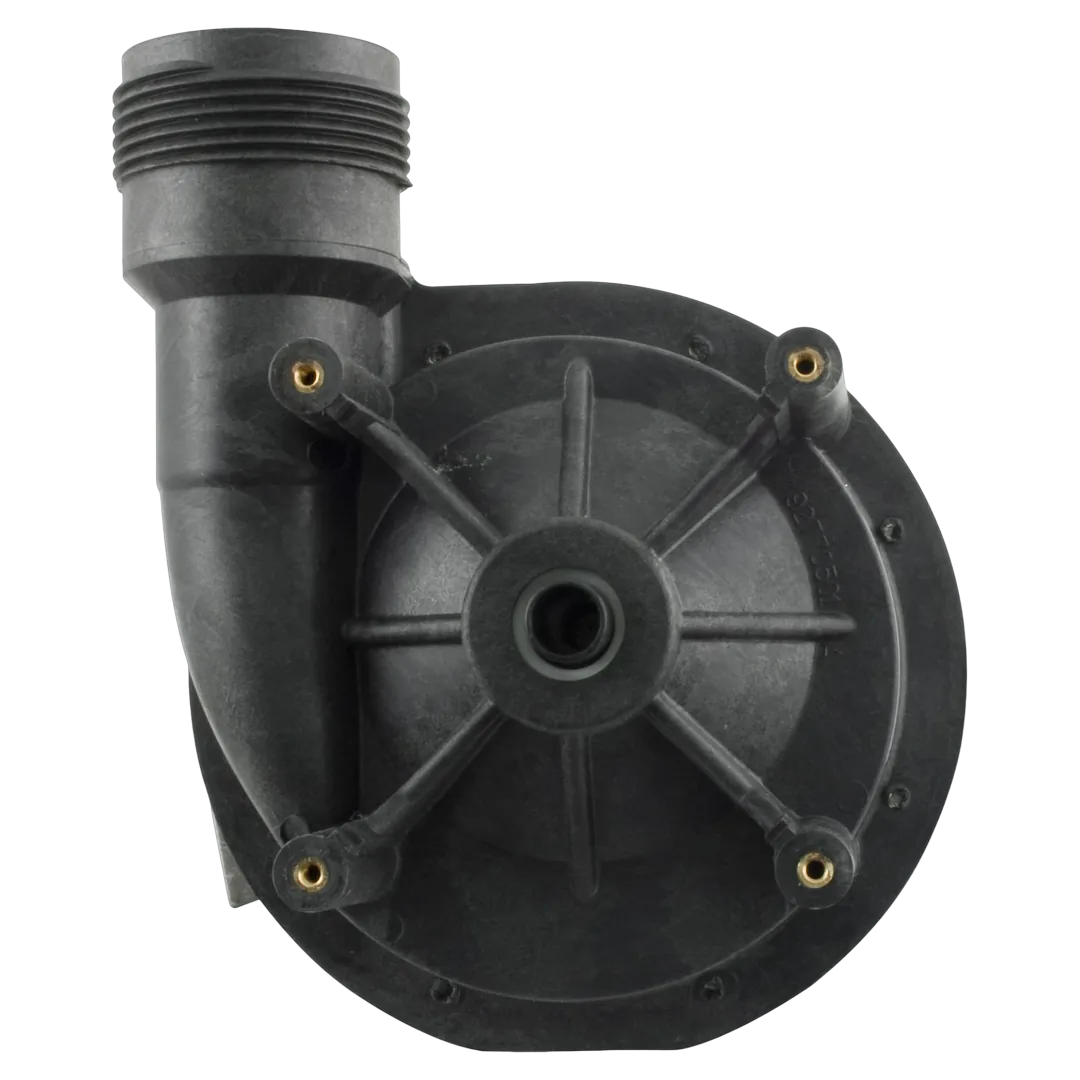

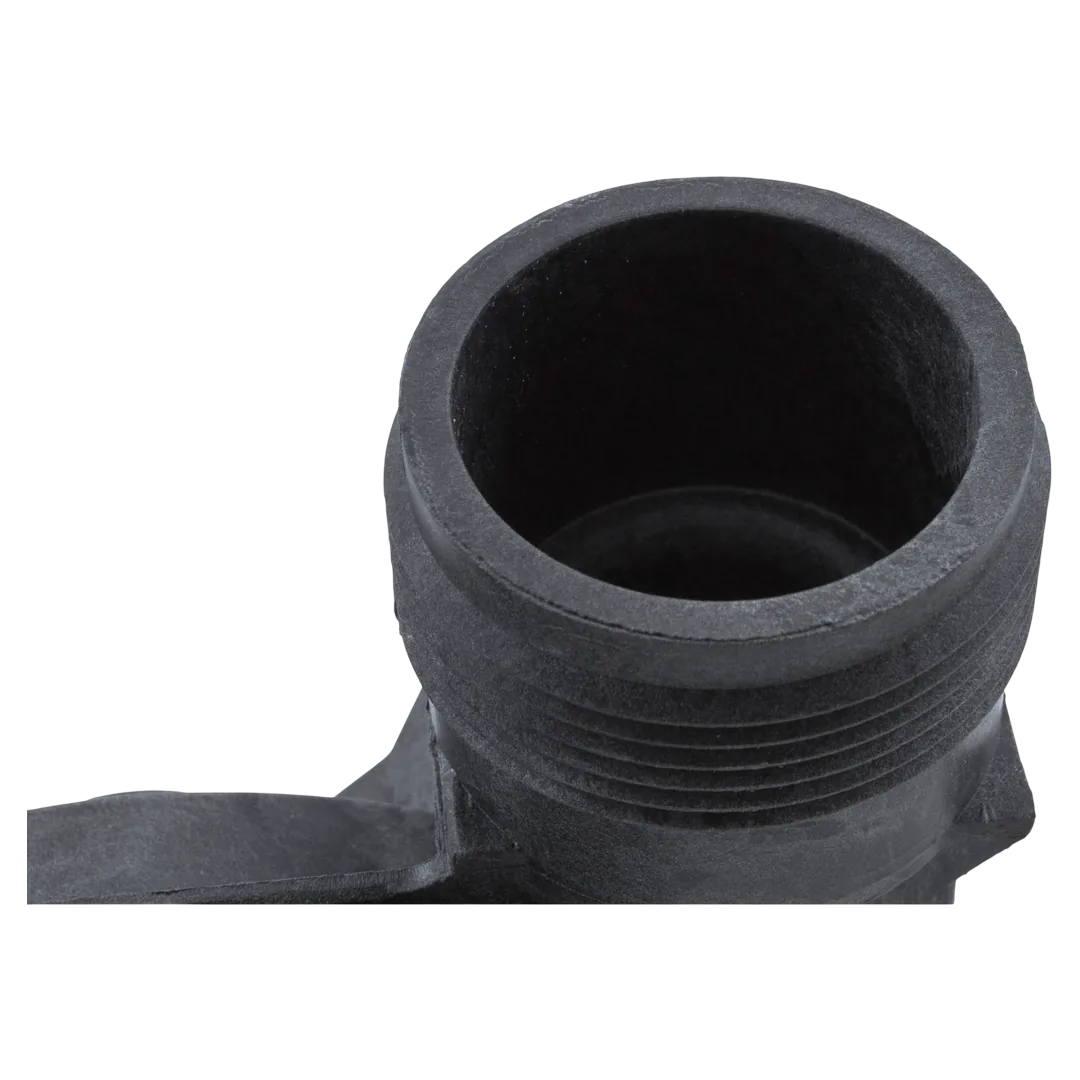

Gecko AquaFlo FMHP 2.0 HP Wet End
Gecko AquaFlo FMHP 2.0 HP Wet End is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Aqua-Flo by Gecko 91040730-000 is a wet end assembly from the FMHP Series, featuring a 2.0 horsepower motor and a 48-frame design. The unit includes a 1.5-inch side discharge and employs a metric build with a stainless steel shaft and machine casing, comprising components such as a volute, seal assembly, impeller, and wear ring. This wet end assembly is compatible with 1-1/2-inch MBT (Male Buttress Threads) connections and designed for use with Gecko Alliance's Flo-Master HP pumps.
Includes: Volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko 2 HP 48-Frame FMHP Wet End Assembly |
| Part Number | 91040730-000 |
| Part Type | Pump Part |
| Compatibility | Designed for 2.0 HP, 48Y frame, thru-bolt style motors compatible with both single and dual speed motors |
| Substitute Part Numbers | 34-402-1028, AF91040730000 |
| Includes | Volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, suction cover screws |
| Material | Plastic |
| Valve Type | Side discharge |
| Number of Positions | N/A |
| Connection Size | 1.5 inch male buttress thread (mbt) suction and discharge ports |
| Mount Type | 48 frame thru-bolt |
| Flow Paths | Side discharge wet end can be rotated 90 degrees to change discharge position |
| Pressure Rating | N/A |
| Seal Material | N/A |
| Shipping Dimensions | 8 x 5.5 x 6.5 inch |
| Product Weight | N/A |
