Gecko AquaFlo 91693701 Impeller
Aquaflo/Gecko | SKU:
91693701
$5600/ea
Unit price
/
Unavailable
Gecko AquaFlo 91693701 Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

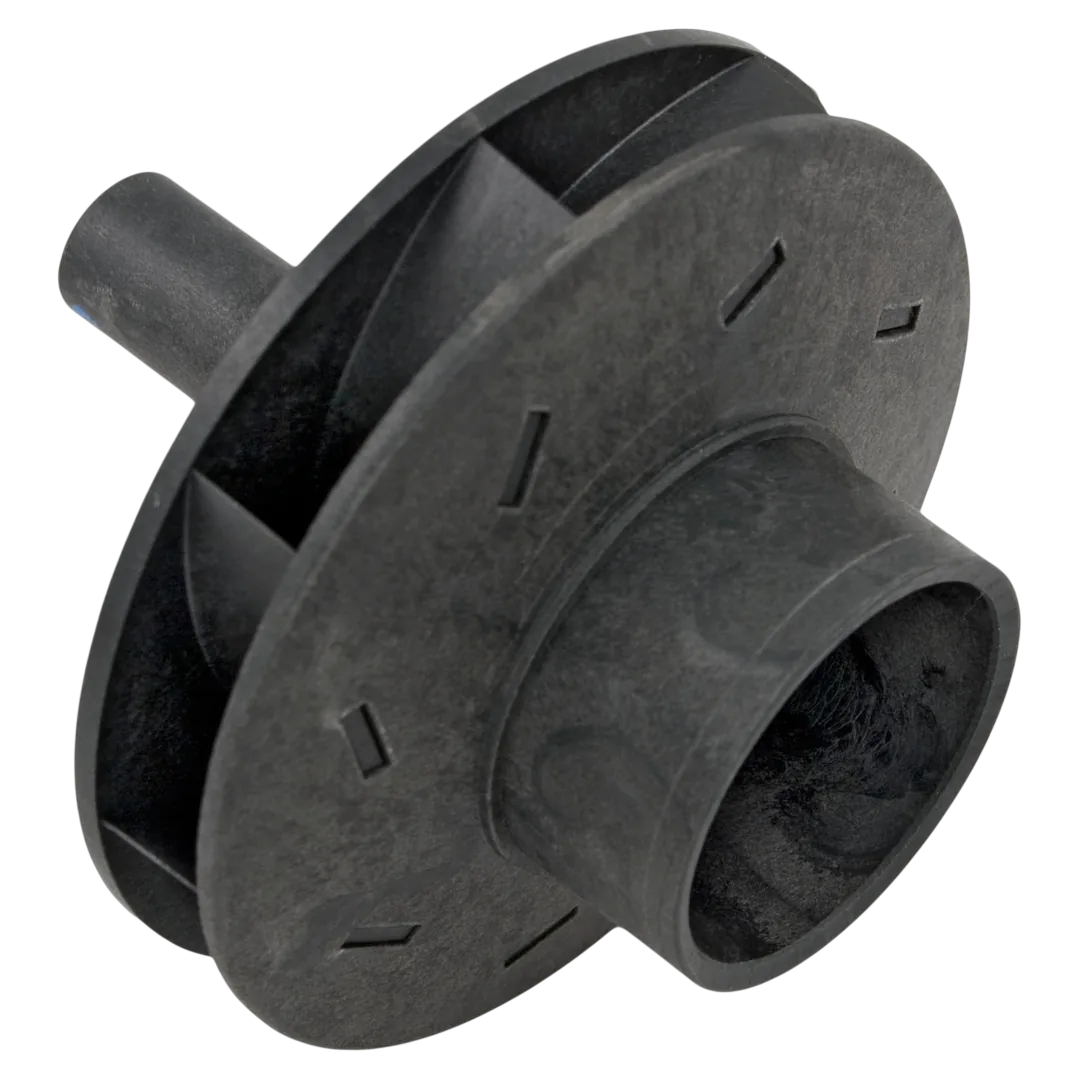

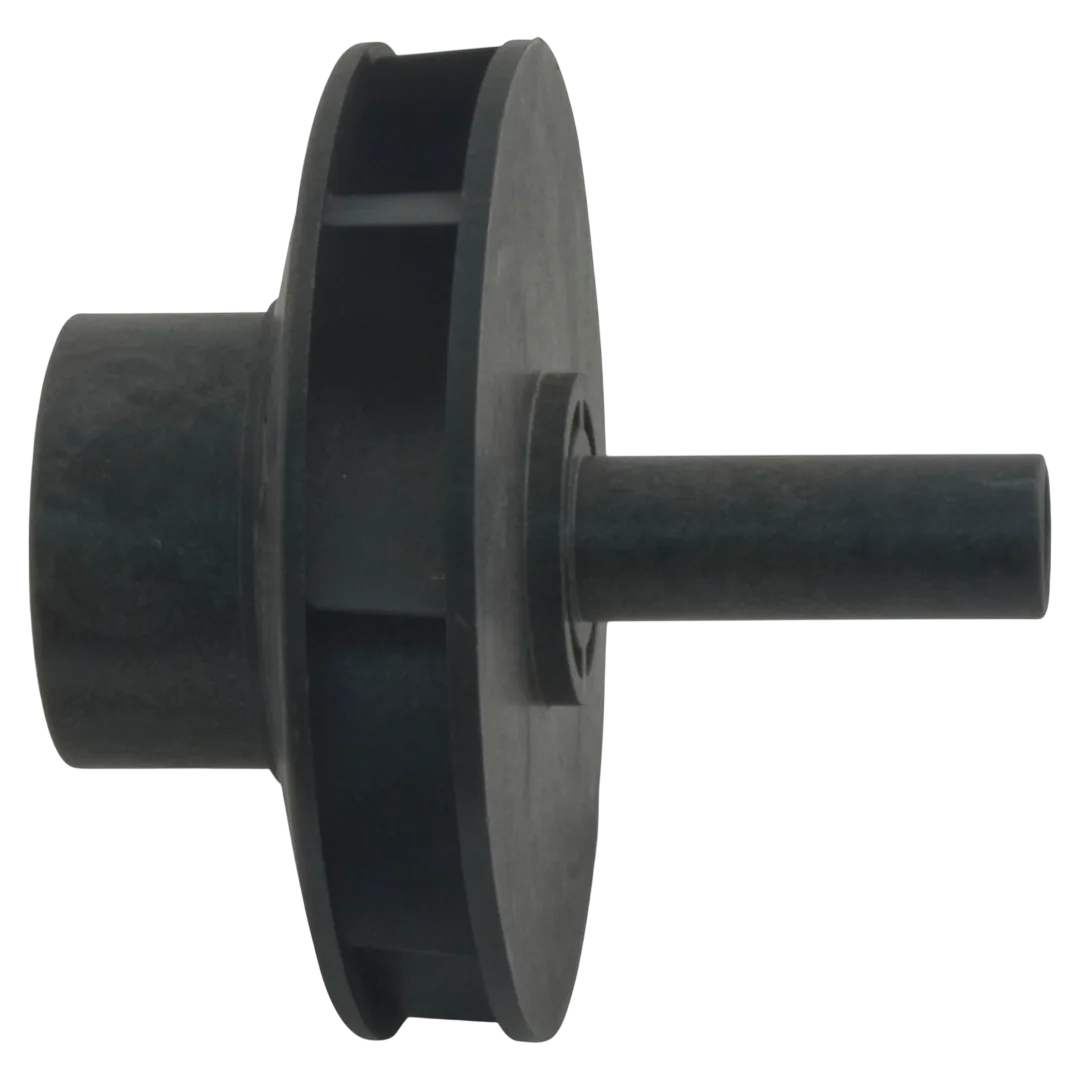

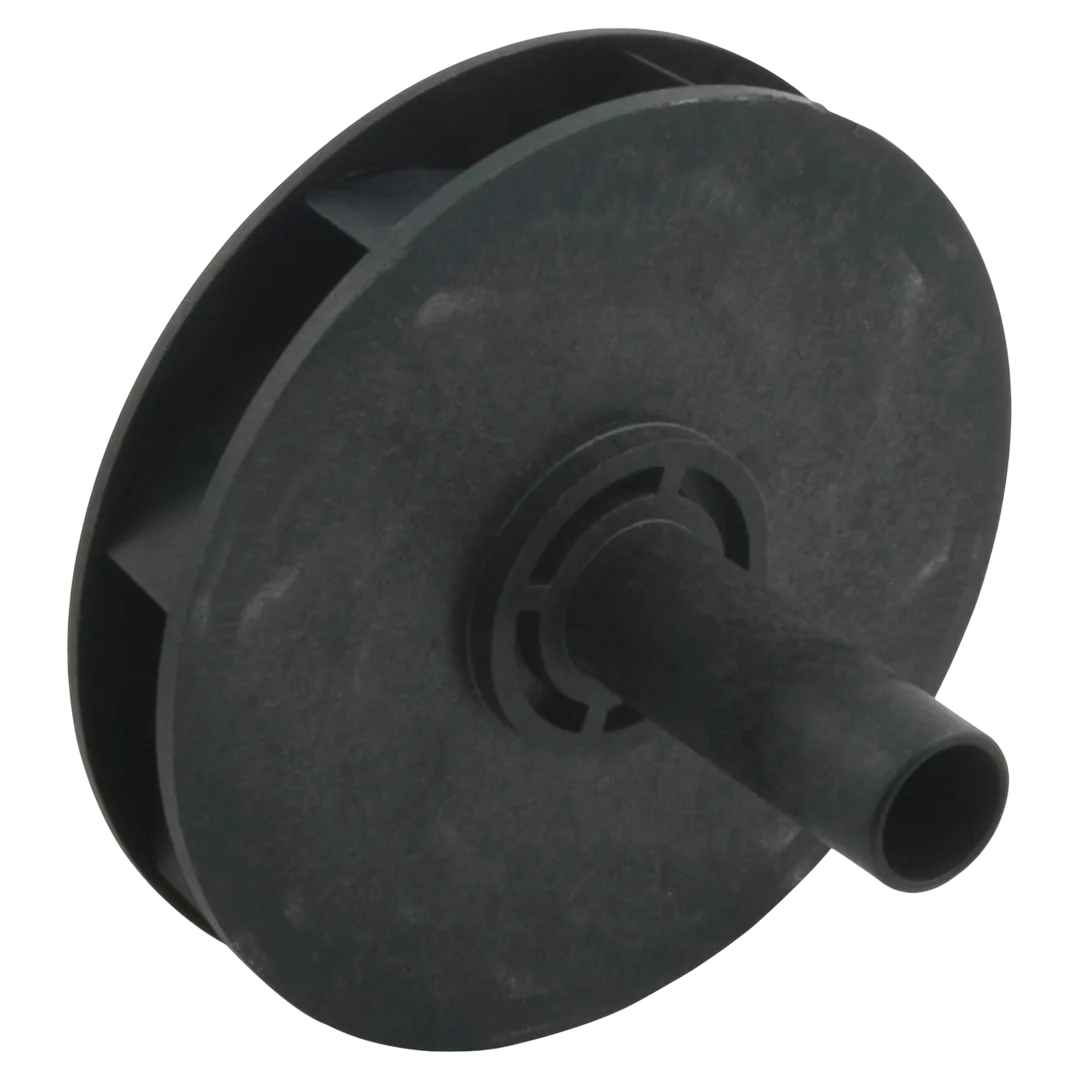

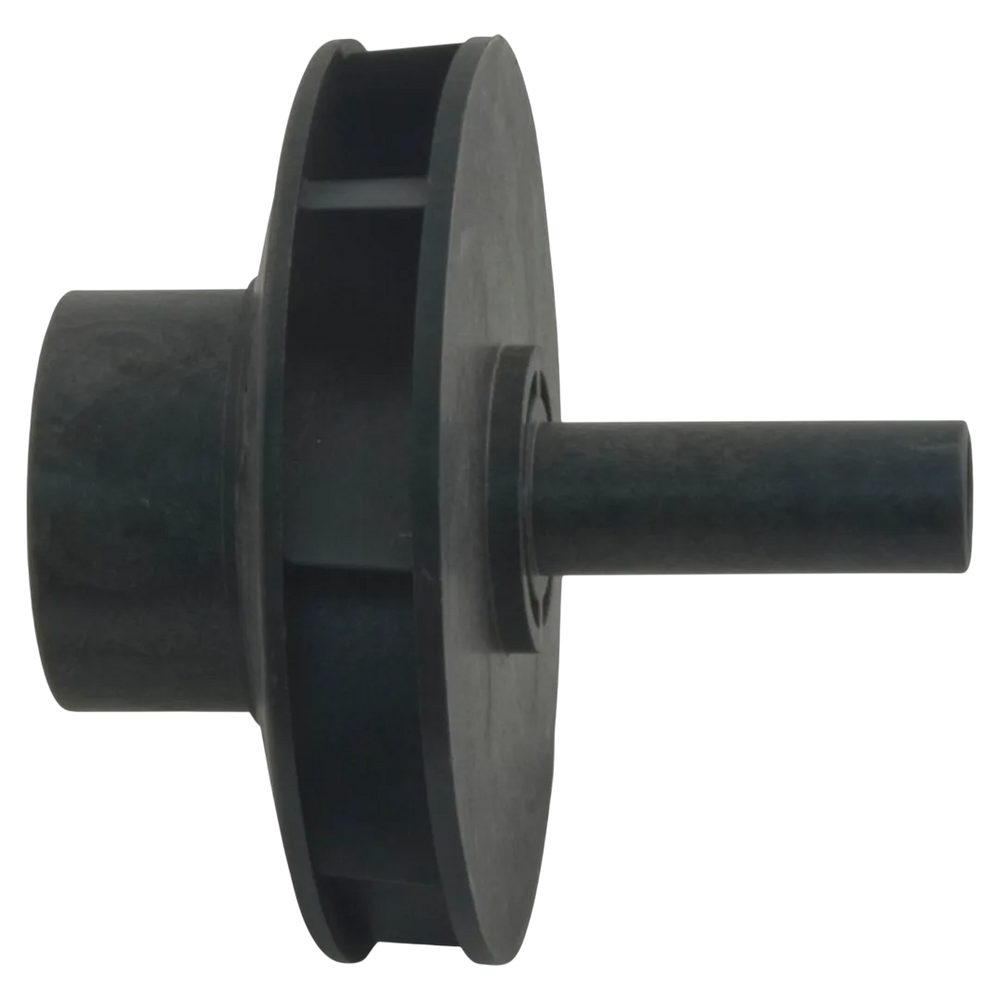

The Aquaflo/Gecko 91693701 is a closed face impeller designed for use in the AquaFlo FMHP, FMCP, and TMCP series spa pumps. Constructed to deliver a 2.0 operational horsepower, it must be installed on a motor rated at 2.0 horsepower or greater. This component is compatible specifically with the FMHP, FMCP, and TMCP series wet end assemblies.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | AquaFlo/Gecko 2.0 HP Impeller |
| Part Number | 91693701 |
| Part Type | Impeller |
| Compatibility | AquaFlo/Gecko FMHP, FMCP, TMCP series spa pumps |
| Substitute Part Numbers | 354021017, 91693700, FPF0420, 35-402-1017, AF91693700 |
| Includes | Impeller only shaft seal sold separately |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 3.75 inches |
| Vane Width ID | 0.5 inch |
| Eye Diameter OD | 1.75 inches |
| Eye Length | 0.8125 inch |
| Impeller Thickness OD | 0.6875 inch |
| Seal Seat Depth | 0.125 inch |
| Shaft Length | 1.75 inches |
| Shaft Diameter OD | 0.625 inch |
| Seal Seat Diameter OD | 1.25 inches |
| Shipping Dimensions | 3.7 x 3.7 x 3.7 inch |
| Product Weight | 0.25 pound |
