Gecko Aqua-Flo XP2e Wet End 91041925-000
Aquaflo/Gecko | SKU:
91041925-000
$12400/ea
Unit price
/
Unavailable
Gecko Aqua-Flo XP2e Wet End 91041925-000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

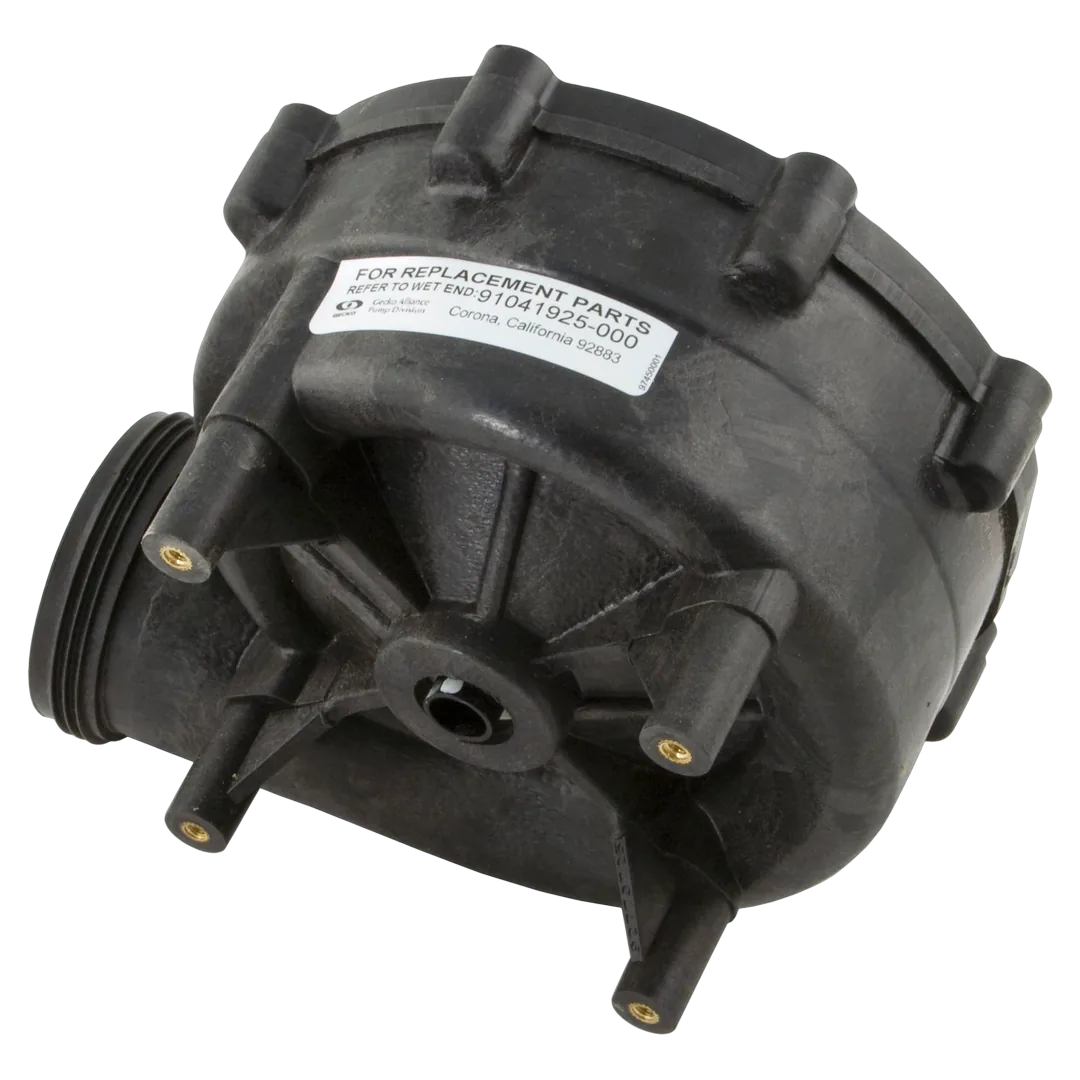

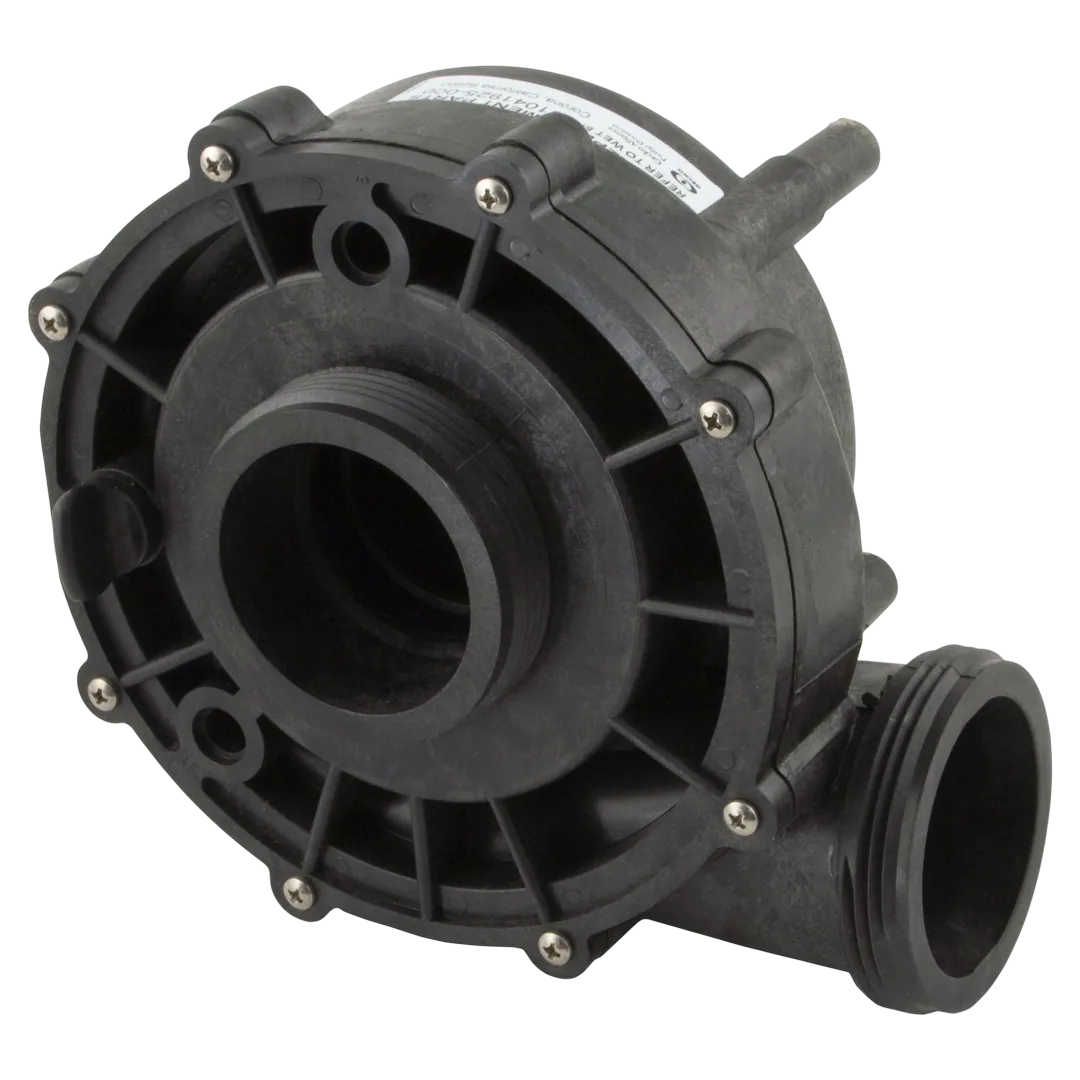

The Gecko Aqua-Flo 91041925-000 is a wet end component designed for use with the Gecko Flo-Master XP2 and XP2e pumps. It features a 2.5 horsepower rating and includes a 2" male buttress thread (mbt) intake and 2" discharge. This wet end assembly incorporates crucial parts like a volute, impeller, and wear ring, ensuring proper hydraulic functionality within its 56-frame housing.
Includes: Volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko 2" Wet End for 3 HP 56 Frame Aqua-Flo Flo-Master XP2e Series Pumps |
| Part Number | 91041925-000 |
| Part Type | Pump Part |
| Compatibility | 3 HP 56 Frame Aqua-Flo Flo-Master XP2e Series Pumps |
| Substitute Part Numbers | 34-402-1256 |
| Includes | Volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, suction cover screws |
| Material | Plastic |
| Valve Type | None |
| Number of Positions | N/A |
| Connection Size | 2" Male Buttress Thread (mbt) |
| Mount Type | 56 Frame Thru-Bolt |
| Flow Paths | Side discharge |
| Pressure Rating | N/A |
| Seal Material | Viton |
| Shipping Dimensions | 9.7 x 9.3 x 7.1 inch |
| Product Weight | 3.05 pound |
