Gecko Aqua-Flo XP2E Wet End 91041820-000
Aquaflo/Gecko | SKU:
91041820-000
$11700/ea
Unit price
/
Unavailable
Gecko Aqua-Flo XP2E Wet End 91041820-000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

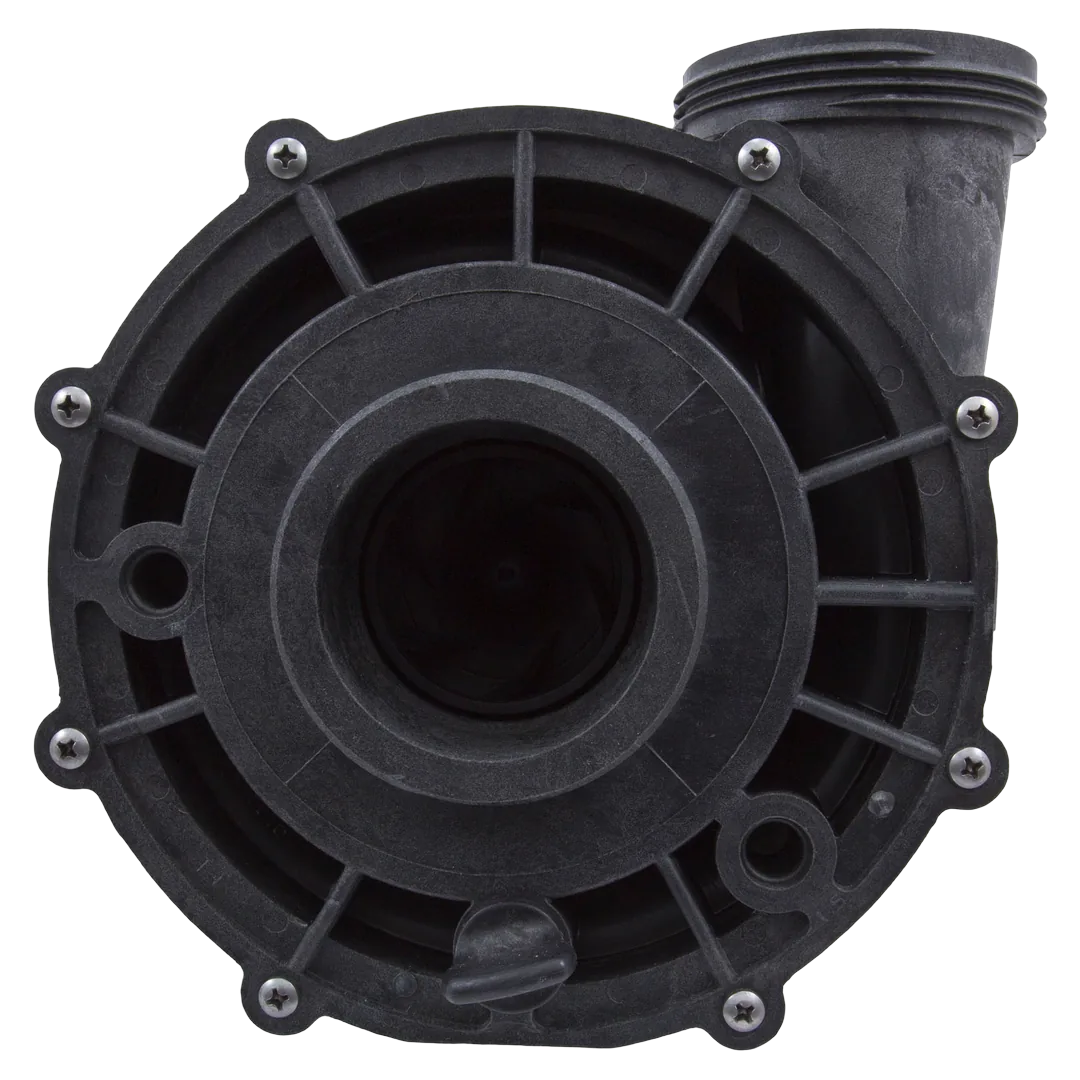

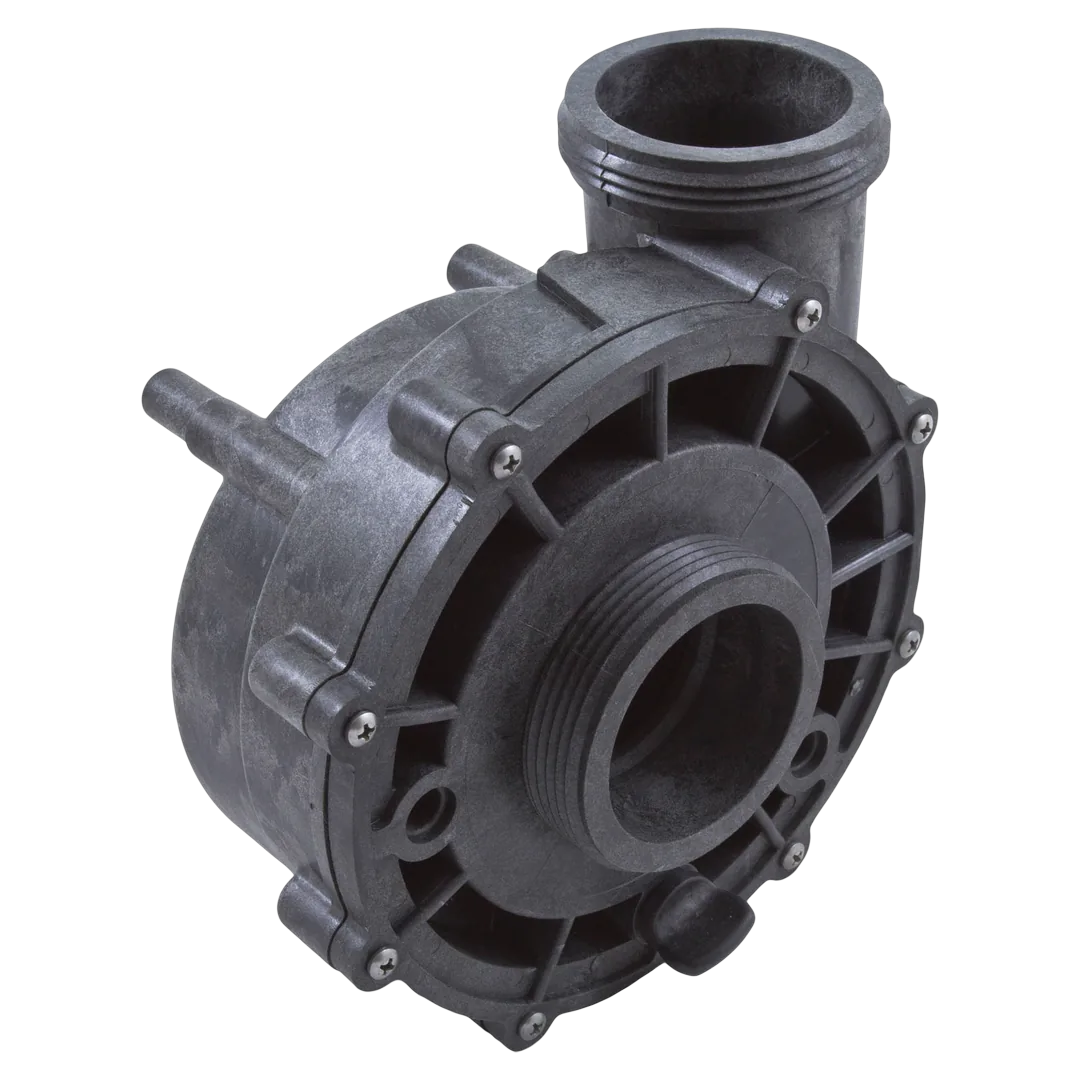

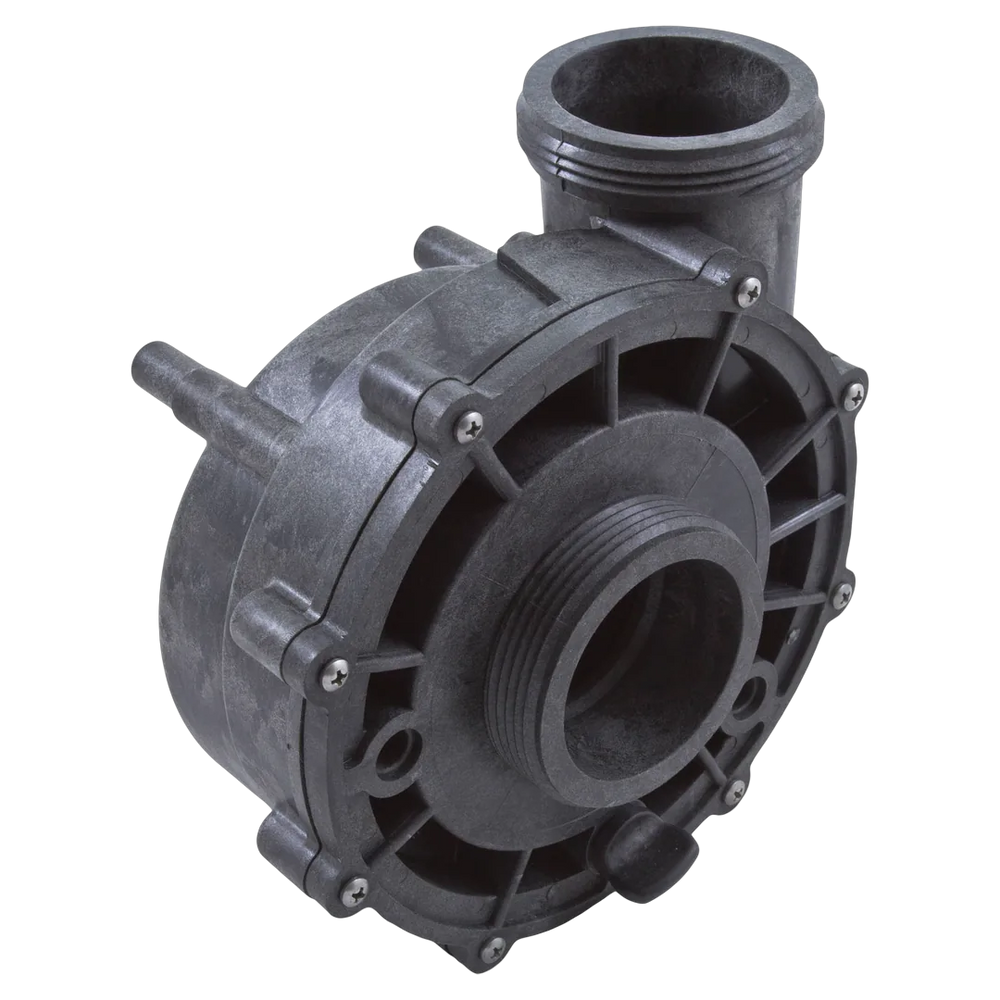

The Aqua-Flo 91041820-000 is a wet end replacement for the Gecko Flo-Master XP2E spa pump. It is designed for a 48Y frame with a 2-horsepower capacity and features 2-inch intake and discharge fittings, accommodating side-discharge configurations. This wet end assembly includes key components such as the volute, seal, and impeller, and it is compatible with both the Gecko XP2E and XP2 pump models.
Includes: Volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko Aqua-Flo XP2/XPE 2.0 HP 48 Frame Wet End Assembly |
| Part Number | 91041820-000 |
| Part Type | Pump Part |
| Compatibility | Gecko Aqua-Flo Flo-Master XP2 and XP2E 48-Frame Pumps |
| Substitute Part Numbers | 1-05-0328, 310-1141SD, 310-1141SF, 315303, 5038A, 5121-65, 600017, 806105061706, 91041610, 91041820, 91041931-000, AF91041820000, AQF-101-9953, AQF91041610, WWP3101141SD |
| Includes | Volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, suction cover screws |
| Material | Plastic |
| Valve Type | Side Discharge |
| Number of Positions | N/A |
| Connection Size | 2 inch |
| Mount Type | 48 Frame Thru-Bolt |
| Flow Paths | Side Discharge |
| Pressure Rating | N/A |
| Seal Material | Silicone carbide seals, Viton bellows, 316SS casing |
| Shipping Dimensions | 10 x 6 x 6 inch |
| Product Weight | 3.0 pound |
