Gecko Aqua-Flo XP2 Pump Impeller 91694251
Aquaflo/Gecko | SKU:
91694251
$5100/ea
Unit price
/
Unavailable
Gecko Aqua-Flo XP2 Pump Impeller 91694251 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

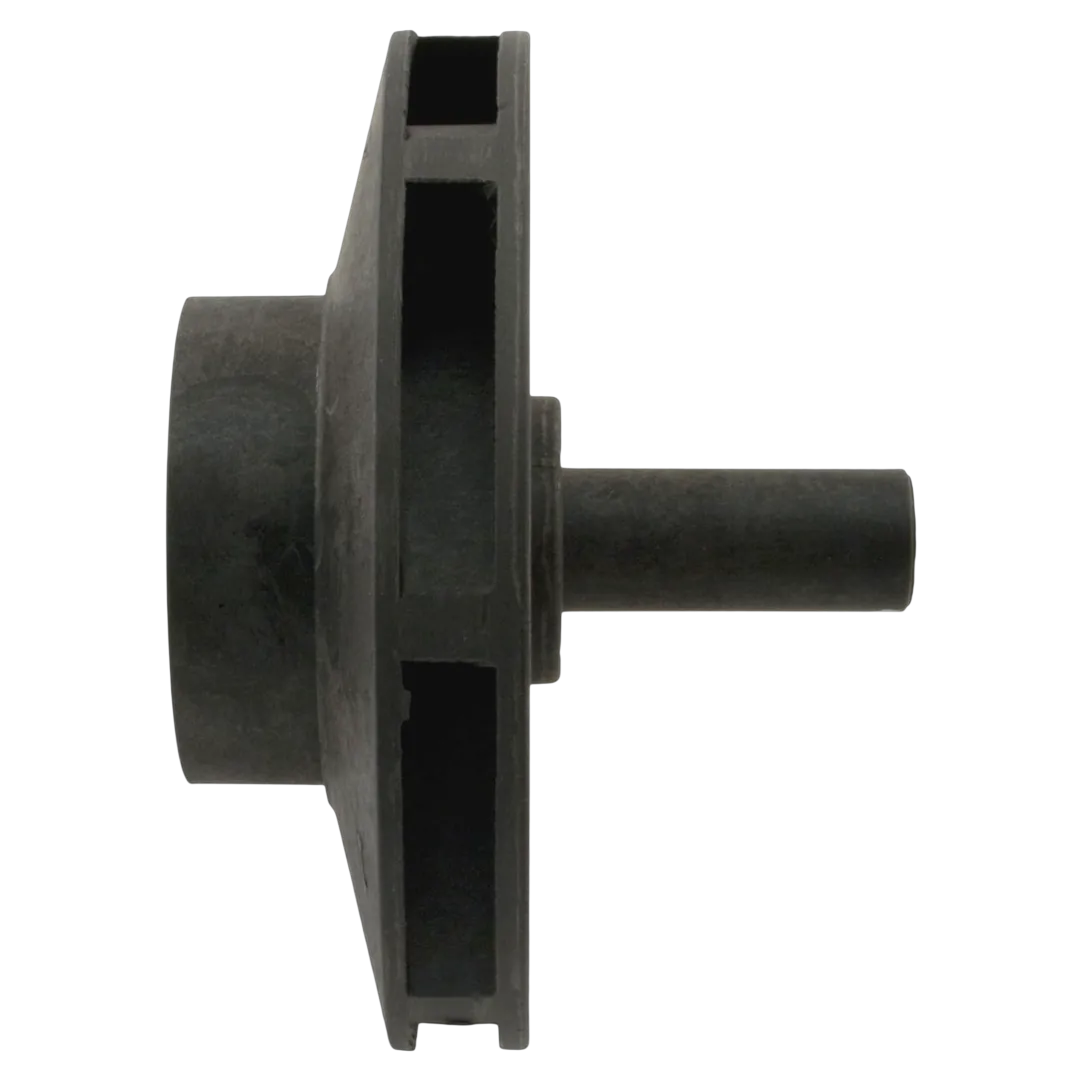

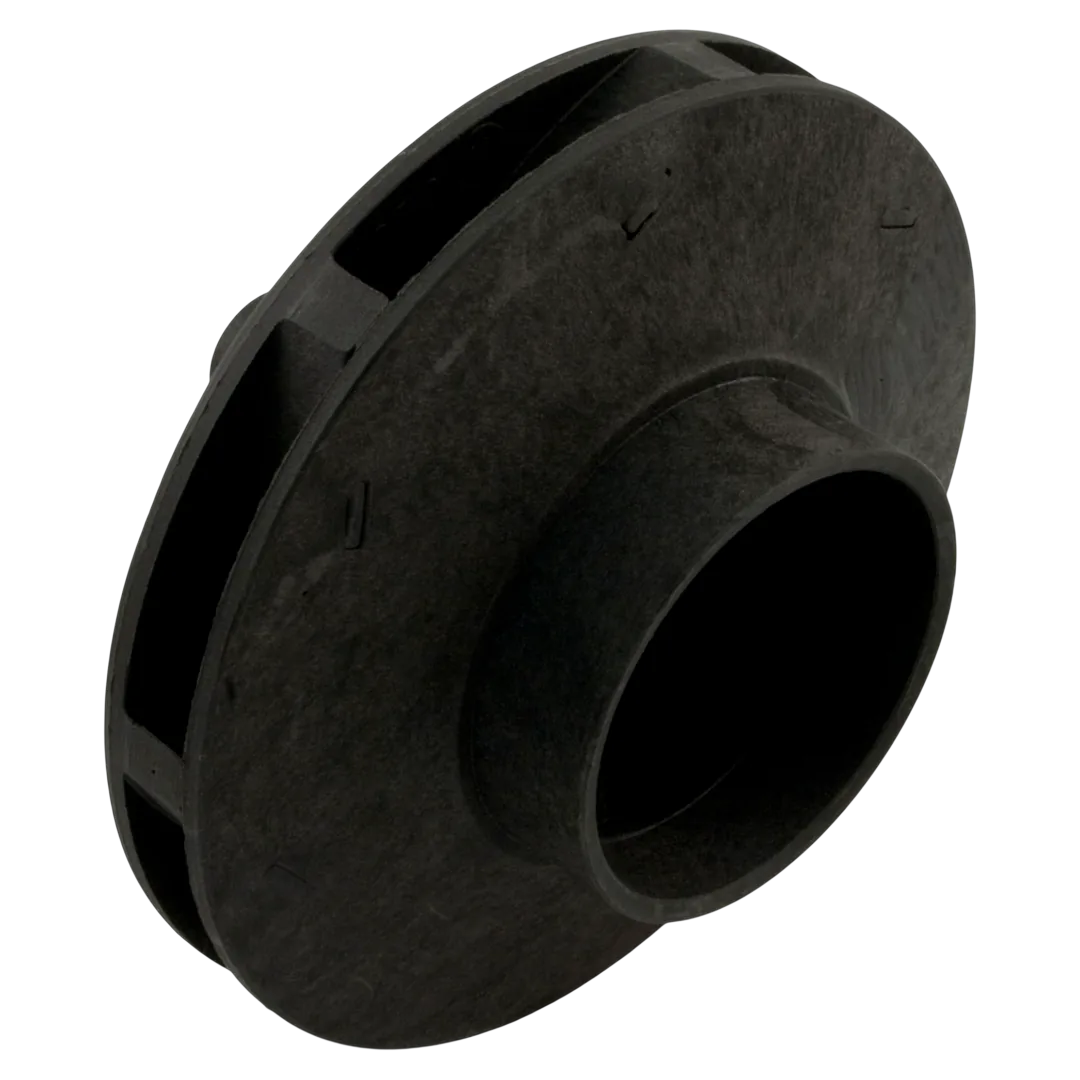

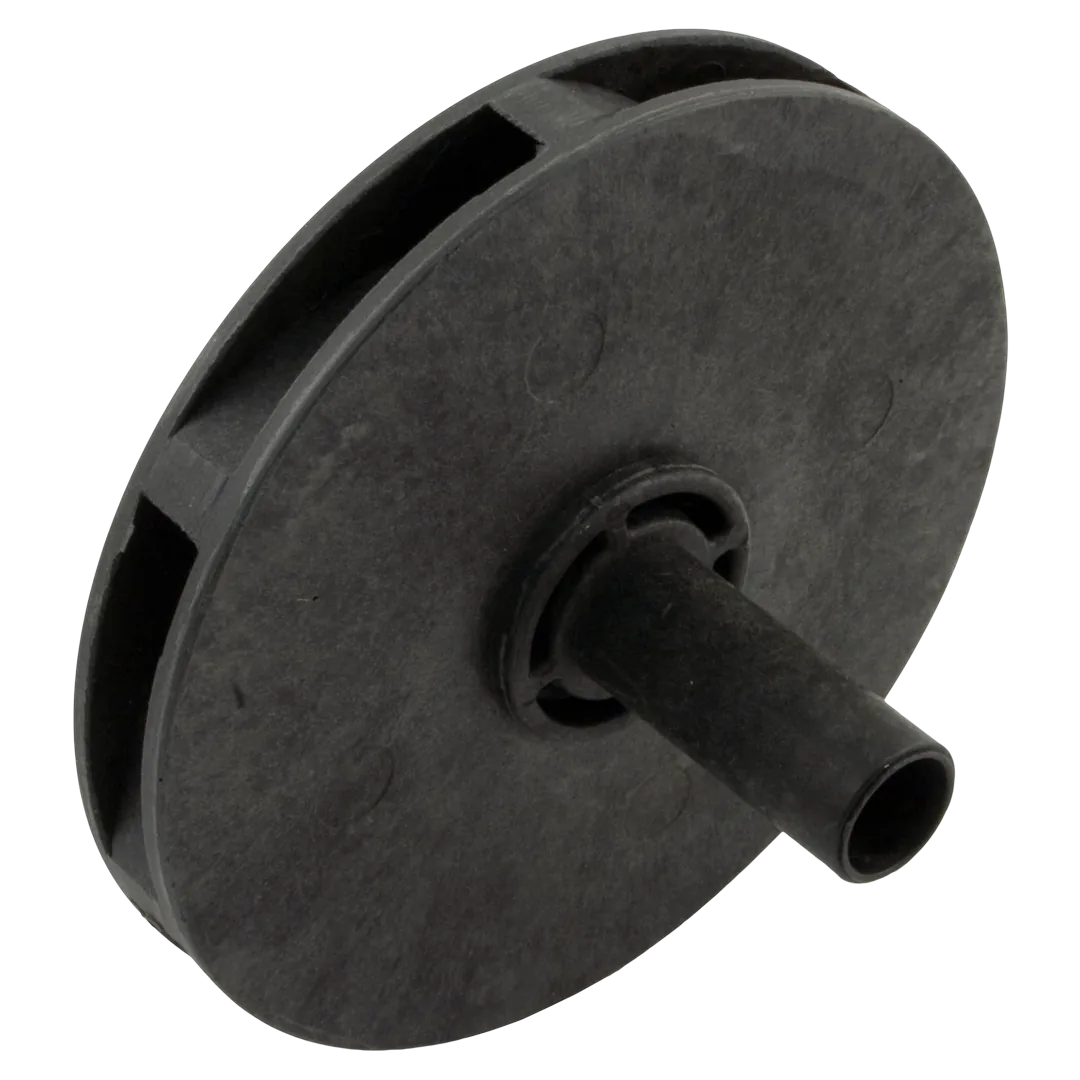

The Aquaflo/Gecko 91694251 is an impeller specifically designed for the XP2 series spa pumps by Aqua-Flo. It features a closed face design and is rated at 2.5 horsepower, making it suitable for maintaining efficient water flow in spa systems. This impeller is compatible with Gecko Flo-Master XP, XP2, and XP2E 48-Frame and 56-Frame pumps.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko Alliance 2.5 HP XP2 Pump Impeller |
| Part Number | 91694251 |
| Part Type | Impeller |
| Compatibility | Aqua-Flo XP2 spa pumps |
| Substitute Part Numbers | 35-402-1414, AF91694251 |
| Includes | Impeller only shaft seal sold separately |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4-3/8 inches |
| Vane Width ID | 3/8 inch |
| Eye Diameter OD | 2-1/8 inches |
| Eye Length | 5/8 inch |
| Impeller Thickness OD | 1/2 inch |
| Seal Seat Depth | 1/8 inch |
| Shaft Length | 1-1/2 inches |
| Shaft Diameter OD | 5/8 inch |
| Seal Seat Diameter OD | 1-1/4 inches |
| Shipping Dimensions | 3 x 4.25 x 4.25 inch |
| Product Weight | 0.25 pound |
