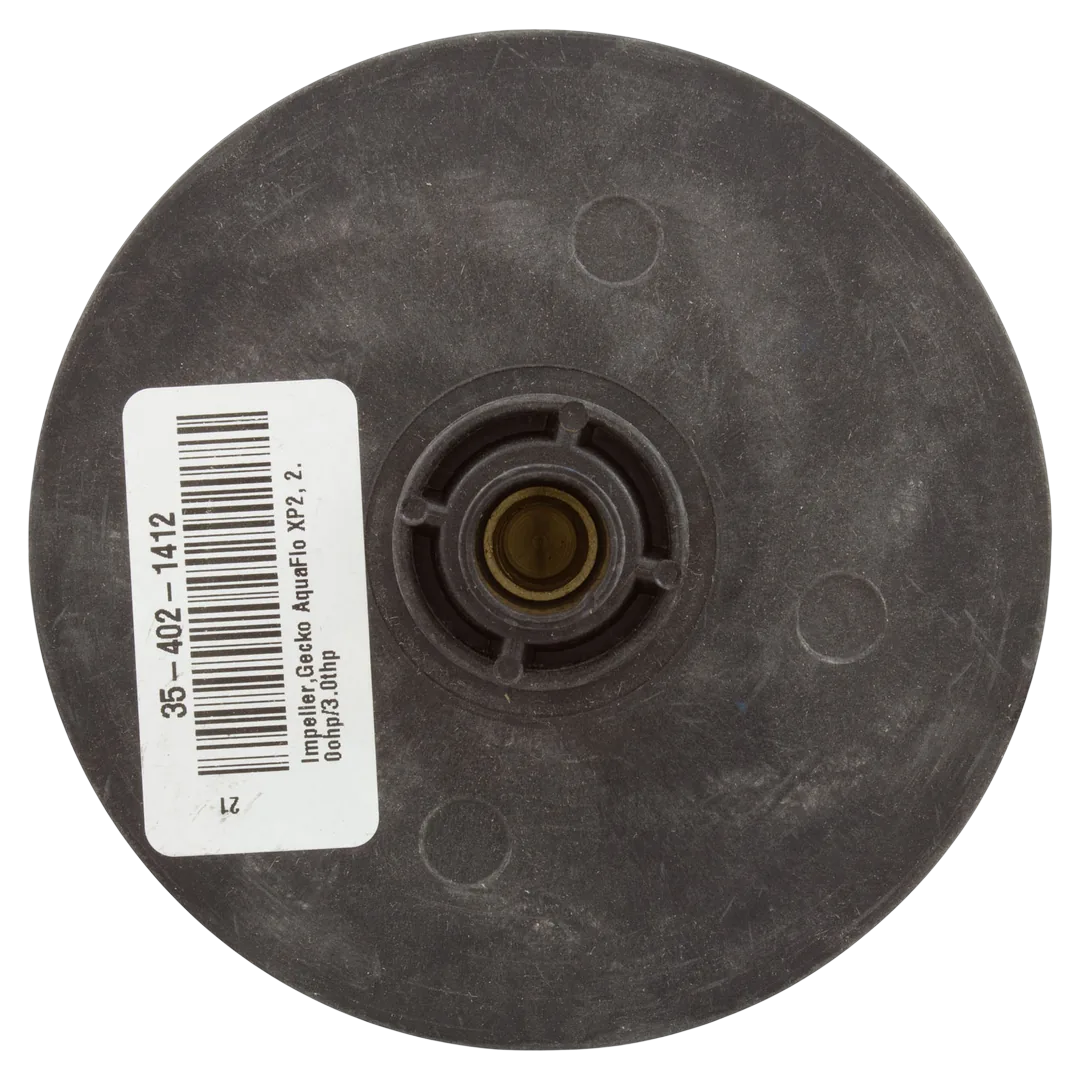

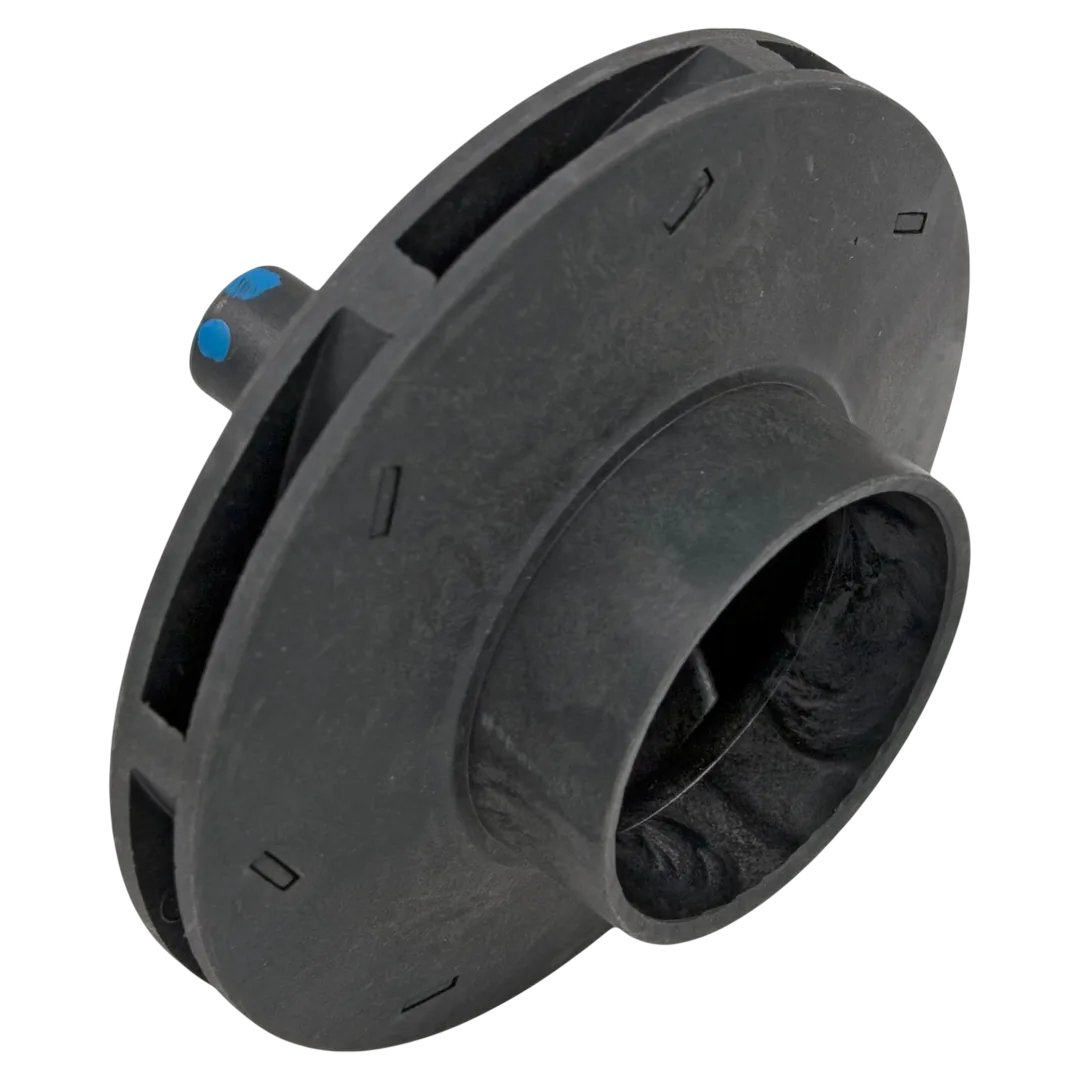

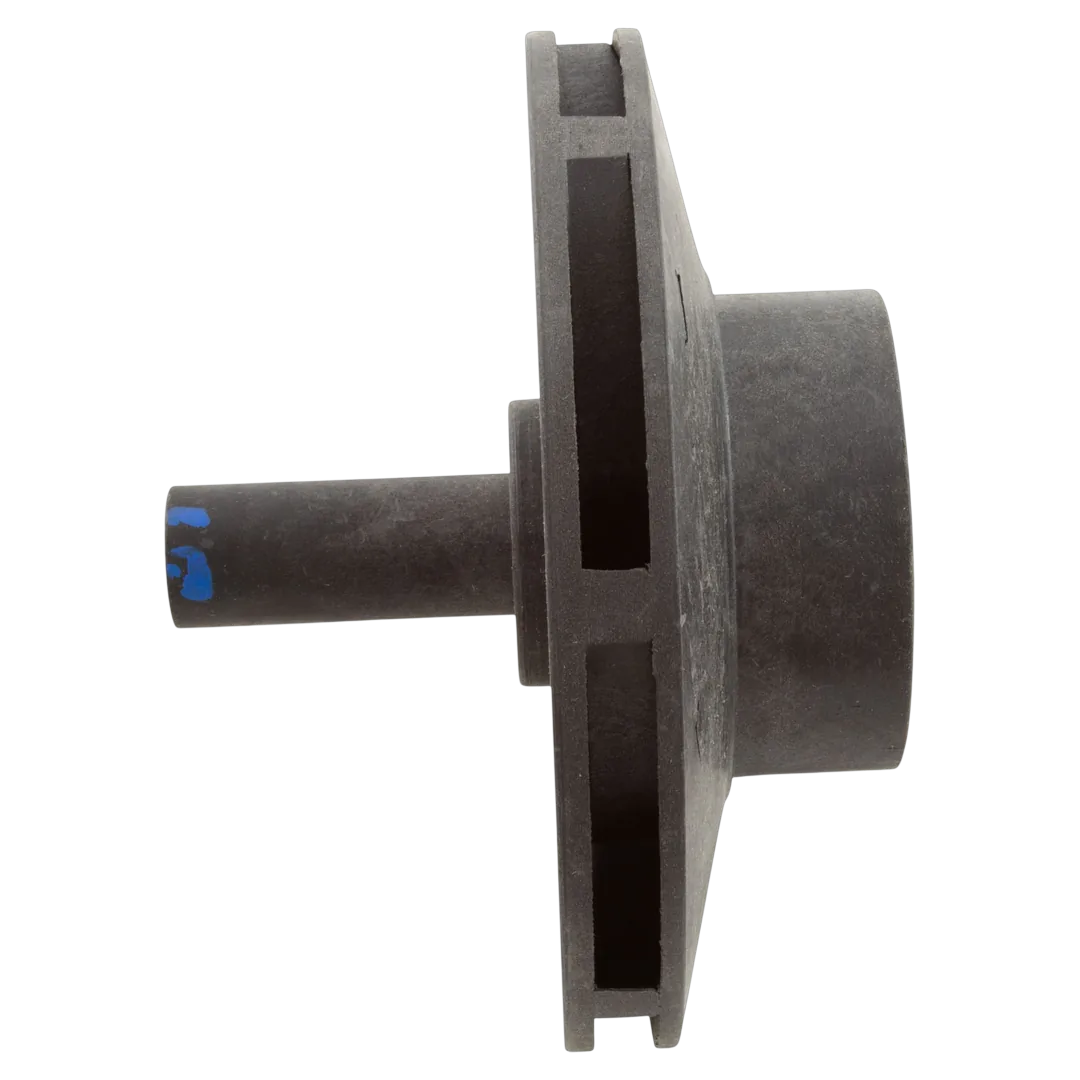

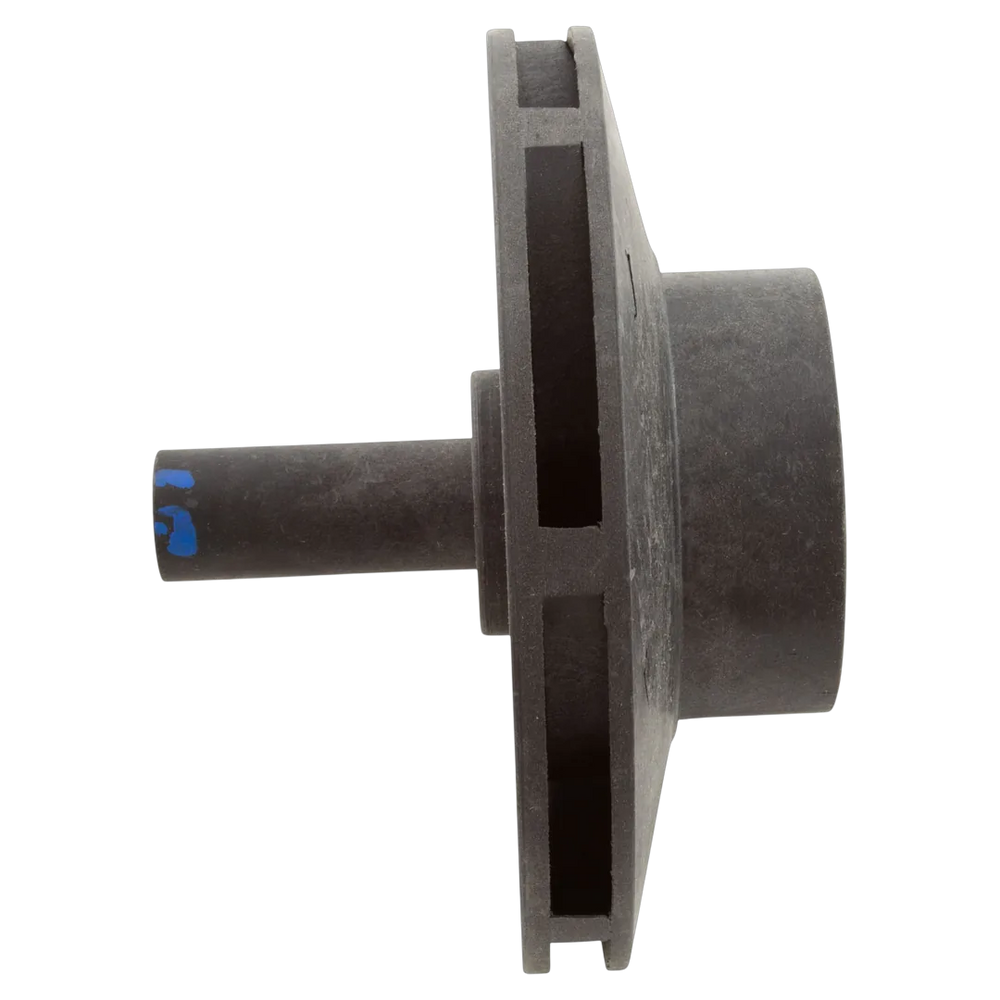

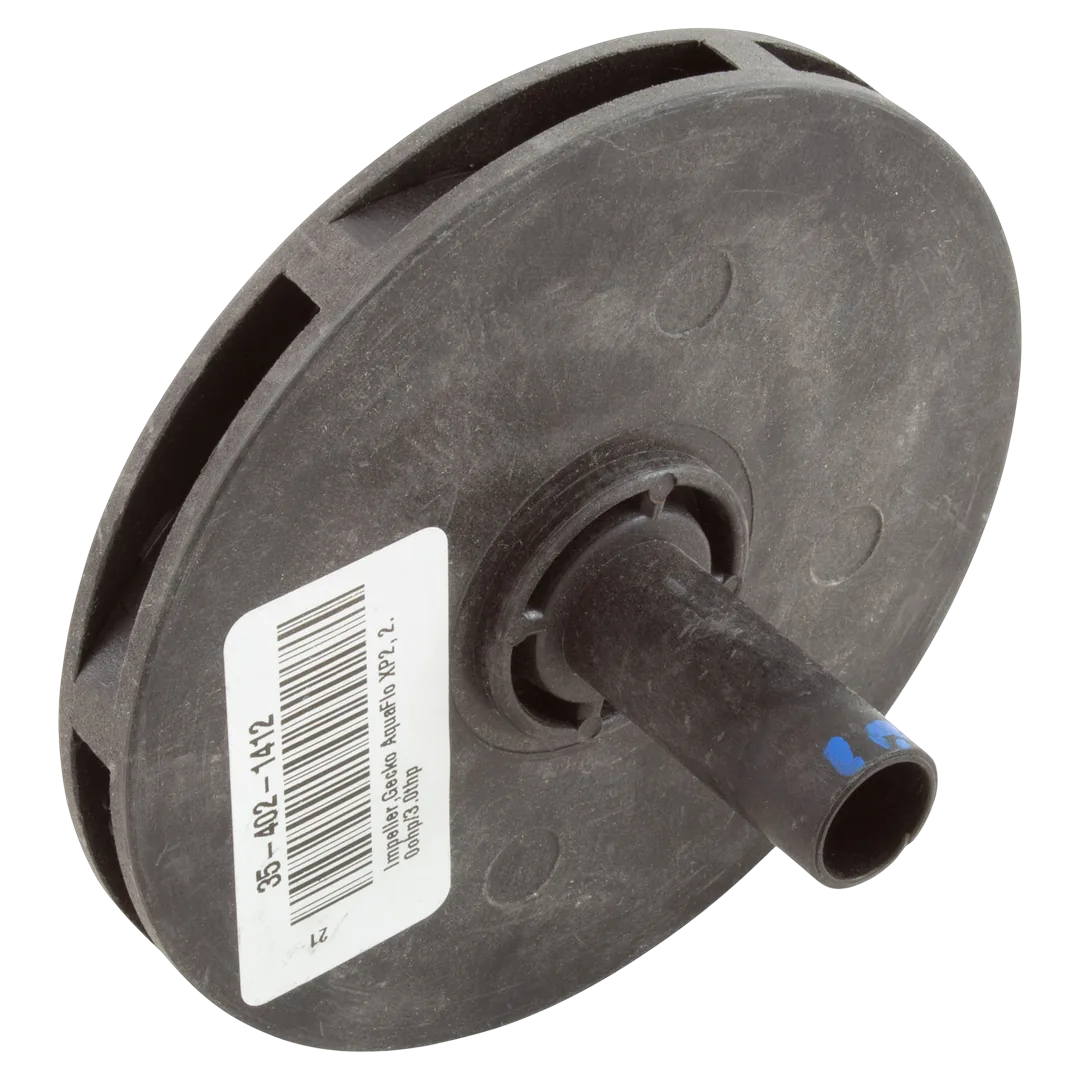

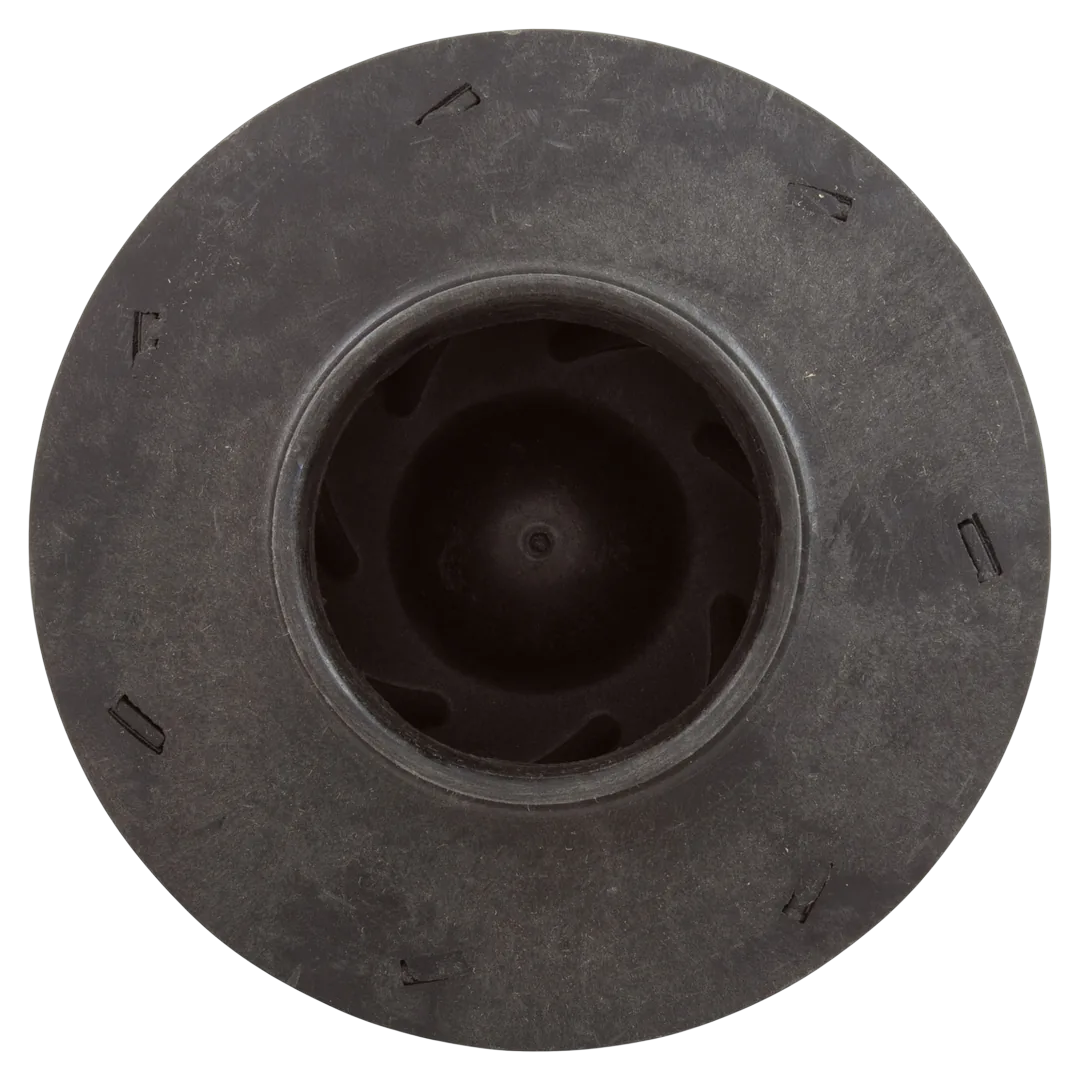

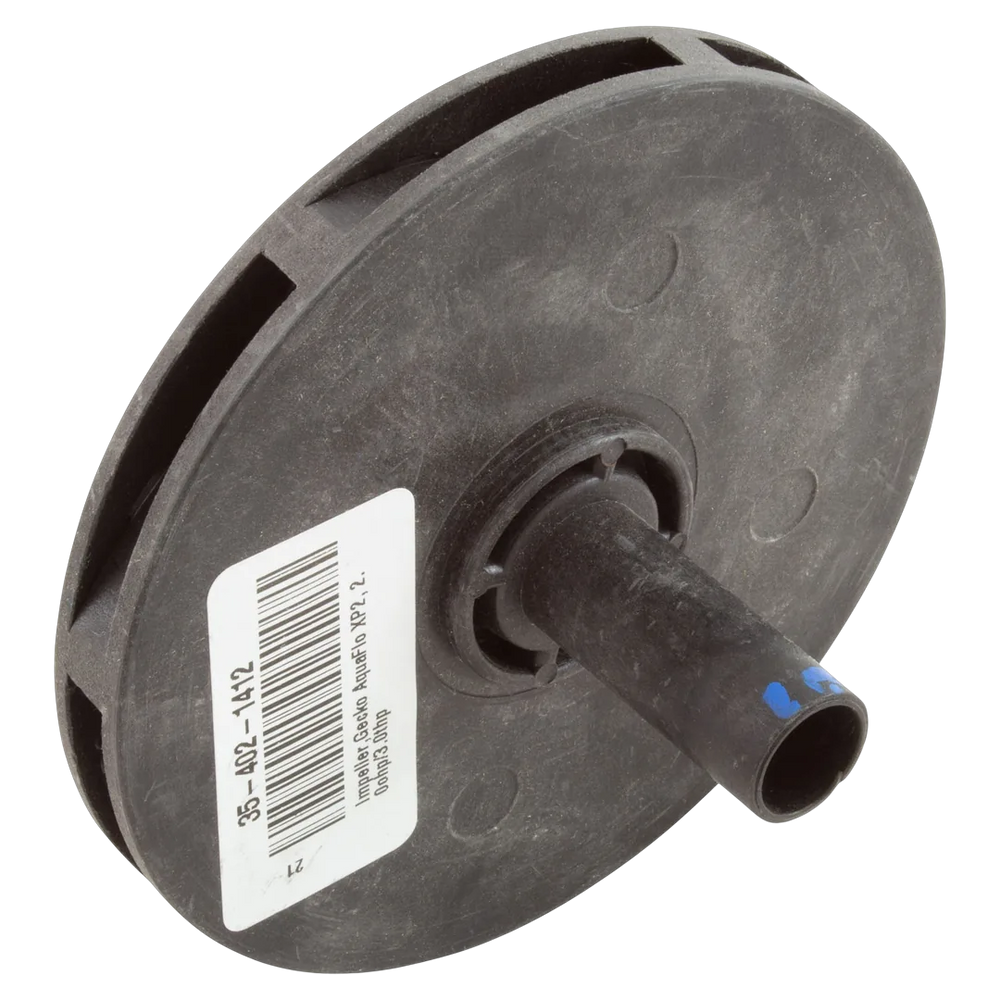

Gecko Aqua-Flo XP2 Pump Impeller 91694200
Aquaflo/Gecko | SKU:
91694200
$4900/ea
Unit price
/
Unavailable
Gecko Aqua-Flo XP2 Pump Impeller 91694200 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Gecko Aqua-Flo 91694200 is a 2 horsepower impeller specifically designed for use with Aqua-Flo Flo-Master XP2 series pumps. It features a closed face design and is manufactured for installation in the XP2 wet end assemblies, ensuring compatibility with both 48-frame and 56-frame motor configurations operating at a minimum of 10 amps at 230 volts. This component is suitable for various Gecko Flo-Master XP/XP2/XP2E pump models.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko 2 HP Impeller for Aqua-Flo Flo-Master XP2 Series Pumps |
| Part Number | 91694200 |
| Part Type | Impeller |
| Compatibility | Aqua-Flo Flo-Master XP2 Series Pumps |
| Substitute Part Numbers | AF91694200, AQF-101-9949 |
| Includes | Impeller only |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4.375 inch |
| Vane Width ID | 0.25 inch |
| Eye Diameter OD | 2.125 inch |
| Eye Length | 0.6875 inch |
| Impeller Thickness OD | 0.5 inch |
| Seal Seat Depth | 0.125 inch |
| Shaft Length | 1.5 inch |
| Seal Seat Diameter OD | 1.25 inch |
| Shipping Dimensions | 4.75 x 4 x 3.75 inch |
| Product Weight | 0.25 pound |
