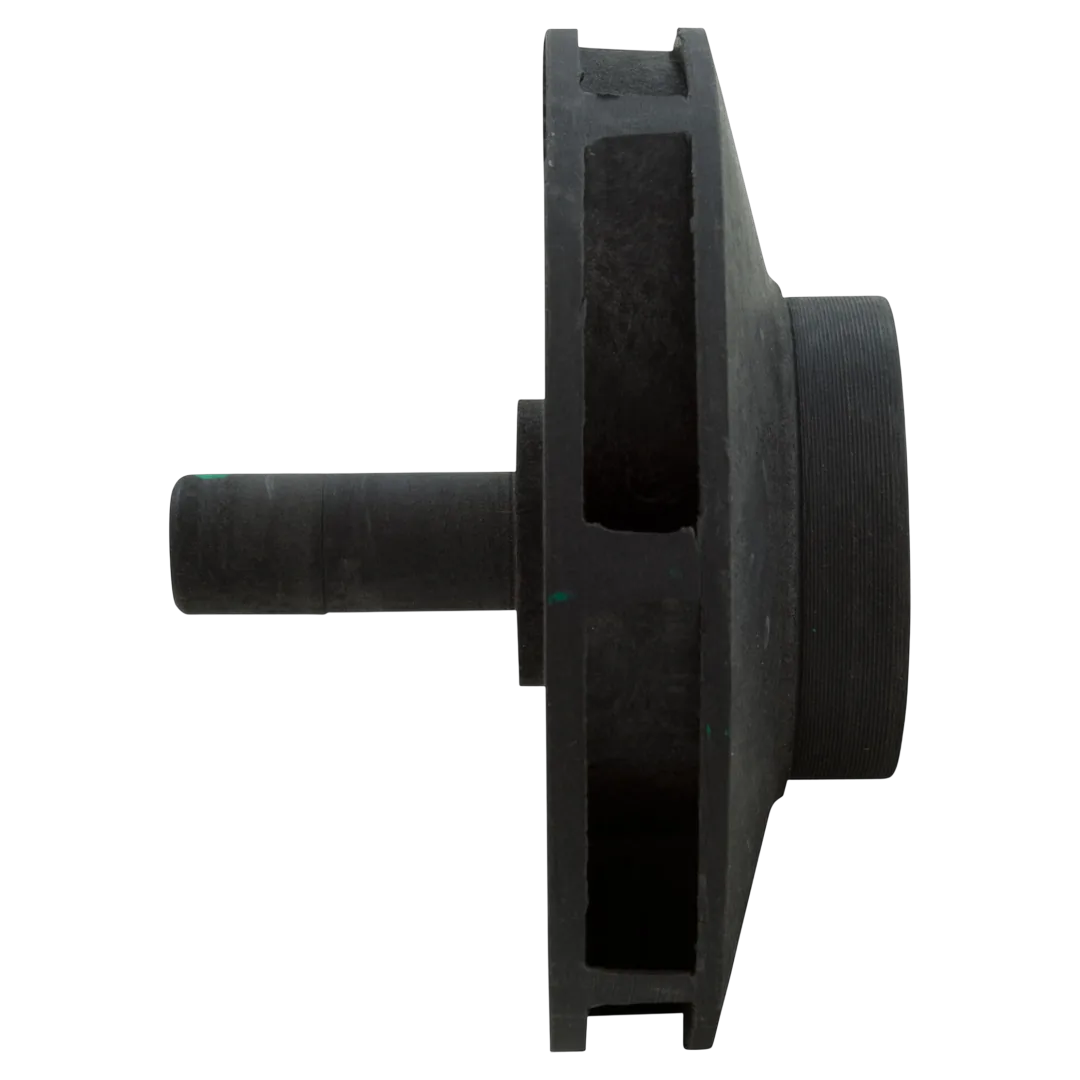

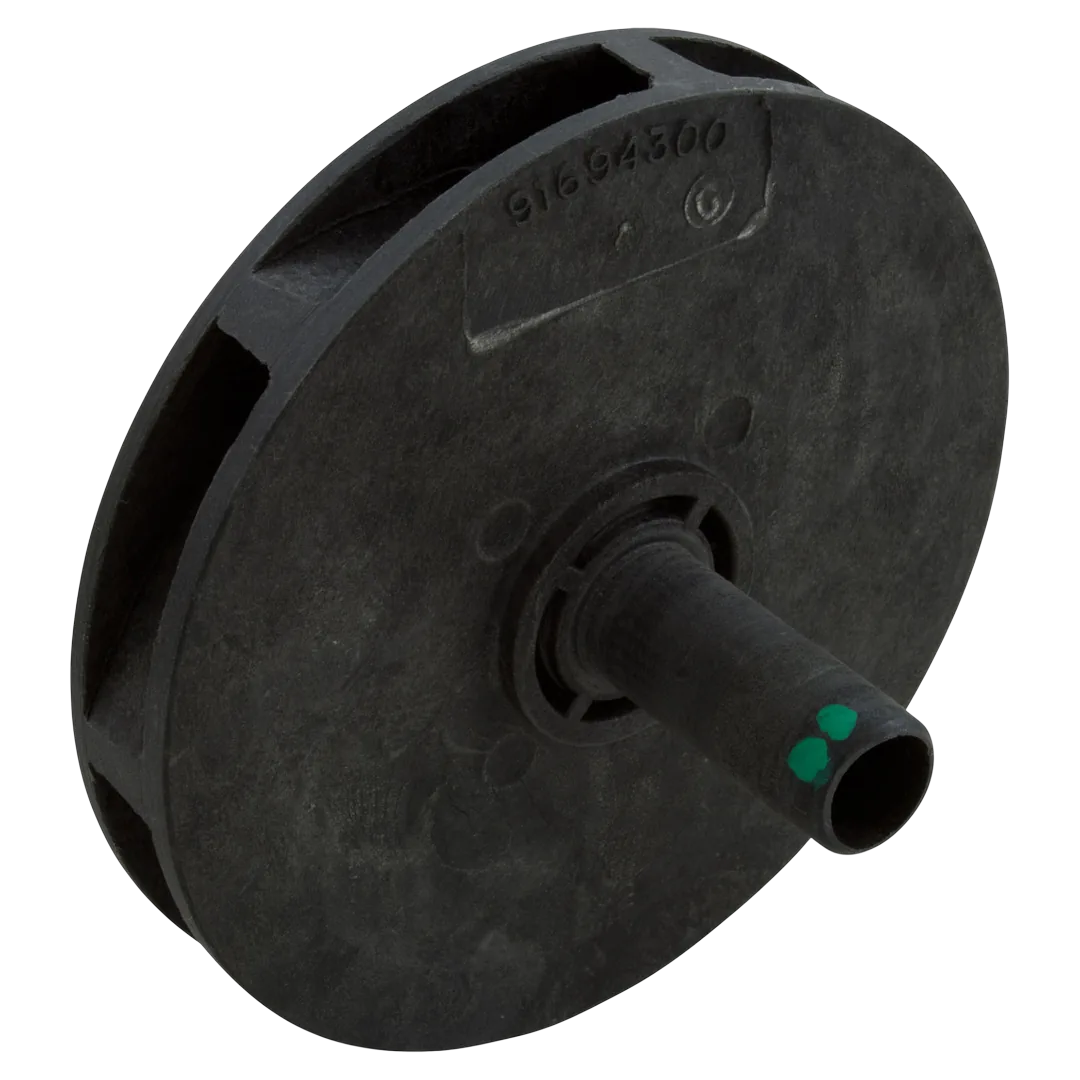

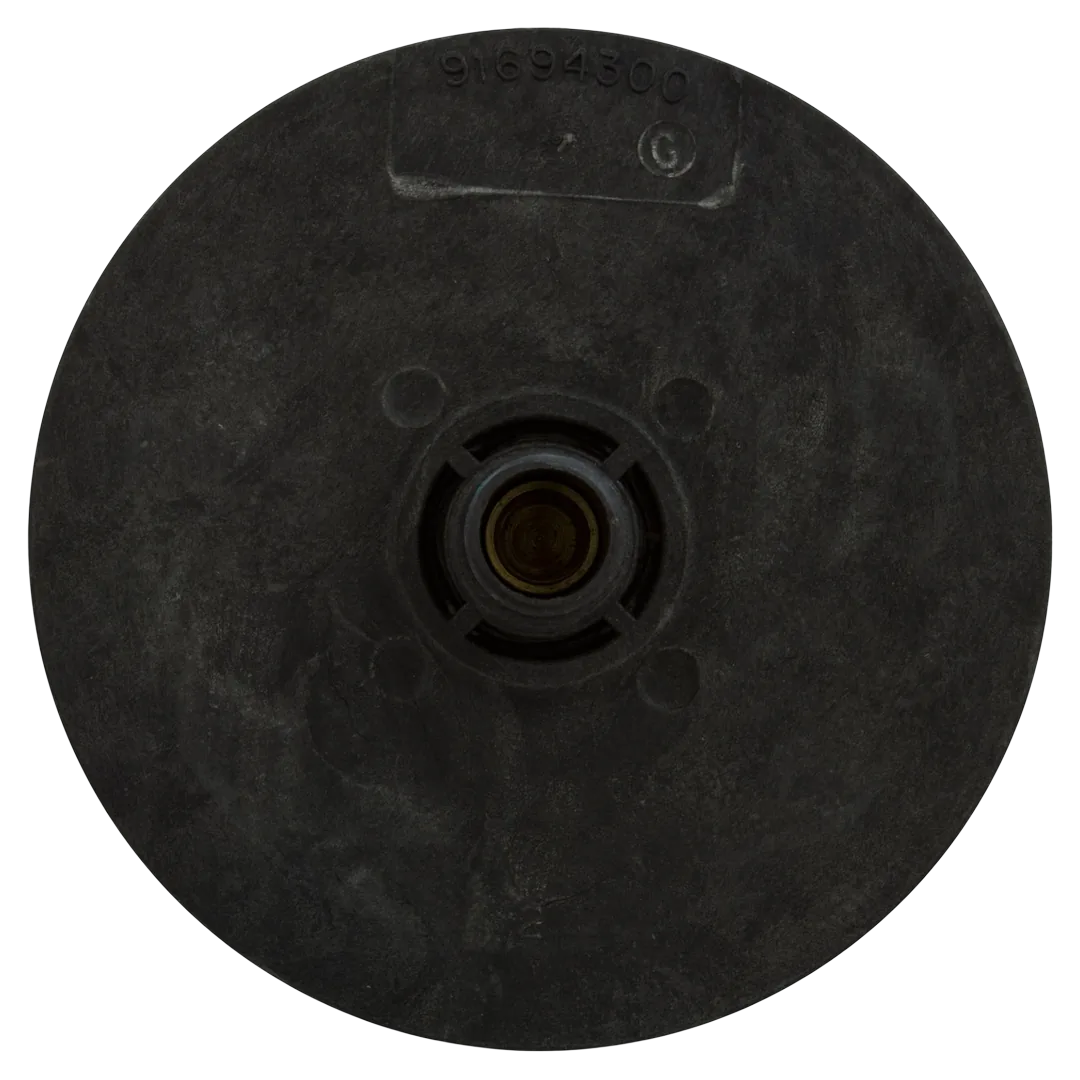

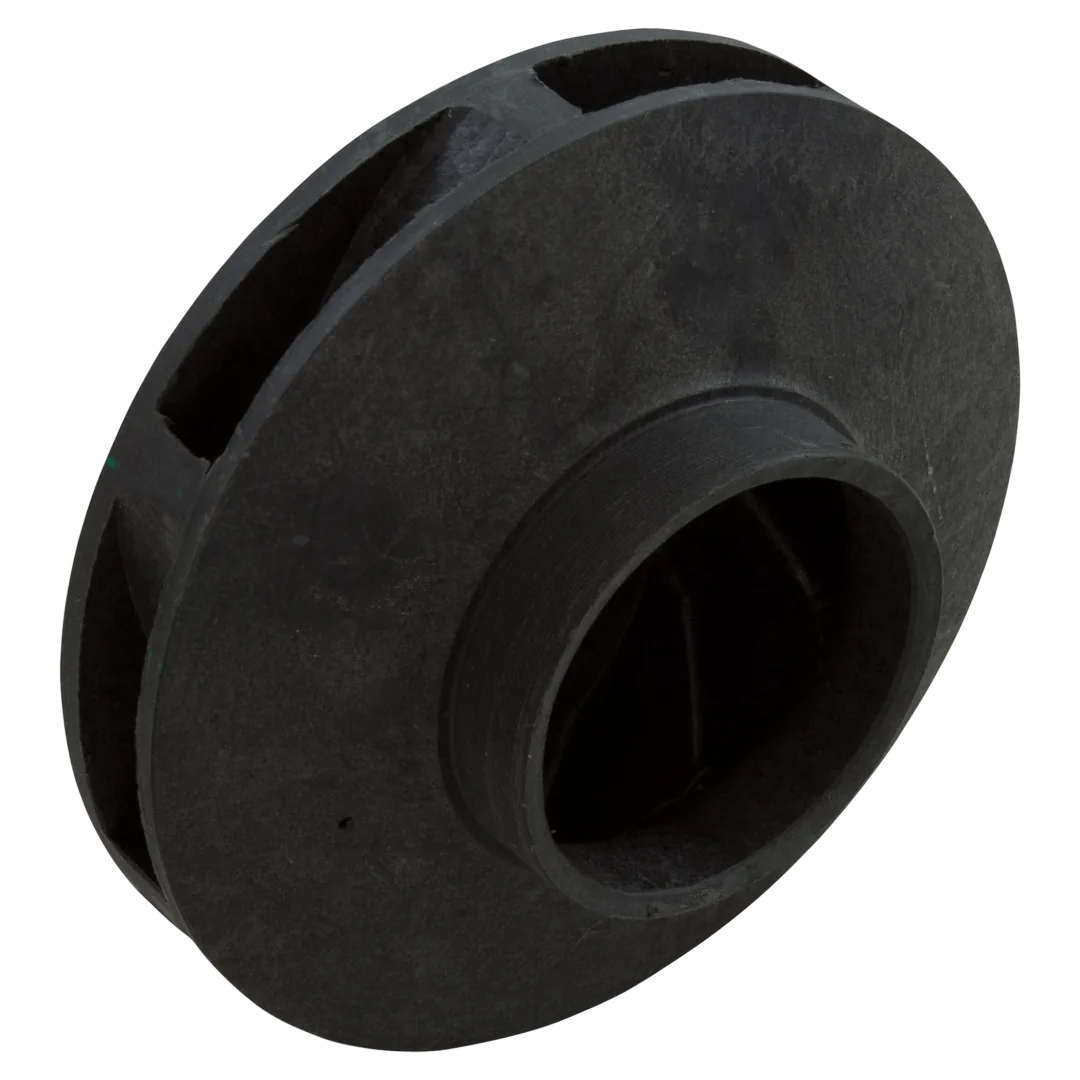

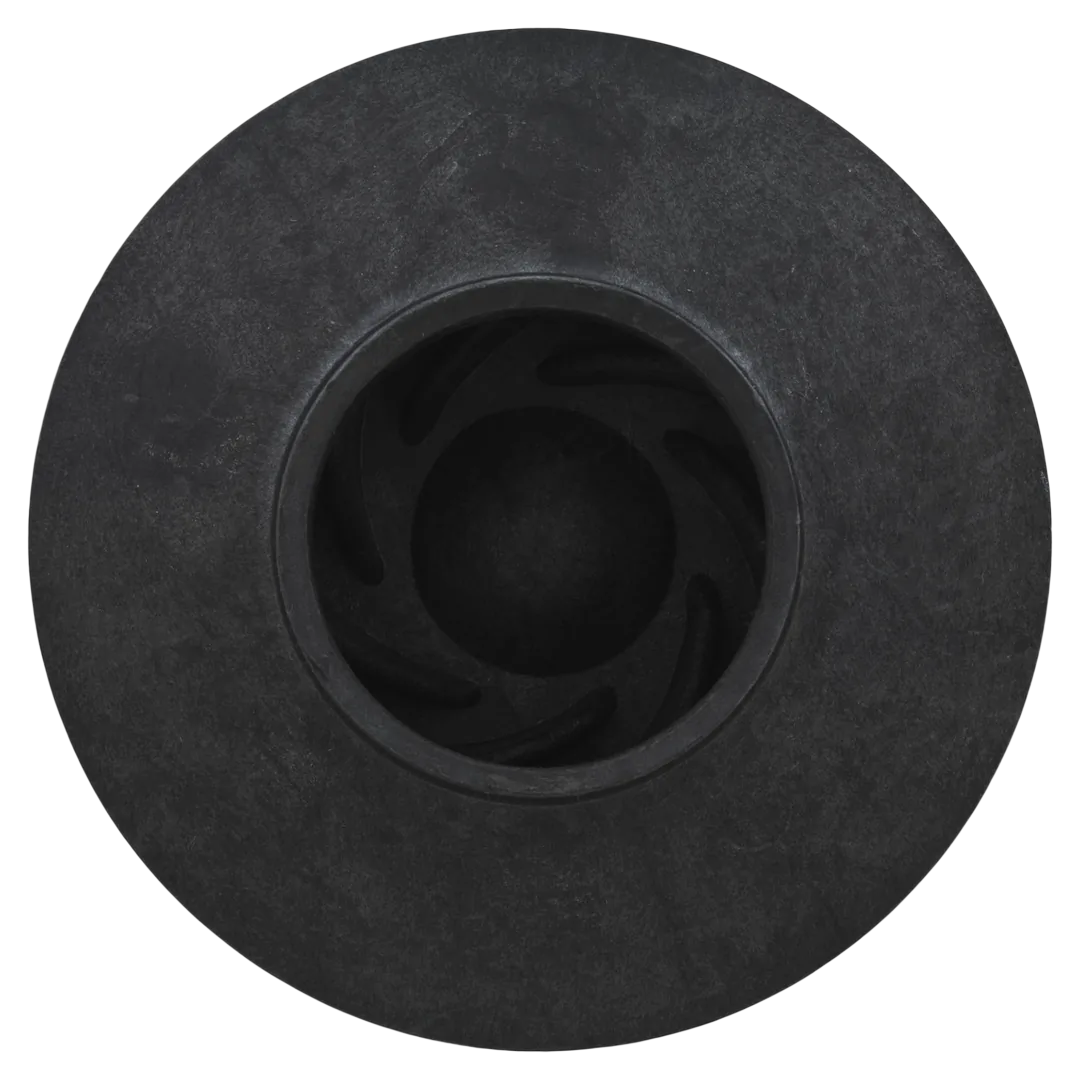

Gecko Aqua-Flo XP2 3 HP Impeller
Aquaflo/Gecko | SKU:
91694300
$5000/ea
Unit price
/
Unavailable
Gecko Aqua-Flo XP2 3 HP Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The AquaFlo/Gecko 91694300 is an XP2 pump impeller rated for 3.0 operational horsepower and 4.0 total horsepower. It features a closed face design with an impeller diameter of 4-3/8 inches, a vane width of 7/16 inch, and an eye diameter of 2-1/8 inches. This impeller is compatible with Aqua-Flo by Gecko FMXP and FMXP2 series pumps, specifically intended for use in spa and hot tub applications.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko Aqua-Flo XP2 3.0 HP Impeller |
| Part Number | 91694300 |
| Part Type | Impeller |
| Compatibility | Aqua-Flo XP2 and XP2e 3.0 HP pumps |
| Substitute Part Numbers | AF91694300 |
| Includes | Impeller only |
| Material | Plastic |
| Shaft Outer Diameter | 0.63 inch |
| Impeller Diameter | 4.38 inch |
| Total Length | 3.11 inch |
| Vane Gap | 0.41 inch |
| Intake Inner Diameter | 1.87 inch |
| Intake Outer Diameter | 2.12 inch |
| Shipping Dimensions | 4.5 x 4.5 x 3 inch |
| Product Weight | 0.25 pound |
