Gecko Aqua-Flo TMCP Wet End 91041006-000
Aquaflo/Gecko | SKU:
91041006-000
$14800/ea
Unit price
/
Unavailable
Gecko Aqua-Flo TMCP Wet End 91041006-000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

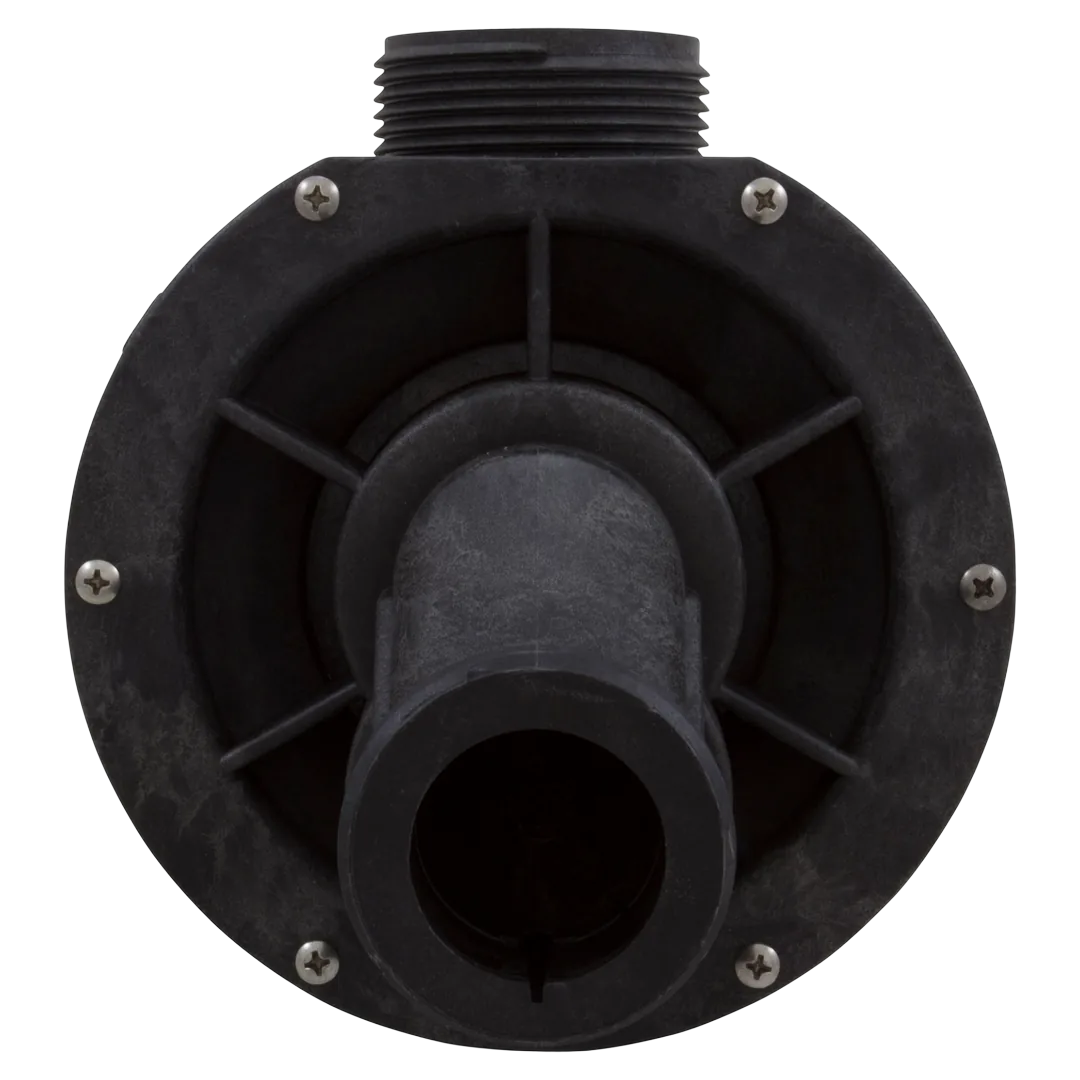

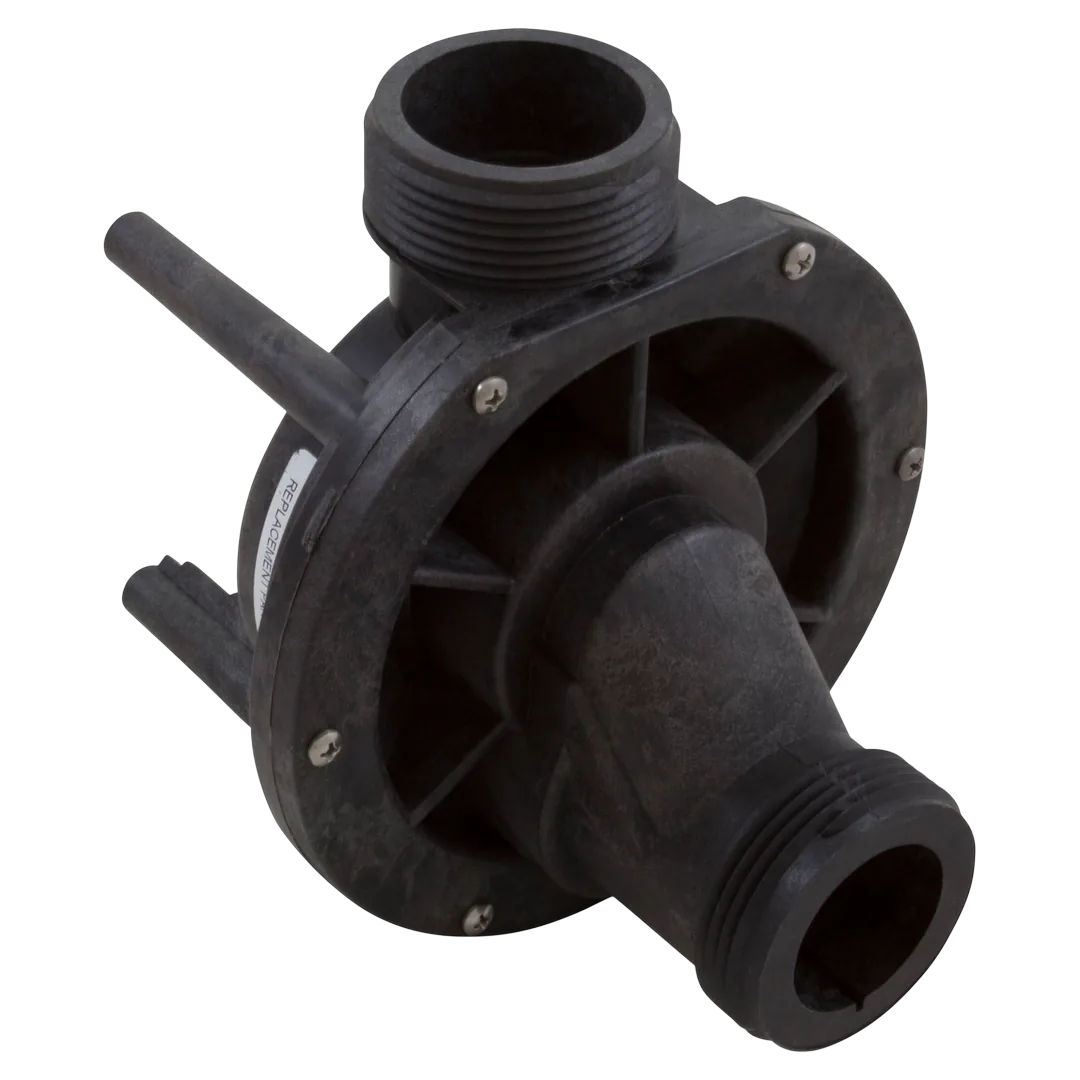

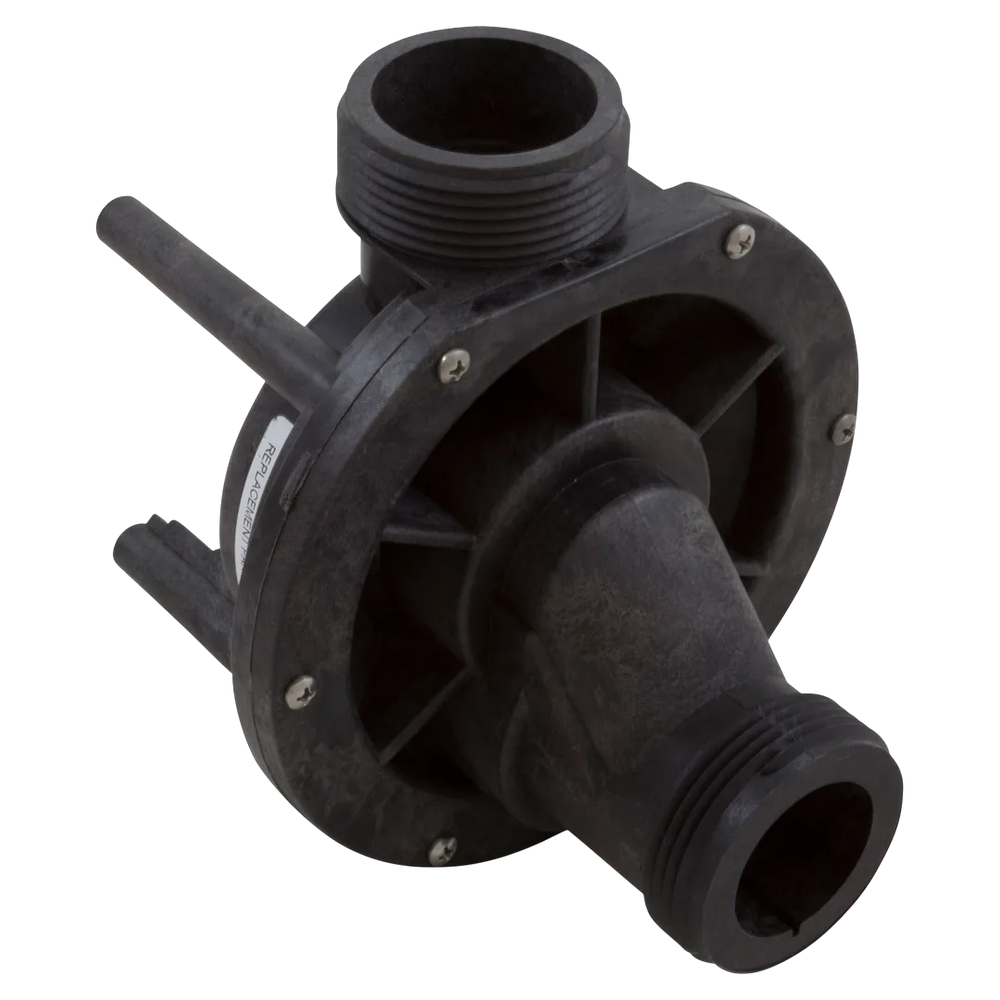

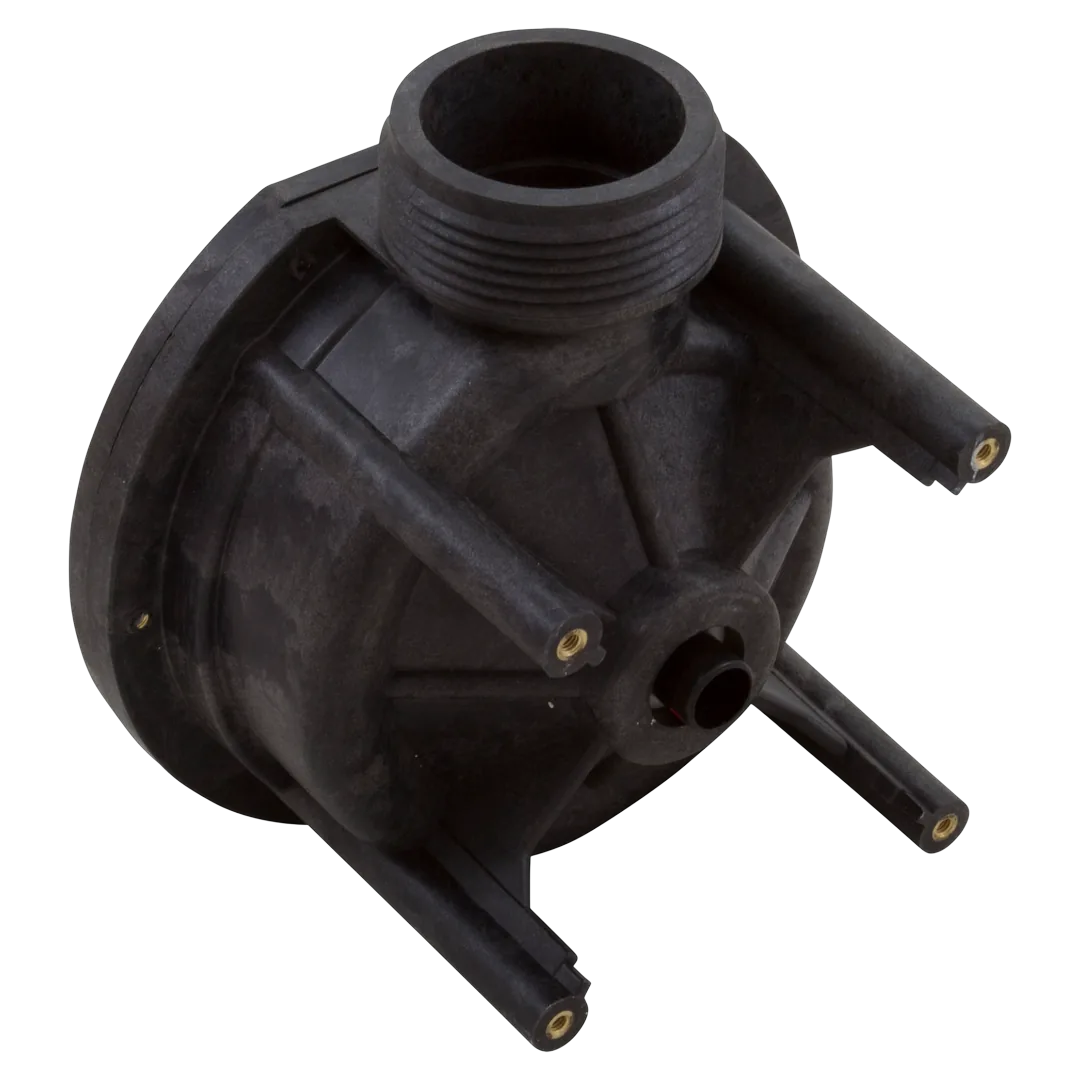

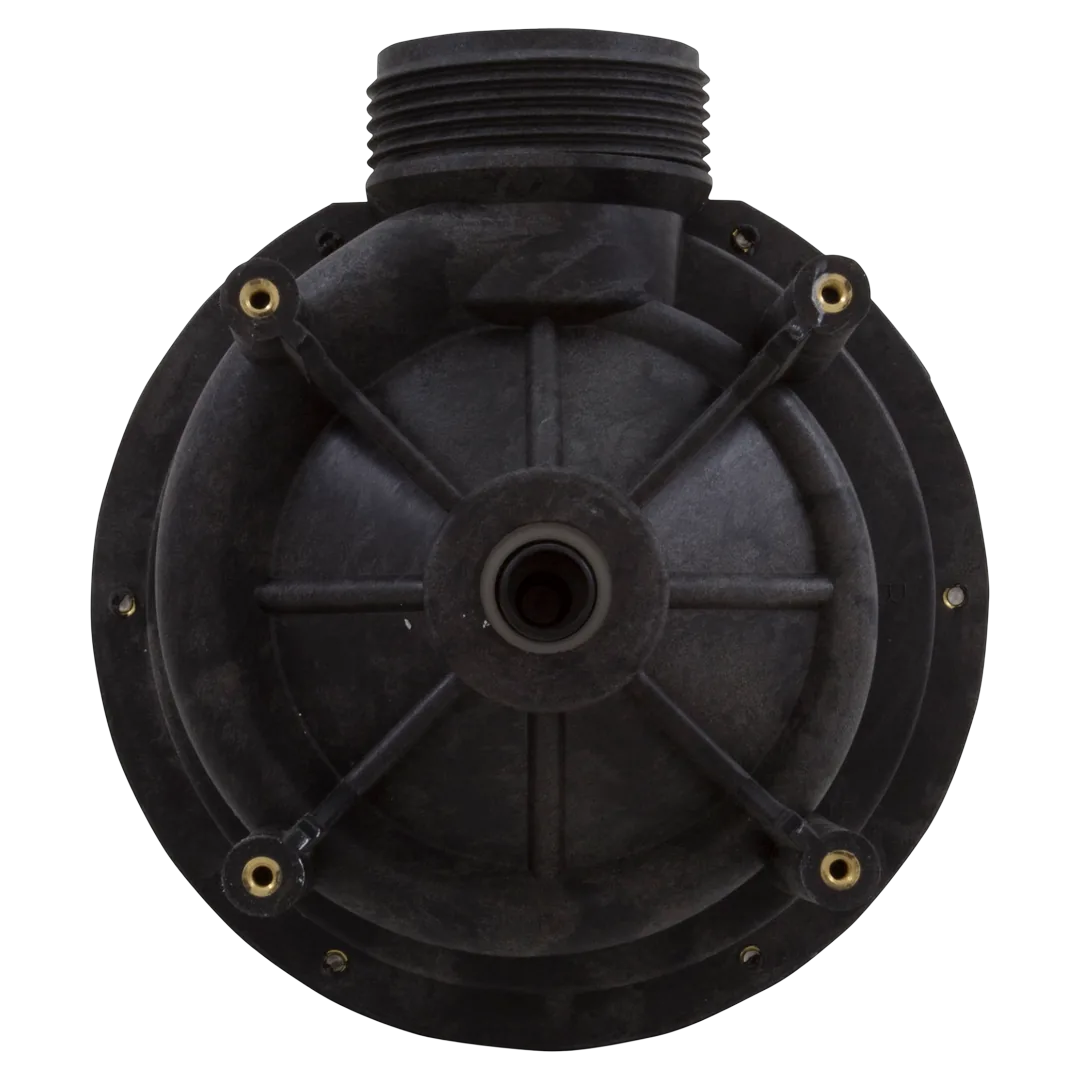

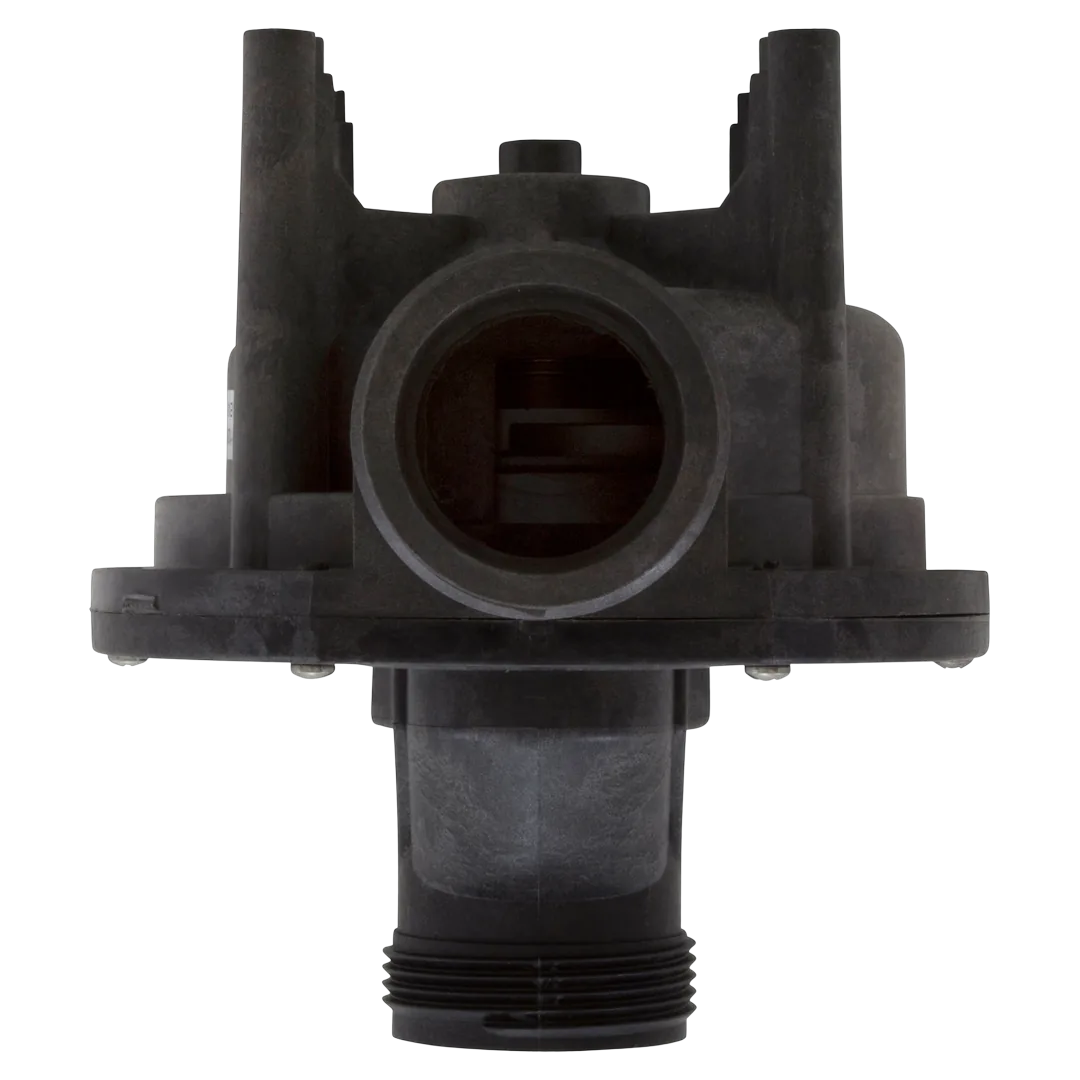

The Gecko AquaFlo 91041006-000 is a wet end designed for the TMCP series pumps, produced by AquaFlo. It is configured with a 0.75 horsepower output, featuring bottom suction and center discharge with 1-1/2 inch MBT (Male Buttress Thread) connections and suits a 48-frame through-bolt motor. This wet end includes all necessary interior parts and is designed to replace or upgrade components in TMCP model pumps.
Includes: Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Aqua-Flo by Gecko 91041006-000 Wet End Assembly |
| Part Number | 91041006-000 |
| Part Type | Pump Part |
| Compatibility | Designed for 3/4 HP, 48Y frame, thru-bolt style motors compatible with single or dual-speed motors |
| Substitute Part Numbers | 91041005-000 |
| Includes | Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws |

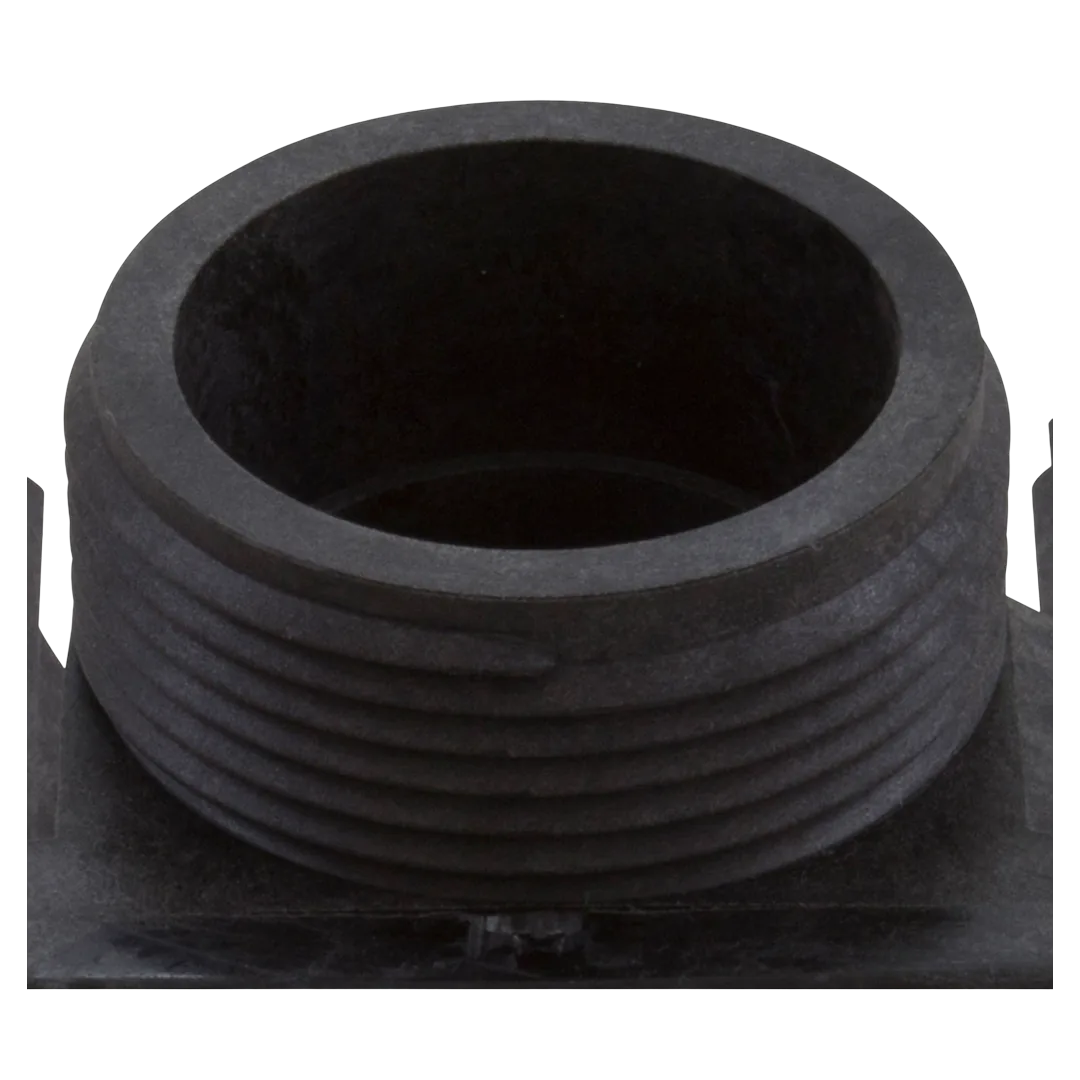

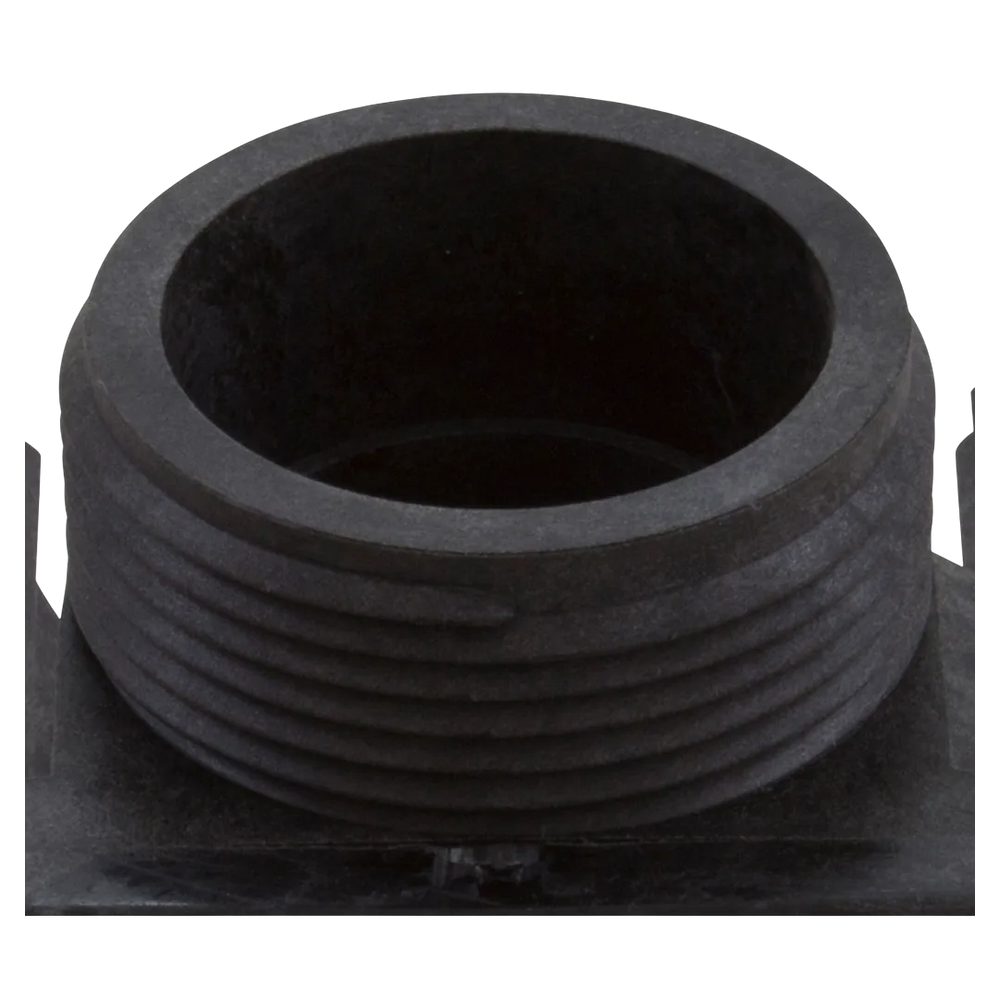

| Connection Size | 1.5-inch MBT suction and discharge ports |
| Mount Type | 48Y frame, thru-bolt style motor mount |
| Flow Paths | Bottom suction, center discharge |
| Shipping Dimensions | 20 x 10 x 9.5 inch |
| Product Weight | 30.1 pound |
