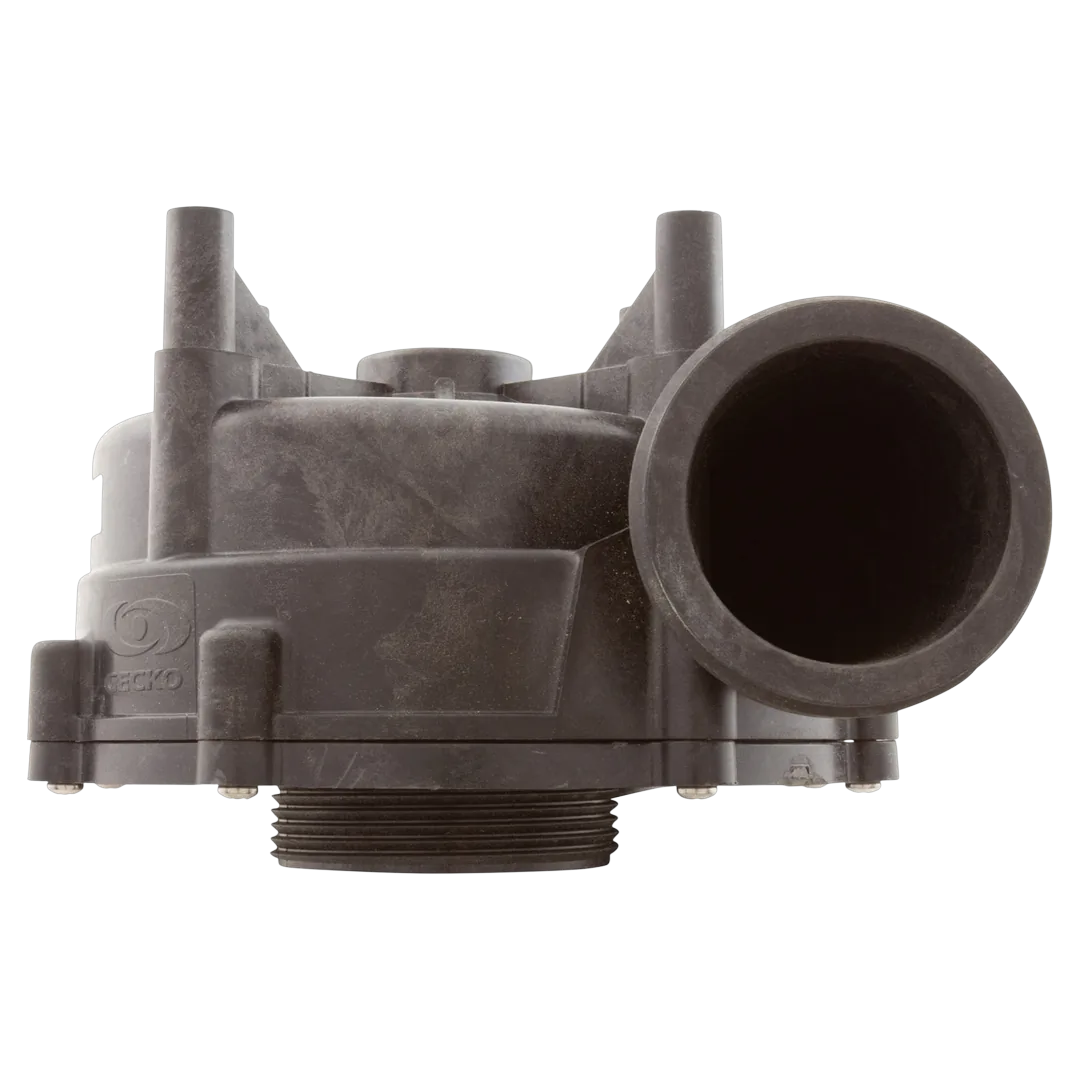

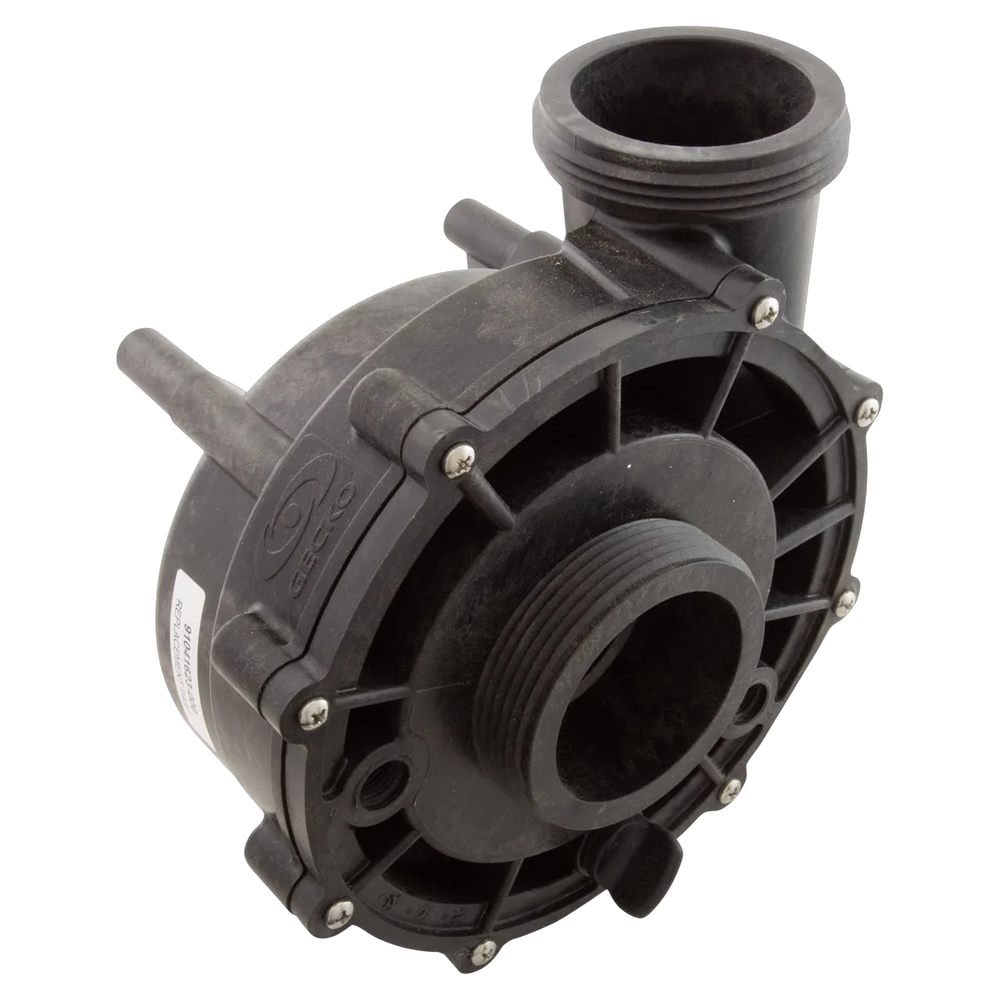

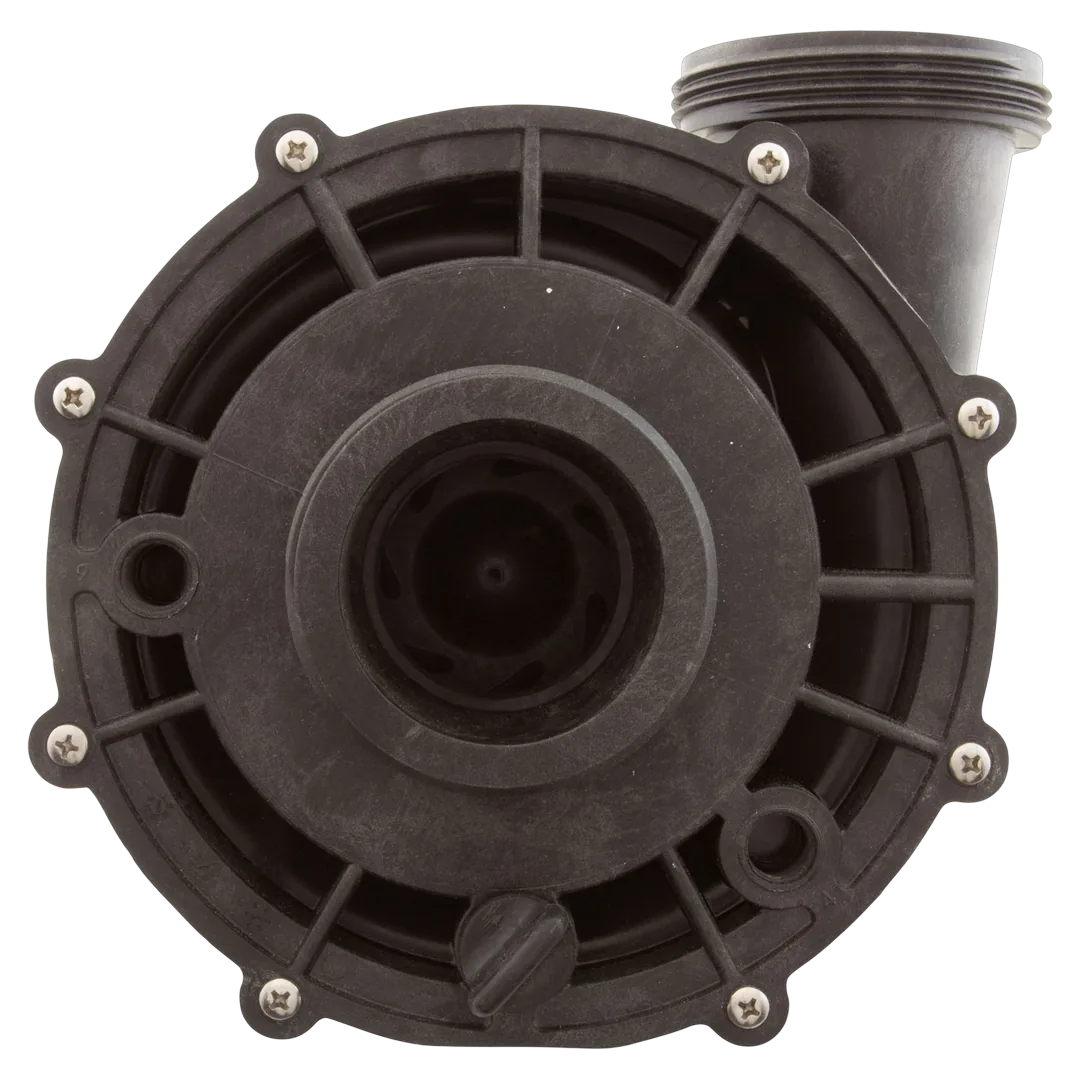

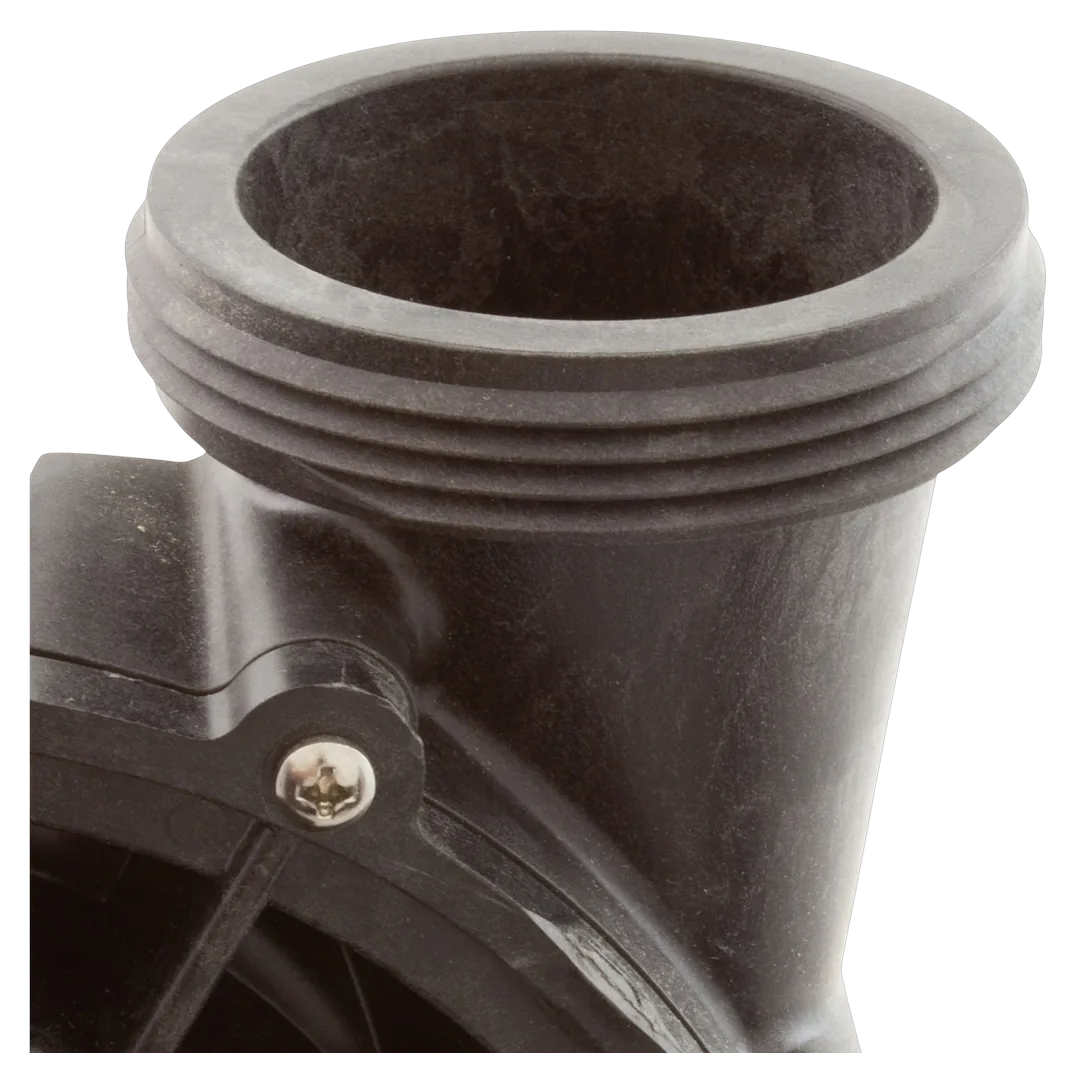

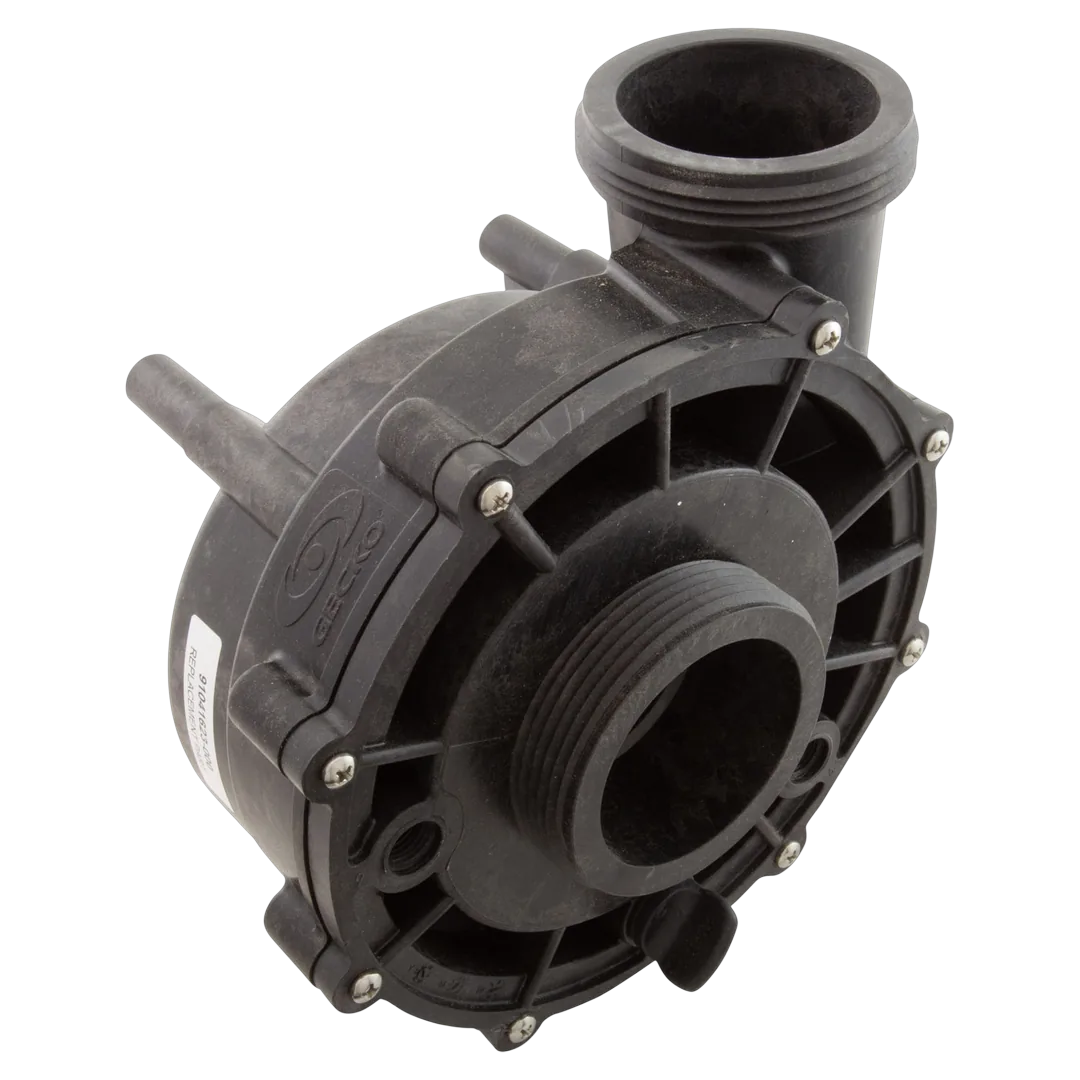

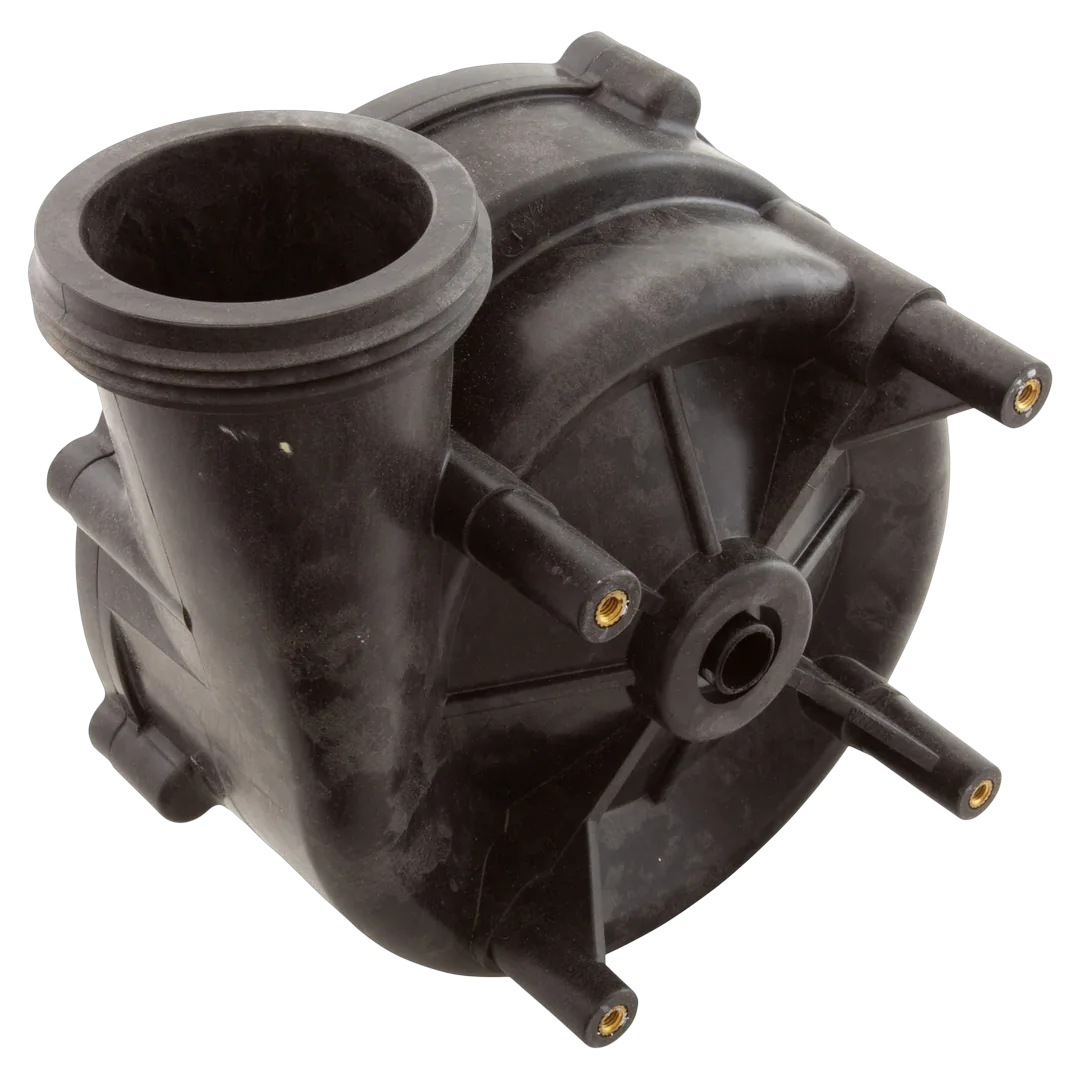

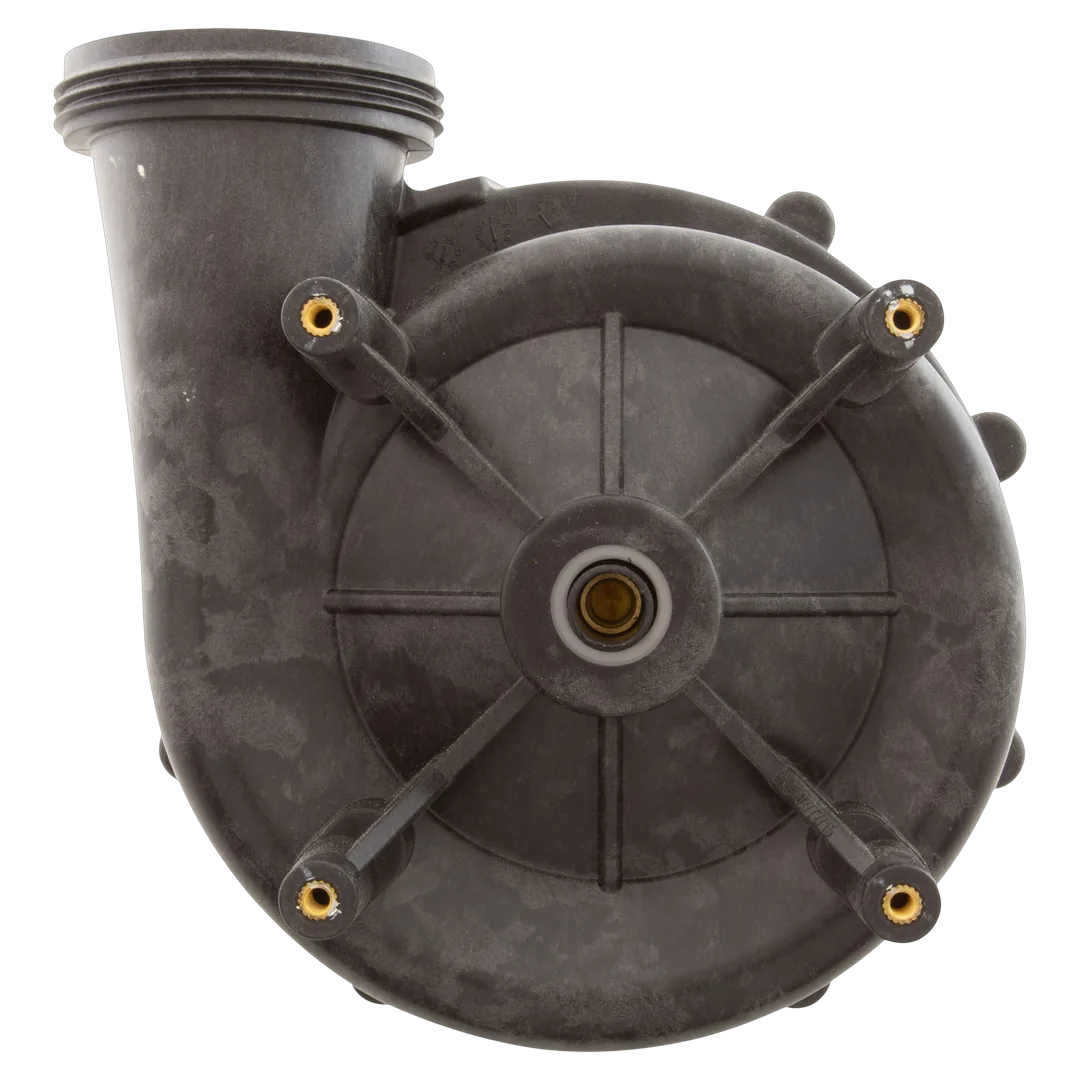

Gecko Aqua-Flo FMXP2 Wet End 91041623-000
Aquaflo/Gecko | SKU:
91041623-000
$13300/ea
Unit price
/
Unavailable
Gecko Aqua-Flo FMXP2 Wet End 91041623-000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Aquaflo/Gecko 91041623-000 is a wet end component specifically for the FMXP2 series pumps by Gecko Alliance. It is designed with a 2.5 horsepower capacity and features a high-flow impeller with four-position discharge orientation. The unit includes 2-inch male buttress thread (MBT) connections and is compatible with 56-frame motors, particularly those with a 6.1-inch diameter.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Aquaflo/Gecko 91041623-000 |
| Part Number | 91041623-000 |
| Part Type | Pump Part |
| Compatibility | Gecko AquaFlo FMXP2 2.5 HP 56 Frame Wet End |
| Substitute Part Numbers | 434064, AF91041623, AQF91041623100 |
| Includes | Impeller only |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4-3/8 inches |
| Vane Width ID | 1/4 inch |
| Eye Diameter OD | 2-1/8 inches |
| Eye Length | 11/16 inch |
| Impeller Thickness OD | 1/2 inch |
| Seal Seat Depth | 1/8 inch |
| Shaft Length | 1-1/2 inches |
| Seal Seat Diameter OD | 1-1/4 inches |
| Shipping Dimensions | 4.5 x 4.5 x 3 inch |
| Product Weight | 0.5 pound |
