Gecko Aqua-Flo FMHP Wet End 1 HP
Aquaflo/Gecko | SKU:
91040700-000
$11200/ea
Unit price
/
Unavailable
Gecko Aqua-Flo FMHP Wet End 1 HP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

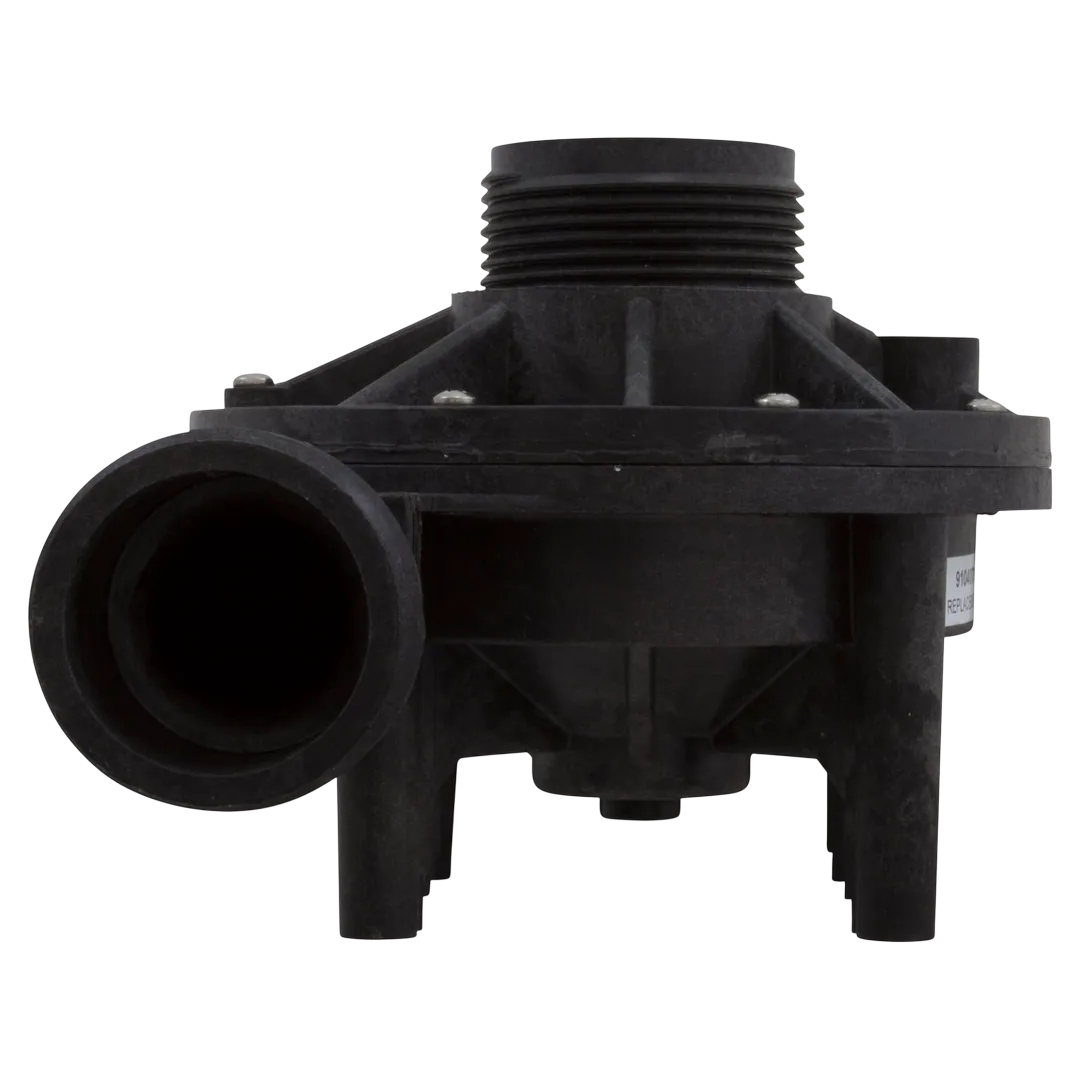

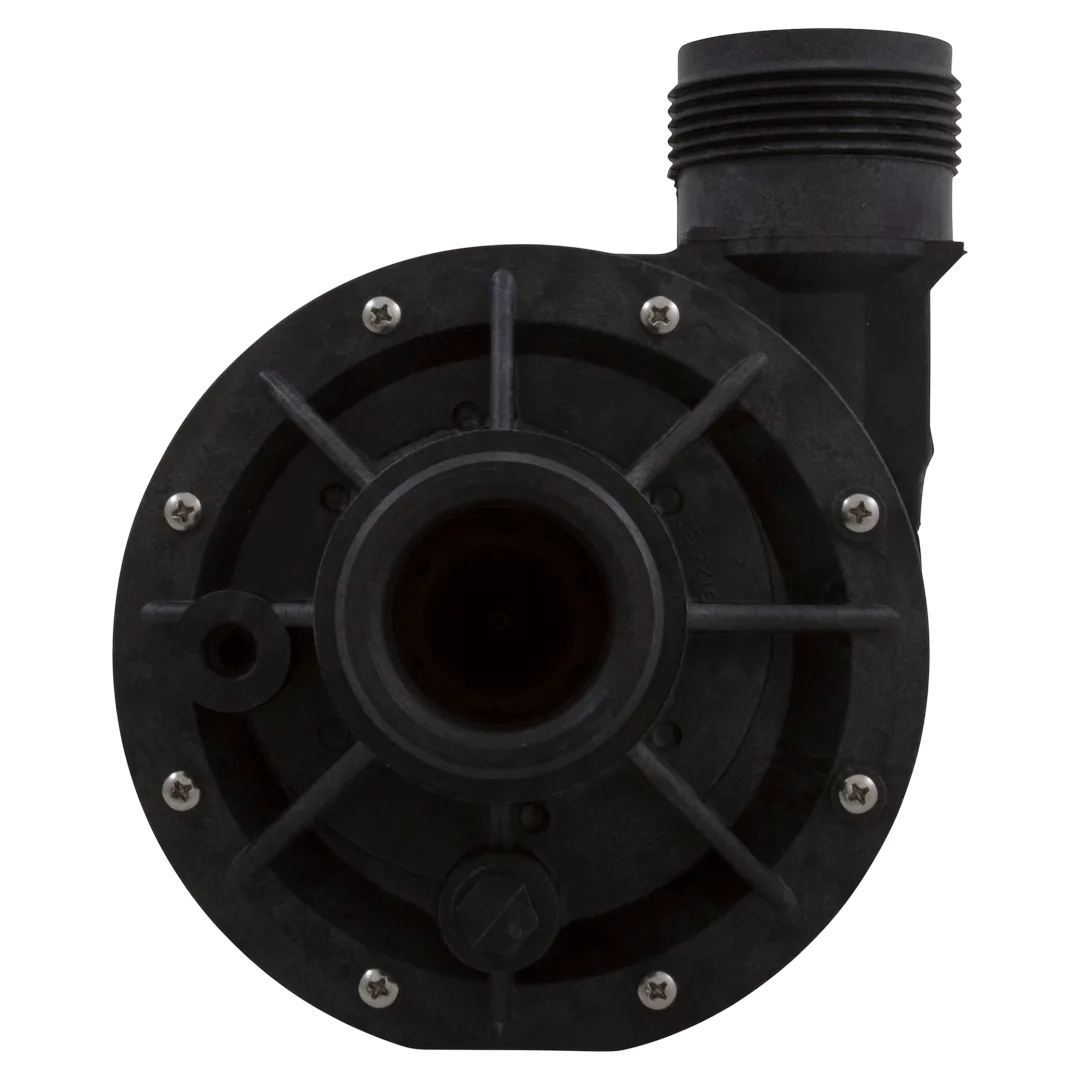

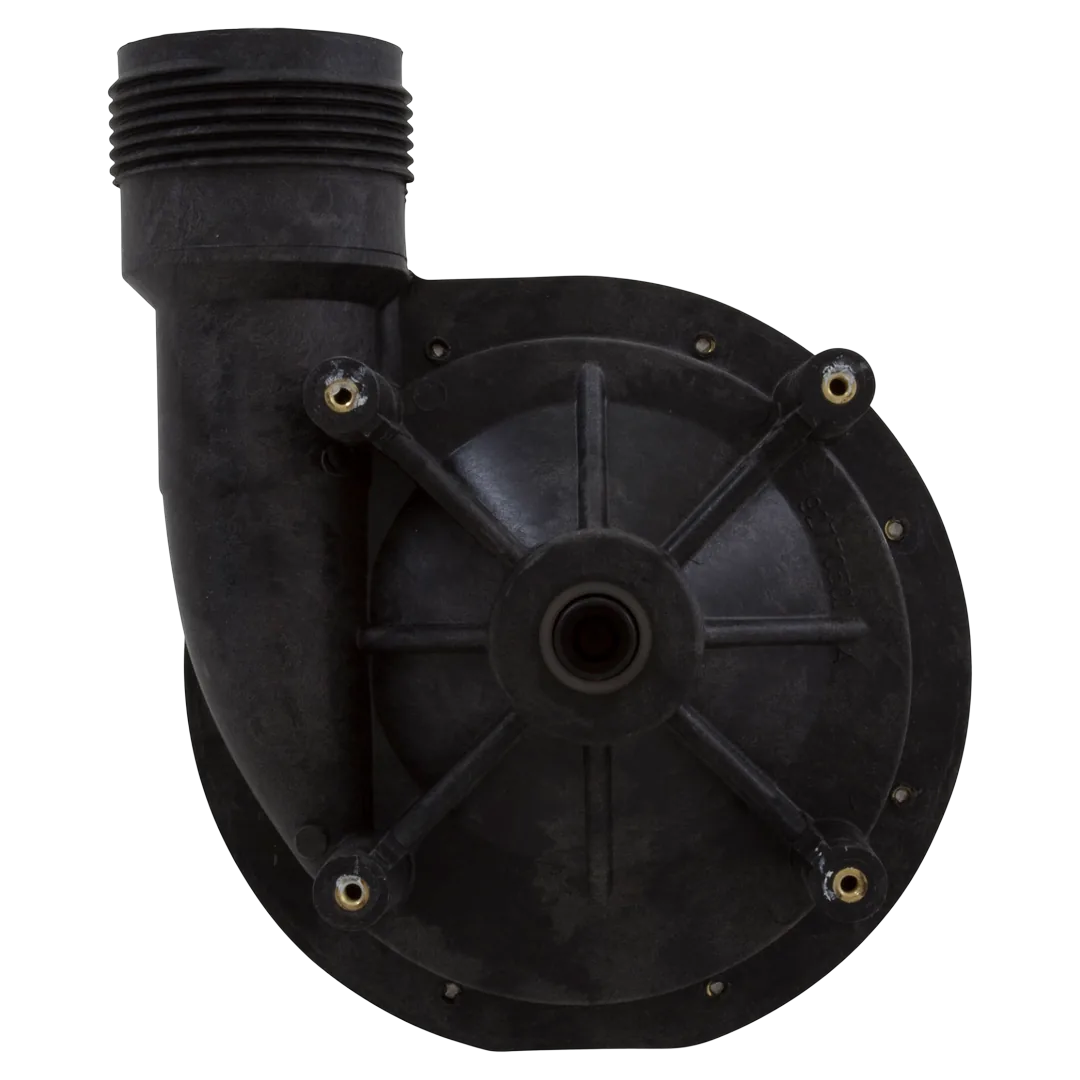

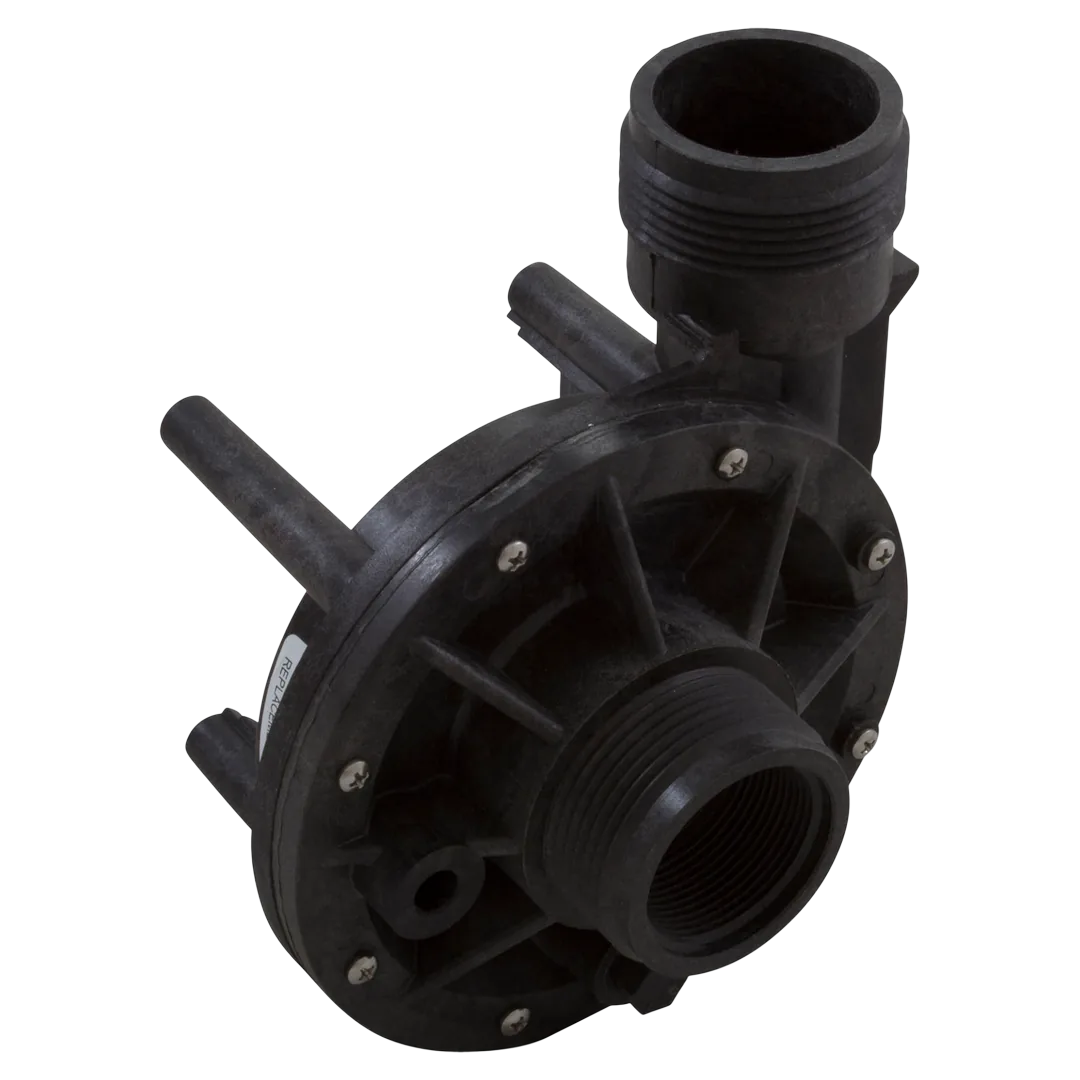

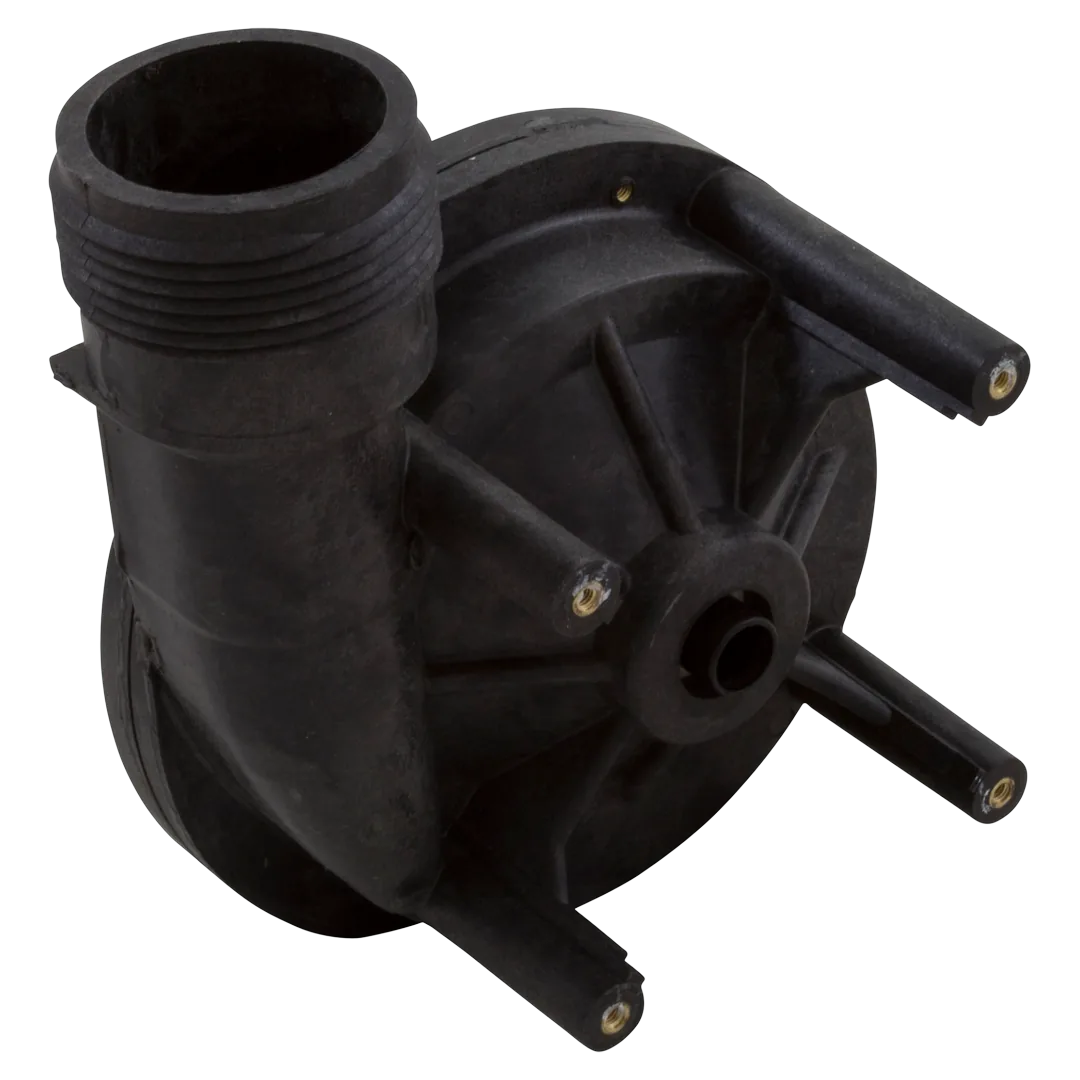

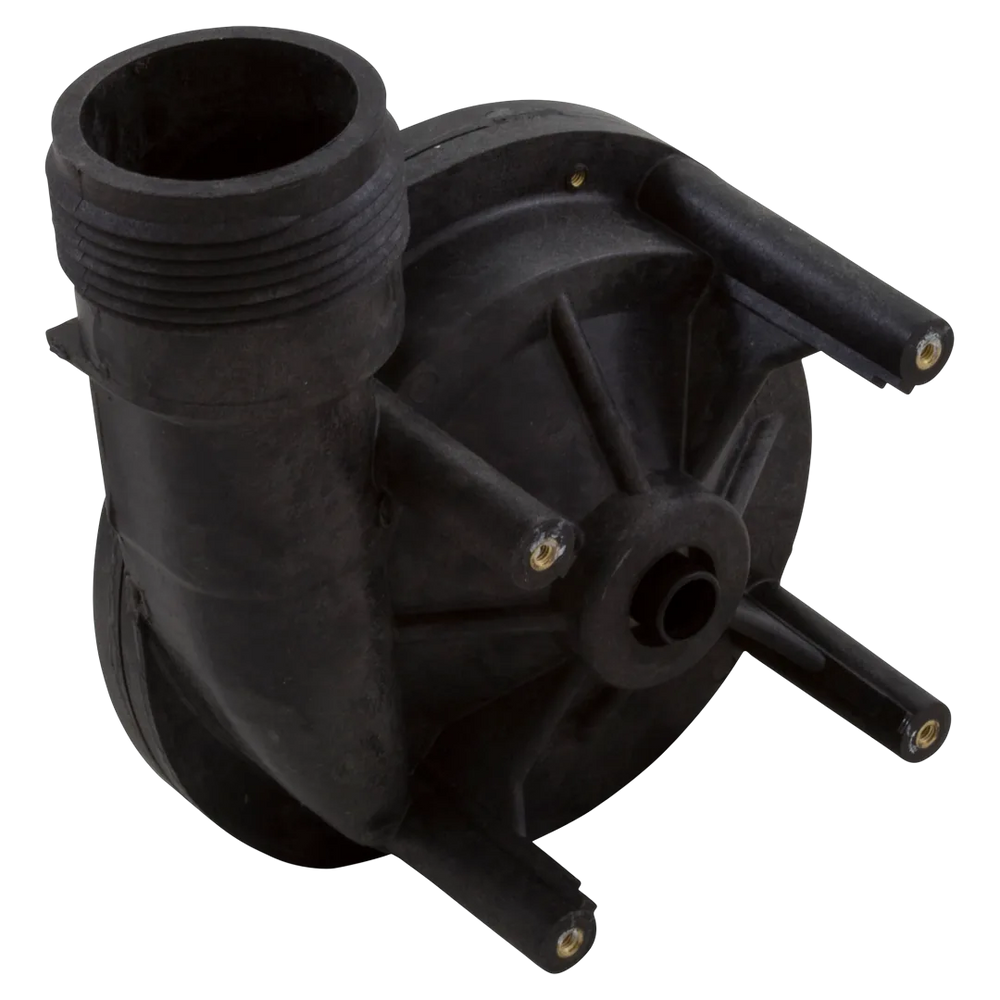

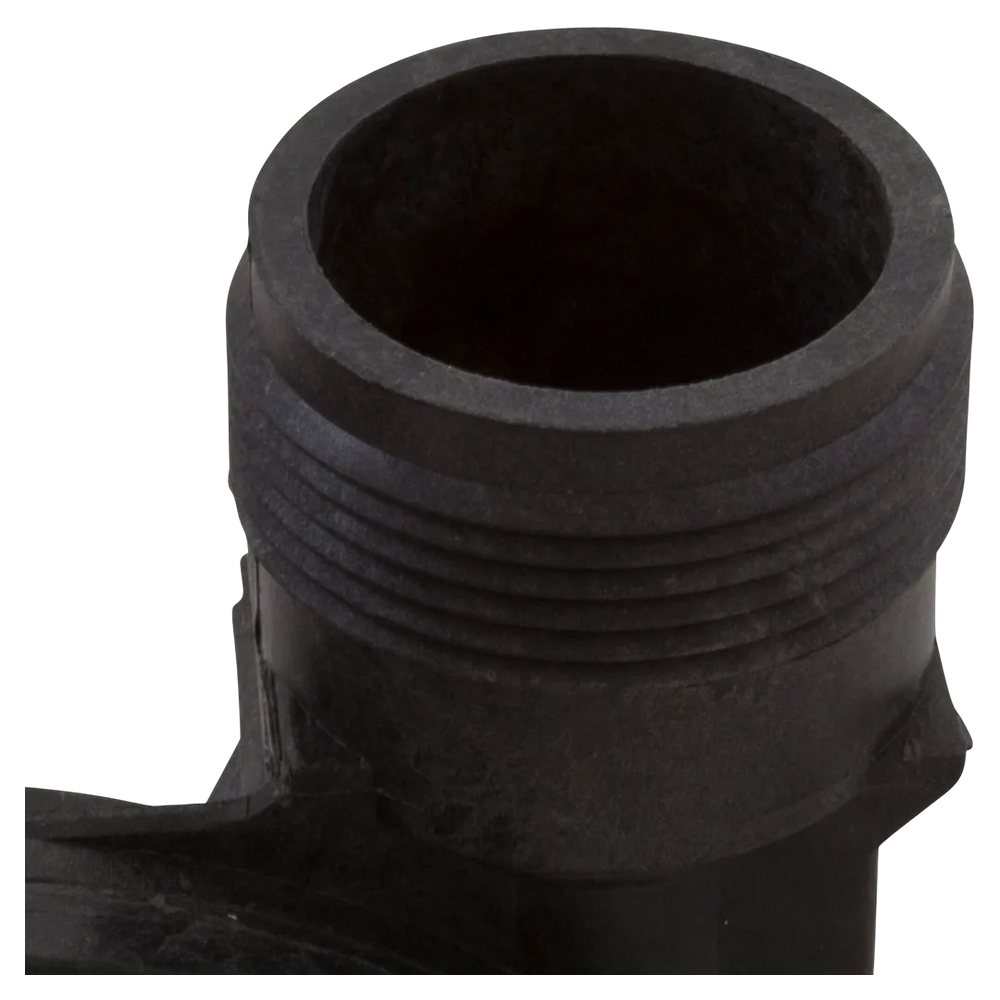

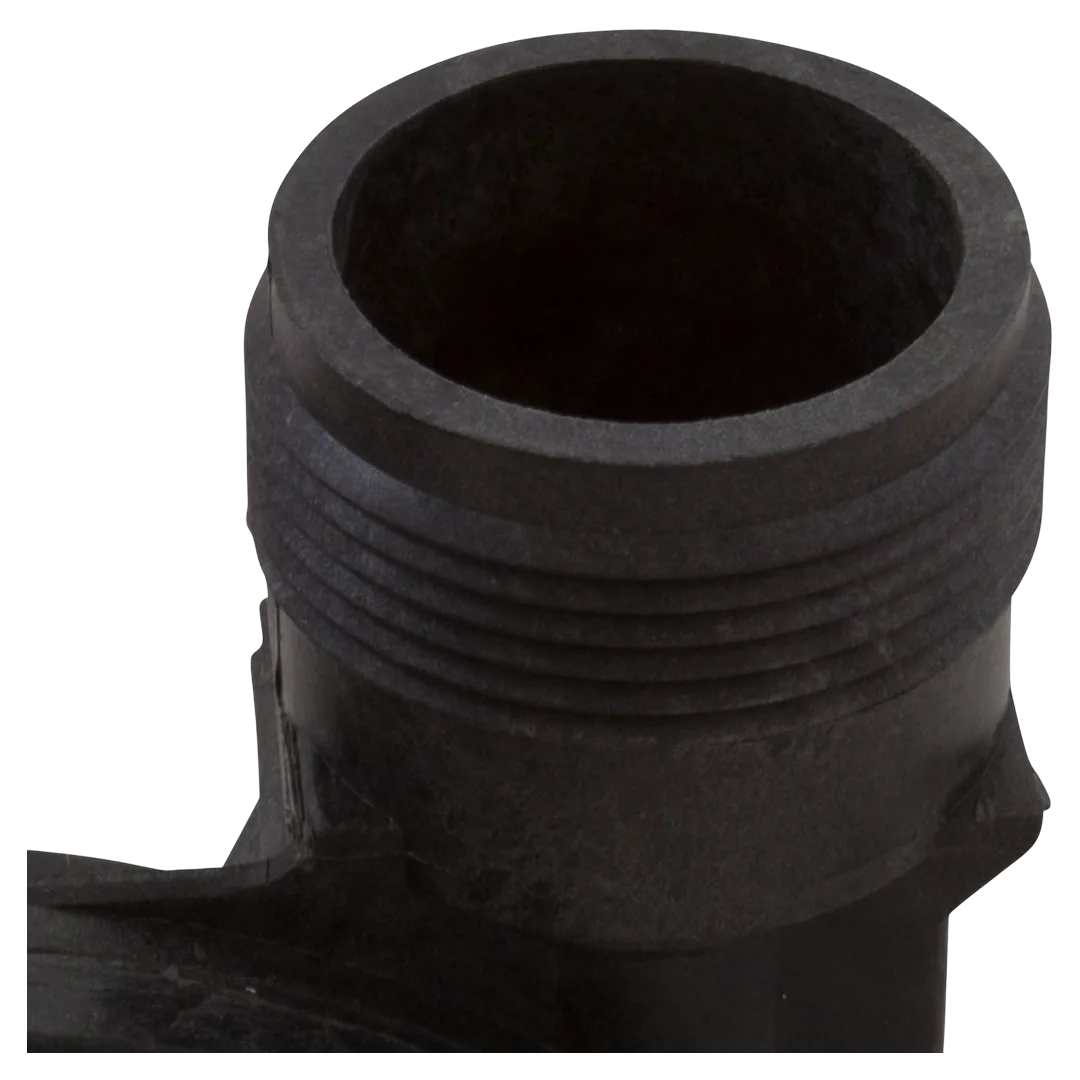

The Aqua-Flo/Gecko 91040700-000 is a 1 HP wet end assembly for the Flo-Master HP Series pumps. It includes components such as a volute, seal, impeller, wear ring, suction cover with O-ring, and drain plug with O-ring. This assembly is specifically designed for 48 frame motors with 1-1/2" buttress thread connections, compatible with the Flow-Master FMHP series spa pumps.
Includes: Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko 1 HP 48 Frame Flo-Master HP Wet End Assembly |
| Part Number | 91040700-000 |
| Part Type | Pump Part |
| Compatibility | Fits 1.0 HP, 48Y frame, thru-bolt style motors compatible with both single and dual speed motors |
| Substitute Part Numbers | 34-402-1024, AF91040700000 |
| Includes | Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws |
| Material | Plastic |
| Valve Type | Side discharge |
| Number of Positions | Can be rotated 90 degrees to change discharge position |
| Connection Size | 1.5 inch Male Buttress Thread (MBT) suction and discharge ports |
| Mount Type | 48 Frame Thru-Bolt |
| Flow Paths | Side discharge configuration |
| Pressure Rating | Not specified |
| Seal Material | Not specified |
| Shipping Dimensions | 7 x 7 x 6 inch |
| Product Weight | 2.5 pound |
