Gecko Aqua-Flo Circ-Master CMHP Pump
Aquaflo/Gecko | SKU:
02093000-2010
$31100/ea
Unit price
/
Unavailable
Gecko Aqua-Flo Circ-Master CMHP Pump is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

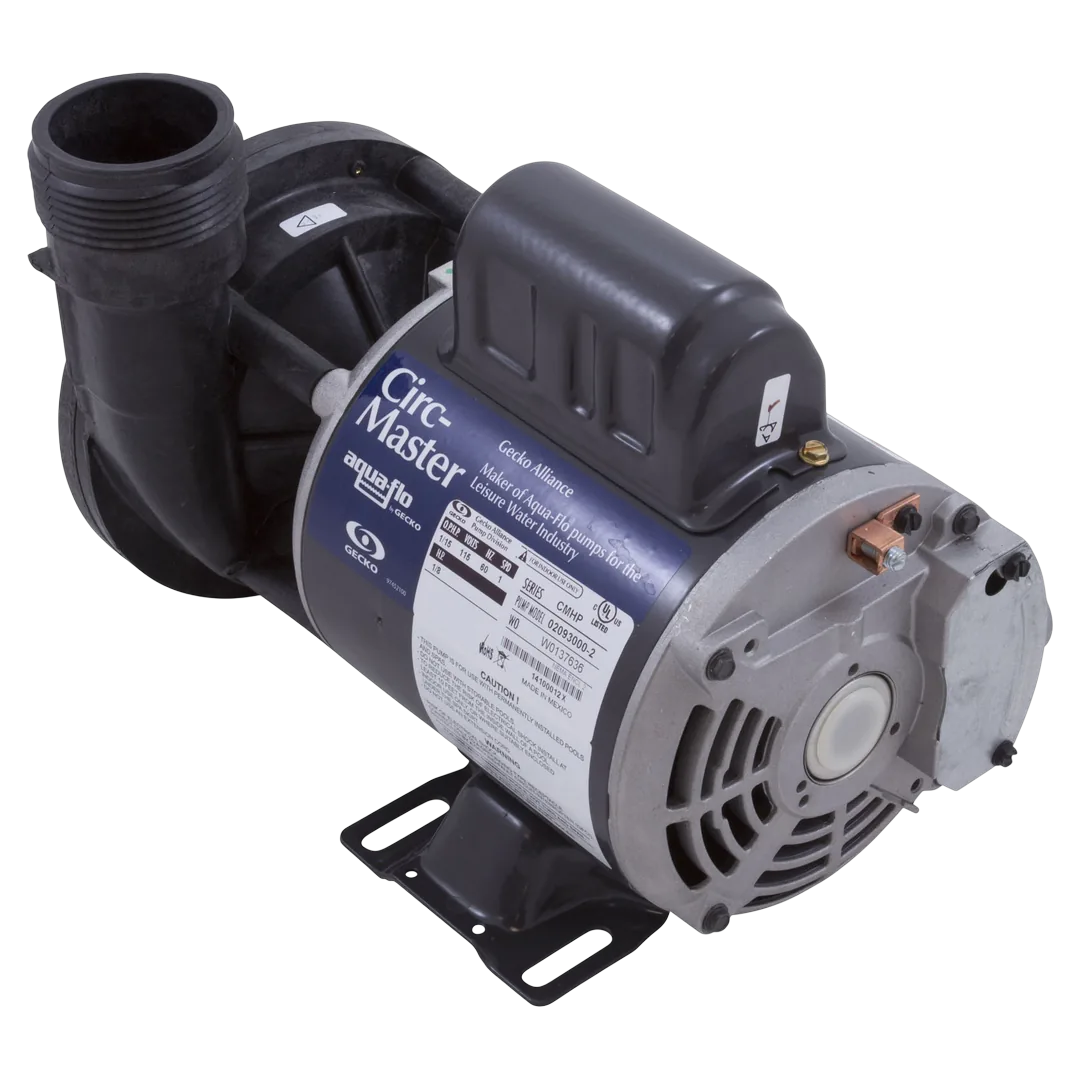

The Aqua-Flo by Gecko Alliance model 02093000-2010 is a Circ-Master CMHP series circulation pump featuring a 48 frame, continuous-duty construction. It includes front and rear permanently lubricated ball bearings and a carbon-graphite self-lubricating seal, designed for 115V single-speed operation at 1/15 HP. The pump is compatible with LX, Waterway Iron Might, and Balboa Circulation systems, with a side discharge design and a flow rate up to 40 GPM.

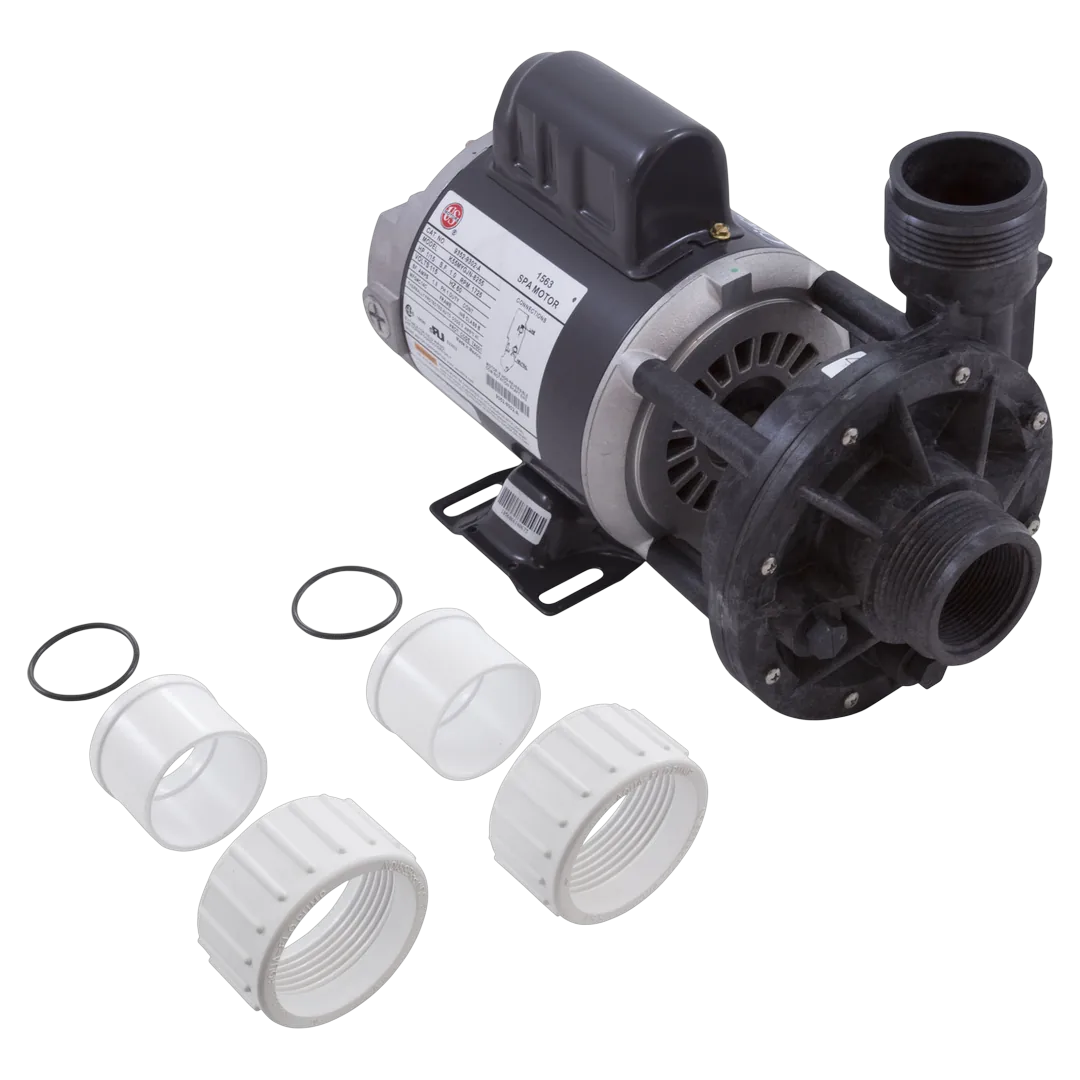

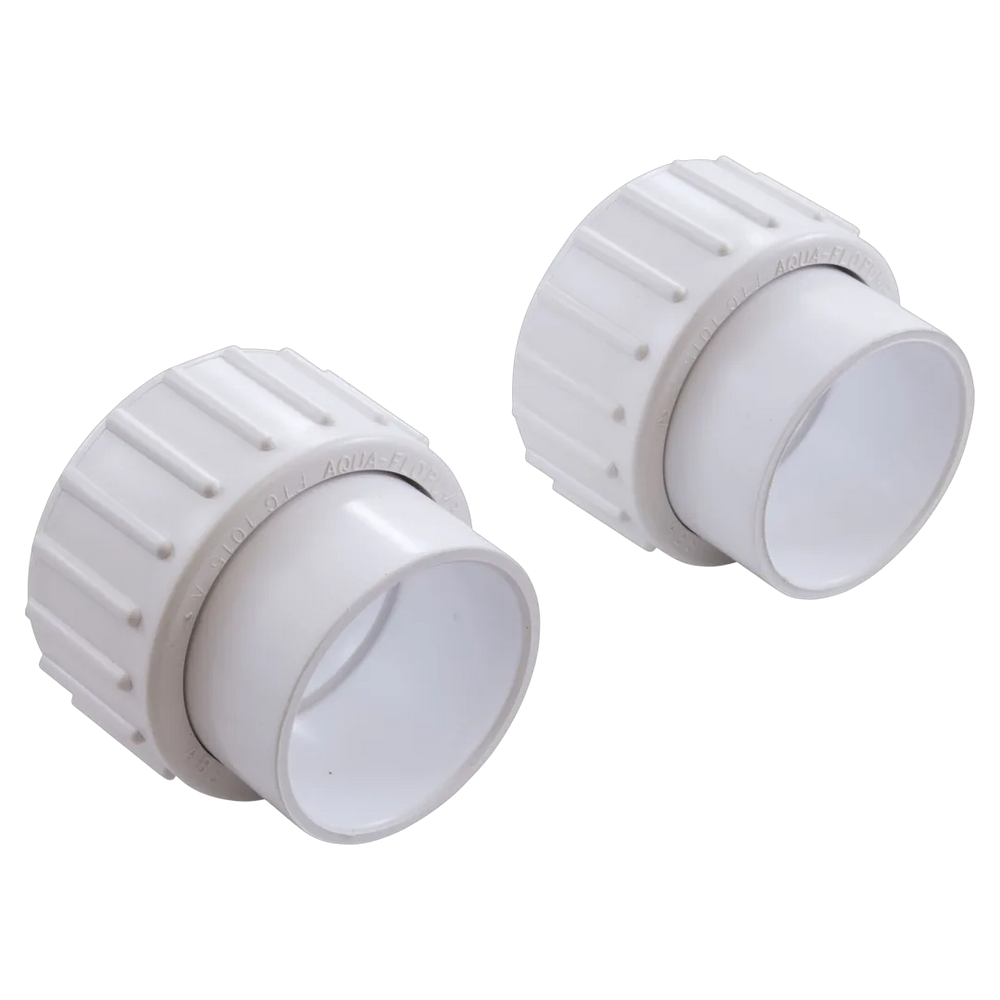

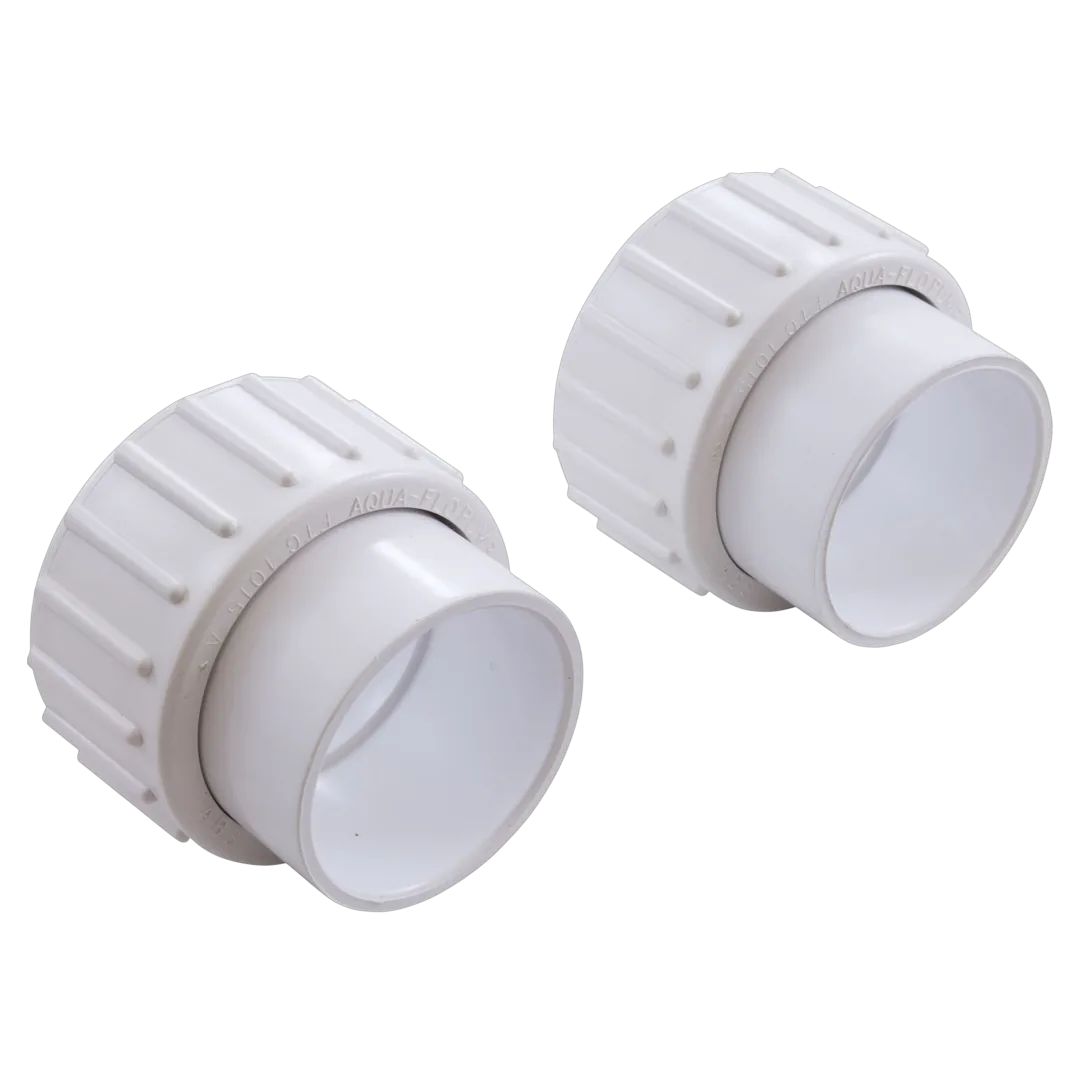

Includes: Pump only unions and gaskets included
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Aqua-Flo Circ-Master CMHP 1/15 HP 115V Spa Circulation Pump |
| Part Number | 02093000-2010 |
| Part Type | Pump Part |
| Compatibility | Designed exclusively for spas |
| Substitute Part Numbers | 02093001-1010, 2093644, 223151124528, 22315112469, 223151124832, 301638, 5127-004, 600831, AQF-10-391, K55MYGJN-8255, LT1/6L, LTACL, LTADL |
| Includes | Pump only unions and gaskets included |
| Certifications | California Title 20 Compliant |
| Material | Carbon-graphite self-lubricating seal |
| Connection Size | 1.5 inch suction and discharge |
| Mount Type | 48 Frame Thru-Bolt |
| Flow Paths | Side discharge |
| Pressure Rating | Up to 40 GPM |
| Seal Material | Carbon-graphite |
| Shipping Dimensions | 17.5 x 10 x 9.5 inch |
| Product Weight | 15.7 pound |
