Gecko Alliance Aqua-Flo 91693651 Impeller
Aquaflo/Gecko | SKU:
91693651
$5000/ea
Unit price
/
Unavailable
Gecko Alliance Aqua-Flo 91693651 Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

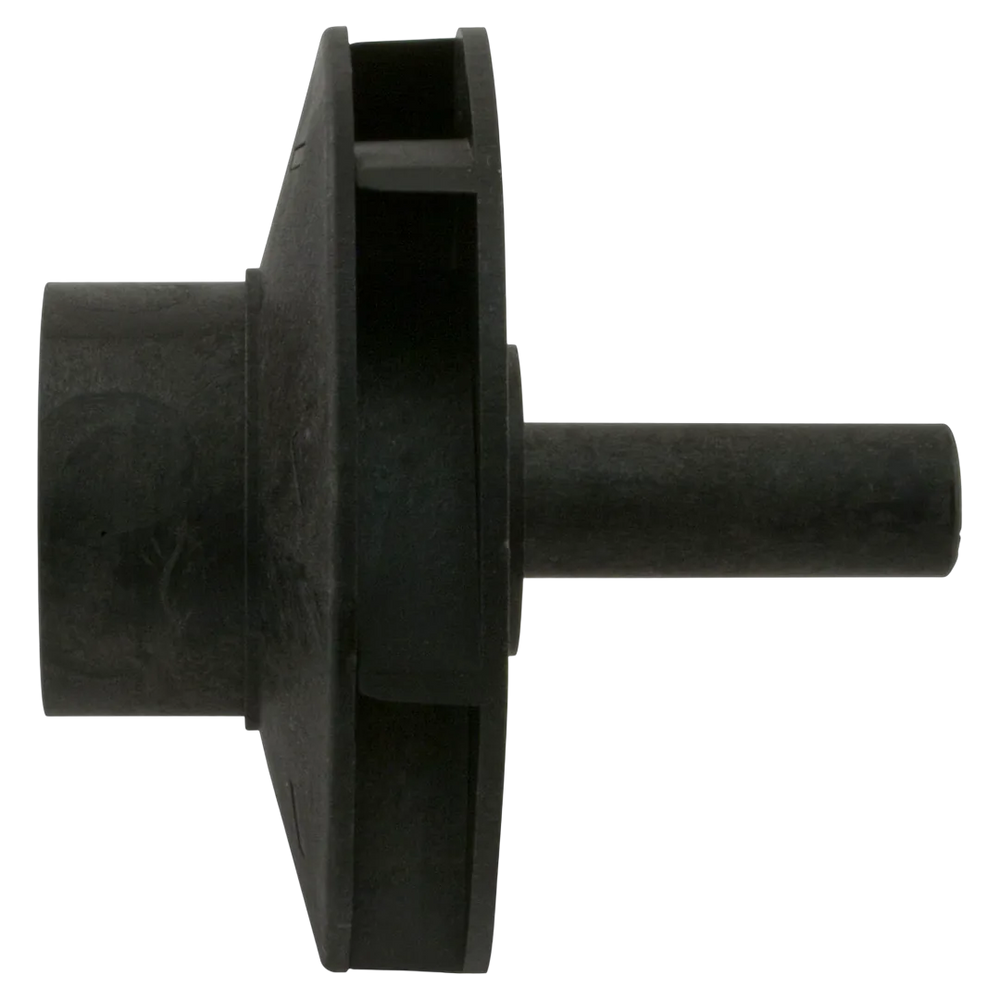

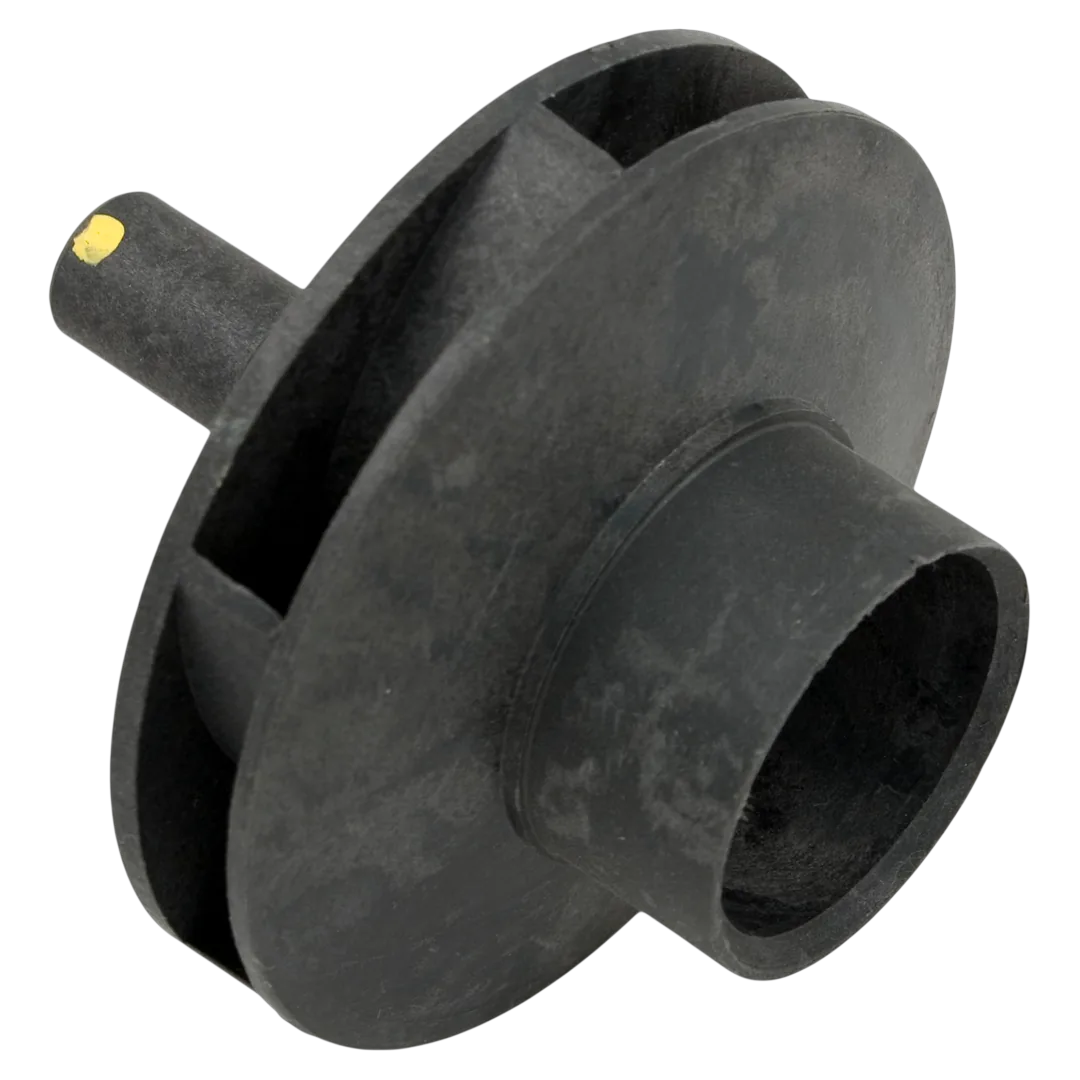

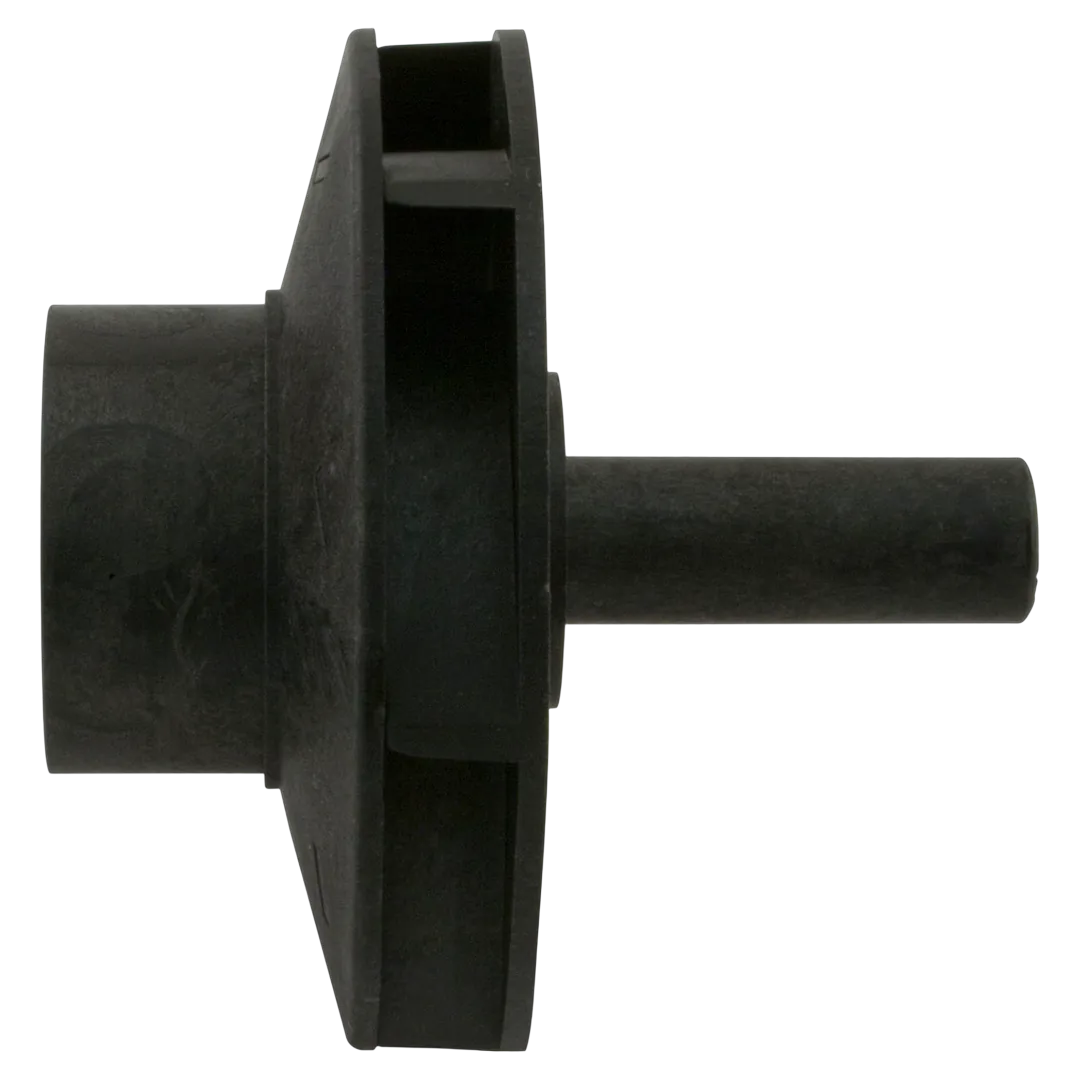

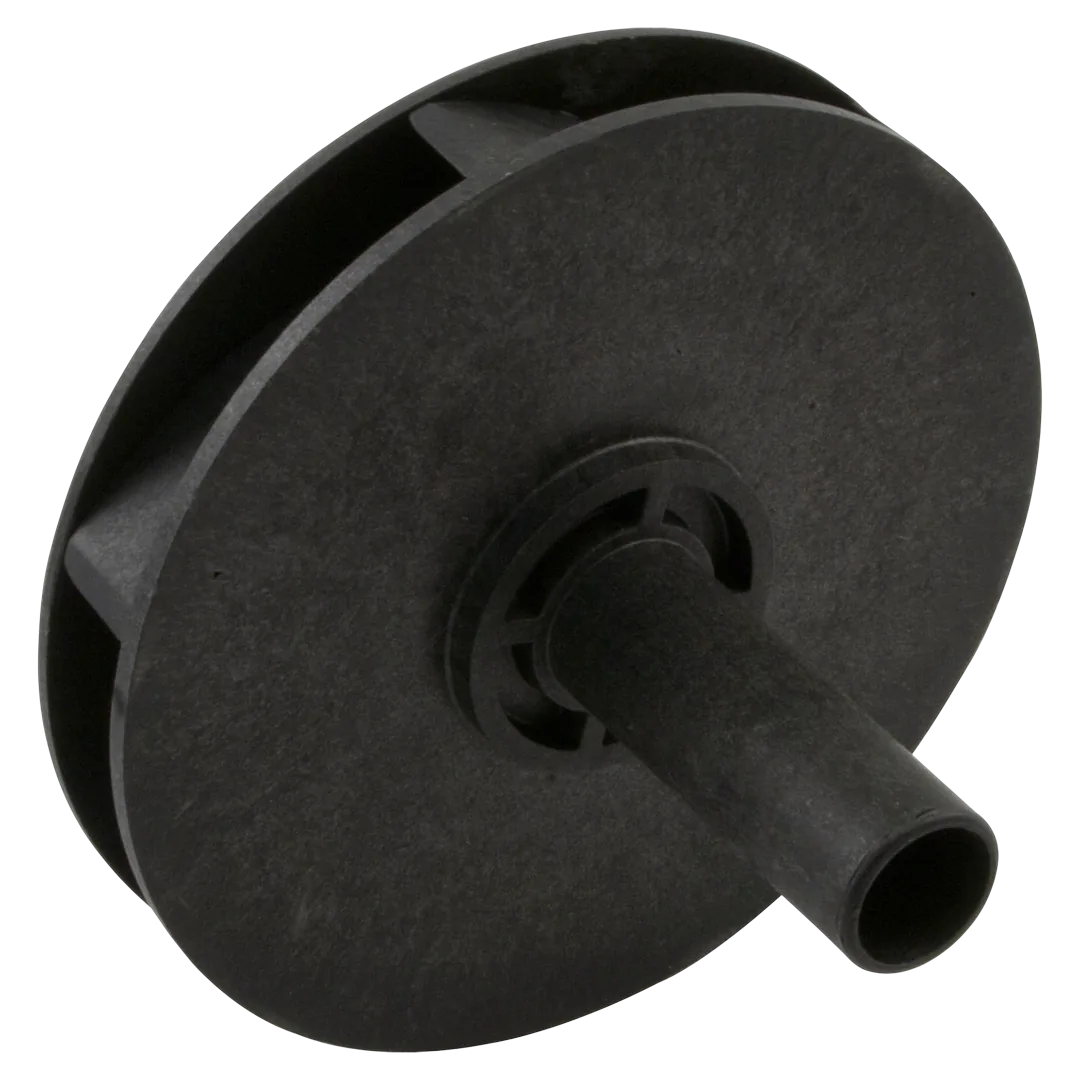

The Aqua-Flo by Gecko 91693651 is an impeller specifically designed for 1.5 HP Flo-Master HP/CP pumps. It is constructed from black plastic and is a closed-face impeller, capable of fitting 5/8" ID diameter seals. This component is compatible with Aqua-Flo CMCP, CMHP, FMCP, FMHP, and TMCP series pumps.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko 1.5 HP Impeller for Aqua-Flo Flo-Master Pumps |
| Part Number | 91693651 |
| Part Type | Impeller |
| Compatibility | Aqua-Flo/Gecko FMHP, FMCP, and TMCP series spa pumps |
| Substitute Part Numbers | 100033K, 1018568, 354021010, 354021016, FPF0415, 35-402-1016, AF91693651, GKO91693651 |
| Includes | Impeller only |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 3.75 inch |
| Vane Width ID | 0.4375 inch |
| Eye Diameter OD | 1.75 inch |
| Eye Length | 0.8125 inch |
| Impeller Thickness OD | 0.625 inch |
| Seal Seat Depth | 0.125 inch |
| Shaft Length | 1.75 inch |
| Seal Seat Diameter OD | 1.25 inch |
| Shipping Dimensions | 3.75 x 3.75 x 3.5 inch |
| Product Weight | 0.15 pound |
