Gecko 91693551 Aqua-Flo Impeller
Aquaflo/Gecko | SKU:
91693551
$5000/ea
Unit price
/
Unavailable
Gecko 91693551 Aqua-Flo Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

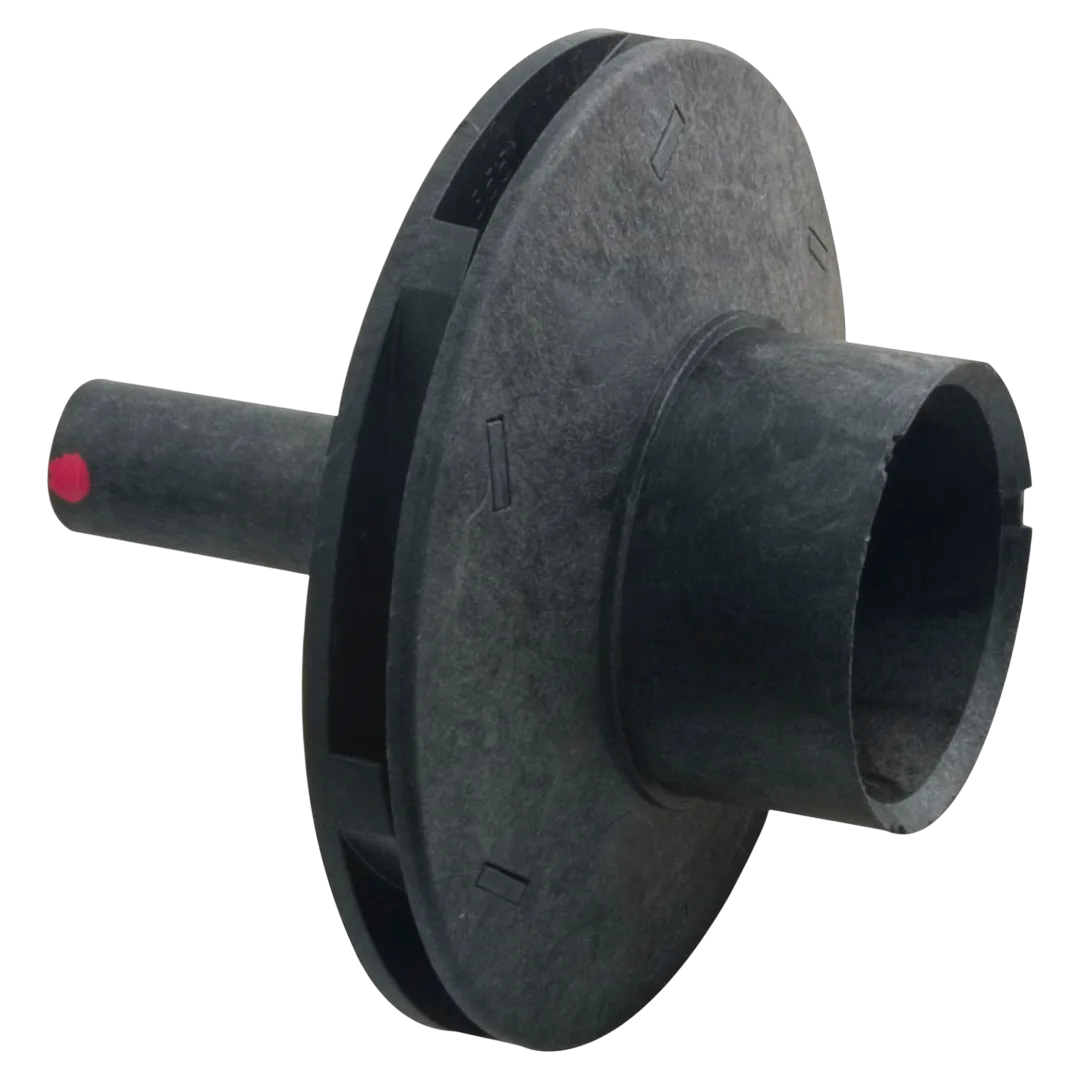

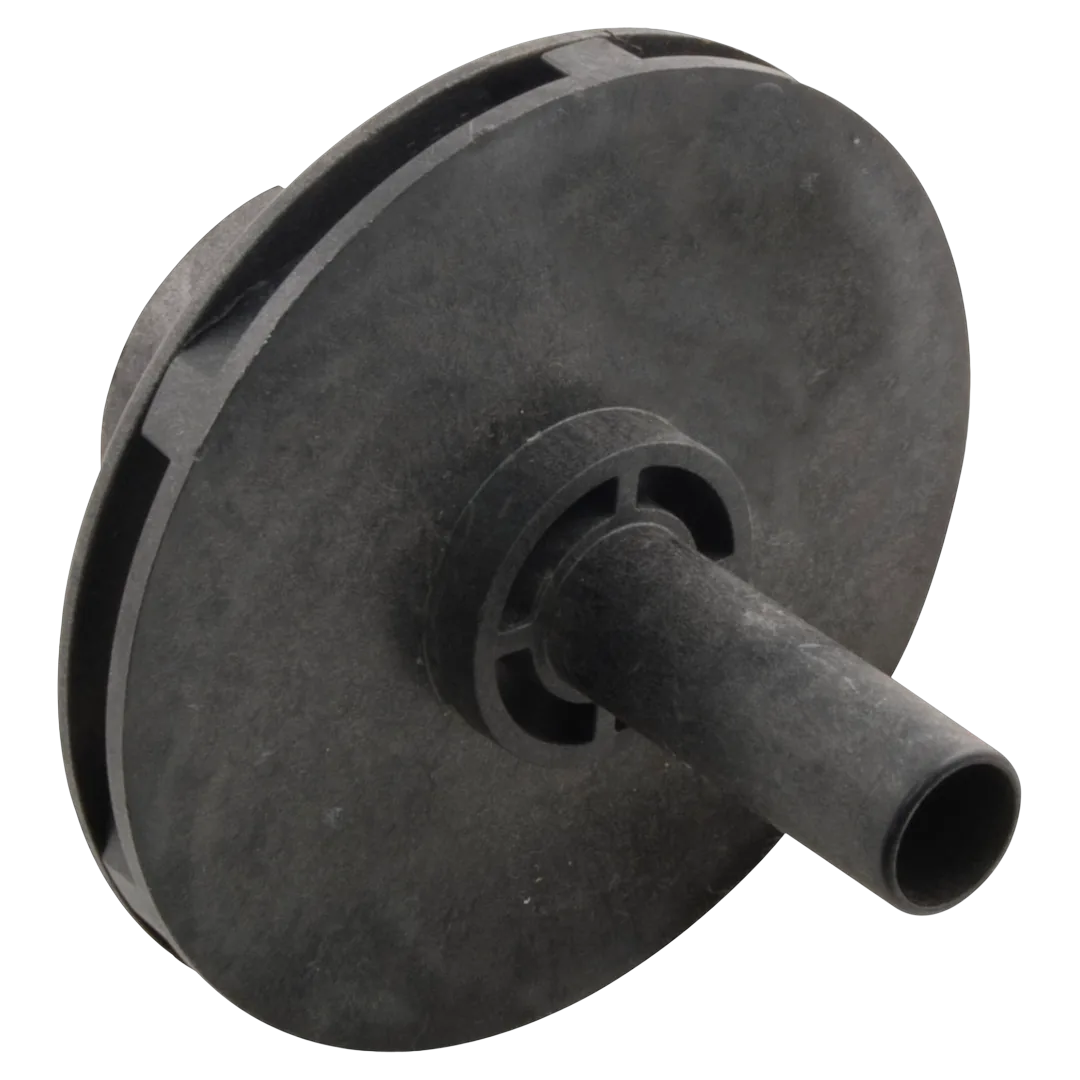

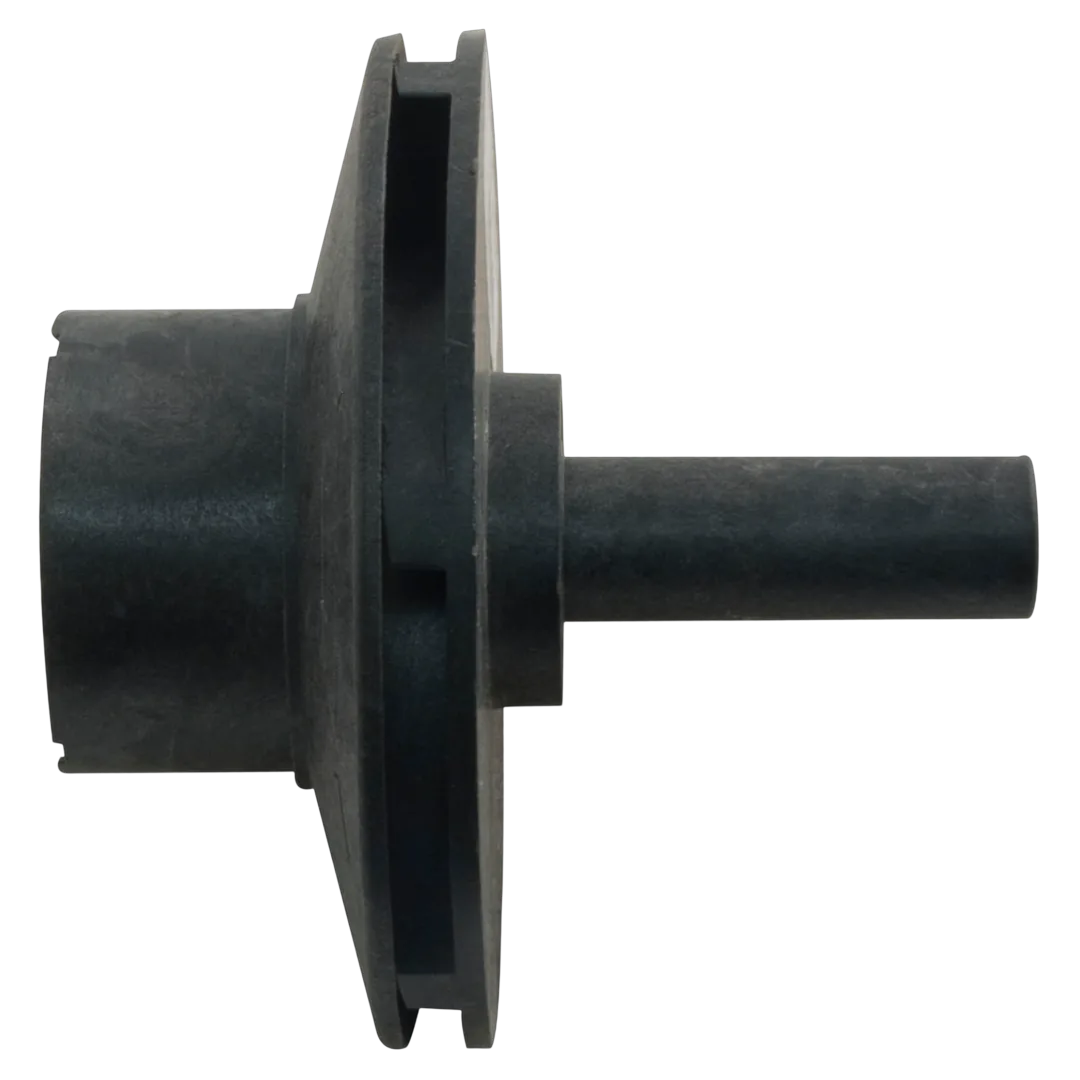

The Gecko Alliance 91693551 is a standard flow impeller rated at 3/4 horsepower, designed for use within the Aqua-Flo Flo-Master and Circ-Master series pumps. It is made from black plastic and features a closed face design. This impeller is compatible with Aqua-Flo FMHP, FMCP, FMVP, and TMCP series spa pump models.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko Alliance 3/4 HP Standard Flow Impeller |
| Part Number | 91693551 |
| Part Type | Impeller |
| Compatibility | FMCP, FMHP, FMVP, TMCP Aqua-Flo pumps |
| Substitute Part Numbers | 1-05-0258 |
| Includes | Impeller only shaft seal sold separately |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 3.75 inch |
| Vane Width ID | 0.1875 inch |
| Eye Diameter OD | 1.75 inch |
| Eye Length | 0.9375 inch |
| Impeller Thickness OD | 0.375 inch |
| Seal Seat Depth | 0.25 inch |
| Shaft Length | 1.75 inch |
| Shaft Diameter OD | 0.625 inch |
| Seal Seat Diameter OD | 1.25 inch |
| Shipping Dimensions | 3.75 x 3.75 x 2.75 inch |
| Product Weight | 0.16 pound |
