Gecko 91041825-000 Wet End
Aquaflo/Gecko | SKU:
91041825-000
$12500/ea
Unit price
/
Unavailable
Gecko 91041825-000 Wet End is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

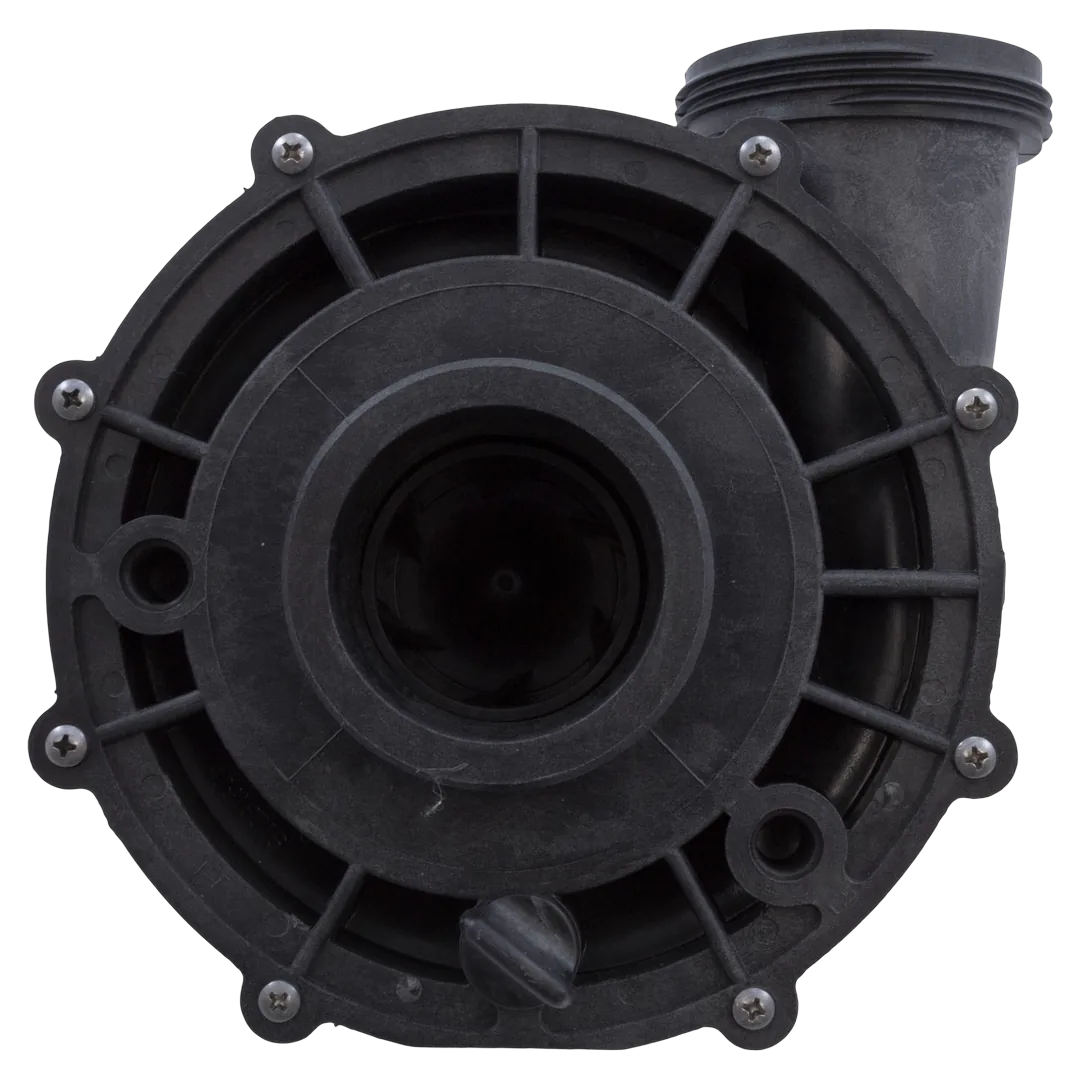

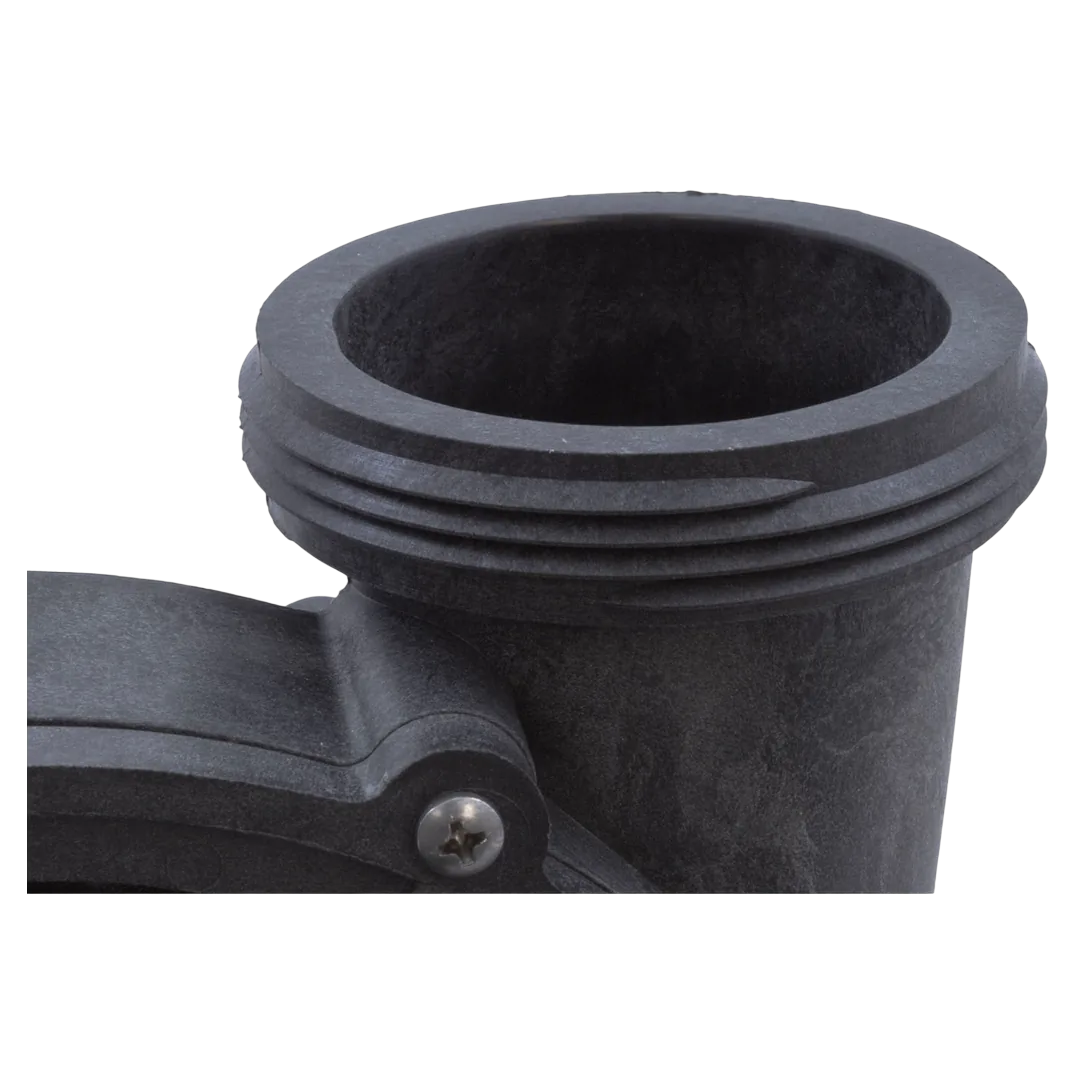

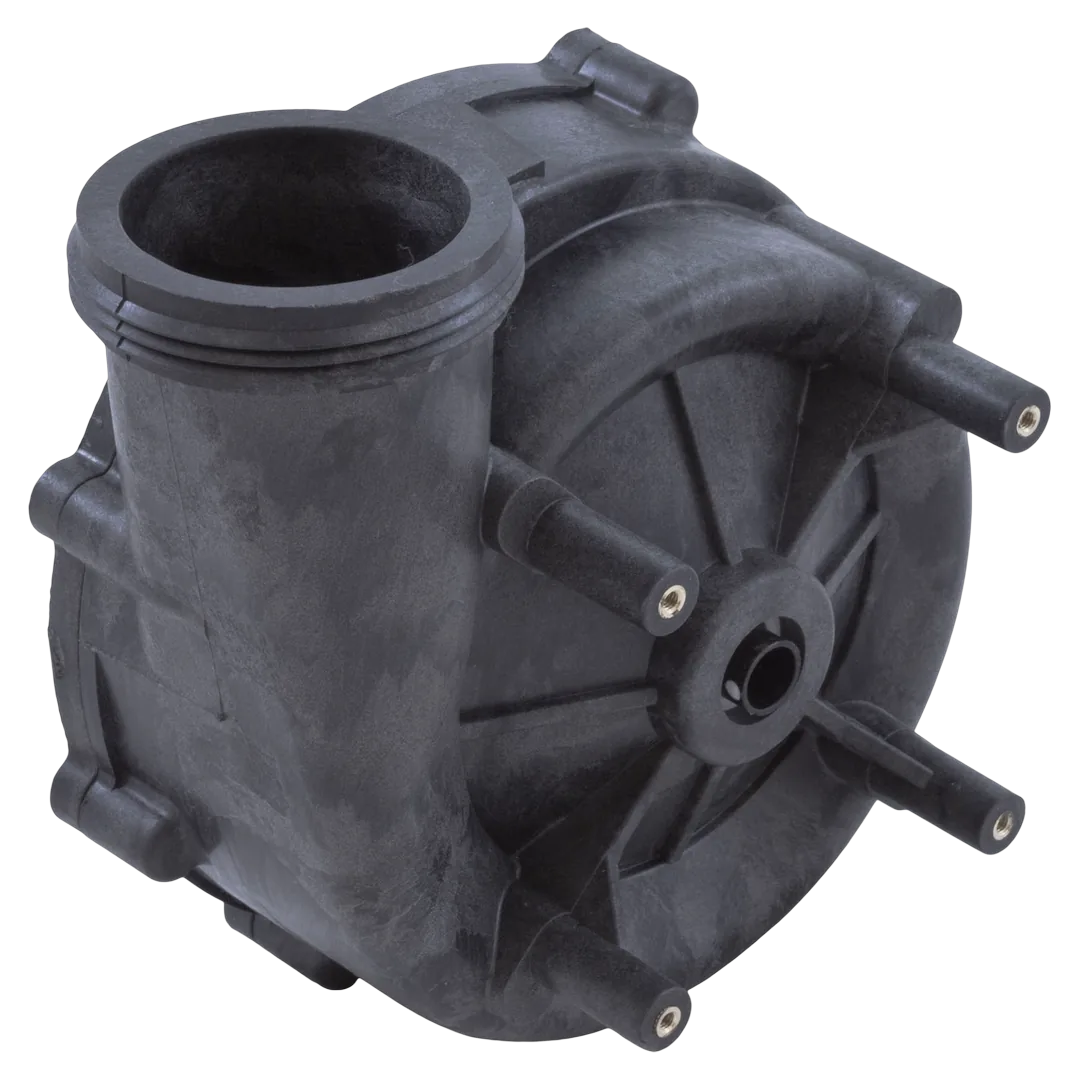

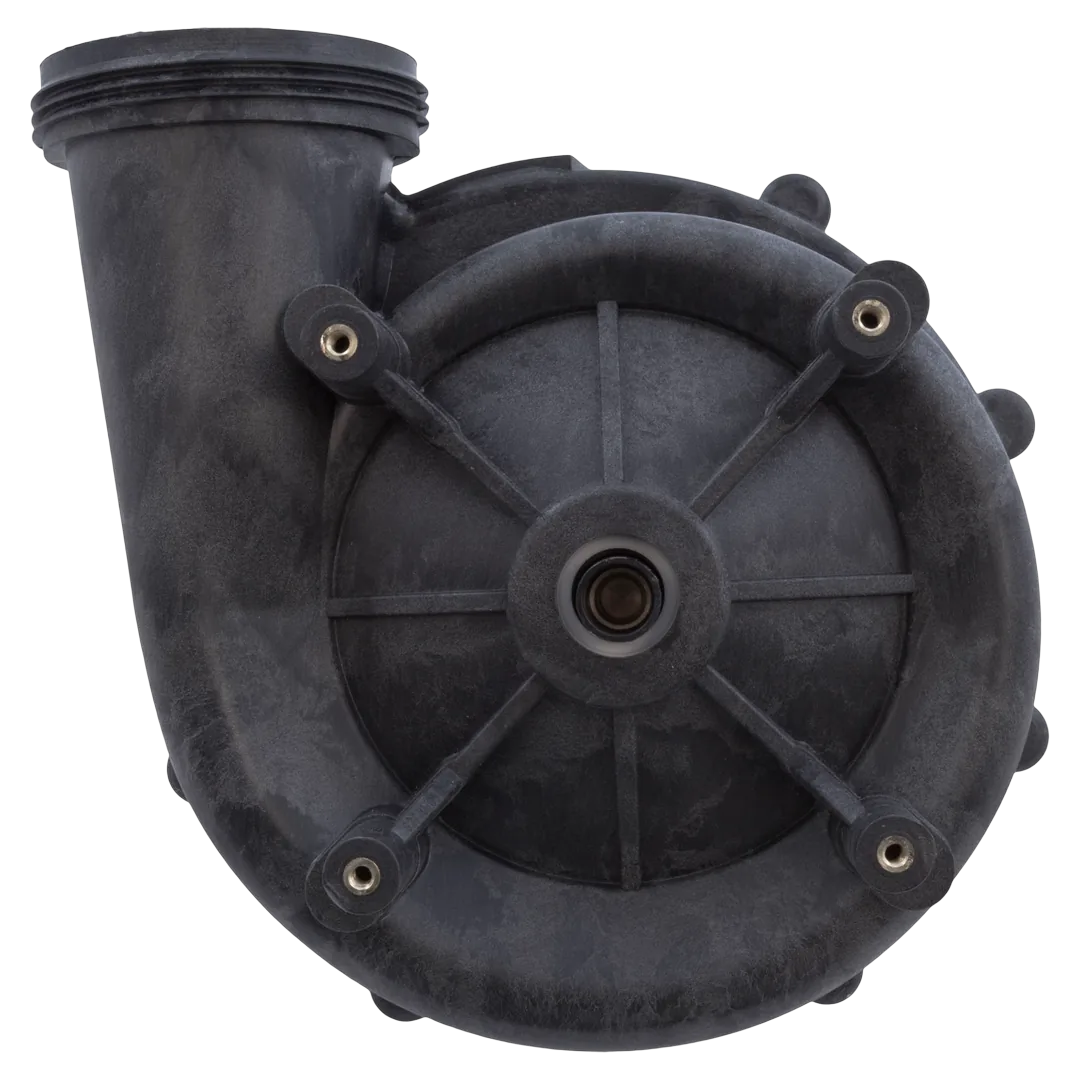

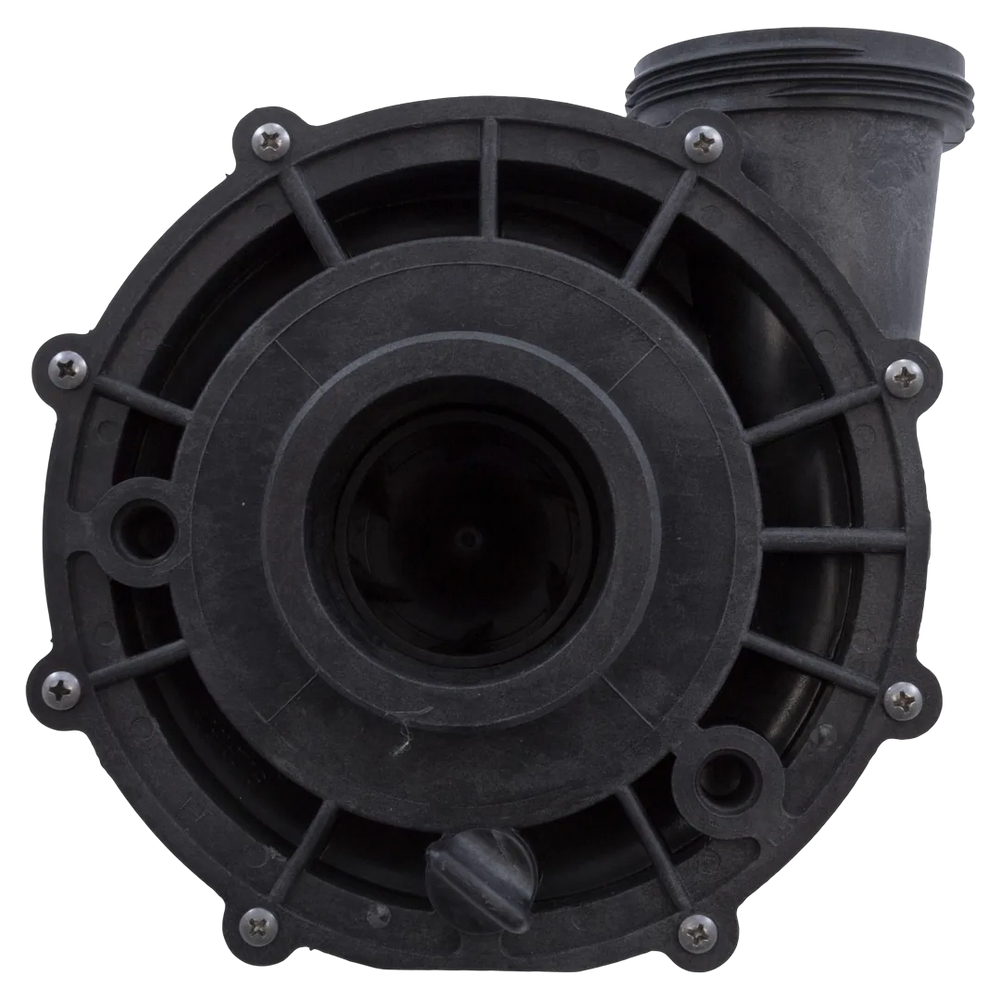

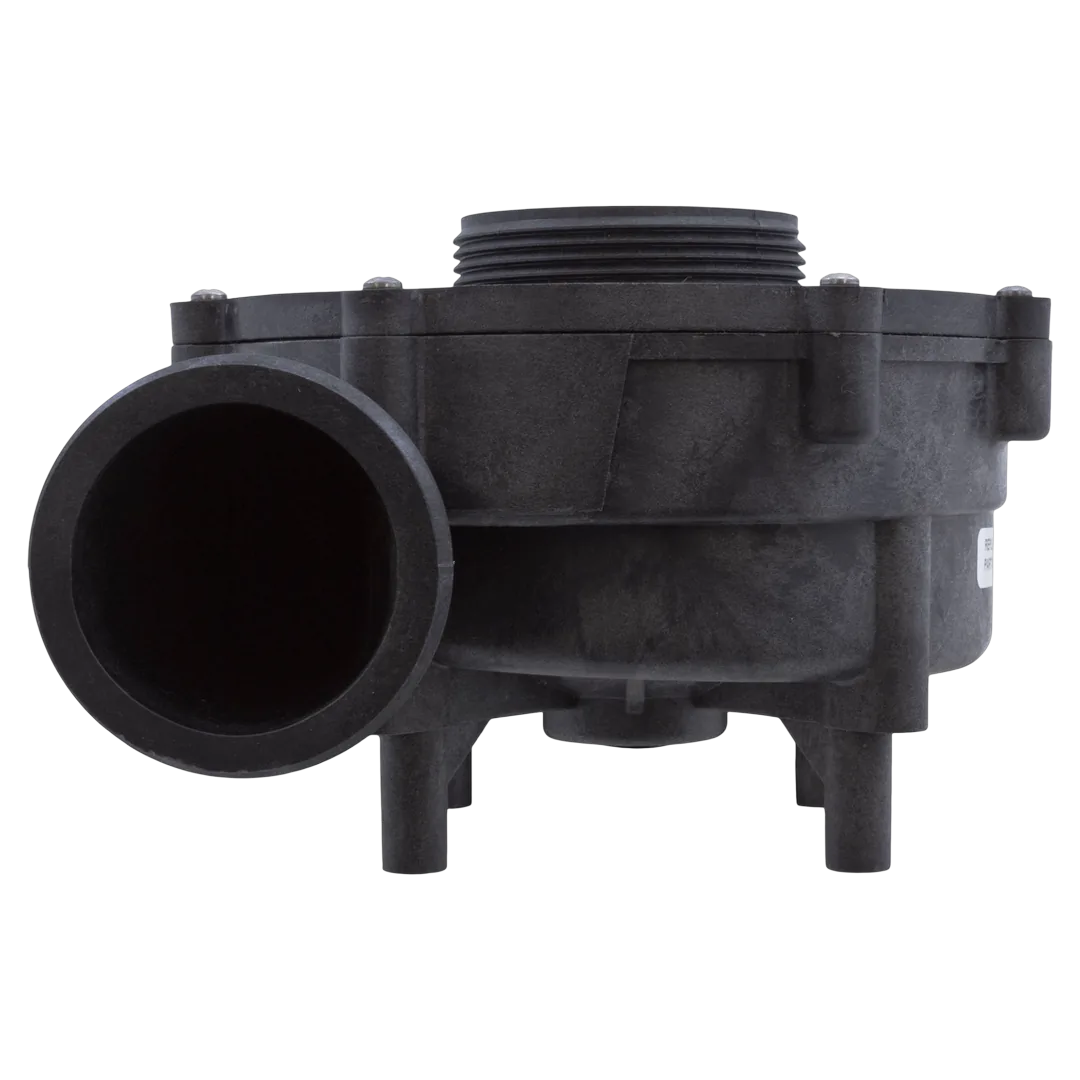

The Aquaflo/Gecko 91041825-000 is a wet end assembly designed for the Gecko Flo-Master XP2e and XP2 pumps. It features a 48-frame design with a 2.5 horsepower rating, utilizing 2-inch male buttress thread (MBT) suction and discharge ports. This component is compatible with Gecko's XP2 and XP2E systems.
Includes: Volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko AquaFlo XP2e 2.5 HP 48 Frame Wet End |
| Part Number | 91041825-000 |
| Part Type | Pump Part |
| Compatibility | Gecko Flo-Master XP2 and XP2e Pumps |
| Substitute Part Numbers | 34-402-1208, 344021208, 91041825-000, 91041825000, AF91041825000 |
| Includes | Volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, suction cover screws |
| Material | Plastic |
| Valve Type | Side discharge |
| Number of Positions | N/A |
| Connection Size | 2 inch MBT suction/discharge |
| Mount Type | 48 Frame Thru-Bolt |
| Flow Paths | Side discharge, can be rotated 90 degrees to change discharge position |
| Pressure Rating | N/A |
| Seal Material | Viton |
| Shipping Dimensions | 8 x 5.5 x 7.5 inch |
| Product Weight | N/A |
