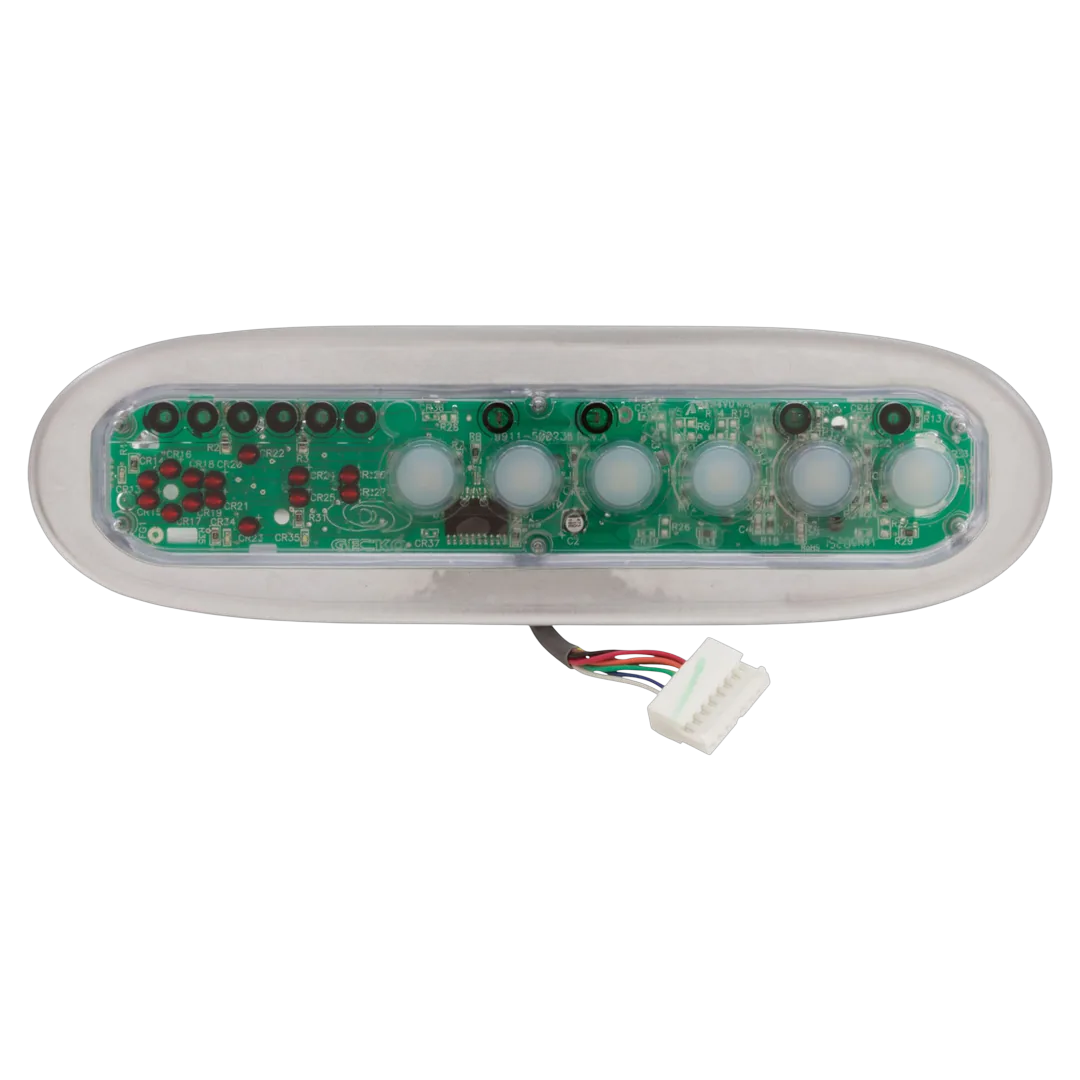

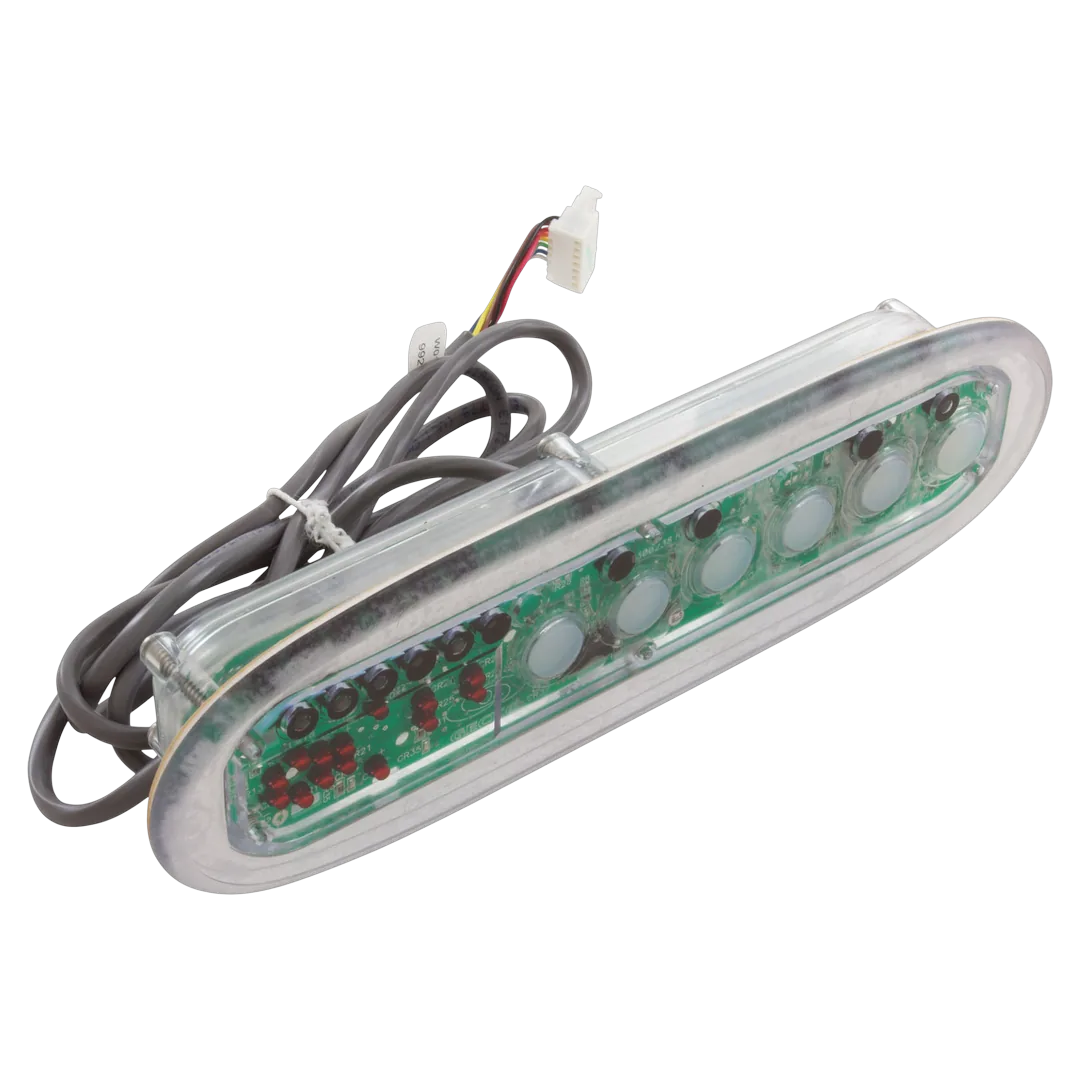

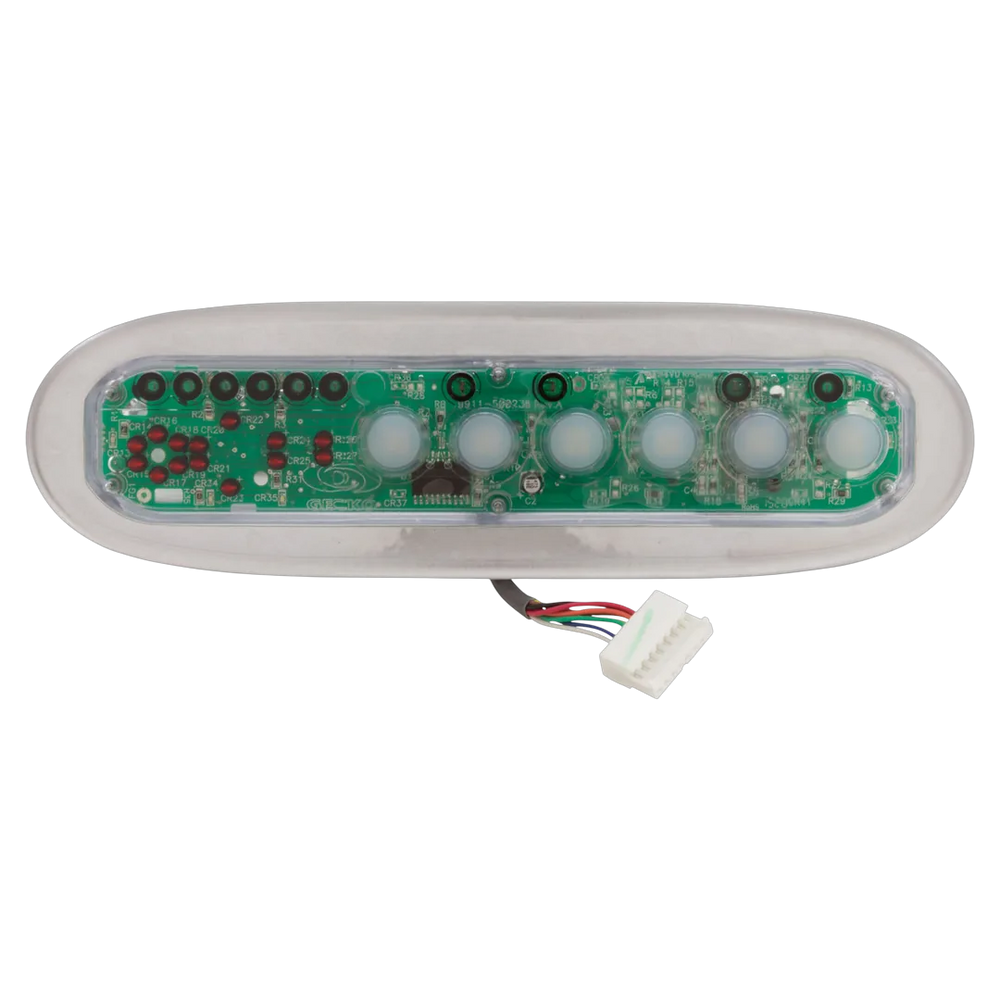

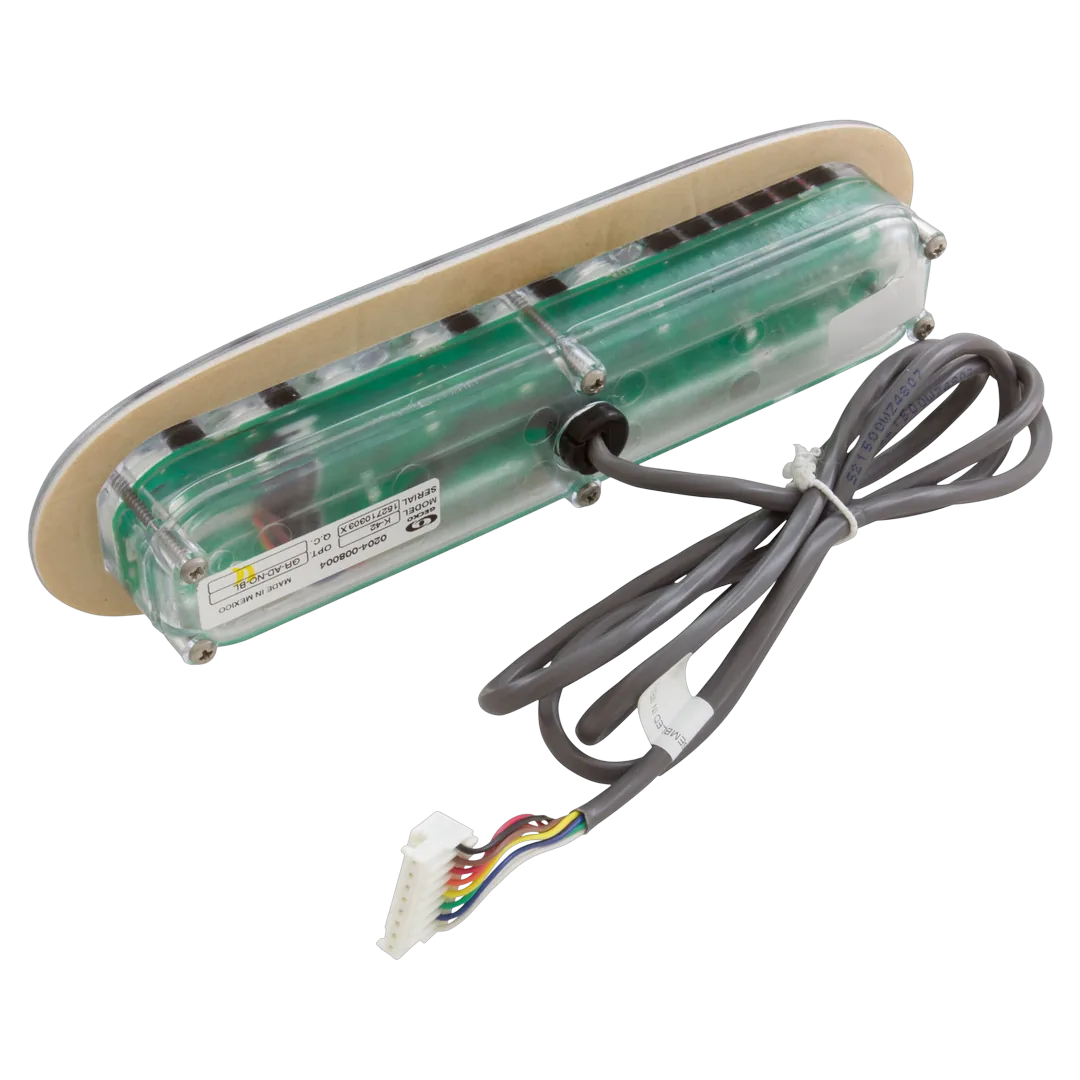

Dimension One TSC-42 Upper Control Panel
Dimension One | SKU:
01710-1017
$30800/ea
Unit price
/
Unavailable
Dimension One TSC-42 Upper Control Panel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Dimension One 01710-1017 is a Gecko TSC-42 M-Drive Upper Sequencer Control Panel featuring a blue LED display. Constructed for spa systems, it includes an overlay, model number 01560-359, and is compatible with inlay options such as DIM01560-0003. This control panel is specifically designed for use with Dimension One Spas equipped with the M-Drive system.
Includes: Topside panel only overlay options available separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Dimension One TSC-42 M-Drive Sequencer Upper Control Panel |
| Part Number | 01710-1017 |
| Part Type | Control Panel |
| Compatibility | For use only in spas equipped with the M-Drive Upper Control Panel |
| Substitute Part Numbers | 01560-1005 |
| Includes | Topside panel only overlay options available separately |
| Material | Plastic |
| Number of Buttons | 6 |
| Connection Size | JST 8-pin connector |
| Mount Type | Topside mount |
| Shipping Dimensions | 8.5 x 2.4 x 1.5 inch |
| Product Weight | 0.5 pound |
