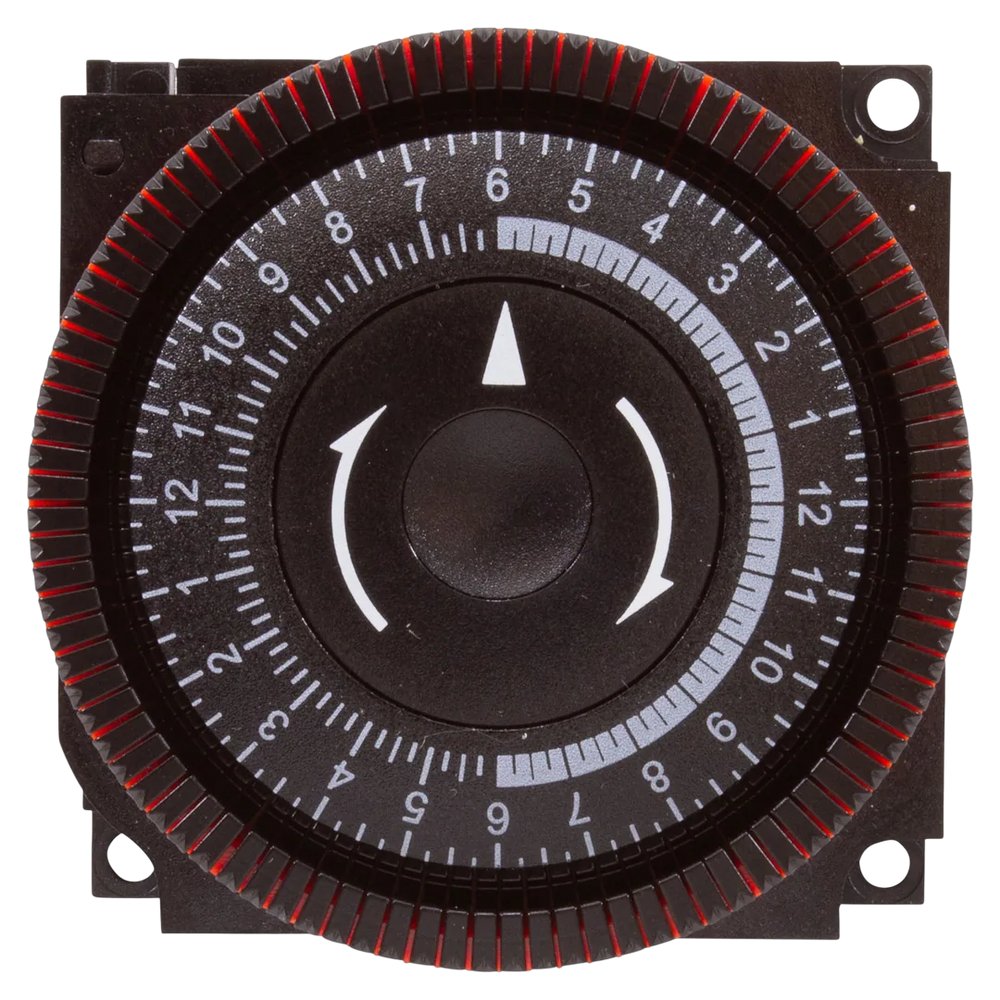

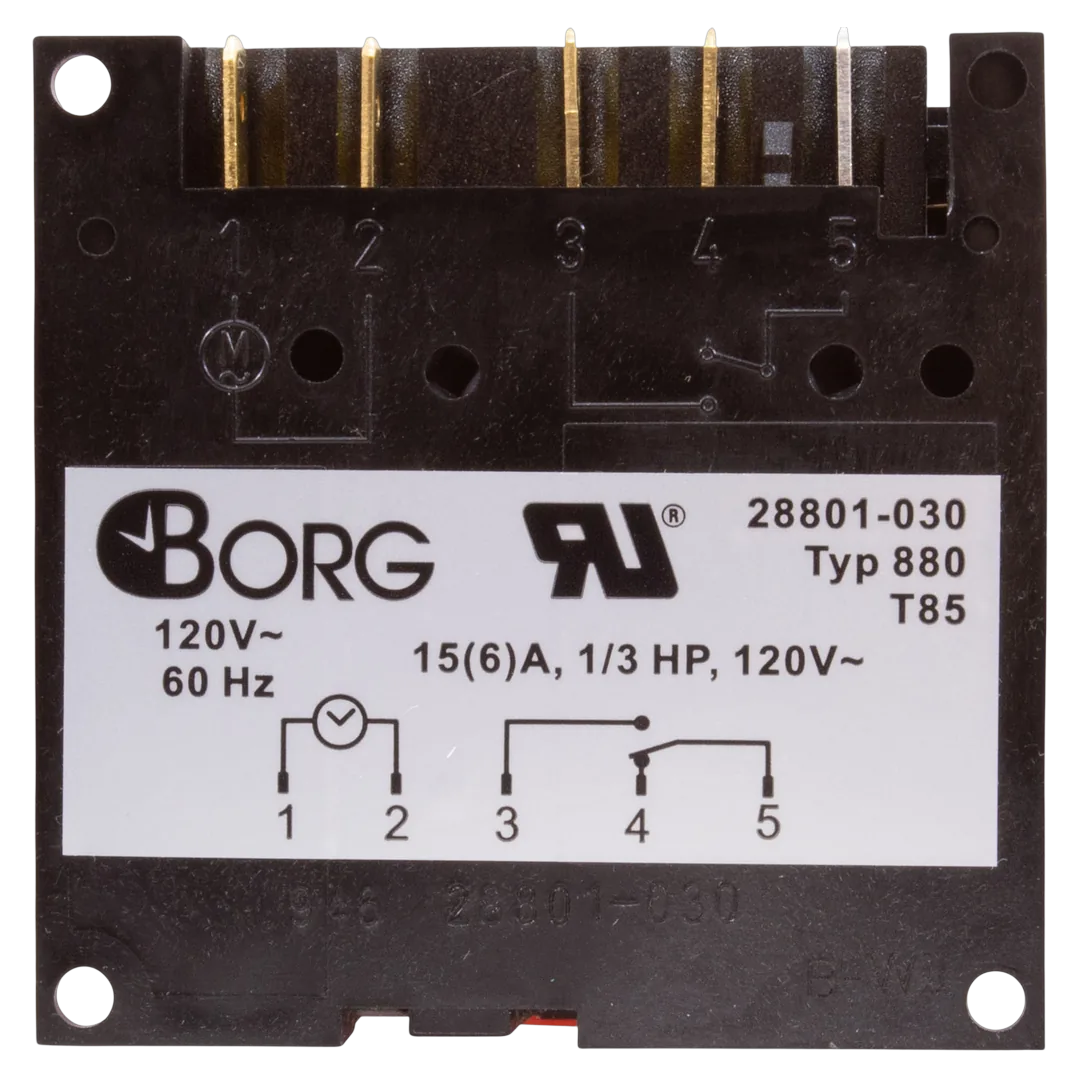

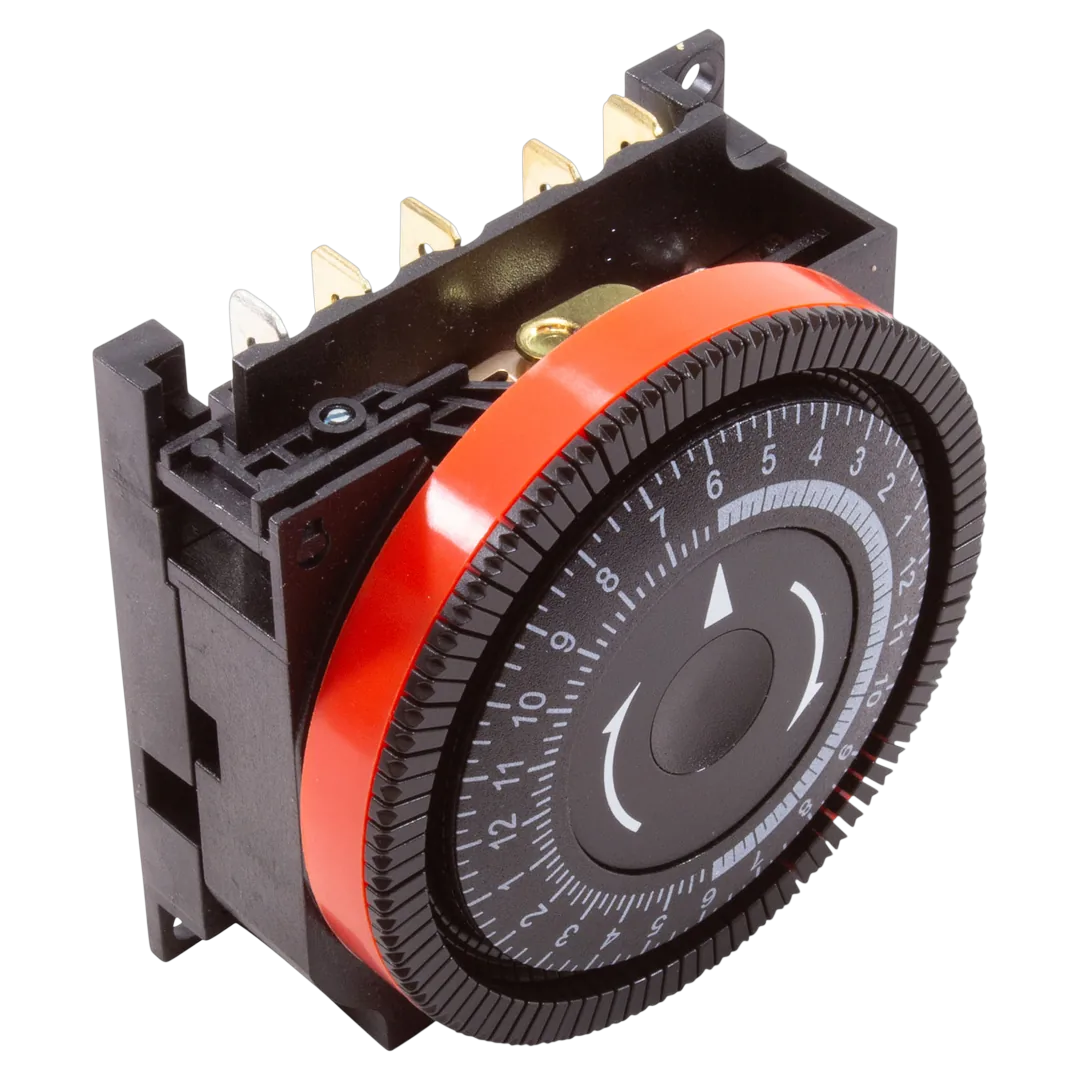

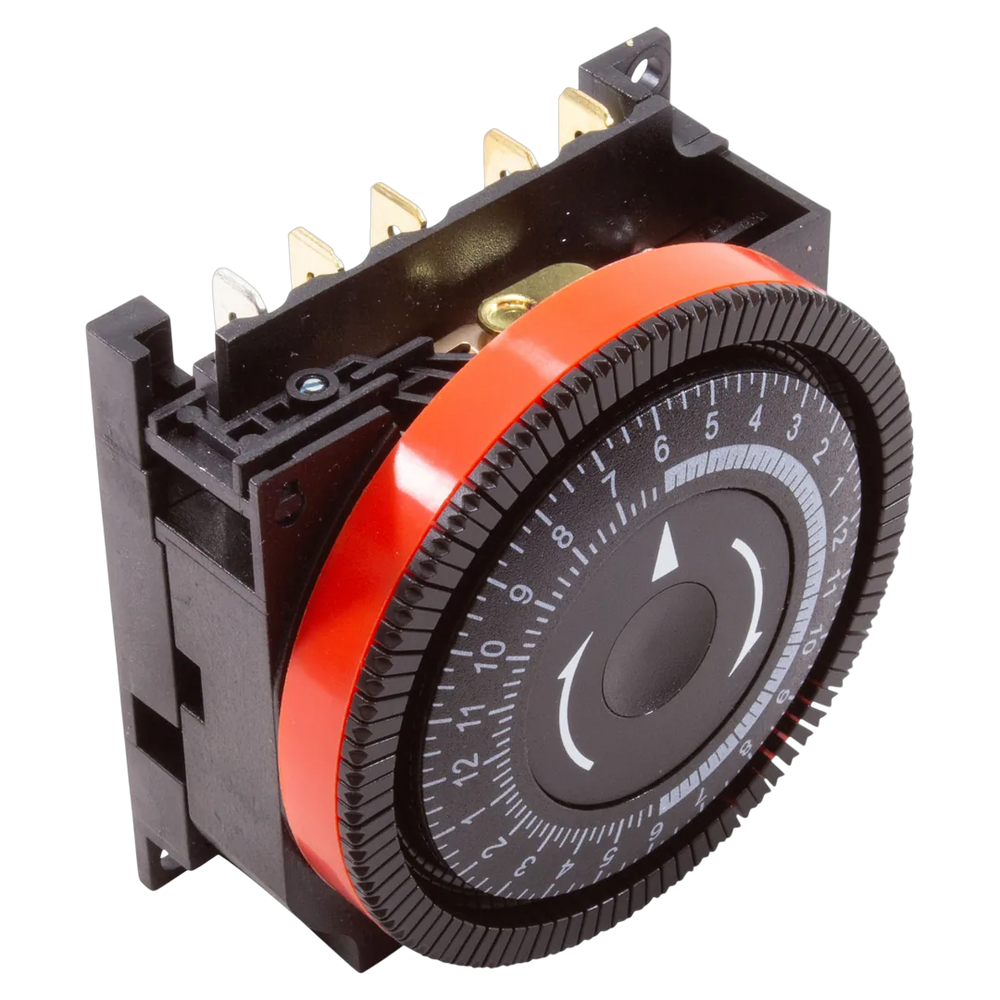

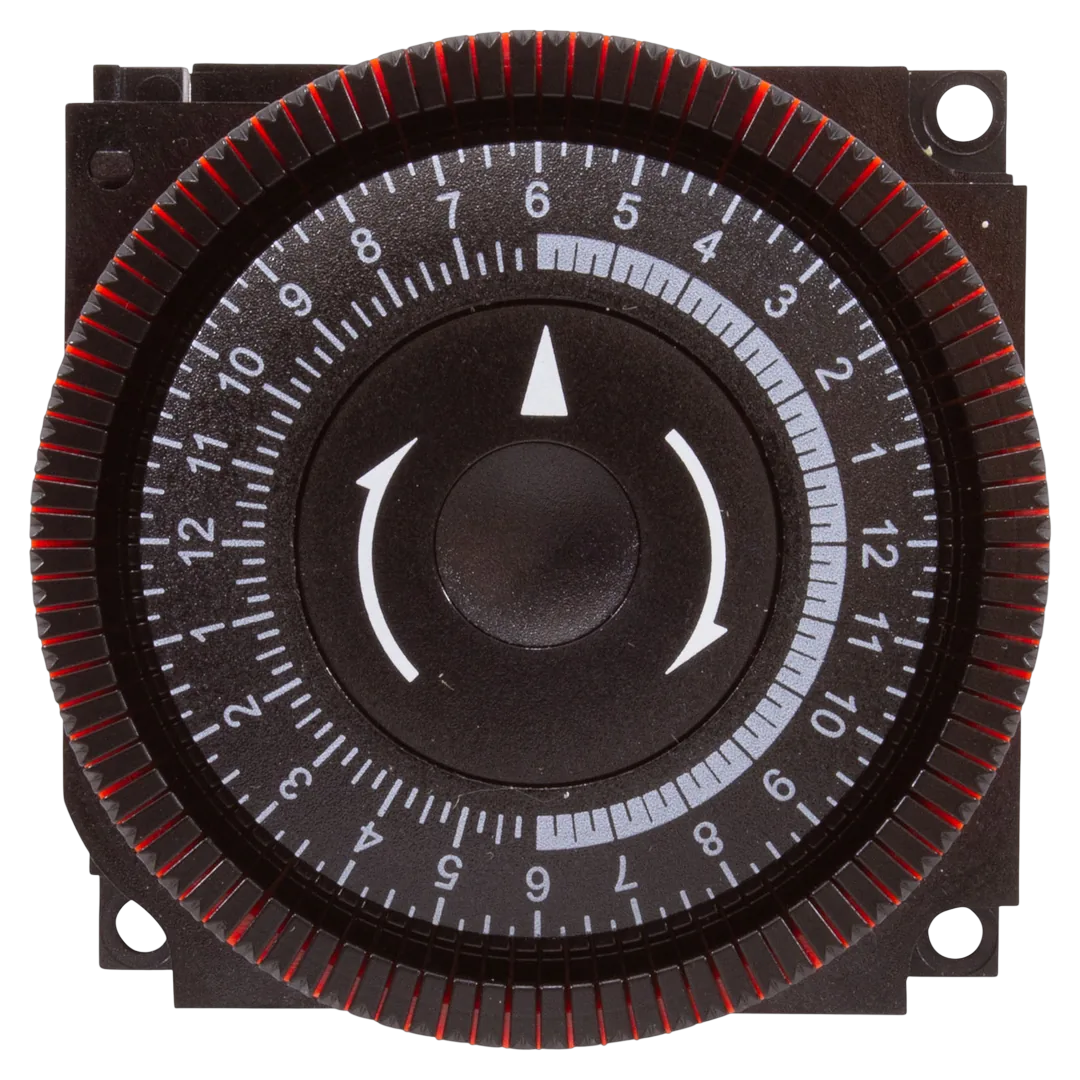

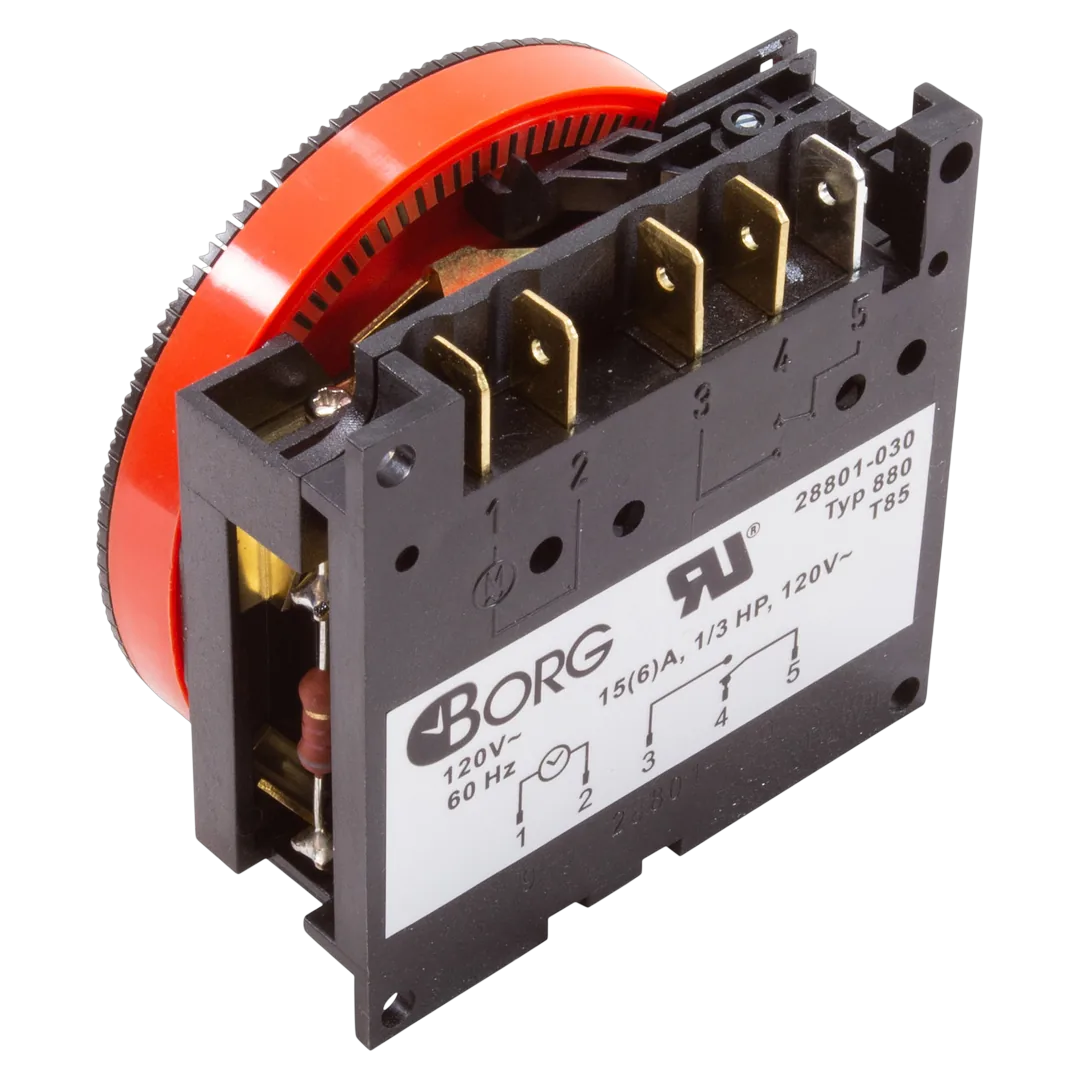

Diehl TA4079 24-Hour 120V SPDT Panel Mount Timer
Borg/Diehl Controls | SKU:
TA4079
$6800/ea
Unit price
/
Unavailable
Diehl TA4079 24-Hour 120V SPDT Panel Mount Timer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Replacement 24-hour SPDT panel-mount timer for spa, hot tub, and whirlpool controls (Borg/Diehl TA4079). It runs on 120V and uses captive trippers to set daily on/off cycles for pumps, blowers, or lights. The assembly has 5 wiring lugs and fits the Diehl 800-series panel cutout.
Includes: Timer unit only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Diehl 24-Hour Spa Timer, SPDT 120V, 5-Terminal Red Panel Mount |
| Part Number | TA4079 |
| Part Type | Timer |
| Compatibility | Designed for bath, whirlpool, spa, and hot tub controls |
| Includes | Timer unit only |
| Material | Not specified |
| Valve Type | Not applicable |
| Number of Positions | Not specified |
| Connection Size | Not specified |
| Mount Type | Panel Mount |
| Flow Paths | Not applicable |
| Pressure Rating | Not specified |
| Seal Material | Not specified |
| Shipping Dimensions | 6 x 6 x 6 inch |
| Product Weight | 0.813 pound |
