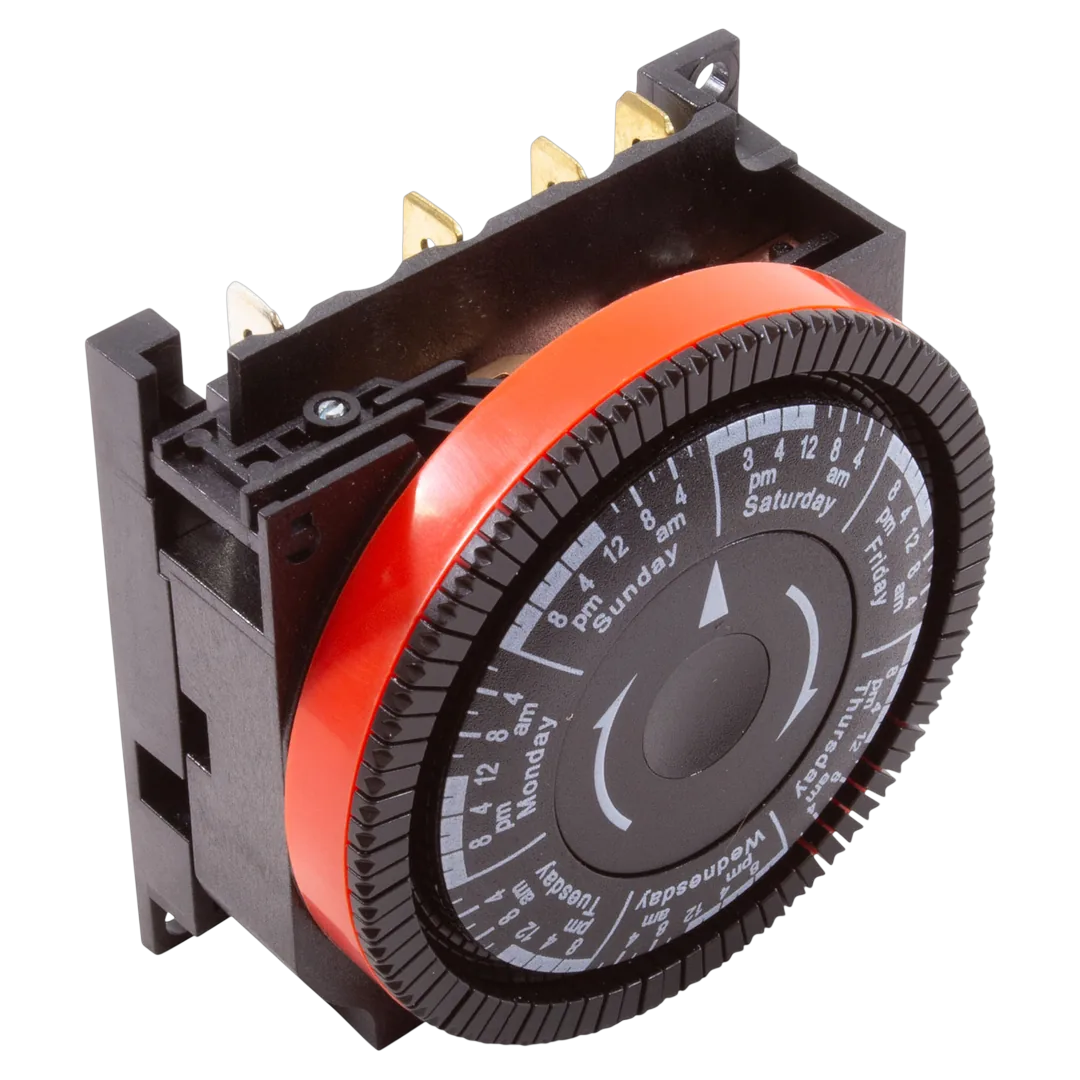

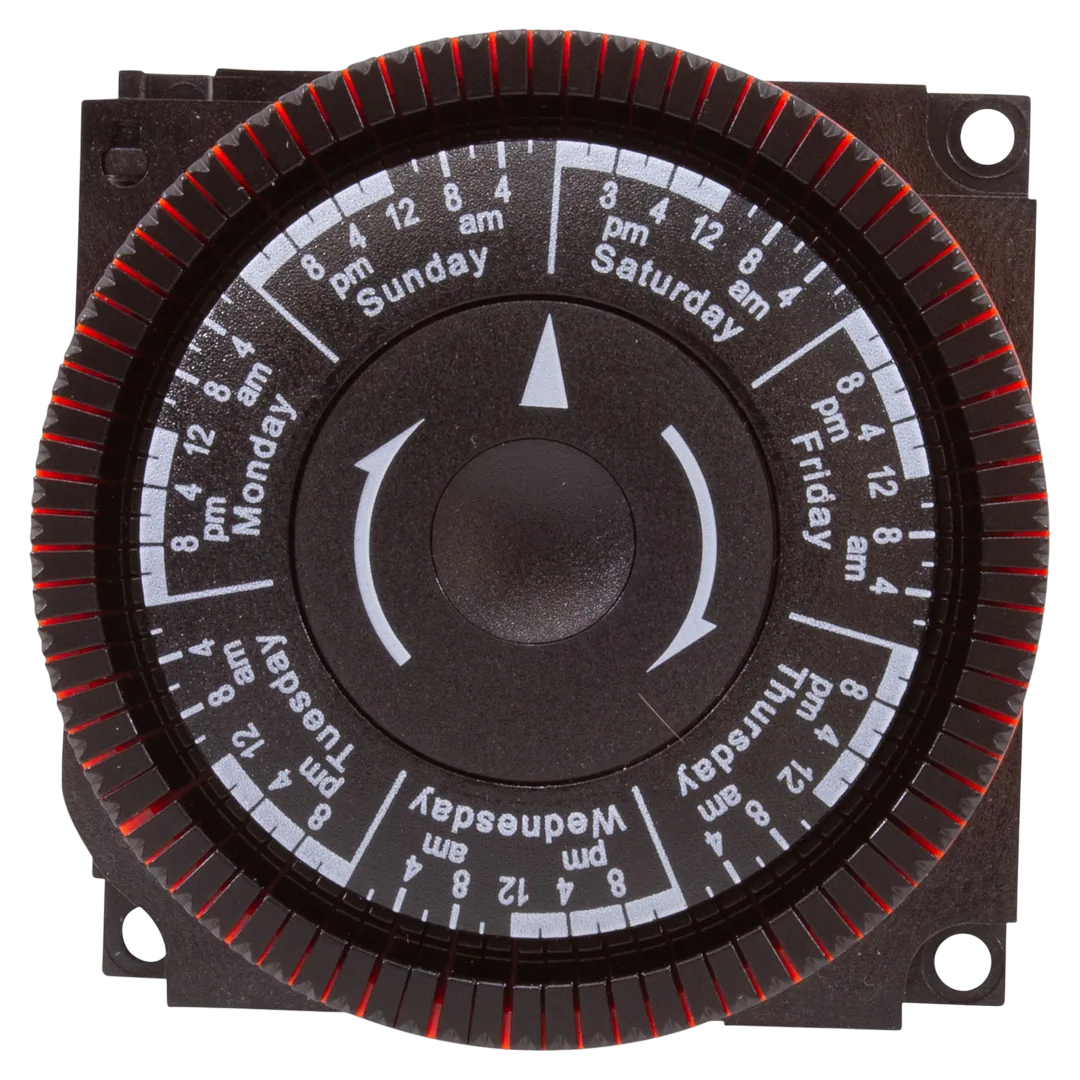

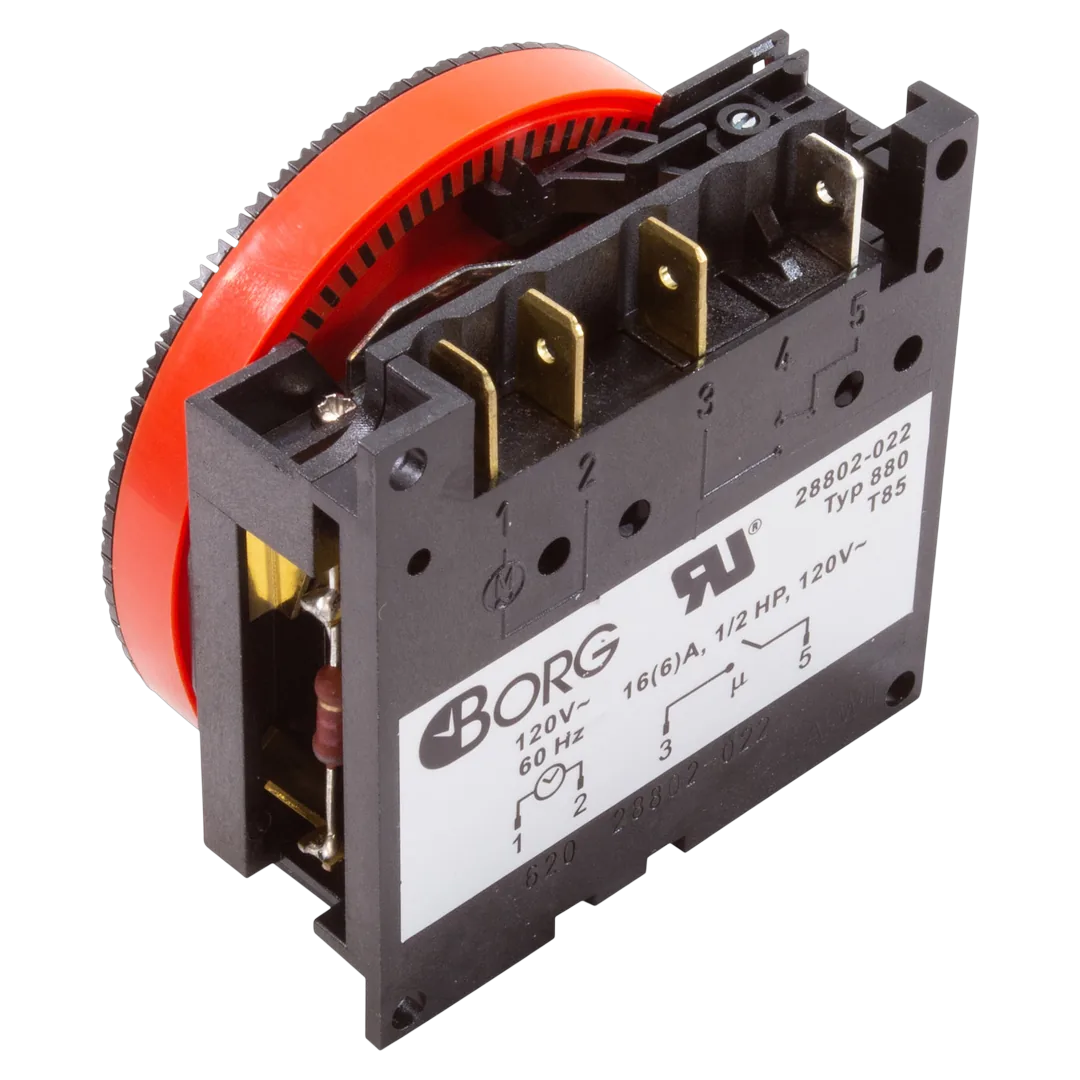

Diehl TA4073 7-Day 120V SPST Panel Mount Time Clock
Borg/Diehl Controls | SKU:
TA4073
$7900/ea
Unit price
/
Unavailable
Diehl TA4073 7-Day 120V SPST Panel Mount Time Clock is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Replacement 7-day panel-mount time clock for spa and pool controllers - Borg/Diehl Controls TA4073. It automates a single circuit (SPST) on a weekly schedule with captive trippers for straightforward on/off programming. The assembly has a gray Series 800 face and a 4-terminal connection for clean, simple wiring.
Includes: Timer unit only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Diehl 7-Day Timer, 120V, SPST, Panel Mount |
| Part Number | TA4073 |
| Part Type | Timer |
| Compatibility | Suitable for bath, whirlpool, spa, hot tub controls, and other applications |
| Substitute Part Numbers | 610727, 28802-022, 3-40-0020, 402715, 9185-113, 9185-66, 9185-66A, FM/1SWUZ24V, FM1SWUZ-24U, FM1SWUZ24V |
| Includes | Timer unit only |
| Certifications | UL, CSA (Pending), VDE (@240V) |
| Material | Not specified |
| Valve Type | Not applicable |
| Number of Positions | Not applicable |

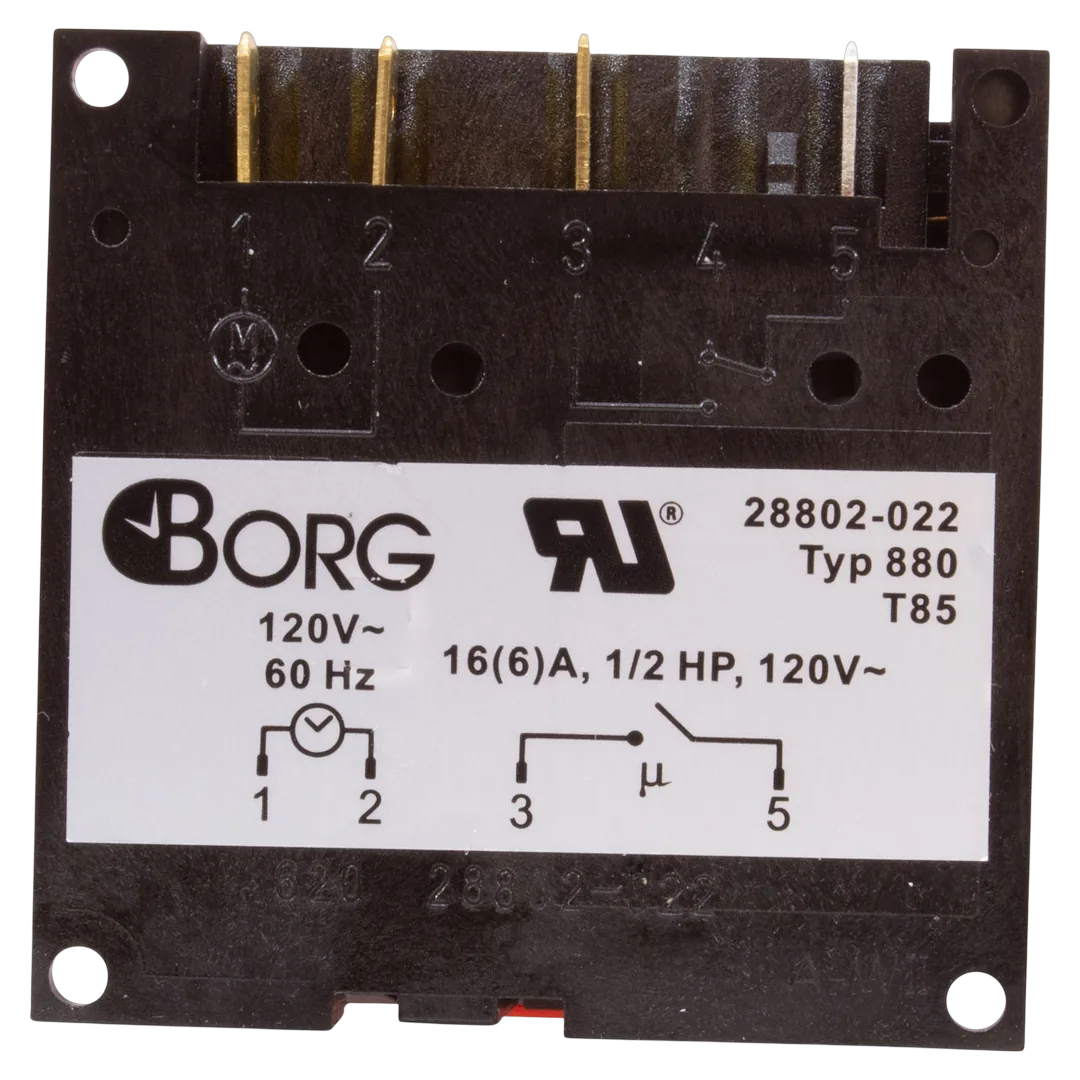

| Connection Size | 6.3 x 0.8 mm tab terminals |
| Mount Type | Panel mount |
| Flow Paths | Not applicable |
| Pressure Rating | Not applicable |
| Seal Material | Not specified |
| Shipping Dimensions | 3.50 x 2.00 x 1.75 inch |
| Product Weight | Not specified |
