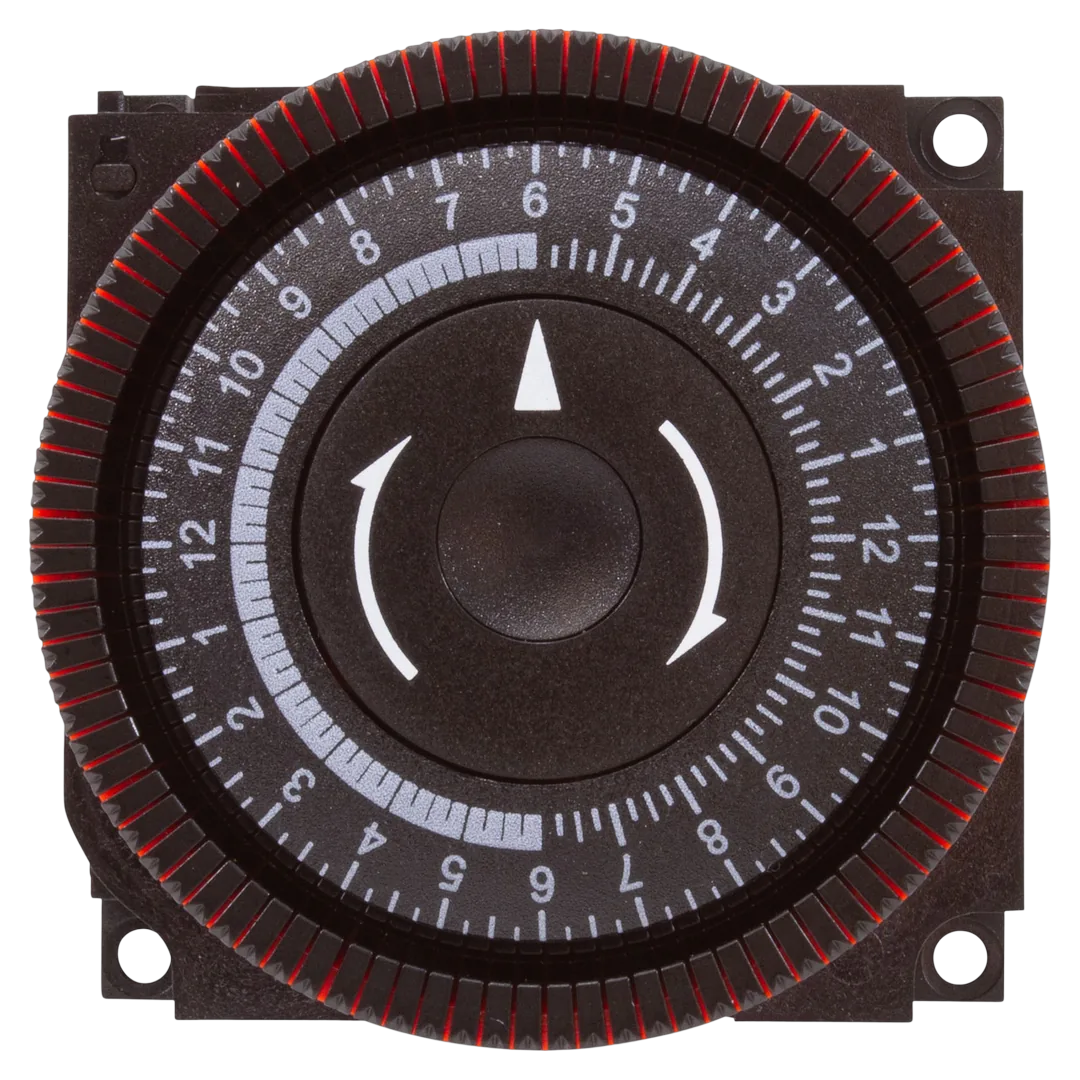

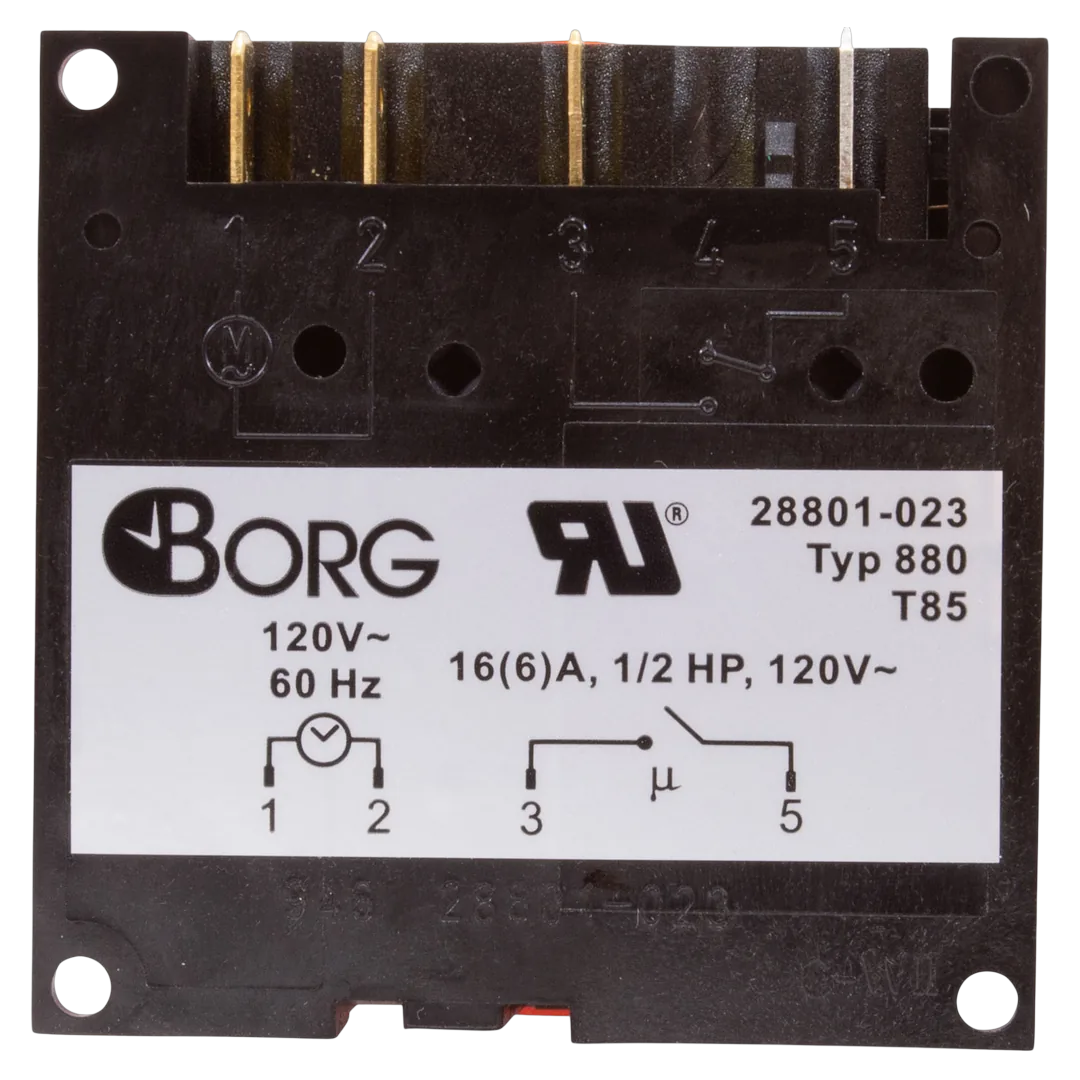

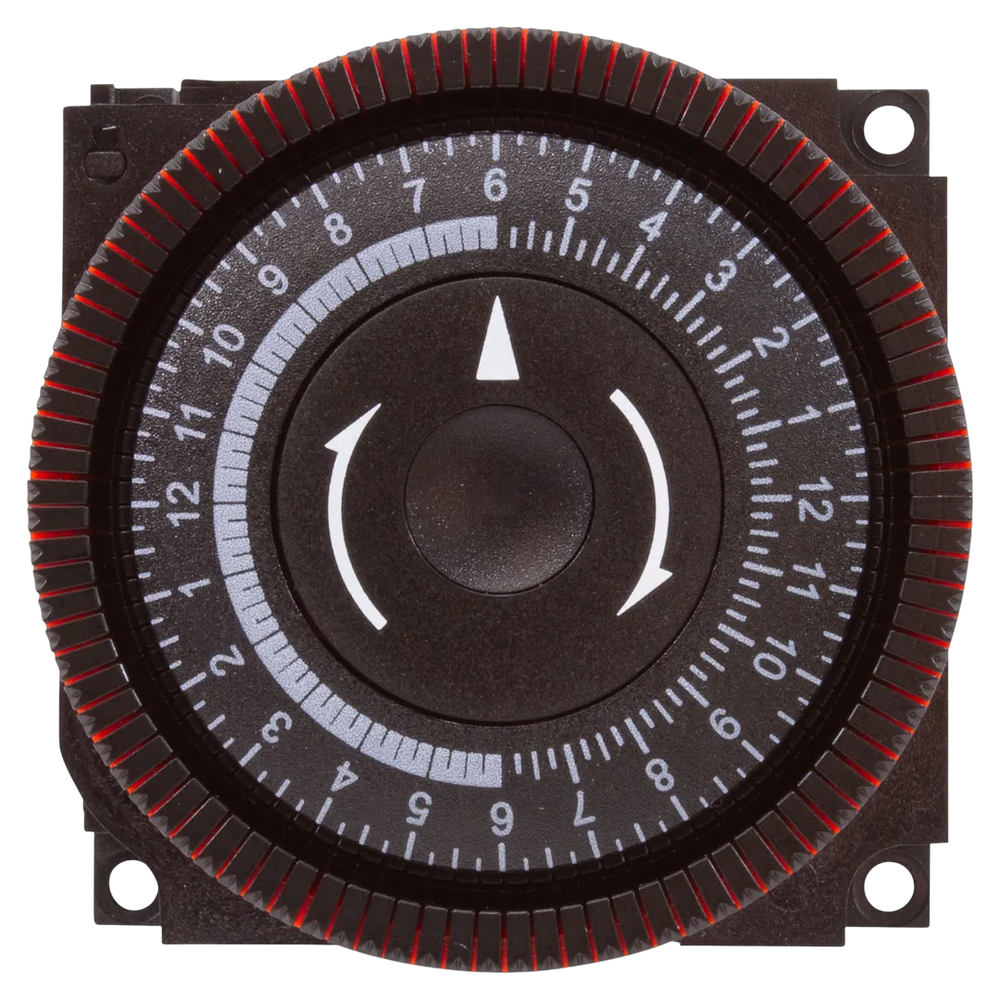

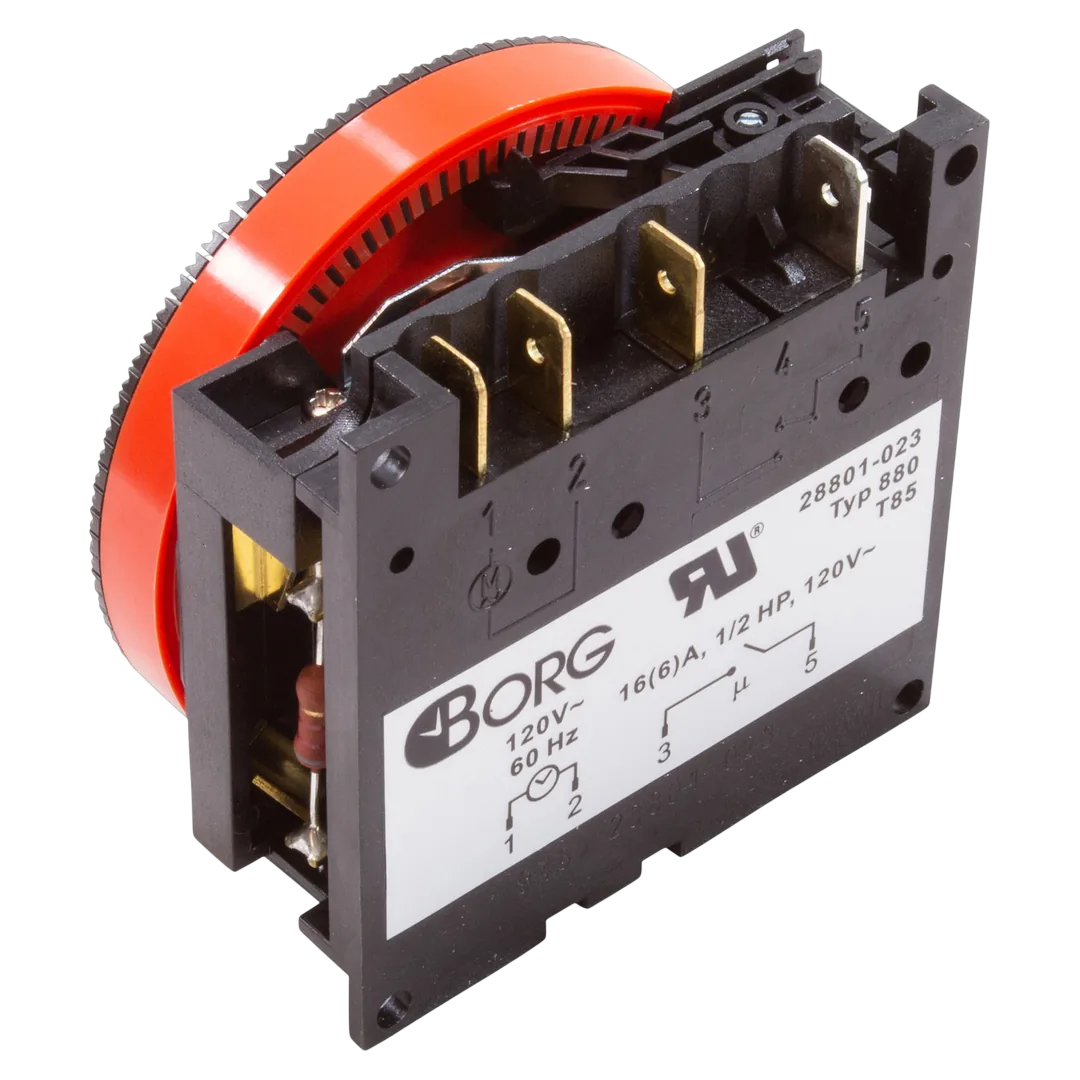

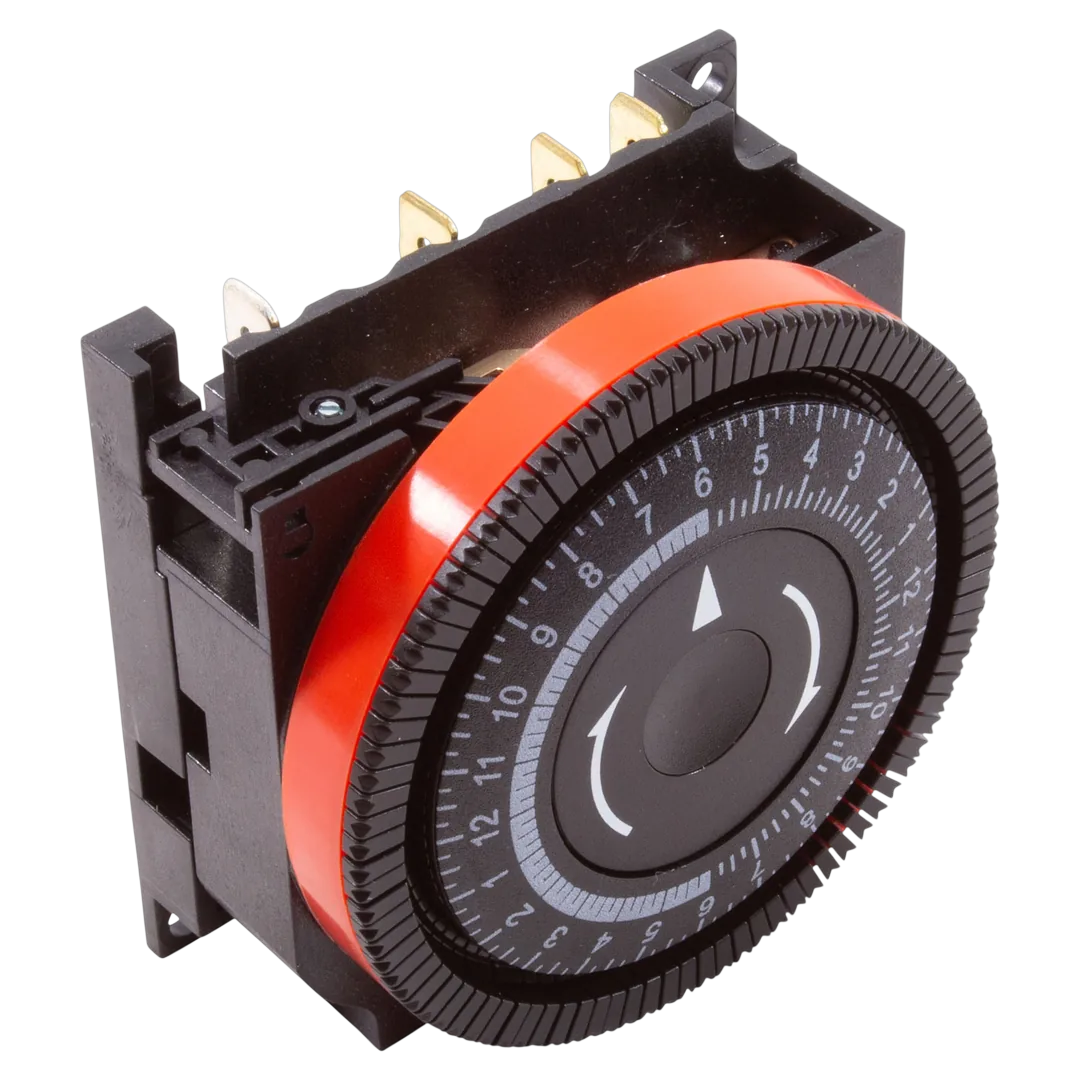

Diehl TA4071 24 Hour SPST Panel Mount Timer
Borg/Diehl Controls | SKU:
TA4071
$6400/ea
Unit price
/
Unavailable
Diehl TA4071 24 Hour SPST Panel Mount Timer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
24-hour replacement timer for Borg/Diehl 880-Series spa, hot tub, and whirlpool control panels (TA4071). It switches a single circuit on/off each day with a synchronous-motor clock, commonly used for pumps, blowers, or lights. Panel-mount SPST design with 4-lug terminals; UL and CSA rated.
Includes: Timer unit only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Diehl 24-Hour Spa Timer, SPST 120V, 4-Terminal Orange Panel Mount |
| Part Number | TA4071 |
| Part Type | Timer |
| Compatibility | Suitable for bath, whirlpool, spa, and hot tub controls |
| Substitute Part Numbers | TA-4071, 9185-67A, 59-581-1000 |
| Includes | Timer unit only |
| Material | Plastic |
| Voltage | 120V |
| Current Rating | 15A |
| Switch Style | SPST (Single Pole Single Throw) |
| Mount Type | Panel Mount |
| Number of Terminals | 4 |
| Color | Orange bezel behind timer dial |
| Product Dimensions | 3.9 x 3.4 x 1.6 inches |
| Shipping Dimensions | 2.5 x 2.5 x 1.5 inch |
| Product Weight | 0.19 pounds |
