Diehl TA4065 24 Hour Time Clock
Borg/Diehl Controls | SKU:
TA4065
$6700/ea
Unit price
/
Unavailable
Diehl TA4065 24 Hour Time Clock is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

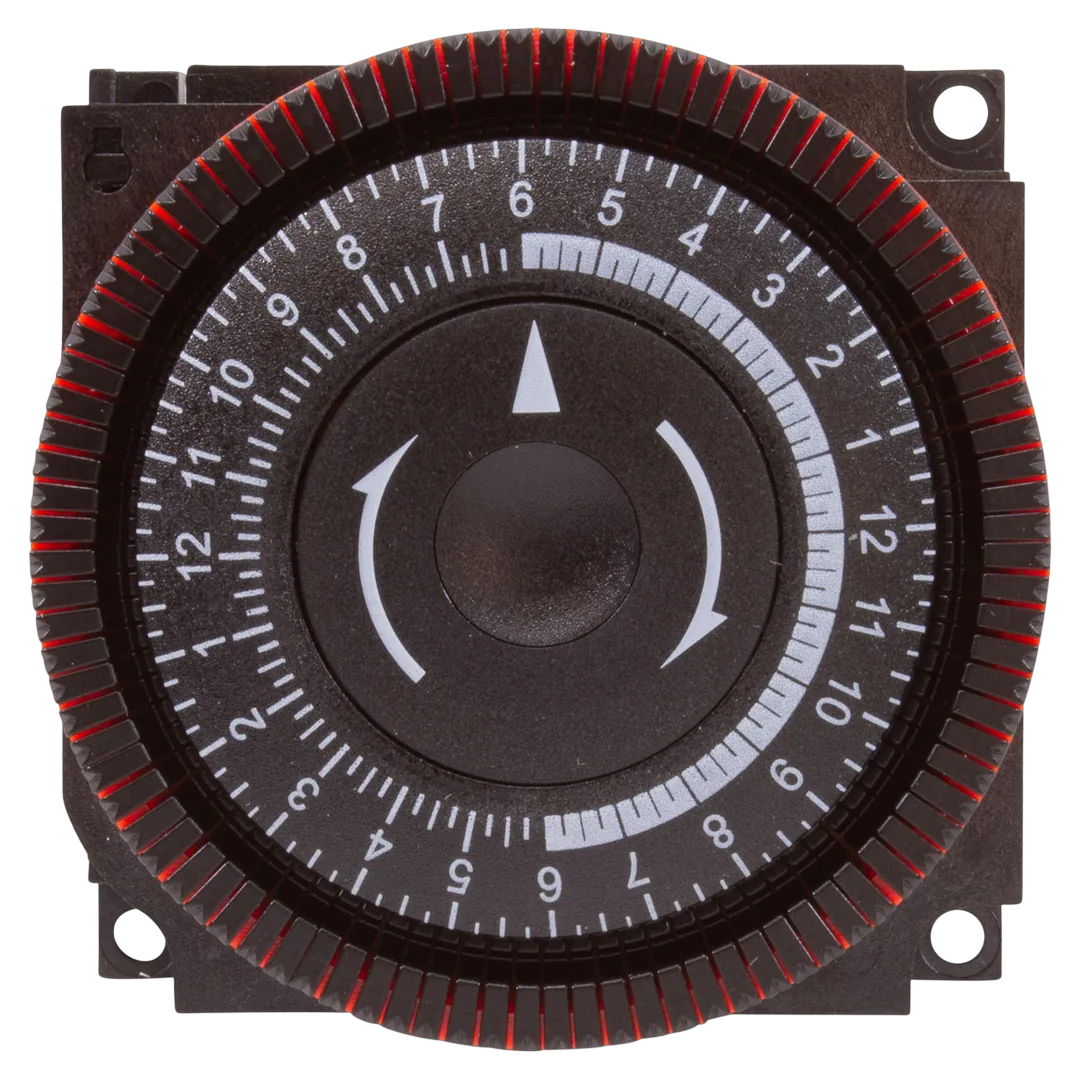

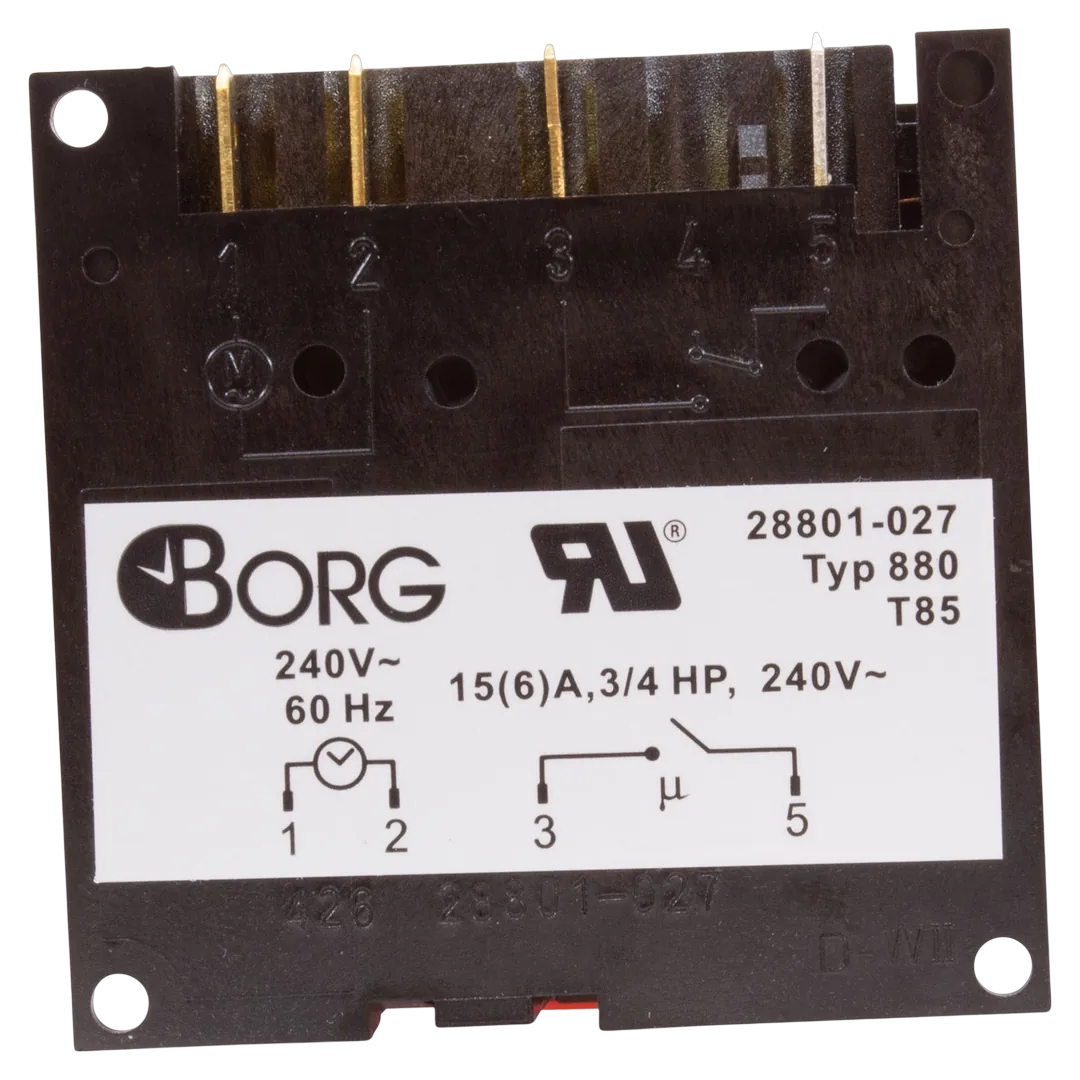

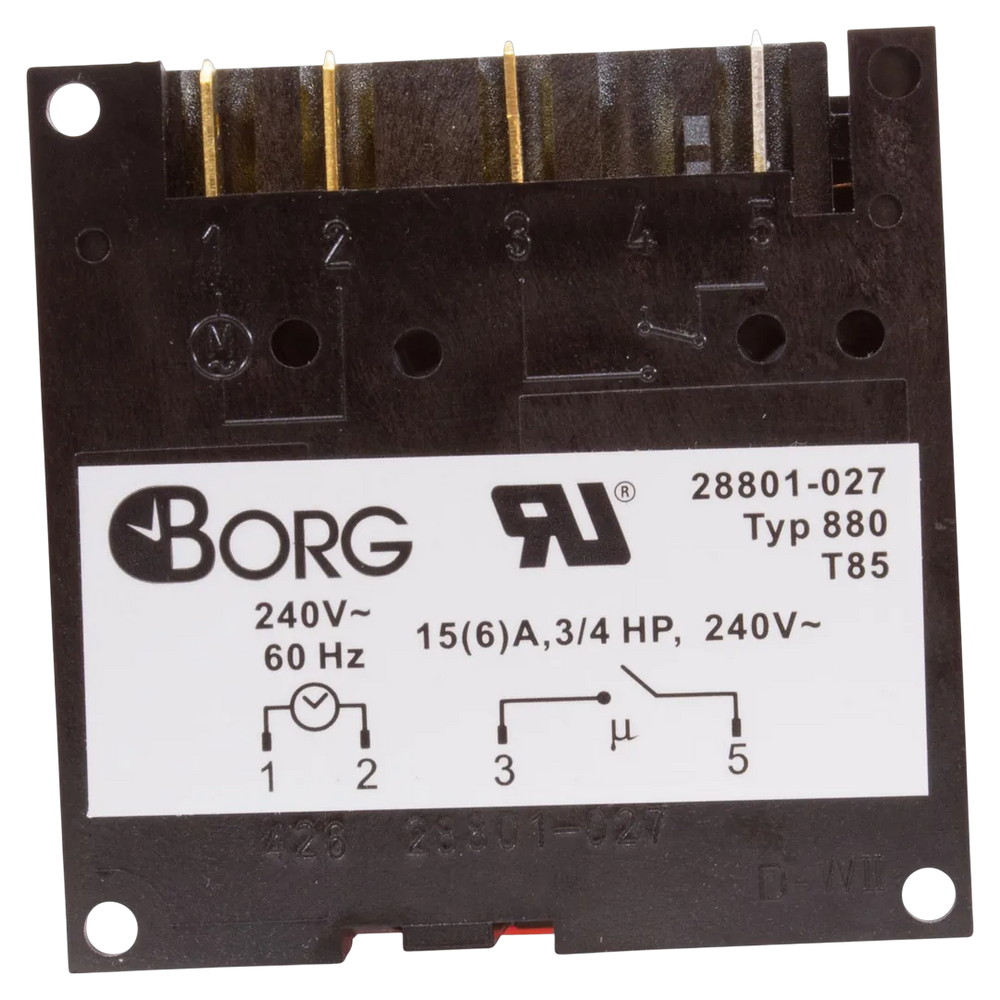

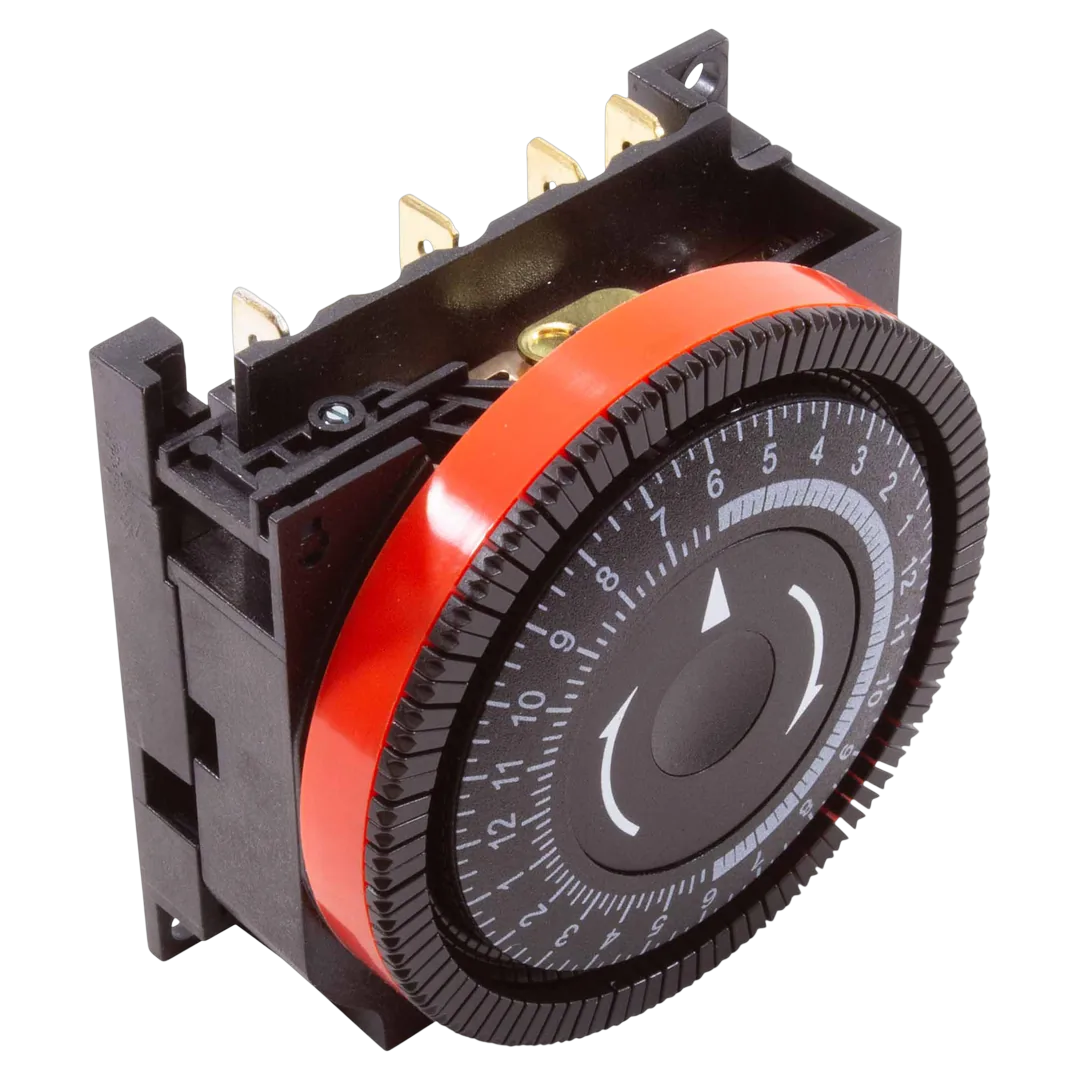

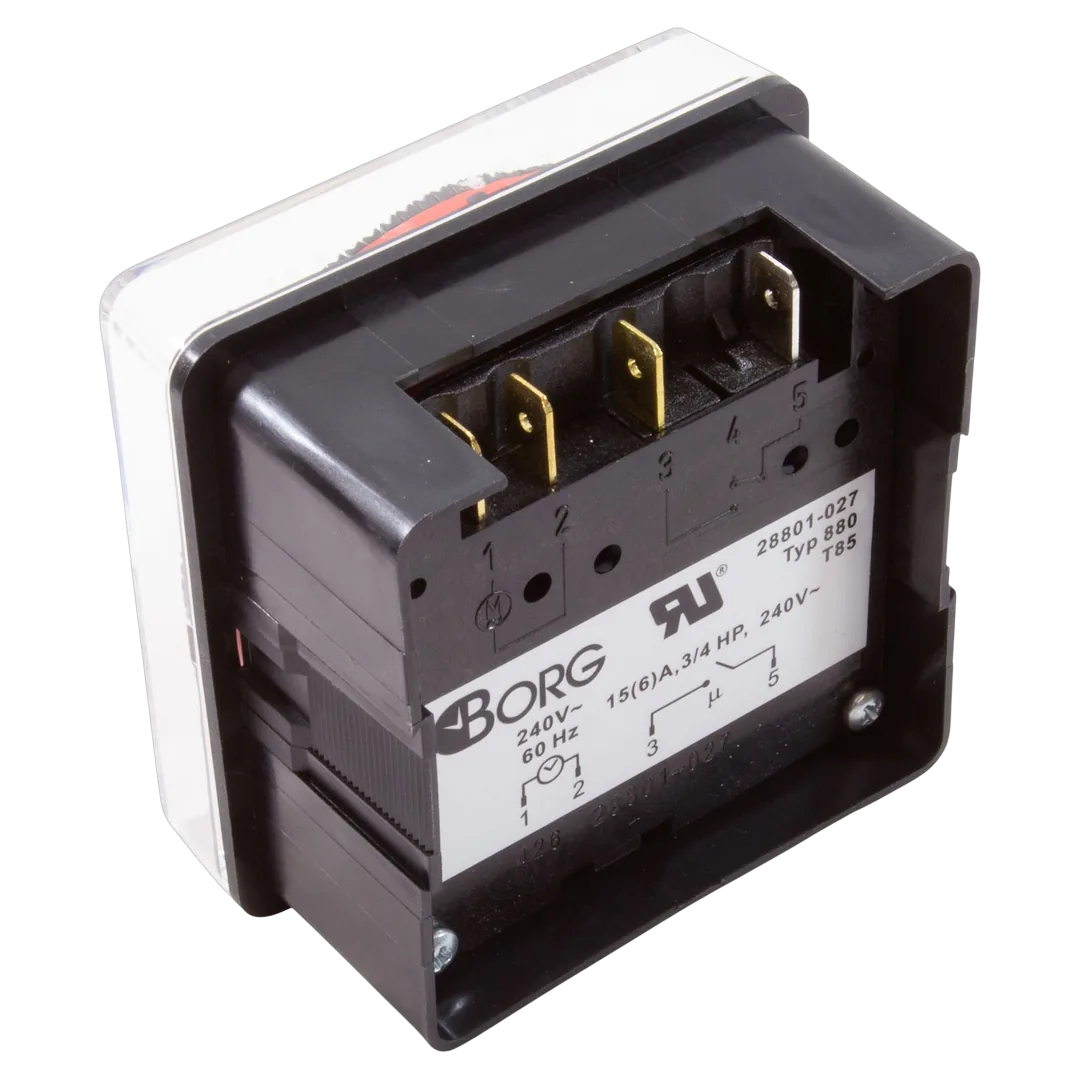

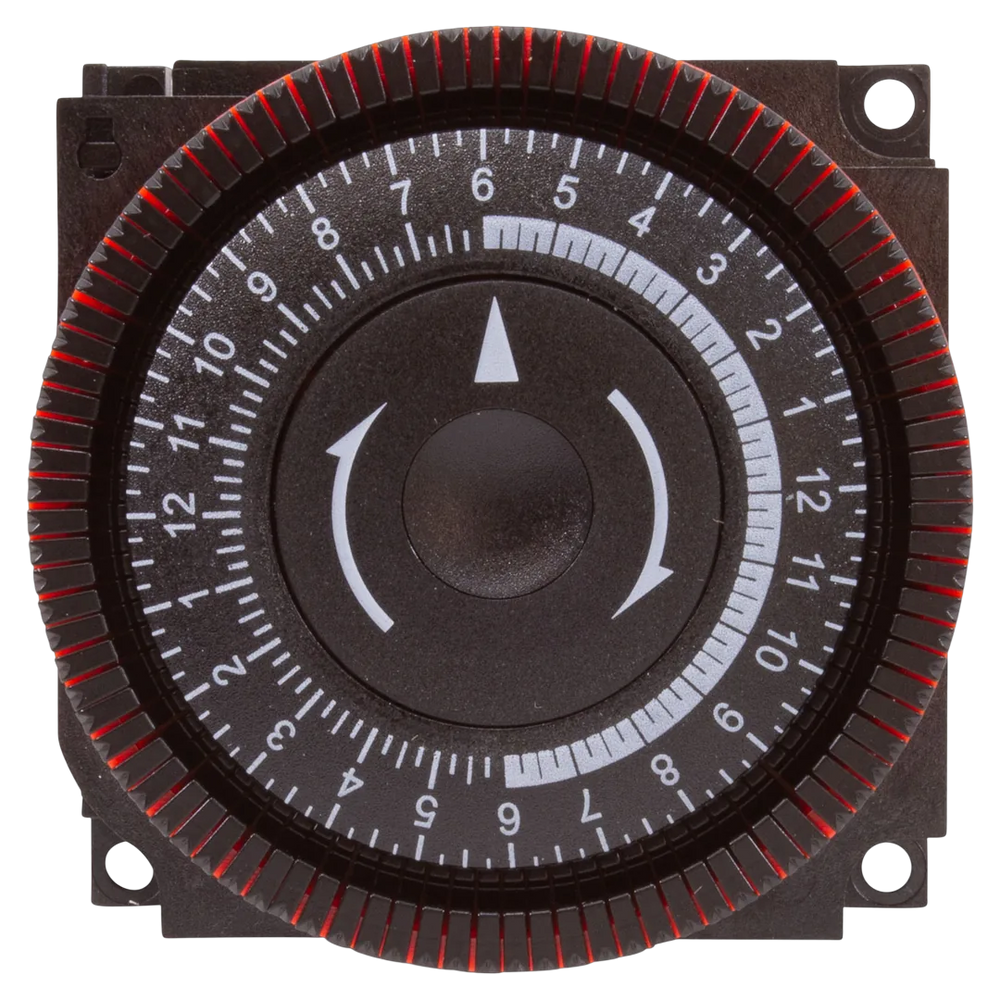

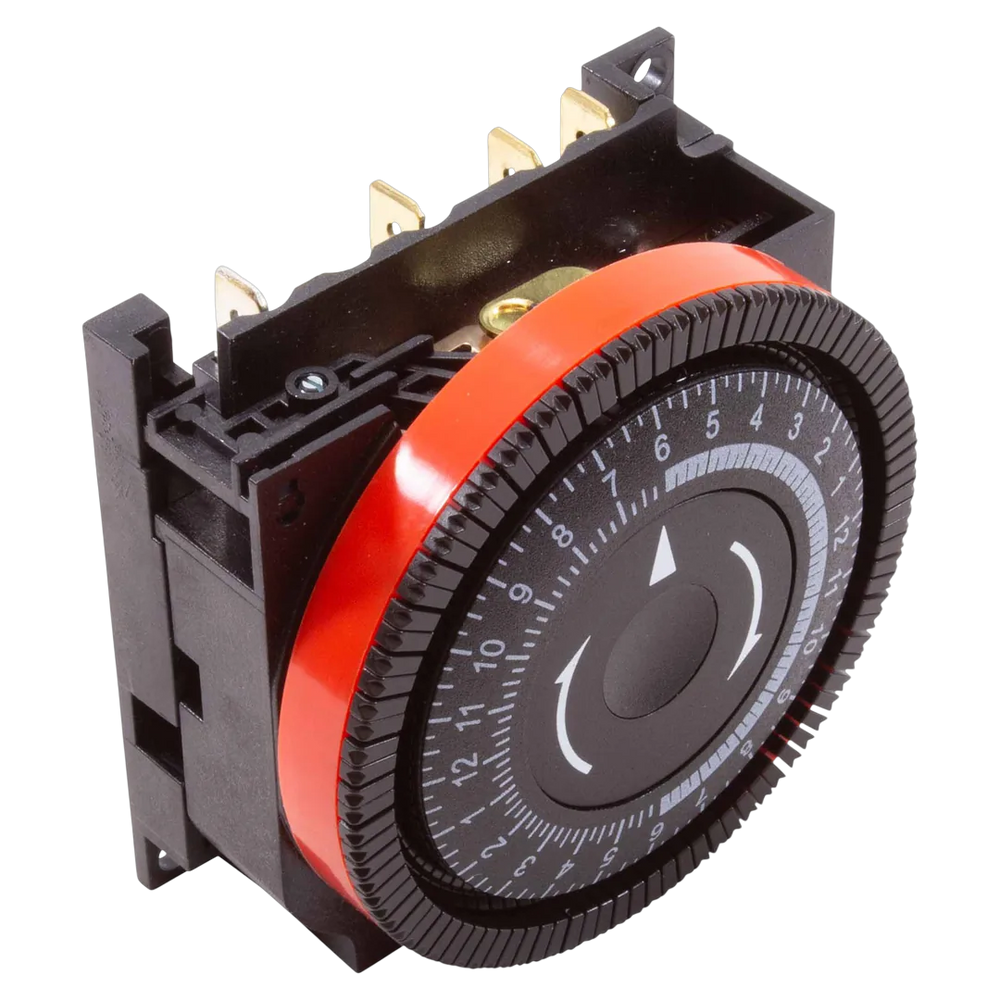

Replacement 24-hour panel-mount time clock for Diehl 800 Series spa, hot tub, and pool controllers - Borg/Diehl Controls TA4065. It controls a single circuit (SPST) and uses captive trippers to set 15-minute on/off intervals across the day (96 positions). The timer is electromechanical, mounts through a front panel, and connects with 4-lug terminals.
Includes: Timer unit only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Diehl 24-Hour Spa Timer, SPST 240V, 4-Terminal Panel Mount |
| Part Number | TA4065 |
| Part Type | Timer |
| Compatibility | Suitable for bath, whirlpool, spa, and hot tub controls |
| Substitute Part Numbers | 3-40-0016, 80-1012, 59-581-1022 |
| Includes | Timer unit only |
| Certifications | Prop 65 Warning |
| Material | Plastic housing |
| Voltage | 240V |
| Current Rating | 15A |
| Mount Type | Panel Mount |
| Shipping Dimensions | 6 x 6 x 6 inch |
| Product Weight | 0.5 pound |
